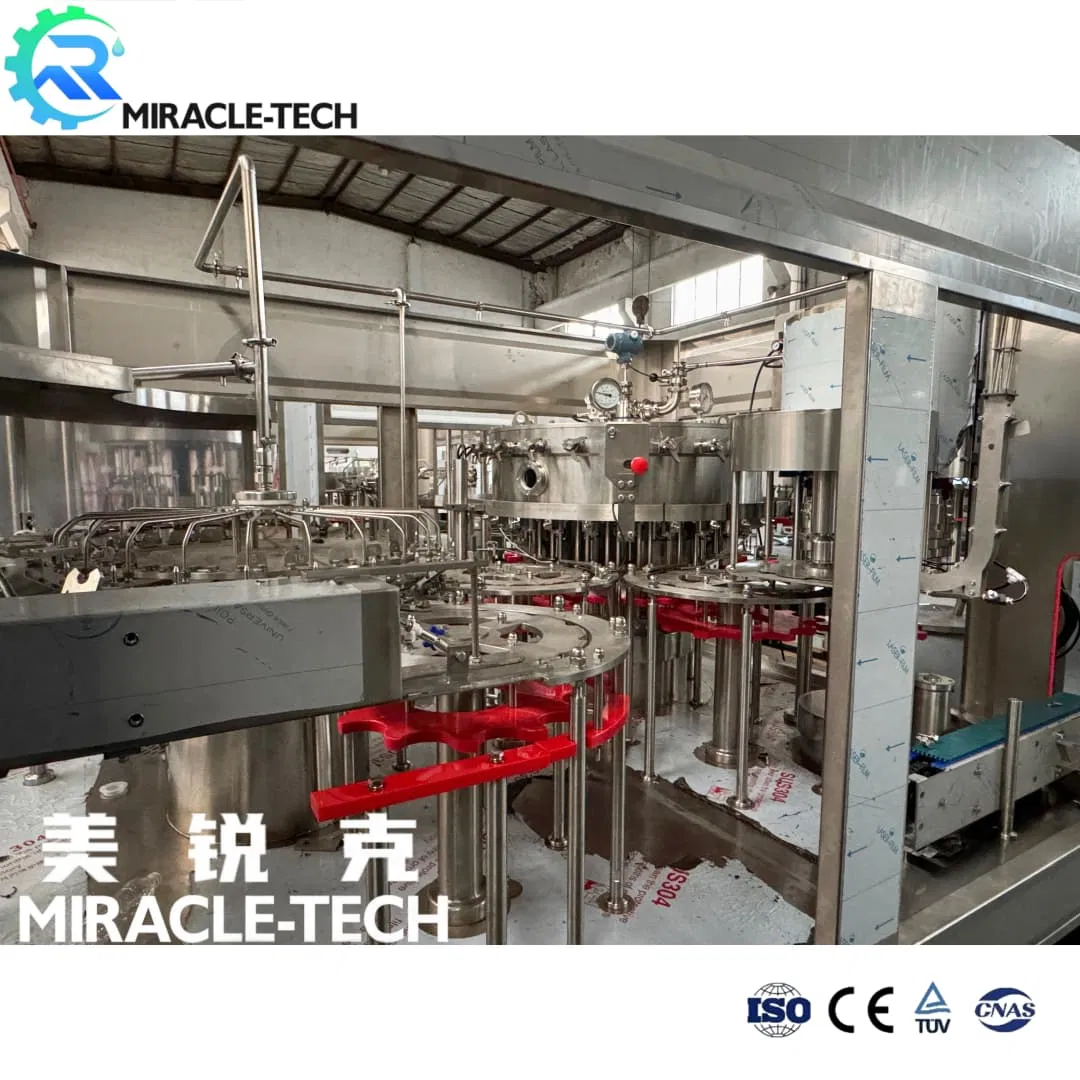

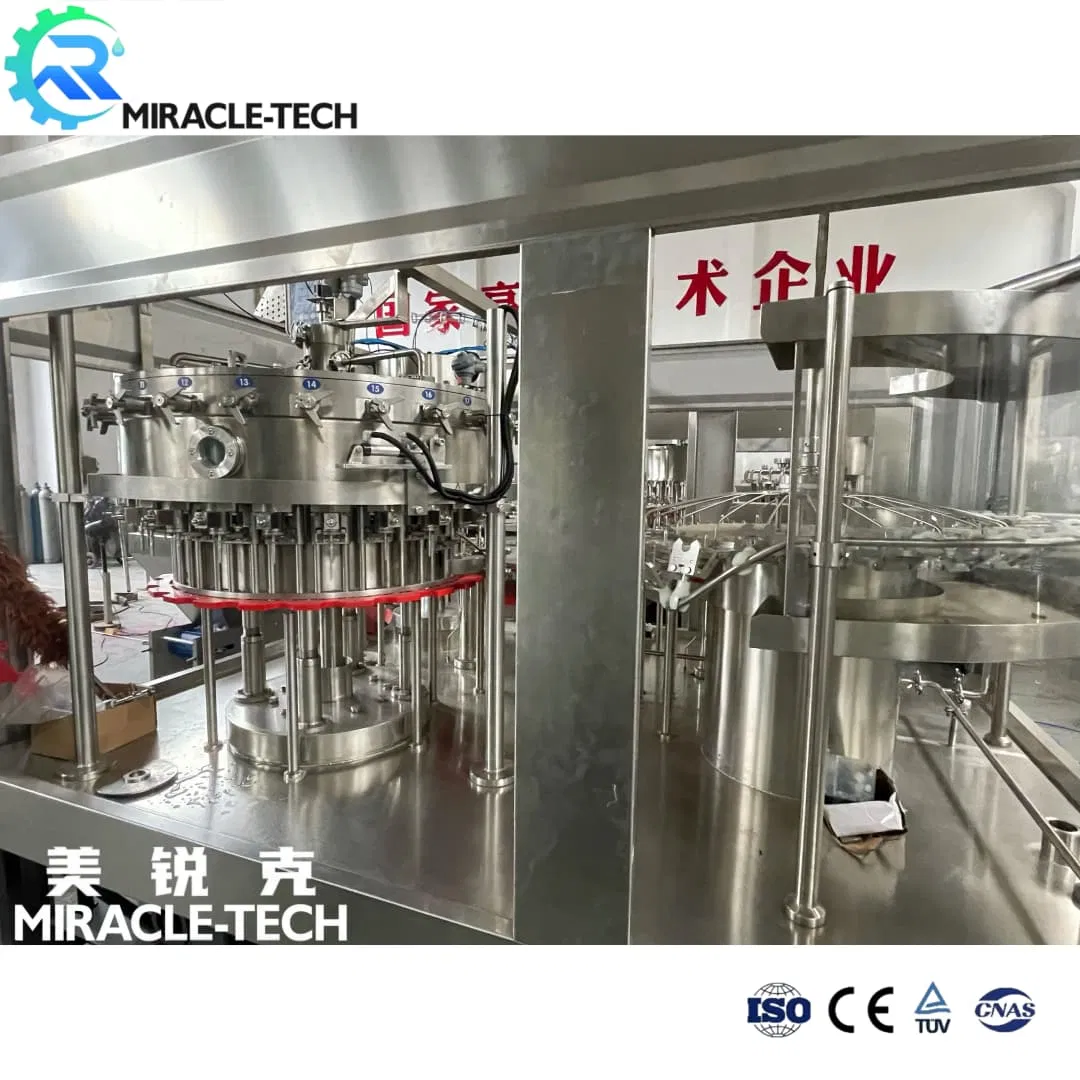

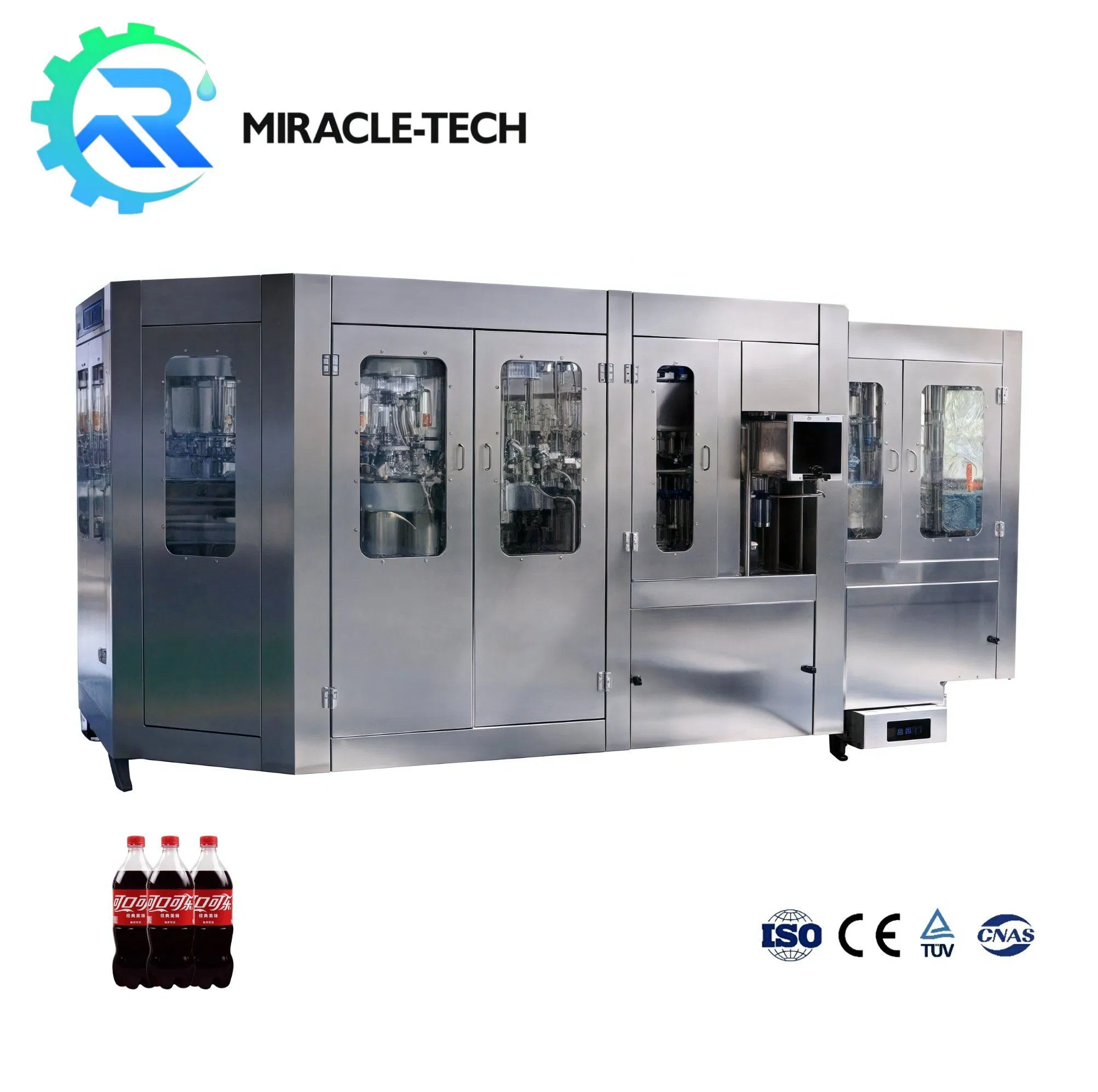

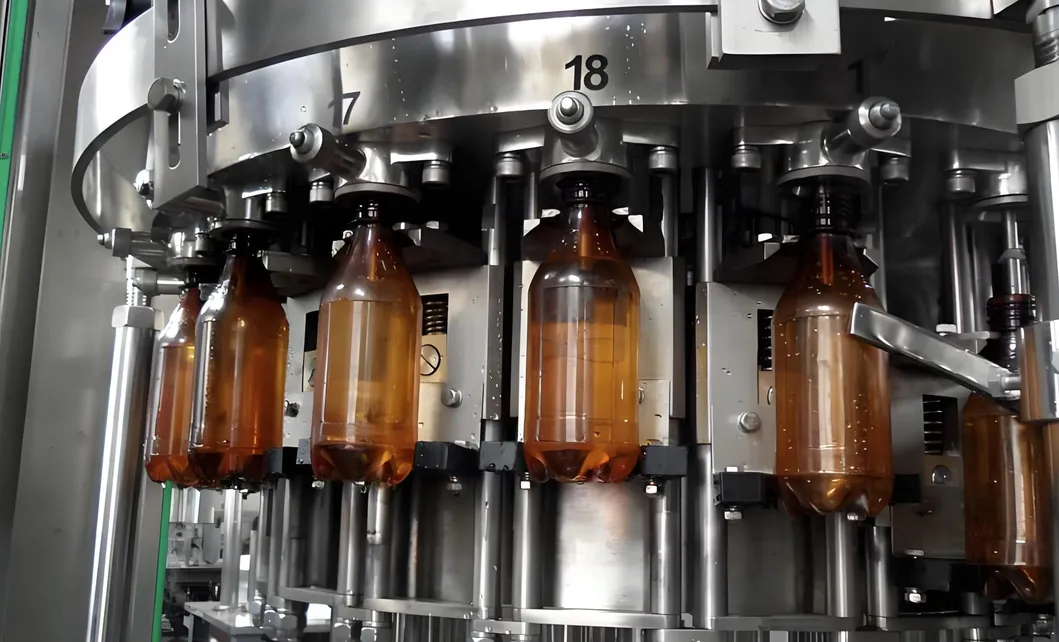

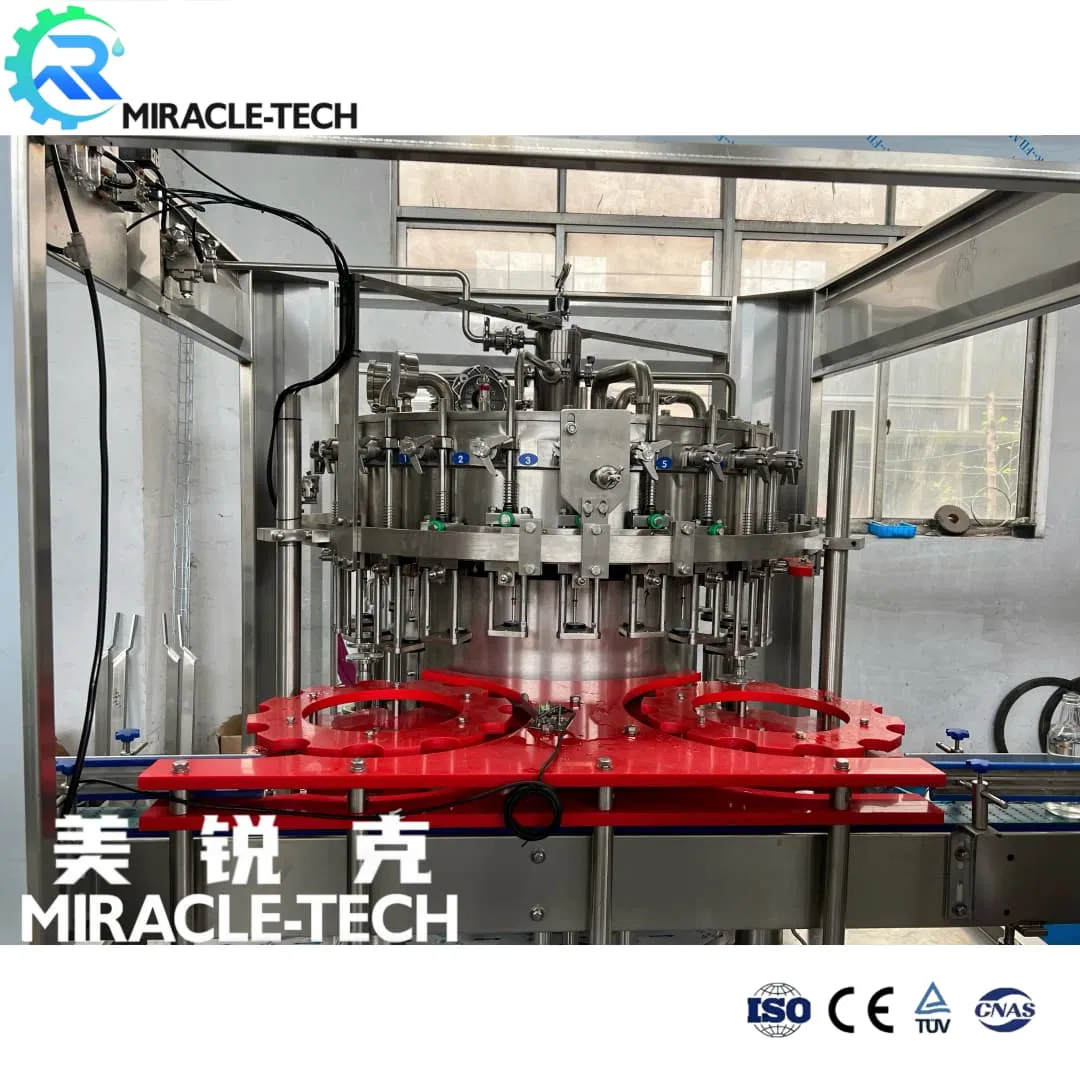

Automatic Carbonated Beverage Filling Machine / Complete Bottling Production Line

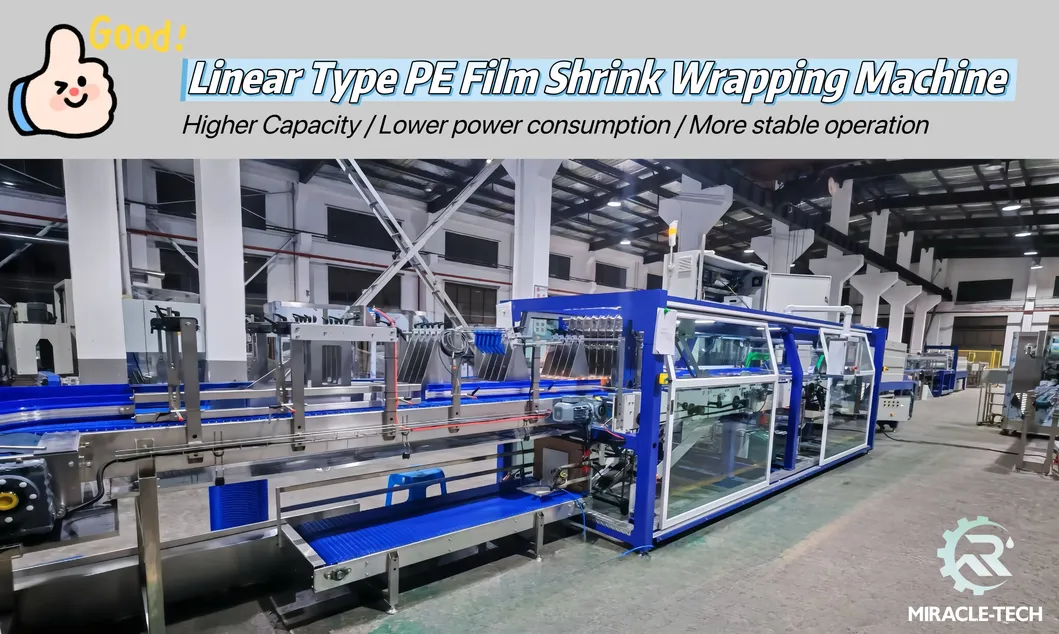

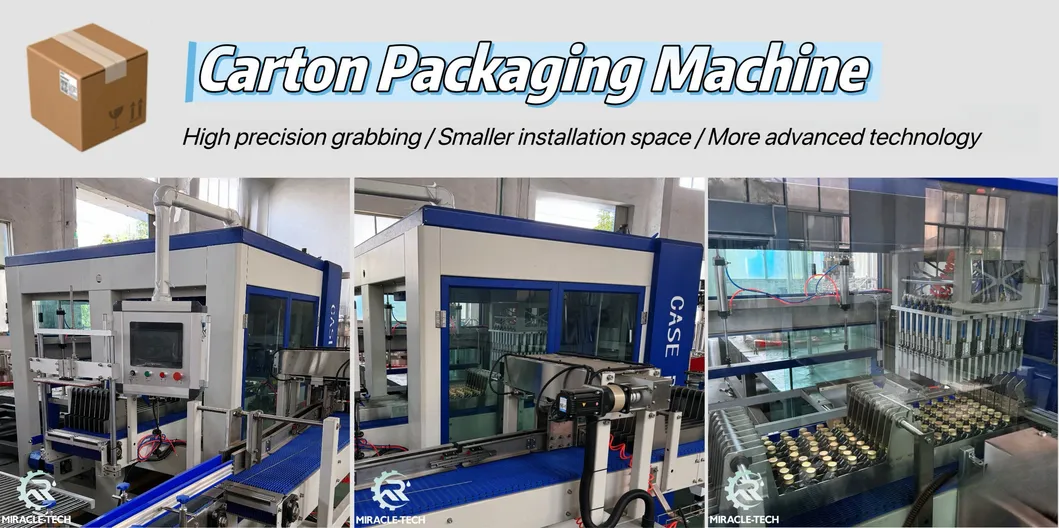

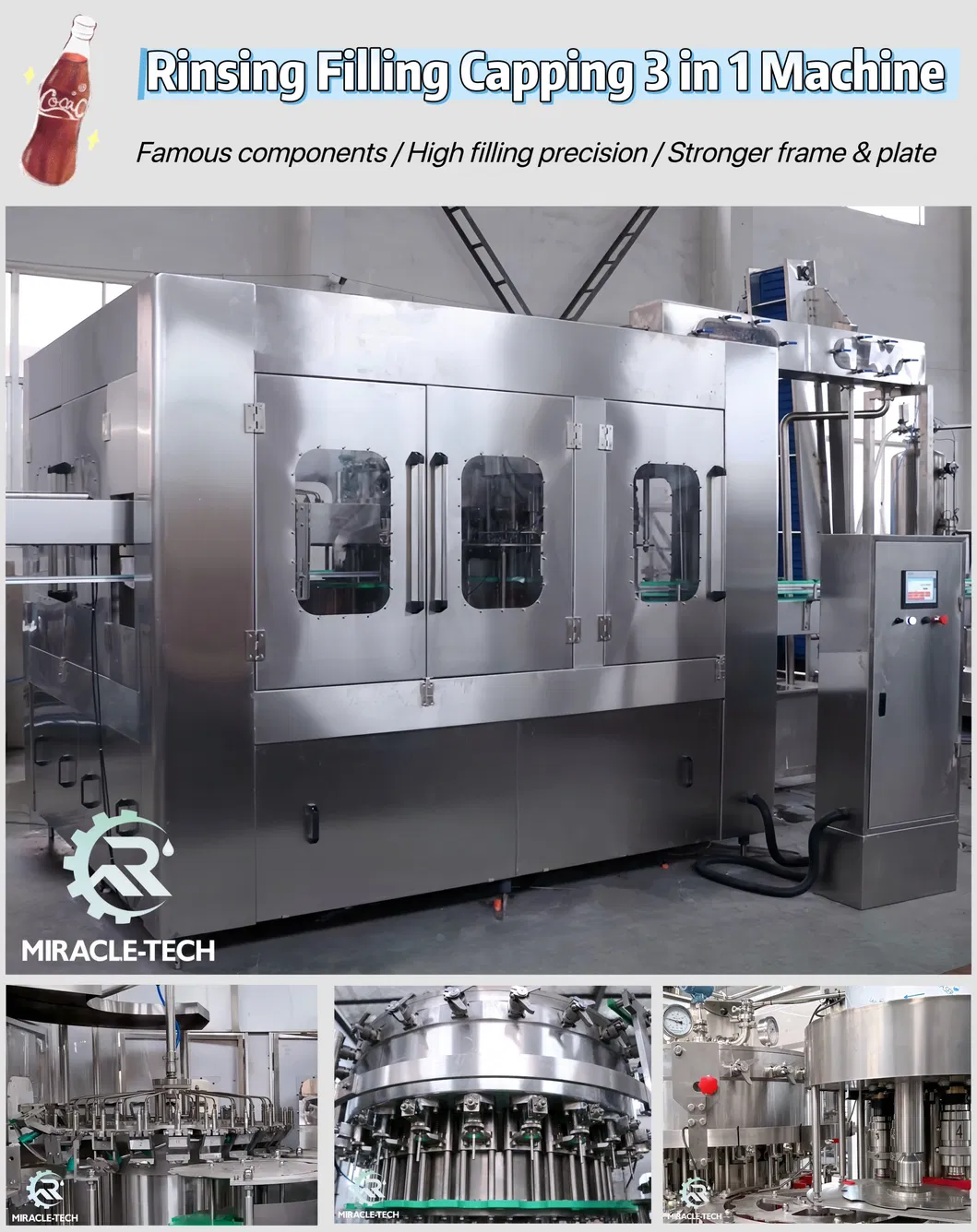

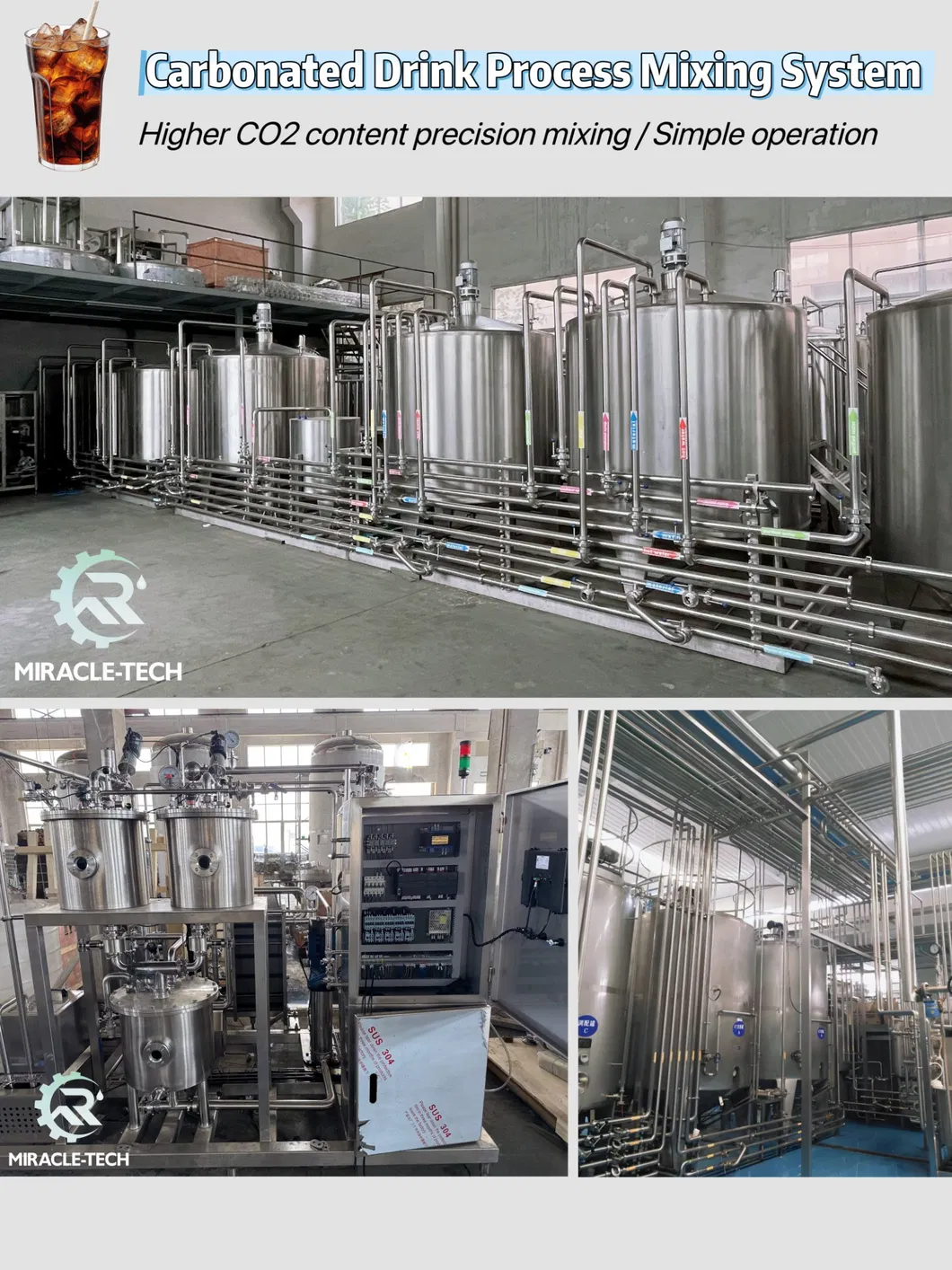

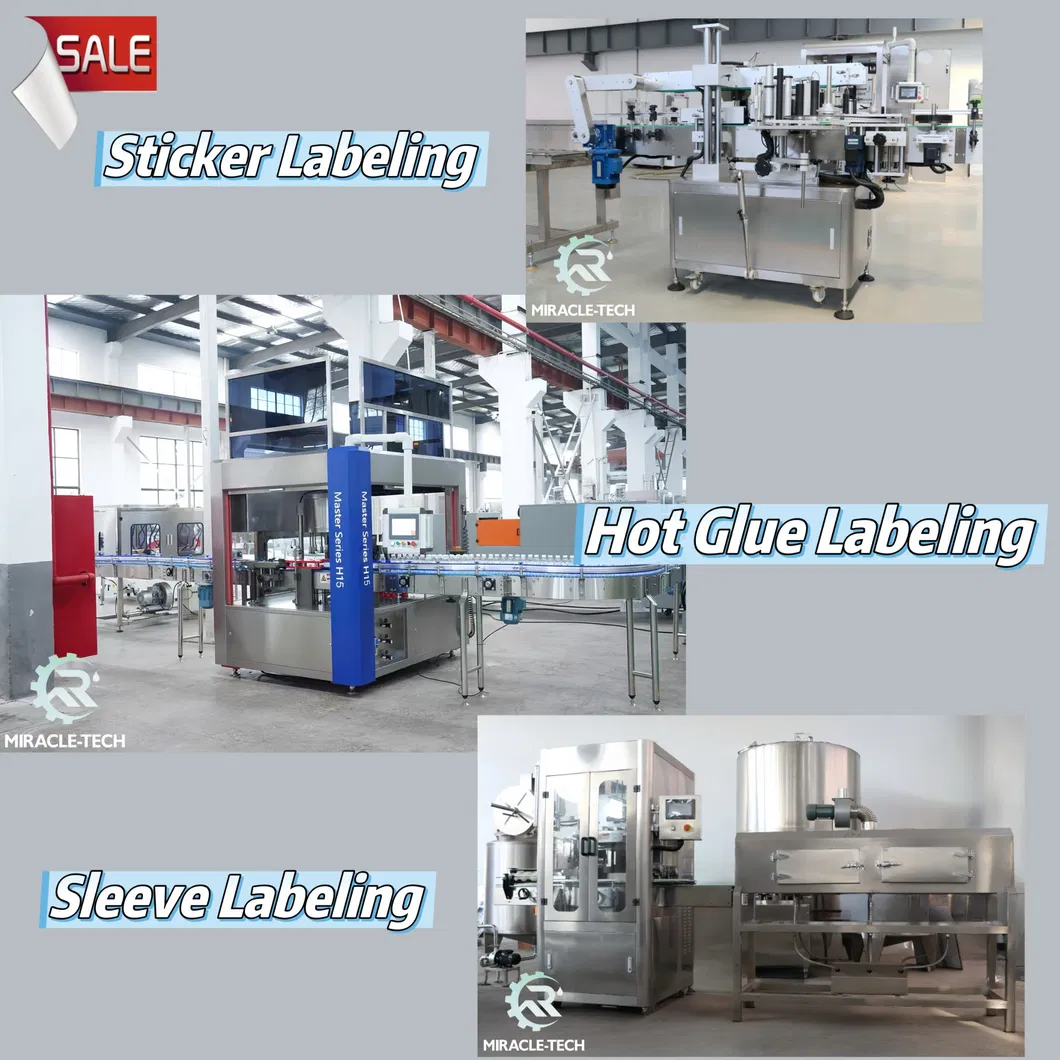

Providing professional liquid packaging solutions, focused on complete production lines including Water Treatment, Beverage Processing, Washing-Filling-Capping 3-in-1 units, Labeling, and Packing systems.
| Technical Parameter : Carbonated Beverage Filling Machine | |||||
|---|---|---|---|---|---|
| Model | DCGF14-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 |
| Capacity (500ml) | 2000-2500 | 4000-5000 | 6000-7000 | 8000-10000 | 12000-15000 |
| Bottle Diameter | φ40-φ120 | ||||
| Filling Method | Isobaric filling | ||||
| Power | 4.5KW | 5.5KW | 6.2KW | 7.5KW | 8.2KW |
| Weight | 3200KG | 4300KG | 5500KG | 6800KG | 8500KG |

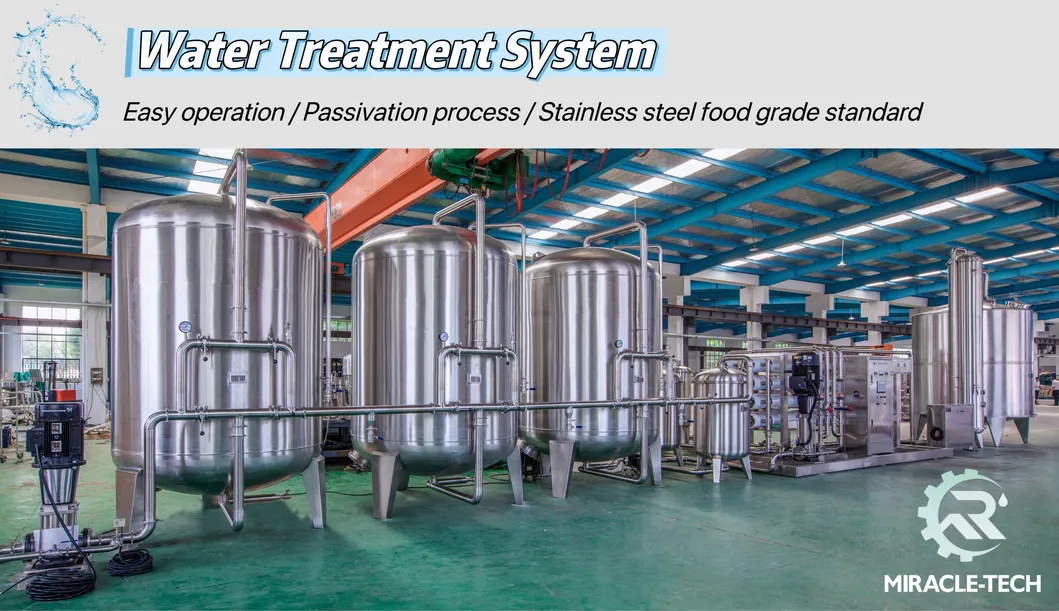

💧 Water Treatment System Process:
Raw water input -> Raw water pump -> Silica sand filter -> Active carbon filter -> Sodium ion exchanger -> Precision filter -> Reserve osmosis (RO) -> UV sterilizer -> Pure water tank.
🔄 PET Bottle Production:

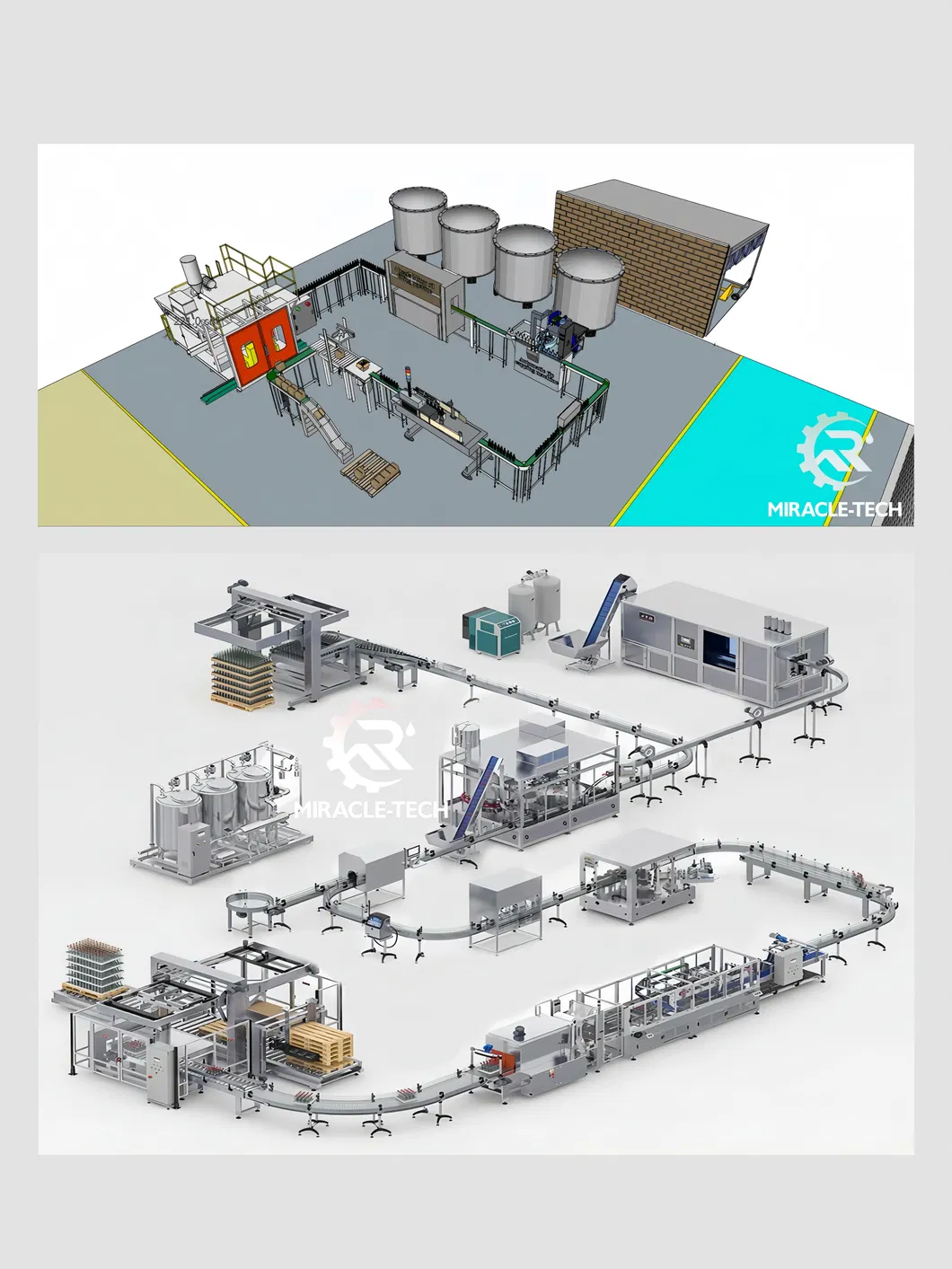

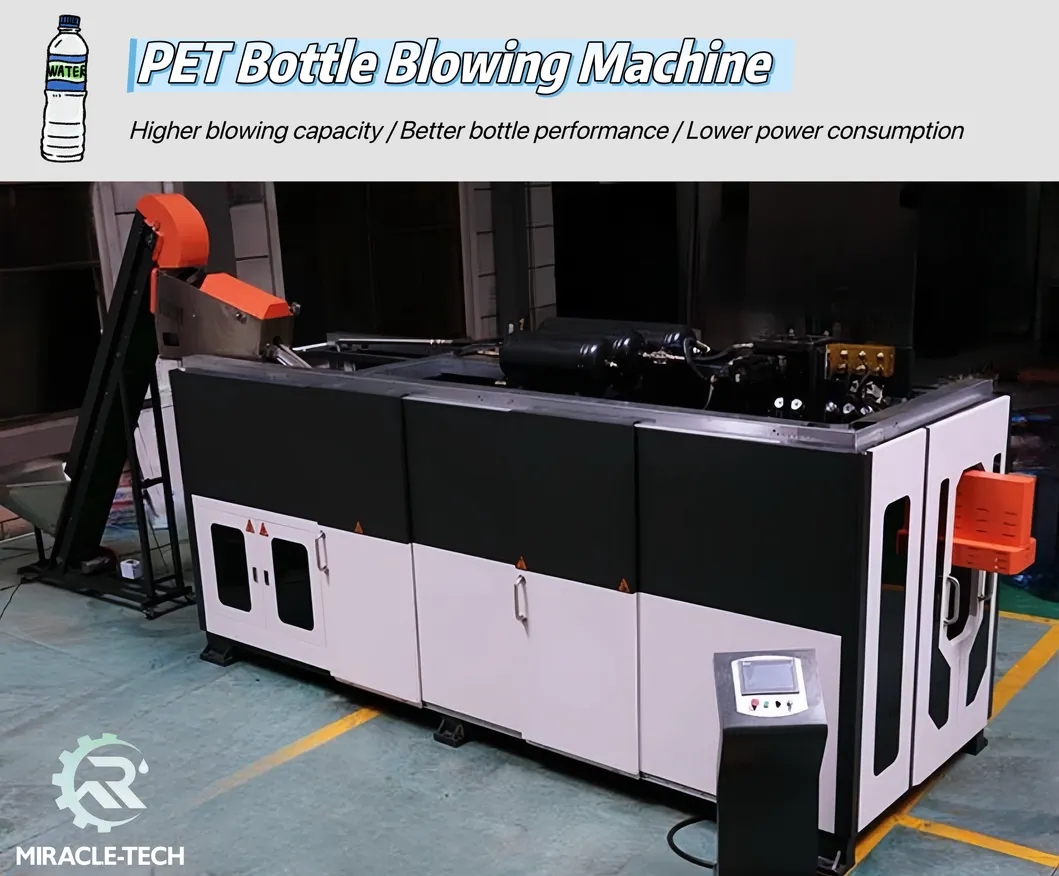

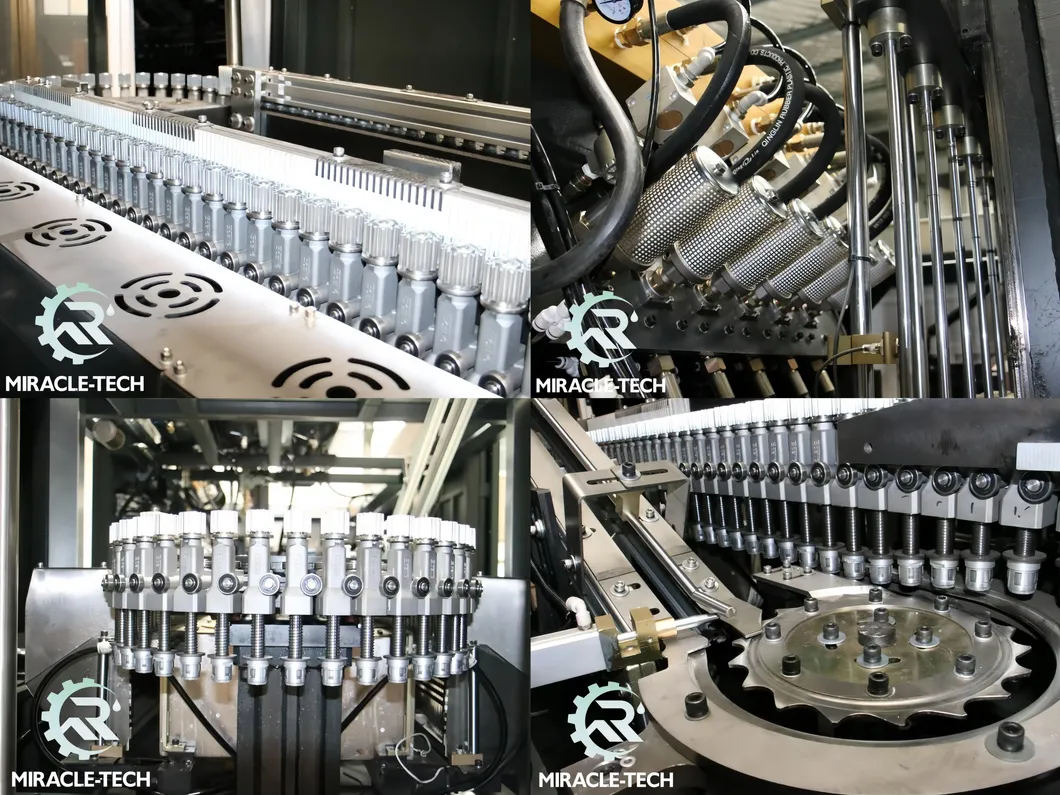

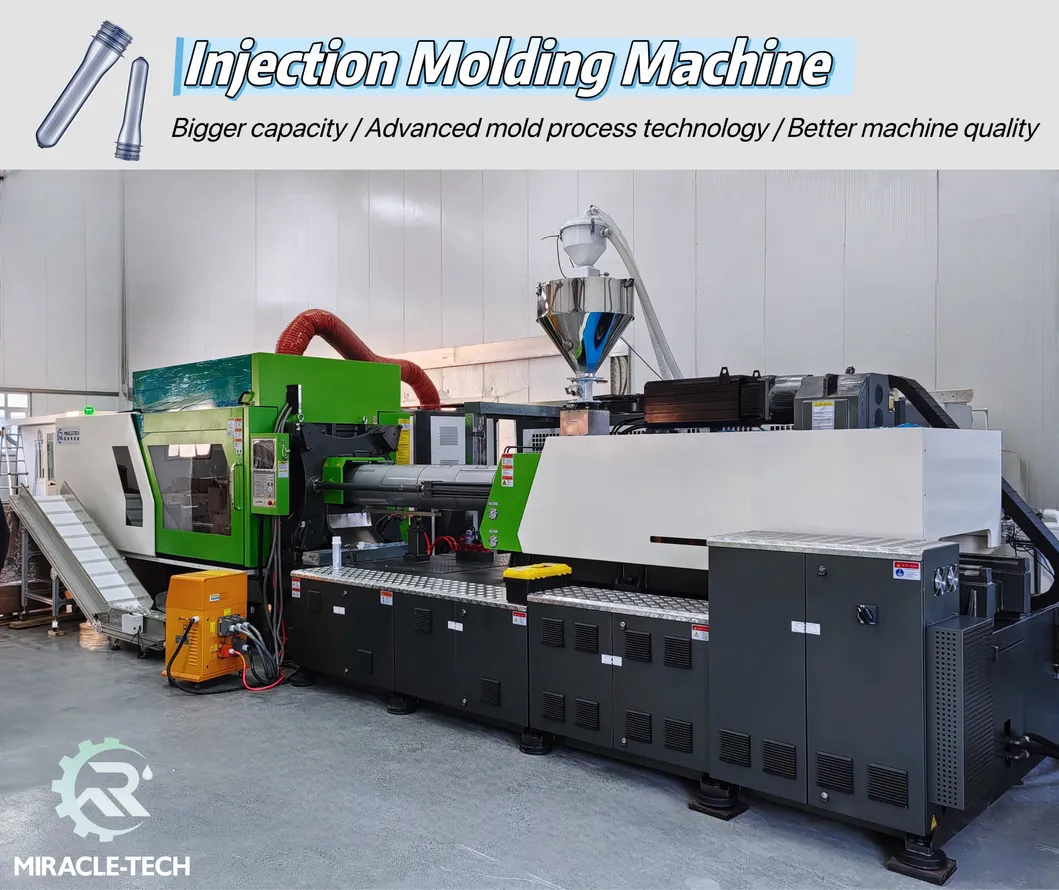

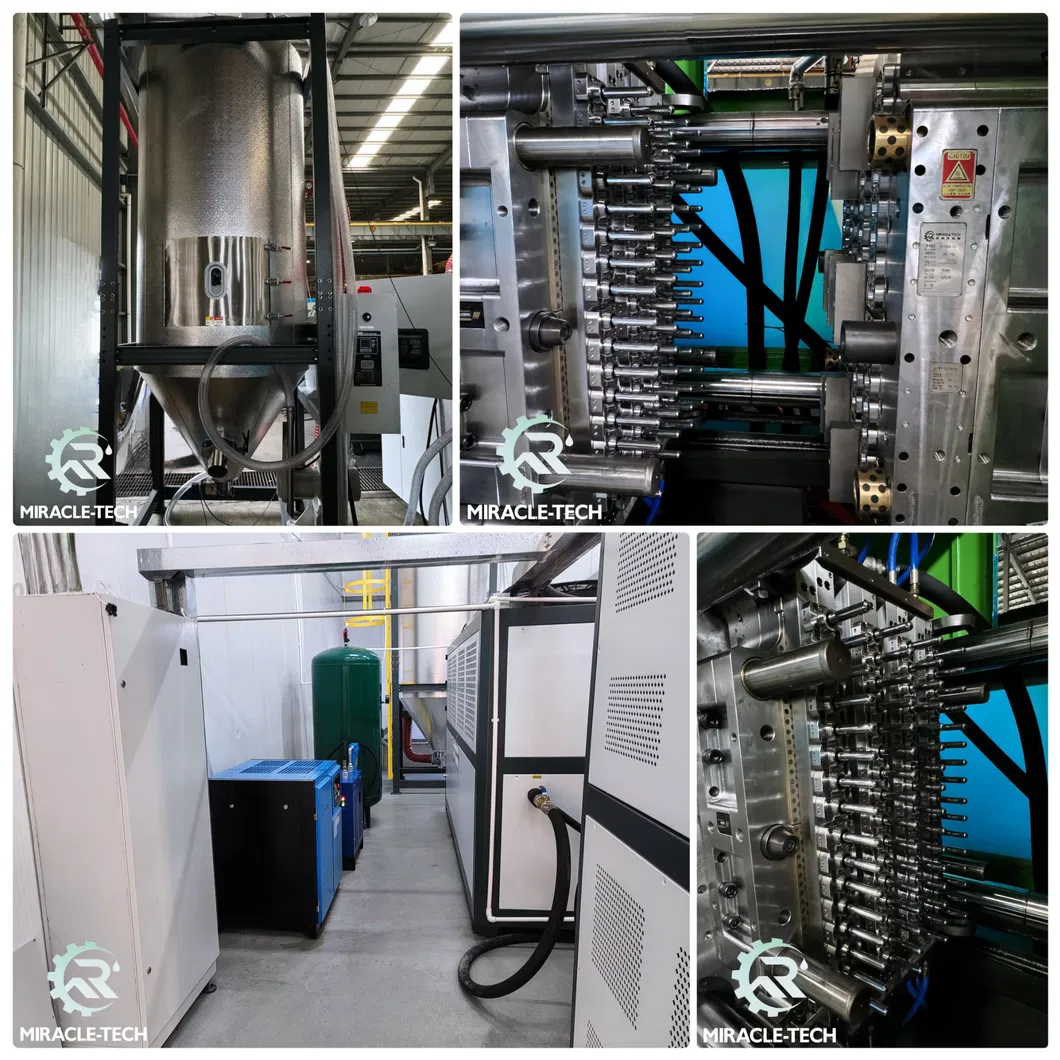

Fully automatic servo electric PET bottle blowing machines and injection molding machines for preforms and caps are available for a complete A to Z turnkey project.
