Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
1 / 5
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System
Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System

Small Bottle Automatic Filling Machine Water Bottling Line Juice Soda Drink Beverage Mixing Carbonation Processing System

Customization: Available
After-sales Service: 24 Months
Warranty: 2-Year Warranty
Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.
CGF
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Structure
Rotary
Packaging Material
Plastic / Glass
Product Name
Water Bottling Machine
Machine Material
SUS304 / SUS316L
Filling Accuracy
±1%
Capacity
2000bph - 24000bph
Bottle Volume
0.2L - 2L
Control Method
PLC
Certificate
CE, ISO, SGS, CNAS

💧 Product Overview

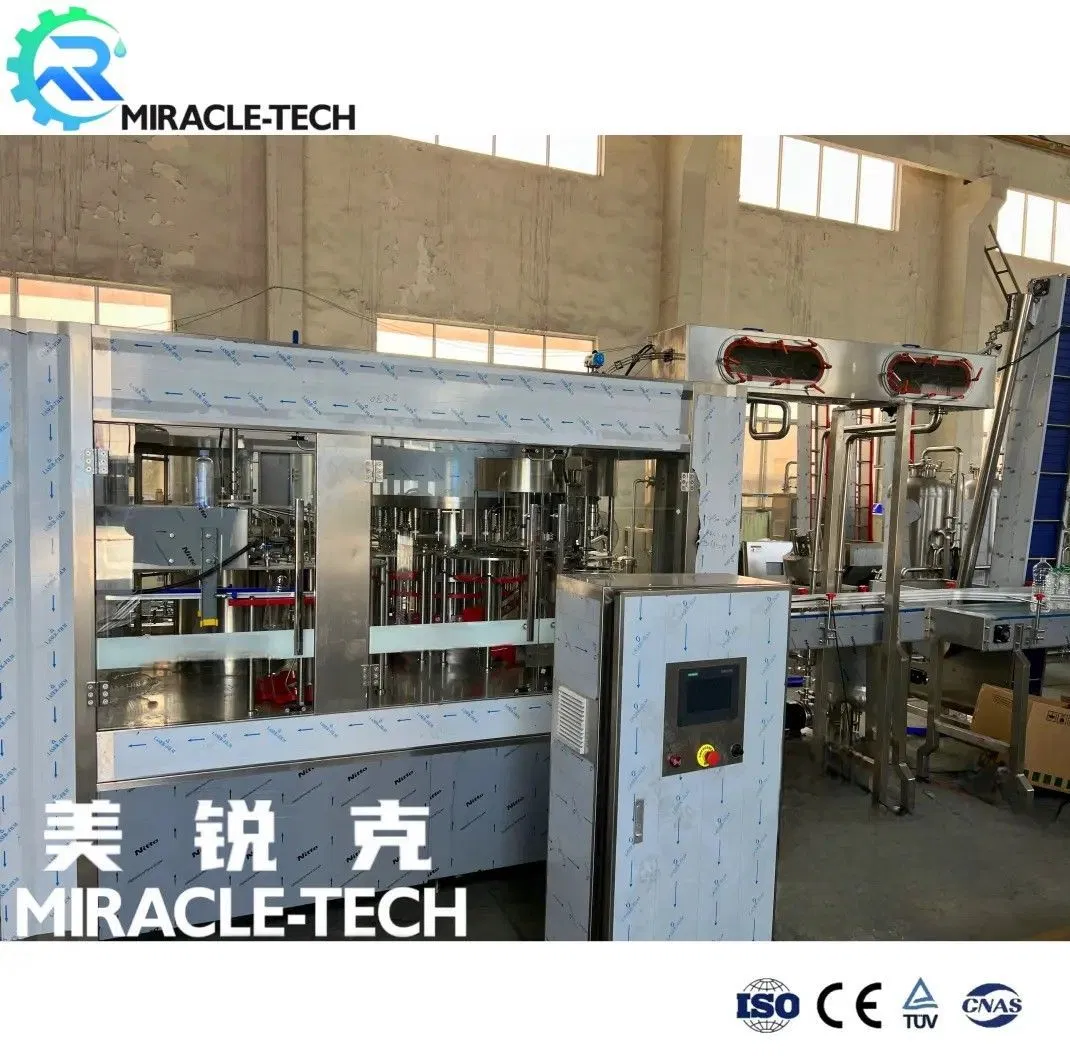

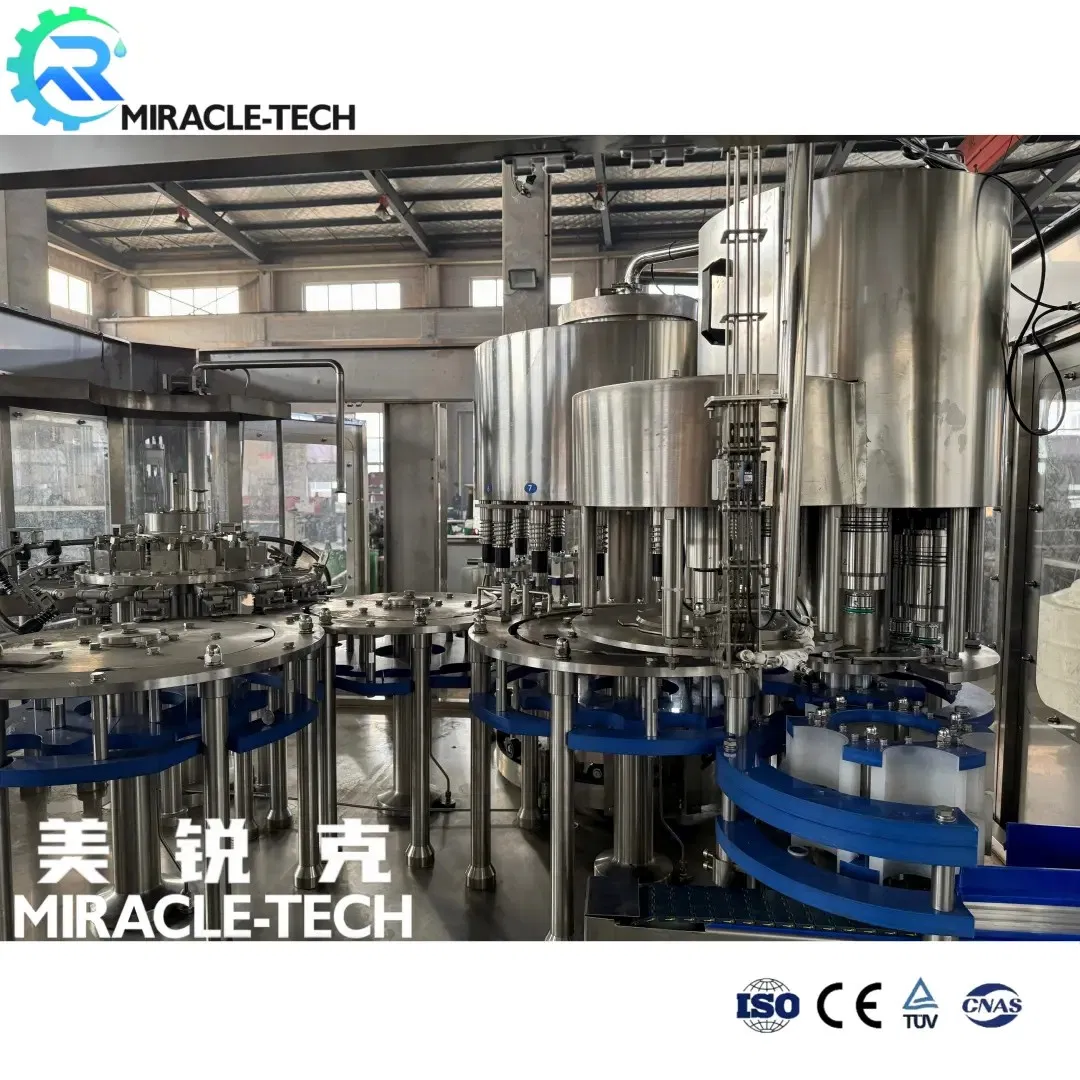

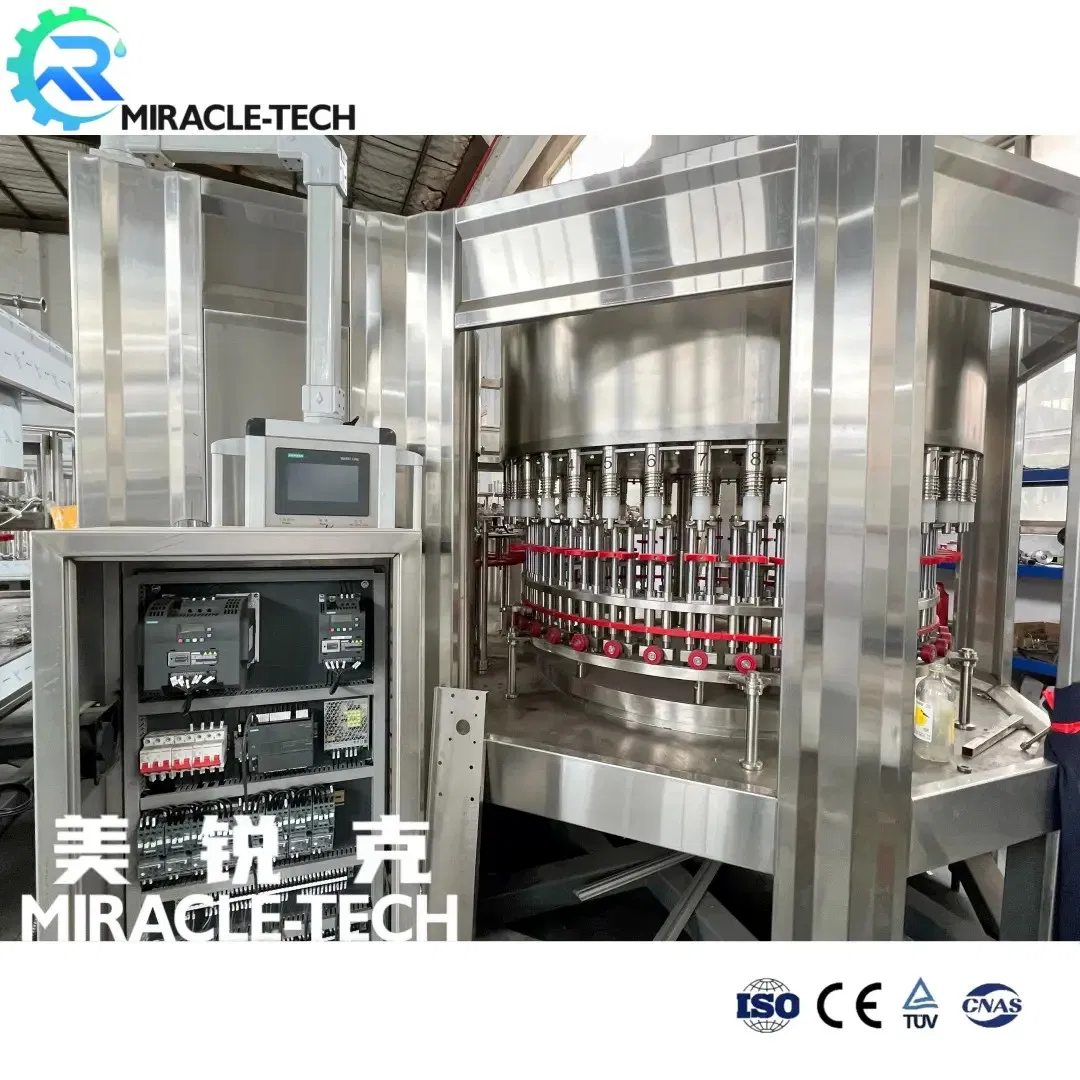

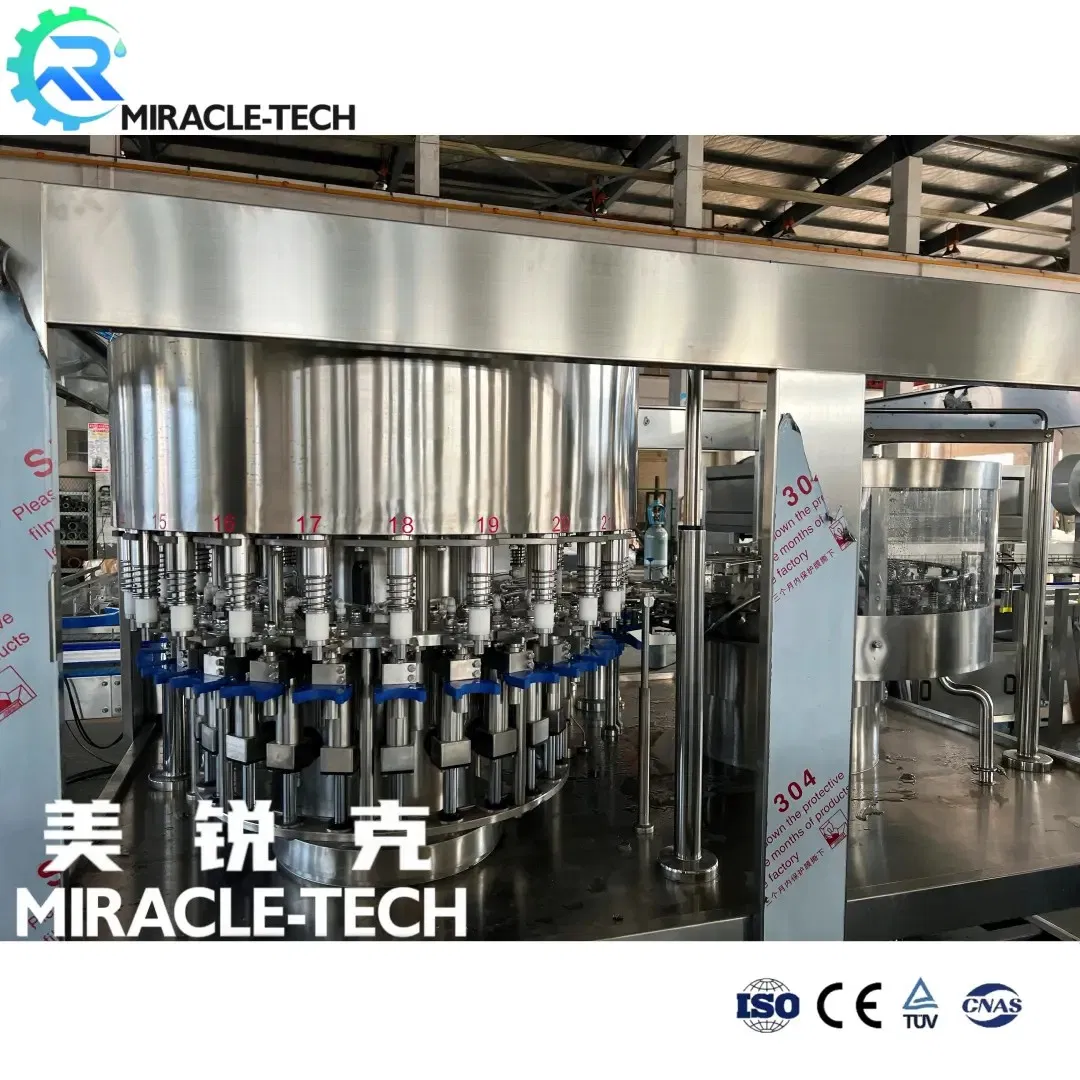

Automatic Filling Machine

Automatic Drinking Pure / Mineral Water Filling Machine

Providing professional and advanced liquid packaging solutions. We focus on complete production lines including water treatment, 3-in-1 washing filling capping, labeling, and automatic packing systems.

Model CGF8-8-4 CGF14-12-5 CGF16-16-5 CGF24-24-8 CGF32-32-10 CGF40-40-12 CGF50-50-15
Capacity (500ml) 3000 4500-5000 7000-8000 10000-12000 14000-16000 18000-20000 24000
Bottle Diameter φ40-φ120mm
Bottle Height 150-350mm
Power (KW) 4KW 4.5KW 5KW 5.5KW 6.2KW 7.4KW 8.8KW
Weight (KG) 3000 3500 4000 4800 6500 8000 10000

🚀 Key System Features

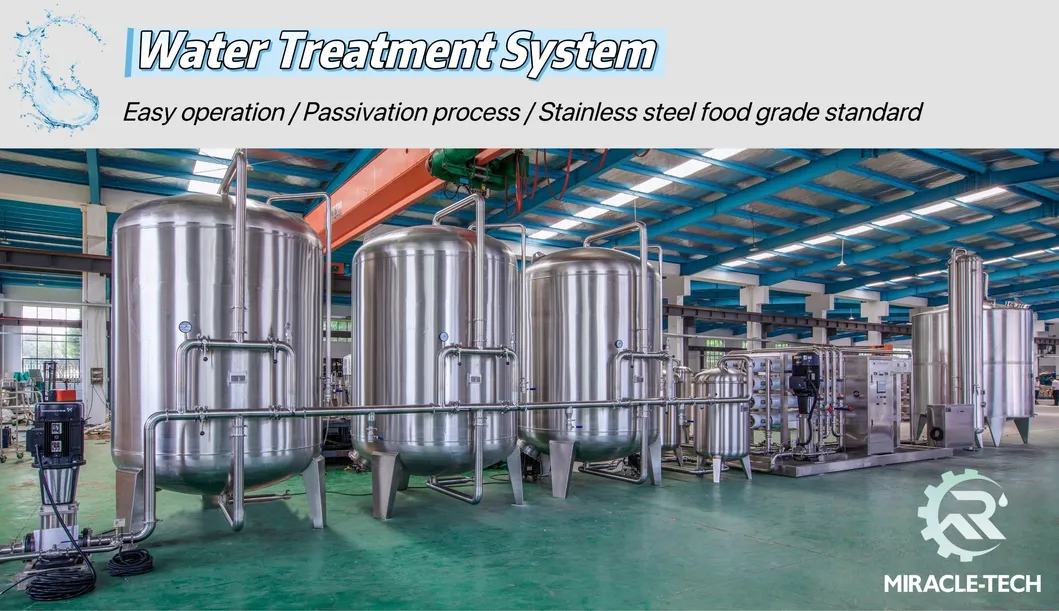

Water Treatment System
🛡️
Advanced Connection: Direct connection between the wind conveying channel and moving wheels inside the bottle for easier shape changes.
💎
Neck Clamping Technology: Transfer via bottle neck clamping; changeovers only require replacing relevant curved plates and wheels.
⚡
High-Speed Valves: Large gravity flow filling valves ensure fast speed, high accuracy, and zero liquid loss.
🧠
PLC Control: Mainframe adopts automatic PLC control with international standard electrical components.
✨
Sanitary Design: Stainless steel washer clamps avoid contact with bottle neck screws to prevent secondary contamination.

📸 Machine Details & Components

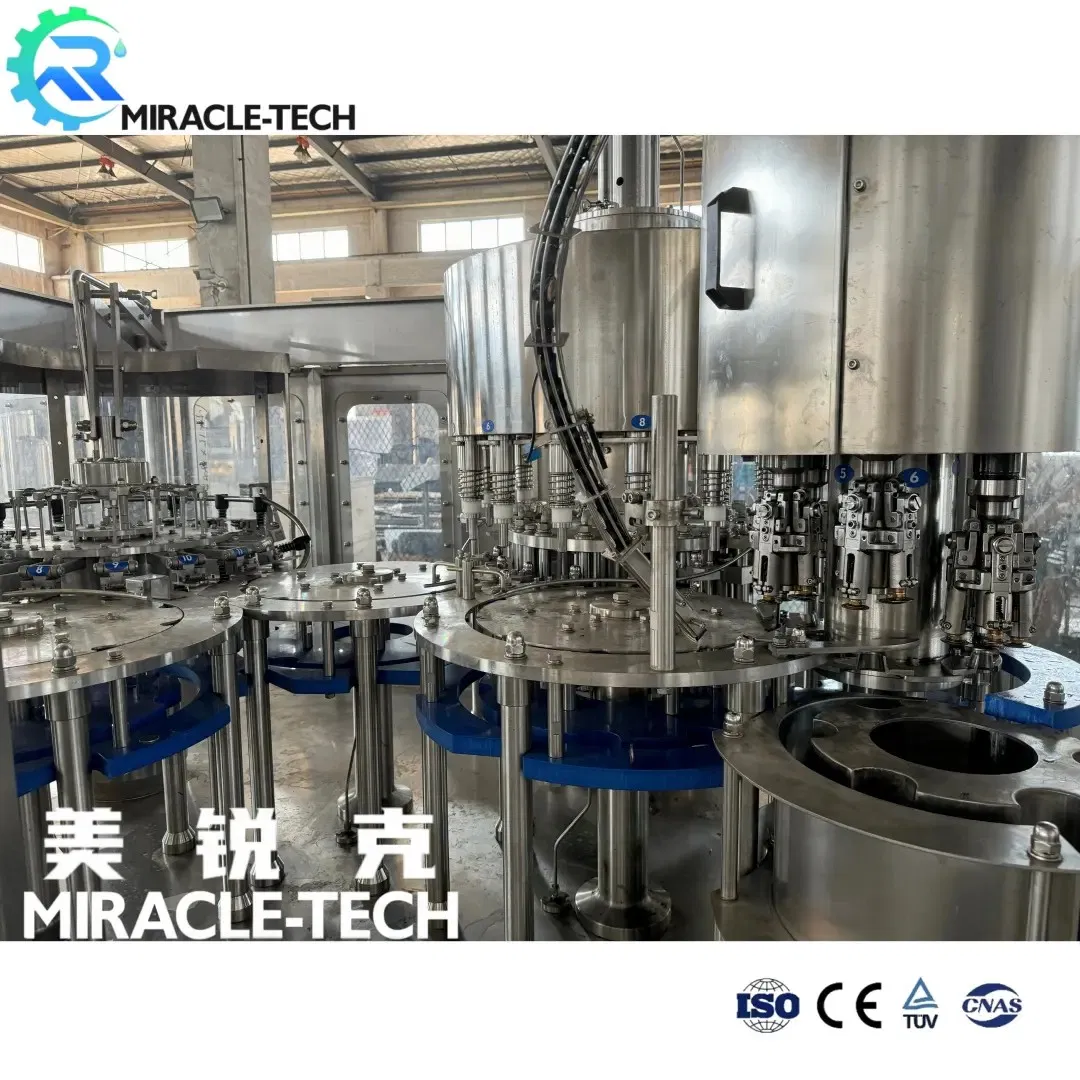

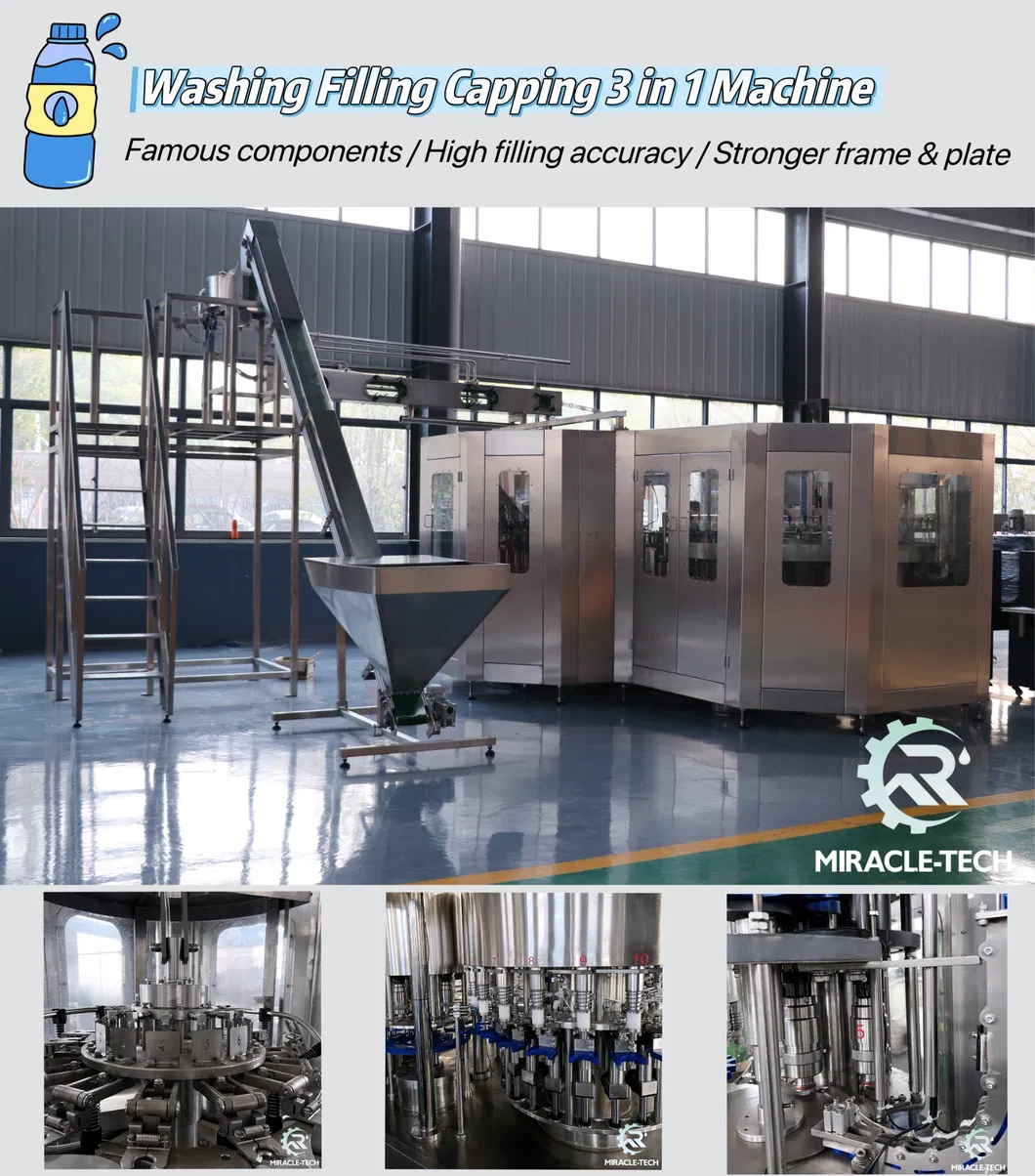

Mechanical Details

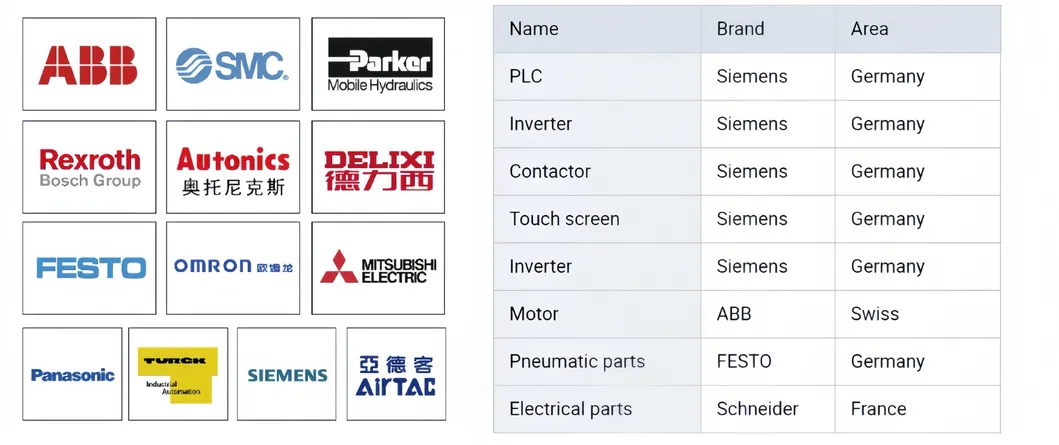

Configuration List

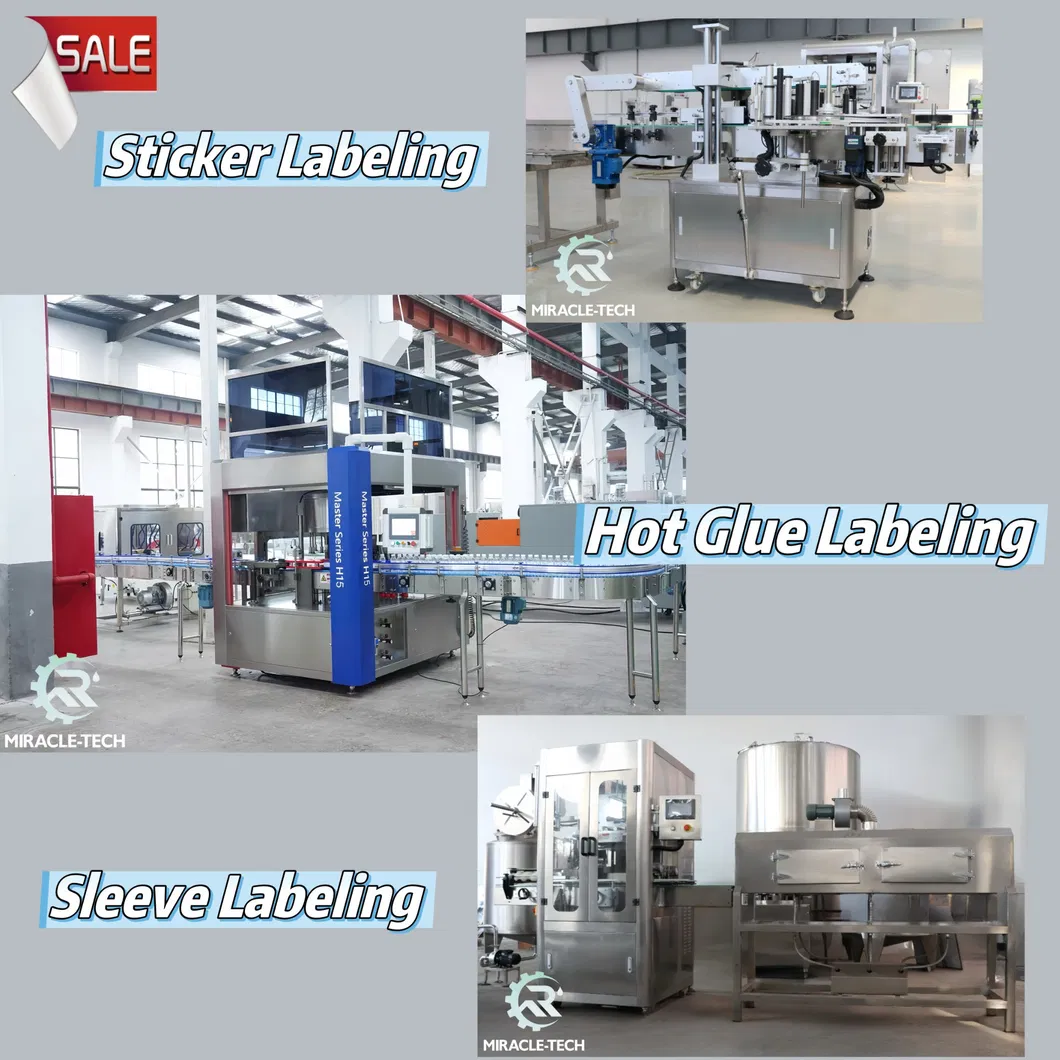

Labeling Machine

Labeling Solutions

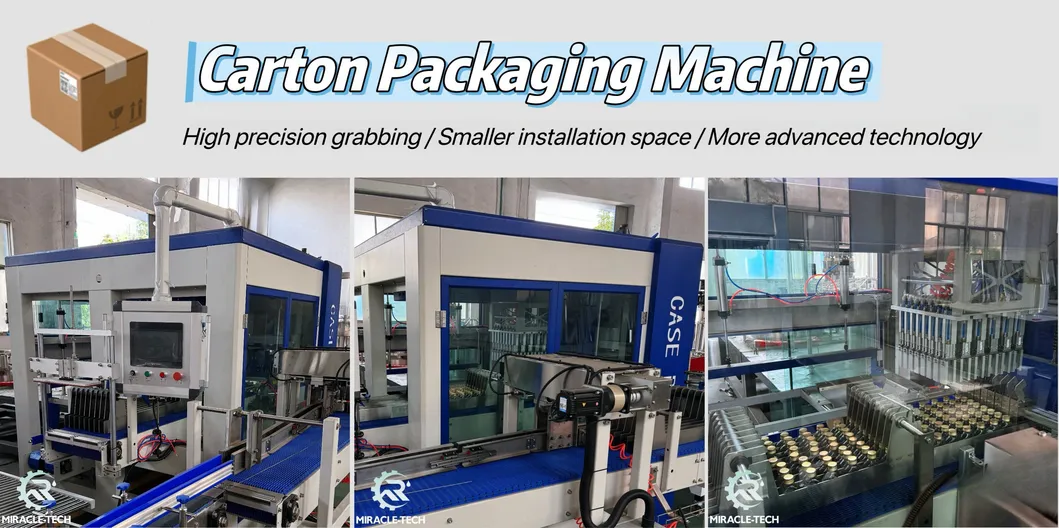

Packing Machine

Packing Systems

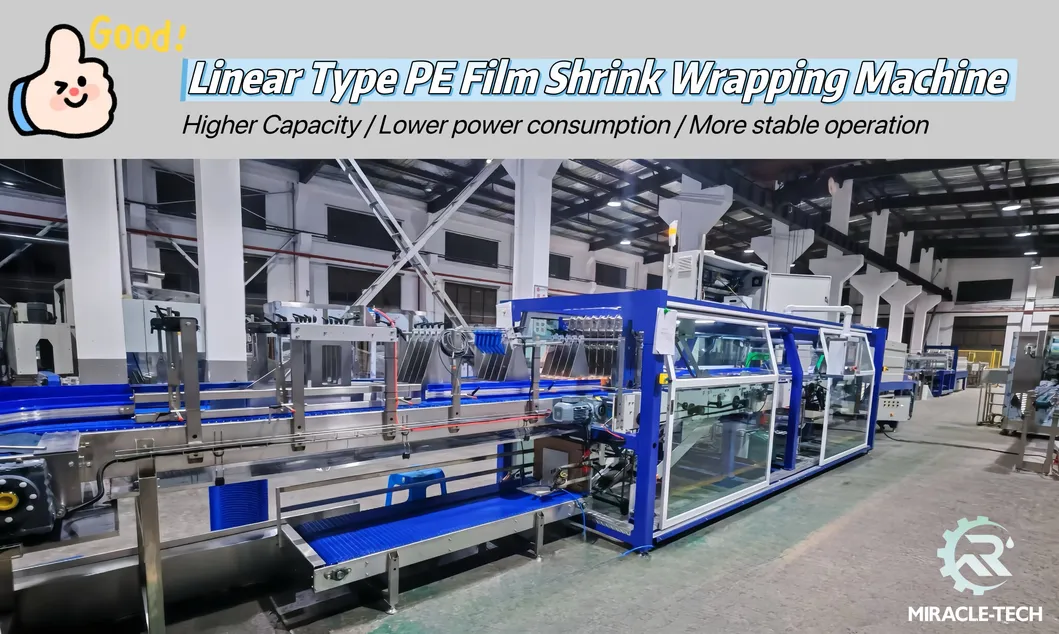

Shrink Wrapping

Film Shrink Wrapping

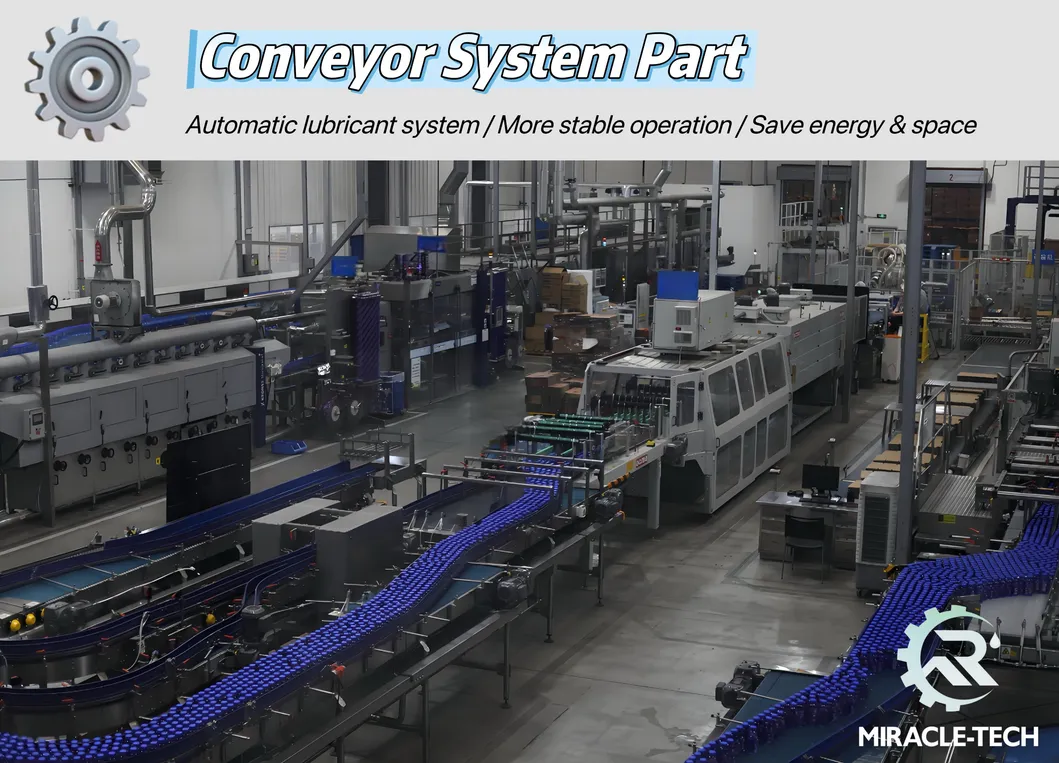

Conveyor System

Conveyor System

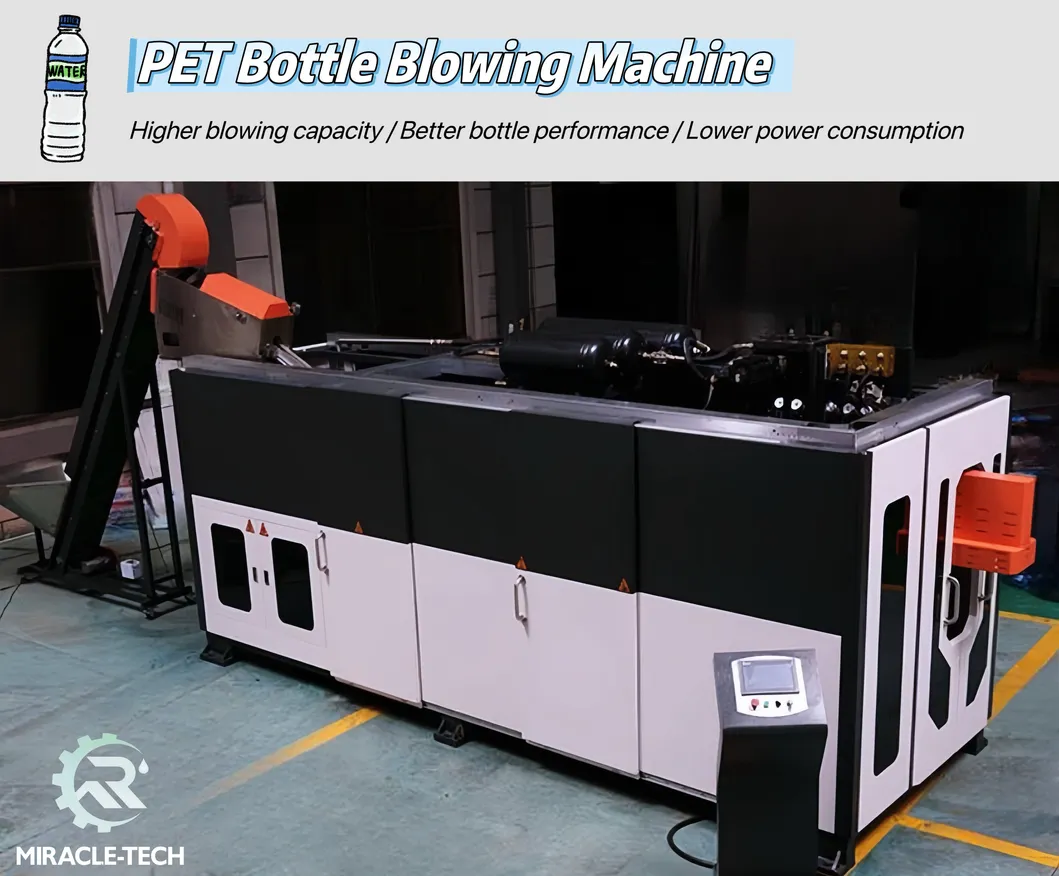

PET Blowing

PET Bottle Blowing

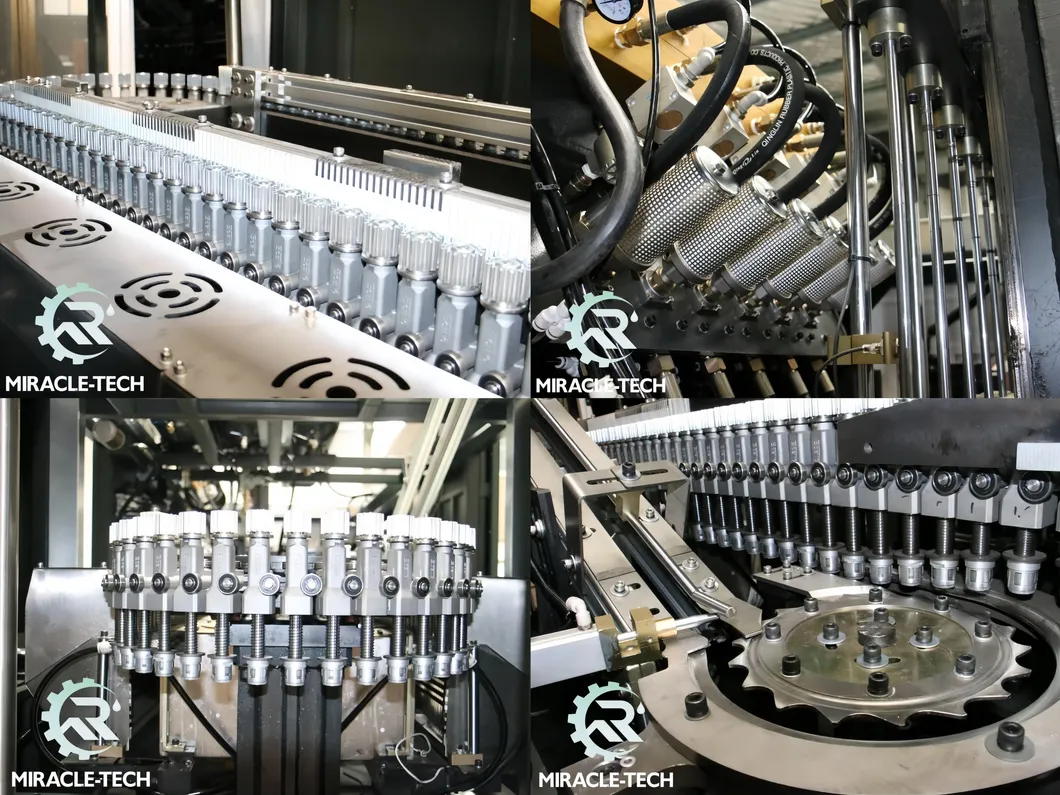

Blowing Machine

Servo Electric Blowing

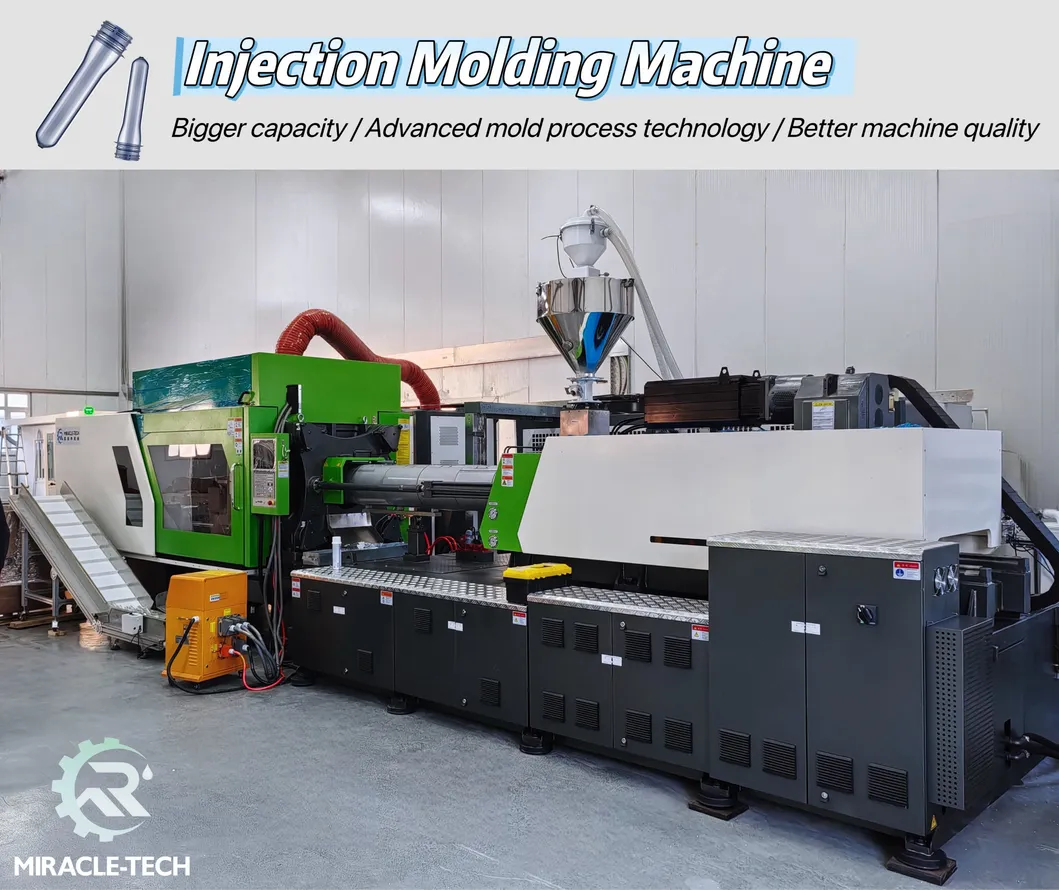

Injection Molding

Injection Molding

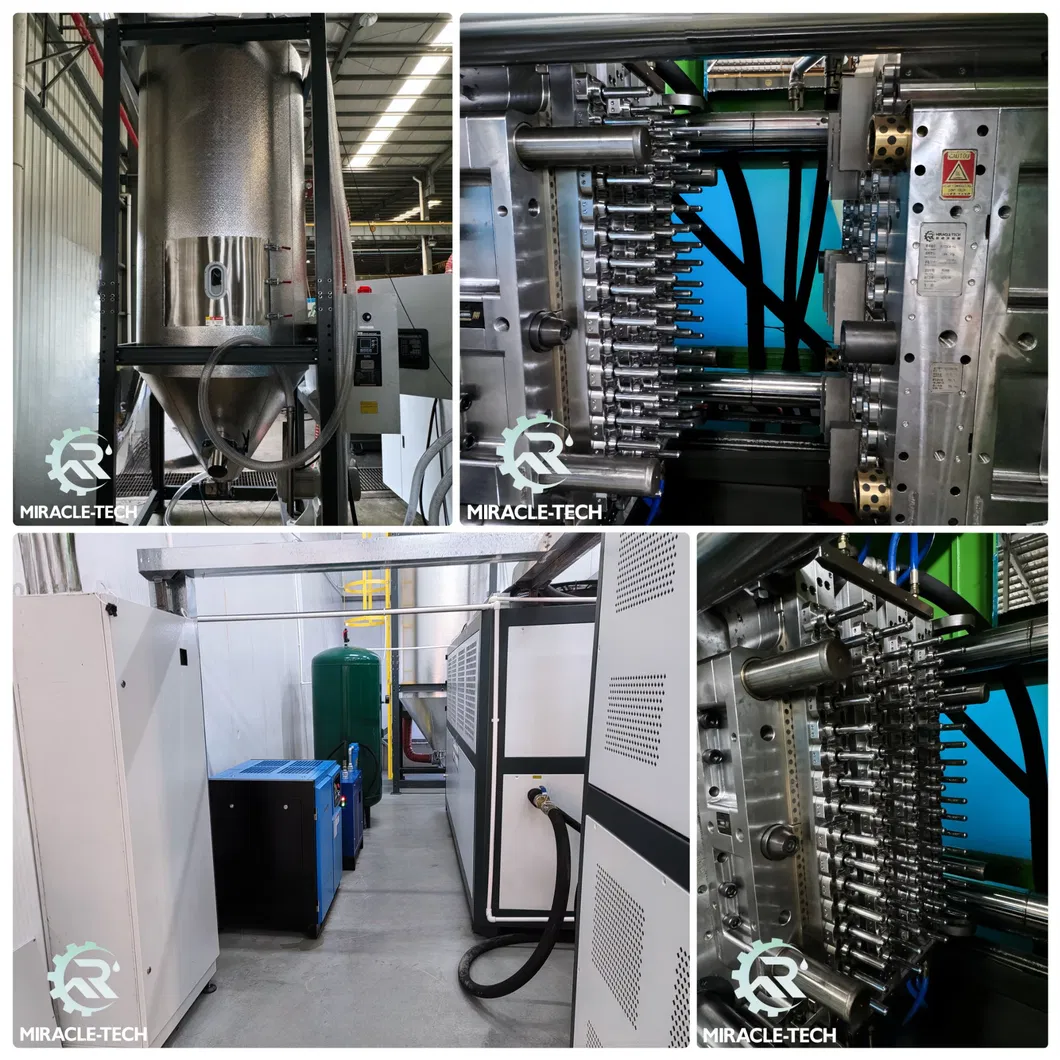

Preforms and Caps

Preforms & Caps

🏭 Manufacturing Excellence

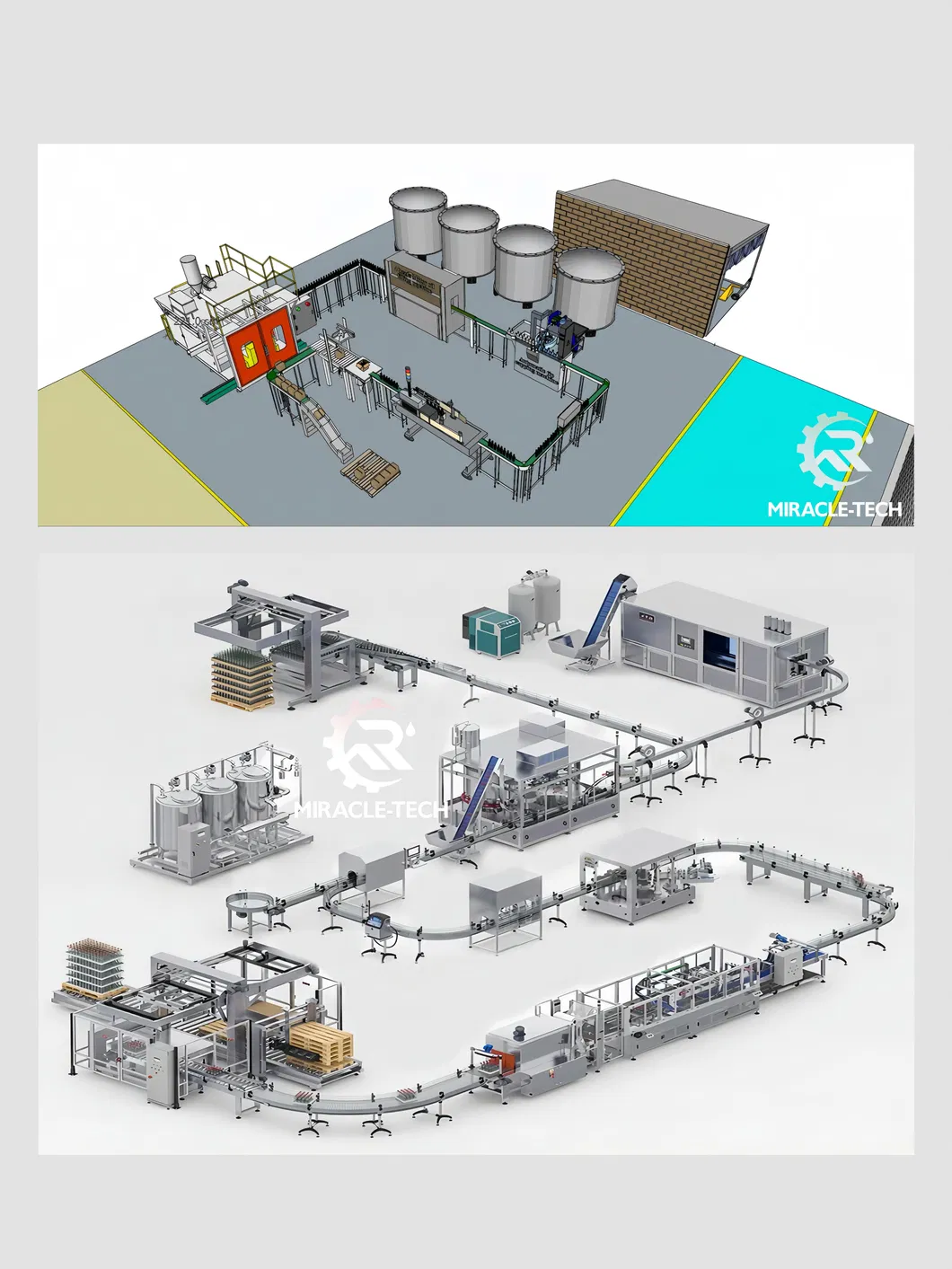

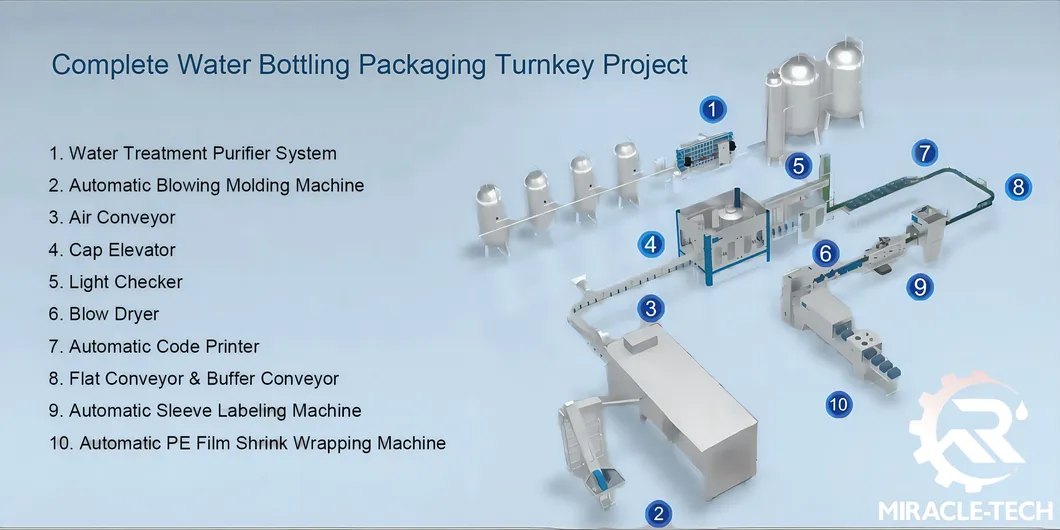

Layout Solution

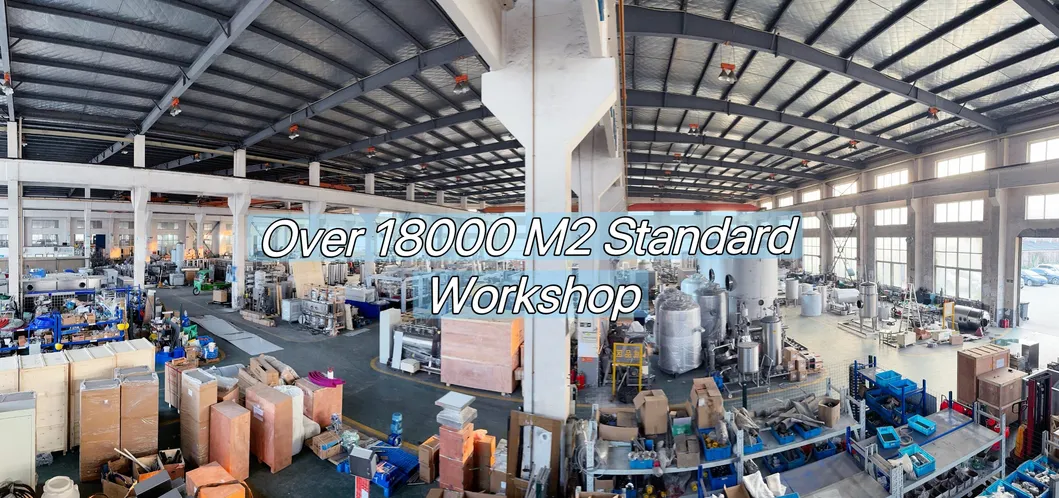

  • Extensive Workshop: Over 18,000 square meters of standardized production space.
  • Precision Equipment: CNC tools, water jet, plasma, and laser cutting machines ensure high-precision parts.
  • Quality Testing: All equipment is tested for 24 hours before shipment to ensure stability.
  • Global Experience: Professional teams with over 15 years of international installation experience.
Factory View
Certificates
Customer Success

❓ Frequently Asked Questions

Q1: What is the production capacity range of this water bottling machine?
The capacity ranges from 2,000 to 24,000 bottles per hour (bph) based on a standard 500ml bottle, with various models available to meet different production needs.
Q2: Can the machine handle different bottle sizes and shapes?
Yes, the machine is suitable for PET circular or square bottles with diameters between 40-120mm and heights between 150-350mm. Changing shapes is simple due to the neck clamping technology.
Q3: What types of liquids can be filled with this equipment?
It is designed for liquid filling, specifically pure water, mineral water, and drinking water. Different valves can be adapted for other beverage types like juice or soda.
Q4: Is the machine construction durable for long-term use?
Absolutely. The main structure is built with high-quality SUS304 or SUS316L stainless steel, ensuring corrosion resistance and compliance with food safety standards.
Q5: How is the filling accuracy controlled?
The machine uses high-speed gravity flow valves and PLC automatic control systems, achieving a filling level accuracy of approximately ±1%.
Q6: What certifications do these machines carry?
The equipment is fully certified with international standards including CE, ISO, SGS, and CNAS, ensuring global safety and quality compliance.
