Customized Aluminum Screw Cap Bottled Carbonated Soda Beverage Sparking Water CO2 Mixing Carbonation Processing Plant Filling Labeling Machine

1 / 5

Customized Aluminum Screw Cap Bottled Carbonated Soda Beverage Sparking Water CO2 Mixing Carbonation Processing Plant Filling Labeling Machine

Customization:	Available
After-sales Service:	24 Months
Warranty:	2-Year Warranty

Send Inquiry

Product Description

Basic Info.

Model NO.DCGF

TypeVolumetric Filling Machine

Automatic GradeFully Automatic

Material TypeLiquid

Filling Valve HeadMulti-Head

Dosing DeviceCapacity Cup

Filling PrincipleIsobaric / Pressure

StructureRotary

PackagingPET / Glass Bottle

MaterialSUS304 / SUS316L

Filling ProductCarbonated Beverage / Gas Drinks

Capacity2000bph - 24000bph

Bottle Volume200ml - 2L

Control MethodPLC

Product Description

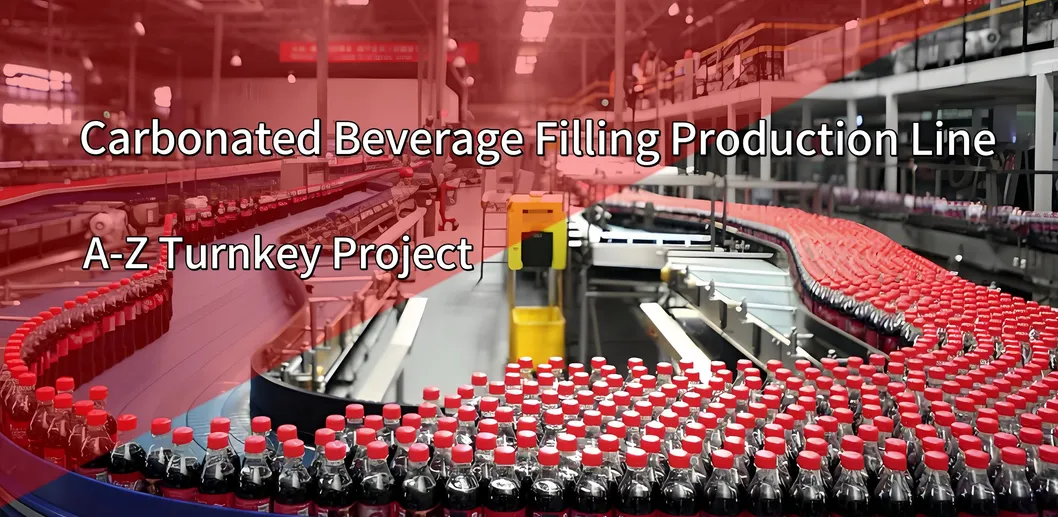

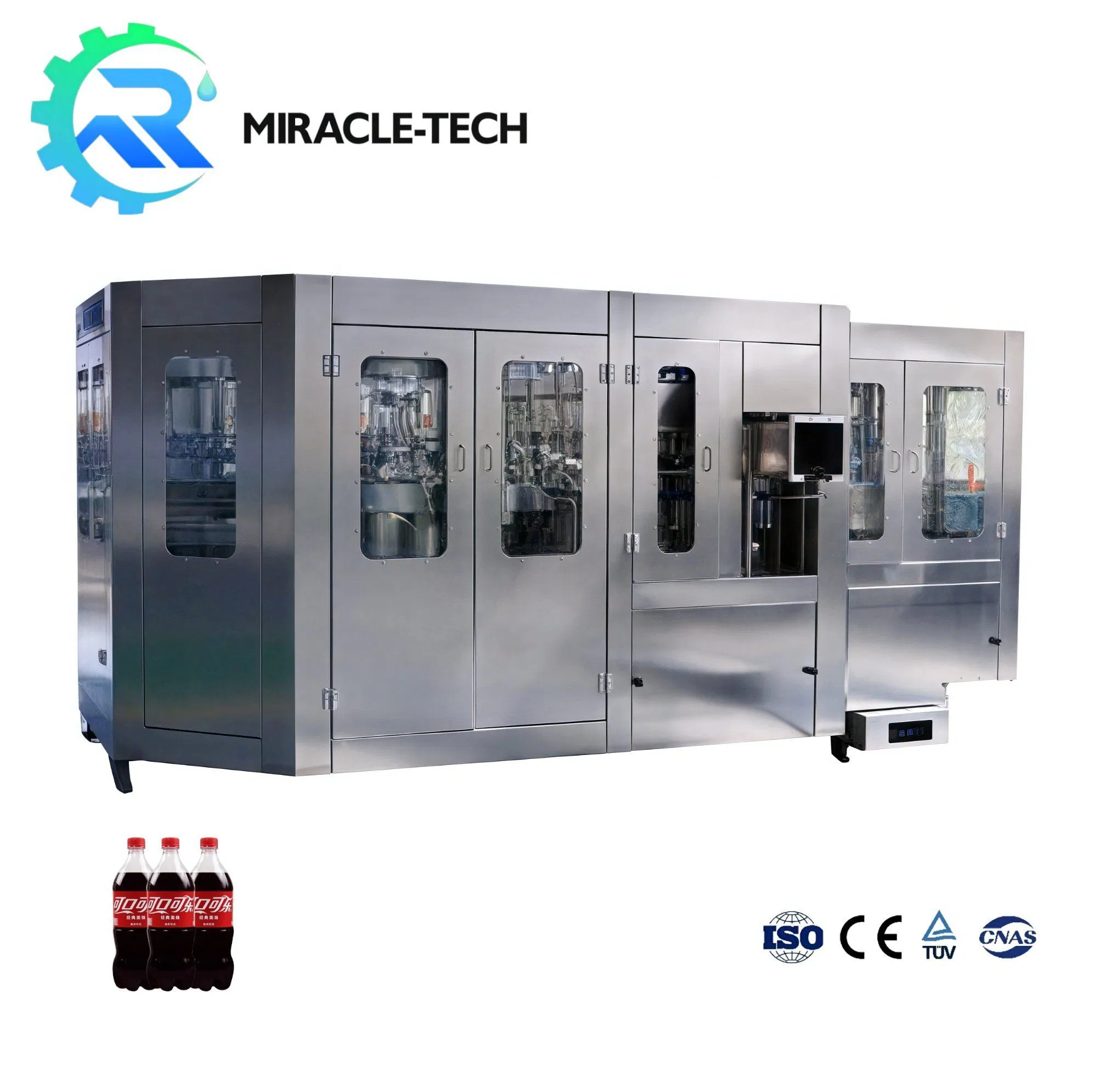

Automatic Carbonated Beverage Filling Machine / Complete Bottling Production Line

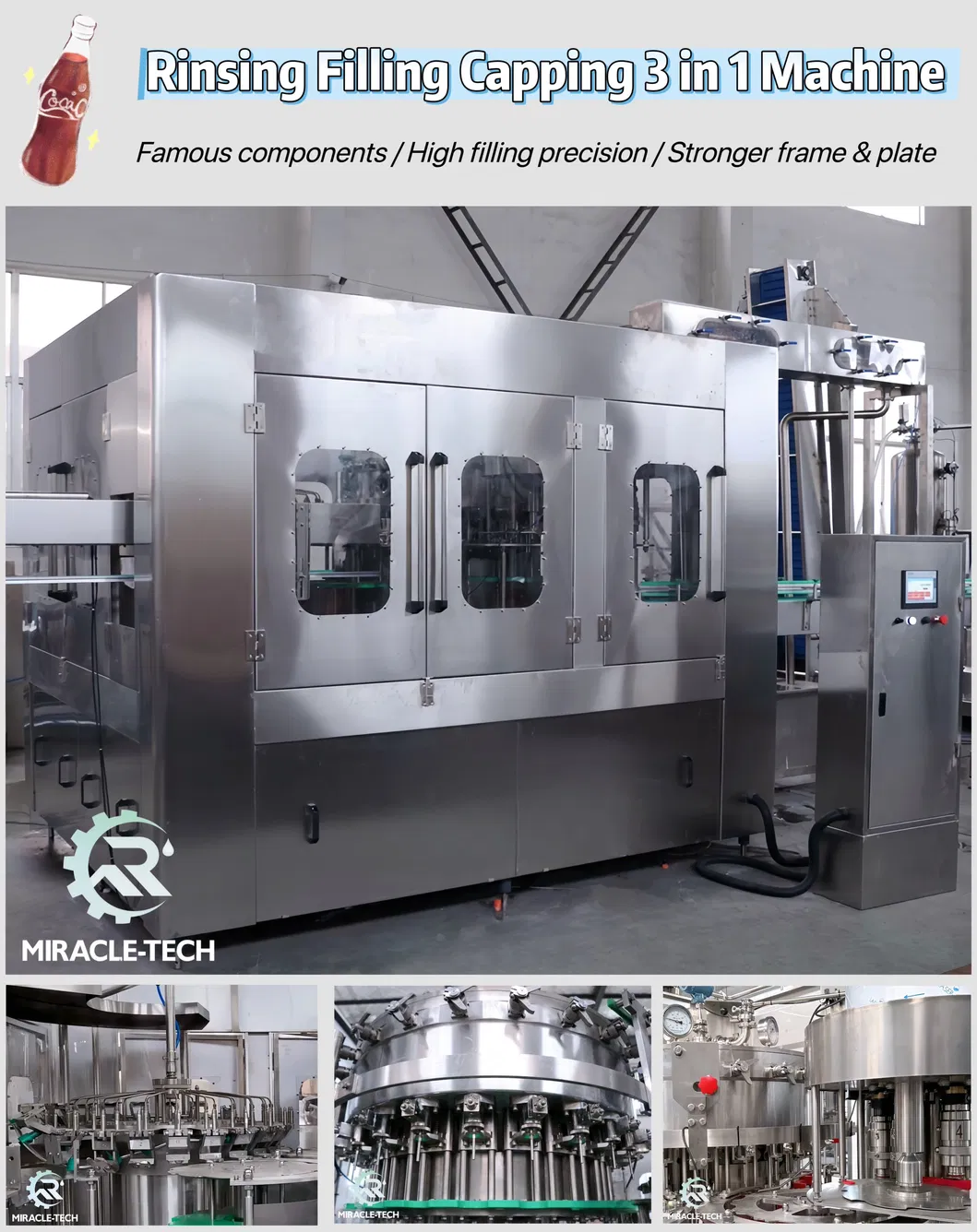

Description: Focused on providing complete liquid packaging solutions, including water treatment systems, beverage processing, and 3-in-1 washing-filling-capping machines. Our systems cover the entire production line from PET bottle blowing to automatic palletizing.

Technical Parameters

Model	DCGF14-12-5	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Capacity (for 500ml)	2000-2500	4000-5000	6000-7000	8000-10000	12000-15000
Bottle Diameter	φ40-φ120 mm
Bottle Height	150-350 mm
Filling Method	Isobaric filling
Power	4.5KW	5.5KW	6.2KW	7.5KW	8.2KW
Weight	3200KG	4300KG	5500KG	6800KG	8500KG

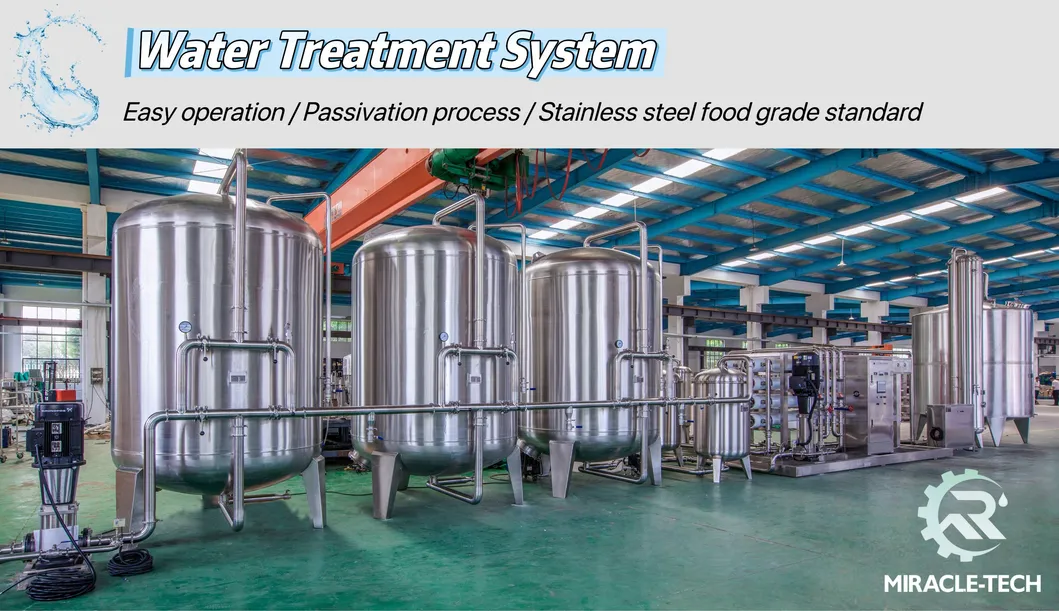

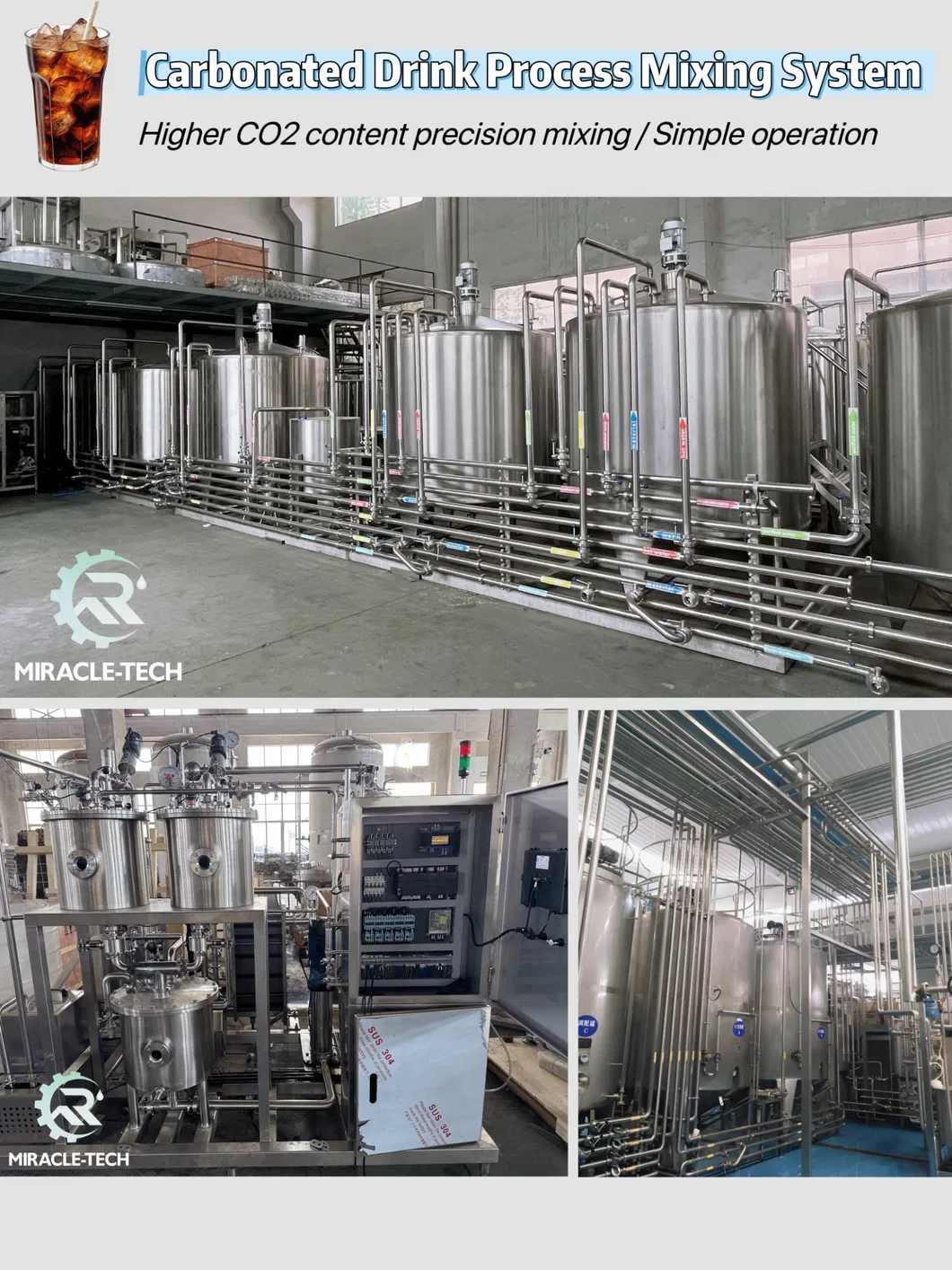

Water Treatment & Mixing System

Process Flow of Water Treatment System:

Raw water input → Silica sand filter → Active carbon filter → Sodium ion exchanger → Precision filter → Reverse osmosis (RO) → UV sterilizer → Pure water output.

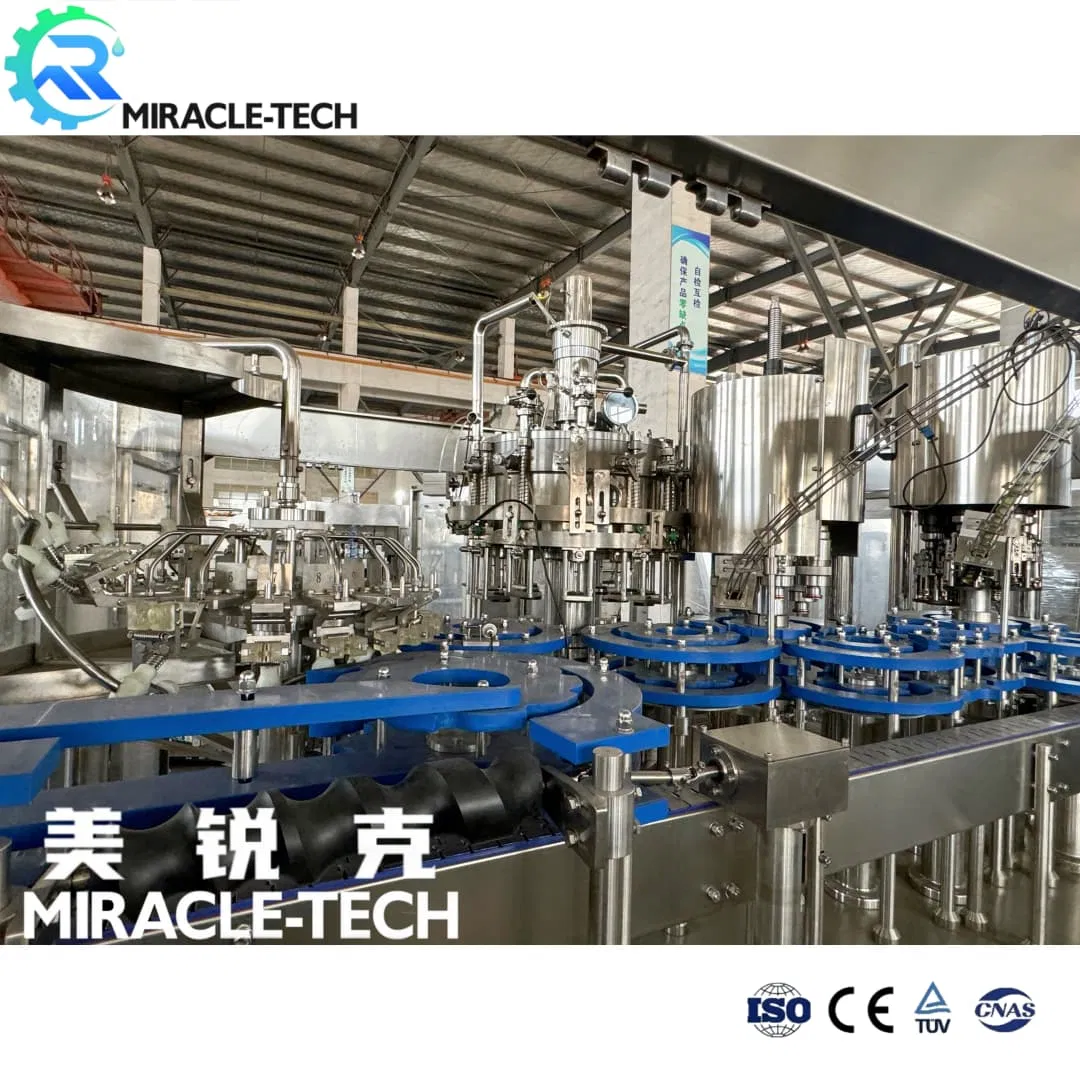

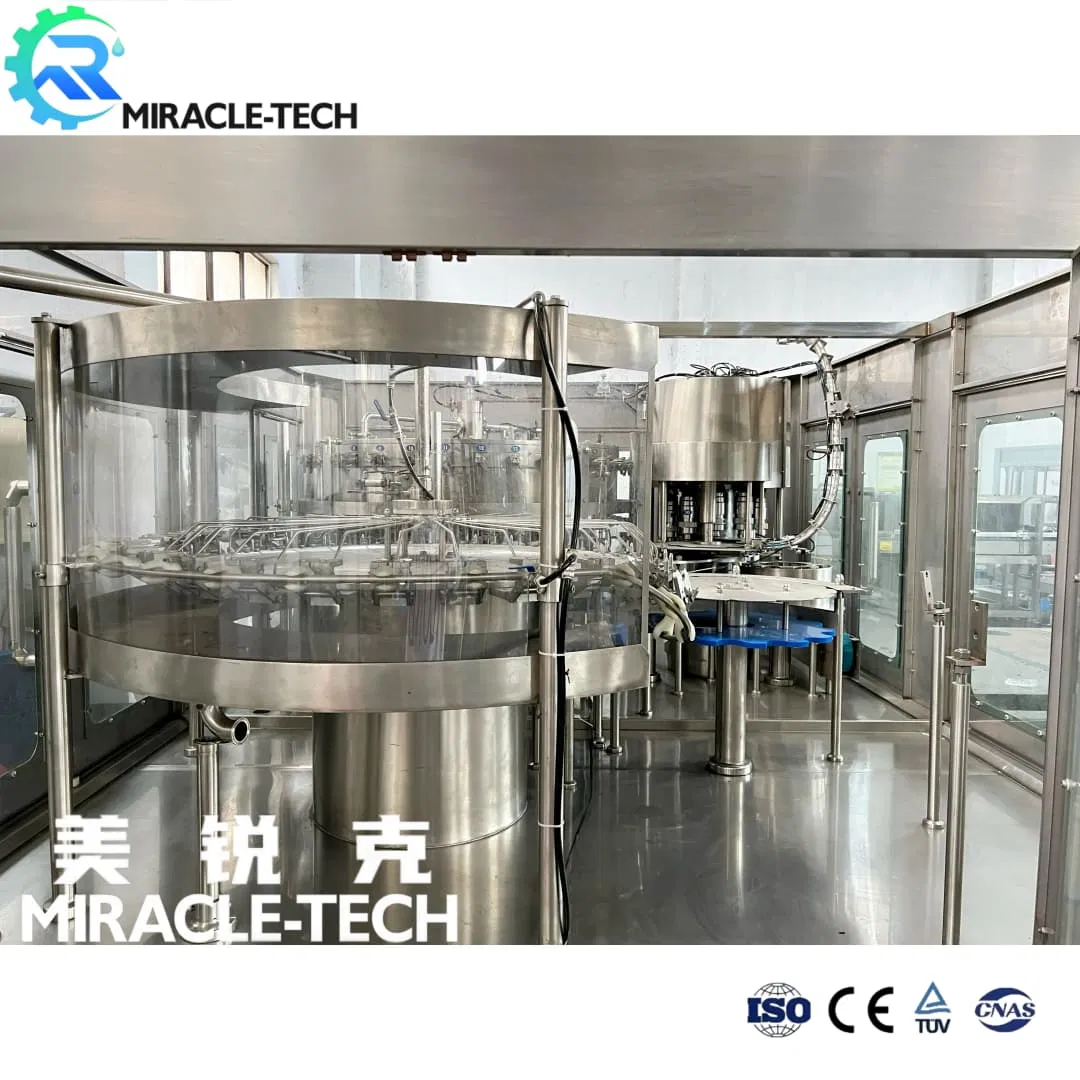

Main Features of Filling Machine

1

Direct connection technology between wind channel and moving wheels; eliminates spiral chains for easier bottle shape changes.
2

Bottle neck clamping technology for transfer; no need to adjust machine level for different bottle sizes.
3

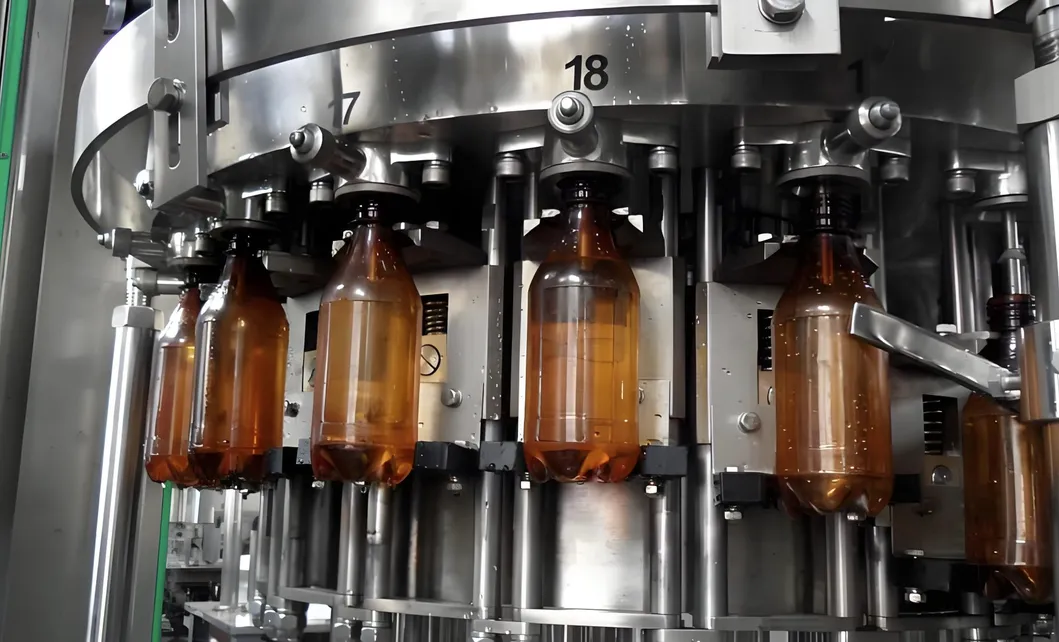

High-speed large gravity flow isobaric filling valves ensure accurate filling without liquid loss.
4

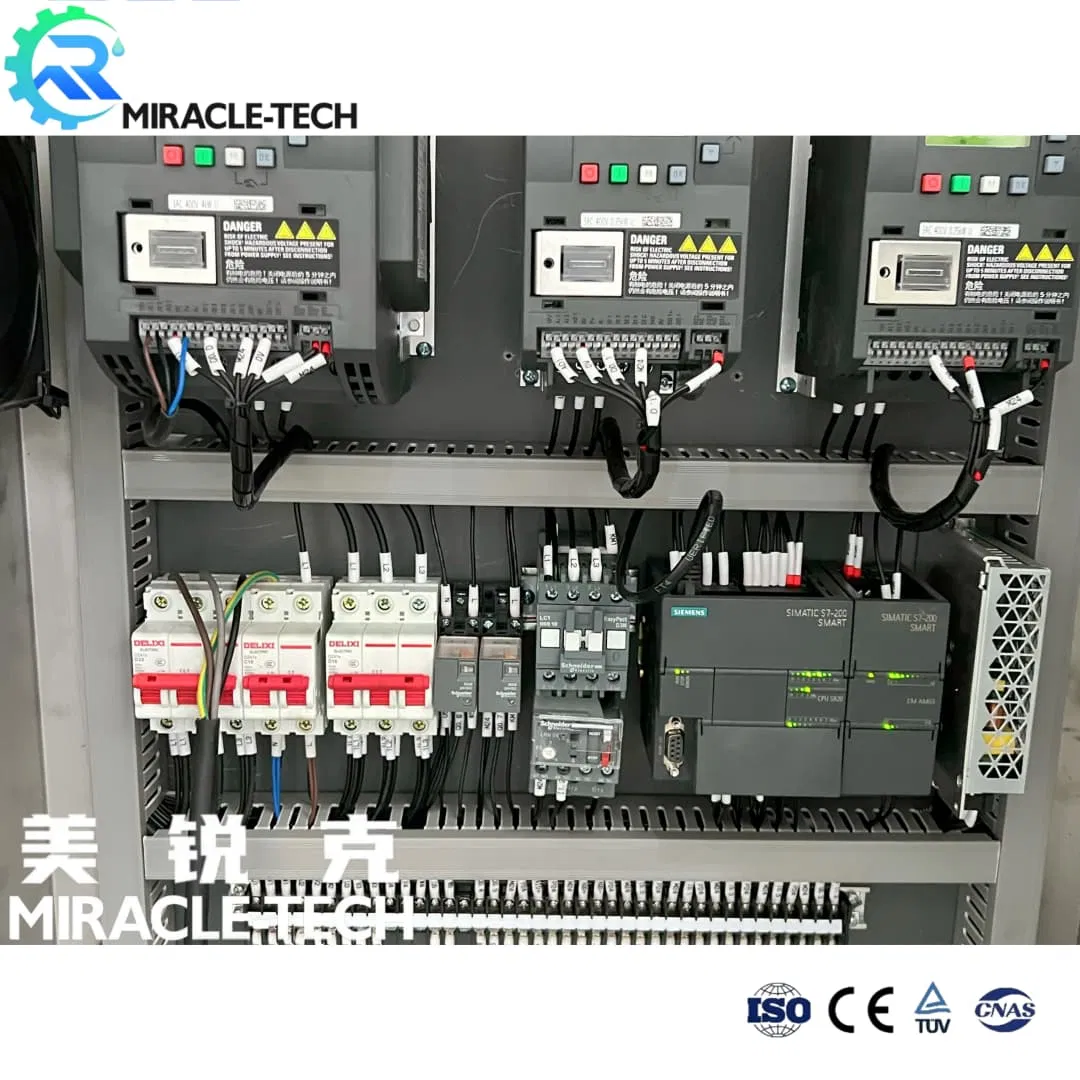

Advanced PLC automatic control with key components from world-renowned brands like Mitsubishi and Omron.
5

Stainless steel bottle washer clamps designed to avoid secondary contamination of bottle neck threads.

Supporting Equipment

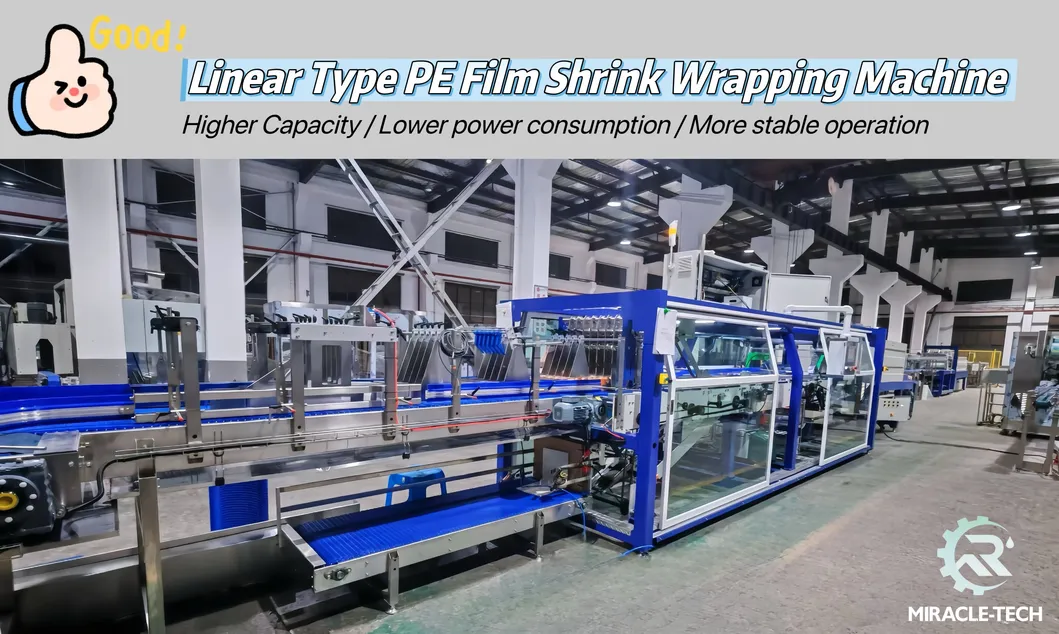

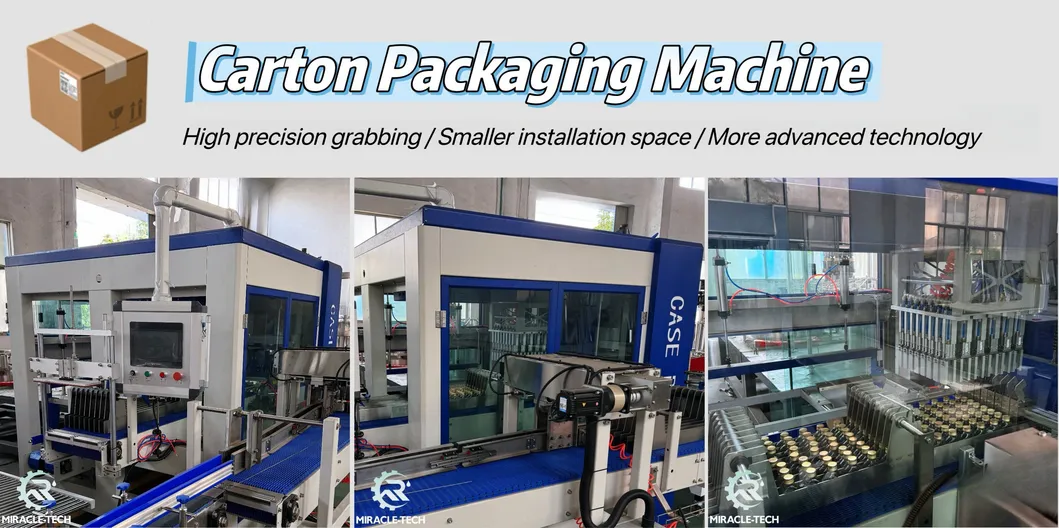

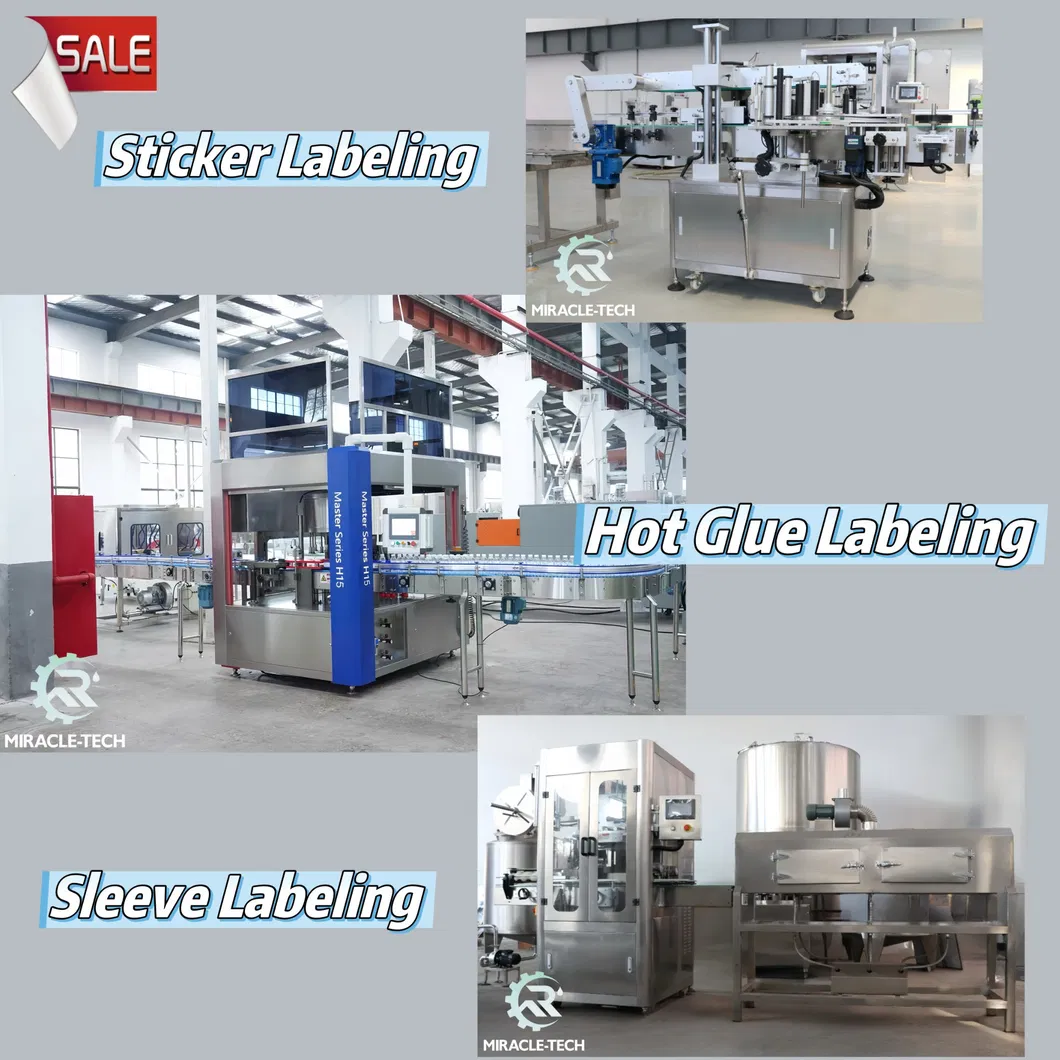

Labeling & Packing Solutions: Specialized labeling machines (Sleeve shrink, Sticker, or Hot glue) and various packing options (PE film shrink wrapping or carton packaging) are available to complete the line.

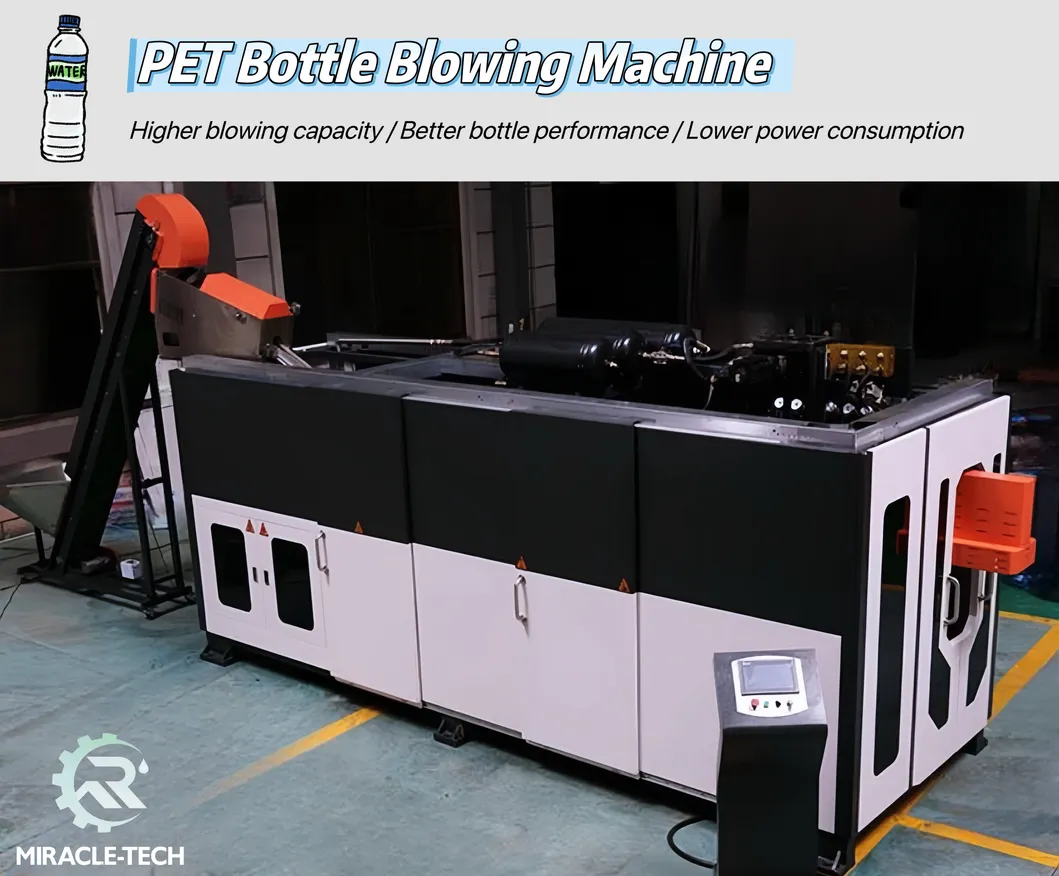

Bottle Production

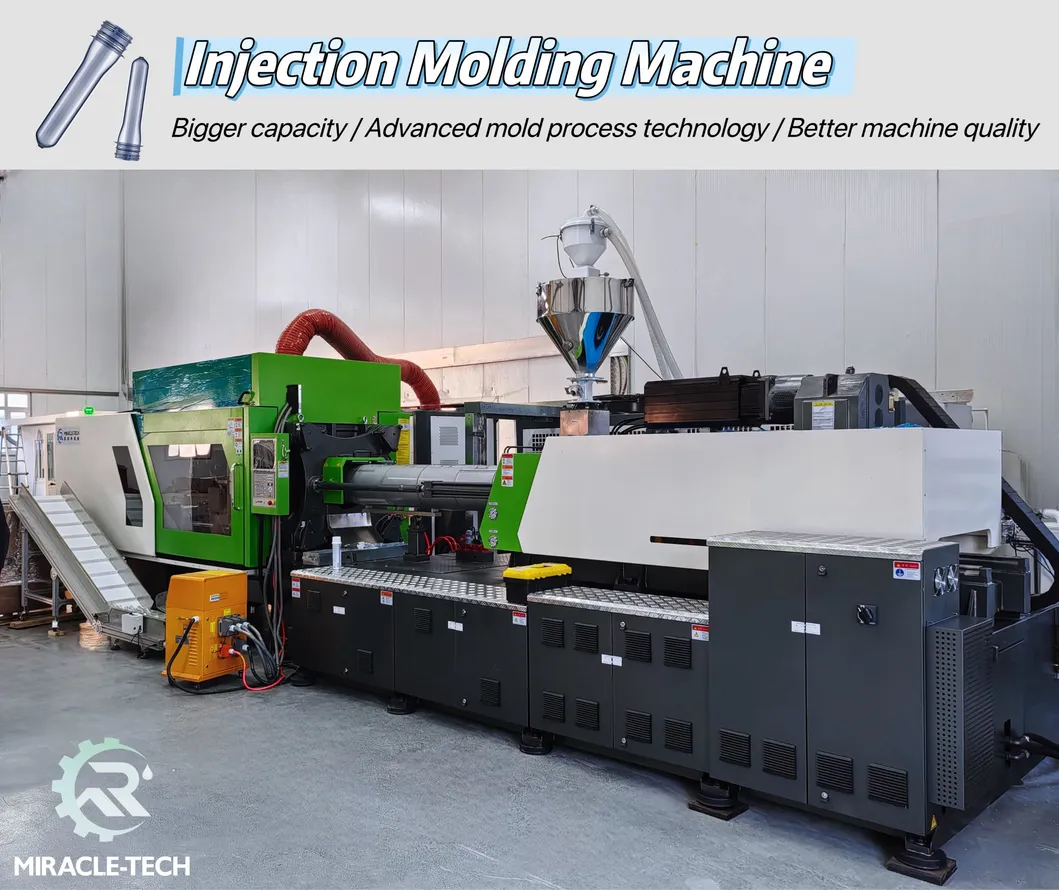

Fully automatic servo electric PET bottle blowing machines and injection molding machines for preforms and caps ensure a self-sufficient production cycle.

Turnkey Solutions & Certification

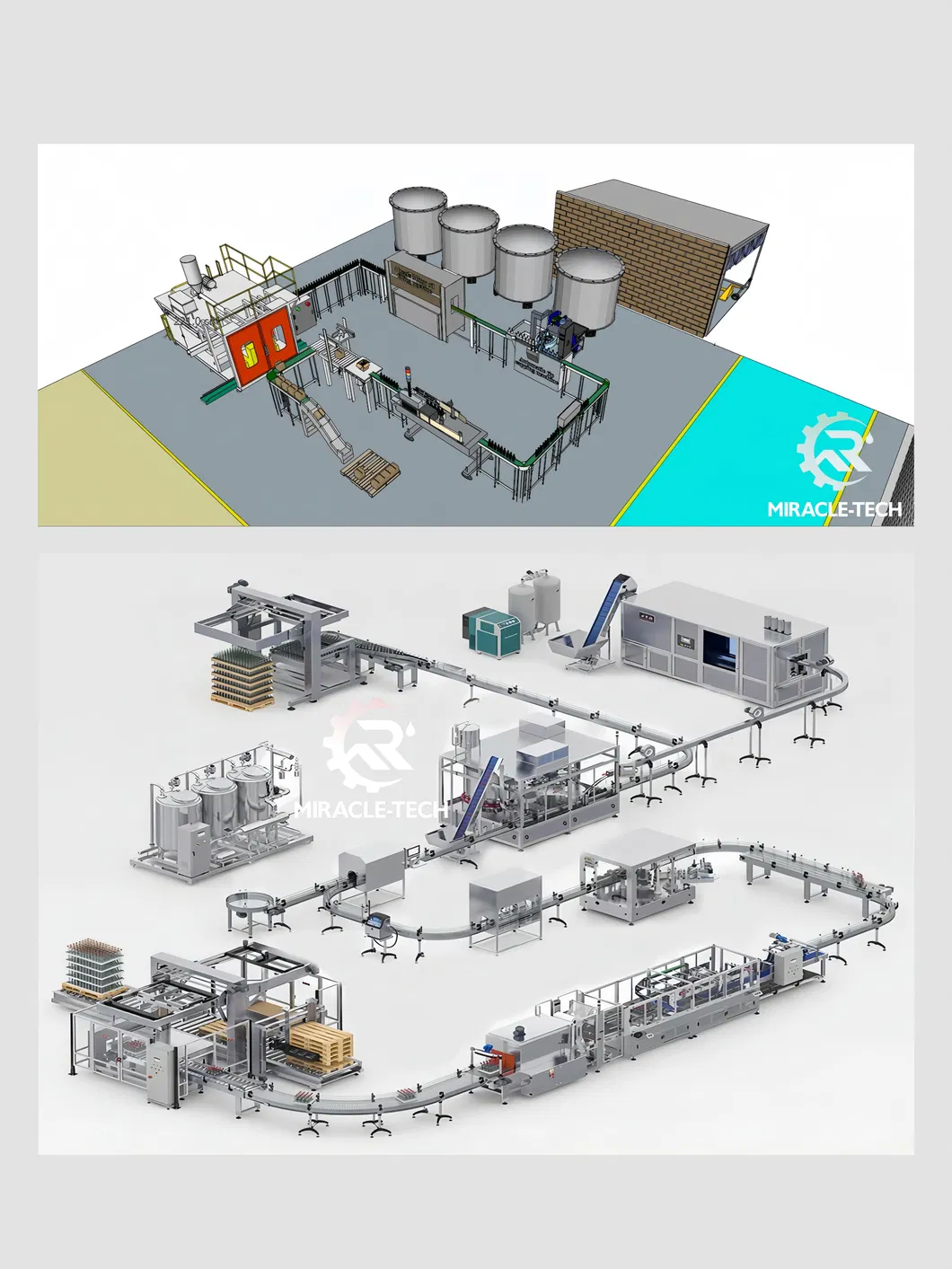

We provide A to Z turnkey project solutions, including layout design and international certification (CE, ISO9001, SGS) to ensure operational excellence.

Frequently Asked Questions

1. What types of beverages can this machine fill? The machine is specifically designed for carbonated beverages, including soda, sparkling water, carbonated soft drinks, and gas-infused drinks using isobaric filling principles.

2. What range of bottle sizes is compatible? It supports PET and glass bottles ranging from 200ml to 2 liters, with bottle diameters between 40mm-120mm and heights between 150mm-350mm.

3. What is the maximum production capacity? Depending on the model chosen, the production capacity ranges from 2,000 bottles per hour (bph) up to 24,000 bph.

4. Is the machine easy to adjust for different bottle shapes? Yes, the machine uses bottle neck clamping technology. Changing bottle shapes only requires replacing a few curved plates and wheels, without needing to adjust the machine's main height.

5. What materials are used in construction to ensure hygiene? All parts in contact with liquid are made of high-quality stainless steel SUS304 or SUS316L, ensuring durability and compliance with food safety standards.

6. How is the quality of the machine controlled? The system is managed via a Mitsubishi/Omron PLC. Every machine undergoes a 24-hour test run before shipment to ensure electrical and mechanical stability.
