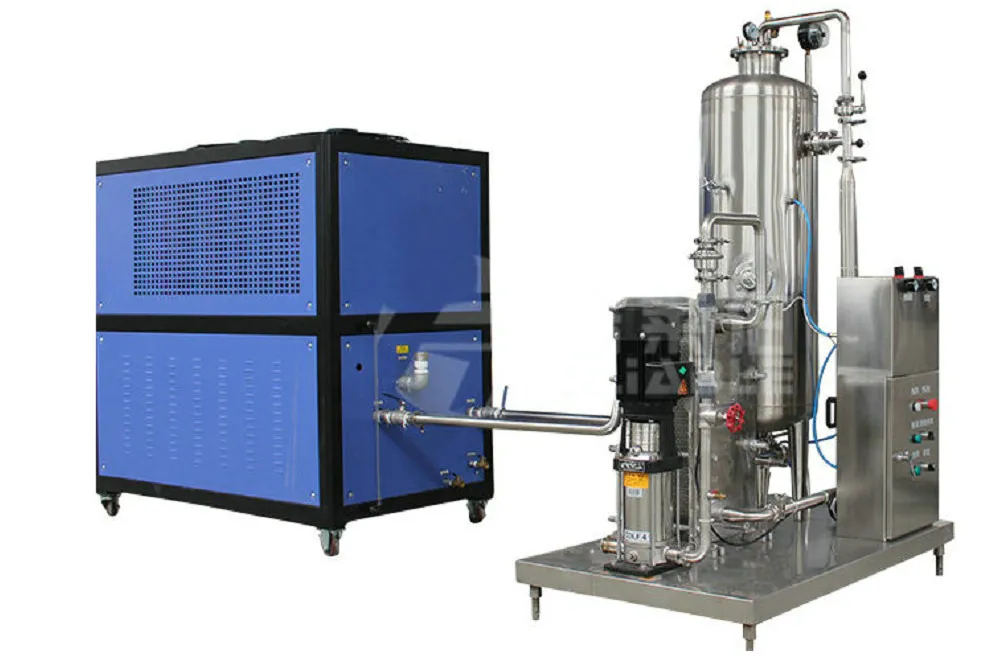

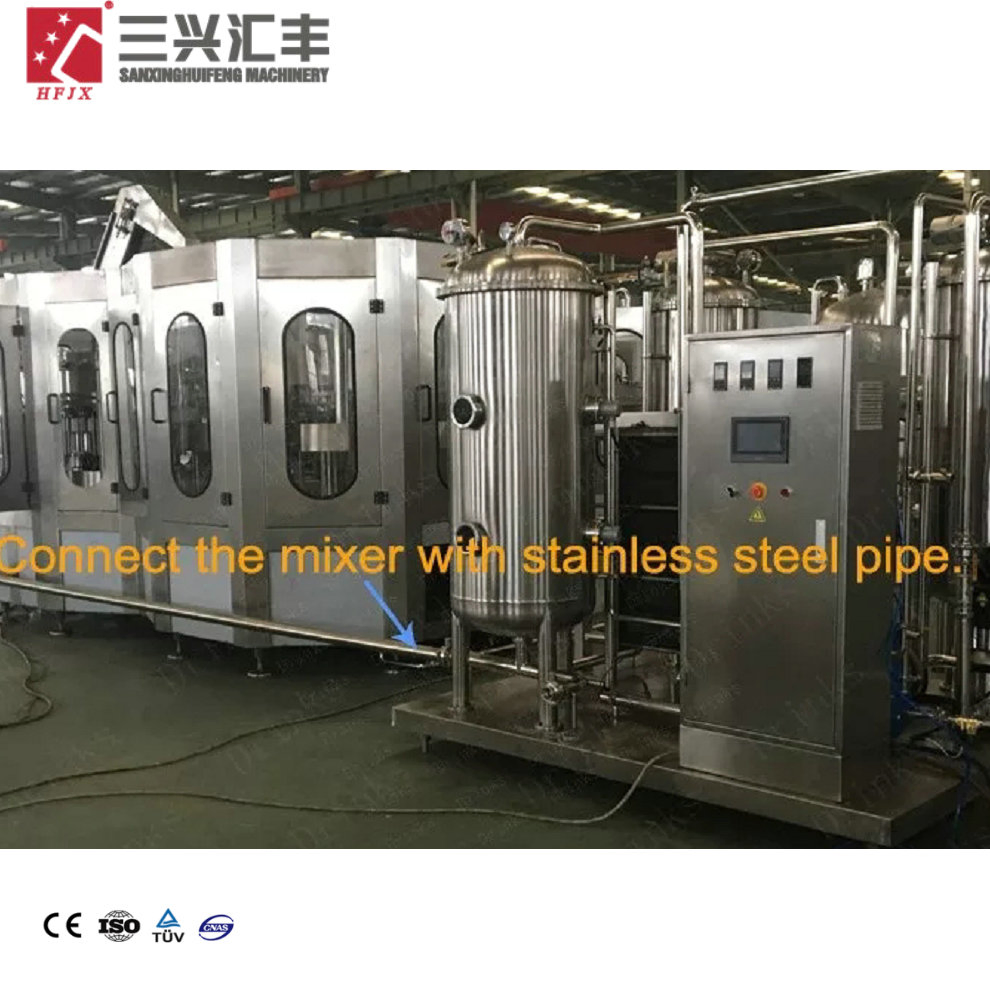

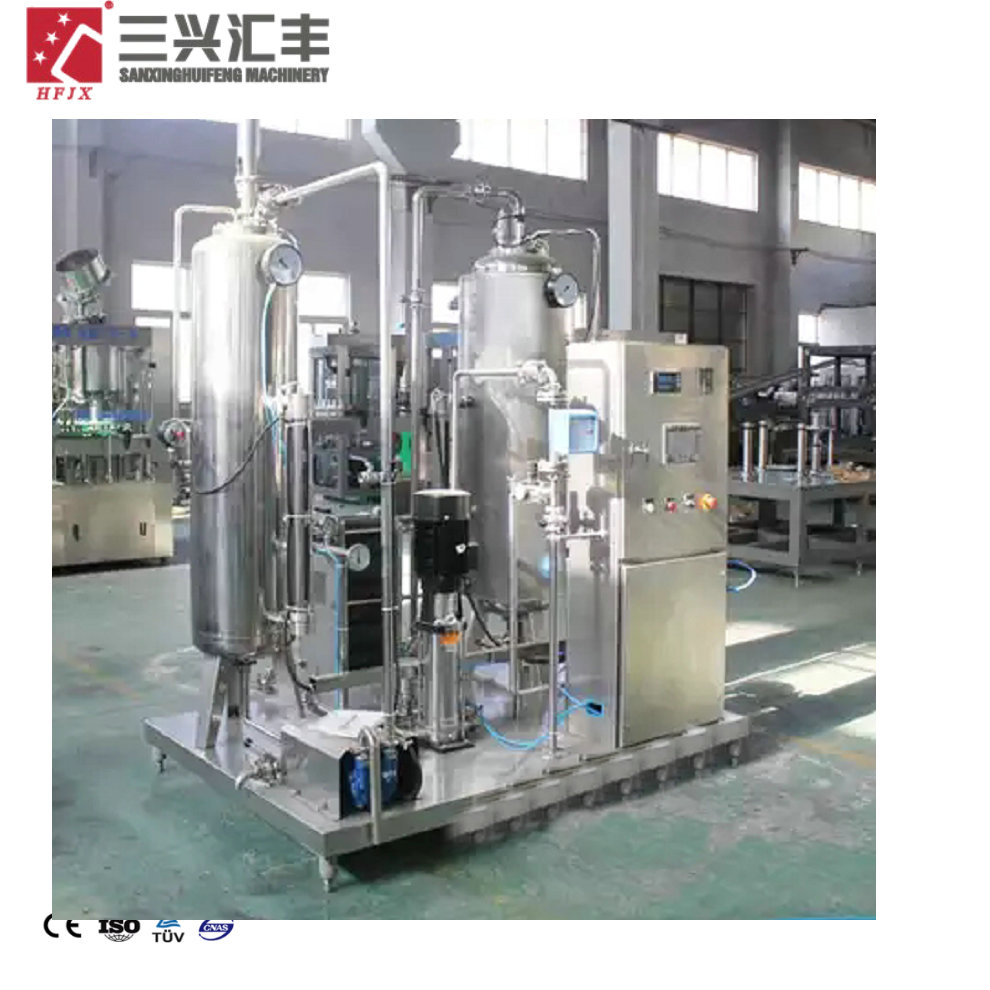

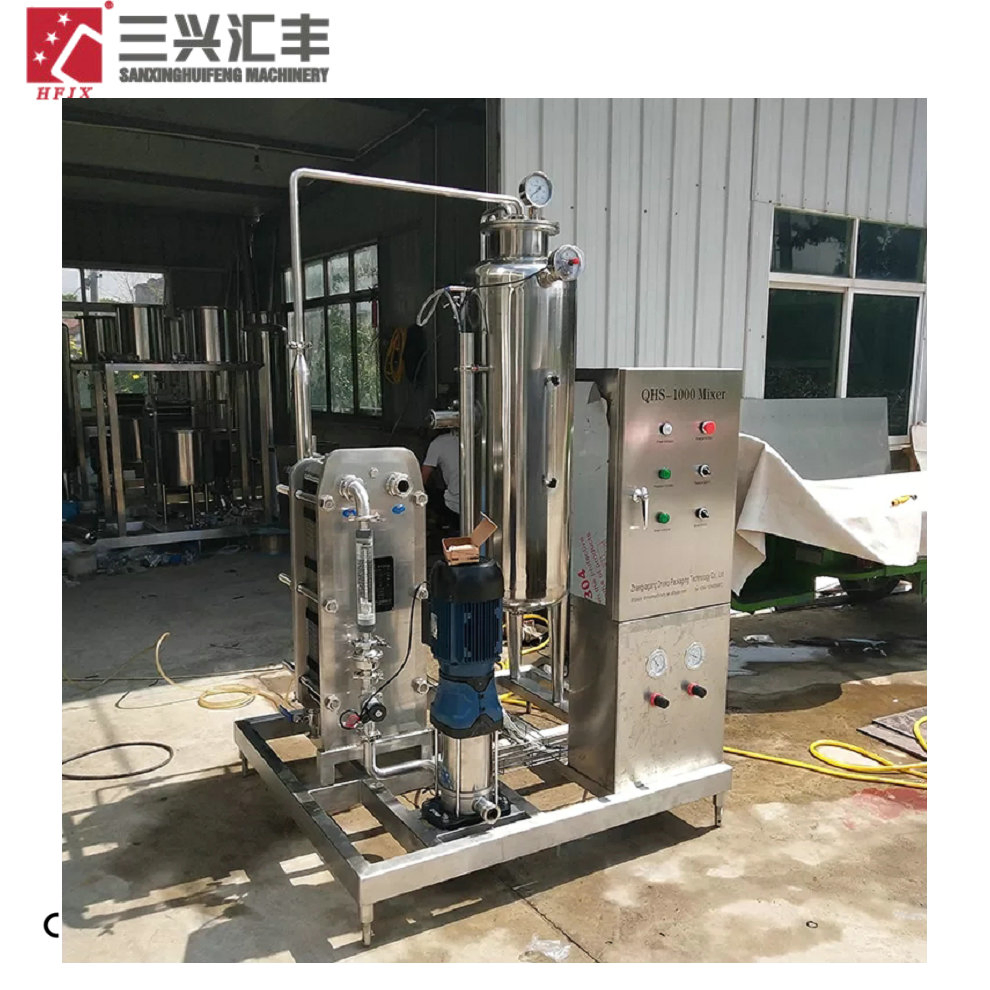

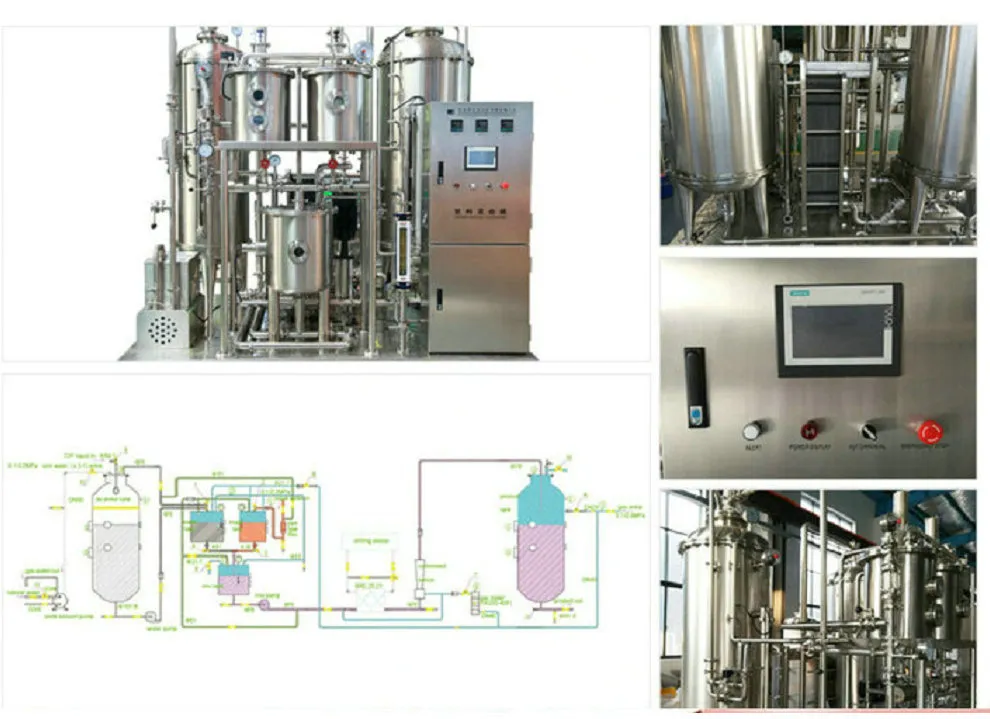

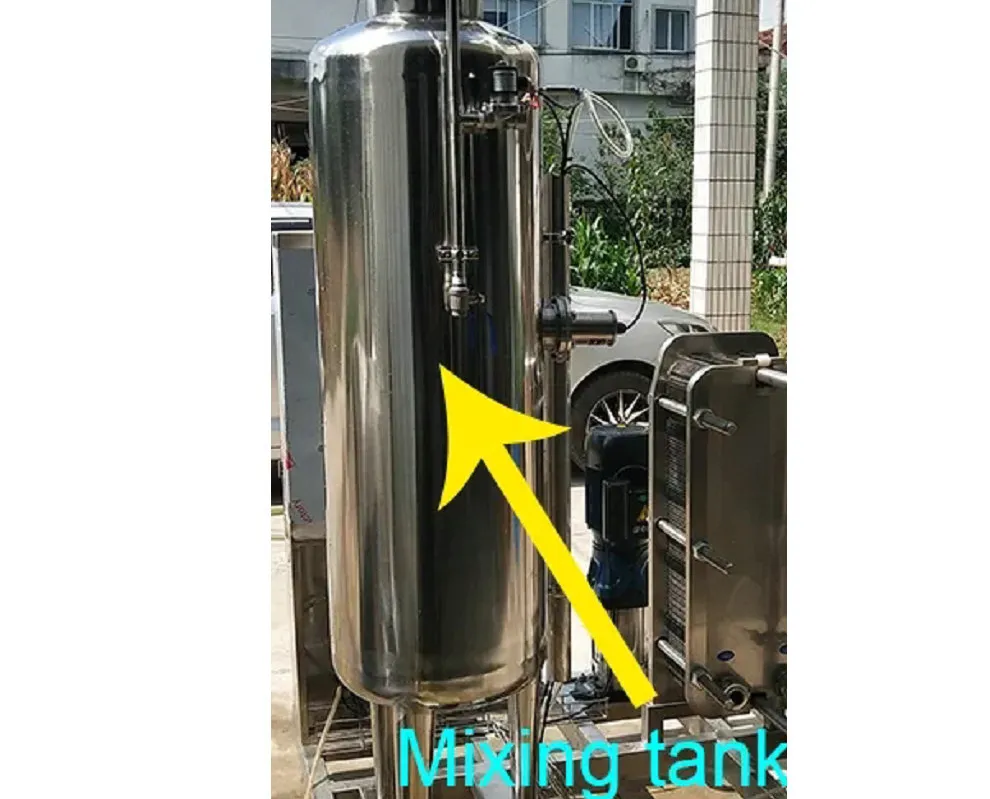

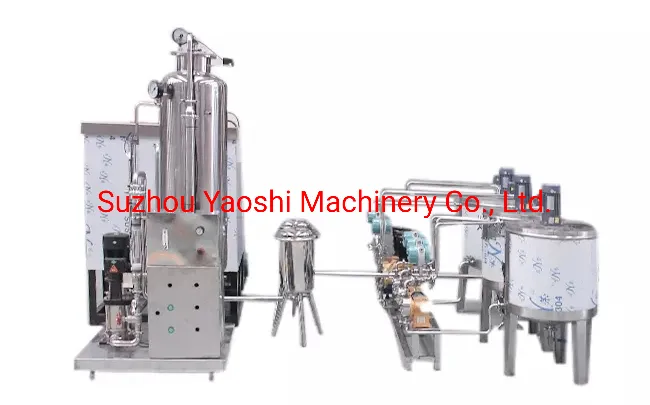

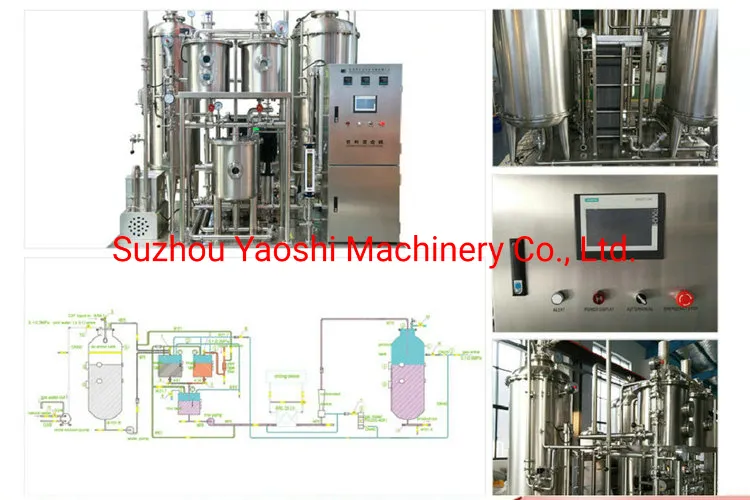

The carbonation mixer mixing machine is professionally designed for optimizing the proportion of water, syrup, and carbon dioxide. Utilizing advanced static mixer technology, the system increases carbonizing time and ensures superior mixing efficiency. It features a CO2 back-flow deoxygenation process to conserve gas and maintain product purity.

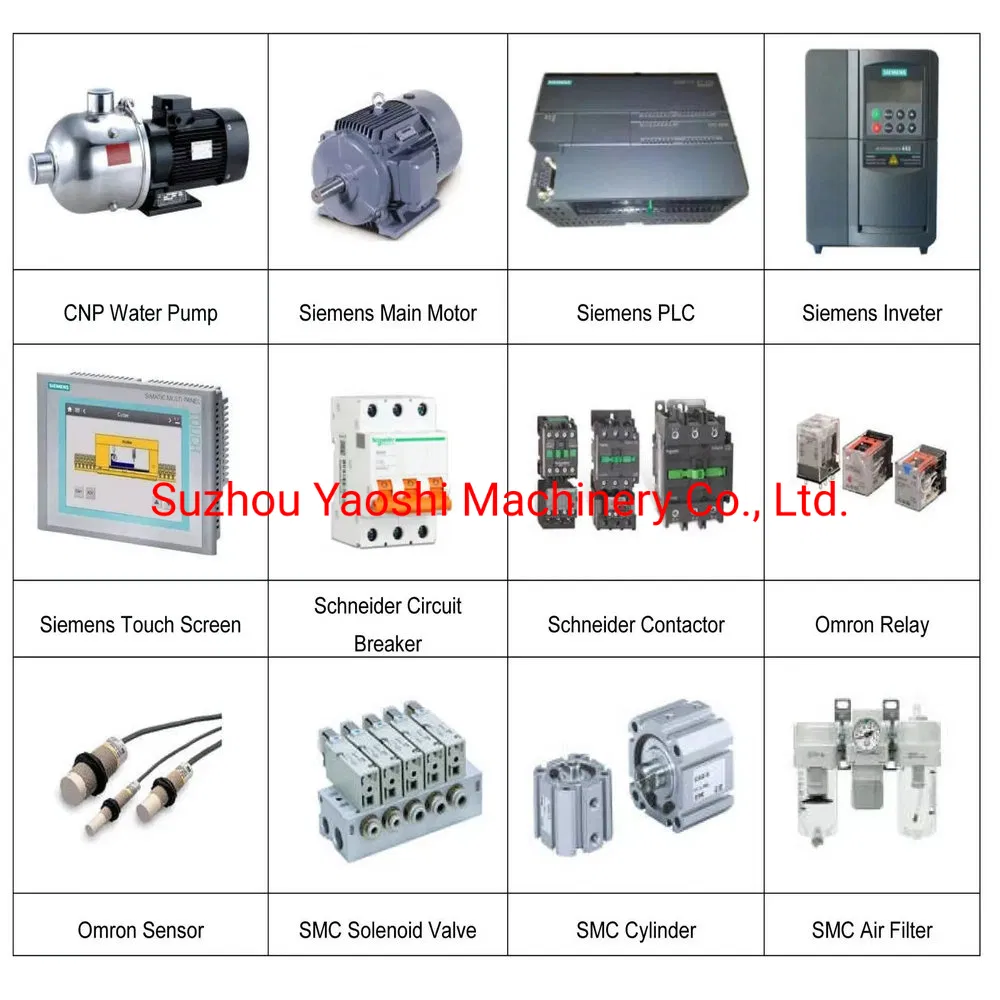

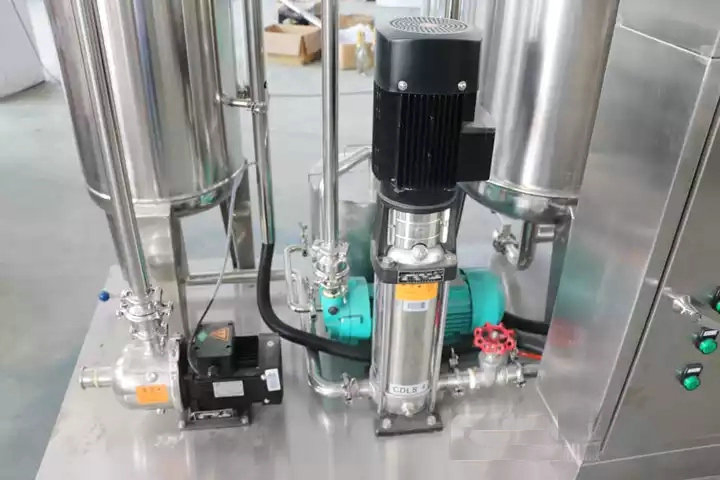

Equipped with high-quality water pumps and Siemens electrical components, the system operates under a fully automatic control sequence. It is ideal for high-precision mixing of soda water, fruit juices, cola, and other carbonated soft drinks.
| Model | QHS-1500 | QHS-2500 | QHS-5000 | QHS-8000 | QHS-12000 |
|---|---|---|---|---|---|
| Output (L/Hr) | 1000-1500 | 2000-3000 | 4000-5000 | 8000-9000 | 12000-14000 |
| CO2 Content | 1.5-2.5 | >2.5 | >3 | >3.5 | >3.5 |
| Chilled Water Inlet Temp | 0-4ºC | ||||
| Sugar Water Ratio | 1:3 - 1:6 | ||||
| Working Pressure | 1.0 MPa | ||||
| Total Power | 2.2kw | 3.5kw | 5.5kw | 7.5kw | 11kw |
| Weight | 1000kg | 1500kg | 2000kg | 3500kg | 6000kg |

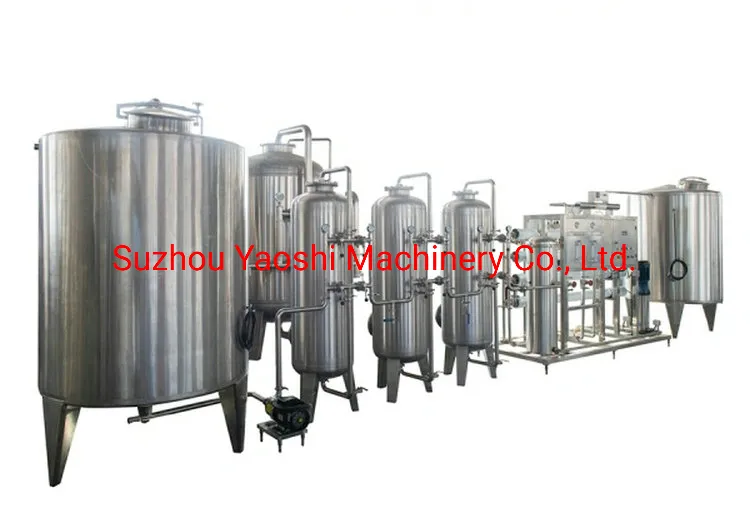

I. Water Treatment System: Multi-stage filtration including Silica sand, Active carbon, Sodium ion exchange, and Reverse Osmosis (RO) followed by UV/Ozone sterilization.

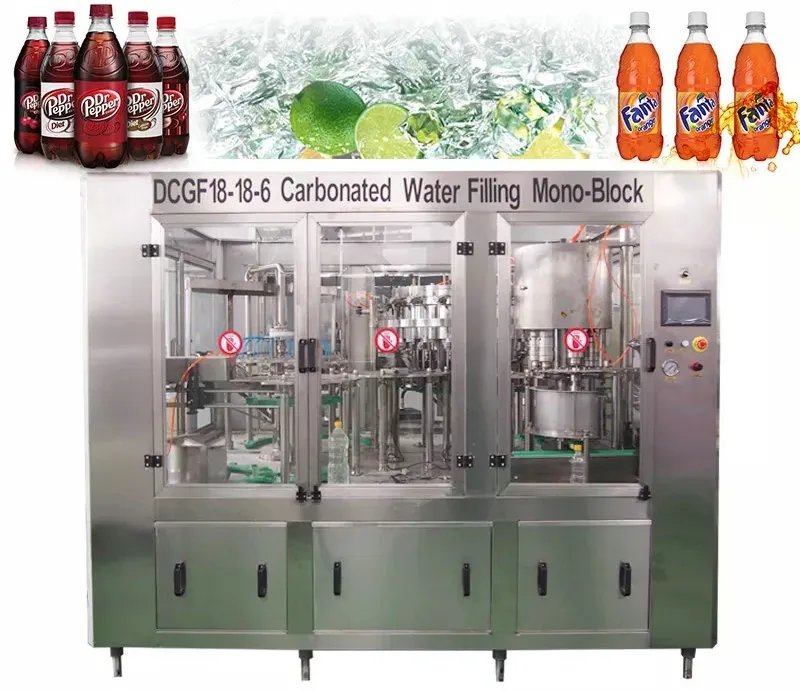

II. Filling & Capping Monoblock: High-speed automatic carbonated drink filling with perfect control and minimal oxygen pickup.

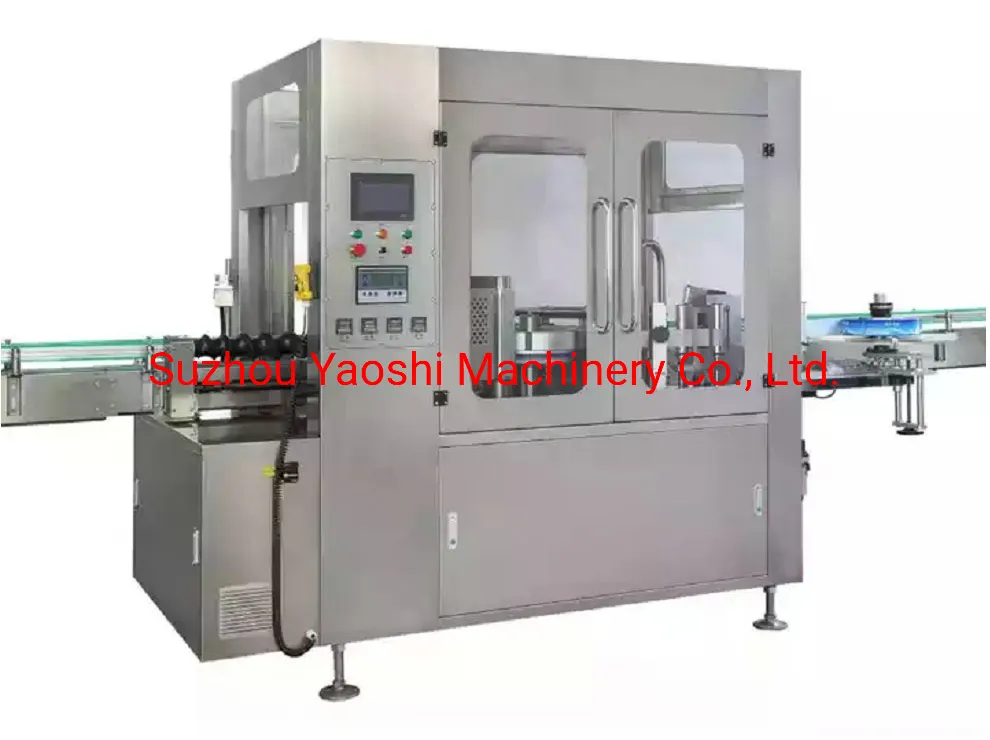

III. Labeling & Packaging: Options for OPP hot melt labeling or self-adhesive labeling, followed by PE film shrink wrapping systems.
