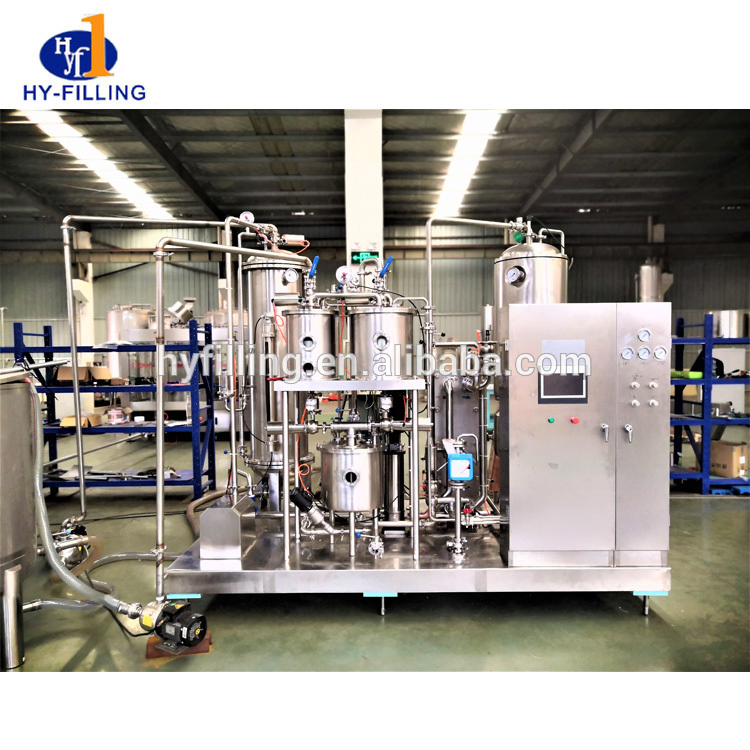

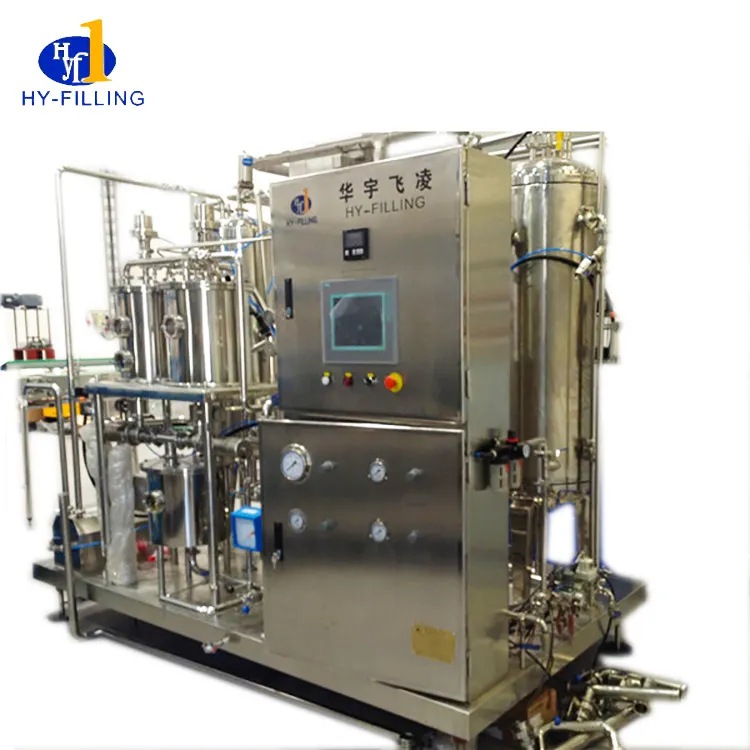

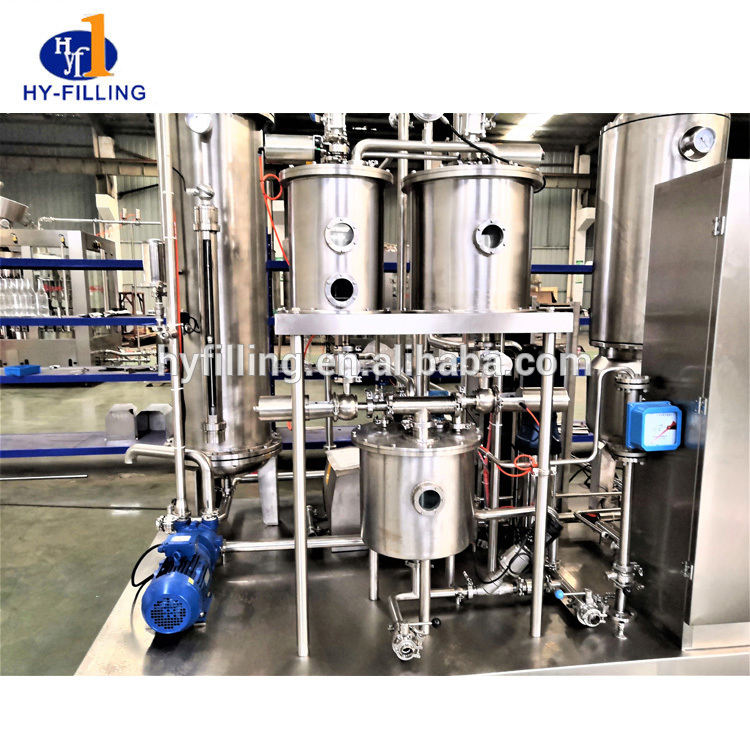

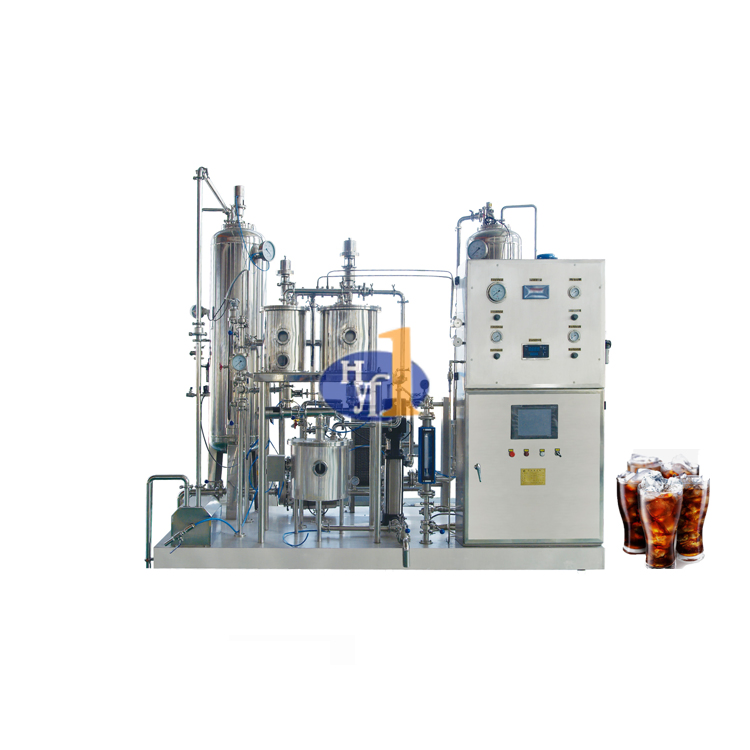

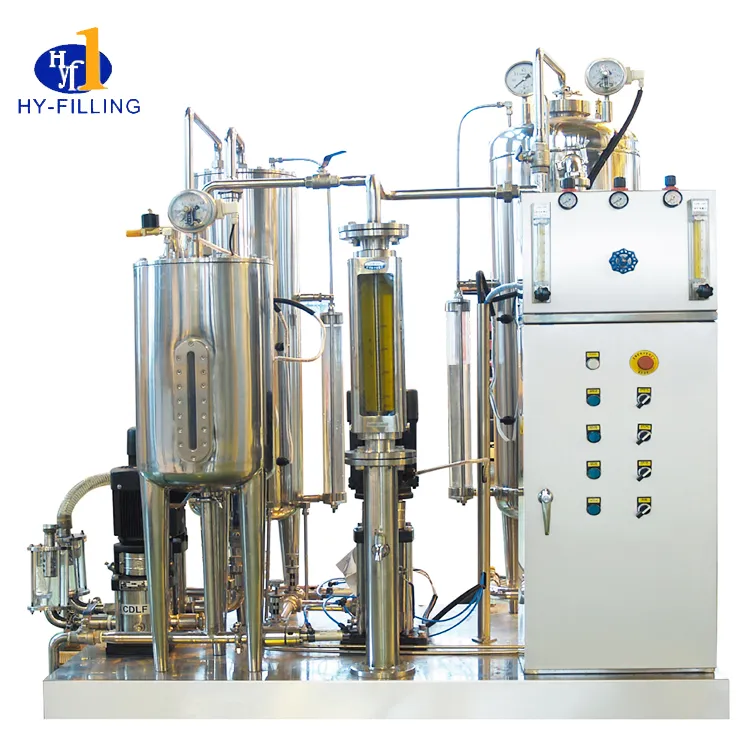

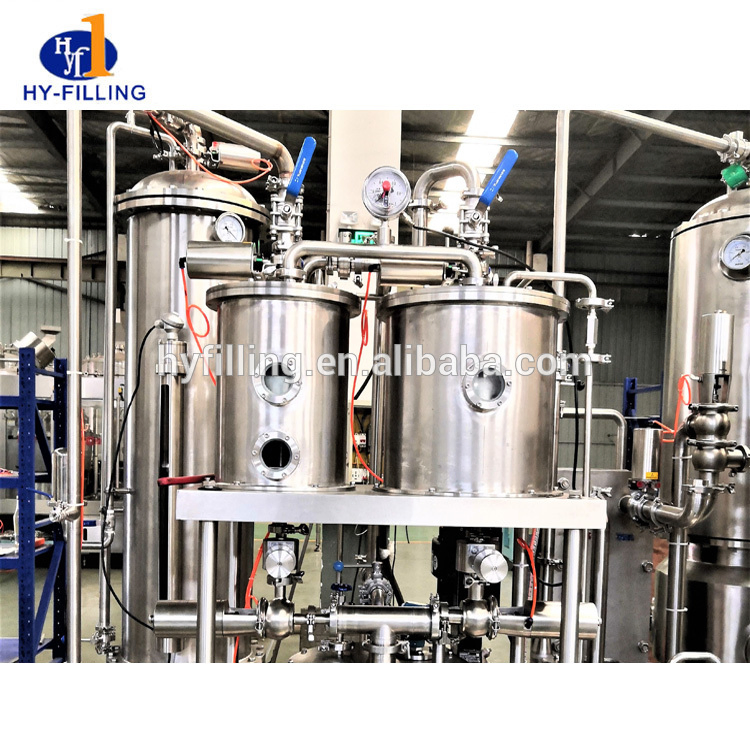

Mainly used for mixing machining of all kinds of carbonated drinks, it also can be used for mixing machining of pulpiness drinks, and ferment drinks. With the function of GOB system, after vacuum oxygen degassing, sterilized water with CO2 and sugar one-shot synthesis according to the customer's demand proportion.

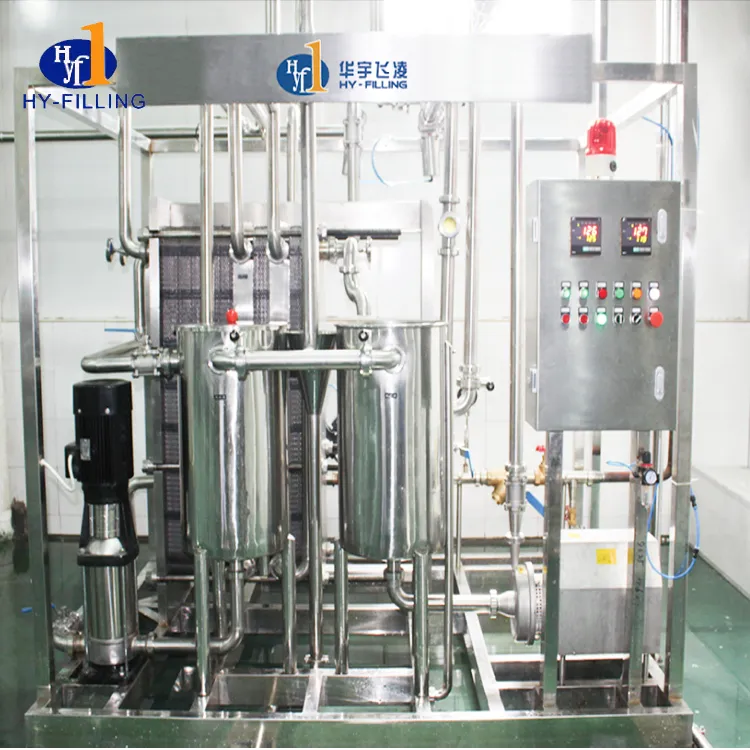

The dispensing system is needed in the production of aerated beverages and juice beverages. Contains hot melt syrup, homogenization, degassing and other processes to process raw materials so that drinks can be delivered to fillers.

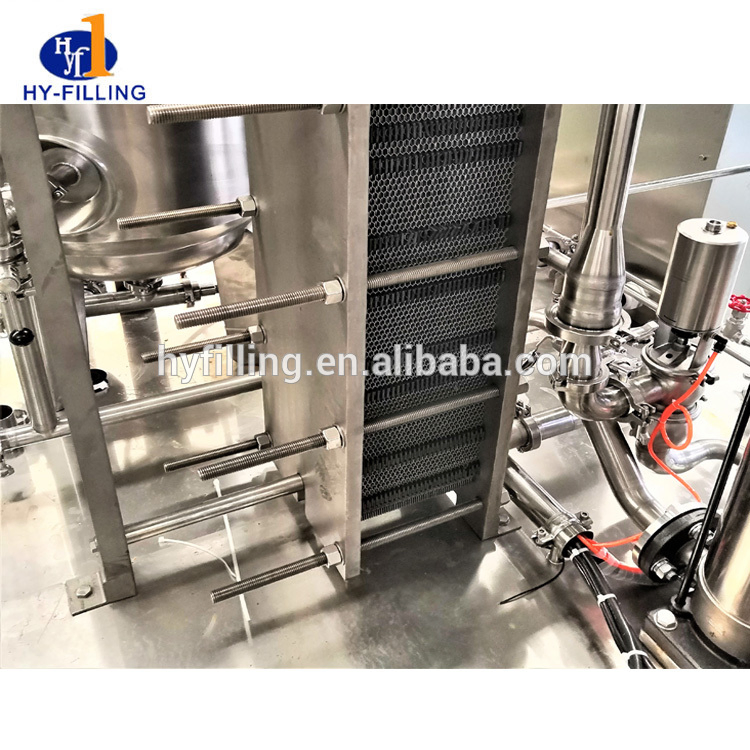

The machine introduces advanced cooling mixer technology with international standards. Key characteristics include imported 304 stainless steel jointing, polish roughness up to 0.4 standard, and CIP rinsing automatic control. The system features high automation, requiring no operator action after startup.
| Description | Specification |
|---|---|
| Output capacity | 3000Kg/h |
| Mixing ratio scope | 3:1 ~ 6:1 |
| CO2 content times | ≤3.8times |
| Carbonated times precision | ±0.15% |
| Mixing rate precision | 0.15BVX |
| Compressed air pressure | 0.6 ~ 1Mpa |
| CO2 supply pressure | 0.8 ~ 1Mpa |
| Mixing temperature | ≤4ºC |
| Total power | 4.45KW |
| Overall dimension | 2510*1500*2500mm |
| Price Term | FOB Shanghai |
| Standard packing | Export package suitable for sea & truck transport |
| Delivery | 120 days since receipt of down-payment |
| Payment terms | 30% T/T as down-payment, 70% T/T before shipment |
| Guarantee | 12 months after installation or 15 months after shipping |
1. Containers are loaded directly by professional teams. We record the inventory list to ensure no goods are missing.

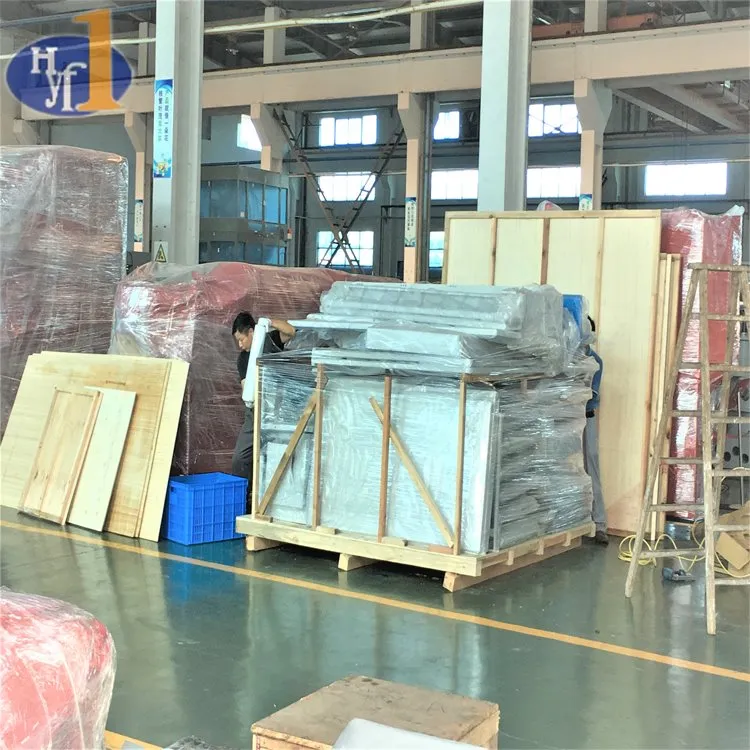

2. Machines are packed in high-strength boards and loaded by forklifts. Wooden boxes protect machinery from collision.
3. Wooden boxes are built by professional companies with precisely calculated reinforcement to ensure stability.
