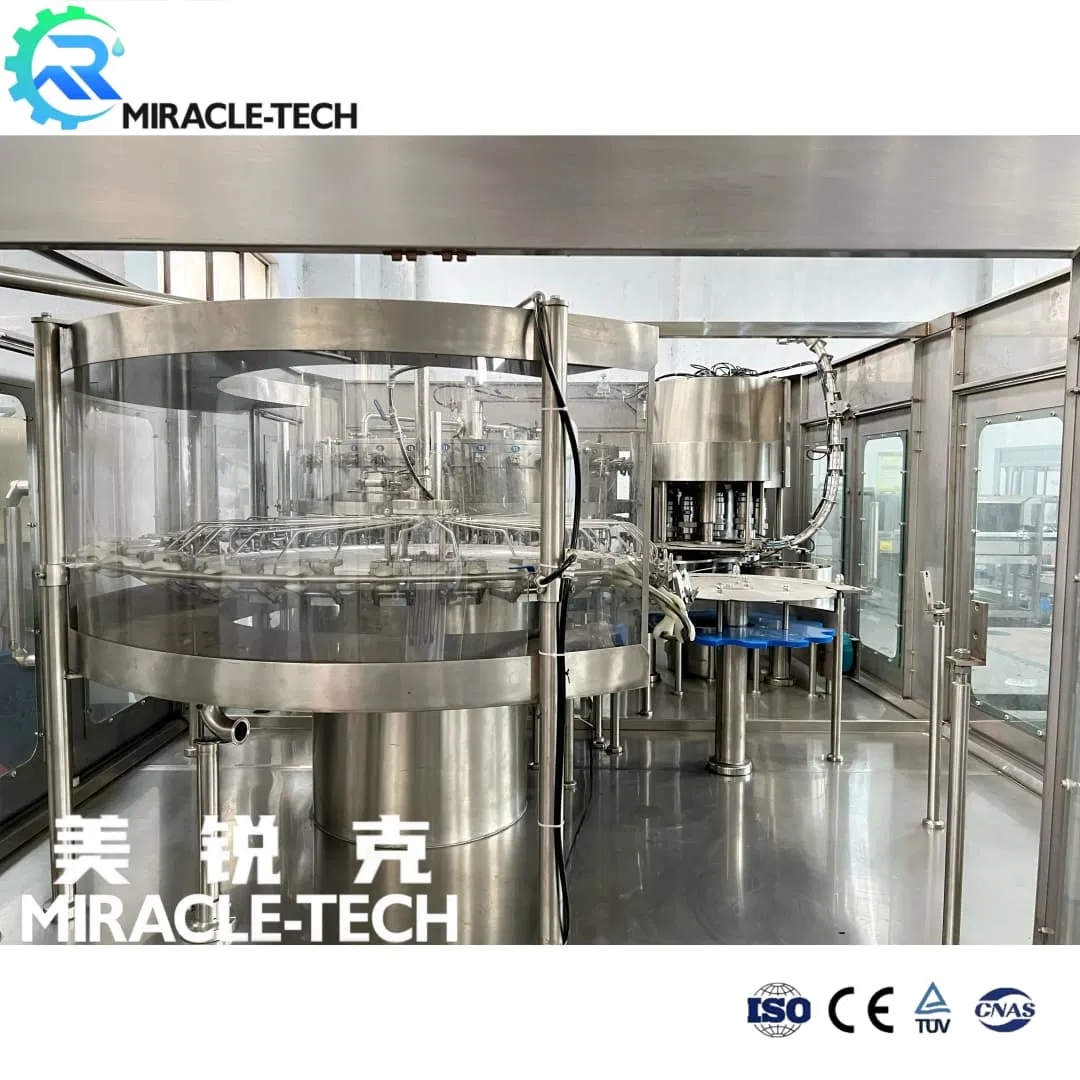

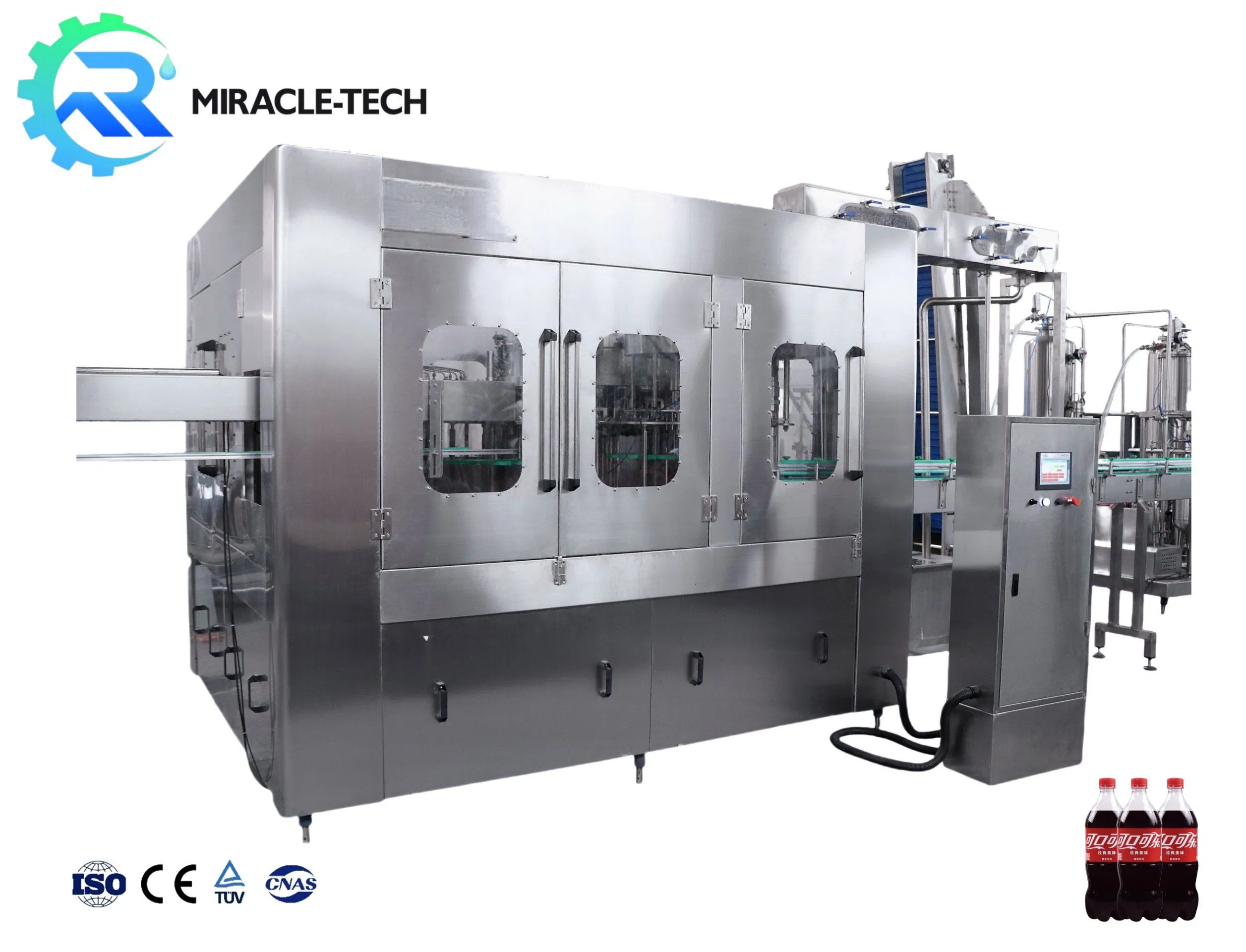

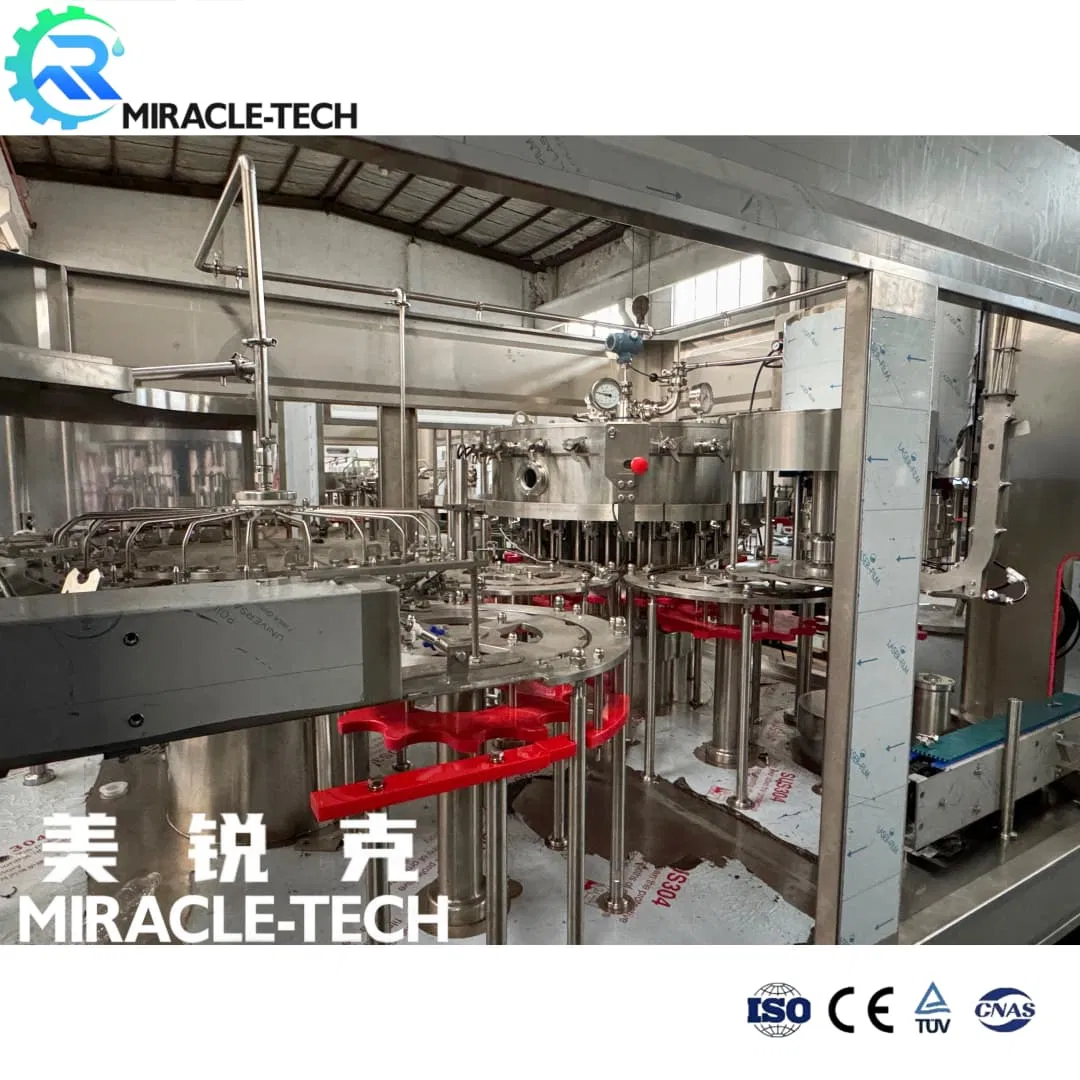

Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
1 / 5
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System
Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System

Carbonated Soda Drink Filling Machine Beverage Water Juice Bottling Labeling Packaging Plant Processing Making Carbonation CO2 Mixing System

Customization: Available
After-sales Service: 24 Months
Warranty: 2-Year Warranty
Send Inquiry

Product Description

Basic Information
Model NO.
DCGF
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Pressure / Isobaric
Structure
Rotary
Packaging
Bottle (PET / Glass)
Material
SUS304 / SUS316L
Filling Accuracy
1% (Filling Level)
Capacity
2000bph - 24000bph

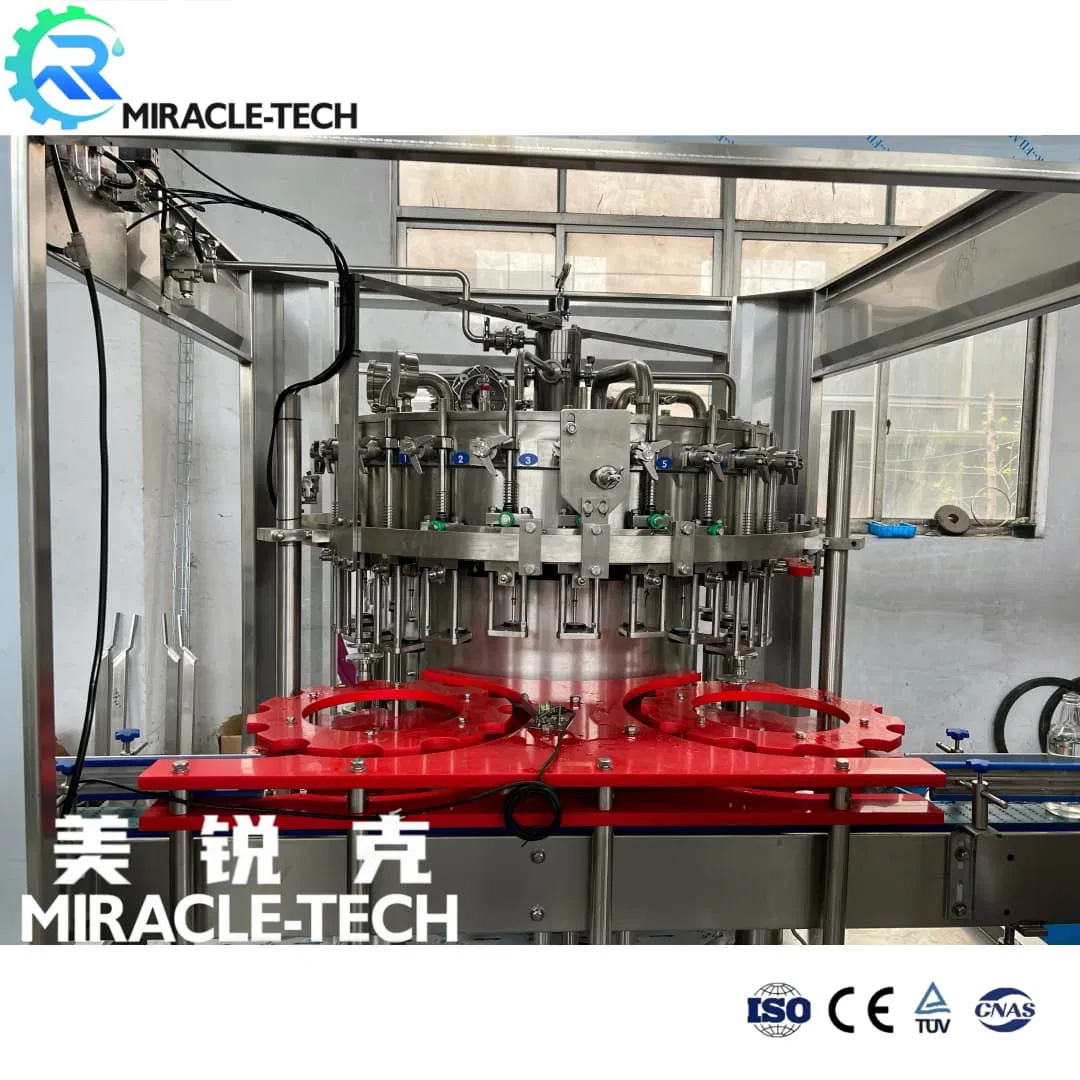

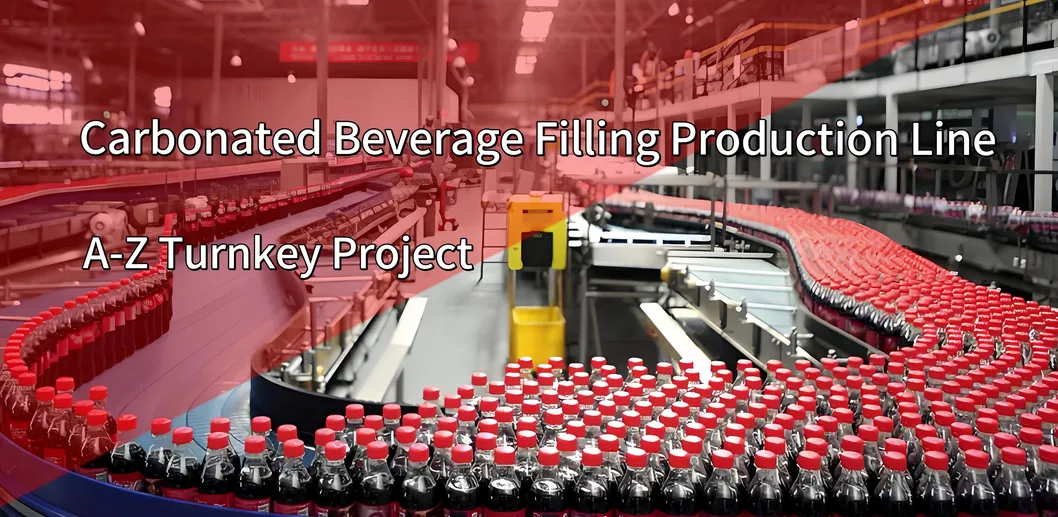

Automatic Carbonated Beverage Filling Machine
Automatic Carbonated Beverage Filling Machine
Description:
Professional manufacturing for complete bottling production lines, focused on providing comprehensive liquid packaging solutions including water treatment, beverage processing, 3-in-1 washing-filling-capping systems, and downstream packaging automation.
Technical Parameters
Model DCGF14-12-5 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
Capacity (500ml) 2000-2500 4000-5000 6000-7000 8000-10000 12000-15000
Bottle Shape PET circular or square (φ40-φ120)
Bottle Height 150-350mm
Filling Method Isobaric filling
Filling Pressure <0.4Mpa
Power 4.5KW 5.5KW 6.2KW 7.5KW 8.2KW
Weight 3200KG 4300KG 5500KG 6800KG 8500KG
Machine Details Overview
Water Treatment System Process Flow
Raw water input → Raw water pump → Silica sand filter → Active carbon filter → (Manganese sand filter) → Sodium ion exchanger → Precision filter → Reverse osmosis (RO) → UV sterilizer → (Ozone generator) → Pure water tank → Pure water output

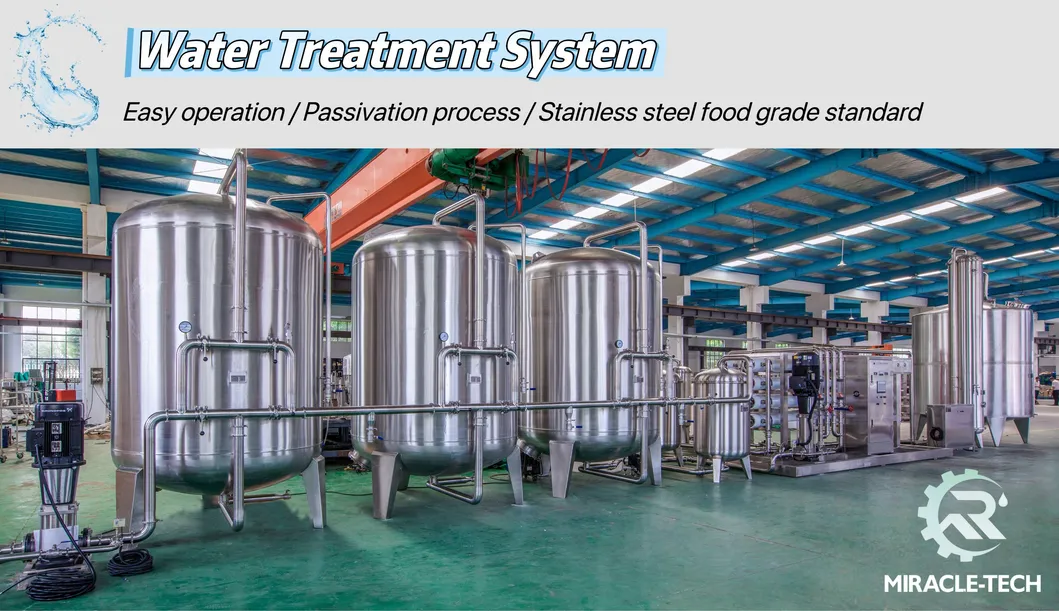

Water Treatment System

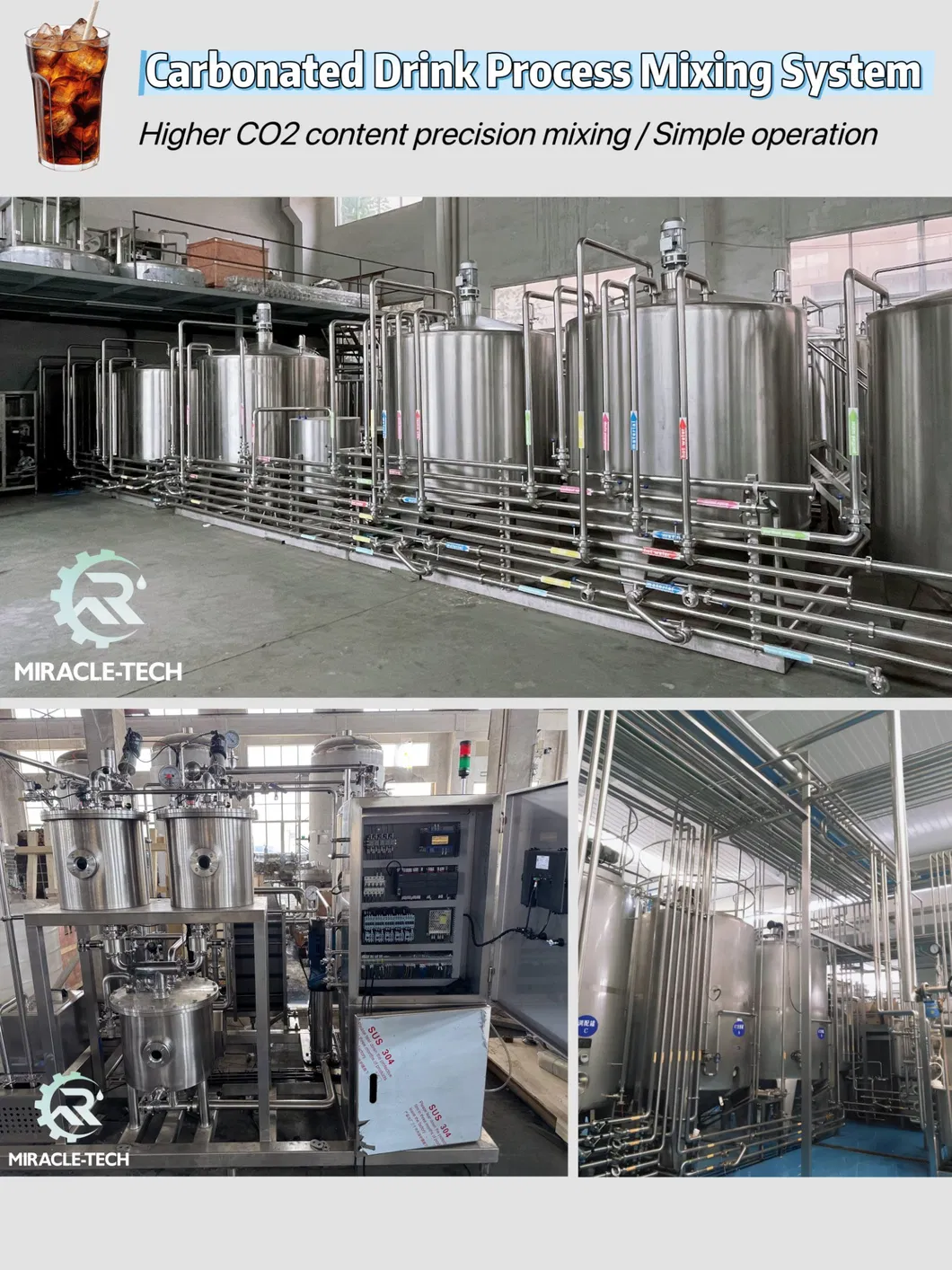

Carbonated Beverage Mixing System

This system features high mixing precision and efficient CO2 saturation through twice cooling and twice carbonation processes. It is ideal for carbonated beverages, soft drinks, and fermented beverages.

Mixing System
Main Features
  • Direct connection technology between wind conveyor and inner wheels eliminates spirals and chains, making shape changes easier.
  • Bottle neck clamping technology allows for height-free machine adjustment during bottle changeovers.
  • High-speed large gravity flow valves ensure fast, accurate filling without liquid loss.
  • Advanced PLC automatic control with high-end electronic components for reliable stability.
  • Stainless steel bottle washer clamps designed to avoid secondary contamination at the bottle neck screw position.

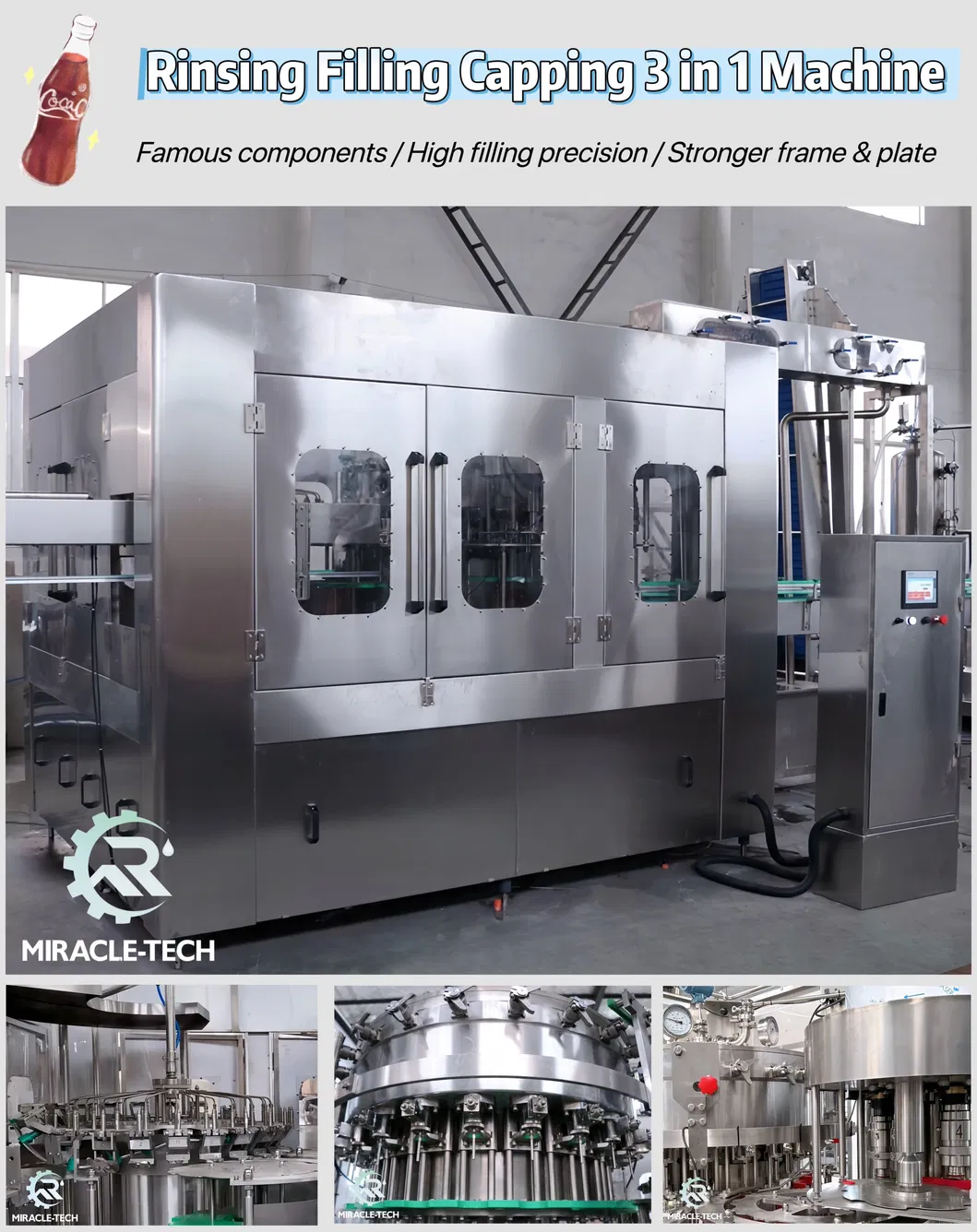

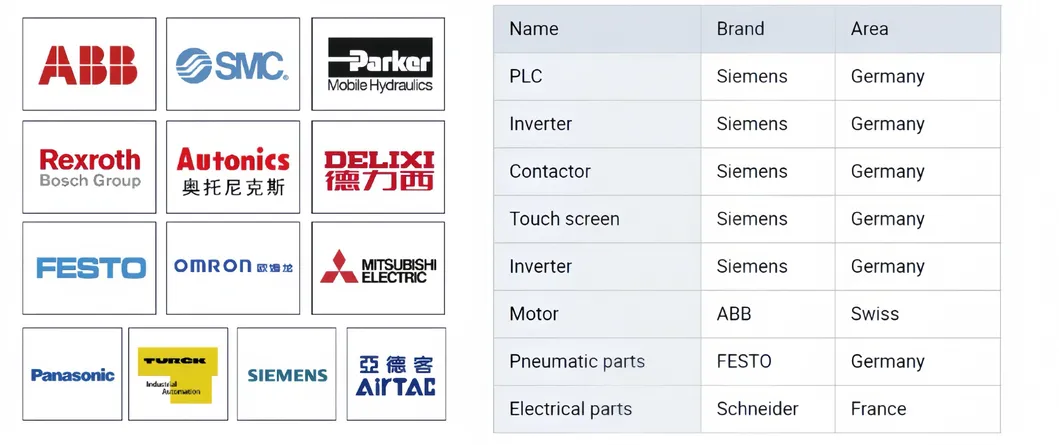

Feature 1 Feature 2
Labeling & Packing Solutions

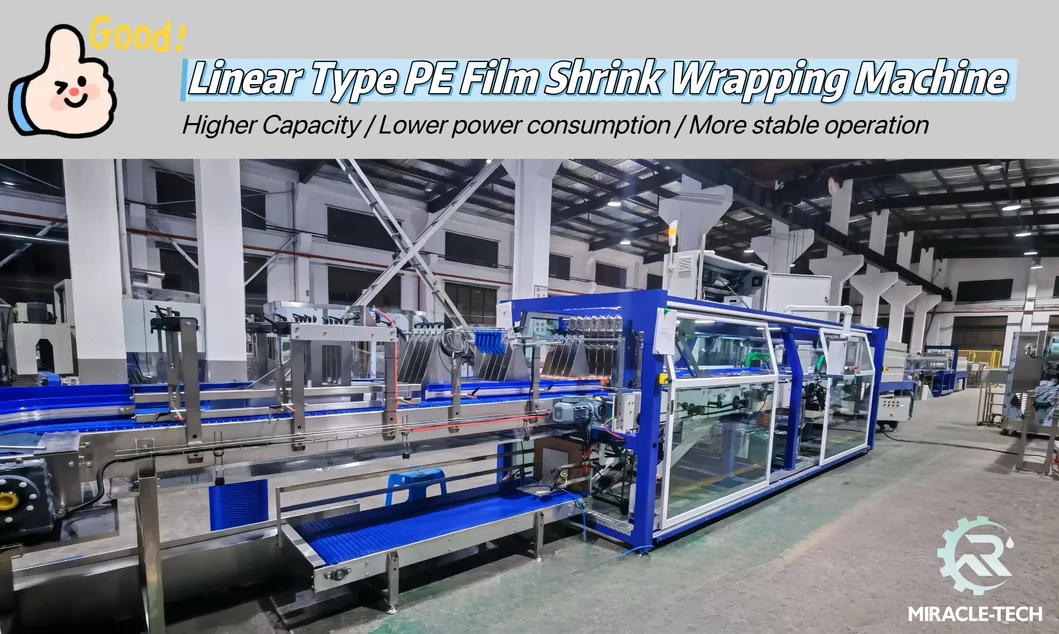

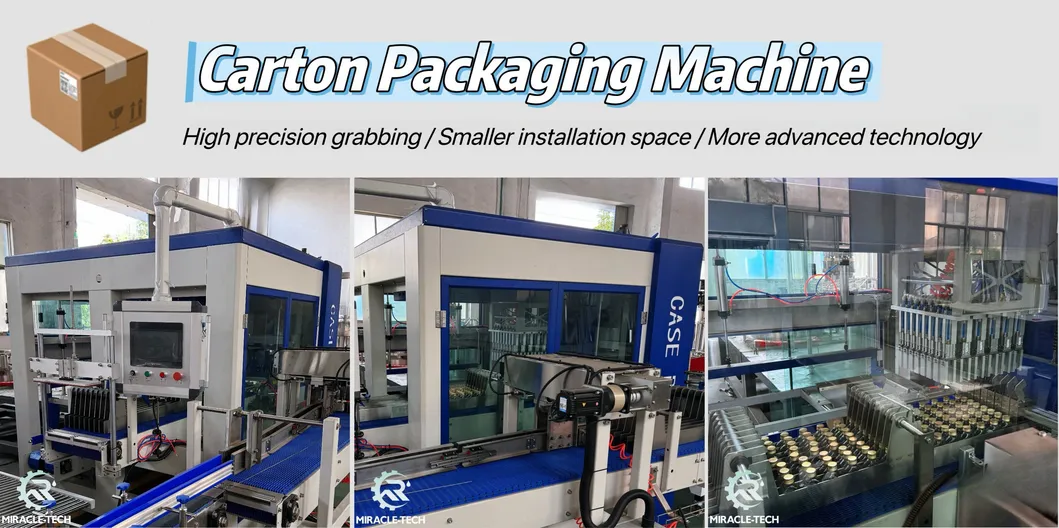

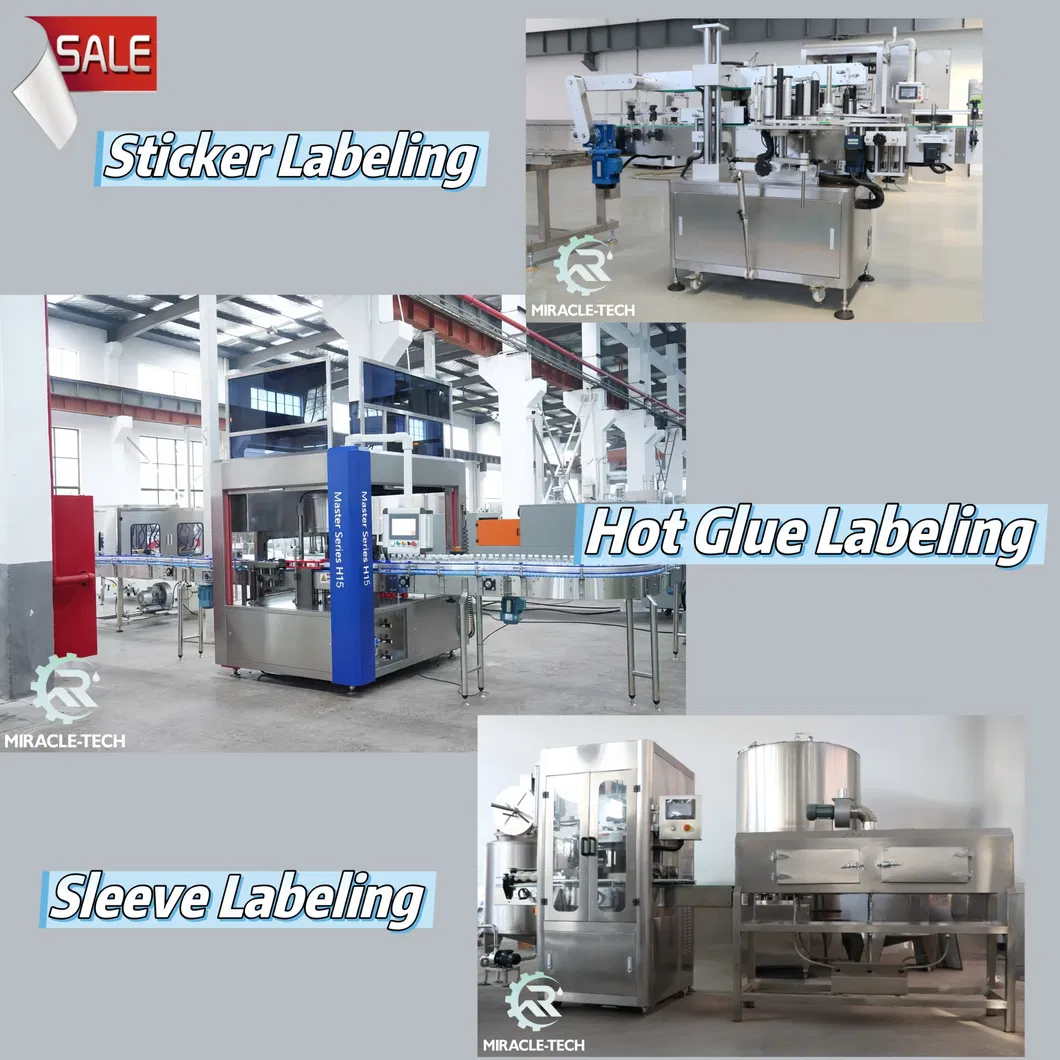

Labeling Machine Packing Machine 1 Packing Machine 2

Customized solutions for PVC shrink labeling, self-adhesive sticker labeling, or OPP hot glue labeling. Multiple packing options including PE film shrink wrapping and carton packaging systems.

Bottle Production Equipment

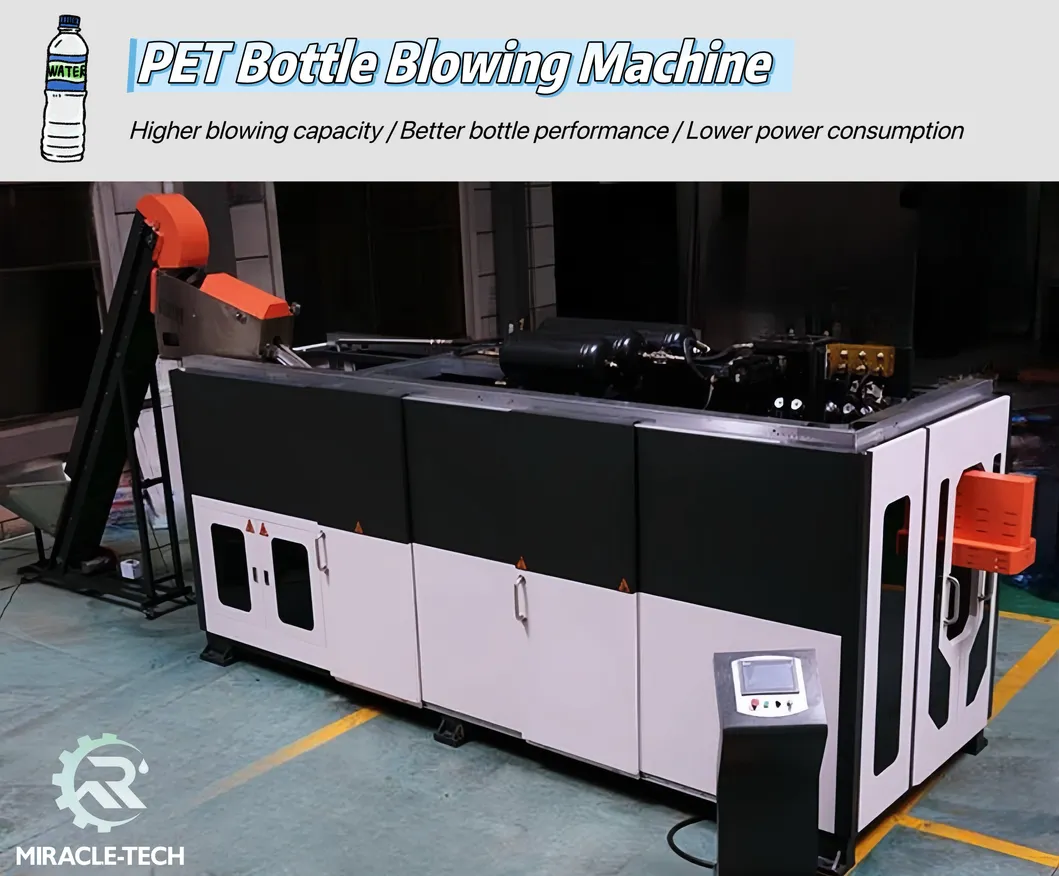

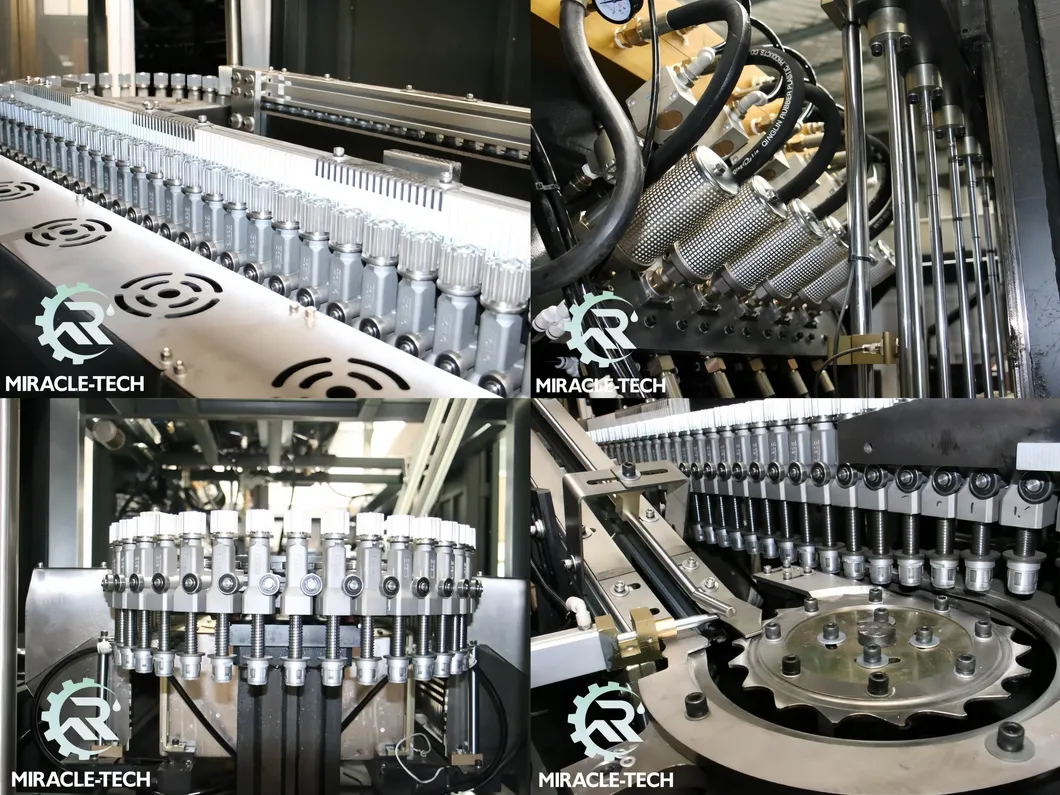

Blowing Machine 1 Blowing Machine 2

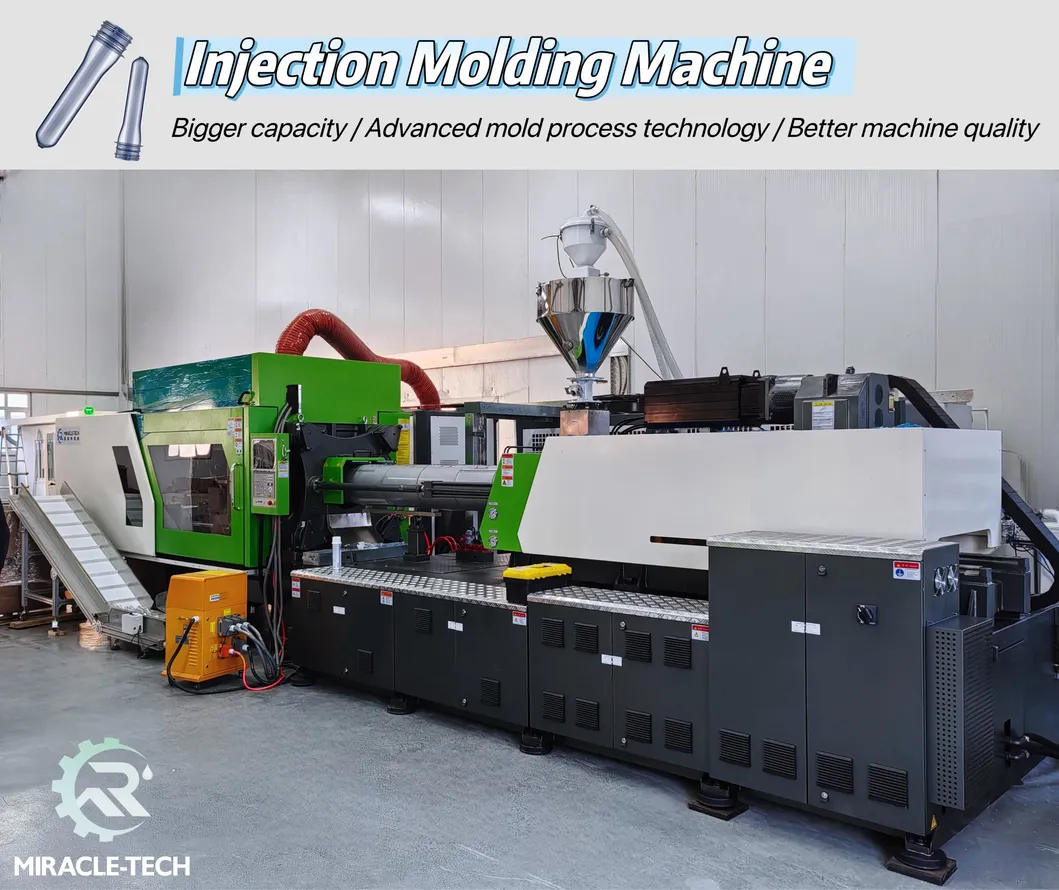

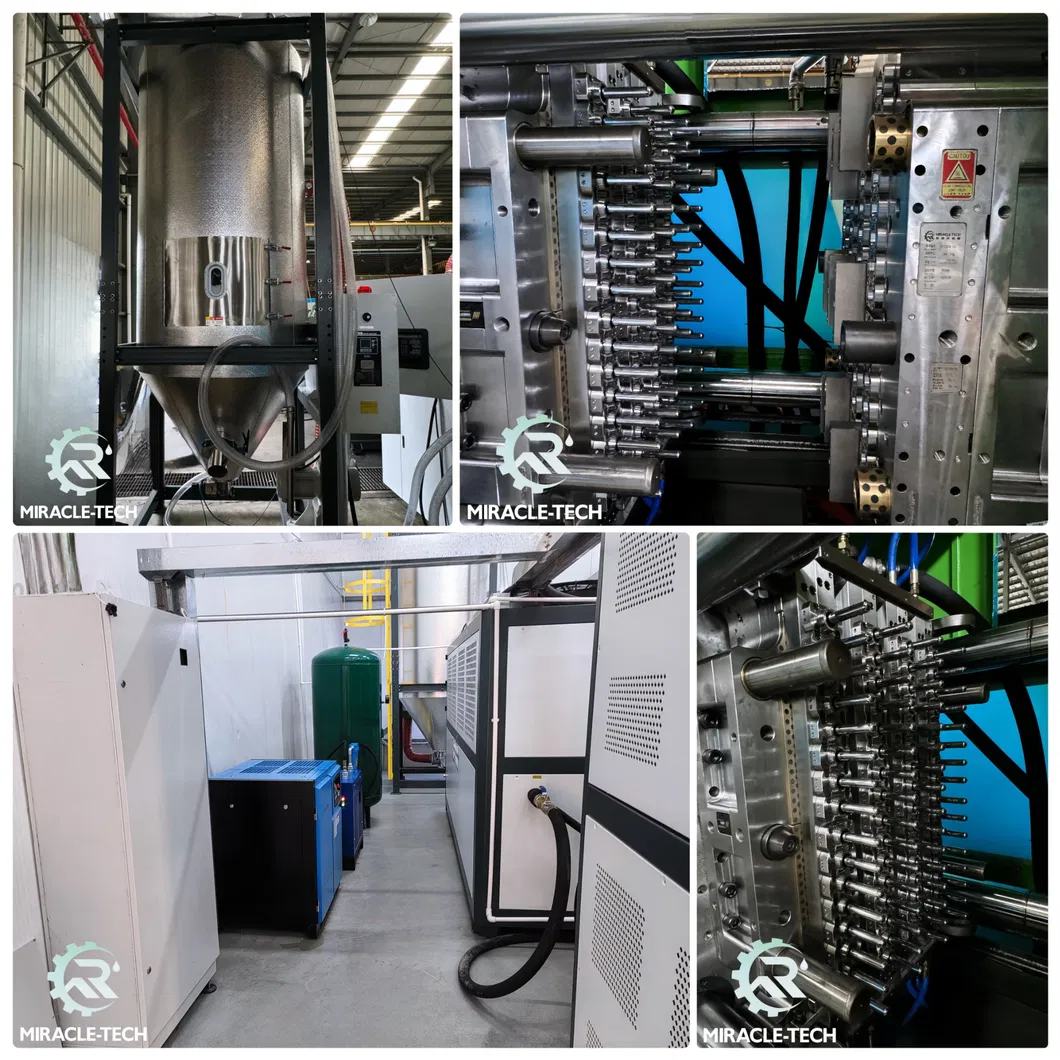

Injection Machine 1 Injection Machine 2

Full-servo electric PET bottle blowing machines and injection molding machines for high-precision preforms and caps production.

Turnkey Solutions & Quality Control

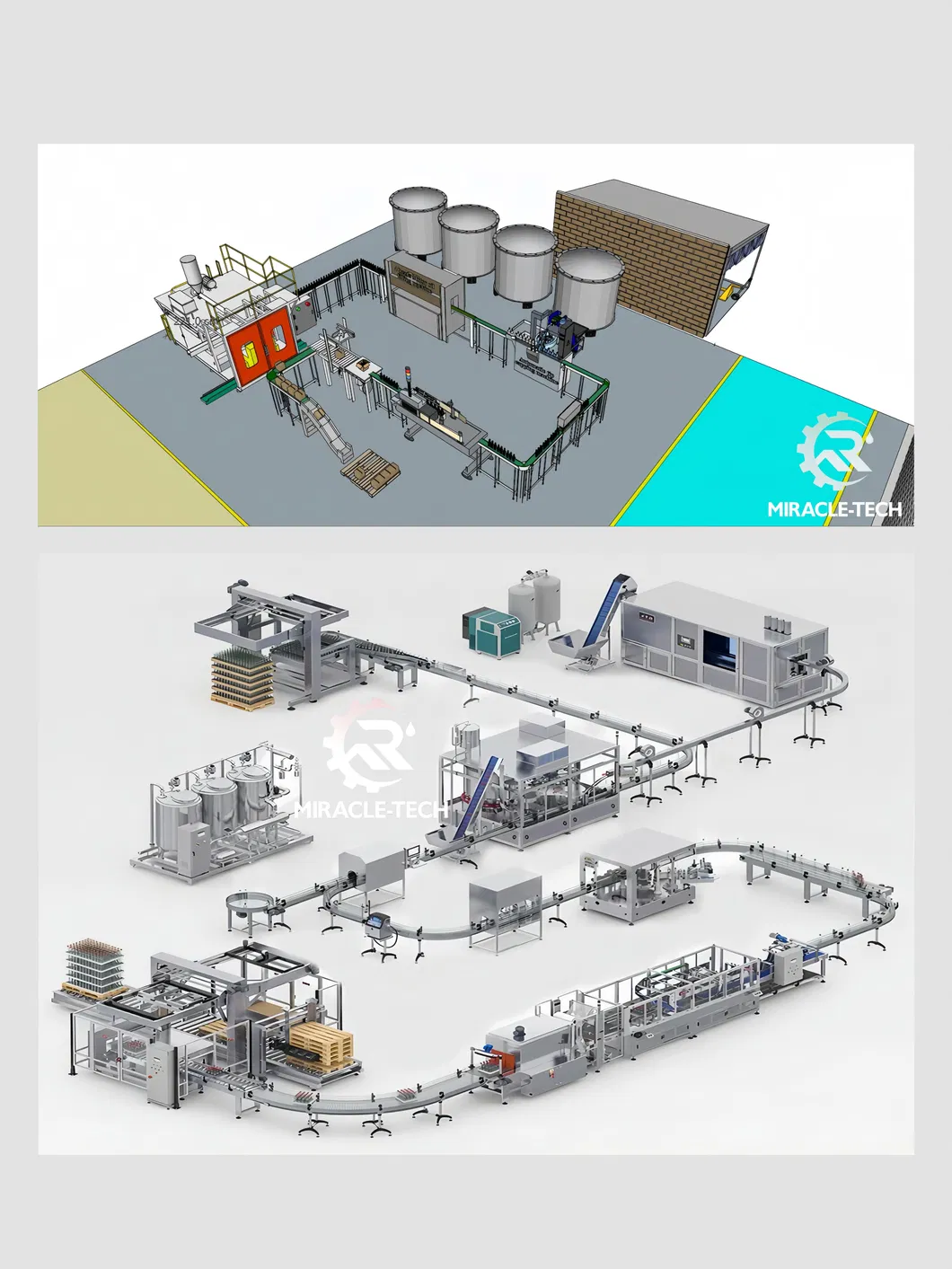

Project Layout
  • Standardized factory workshop with advanced laser and CNC processing equipment.
  • ISO9001, CE, SGS, TUV, and CNCA certified systems.
  • 24-hour rigorous testing for mechanical and electrical stability before shipment.
  • Professional installation teams with extensive global experience.
Certifications Global Customers
Frequently Asked Questions (FAQ)
What types of beverages can this machine handle?
The DCGF series is specifically designed for carbonated beverages, gas drinks, soda water, and other liquids requiring isobaric filling.
What bottle sizes and materials are compatible?
It supports PET and glass bottles with volumes ranging from 200ml to 2L, and bottle diameters between 40mm and 120mm.
What is the production capacity of the line?
Depending on the specific model chosen (from 14 to 40 filling heads), the capacity ranges from 2000bph to 24000bph.
How is the filling accuracy ensured?
The machine uses high-precision isobaric filling valves and PLC automatic control to maintain a filling level accuracy of within 1%.
Is the machine easy to adjust for different bottle shapes?
Yes, the adoption of bottle neck clamping technology and direct connection conveying channels makes bottle shape changeovers much faster and easier.
What materials are used for construction?
All liquid-contact parts and the main structure are made of high-quality stainless steel SUS304 or SUS316L for durability and hygiene.
