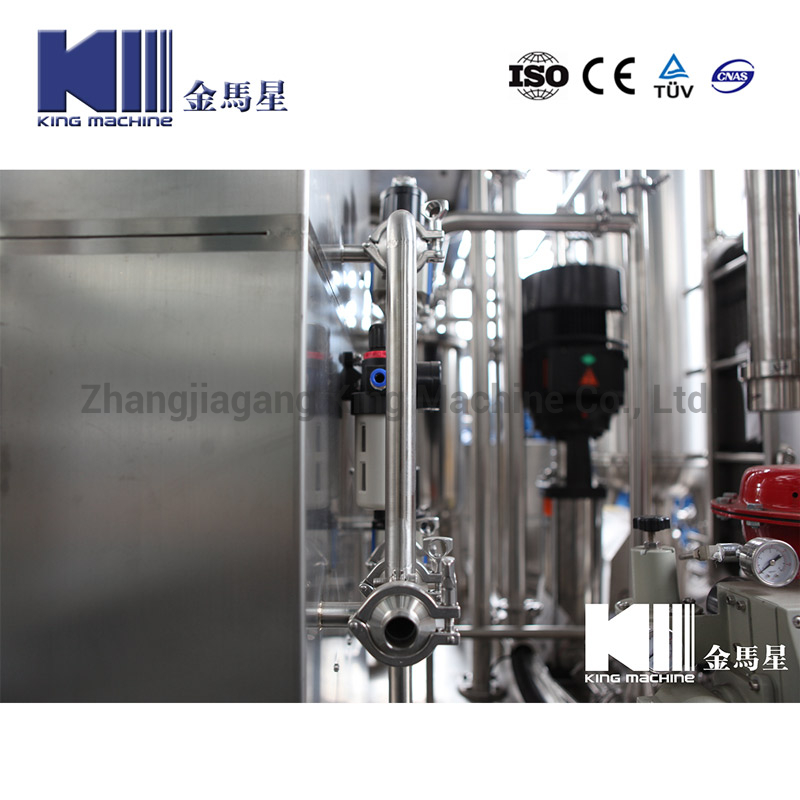

Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
1 / 5
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine
Drinking Beverage CO2 Mixing Tank/Carbonation Machine

Drinking Beverage CO2 Mixing Tank/Carbonation Machine

Customization: Available
Type: Weighing-type Filling Machine
Automatic Grade: Fully Automatic
Send Inquiry

Product Description

Basic Information

Model NO.
QHS
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Dual-Chamber Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Structure
Rotary
Packaging
Bottle
Bottle Volume
100ml to 2000ml
Control System
PLC
Material
SUS 304
Warranty
2 Years

Product Description

QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and high-end electrical equipment to form a complete automatic control system. It features coordinating action, beautiful appearance, convenient washing, and high automation levels. It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and other soft and hard drinks.

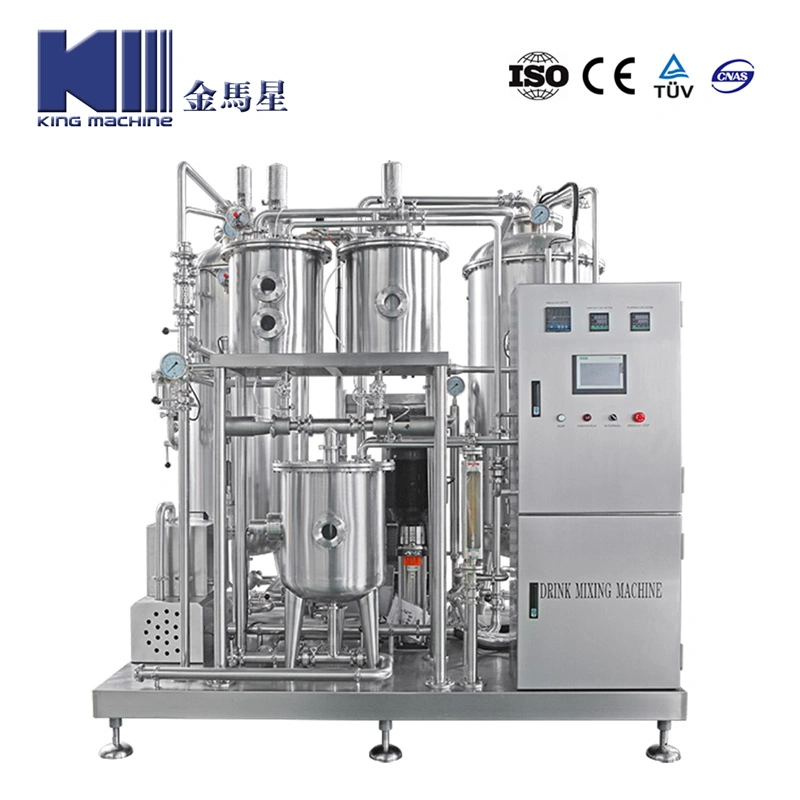

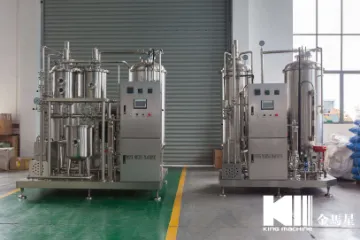

Drinking Beverage CO2 Mixing Tank

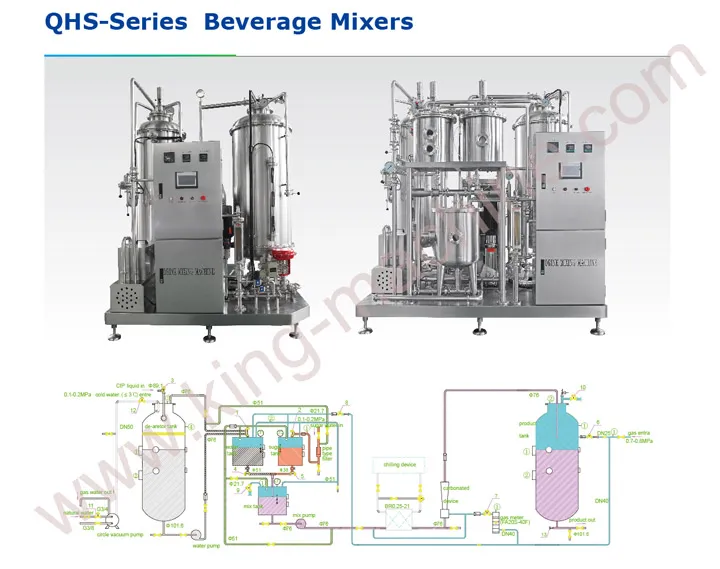

Carbonation Machine Structure

Key Features

Advanced Technology: Uses Static mixer (carbonizer) for large gas-liquid mass transfer area, low energy consumption, and high efficiency.
Accurate Proportioning: Precise mixing ratio of syrup and water with easy adjustment without replacing parts.
CO2 Efficiency: Adopts CO2 reflux deoxidation to save gas and improve pre-carbonation effects.
Adjustable Content: Easy adjustment of gas content according to beverage requirements.
Automated Control: Perfect automatic control system for continuous production and high stability.
Hygienic Design: Fitted with in-place cleaning (CIP) techniques for easy disinfection and washing.

Technical Specifications

(1) Capacity1500 liters/h
(2) Range of proportion (Syrup:Water)1:3 - 1:10
(3) Volume of Carbonation (CO2:H2O)> 1:5
(4) Mixing precision error≤ 2%
(5) Cooling water temperature (entry)0-4ºC
(6) Cooling water pressure (entry)0.02-0.1Mpa
(7) Syrup temperature (entry)2-8ºC
(8) Syrup pressure (entry)0.01-0.08Mpa
(9) CO2 pressure (entry)0.7-0.8Mpa
(10) CO2 purity> 99.9%
(11) Working pressure of tank0.2-0.5Mpa
Mixing Tank Detail

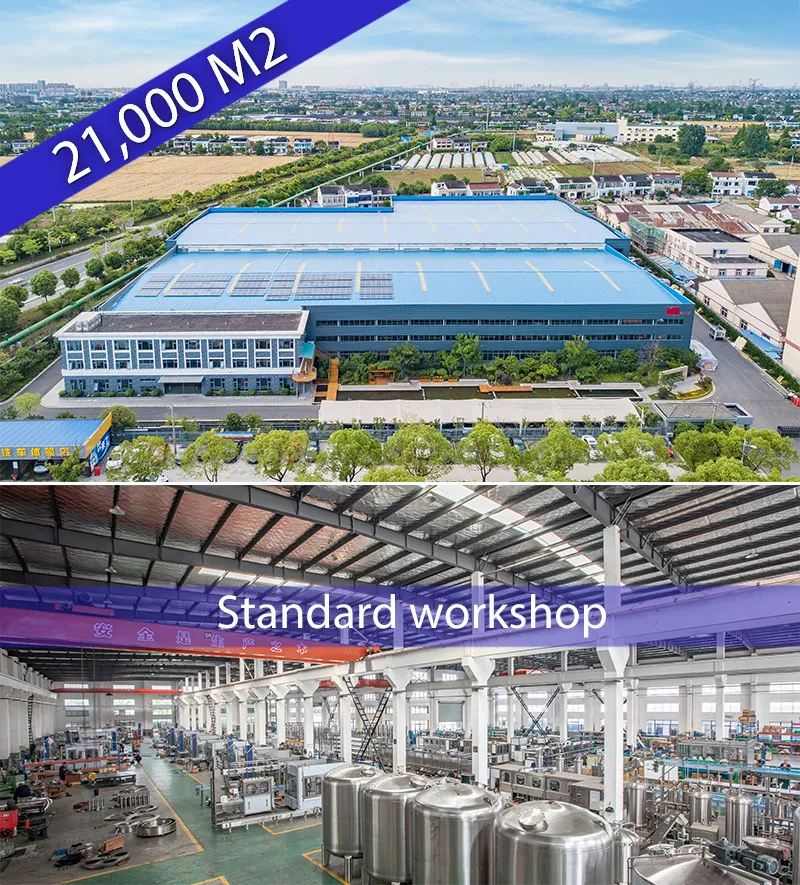

Machine Assembly
Production Line

Manufacturing & Quality Control

Utilizes precision processing units like water jet, plasma, and laser cutters.
Equipments are tested and run for 24 hours before delivery to ensure stability.
Experienced engineering team capable of designing reasonable flow charts for space optimization.
Rigid monitoring of assembly details to ensure perfect performance and appearance.
Professional Setup
Packaging Equipment

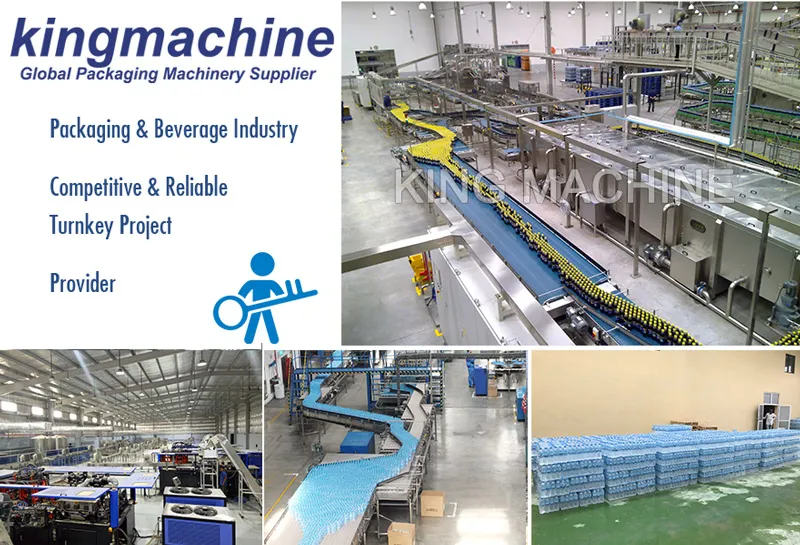

Final Product Showcase

Frequently Asked Questions (FAQ)

Q1: What types of beverages can this mixing machine process? A: The QHS series mixer is suitable for a wide range of beverages, including soda water, fruit juices, cola, and other carbonated soft or hard drinks.
Q2: How does the static mixer technology benefit production? A: It increases the area for gas-liquid mass transfer, ensures a uniform mix, reduces resistance loss, and significantly lowers energy consumption compared to traditional methods.
Q3: Is the mixing proportion of syrup and water adjustable? A: Yes, the machine allows for precise adjustment of the mixing ratio (ranging from 1:3 to 1:10) without the need to replace any mechanical parts.
Q4: What material is the machine constructed from? A: The machine is primarily constructed from high-quality SUS 304 stainless steel, ensuring durability and compliance with food hygiene standards.
Q5: What are the cooling water requirements for optimal carbonation? A: For the best results, the entry cooling water should be between 0-4ºC with a pressure range of 0.02-0.1Mpa.
Q6: Does the system include an automatic cleaning function? A: Yes, the machine features an integrated CIP (Clean-In-Place) flow design, making it convenient for chemical disinfection and hot water washing.
