Full Automatic Pickle Manufacturing Machines

Customization:	Available
Type:	Pickles Production Line
Voltage:	380V

Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.

Power

20kw

Customized

Yes

Material

316L SS

Turn-Key Project

Yes

Warranty

2 Years

Oversea Service

Engineers Available for Installation

Transport Package

Wooden Case

HS Code

84386000

Production Capacity

10 Sets Per Month

★

Core Features

Stable operation and reliable performance.

Economic energy consumption for cost-effective production.

Compact design requiring small land area.

Simple operation and convenient maintenance procedures.

Flexible configuration: can be operated singly or in combination.

⚙

Applications

This equipment is suitable for a wide range of fruit and vegetable products:

Garden Bean Asparagus Broccoli Taro String Bean Young Soy Bean Sweet Corn Strawberry Cherry Apple Dice Onion Tomato Mushroom Pumpkin Dice Spinach Bean Sprout

➔

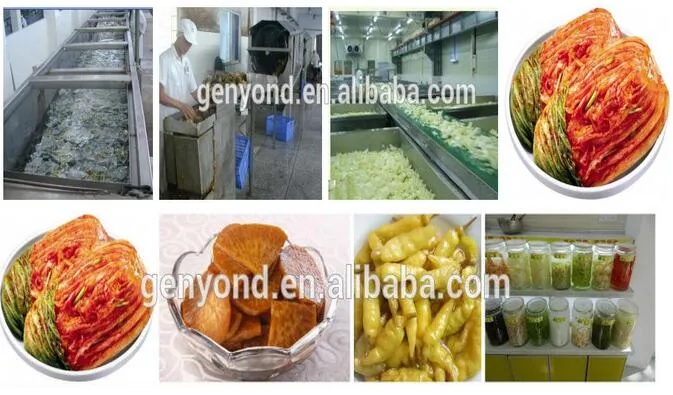

Processing Flow (Example: Pickle)

1 Raw material conveying

2 Half cutting

3 Brine soaking

4 Tank fermentation

5 Desalting & Washing (3 times)

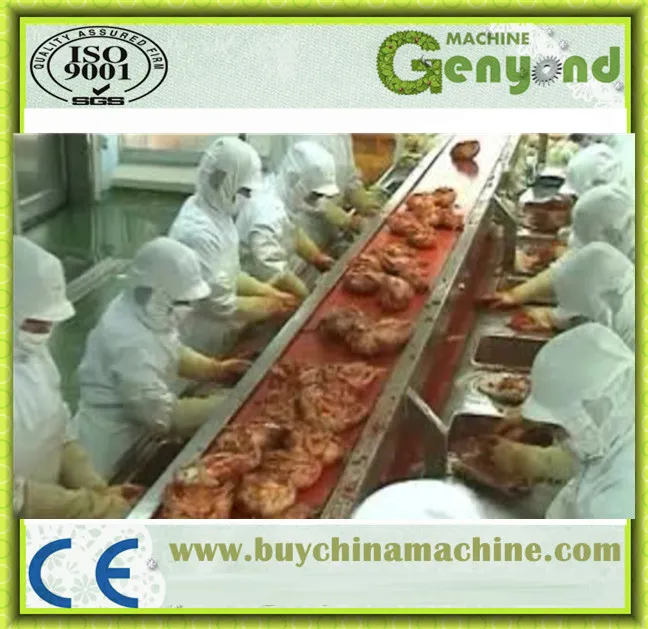

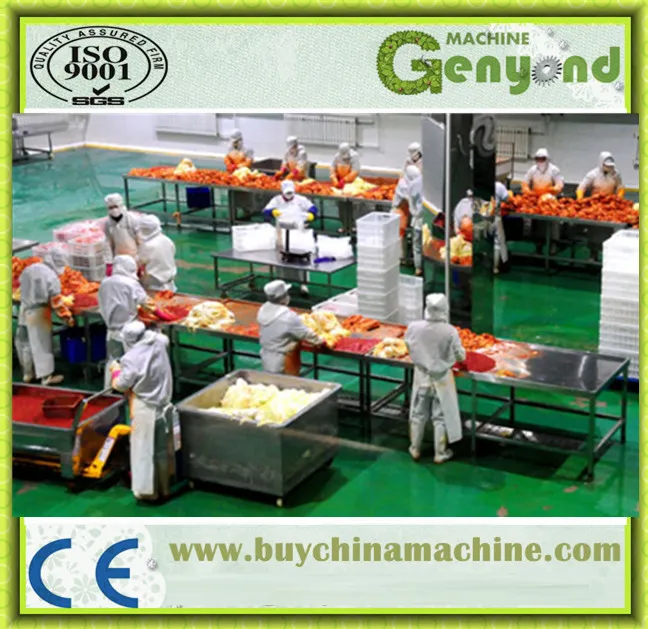

6 Manual picking & Soaking

7 Pepper adding & Packing

📋

Equipment Details

NO.	Equipment Name	Dimensions (mm)	Technical Parameters
1	Conveyor	2000x1200x900	P=0.75KW; Width: 600mm; Inlet H: 900mm
2	Cabbage Half Cutting Machine	2250x700x1350	P=0.75KW; V-type 90° conveying for precise middle cutting.
3	Rubber Belt Conveyor	4000x1200x800	P=0.75KW; Width: 700mm; Customizable layout.
4	Double-Layer Labor Picking Machine	8000x1500x800	P=3*0.75KW; Dual-side workbench; includes waste bucket and conveyor.

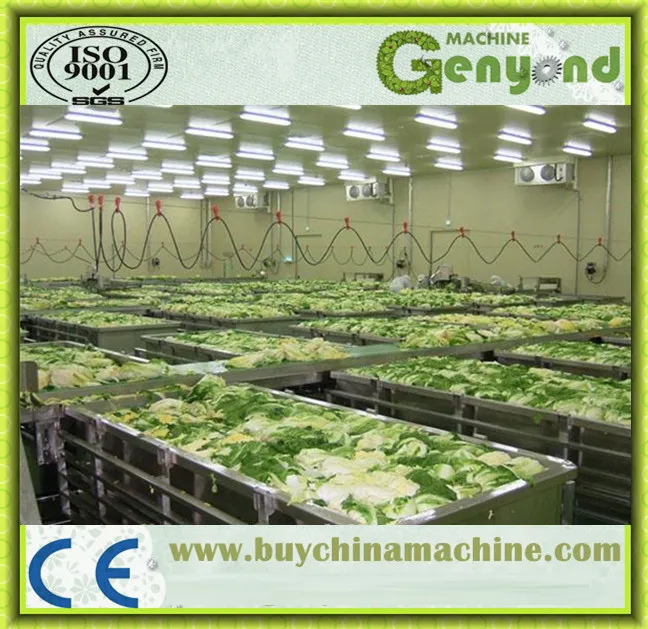

5	Pickle Fermentation Tank	3000x1500x800	Made from Stainless Steel; includes SS cover.
6	Multi-functional Washing Machine	6500x1600x1630	P=7.86KW; High-pressure washing; removes hair and impurities.
7	Saline Soak Machine	6200x1500x1300	P=2.2KW; Stainless Steel belt drive.
