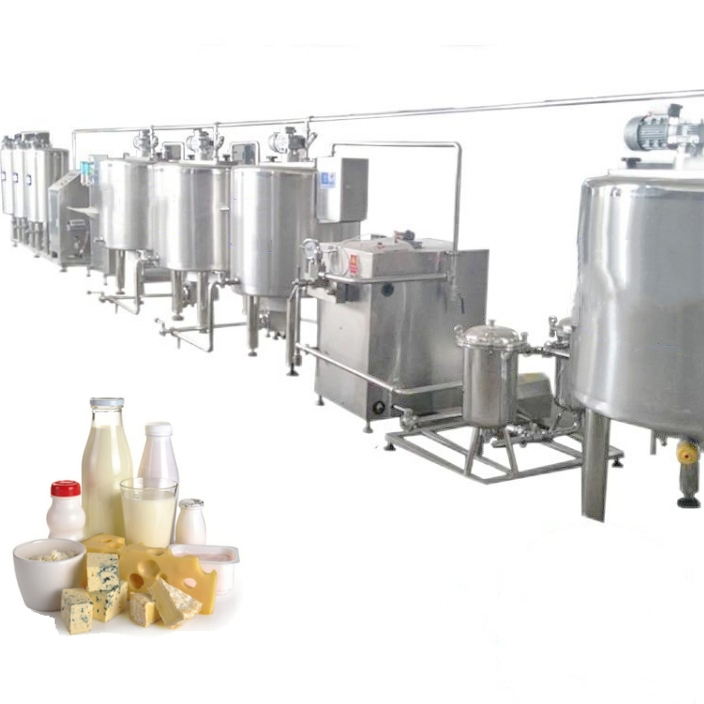

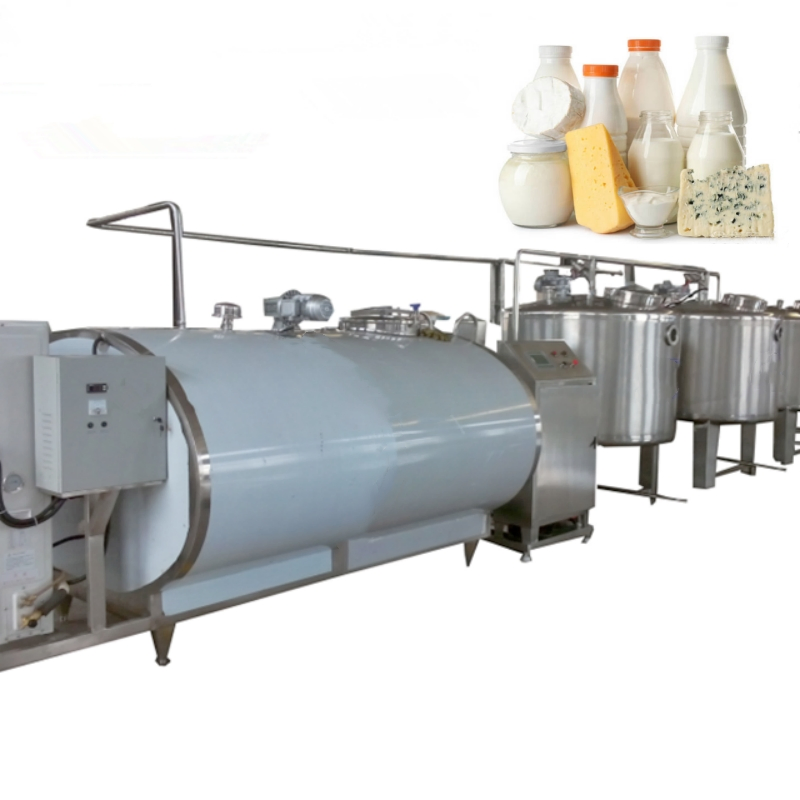

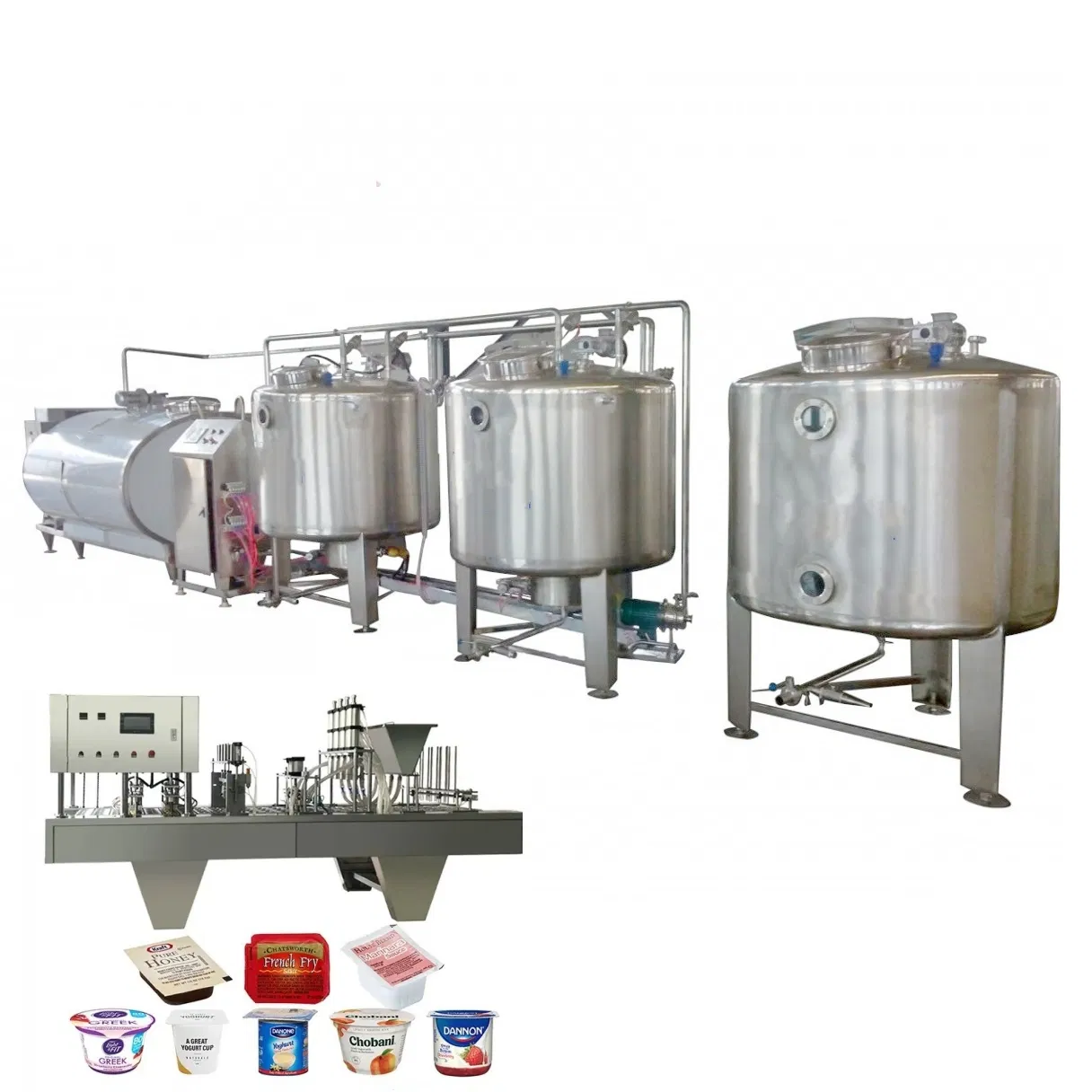

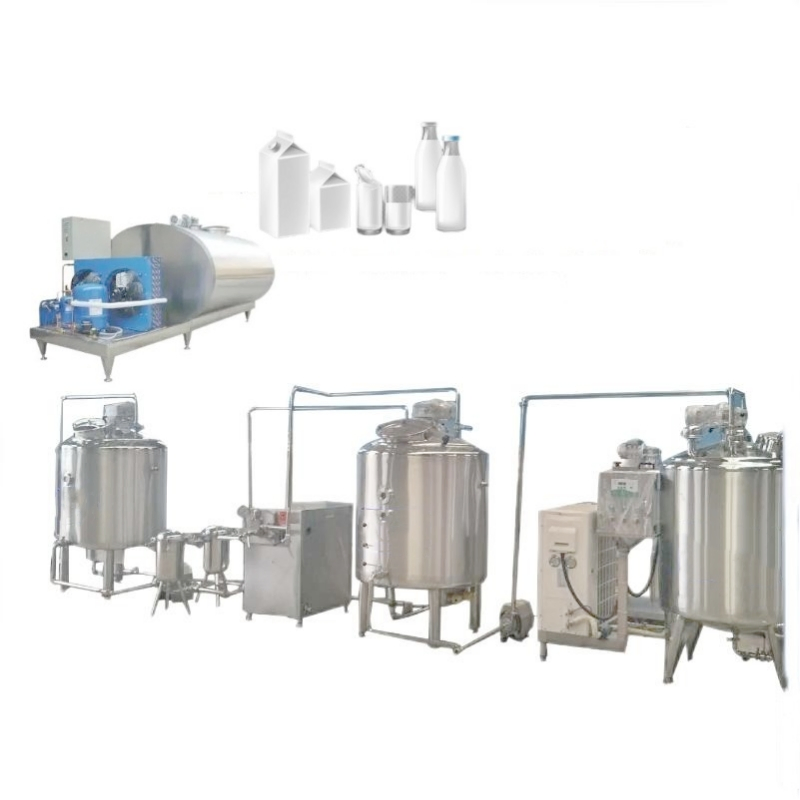

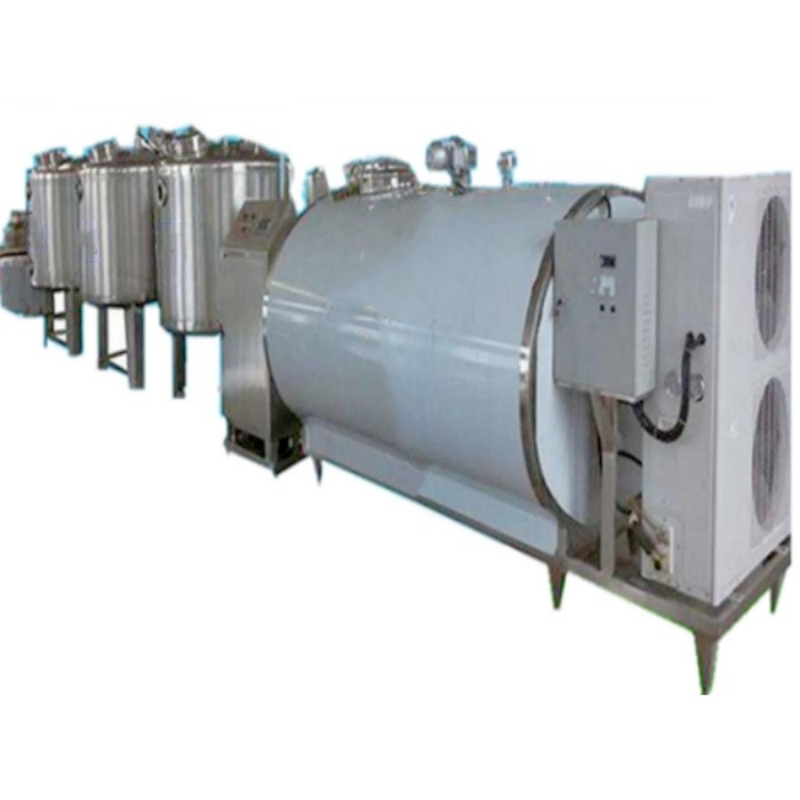

Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line
1 / 5
Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line
Small Scale Pasteurized Milk Yogurt Production Line

Small Scale Pasteurized Milk Yogurt Production Line

Customization: Available
After-sales Service: Oversea Service
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
BSN-500
Process
Thermal Processing
Power Source
Electric
Certification
ISO9001
Automatic Grade
Automatic
Application
Milk, Yogurt
Customized
Customized
Raw Material
Cow Goat Milk
Voltage
380V 50Hz
MOQ
1 Set
Heating
Electric / Steam
Production Capacity
200 sets/Year
Specification
500L - 5000L
Origin
China
Product Description
Milk Yogurt Production Line Overview

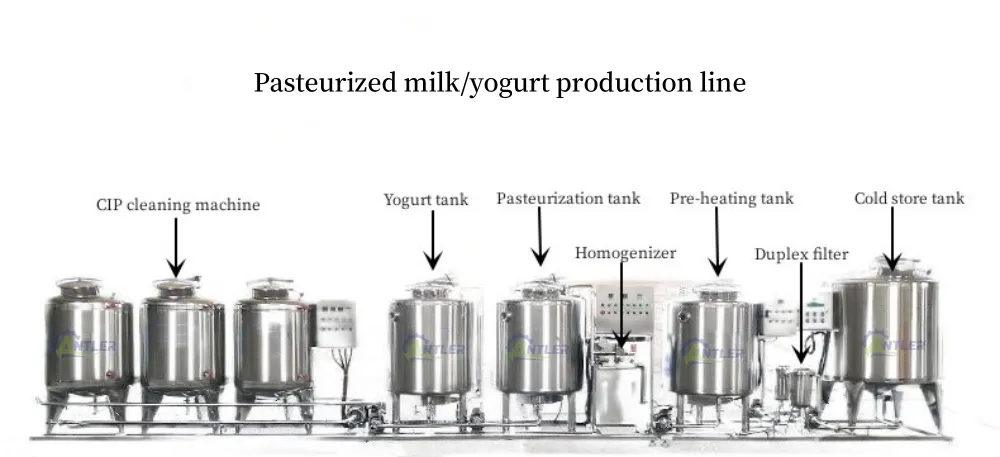

Production Line Layout
Standard Equipment List of Dairy Production Line
NO. NAME MAIN TECHNOLOGY PARAMETER
1MILK RECEIVE \ STORAGE
2Milk receiving tankSUS304 stainless steel, single layer, CIP cleaning ball
3Milk pumpSUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal
4Double filterSUS304 stainless steel, two pipe, 100 Mesh element
5Dish separatorAuto residue discharge
6Cooling tankSUS304 stainless steel, alveolate jacket, attached with compressor
7Milk pumpSUS304 stainless steel, pump lift 24M
8Blending tankSUS304, heat insulated, top off-center agitator, digital thermometer
9Milk pumpSUS304 stainless steel, pump lift 24M
10Plate-type heat exchangerSUS304 stainless steel, two stages
11Milk pumpSUS304 stainless steel, pump lift 24M
12UHT sterilizerTub-type, sterilizing temp 137°C, holding time 4S, full automatic
13High pressure homogenizer40MPa, starting box included
14CIP SYSTEM
15Semi-auto CIP systemSUS304 outer, SUS316 inner, 100L×2 acid/alkali concentrate tanks
16CIP return pumpSUS304 stainless steel, pump lift 24M
17Installation partWhole milk processing line installation and commissioning

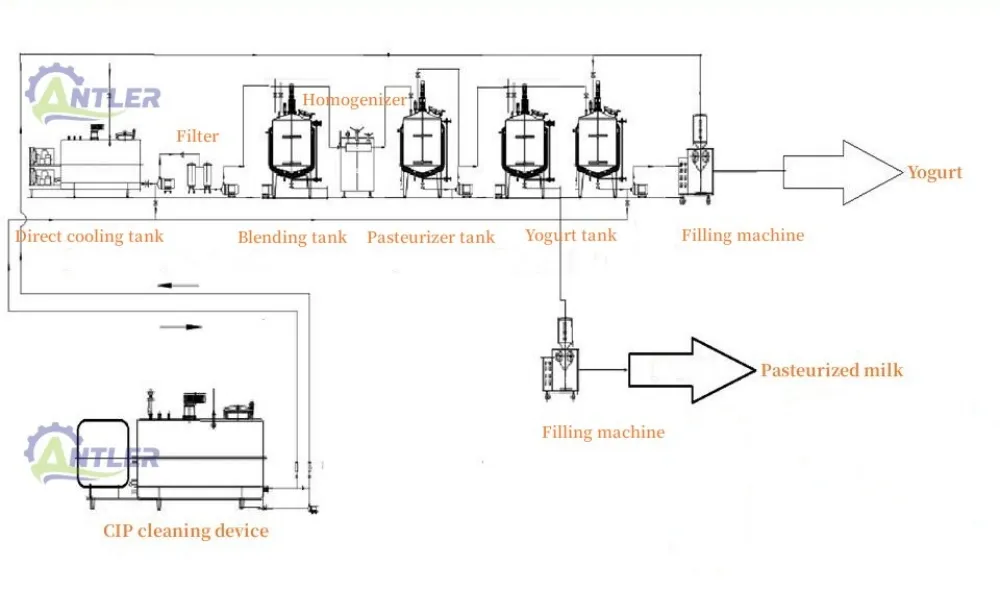

Processing Equipment Detail

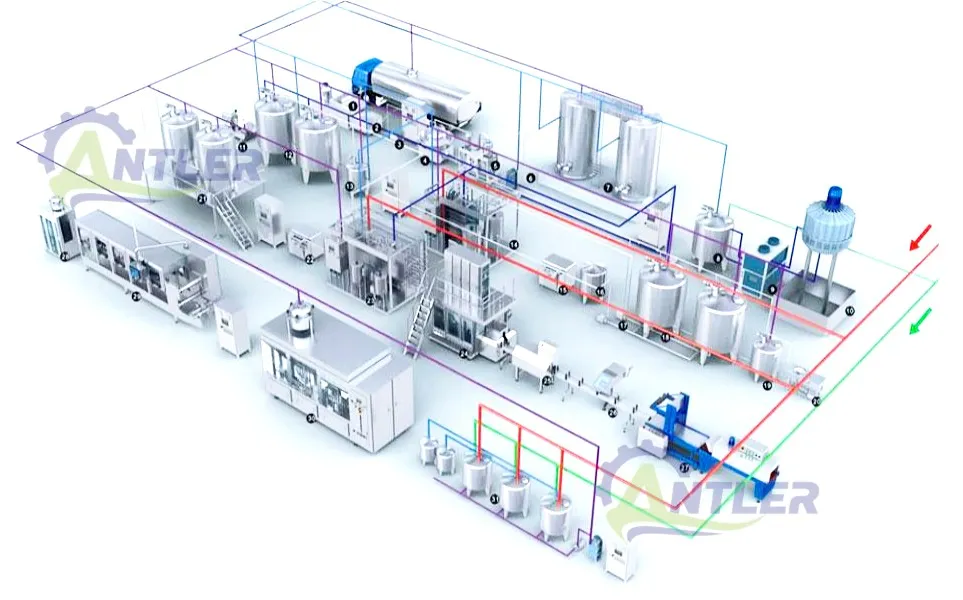

System Control Panel
Detailed Photos
Detailed Machine View 1
Detailed Machine View 2

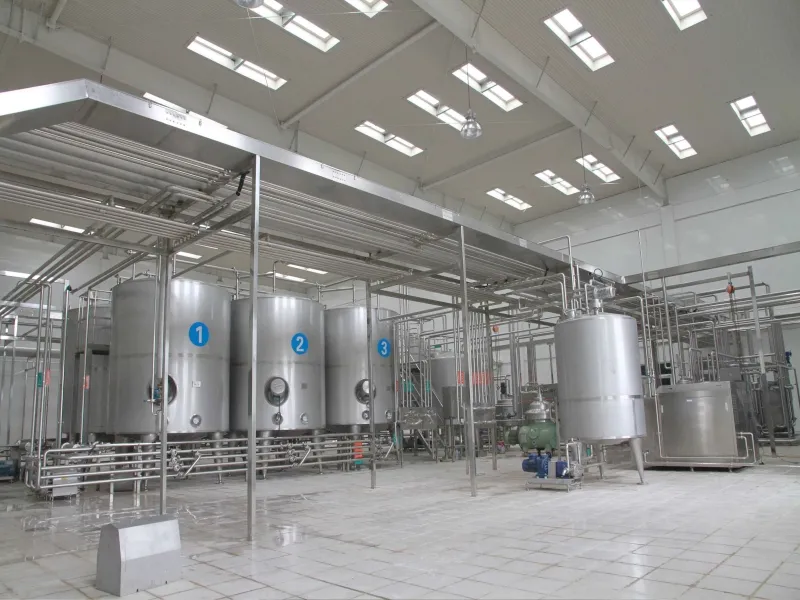

Component Detail 1

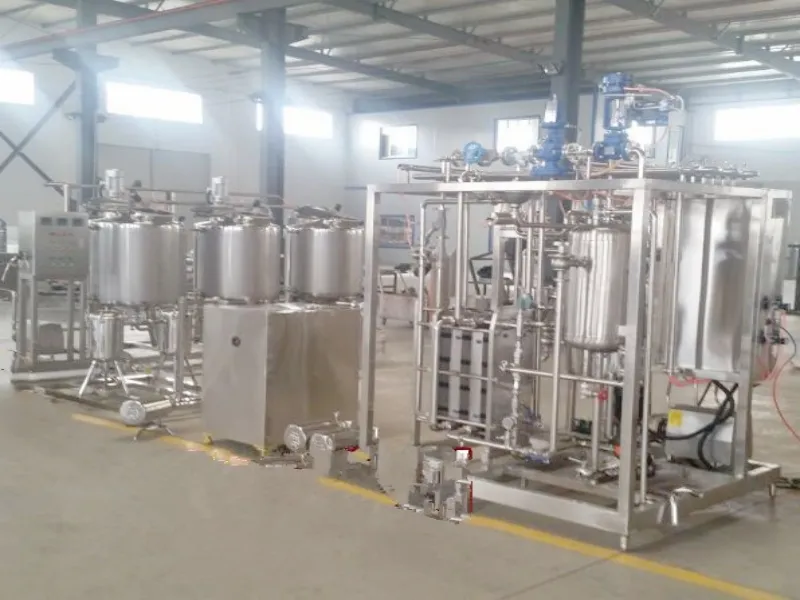

Component Detail 2

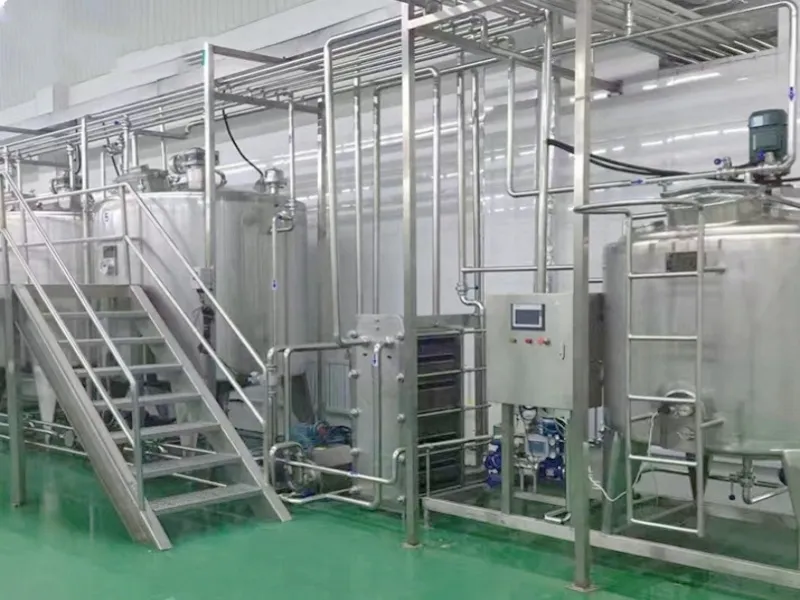

Component Detail 3

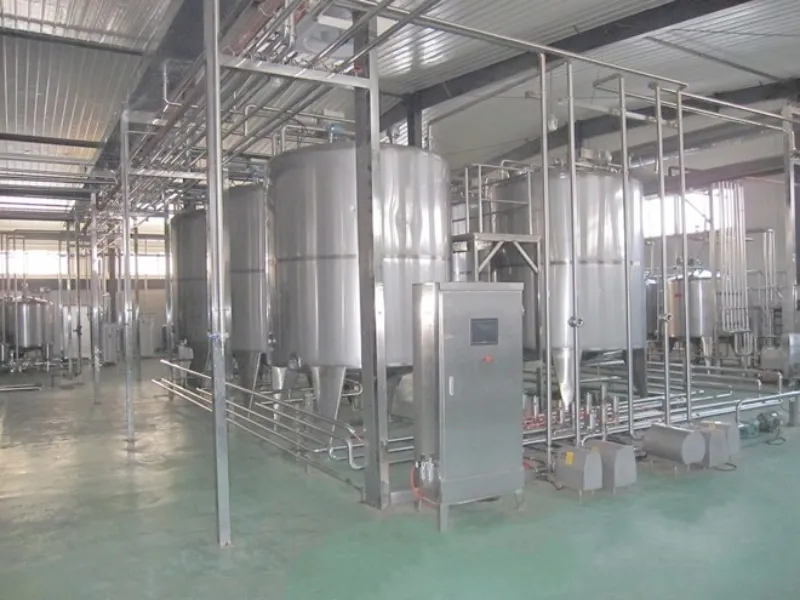

Component Detail 4
Packaging & Delivery
Package Size
1500.00cm * 1000.00cm * 170.00cm
Gross Weight
5800.000kg
Transport Package
Wooden Case
Shipping and Packaging
Certifications
Quality Certifications
Production Environment
Production Facility 1
Production Facility 2
Frequently Asked Questions
What is the production capacity of the BSN-500 line?
The system is designed for a versatile range, supporting production capacities from 500L to 5000L depending on specific configuration needs.
What types of dairy products can be processed with this equipment?
This automatic production line is ideally suited for processing both pasteurized milk and various types of yogurt.
What materials are used in the construction of the tanks and pumps?
High-grade SUS304 and SUS316 stainless steel are used throughout the line to ensure hygiene, durability, and compliance with food safety standards.
Does the production line include a cleaning system?
Yes, the line includes a semi-automatic CIP (Clean-In-Place) system with acid and alkali concentrate tanks for thorough equipment sanitation.
Is the temperature control automated for sterilization?
Absolutely. The UHT sterilizer features full automatic control, maintaining a sterilizing temperature of 137°C with precise holding times.
How is the equipment packaged for international shipping?
All components are securely packed in heavy-duty wooden cases to protect the stainless steel structures and electronic components during transit.
