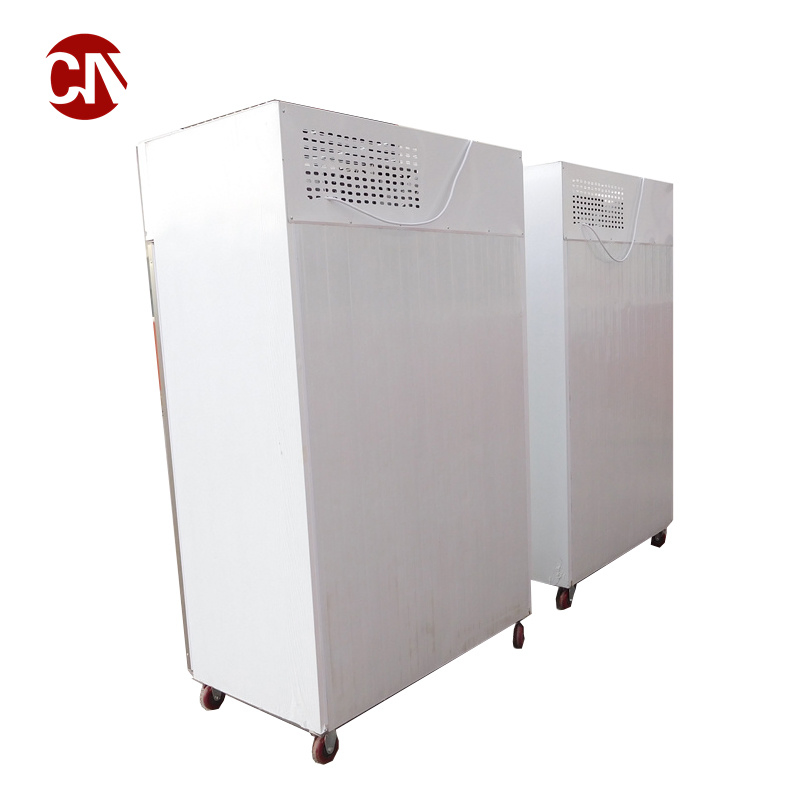

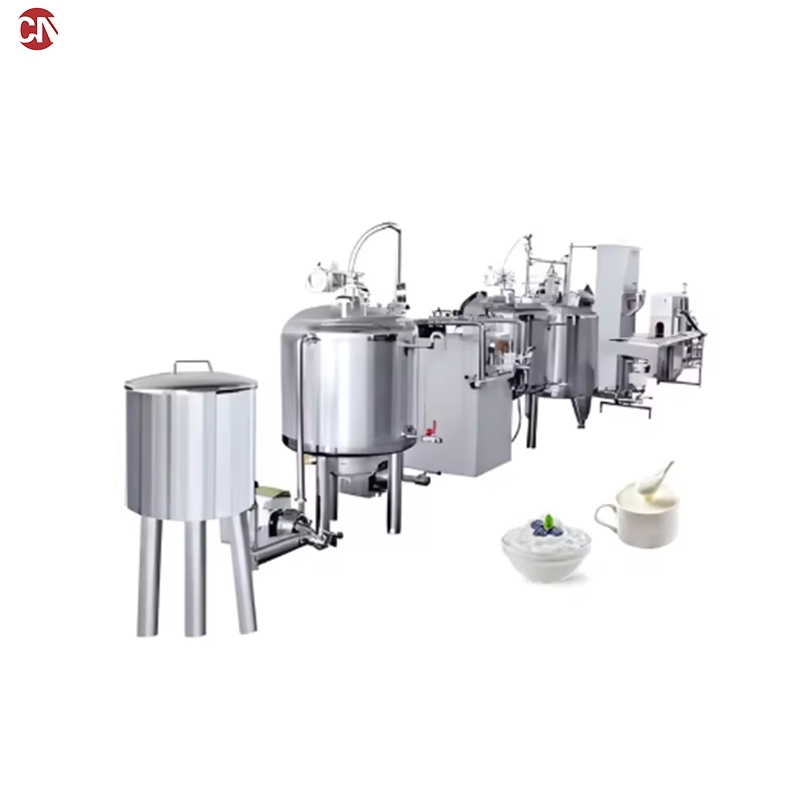

Automatic Set Yogurt Production Line for Cup Bottle Filling with Fermentation in One System

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
Yogurt Machine
Process
Batch Processing Line
Power Source
Electric
Certification
CE / ISO
Automatic Grade
Semi-Automatic
Application
Milk, Yogurt, Cheese
Capacity
1000lph - 4000lph (Customized)
Origin
Jiangsu, China
⚙️ Product Description
Manufacturer Commercial Solid Yogurt Maker Machine Fermentation Equipment Frozen Yogurt Machine

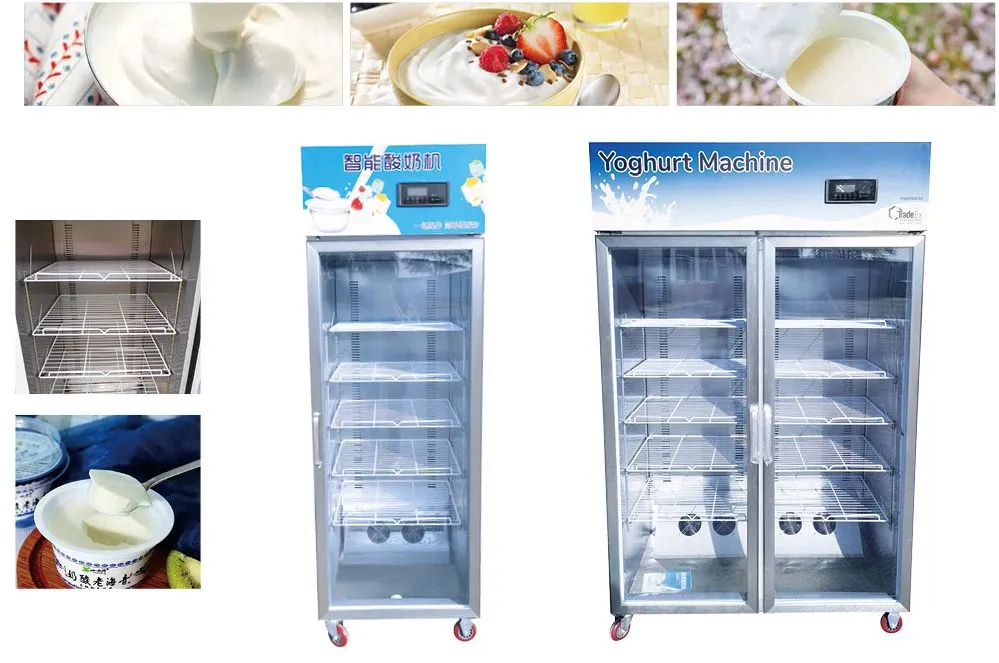

Yogurt Production System

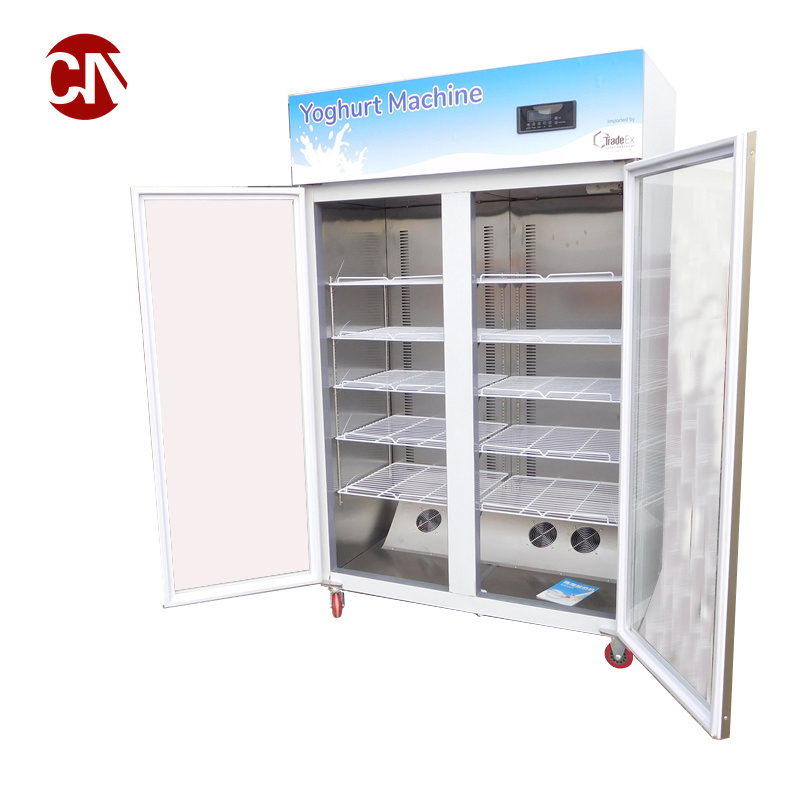

Description of Machine

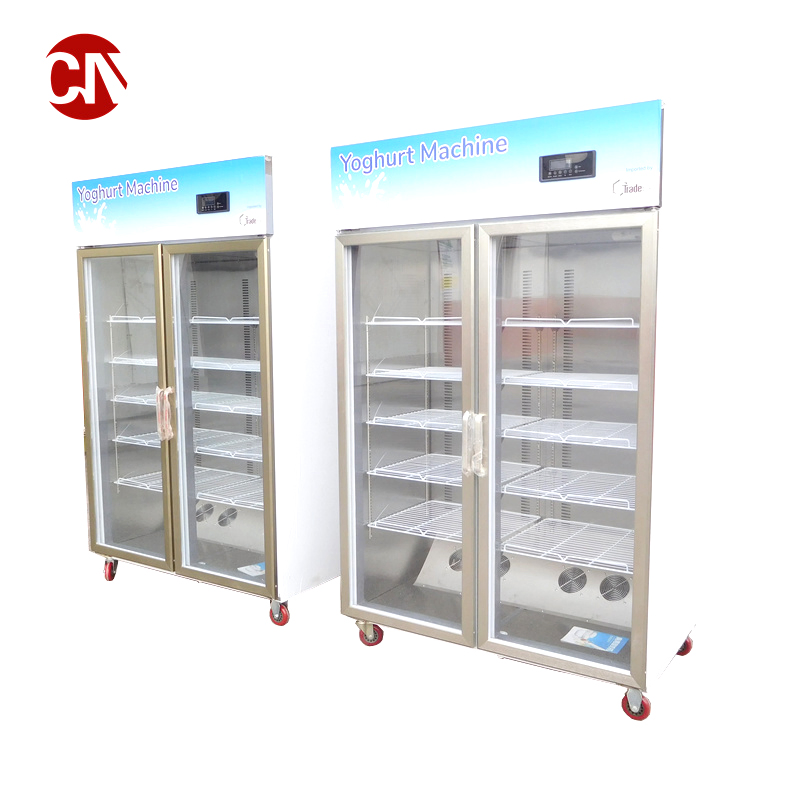

The commercial yogurt machine is a fully automatic intelligent machine with fermentation, maturation, disinfection, and refrigeration functions. It is used to make fresh milk into various yogurt products. It consists of a box, a door, a working room, and an Ozone sterilizer. It is composed of bacteria, circulation fan and control system. The equipment models are divided into single door and double door, suitable for different outputs. The finished product of the yogurt machine is solid yogurt, also called old yogurt.
🥛 Dairy Product Technology (Old Yogurt)
  • Pasteurization at 85 degrees: Warm milk to 72 degrees and add sugar (fully diluted).
  • Cooling & Inoculation: Cool to 45 degrees, add bacteria, dilute thoroughly and mix.
  • Preparation: Insert paper cups into the yogurt machine.
  • Sterilization: Use 75% medical alcohol to sterilize the table and machine.
  • Ozone Disinfection: Open door for 2-3 minutes then turn on sterilization lamp.
  • Fermentation: 8 hours at 42-43 degrees for solidified old yogurt.
  • Refrigeration: 4 to 6 degrees for at least 10 hours to ensure full solidification.
Production Flow: Pre-heating tanks → Filter → High Pressure Homogenizer → Pasteurizer → Pre-cooling → Cup Filling Machine → Solid Yogurt Making Machine
📊 Specifications
Model Single Door Dual Door Three Door
Control PanelTouch ScreenTouch ScreenTouch Screen
Voltage220V220V220V
Heating Power1 kw2 kw3 kw
Cooling Power0.3 kw0.3 kw0.4 kw
CompressorDonbeiDongbeiDonbei
Machine Size650*700*1950mm1200*700*1950mm1800*700*1950mm
Refrigeration Temp0-8°C0-8°C0-8°C
Fermentation Temp0-60°C0-60°C0-60°C
Machine Details
Detail 1
Detail 2

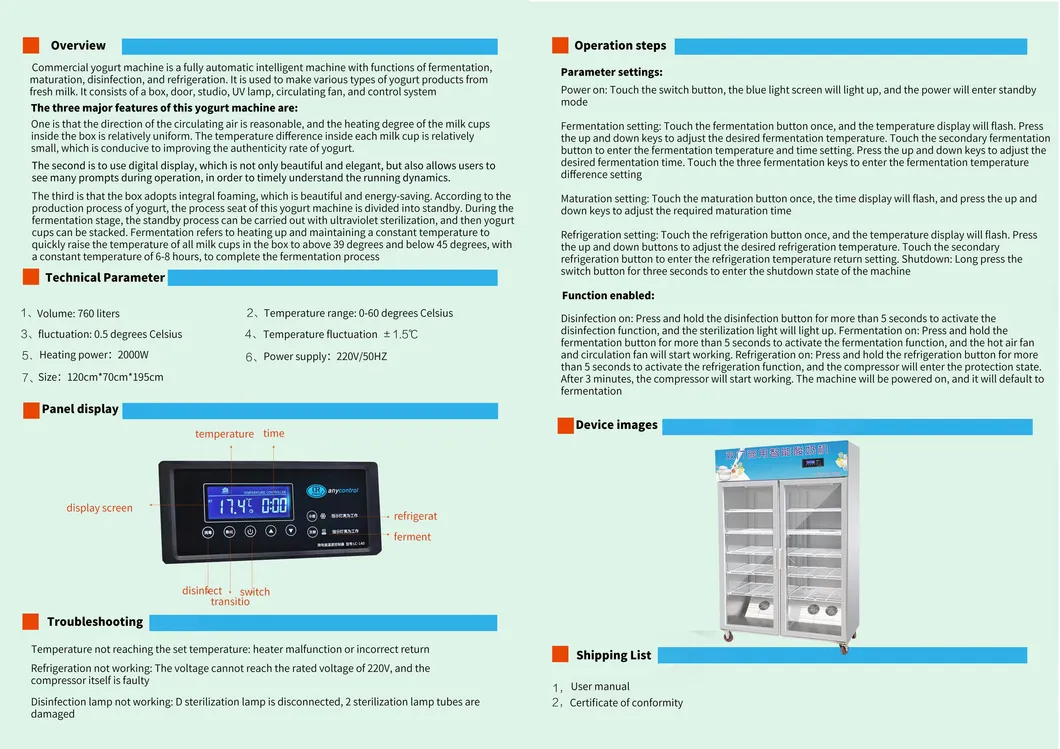

Machine Overview

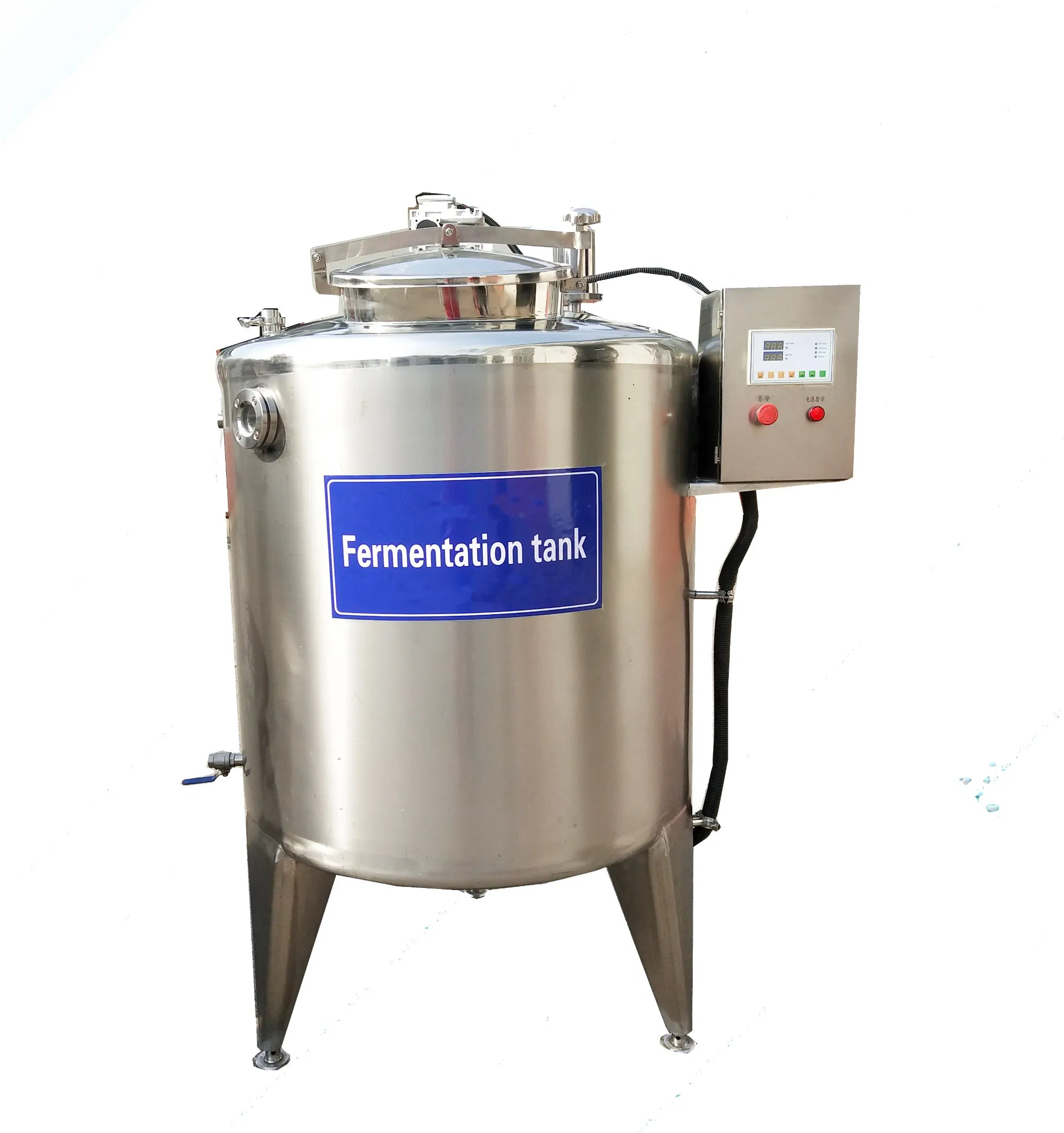

Related Equipment

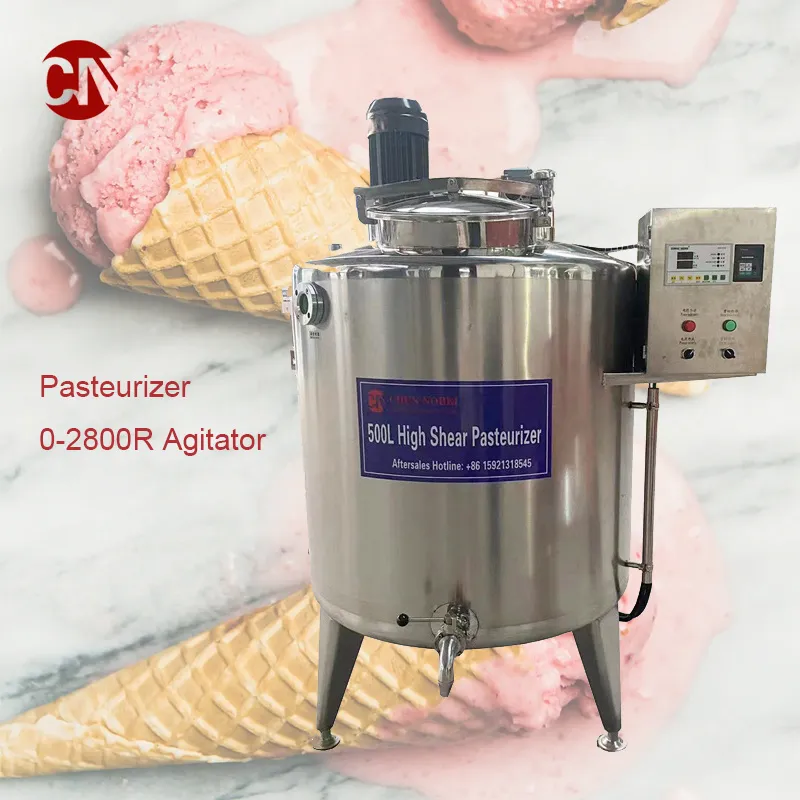

Related 1

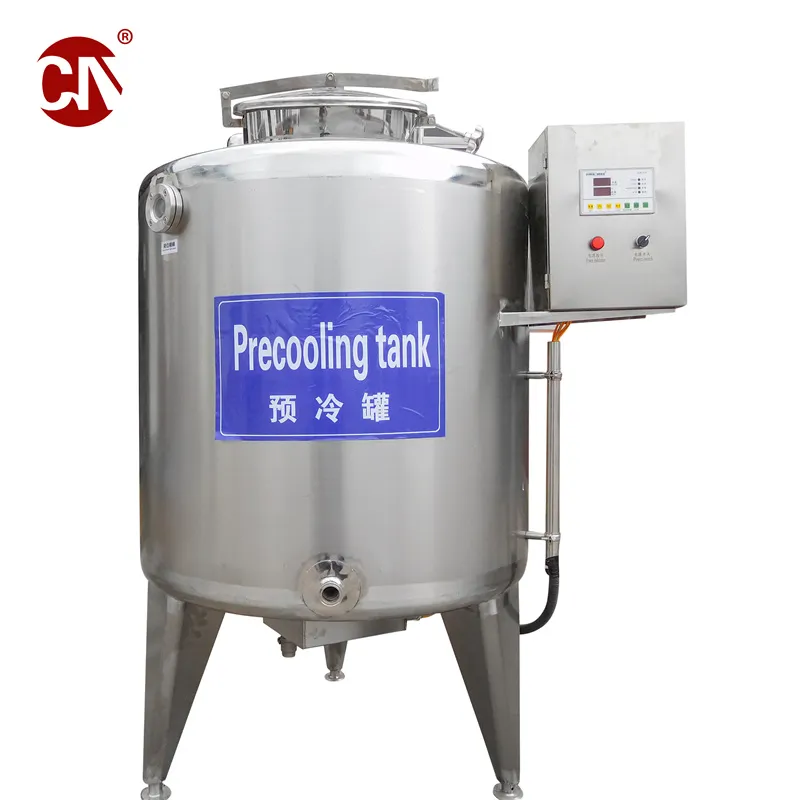

Related 2

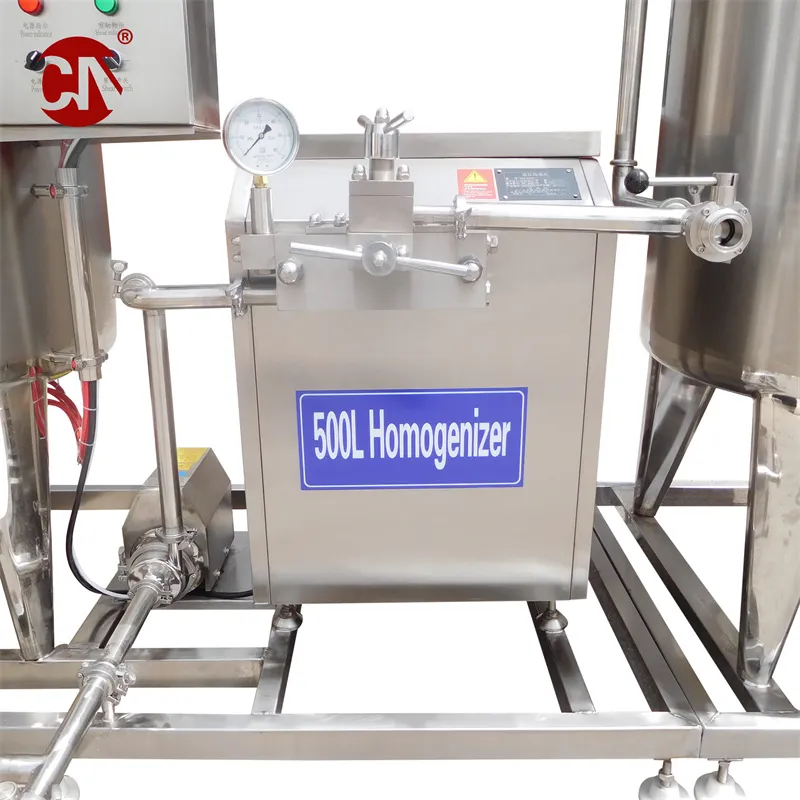

Related 3
🏭 Processing Line Equipment
Large scale and small scale production solutions for milk and yogurt.

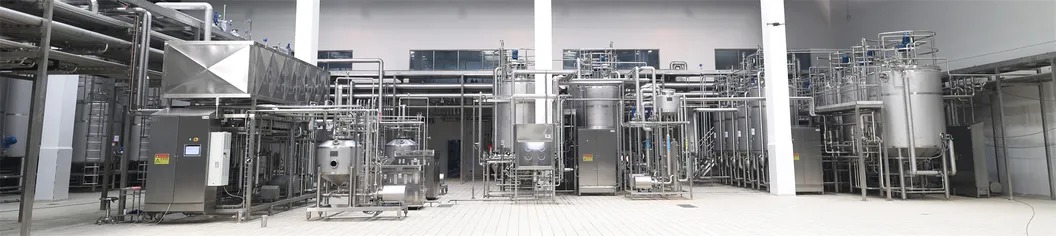

20 Ton/Hour Milk/Yogurt Production Line

Large Production Line

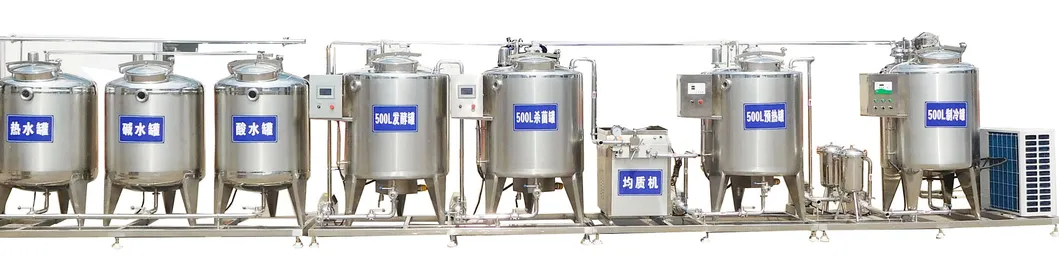

500L Milk/Yogurt Production Line

Small Production Line
Application Examples
Application 1 Application 2
Industry Certifications
Cert 1
Cert 2
Cert 3
Professional Shipment

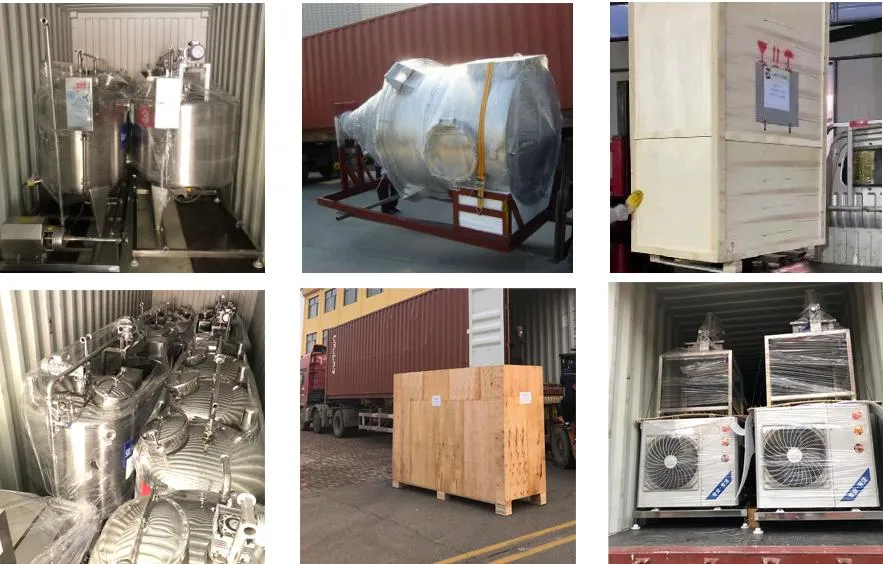

Shipment and Packaging
Frequently Asked Questions
Do you have reference projects?
We have reference projects in most countries. With the permission of our customers, we can provide contact information for factory visits. You are also welcome to visit our factory to see machines in operation.
Do you have overseas after-service?
Yes, our engineers are available to go overseas to provide professional after-sales installation and technical service.
Do you provide customized services?
We can design machines according to your specific requirements (material, power, filling type, bottle kinds, etc.) based on our many years of industry experience.
What is the quality guarantee?
We offer high-quality machines with a 1-year guarantee and provide life-long technical support.
How long does the installation take?
Depending on your order, we will send one or two engineers to your plant. Installation and setup typically take between 10 to 25 days.
