| Model NO. | customized | Processing Material | Special Agricultural Products |
| Application | Pet Food, Ice Cream, Vegetable, Fruit, Dairy, Beverage, Potatoes | Certification | CE, ISO9001, TUV / FDA |
| Power Source | Electricity / Steam | Automatic Grade | Automatic |
| Material | 304 or 316L Stainless Steel | Product Use | French Fries Making and Production |
| Applicable Product | Potato | Advantages | Automate, High Efficiency and Energy Saving |
| Production Capacity | 20 Sets / Month French Fries Processing Machinery | HS Code | 843860000 |
Potato Chips Processing Continuous Fully Automatic Production Line is an advanced system developed for the international market, featuring high-quality food-grade SUS304 or 316 stainless steel construction.
The system utilizes PLC electrical control with components from well-known brands. With integrated IQF (Individual Quick Freezing) technology, it maintains the quality, original shape, texture, and nutritional content of food products by reducing temperature rapidly within minutes.

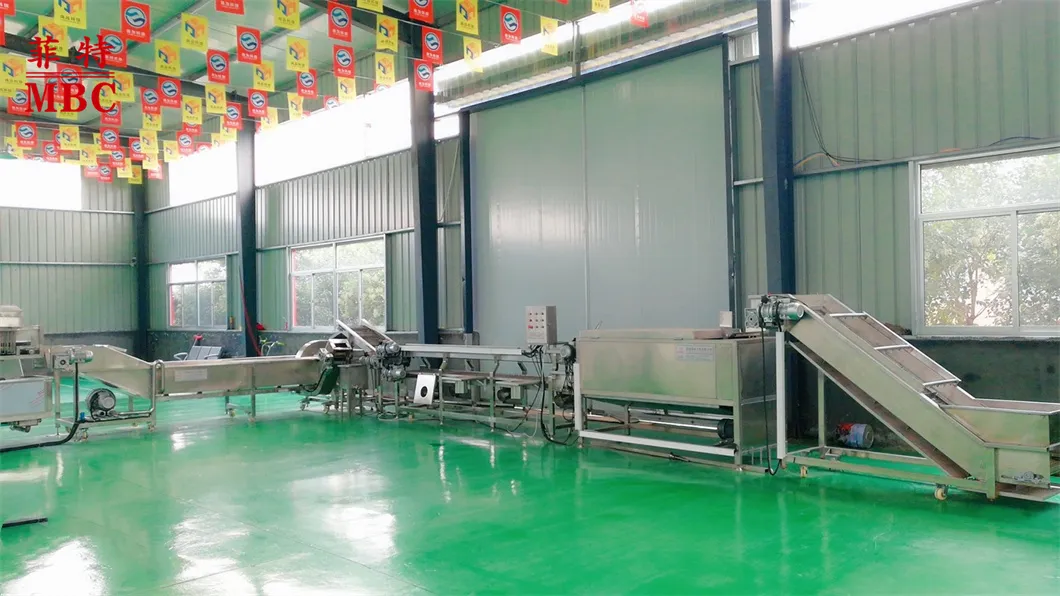

Washing Peeling → Hoisting Feeding → Selecting Conveying → Potato Fries Cutting → Brush Deep Washing → Blanching and Color Protection → Removing Water and Drying → Frying Production Line → Air Cooling → Tunnel Quick-freezing → Packaging.
| NO. | MACHINE NAME | POWER (KW/HZ) |
|---|---|---|
| 1 | Feeding equipment 1 | 0.55kw/380V/50Hz |
| 2 | Brush Rooler Peeling machine | 3.0kw/380V/50Hz |
| 3 | Double Layers Picking Conveyor | 1.5kw/380V/50Hz |
| 4 | Cutting Equipment | 1.1kw/380V/50Hz |
| 5 | Air Bubble Washing Machine | 3.0 kw/380V/50Hz |
| 6 | Blanching Machine | 95kw /380V/50Hz |
| 7 | Vibration Machine | 0.5 kw/380V/50Hz |
| 8 | Air drying Machine | 4.0kw/380V/50Hz |
| 9 | Picking Conveyor | 0.55kw/380V/50Hz |
| 10 | Frying Line (Auto Control) | 380V /50hz |
| 11 | Hoister 2 | 0.55kw/380V/50Hz |
| 12 | Five Layers Air Cooling Machine | 4.6 kw/380V/50Hz |
| 13 | Tunnel Quick-freezing machine | 25.5 kw/380v/50Hz +60P (45kw) |
Capacity Details (500KG/HR Line):
Raw material: 800-850 kg/H | Labor: 4-5 people | Water: ~3 m³/hr | Oil: ~25 Kg/hr

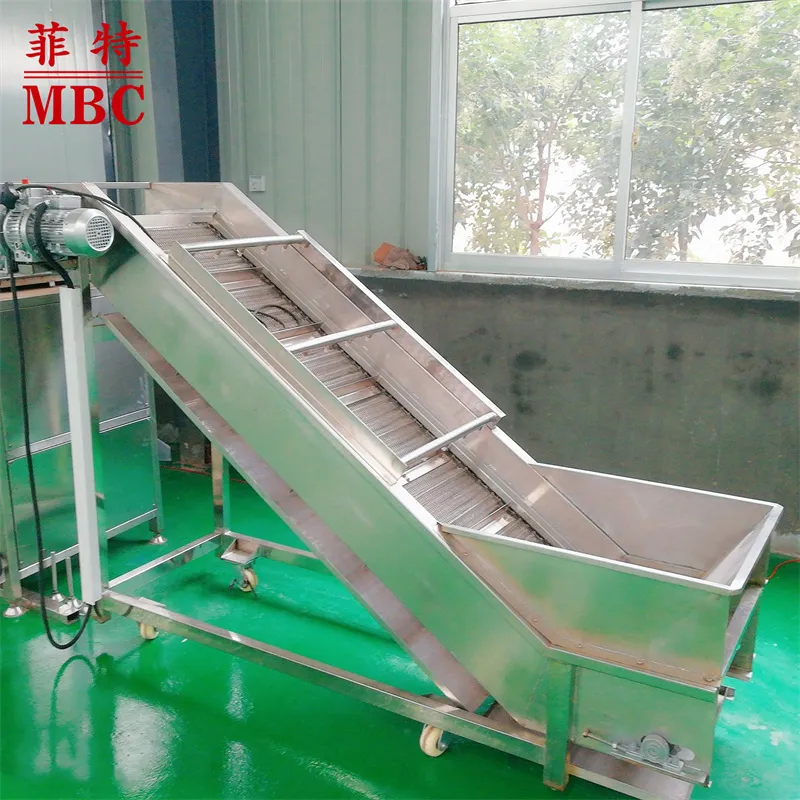

Hoisting Feeding Conveying Machine

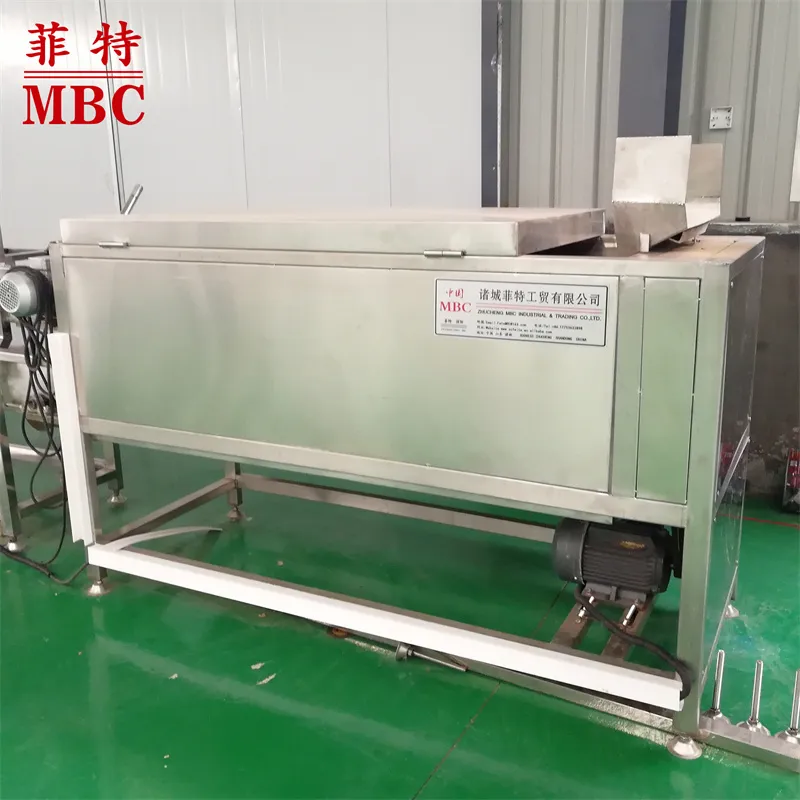

Brush Roller Peeling Machine

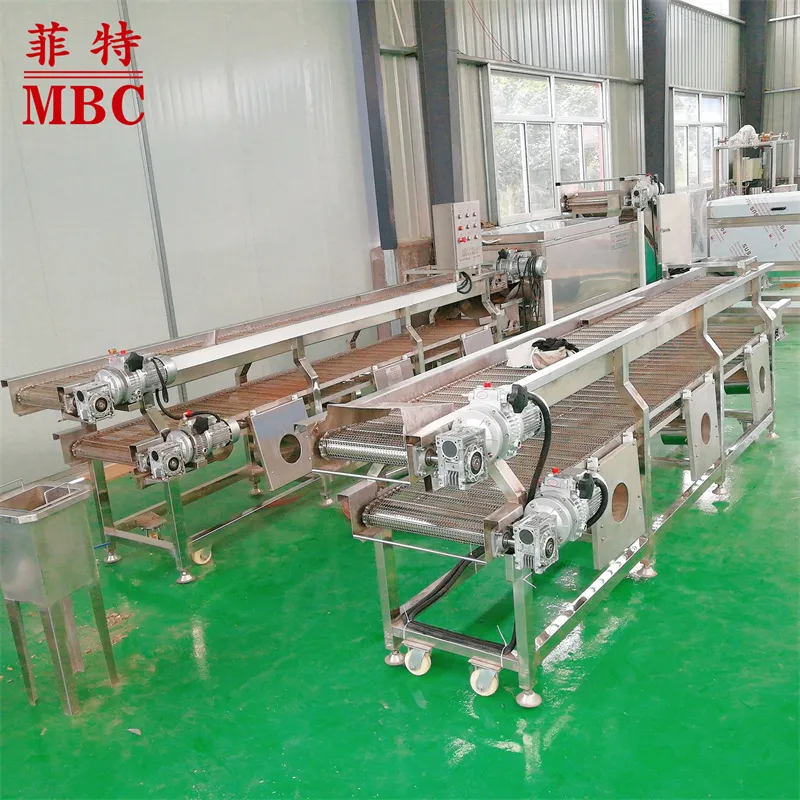

Double Layers Picking Conveyor

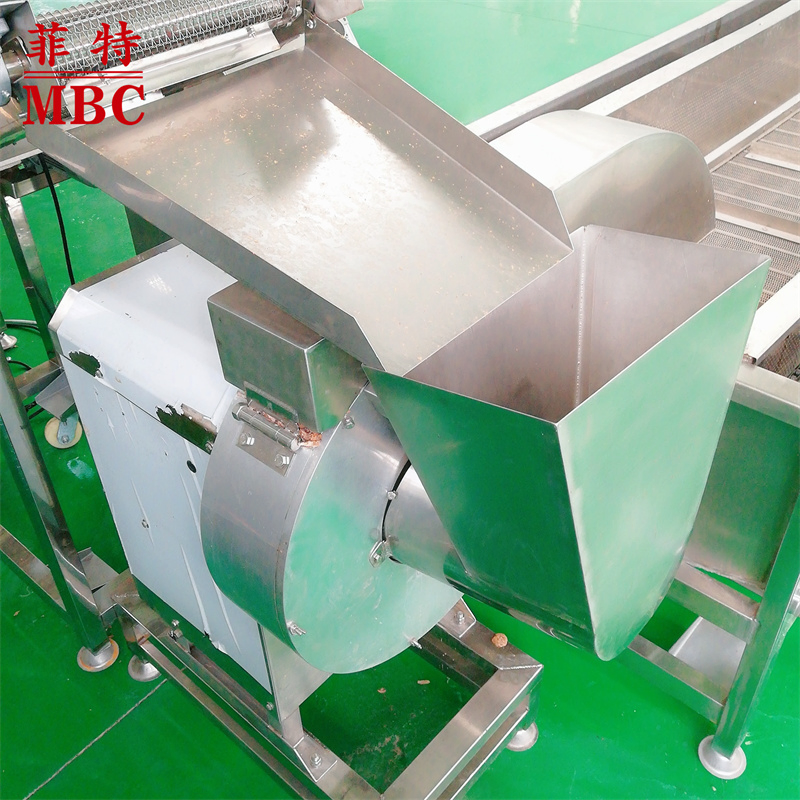

Potato Cutting Equipment

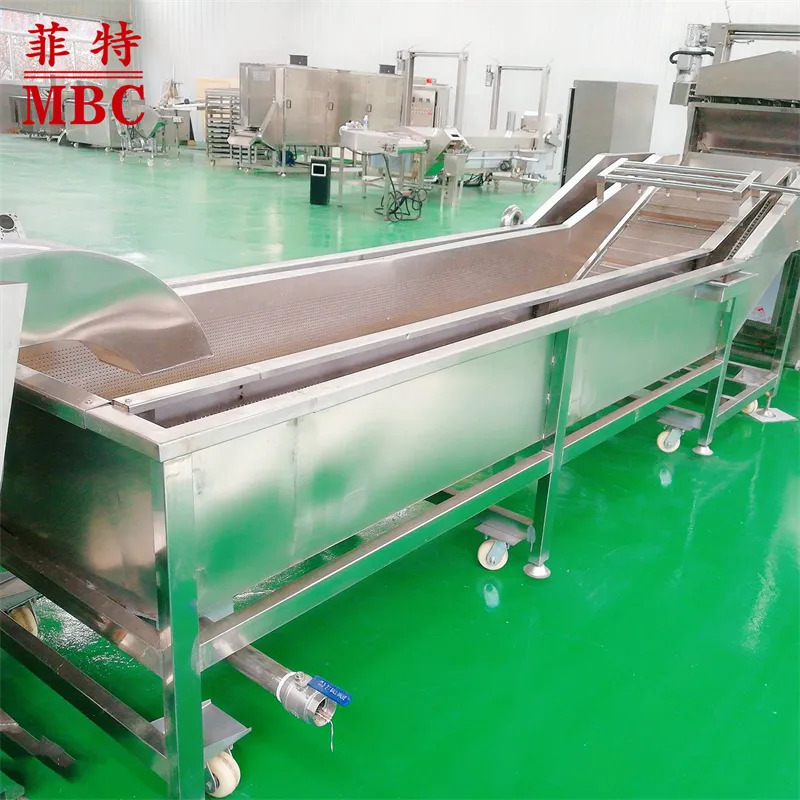

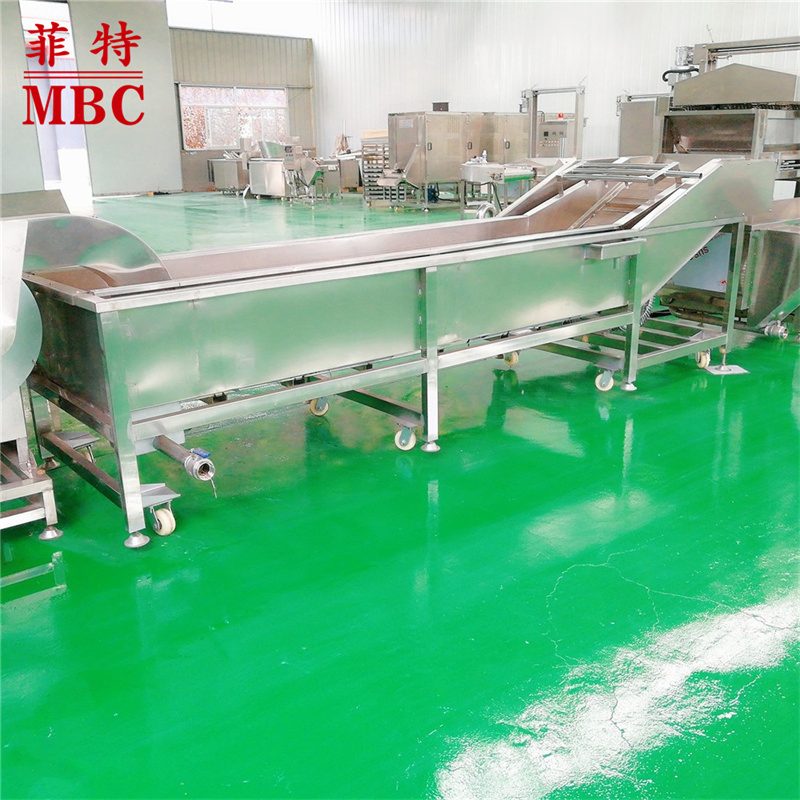

Air Bubble Cleaning Machine

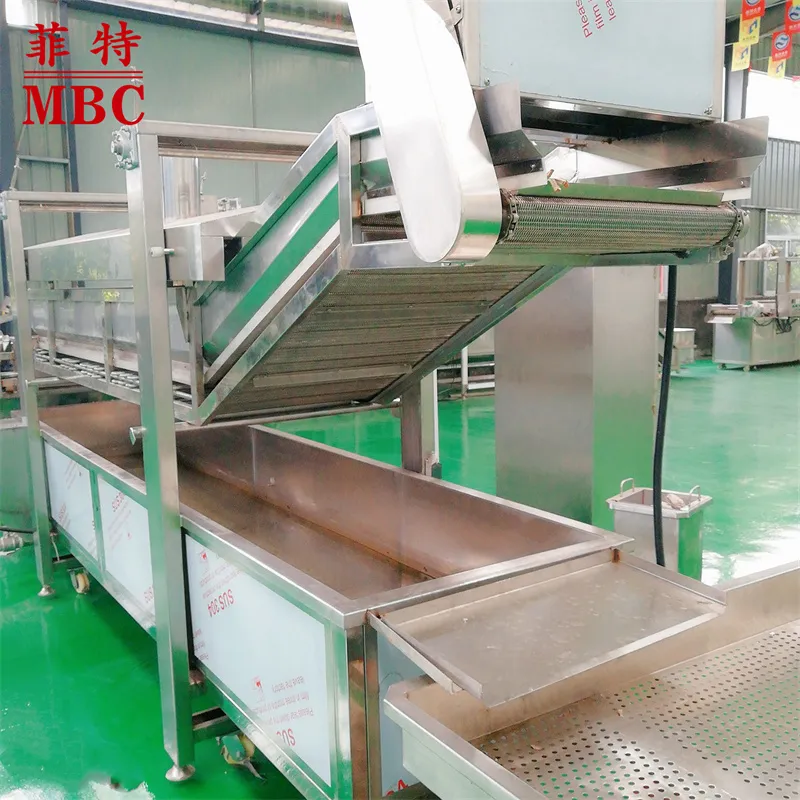

French Fries Blanching Machine

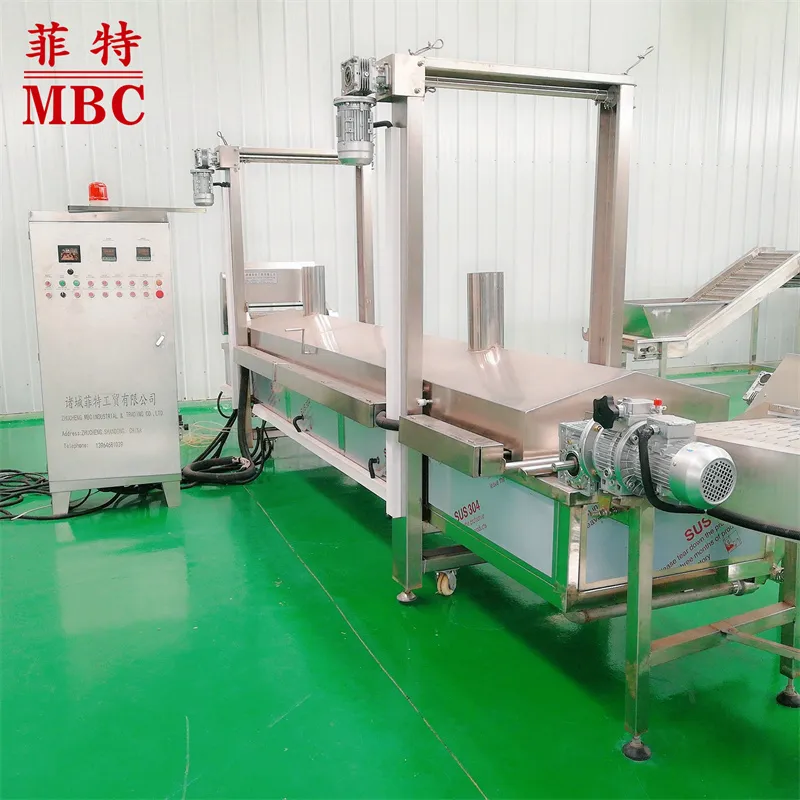

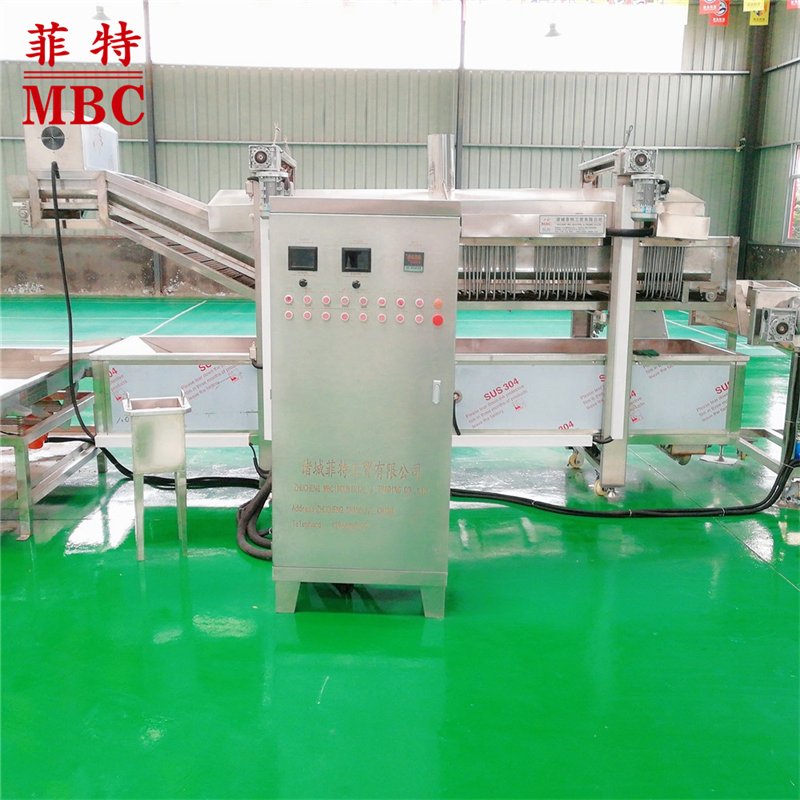

Frying Line with Auto-Temp Control

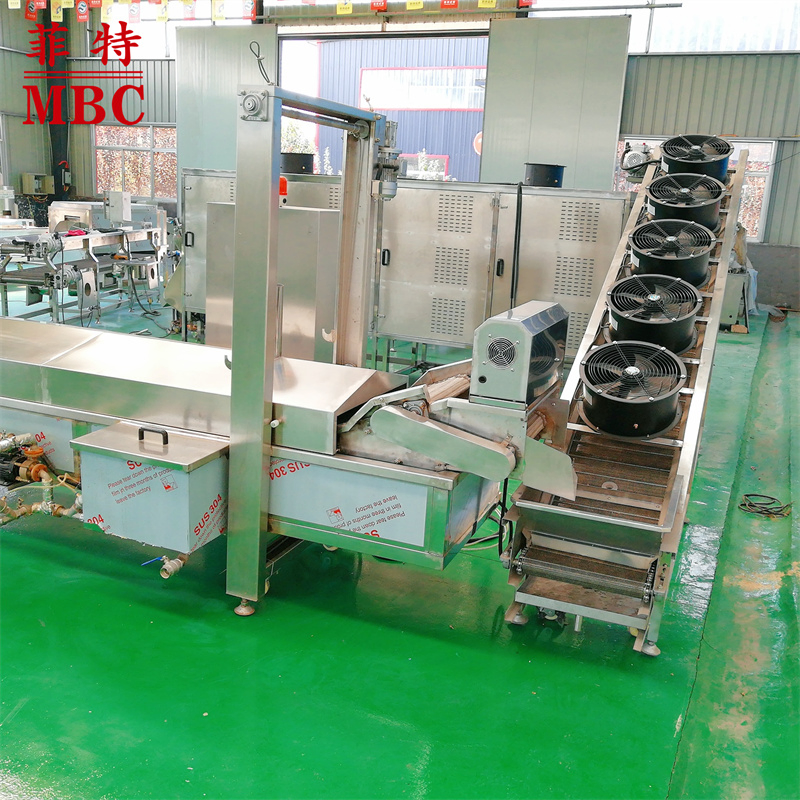

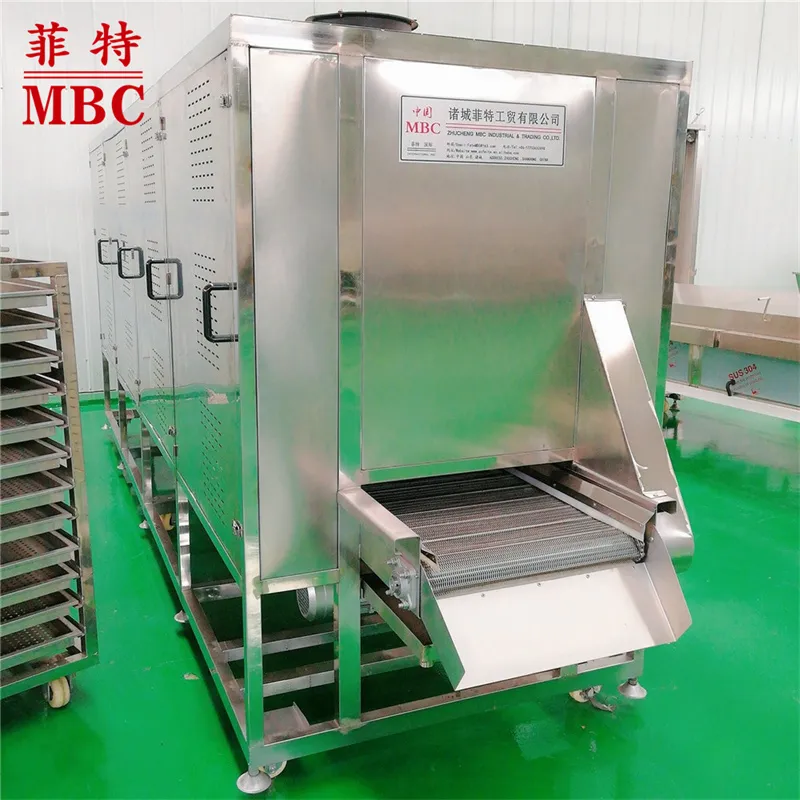

Five Layers Air Cooling Line
All machines are elaborately designed by experienced mechanical engineers. Trial runs are mandatory for each unit before delivery to ensure standard performance.
Consultation service is available before, during, and after sales. We provide debugging of equipment and personnel training for maintenance and operation.
We provide a 1-year complete warranty and lifetime maintenance service. Essential fittings can be replaced efficiently.
Before delivery, we calculate container arrangements to maximize space and reduce costs. Equipment is inspected 100% by professional technical engineers.
