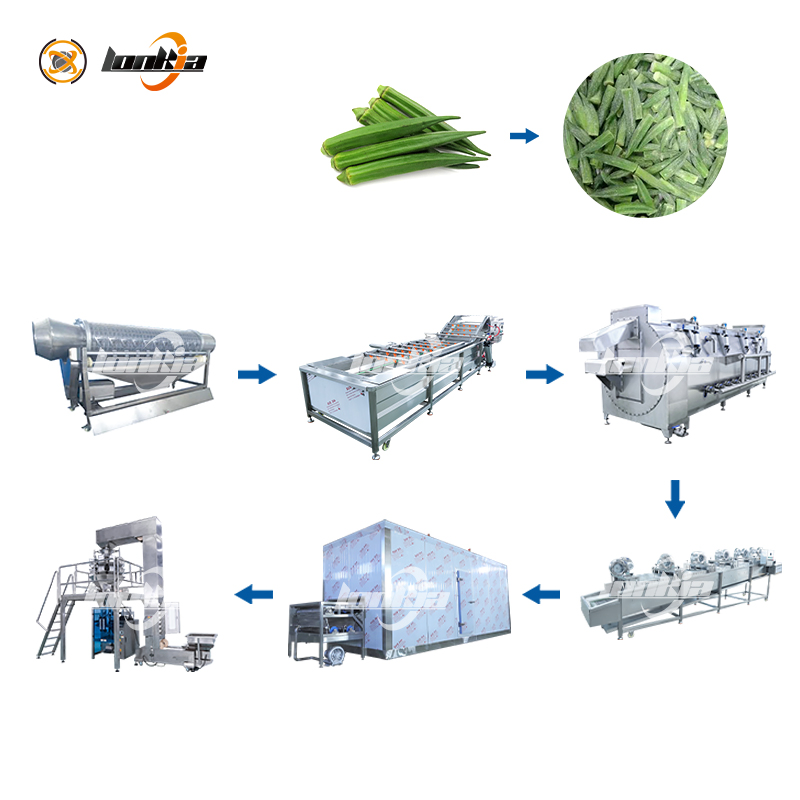

Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
1 / 5
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line
Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line

Automatic Frozen Green Pea Processing Line IQF Freezer Quick Freezing Machine Vegetable Freezing Production Line

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years
Send Inquiry

Product Description

ℹ️

Basic Product Information

Model:LK-SC360
Type:Frozen Fruit and Vegetable Production Line
Voltage:Optional (220v/380v)
Material:Food Grade SUS304 Stainless Steel
Capacity:500-2000kg/H
Certificate:CE / ISO
Package:Professional Wooden Case
📦

Product Description

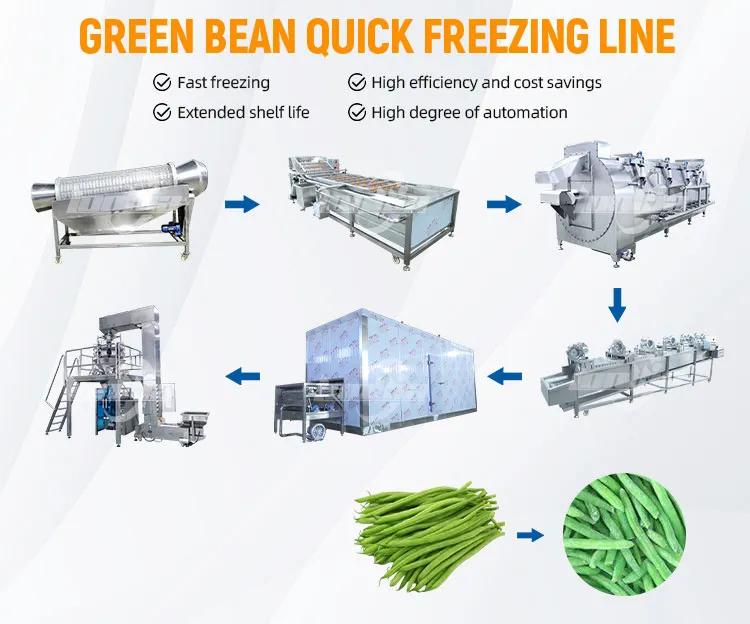

Frozen Green Pea Processing Line

The core of the green bean quick freezing line is to use "rapid cooling" to destroy microbial activity, inhibit enzyme reactions, and preserve the color, taste, and nutrition of green beans.

✓ Cleaning and sorting: High-pressure spraying and color sorting to remove discolored beans.
✓ Blanching: Soak at 95-100 ℃ for 60-90s to prevent browning.
✓ Quick cooling: Ice water bath at 0-5 ℃ to lock in crispy texture.
✓ IQF Freezing: Tunnel freezer below -35 ℃ for 15-20 minutes to reach core temperature of -18 ℃.
⚙️

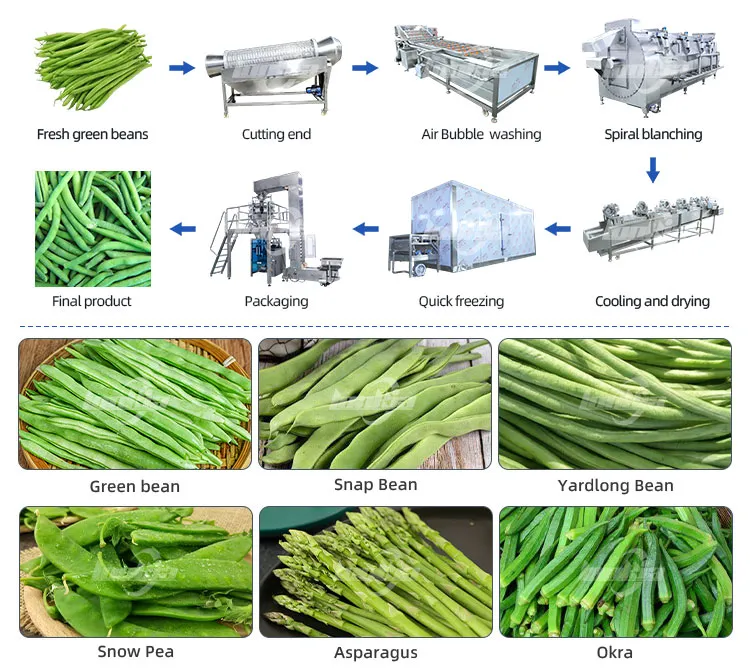

Process Flow Diagram

Process Flow
🛠️

Main Machines

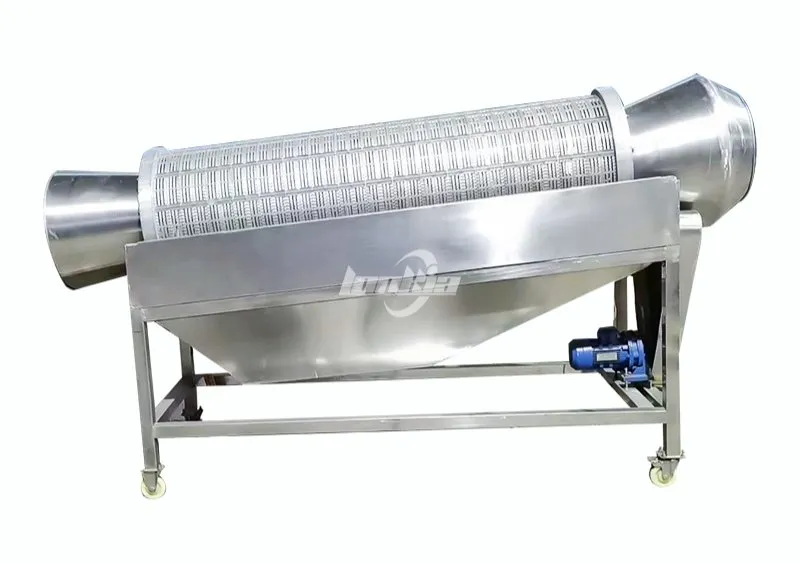

Green Bean Tip Remover

Green Bean Tip Remover

High precision shearing with flatness error ≤0.3mm and loss rate ≤1.5%.

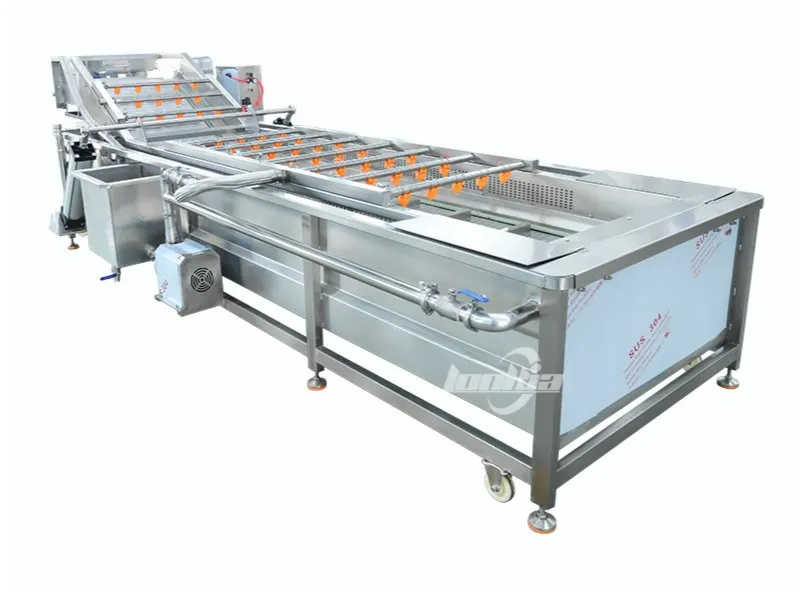

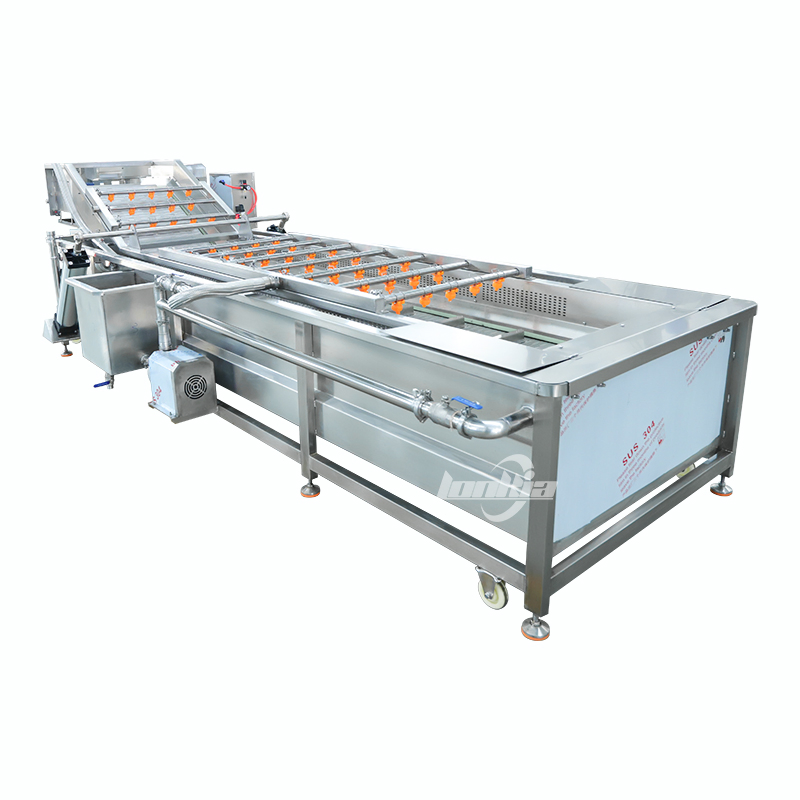

Air Bubble Washer

Air Bubble Washer

Gently washes materials without damage using air bubble vibration technology.

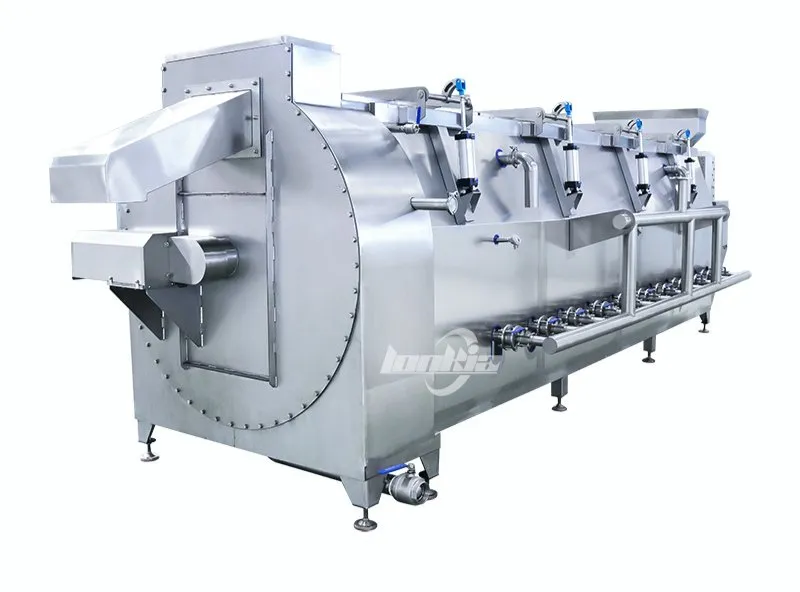

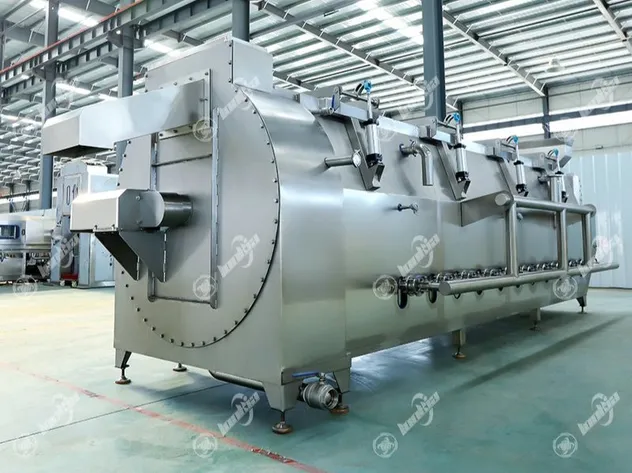

Spiral Blanching Machine

Spiral Blanching Machine

Uniform heating with a double helix design to prevent material accumulation.

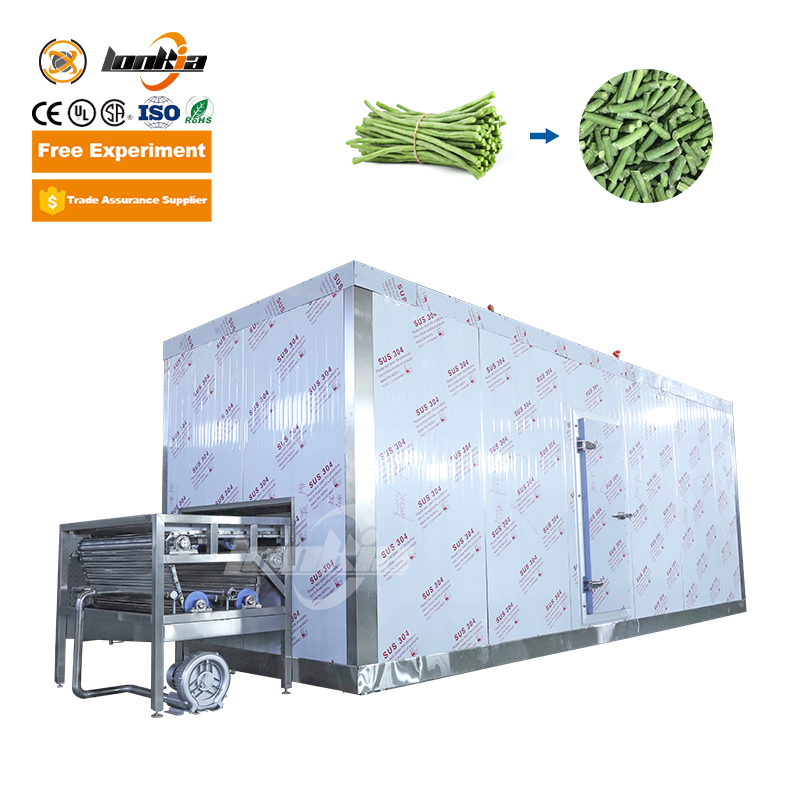

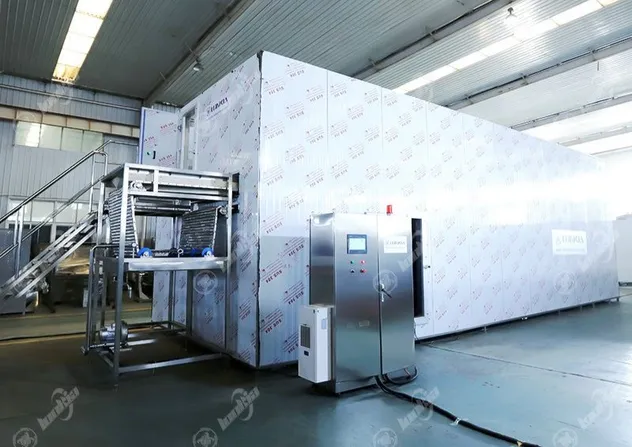

IQF Freezer

IQF Freezer

Fluidized bed freezing system for maximum nutrition and color retention.

📊

Technical Parameters

Machine Name Power(KW) Voltage(V) Material Dimensions(mm)
Green Bean Tip Remover1.5220v/380vSUS3042700×850×1680
Air Bubble Washer5.5220v/380vSUS304+PVC2500*1400*1900
Spiral Blanching Machine4.1220v/380vSUS3044000*1250*1300
Drying Machine7.1220v/380vSUS3044500*1000*1400
IQF Freezer3220v/380vSUS304+PVC8000*2000*3500
Scale Packaging Machine2.4220v/380vSUS3044000*2200*3500
📷

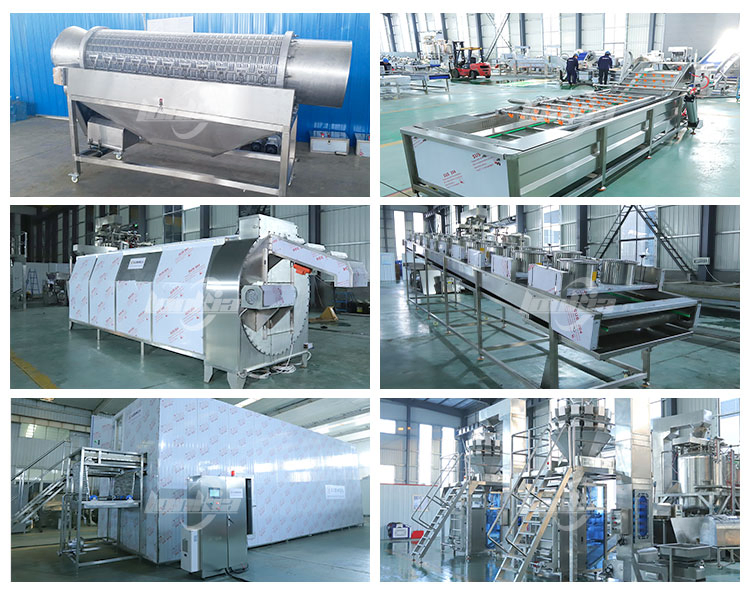

Product Photography

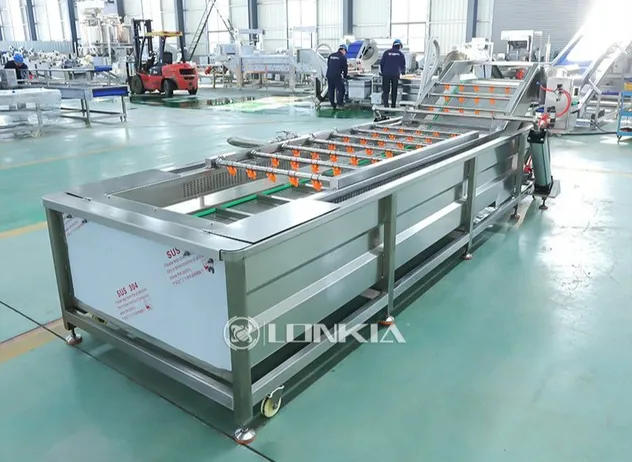

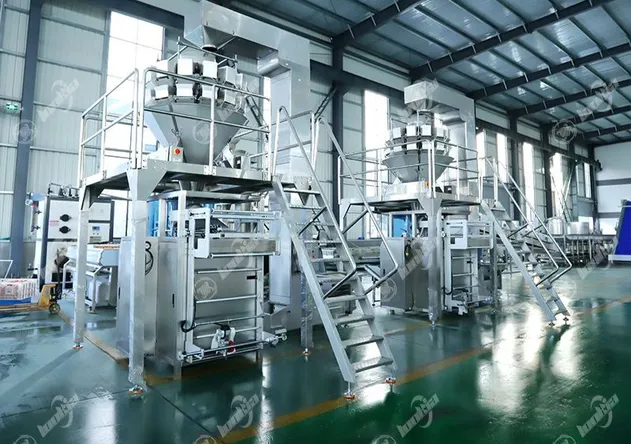

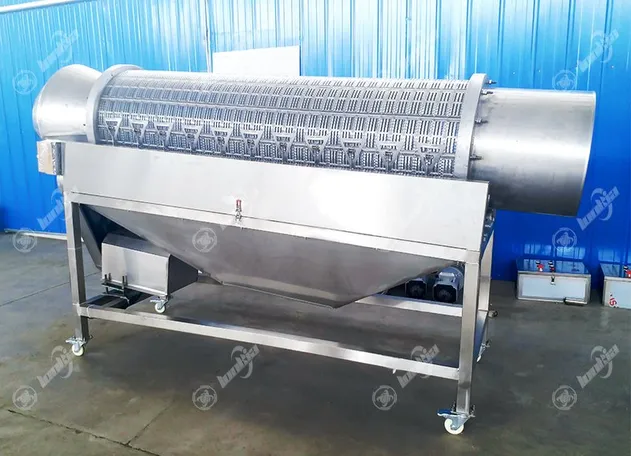

Gallery 1 Gallery 2 Gallery 3

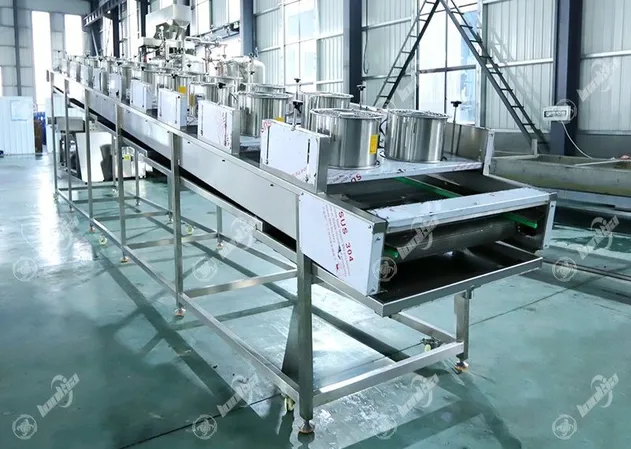

Gallery 4 Gallery 5 Gallery 6
🏢

Applicable Industries

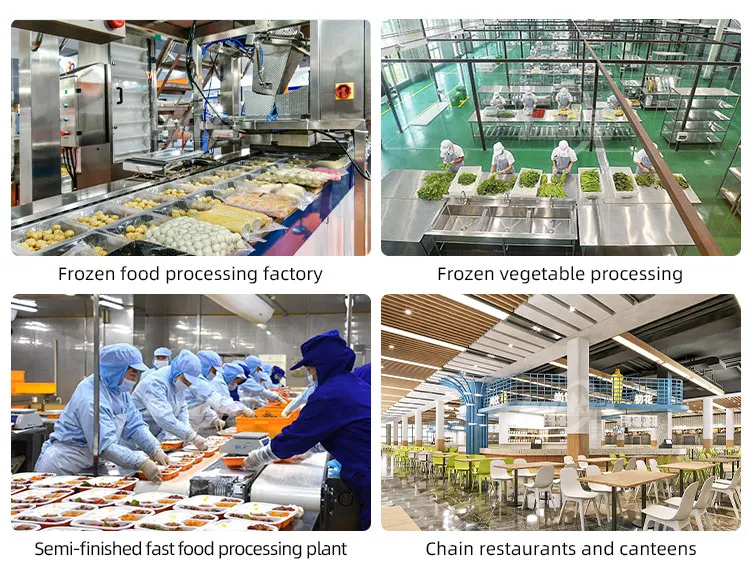

Application Fields
🏭

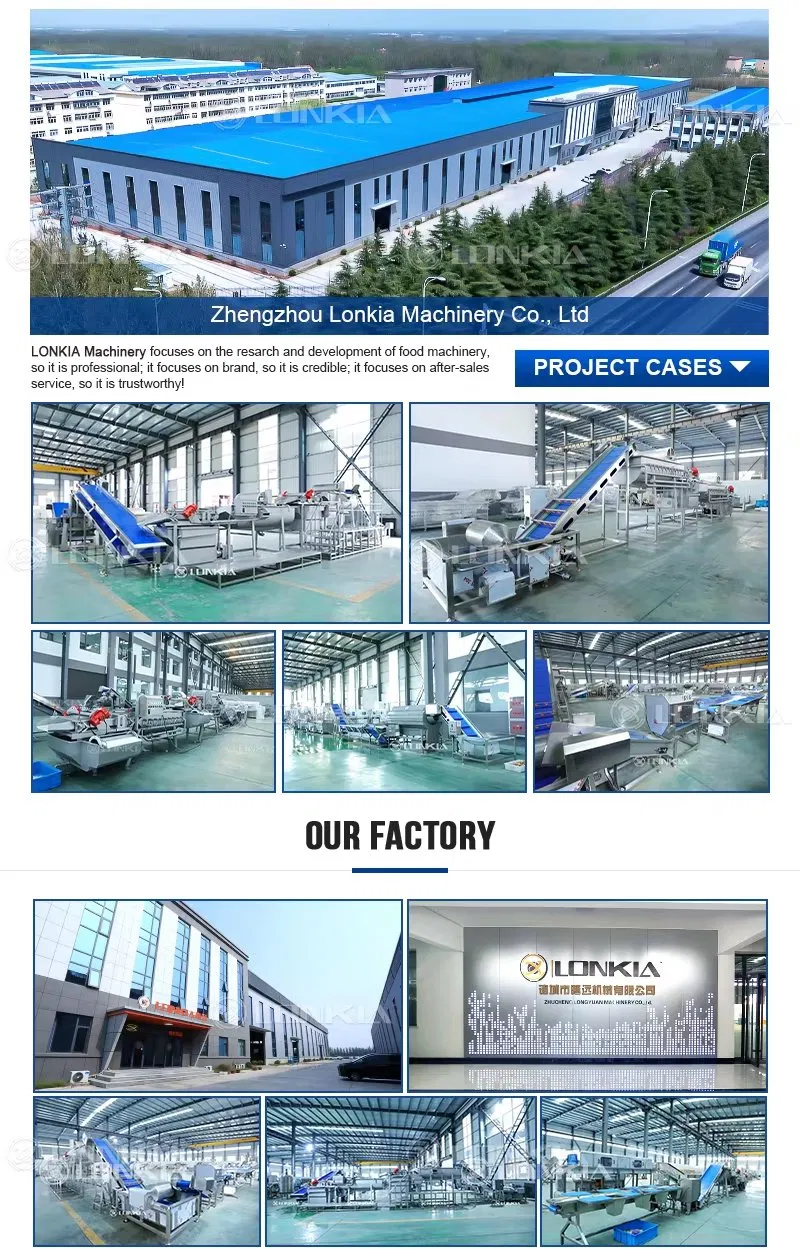

Factory & Production Environment

Factory View 1 Factory View 2 Factory View 3
❓

Frequently Asked Questions

Are you a factory or a trading company?
We are a professional manufacturer specialized in central kitchen cleaning lines, vegetable and fruit processing lines, and IQF quick freezing systems.
What are the advantages of your processing lines?
Our equipment features strict quality control, high-grade SUS304 stainless steel construction, and customization options to meet specific industrial needs.
How do you ensure the quality of the machines?
Every machine undergoes a rigorous three-stage testing process before leaving the factory to ensure it arrives in optimal working condition.
Do you provide technical documentation and support?
Yes, we provide comprehensive English manuals, operation videos, and a dedicated technical team for troubleshooting and guidance.
What is the standard lead time for a production line?
The typical delivery period ranges from 7 to 45 days, depending on the level of customization and the scale of the production line.
What is your after-sales service policy?
We offer a 1-year warranty along with lifetime technical support and installation guidance for all our industrial machines.
