The Industrial Automatic IQF French Fries Processing Machinery is a professional solution for potato processing factories. It is designed for high-efficiency cleaning, cutting, freezing, and frying operations.
Our production line is developed with international standards, utilizing food-grade SUS304 or 316 stainless steel. It features high technology content, safety, and energy-saving capabilities.
Washing Peeling → Feeding Conveyor → Selecting Conveyor → Potato Fries Cutting → Brush Deep Washing → Blanching & Color Protection → Water Removal & Drying → Picking & Conveying → Frying Line → Air Cooling → Freezing Machine → Packaging
| No. | Machine Name | Dimensions (mm) |
|---|---|---|
| 1 | Hoister (Feeding equipment) | 2500*1000*1600 |
| 2 | Brush Roller Peeling Machine | 3400*900*1500 |
| 3 | Double Layers Picking Conveyor | 3000*1700*1500 |
| 4 | Cutting Equipment | 950*800*950 |

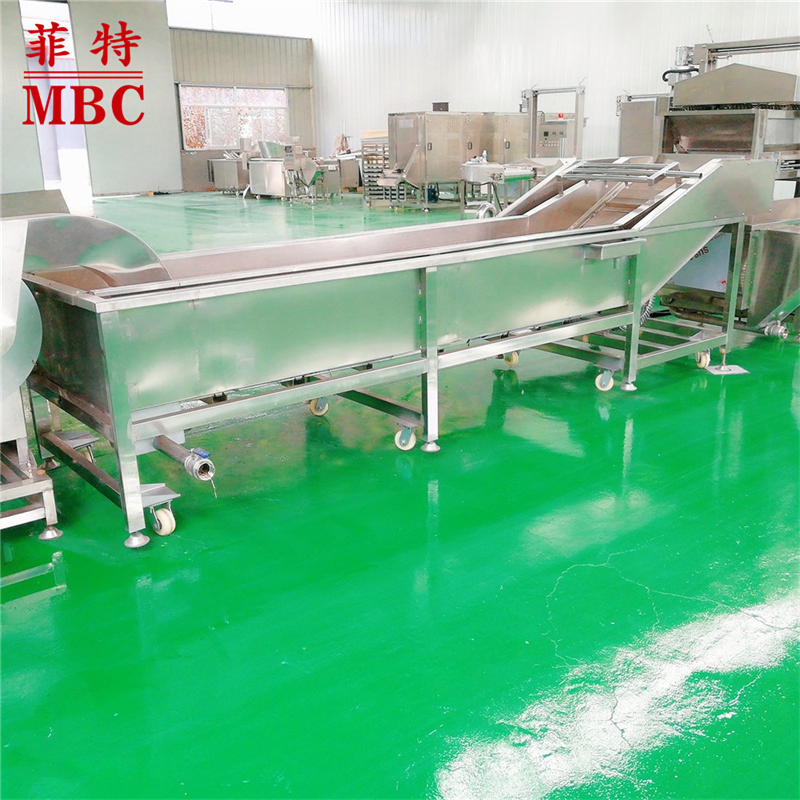

| 5 | Air Bubble Washing Machine | 4000*1400*1500 |
| 6 | Blanching Machine | 4000*1400*2000 |
| 7 | Vibration Machine | 1800*1200*1100 |

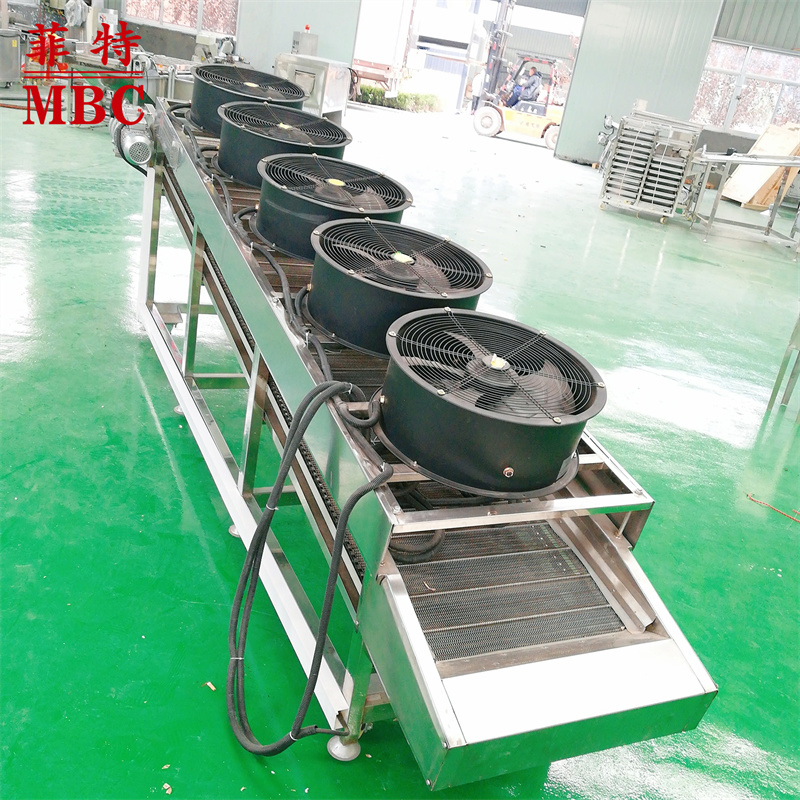

| 8 | Air Drying Machine | 3000*1200*1600 |
| 10 | Frying Line (Auto-temp control) | 5000*1400*2200 |
| 13 | Tunnel Quick-freezing Machine | 8600*3000*2900 |

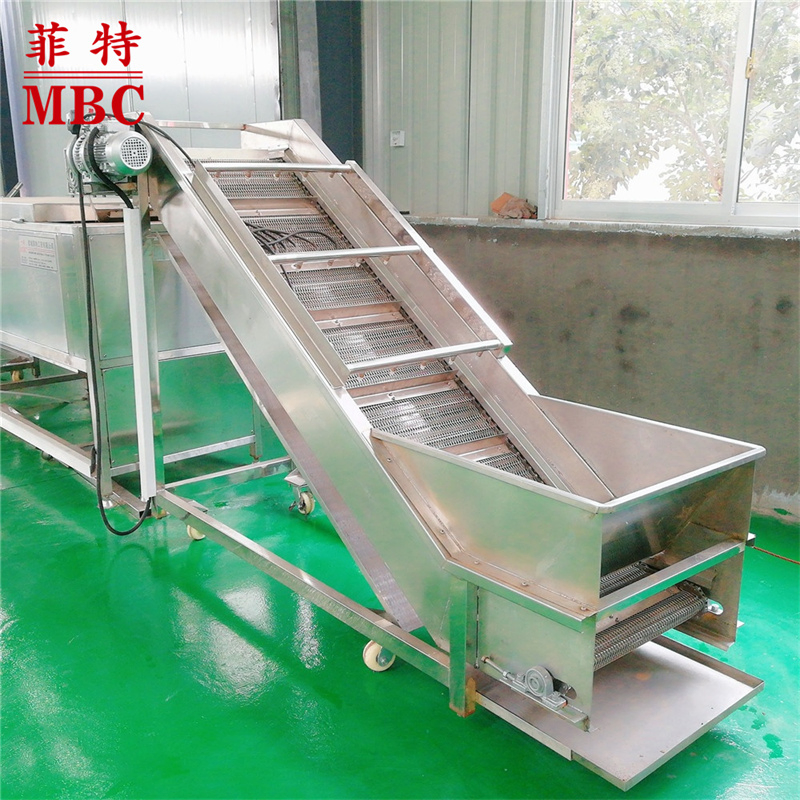

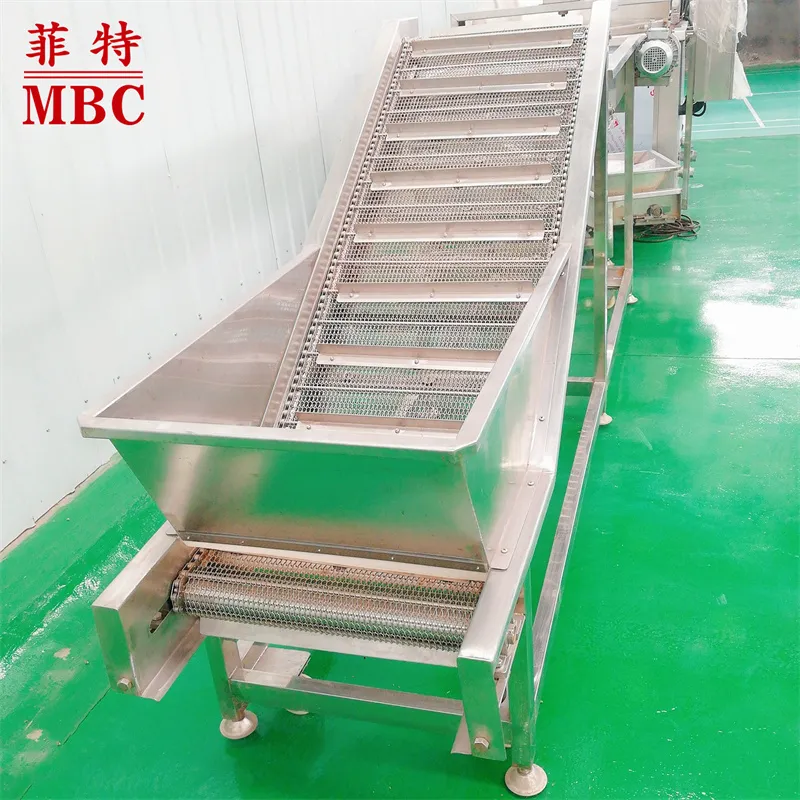

Functions: Lift and transfer the potato raw material to the cleaning and peeling machine efficiently.

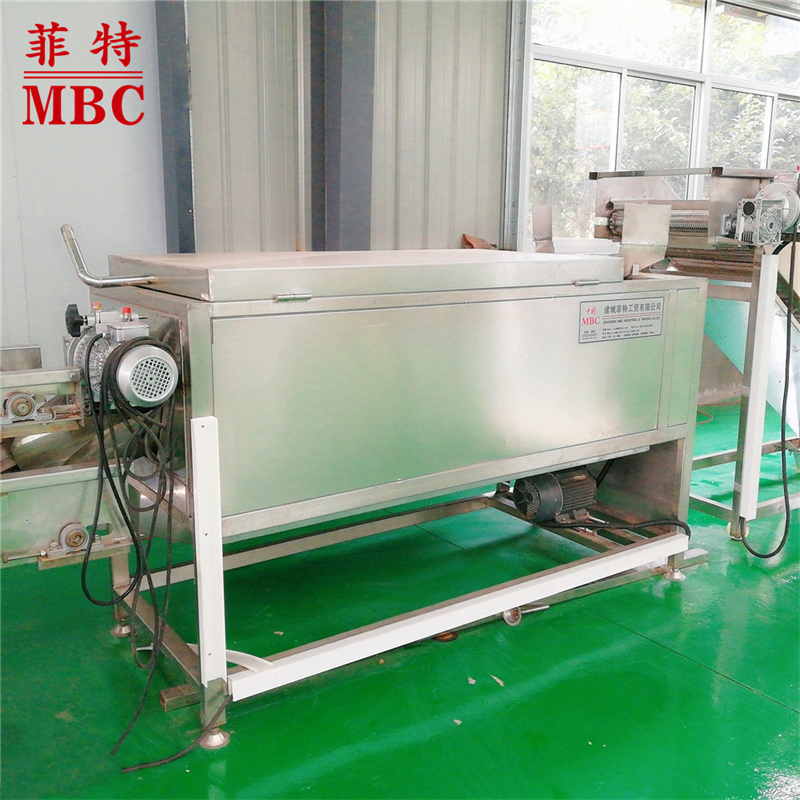

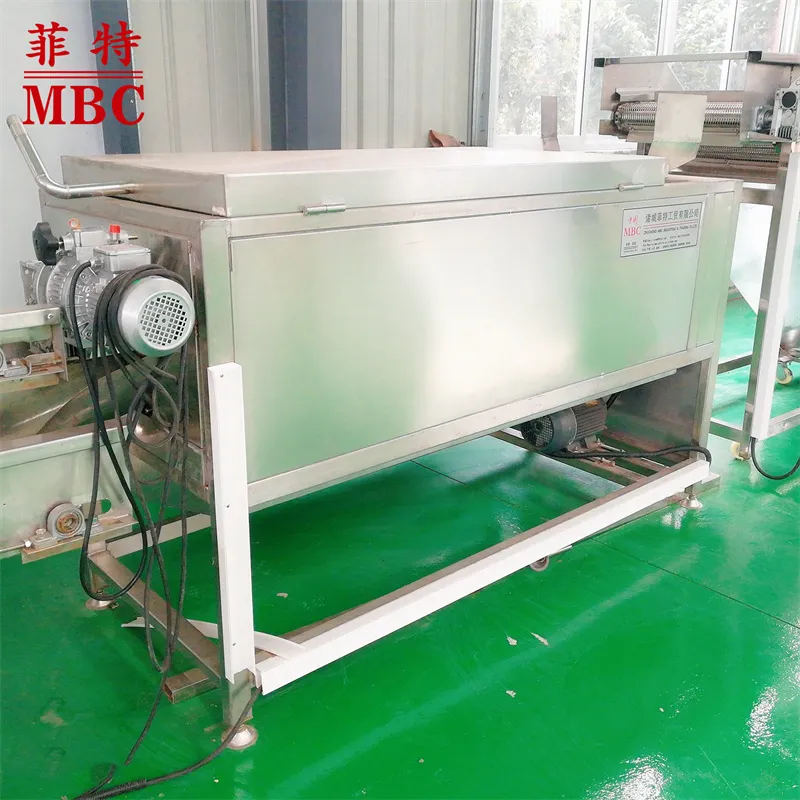

Functions: Wash and clean surface impurities while peeling the potatoes thoroughly.

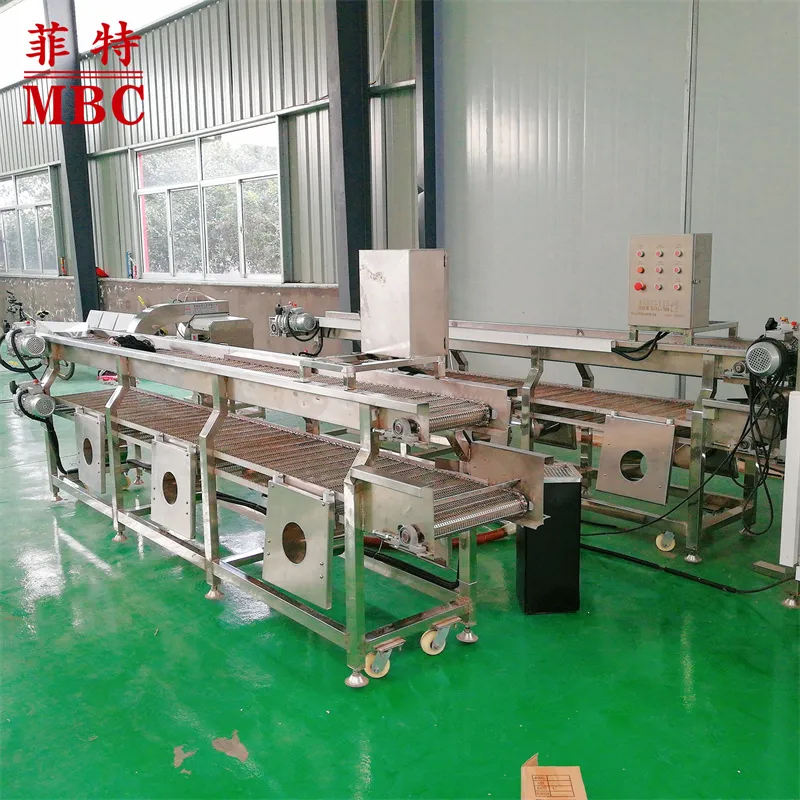

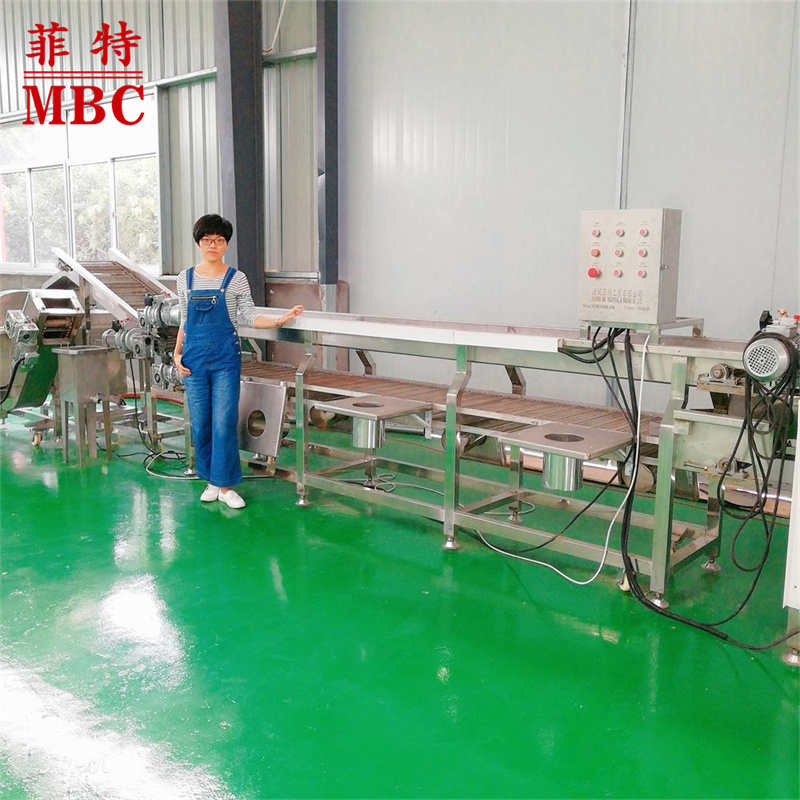

Functions: Multi-station operation for manual inspection and repair of unqualified potatoes.

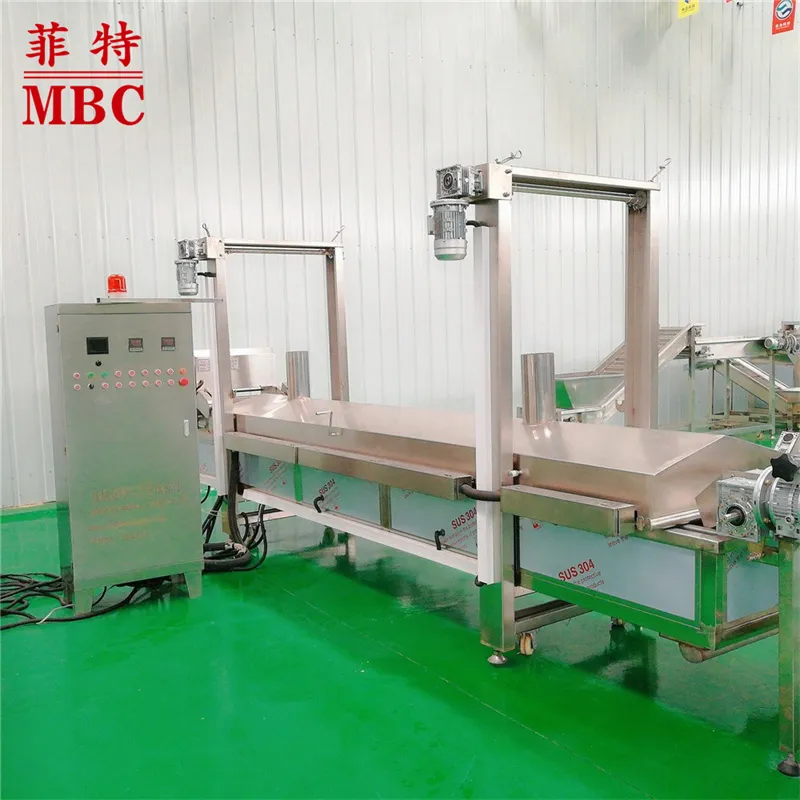

Functions: Features automatic heating, temperature control, and filtration. Time and oil temperature can be set freely.

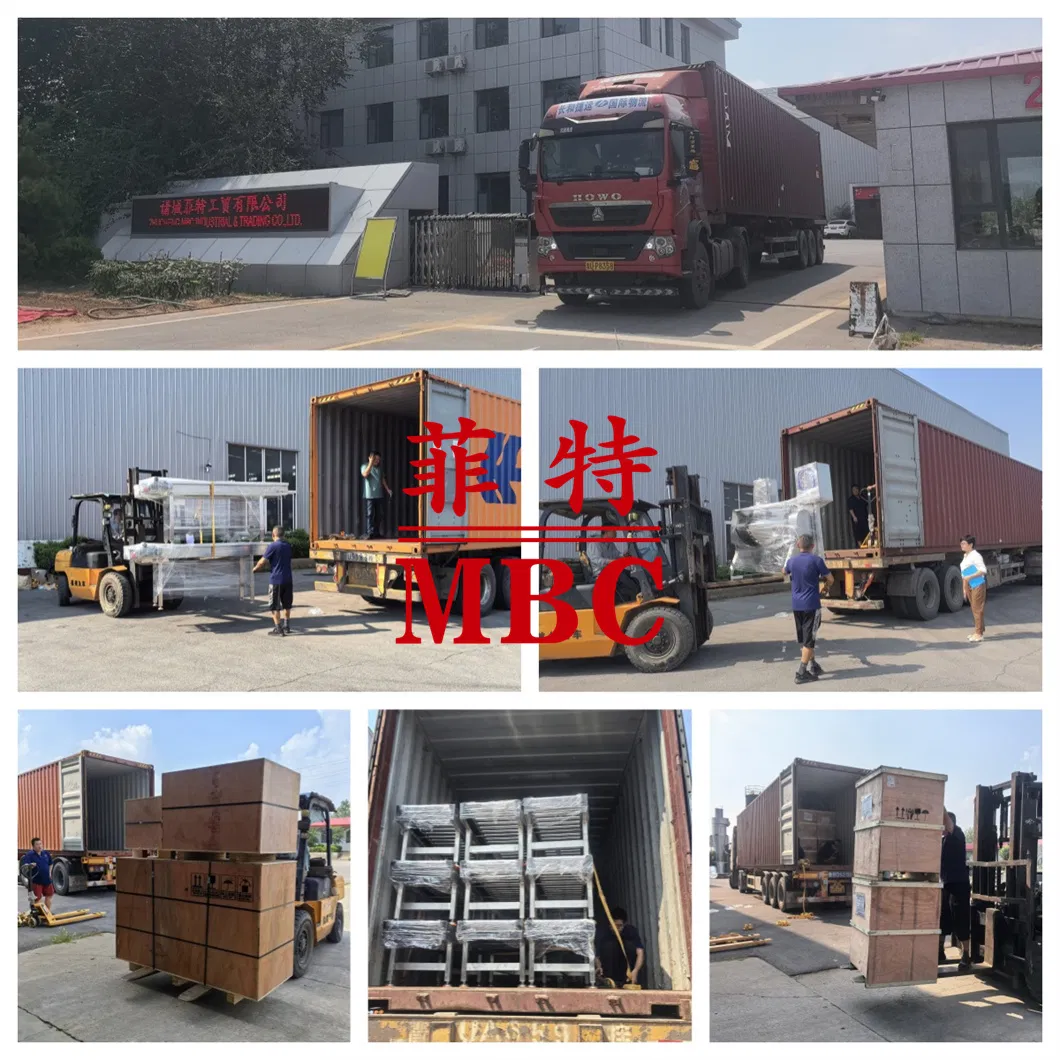

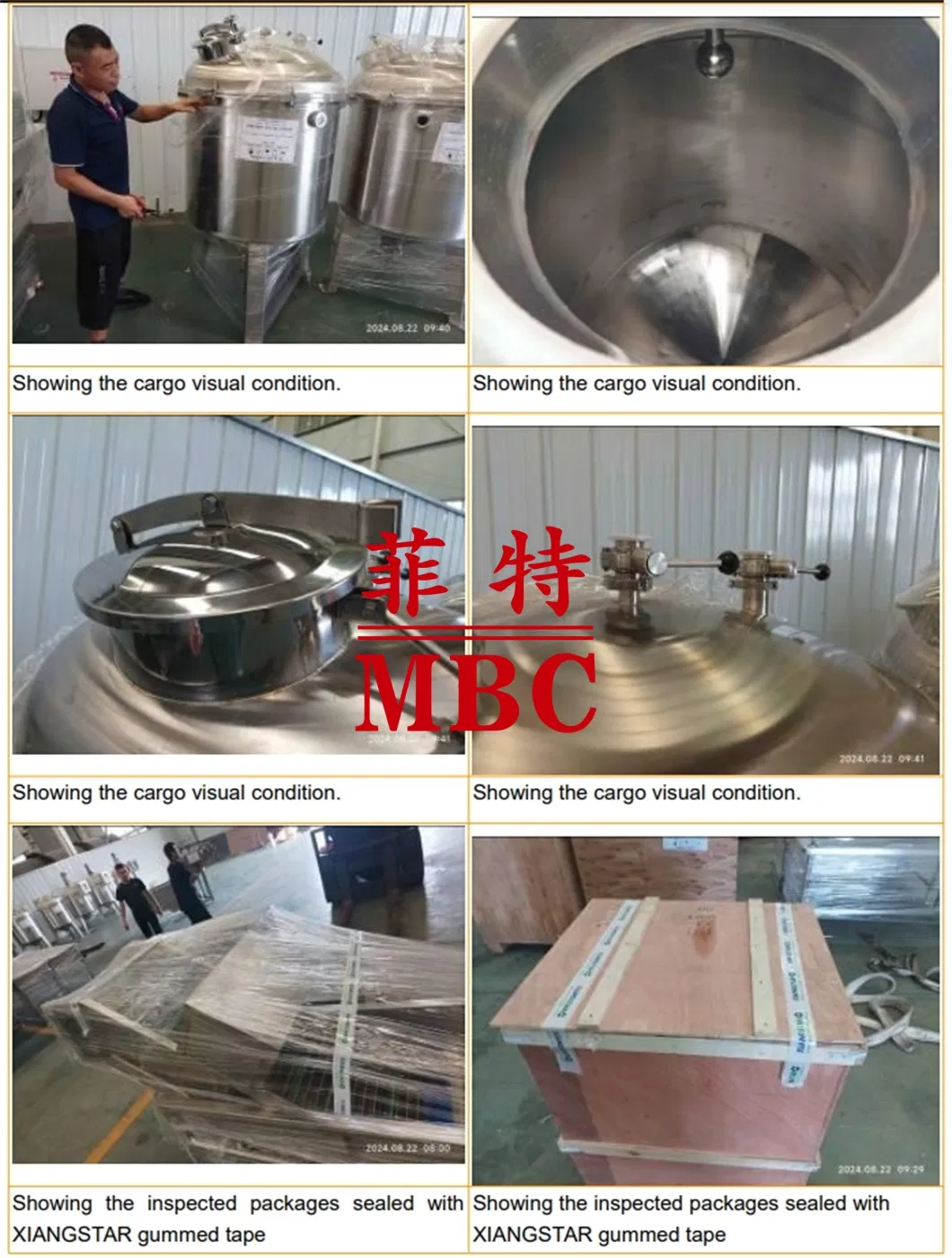

Our loading process includes comprehensive container arrangement to maximize space and reduce costs. Equipment is reinforced using special fixing tools to prevent damage during sea and land transport.
