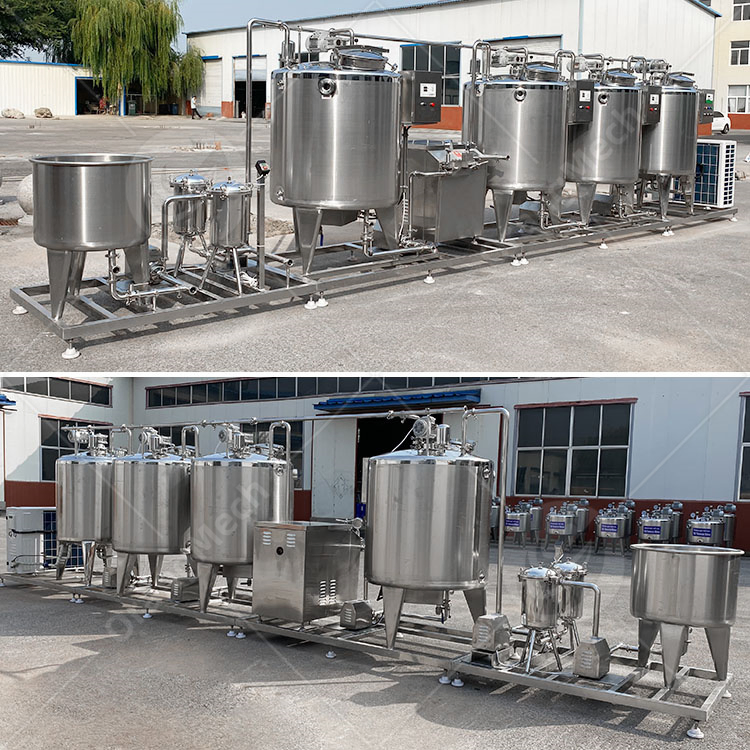

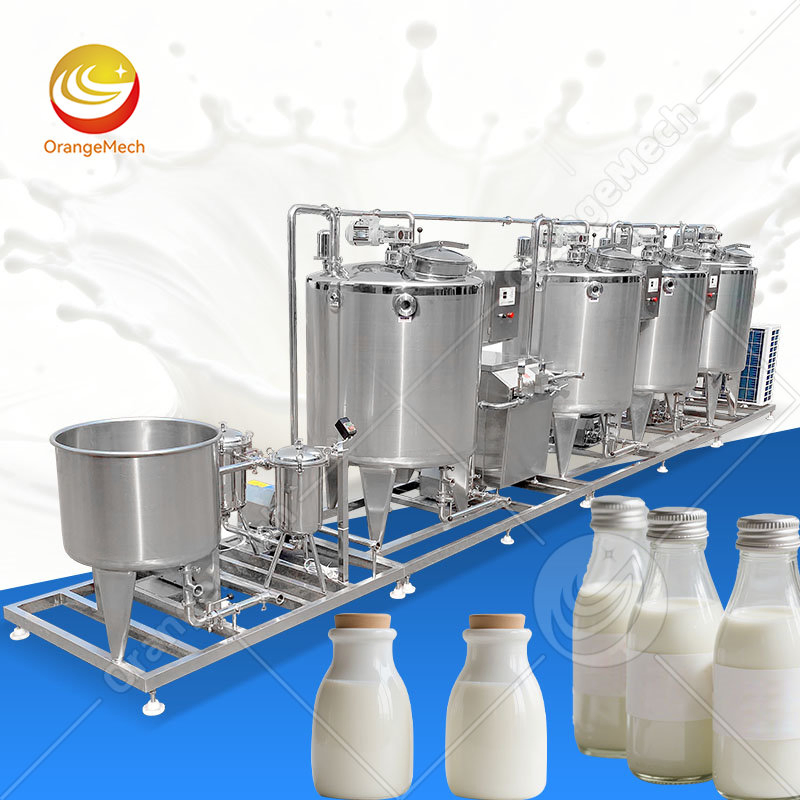

Mini Milk Process Dairy Product Pasteurized Fresh Milk Making Production Line Price of Milk

Customization: Available
After-sales Service: Online Support, Video Technical Support
Warranty: 1 Year

Product Description

Basic Information
Model NO.NSJ-04 ProcessThermal Processing
Power SourceElectric CertificationCE, ISO9001
Automatic GradeSemi-Automatic ApplicationMilk, Yogurt, Milk Powder, Cheese
Material304 Stainless Steel Capacity100-1000L /H
FunctionHeating + Pasteurizing + Homogenizing + Cooling Sterilization MethodPasteurization
Product Description

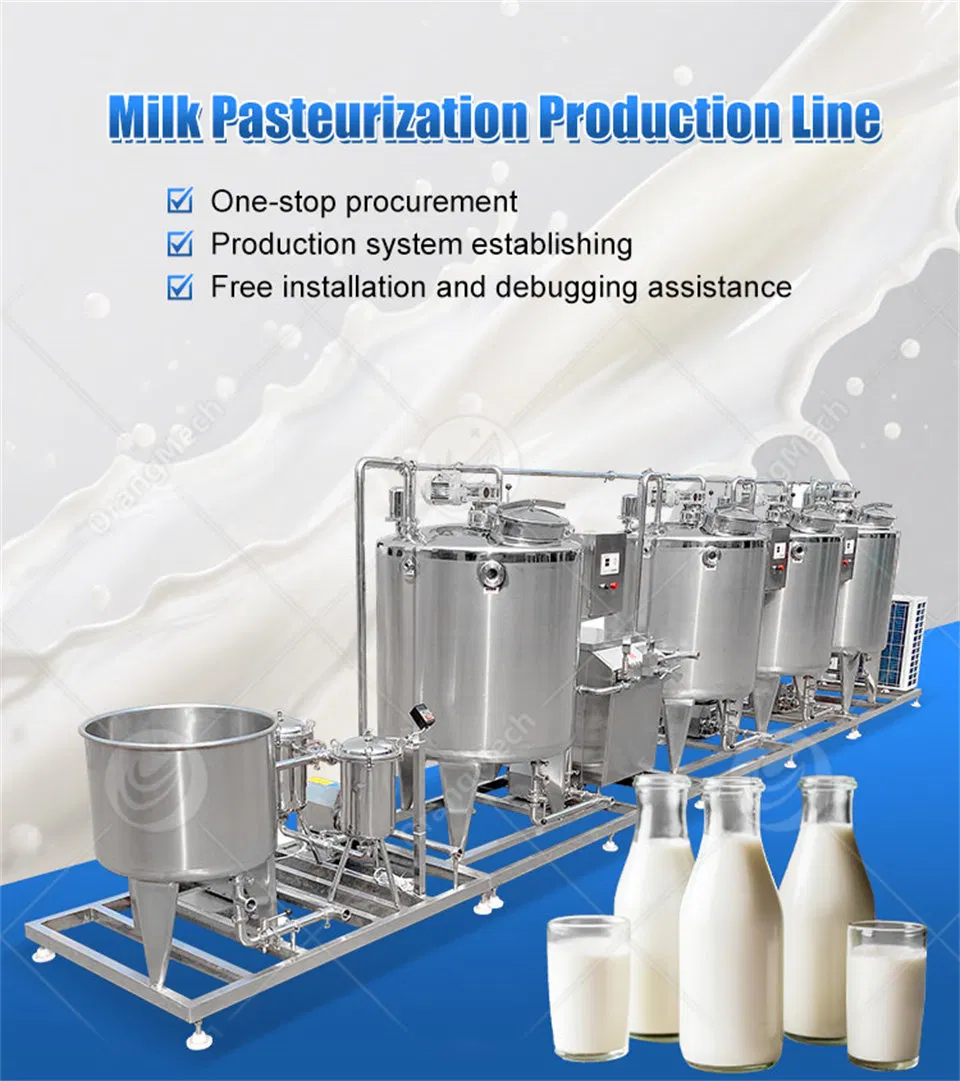

Milk Pasteurization Line
Introduction

The milk sterilization production line is an automated system integrating raw material pretreatment, sterilization, cooling, filling, and cleaning. It is specifically designed for the large-scale production of liquid milk such as pasteurized milk, UHT milk, and yogurt base. It is widely used in dairy processing plants and ranch supporting projects.

Application
  • Fresh Milk Processing: Suitable for farms and small-scale plants, maintaining freshness through controlled sterilization.
  • UHT Milk Processing: Ultra-high temperature sterilization for shelf-stable milk (6-12 months).
  • Flavored Milk: Ensuring safety while preserving nutrients in strawberry, chocolate, or walnut milk.
  • Dairy Beverages: Processing base milk for lactic acid bacteria drinks.
  • Raw Material Pre-treatment: Foundational sterilization for cheese, yogurt, and milk powder production.
Key Features
  • Supports Pasteurization (72-85℃) and UHT (135-150℃) with ±0.5℃ accuracy.
  • Integrated CIP (Clean-in-Place) online cleaning system reducing cleaning time by 60%.
  • Food-grade 304/316 stainless steel construction meeting international hygiene standards.
  • Capacity ranging from 5-20 tons for small lines to over 100 tons for large-scale operations.
  • Supports over 100 preset sterilization formulas for one-click switching.
Technical Parameters
Feed Tank & Filter
Material / Dimensions304 SS / 800*800*800mm
Filtration Capacity5t/h (200 mesh)
Preheating & Pasteurization Tank
Heating Power24KW
Agitation Speed36r/min
Voltage380V 50HZ
High-Pressure Homogenizer
Homogenizing Pressure15-25 MPa
Power7.5KW
Capacity1000L/H
Cooling & Storage
Cooling MethodCirculating chilled water
Refrigeration Power3KW
Machine Structure & Details

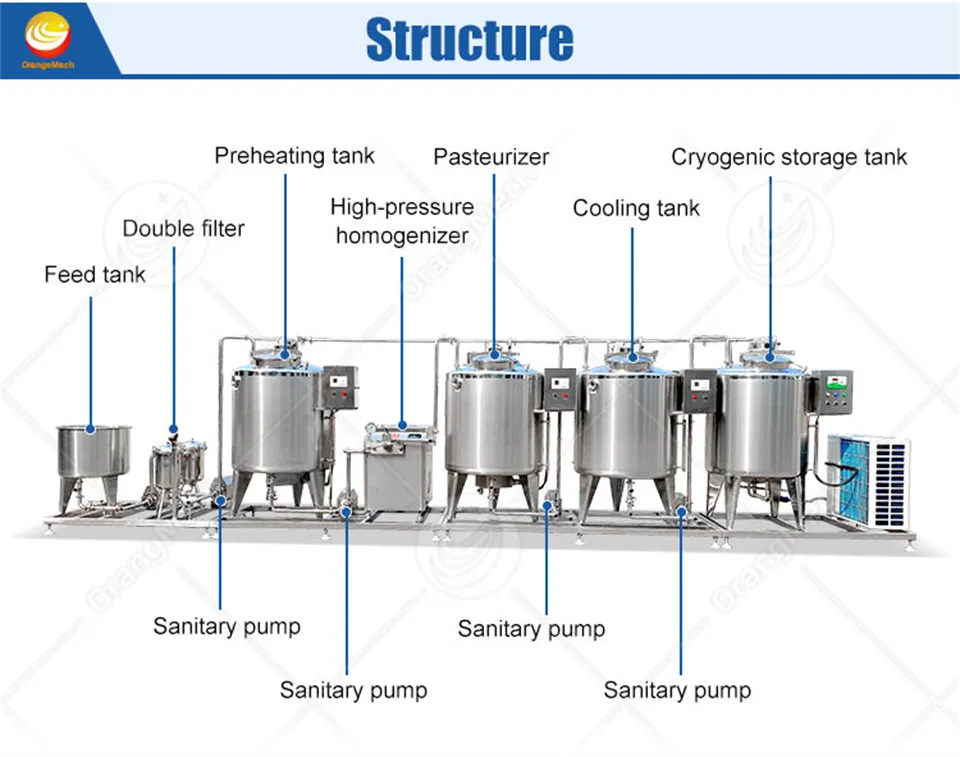

Machine Structure
Detail 1

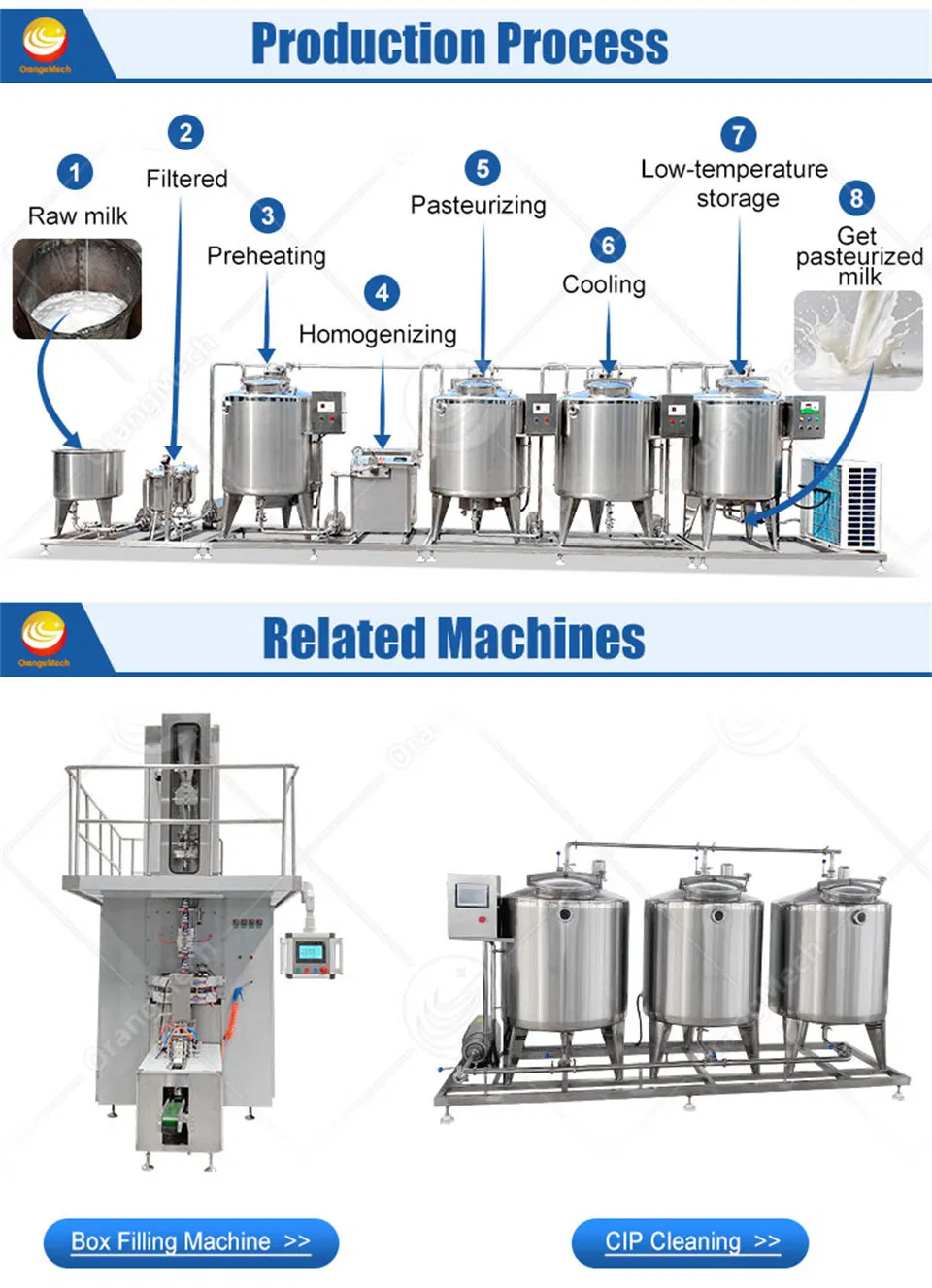

Detail 2

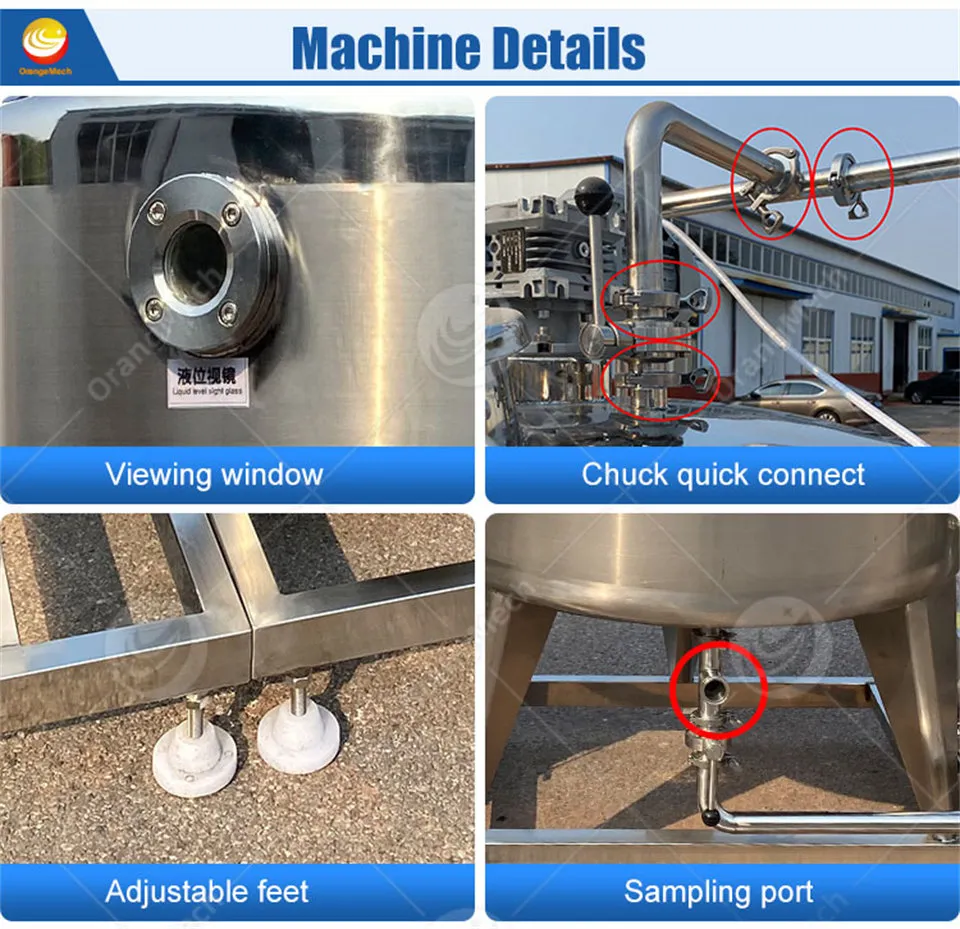

Detail 3

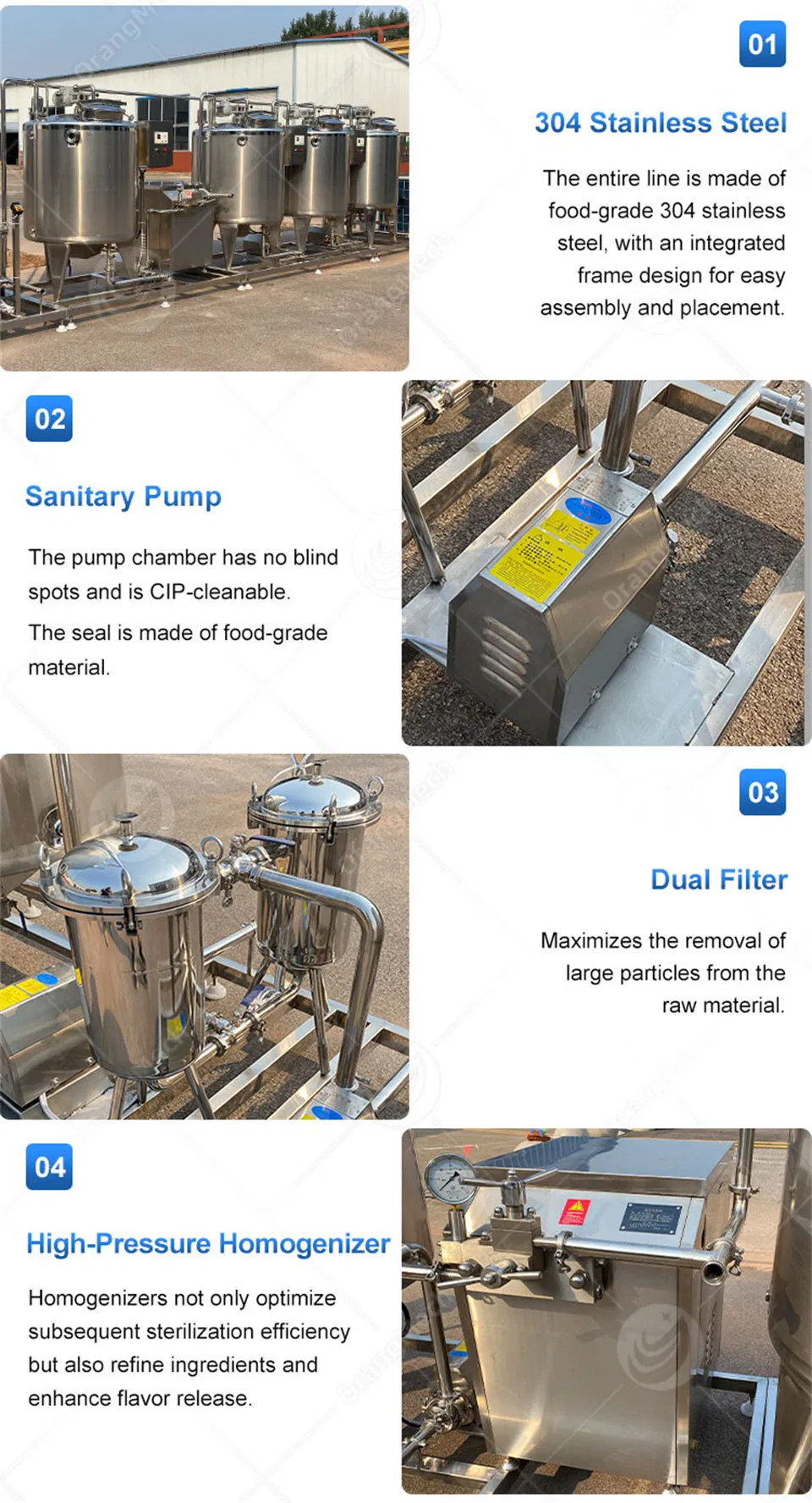

Detail 4

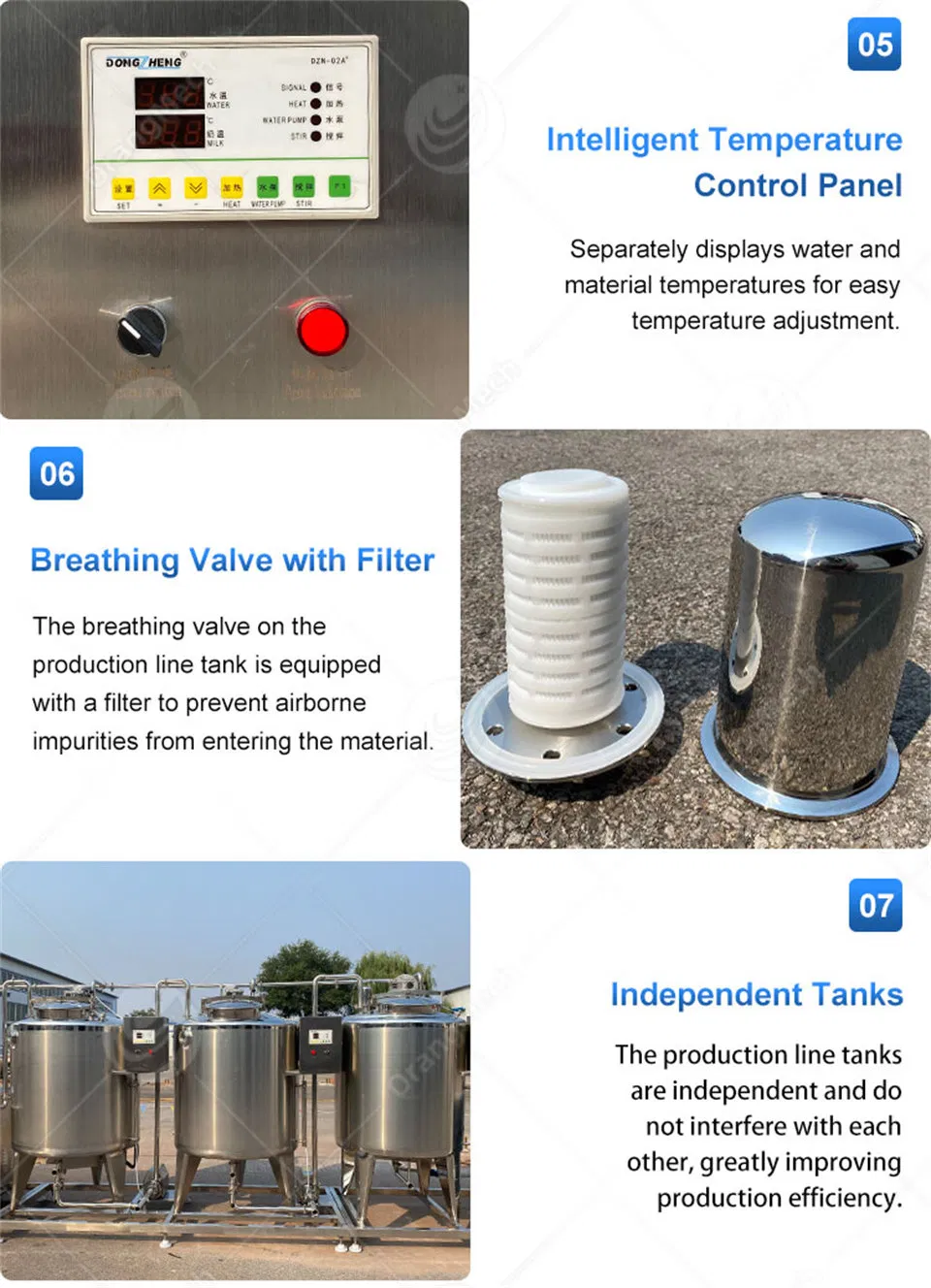

Detail 5

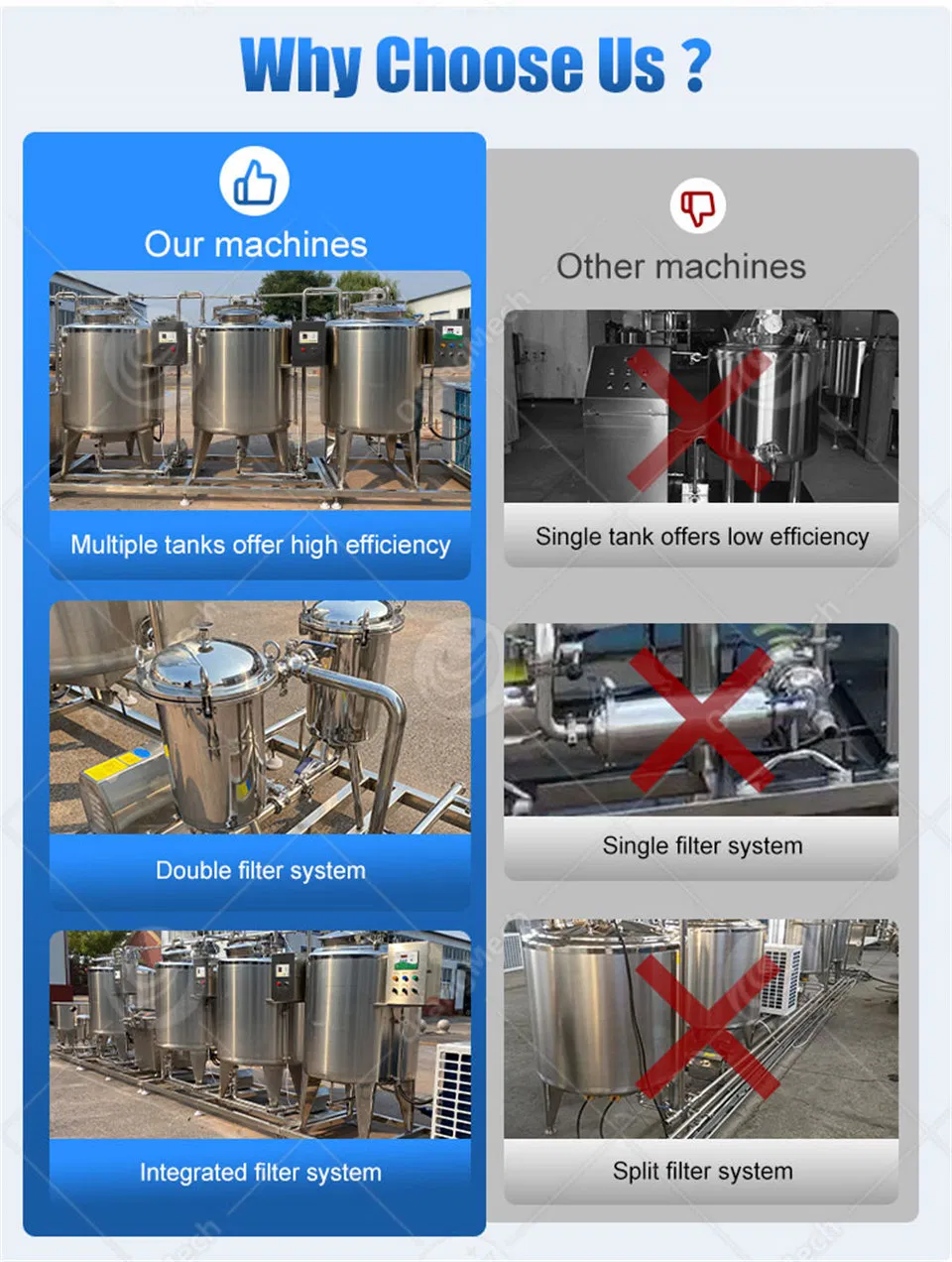

Detail 6
Related Machines

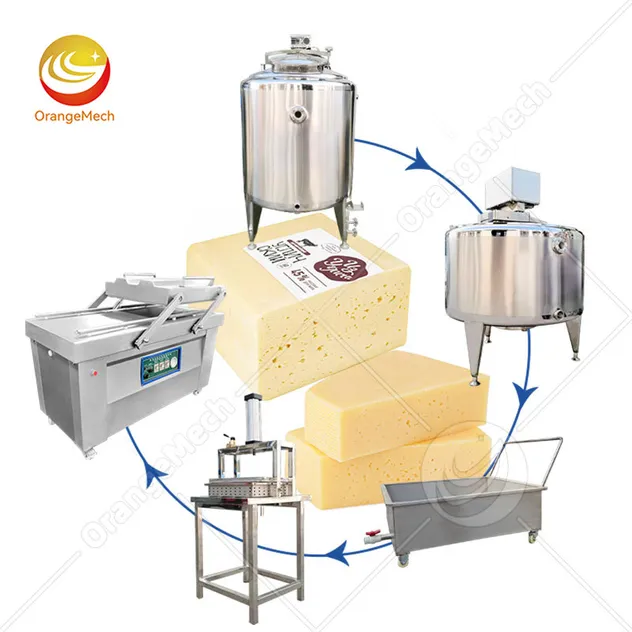

Related Machine 1

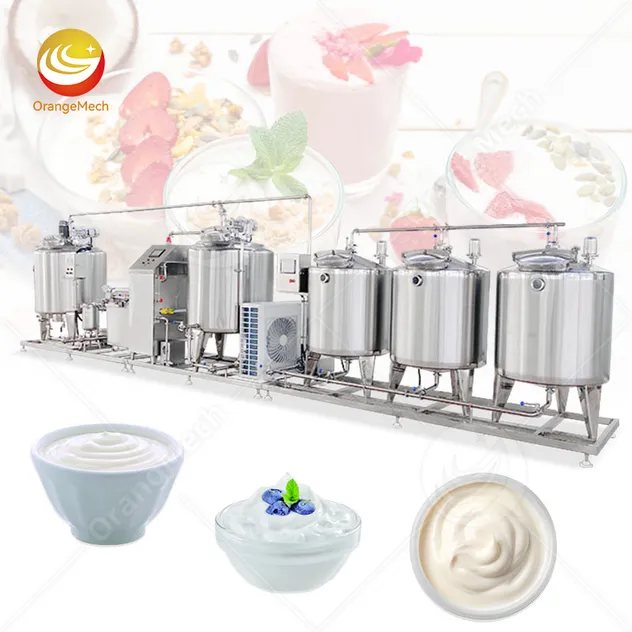

Related Machine 2

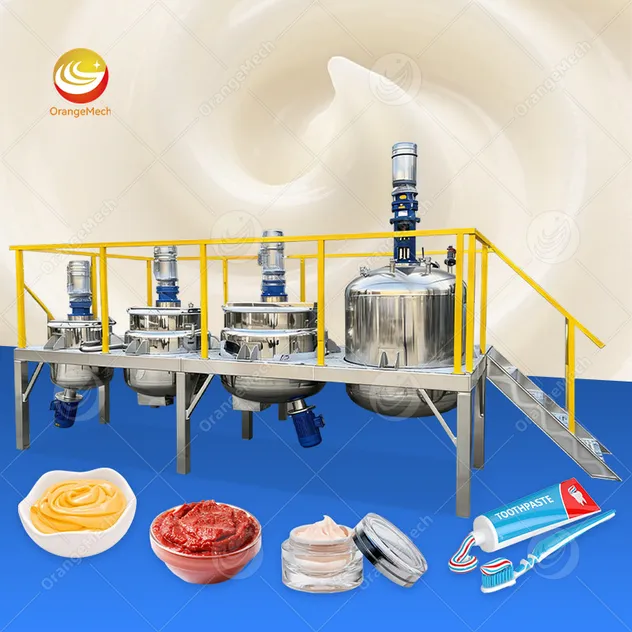

Related Machine 3
Our Factory Features
  • Professional mechanical equipment manufacturing with over 20 years of expertise.
  • Sustained R&D team focusing on continuous technology development.
  • Strict Quality Control and full-process monitoring management.
  • Certified by ISO 9001, ISO 14001, ISO 45001, CE, BSCI, and ETL.
  • Self-owned professional laboratory and QC capability.
Factory Overview
Frequently Asked Questions
Q: What types of dairy products can this production line produce?
A: It can produce pasteurized milk, UHT milk, yogurt base, flavored milk (strawberry, chocolate), high-calcium milk, and low-fat milk.
Q: What is the core difference between pasteurization and UHT?
A: Pasteurization (72-85℃) preserves more flavor and nutrients with a 7-15 day refrigerated shelf life. UHT (135-150℃) provides a 6-12 month shelf life at room temperature.
Q: Does the equipment material meet food hygiene standards?
A: Yes, all food-contact parts are made of 304/316 food-grade stainless steel, ensuring full compliance with safety standards.
Q: What supporting conditions are required for installation?
A: Requirements include a steam source (or electric heating), clean water source, 380V industrial power supply, and a refrigeration system.
Q: How do you ensure no secondary contamination?
A: The process uses a closed-loop pipeline system with a CIP cleaning system and aseptic air protection during filling to eliminate blind spots.
Q: What are the main wearable parts and their replacement cycle?
A: Homogenizing valves (6-12 months), sealing rings (3-6 months), filters (1-2 months), and heating elements (2-3 years).
