Commercial SUS 316 150L 250L Batch Milk Tank Pasteurizer Machinery Industrial Pasteurization Plant Dairy Milk Processing Equipment Line

Customization: Available
After-sales Service: Online Support, Video Technical Support
Warranty: 1 Year

Product Description

📋 Basic Information
Model NO.
ORME-NSJ-16
Process
Thermal Processing
Power Source
Electric
Certification
CE, ISO9001
Automatic Grade
Automatic
Application
Milk, Yogurt, Cheese
Product Name
Milk Sterilization Line
Capacity
300L~10000L
Material
Stainless Steel 304/316
Voltage
220V/380V Customized
Milk Tank Pasteurizer
💡 Introduction
This milk pasteurization line preserves the fresh taste and nutrients of milk while ensuring product safety and extending its shelf life. Made of high-quality stainless steel and equipped with an efficient automatic control system for pasteurization, it is ideal for producing high-quality milk, yogurt and other dairy beverages.
🏢 Application
Designed specifically for the dairy processing industry and is suitable for farms, dairies, and dairy product manufacturers. It can be used to produce pasteurized fresh milk, yogurt, cream, cheese, and various dairy beverages with a longer shelf life.
Product Features
1
Constructed of food-grade 304 stainless steel, easy to clean.
2
Integrated stainless steel frame with a compact structure.
3
Equipped with adjustable feet for easy leveling.
4

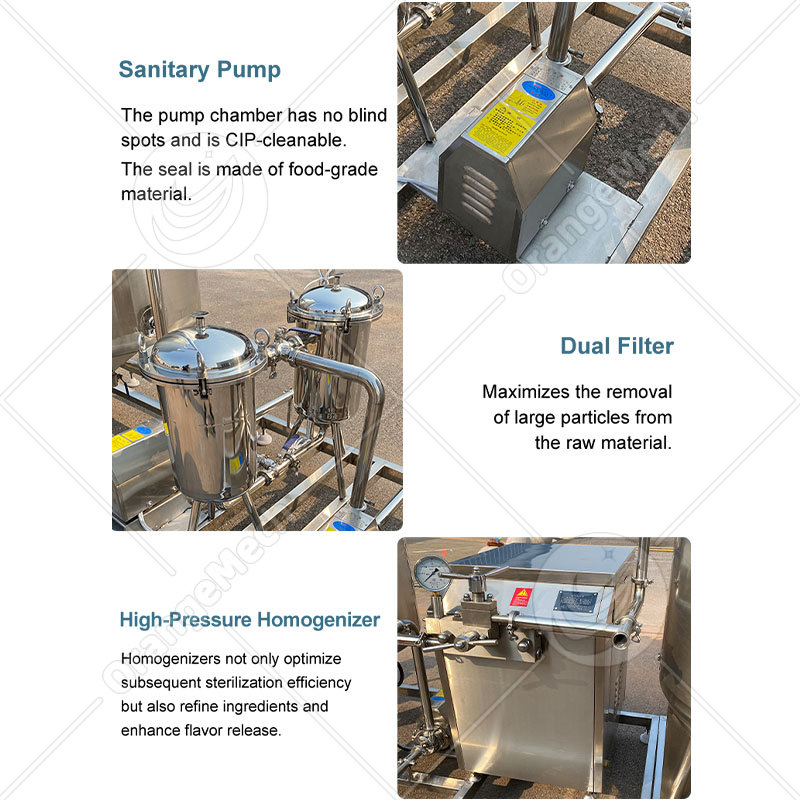

Sanitary pump with protective cover to prevent damage.
5
Dual filter effectively removes large particles.
6
Multiple sampling ports for online testing.
7
High-pressure homogenizer for uniform material texture.
8
Tank viewing window for real-time monitoring.
9
Quick-connect chucks for easy assembly/removal.
10

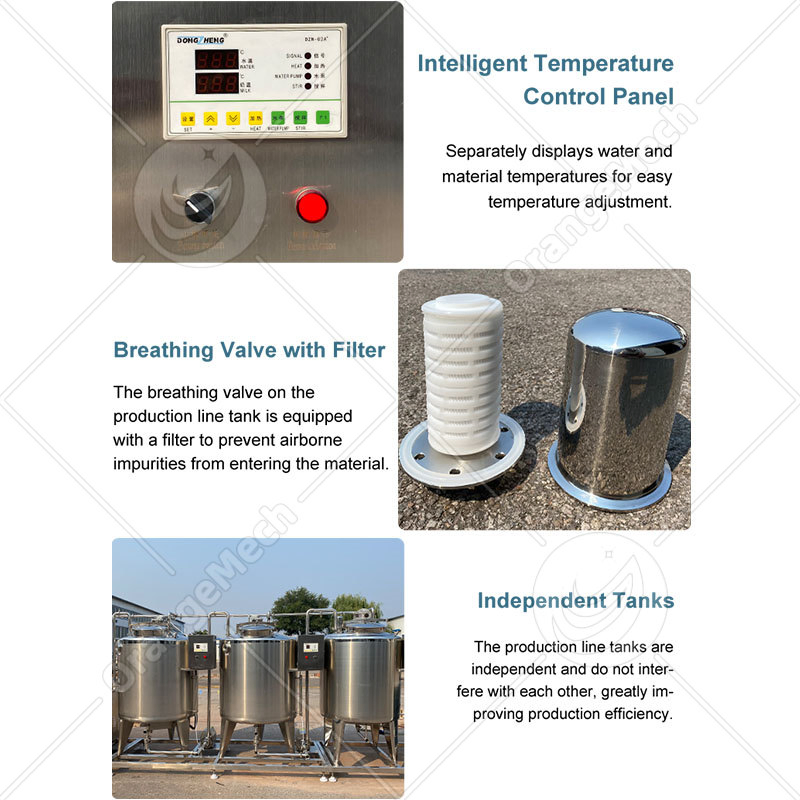

Intelligent dual-screen temperature control panel.
11
Water-cooling process with independent low-temperature storage.
12
Breathing valve with filter to prevent contamination.
Technical Parameters
Feed Tank & Filter
Feed Tank Dimensions800*800*800mm (200L)
Filter Capacity5t/h (200 mesh)
Preheating & Pasteurization Tank
Capacity500L
Heating Power24KW
Agitation Speed36r/min
High-Pressure Homogenizer
Capacity1000L/H
Power7.5KW
Cooling & Storage
Cooling MethodCirculating chilled water
Refrigeration Power3KW (Storage Tank)
Material304 Stainless Steel
📷 Machine Structure & Details

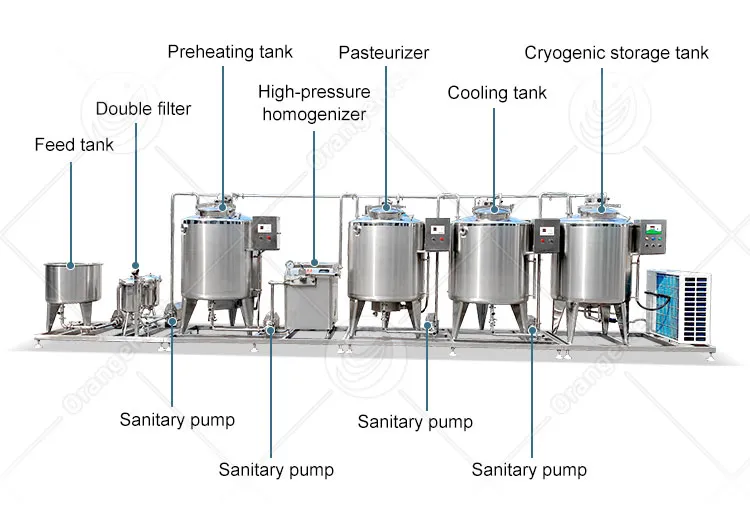

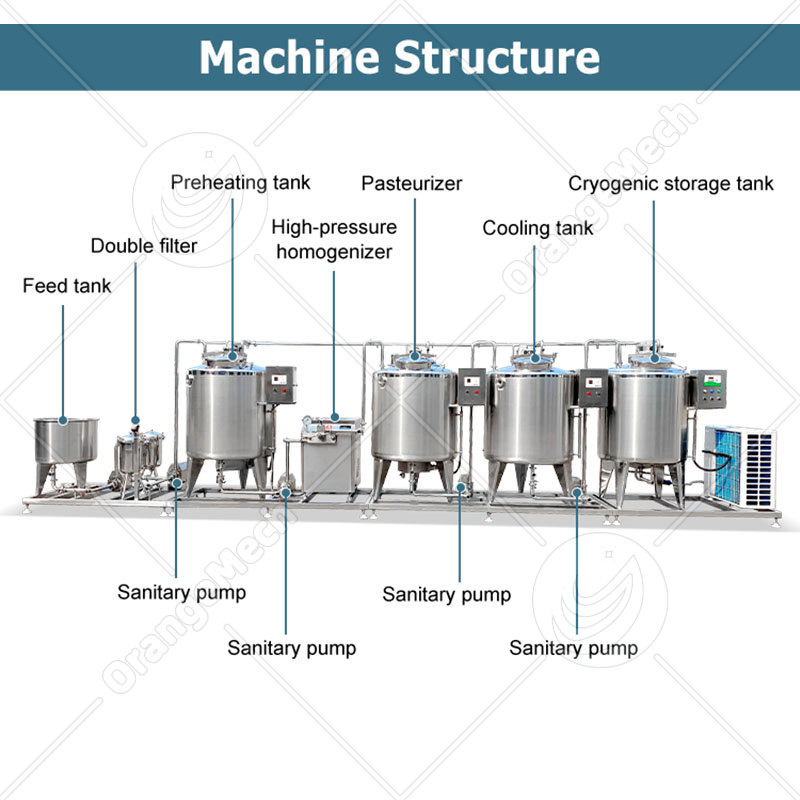

Machine Structure

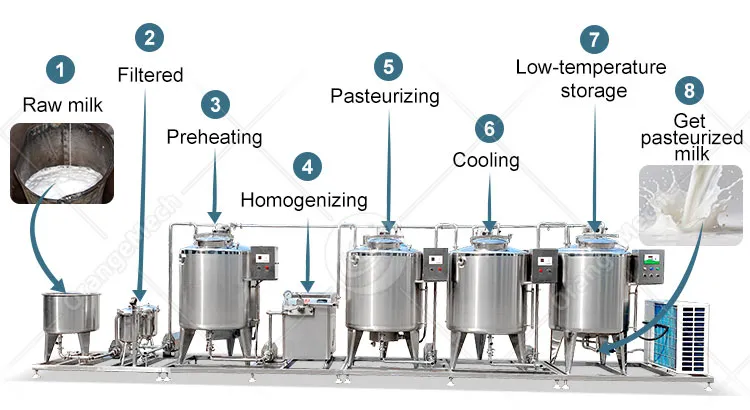

Structure Detail

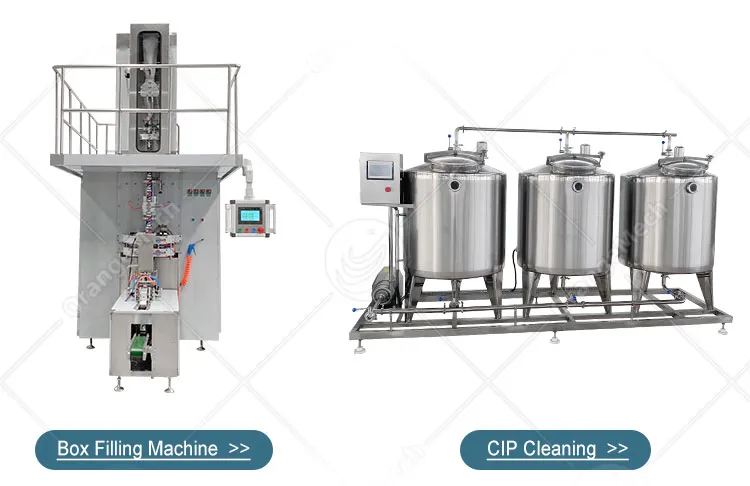

Finished Product 1 Finished Product 2

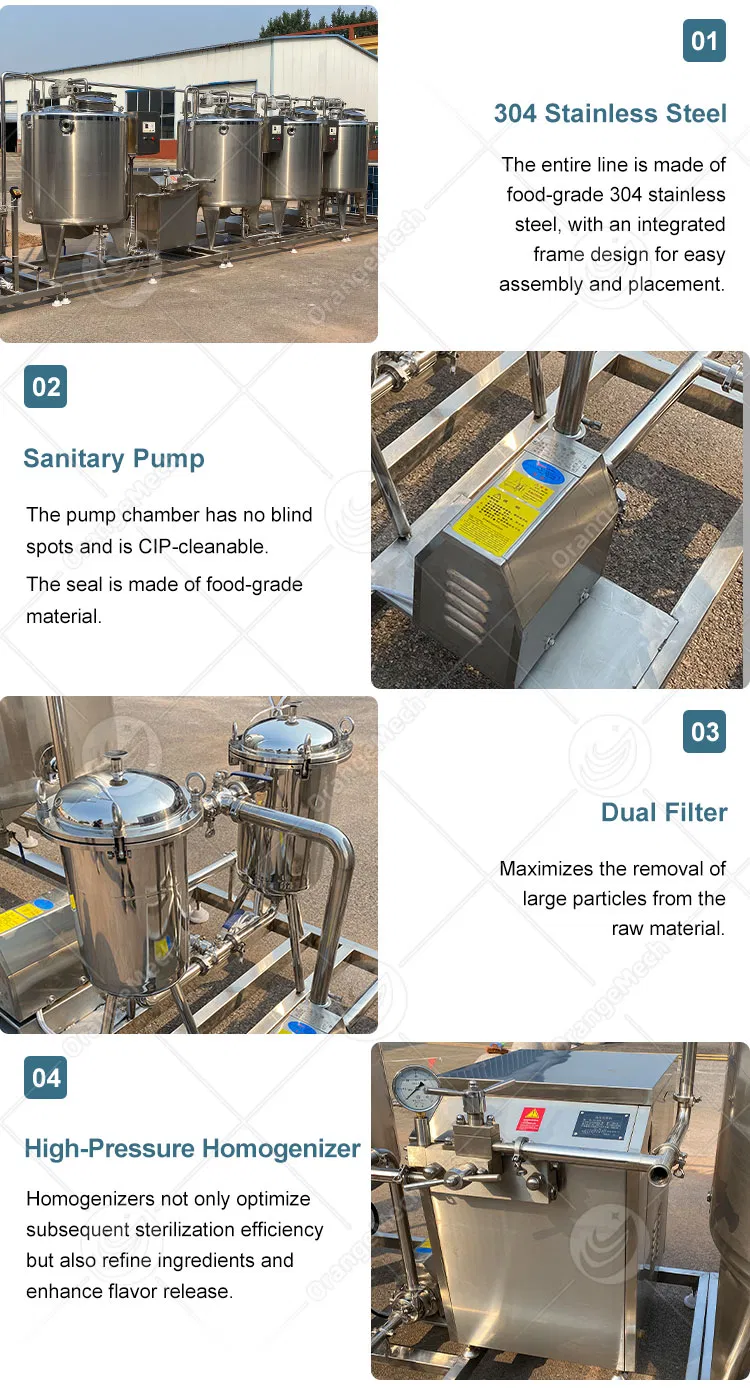

Detail 1

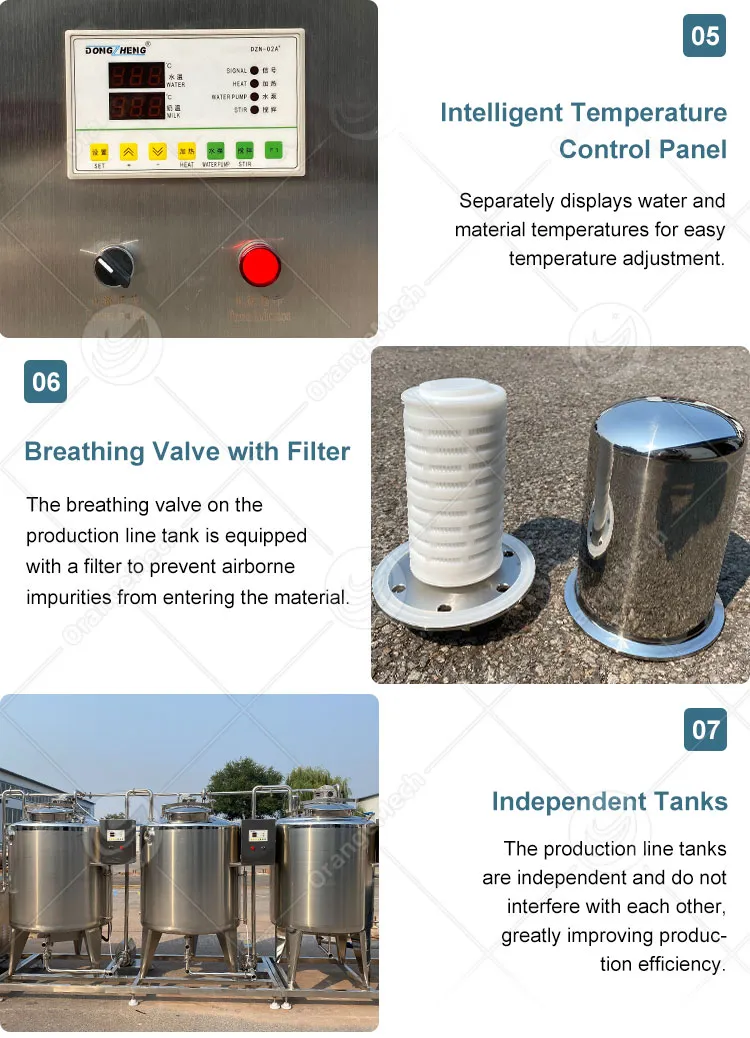

Detail 2

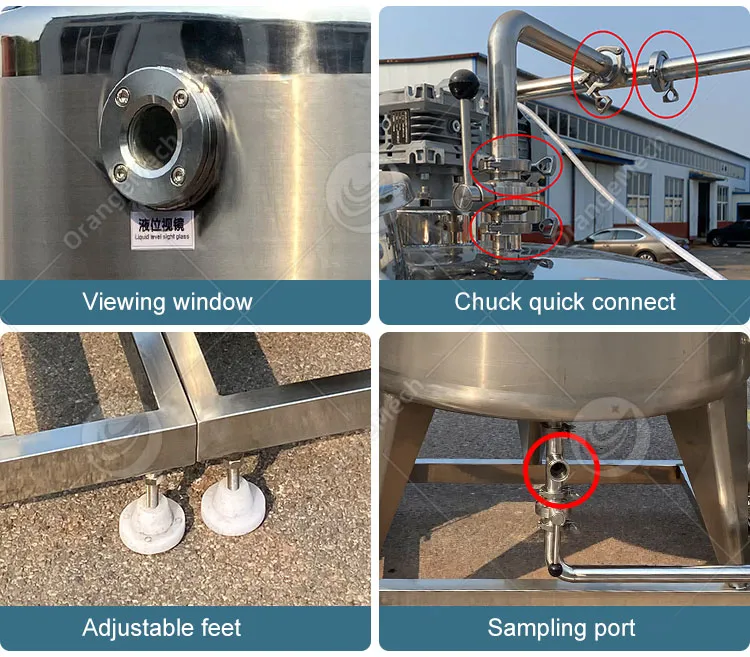

Detail 3
Detail 4
📸 Product Photographs

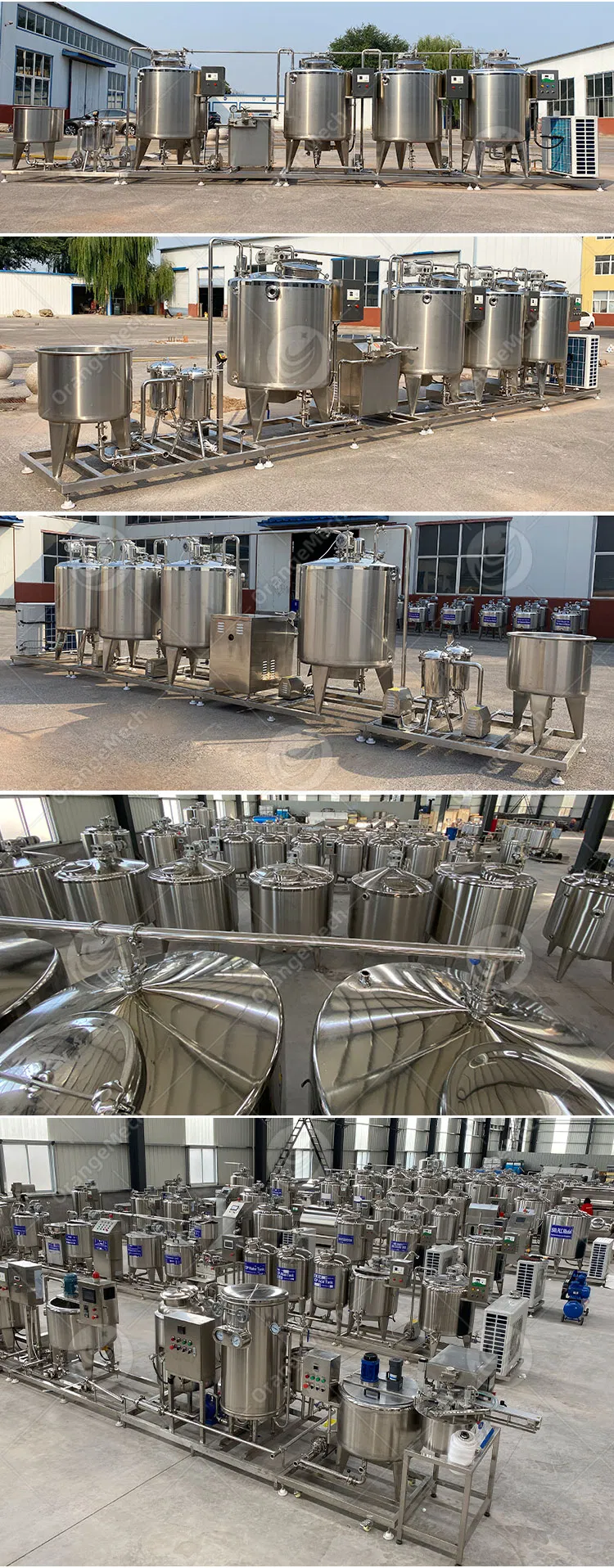

Full Line View

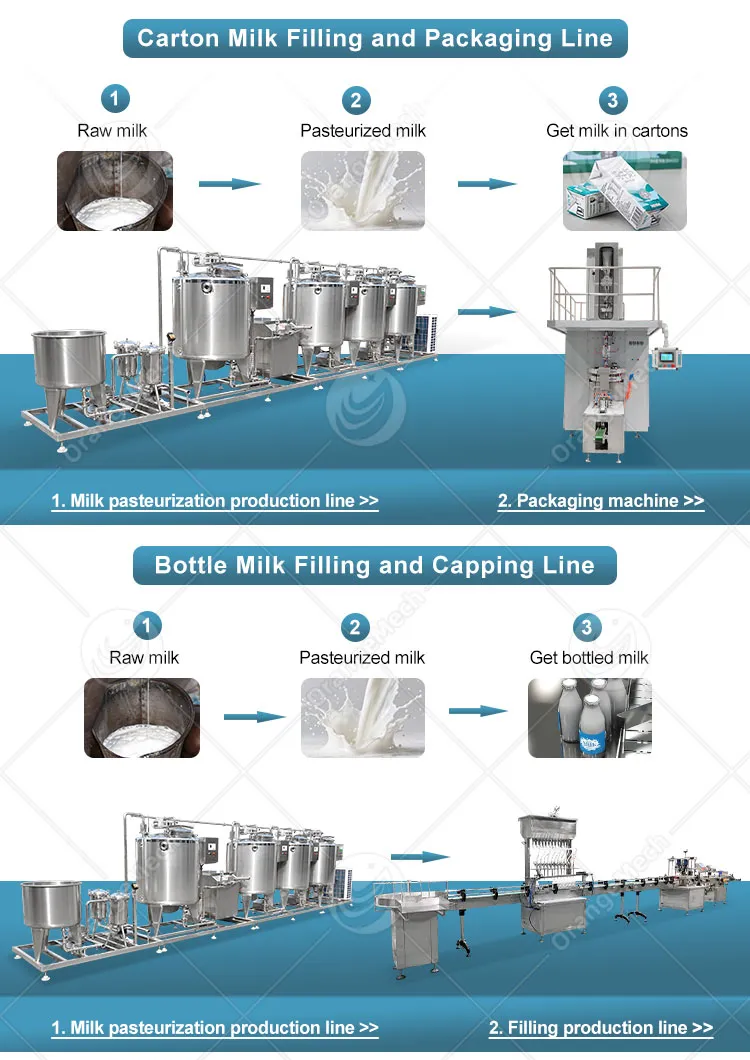

Side View

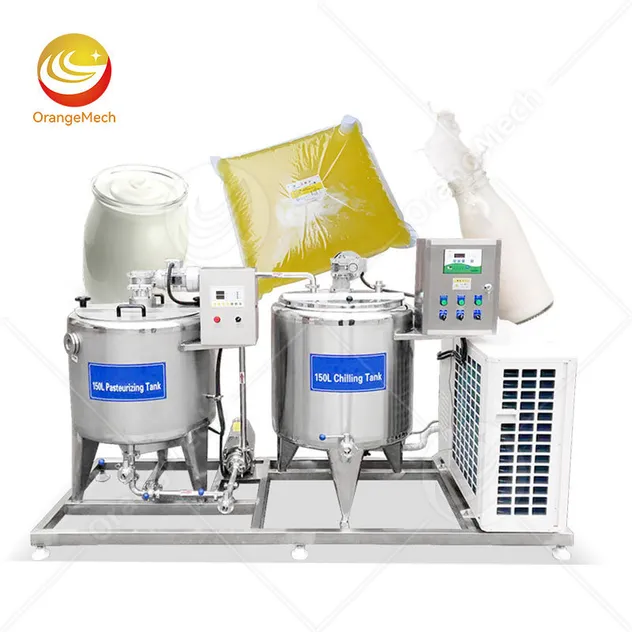

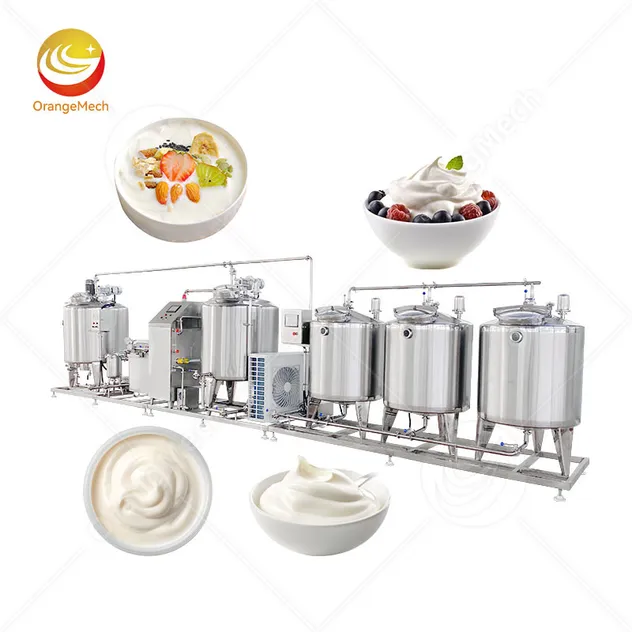

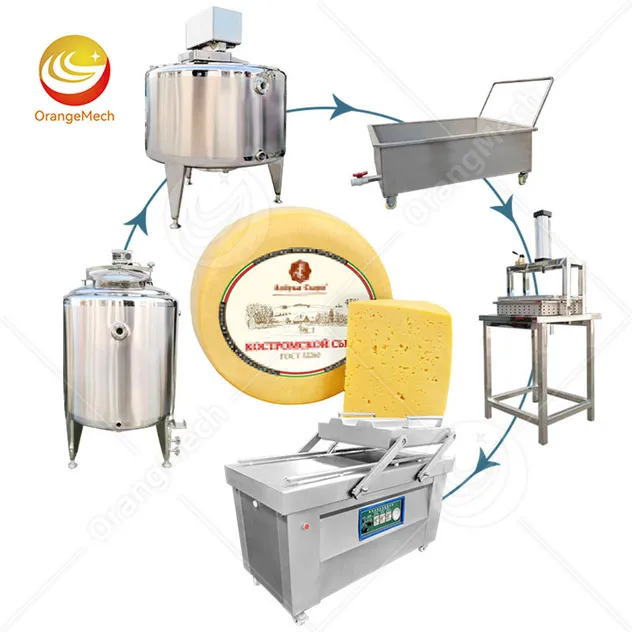

Unit 1 Unit 2 Unit 3
🔇 Service & Support
S
24-hour communication service for all technical queries.
W
One-year warranty and lifetime technical support provided.
T
Free staff training and new product recommendations.
L
Fast logistics and support for local after-sales service.
Frequently Asked Questions
What materials are used in the construction of the pasteurization line?
The entire line is constructed using food-grade 304 or 316 stainless steel, ensuring durability, wear resistance, and easy cleaning for sanitary processing.
What is the production capacity of this equipment?
We offer a wide range of capacities from 300L to 10,000L, which can be further customized to meet specific production requirements.
Can this line be used for products other than fresh milk?
Yes, it is highly versatile and suitable for producing yogurt, cream, cheese, and various other dairy-based beverages.
How is the temperature controlled during the process?
The system features an intelligent temperature control panel that displays both water and material temperatures on separate screens for precise and reliable monitoring.
What kind of cooling system does the machine use?
After pasteurization, the system utilizes a water-cooling process followed by independent low-temperature storage to maintain product quality and safety.
Is the machine easy to install and level?
Absolutely. The integrated frame design is compact for easy placement, and it comes equipped with adjustable feet to ensure the overall leveling of the line.
