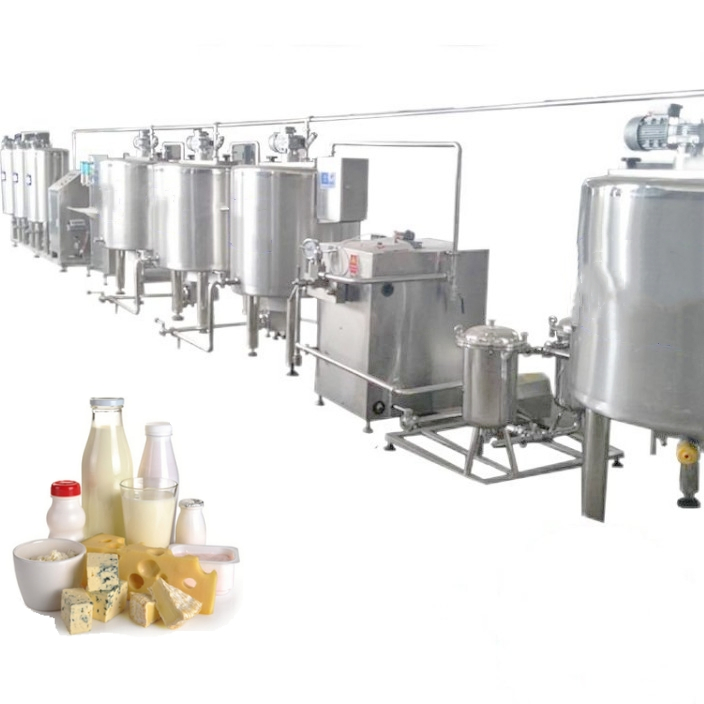

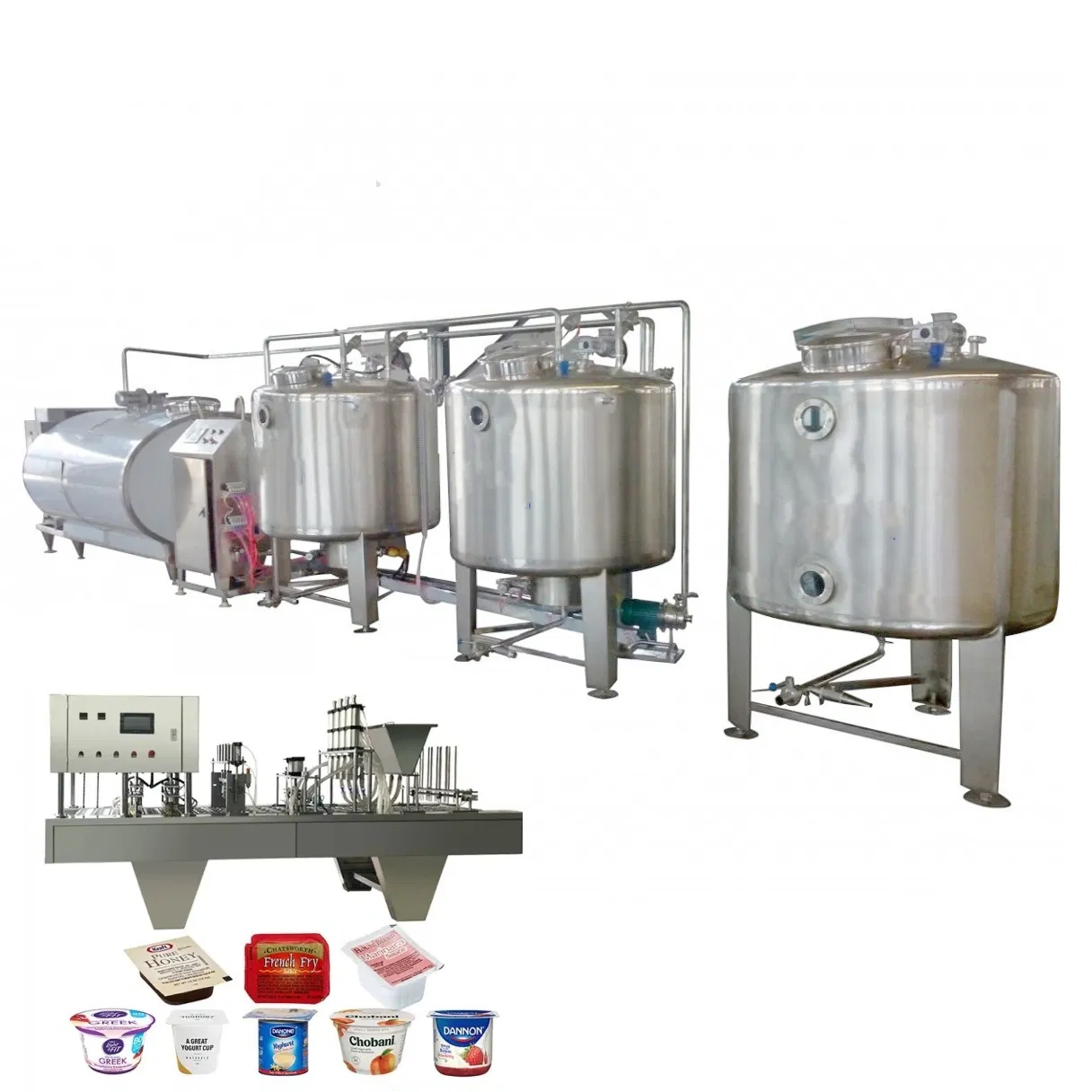

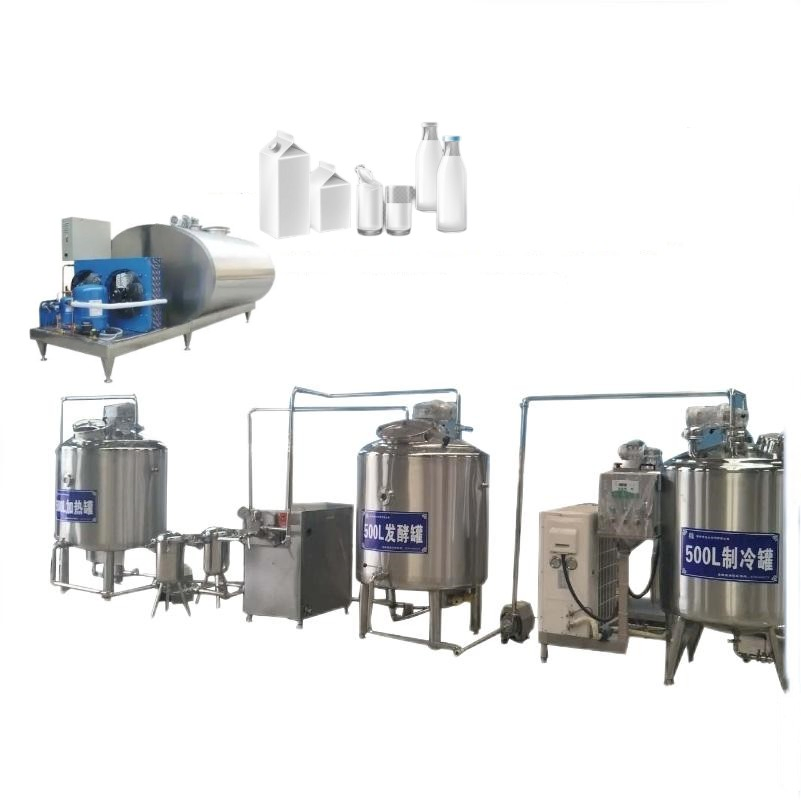

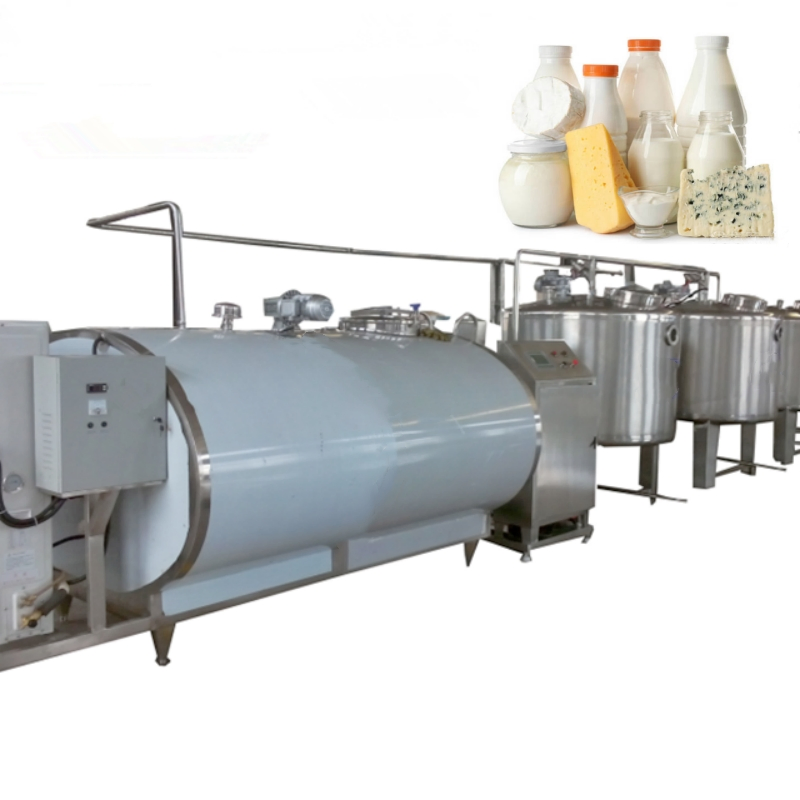

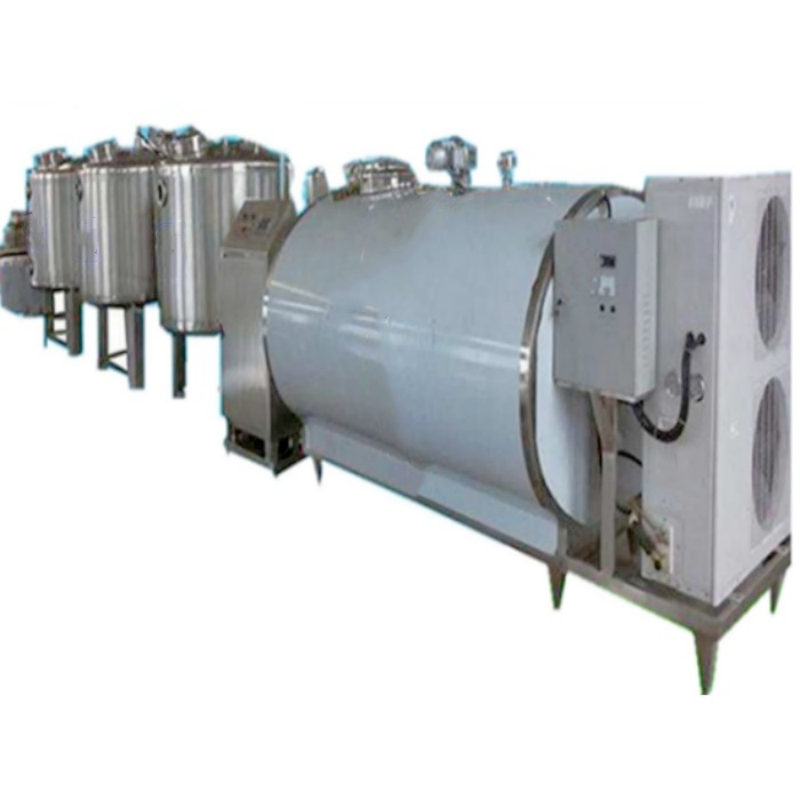

New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
1 / 5
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line
New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line

New Design Drinking Yogurt Bottling Line Pasteurized Milk Production Line

Customization: Available
After-sales Service: Oversea Service
Warranty: 12 Months
Send Inquiry

Product Description

● Overview & Basic Information
Model NO.
BSN-500
Process
Thermal Processing
Power Source
Electric
Certification
ISO9001
Automatic Grade
Automatic
Application
Milk, Yogurt
Customized
Customized
Raw Material
Cow Goat Milk
Voltage
380V 50Hz
MOQ
1 Set
Heating
Electric / Steam
Specification
500L - 5000L
Origin
China
Production Capacity
200 sets/Year
● Packaging & Delivery
Package Size
800.00cm * 160.00cm * 170.00cm
Gross Weight
4000.000kg
Transport Package
Wooden Case
● Product Description

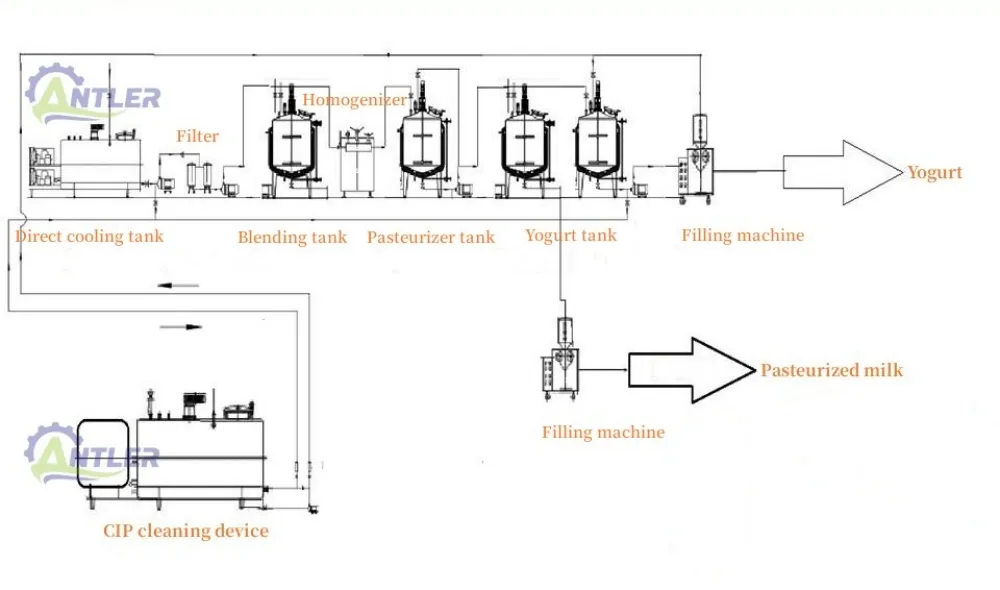

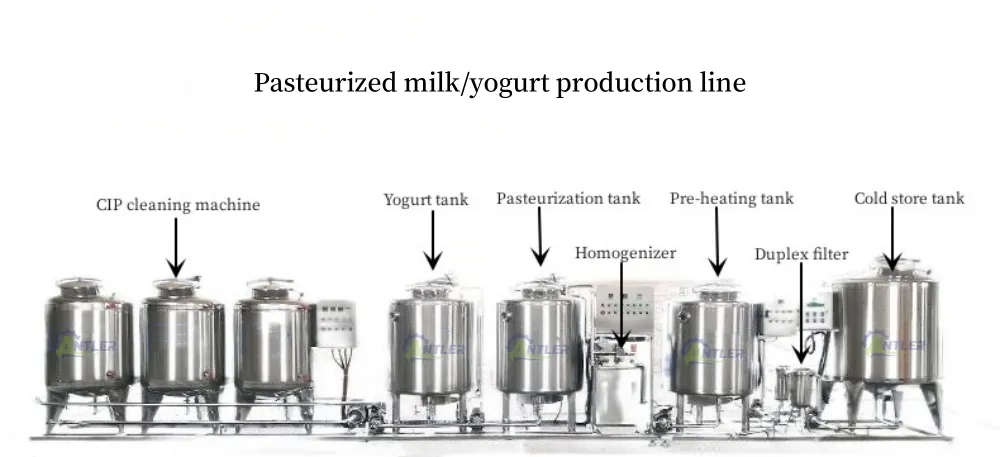

Yogurt Bottling Line Production Line Layout
NO. NAME MAIN TECHNOLOGY PARAMETER
1MILK RECEIVE \ STORAGE
2Milk receiving tankSUS304 stainless steel, single layer, CIP cleaning ball
3Milk pumpSUS304, pump lift 24M, Hard Alloy Mechanical Seal
4Double filterSUS304, two pipe, Stainless Steel Filter Element 100 Mesh
5Dish separatorAuto residue discharge
6Cooling tankSUS304, alveolate jacket, with compressor
8Blending tankSUS304, insulated, off-center agitator, breather valve, thermometer
10Plate heat exchangerSUS304 stainless steel, two stages
12UHT sterilizerTub-type, sterilizing temp 137°C, holding time 4S, automatic control
13High pressure homogenizer40MPa, starting box included
14CIP SYSTEM
15Semi-auto CIP systemSUS304 outer, SUS316 inner, 100L×2 acid/alkali concentrate tanks
16CIP return pumpSUS304, pump lift 24M, Hard Alloy Mechanical Seal

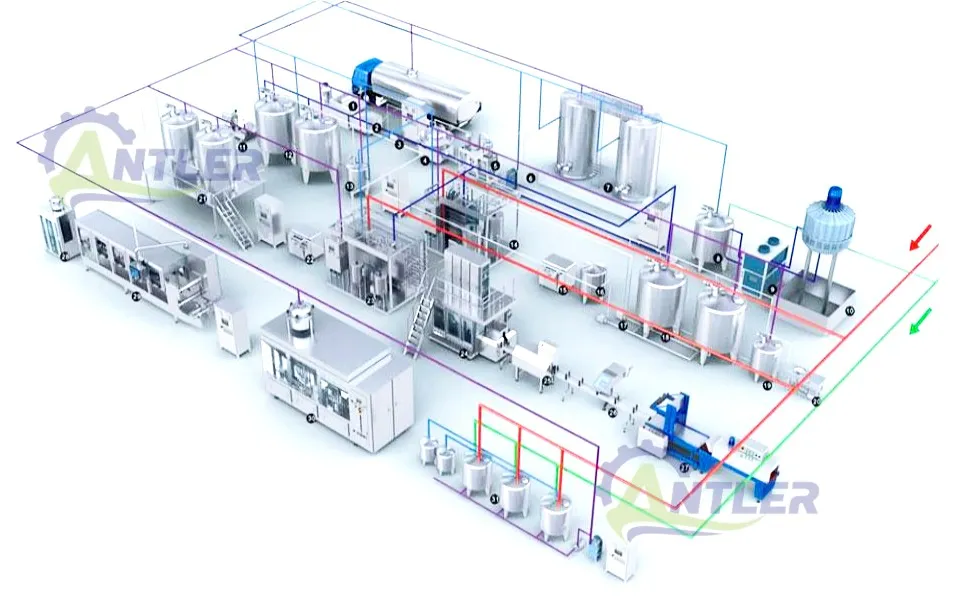

Processing Equipment Factory Installation
● Detailed Photos
Component Detail 1 Component Detail 2

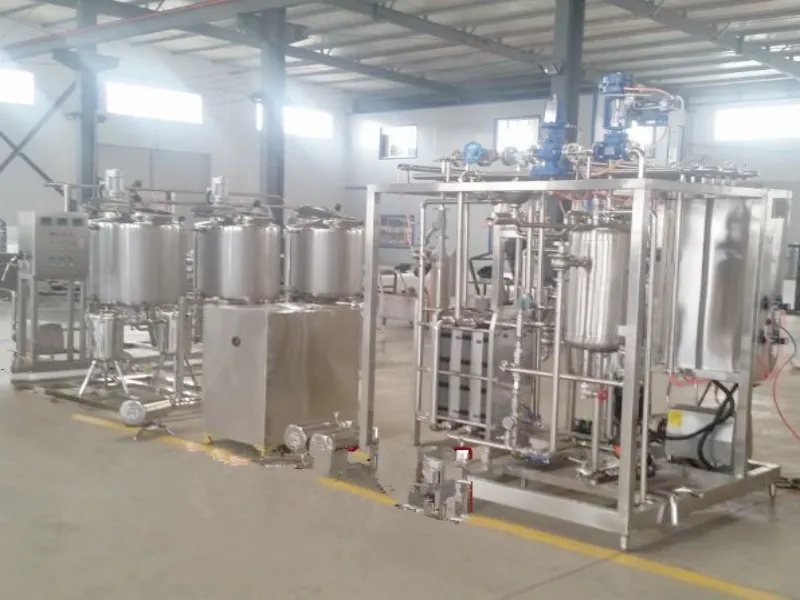

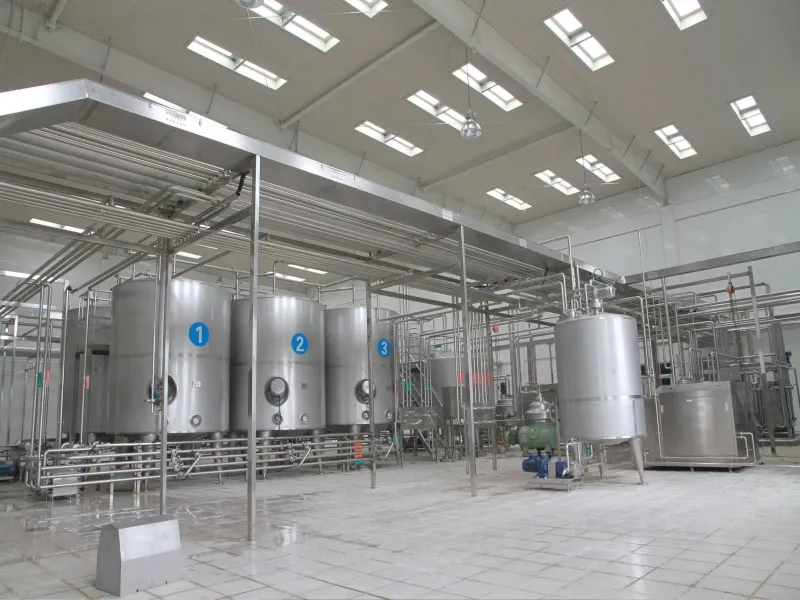

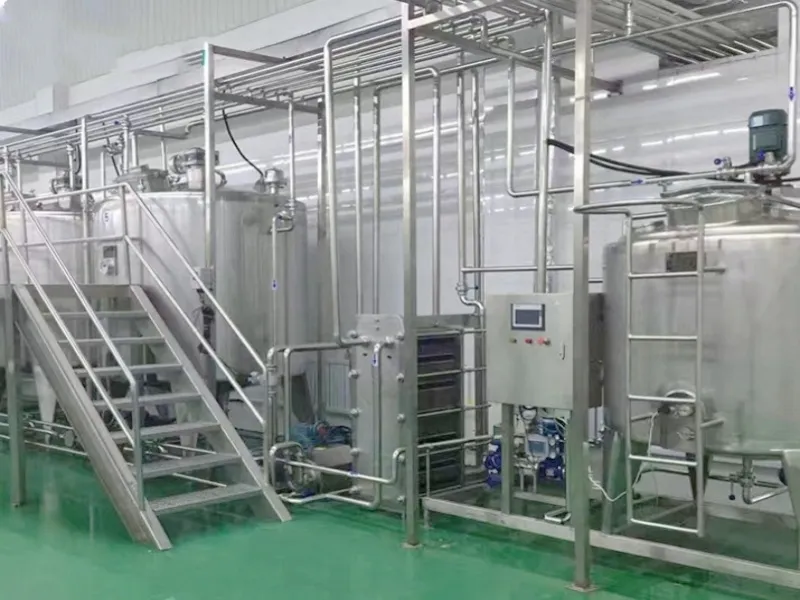

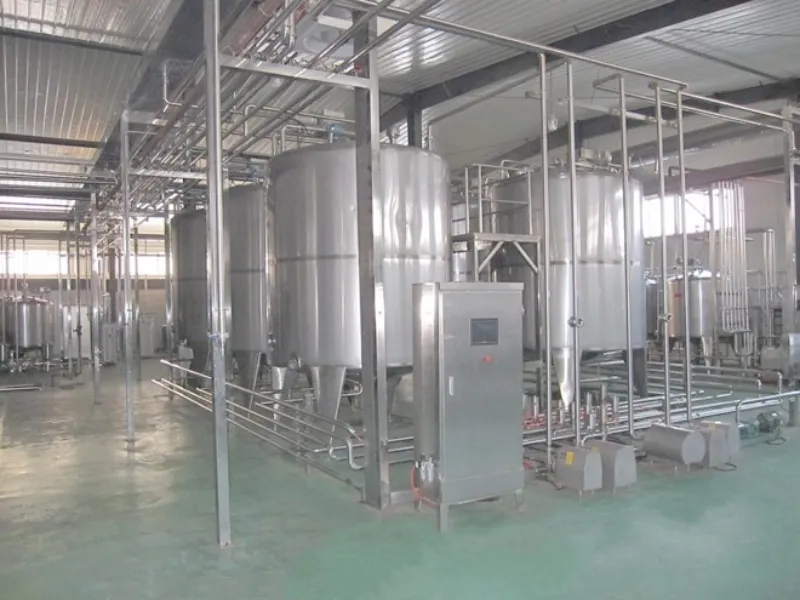

Detail 3 Detail 4 Detail 5 Detail 6
● Certifications
Quality Certification
● Packaging & Shipping
Secure Packaging
● Equipment Showcase
Equipment Overview Production Environment
? Frequently Asked Questions
1. What is the capacity range of this production line?
The BSN-500 series supports a production capacity ranging from 500L to 5000L, depending on your specific requirements.
2. Is the equipment made of food-grade materials?
Yes, all contact parts are made of high-quality SUS304 or SUS316 stainless steel to ensure food safety and durability.
3. Does the system support automatic cleaning?
Yes, the line includes a semi-automatic CIP (Clean-In-Place) system for efficient and hygienic cleaning of all tanks and pipes.
4. What types of dairy products can be processed?
This production line is versatile and designed for the processing of pasteurized milk, drinking yogurt, and other liquid dairy products.
5. What are the heating options available for sterilization?
The system can be configured for either Electric heating or Steam heating based on your facility's utility availability.
6. Is the equipment compatible with international voltage standards?
The standard configuration is 380V 50Hz, but we can customize the voltage and power specifications to meet your local requirements.
