Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
1 / 5
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control
Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control

Customizable Automatic Frozen Vegetable Production Line for Mixed Greens with IoT Control

Customization: Available
After-sales Service: One-Year Free Maintenance and Lifetime Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
LV06-14
Type
Production Line
Voltage
380V
Power
38kw
Product Name
Frozen Vegetable/Fruit Production Line
Usage
Commercial/Industrial
Application
Quick-Freezing Preservation
Control System
PLC
Material
Stainless Steels
Production
1000-10000kg/H
Product Description

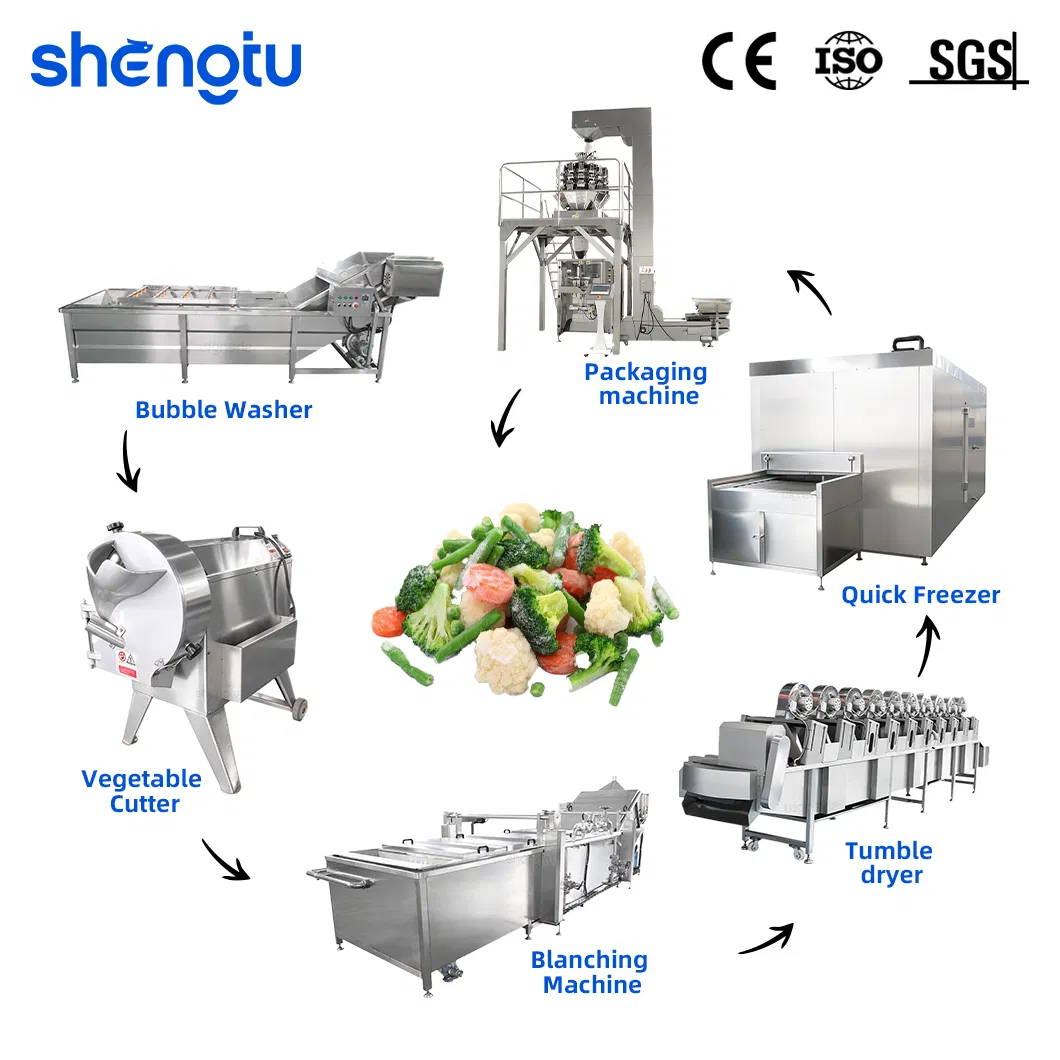

This fully automated quick-frozen vegetable production line is designed for industrial, large-scale processing. It integrates core equipment for lifting, washing, blanching, cooling, draining, spreading, and quick-freezing, automating the entire process from fresh raw vegetables to high-quality quick-frozen products.

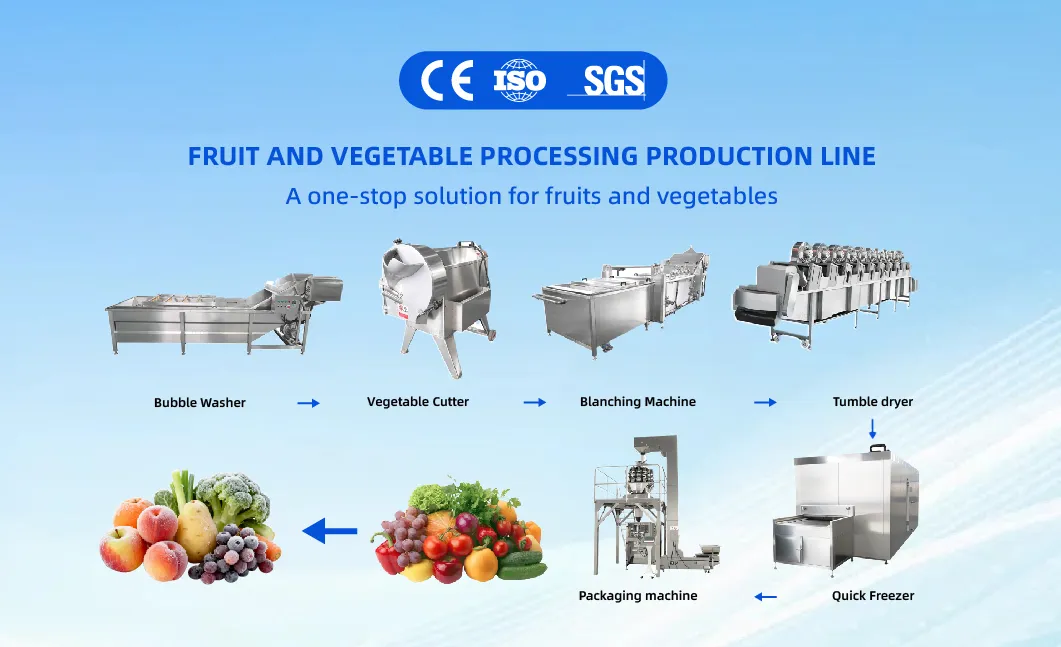

Automatic Frozen Vegetable Production Line
Customizable Production Capacity: 1000 kg/h - 10000 kg/h based on client requirements.
Core Components

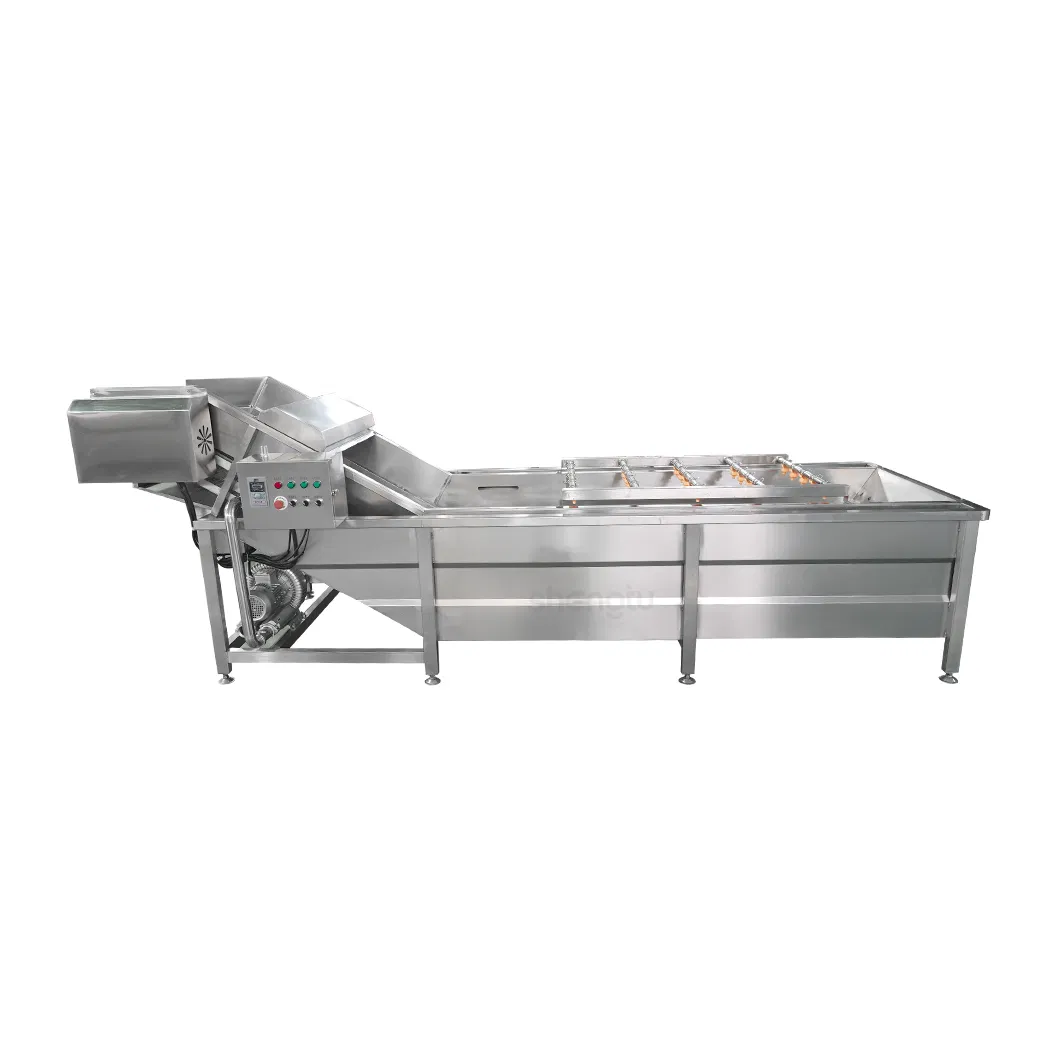

Bubble Washer
1. Bubble Washer

Aeration generates dense bubbles to scrub impurities while maintaining ingredient integrity.

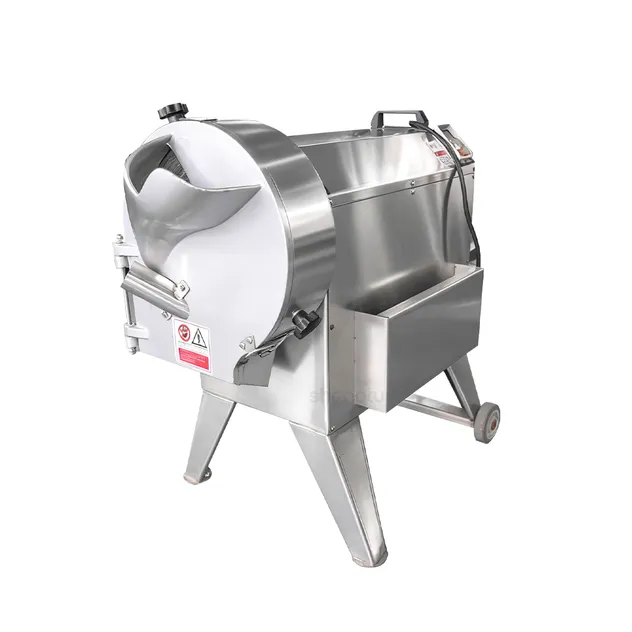

Vegetable Cutter
2. Vegetable Cutter

Customizable tools for segments, shreds, mince, and strips for various product needs.

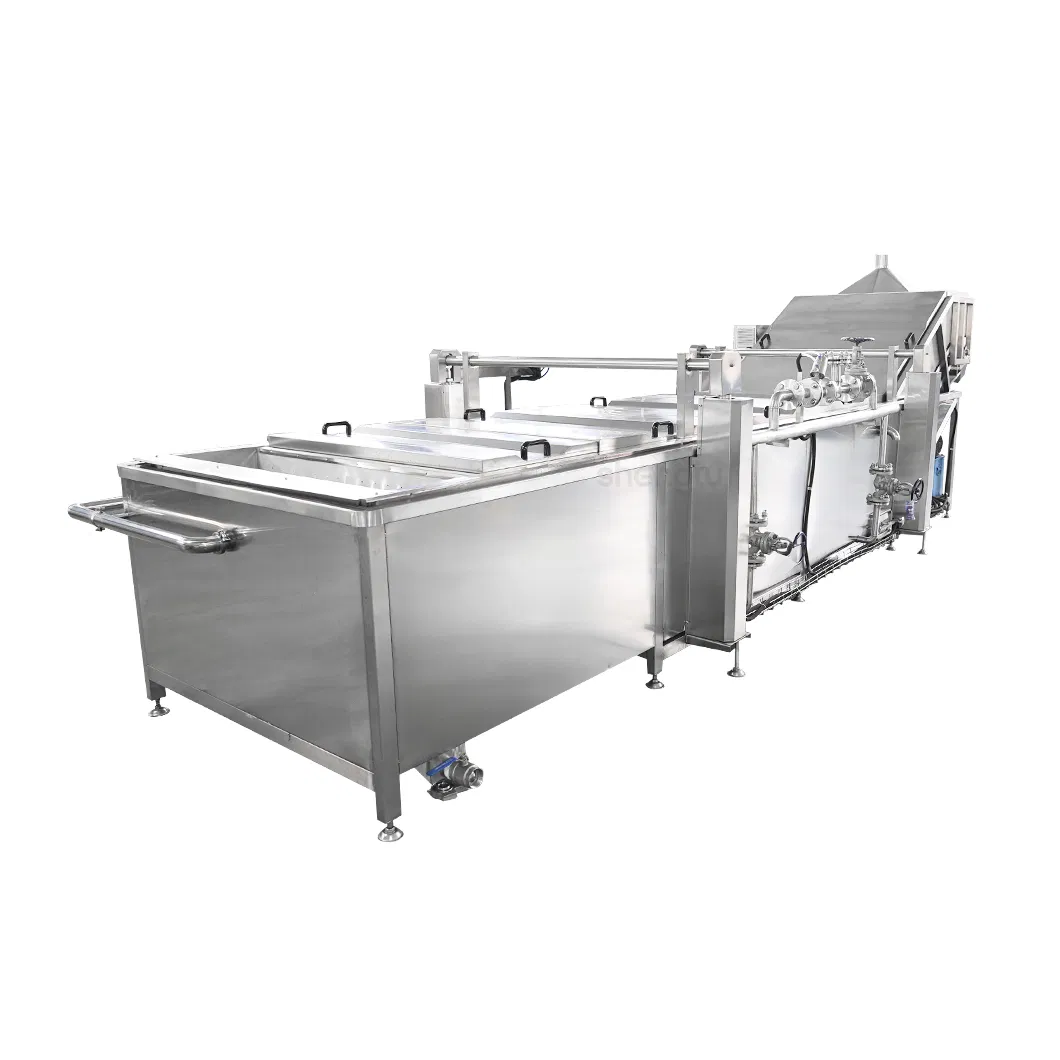

Blanching Machine
3. Blanching Machine

Automated conveying with adjustable temperature and time for optimal color retention.

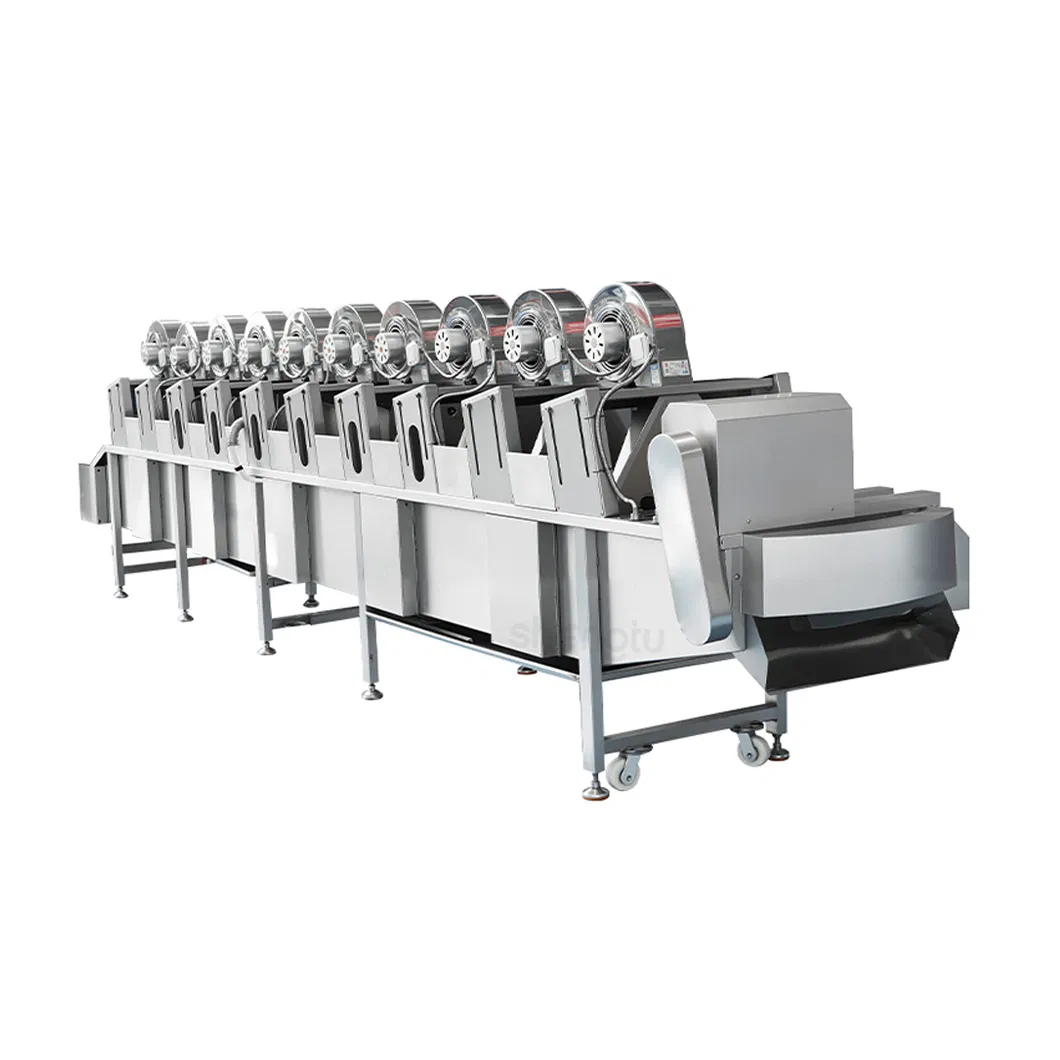

Tumble Dryer
4. Tumble Dryer

Rapid cooling to room temperature while removing residual surface oils/water.

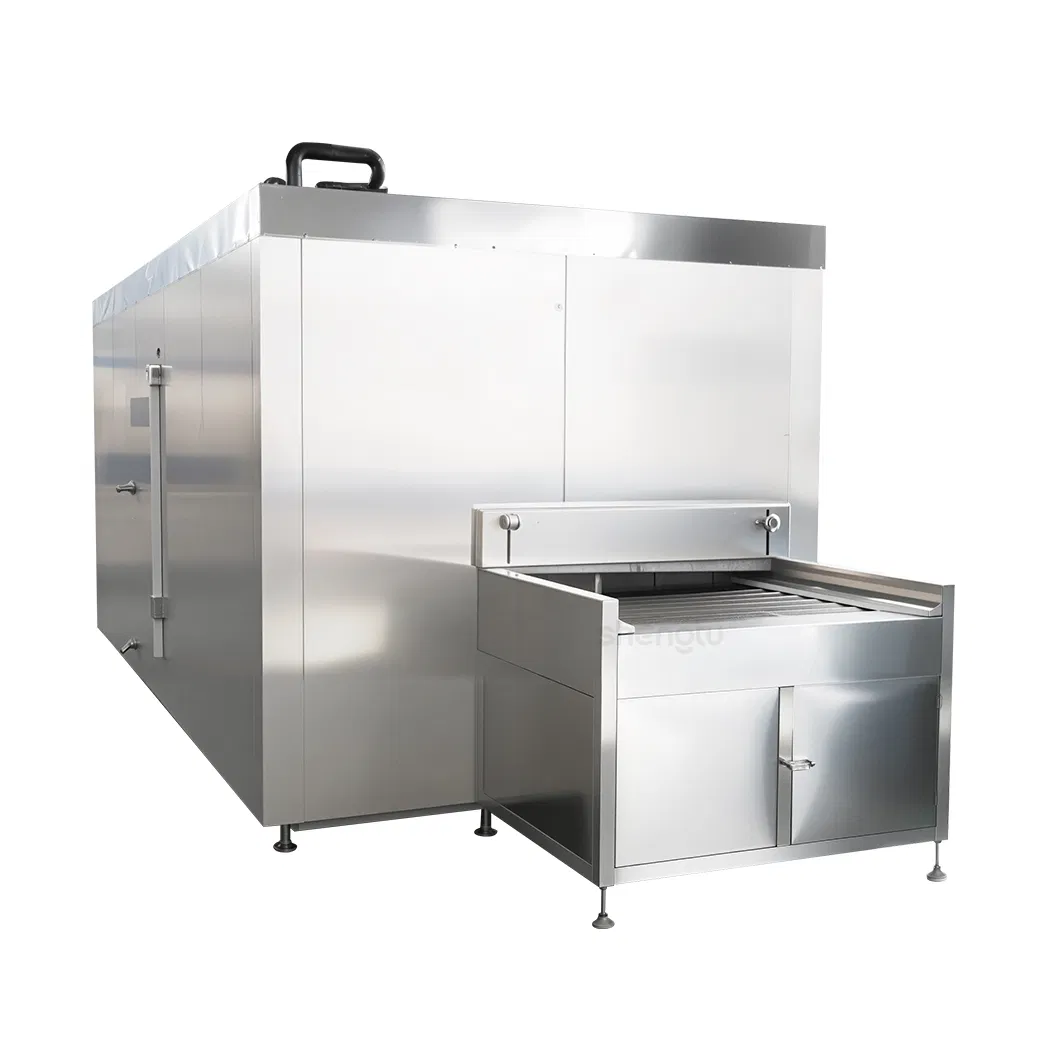

Quick-freezing Machine
5. Quick-freezing Machine

Fluidization technology forms microscopic ice crystals to maintain cellular structure.

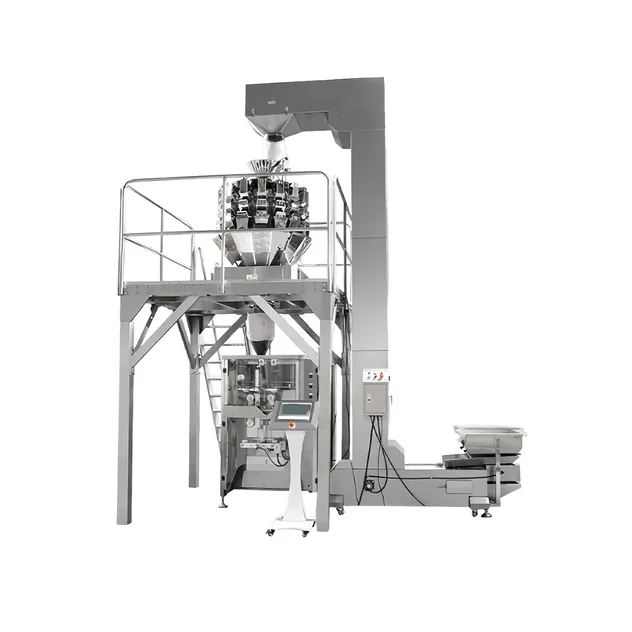

Packaging Machine
6. Packaging Machine

Supports automatic weighing (10g-500g), sealing, and date printing.

Technical Specifications
Solution Type Power Heating Method Water Consumption Operators
Fully Automatic 355KW 380v / Electric Heating 18m³/h 3
Semi-automatic 250KW 380v / Electric Heating 22m³/h 10
Multi-worker 150KW 380v / Electric Heating 28m³/h 35
Intelligent Management
  • Borderless PLC Access: Secure connectivity and instant debugging for international networks.
  • Data Cockpit: Real-time dashboards monitoring equipment efficiency and output.
  • Intelligent Alerting: Localized notification channels for critical system alerts.
  • Data Traceability: Historical databases supporting drill-down analysis across global plants.
  • Energy Strategy: Regional-specific benchmarks to optimize low-carbon operations.

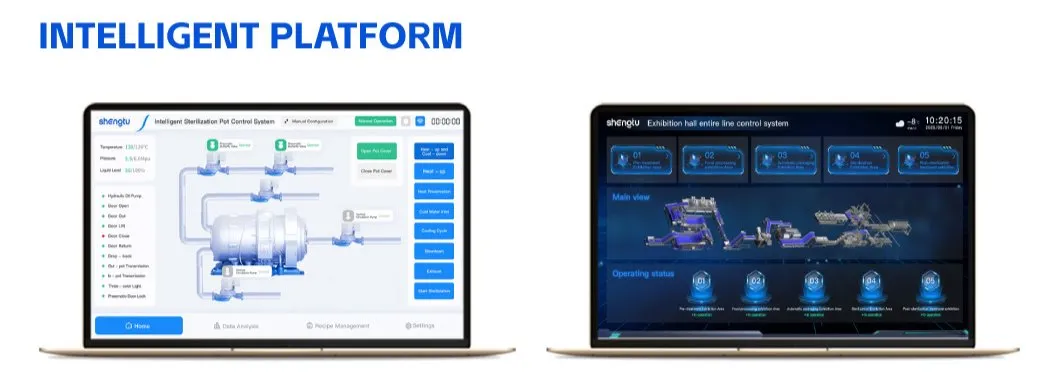

IoT Control System
Frequently Asked Questions
What support does the after-sales service include?
Our system includes 24/7 Remote Tech Support via video, worldwide local service outlets, and a production stoppage guarantee with backup machine support if downtime exceeds 3 days.
What trial methods are available for new customers?
We offer sample machine shipping for week-long trials, complimentary factory trial production with your materials, and live workshop tours via real-time video connection.
How are production delays due to breakdowns addressed?
We provide engineer intervention via video within 2 hours. If downtime surpasses 24 hours, free spare machines can be dispatched via DHL to ensure continuity.
Is the production line customizable for specific vegetables?
Yes, the line is highly modular. Cutting tools, blanching times, and freezing parameters can be tailored for leafy greens, root vegetables, or specific fruits like broccoli and corn.
What are the material and hygiene standards of the equipment?
All contact parts are made of high-grade, anti-corrosion stainless steel, meeting international food safety standards for industrial processing.
What is the typical delivery and installation timeline?
Delivery typically takes 40-60 days. We provide engineer guidance for on-site installation and complimentary operational training for your staff.
