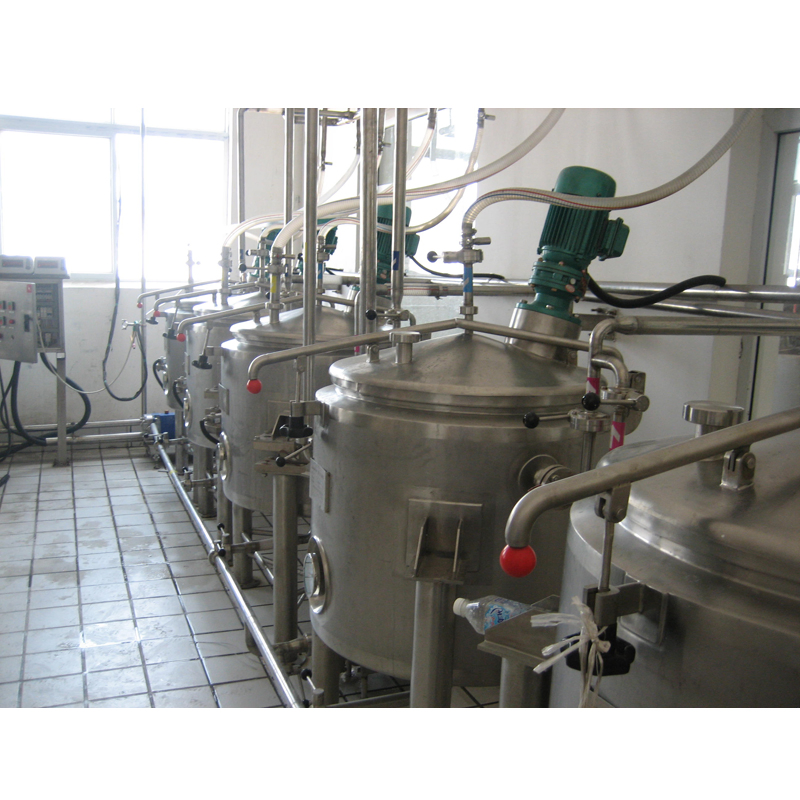

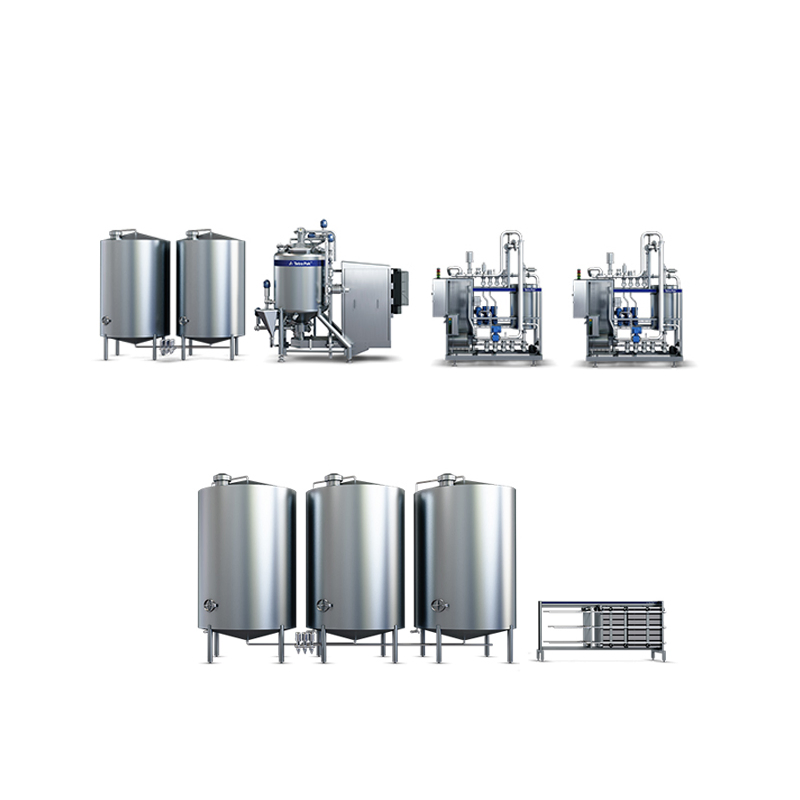

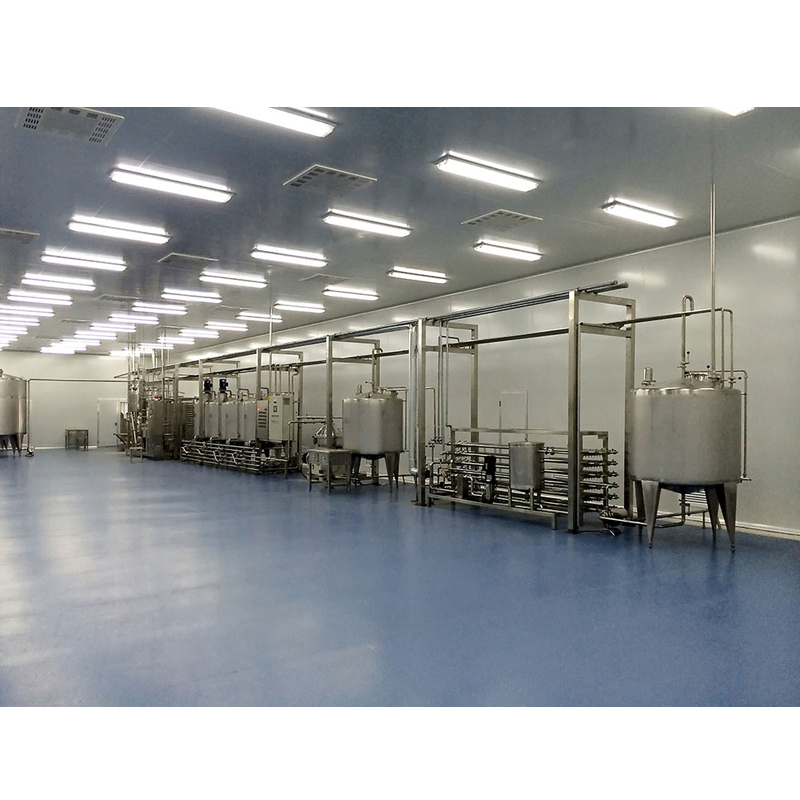

1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line
1 / 5
1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line
1000L Per Hour Automatic Pasteurized Milk production Line

1000L Per Hour Automatic Pasteurized Milk production Line

Customization: Available
After-sales Service: Send Technician to Cutomer's Plant
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info

Process
Thermal Processing
Power Source
Electric
Certification
CE, MET, SA8000, ISO9001
Automatic Grade
Automatic
Application
Milk
Name
UHT and Pasteurized Milk Production Machine
Material
304 Stainless Steel
Capacity
100L/Batch
Sterilization Temp
65-99 (Adjustable)
Processing
Pasteurizer + Ageing
Usage
Pasteurization Milk, Dairy
Heat up Time
25-35 minute
Raw Material
Milk or Milk Powder
HS Code
8438200000

Product Description

Milk Processing Machines Dairy Milk Plant

Sterilization TypePasteurized or Ultra-high-temperature (UHT)
Machine MaterialSS 304
Machine ListFull set of fresh milk equipment
Capacity Range100-2000L
Sterilization Temperature85-135 ºC
Packing OptionsBottle, bag, can, or cup
FunctionMilk production line
UsageMilk and yoghurt
Raw MaterialMilk or milk powder
KeywordsPlastic cup filling, peanut milk production, PE film blowing

Model GYM500 Fully Automatic Cattle Milk Dairy Processing Plant

This dairy processing plant mainly produces a variety of flavors of sterilized milk, pasteurized milk, yogurt, reconstituted milk, and peanut milk. The full set of fresh milk processing lines includes a milk collection system, mixing system, homogeneous system, sterilization system, and filling system. Equipment includes storage tanks, homogenizer, twist spiral pasteurizer, cooler, plate heat exchanger, and automatic filling machines.

Main Features

  • Simple linear structure for easy installation and maintenance.
  • Advanced world-famous brand components in pneumatic, electric, and operation parts.
  • Operates with high automation and intellectualization, ensuring no pollution.

Component Specifications

1. Milk Mixing Tank

  • Volume: 100-5000L, 304# stainless steel.
  • Equipped with 135° glass level gauge and 180° sampling valve.
  • 360-degree rotating CIP cleaning head for hygiene.
  • Digital thermometer with range 0 ºC - 100 ºC.
  • Three-layer insulation structure for climate control and steam heating.

2. Homogenizer

  • Energy efficient with constant flow.
  • Crush size: Ф0.1-2μm (Average Ф ≤ 1μm).
  • Stable pressure with minimal gauge swing (P < 2Mpa).
  • Contact parts are resistant to strong acids (HNO3, NaOH ≤ 5%).

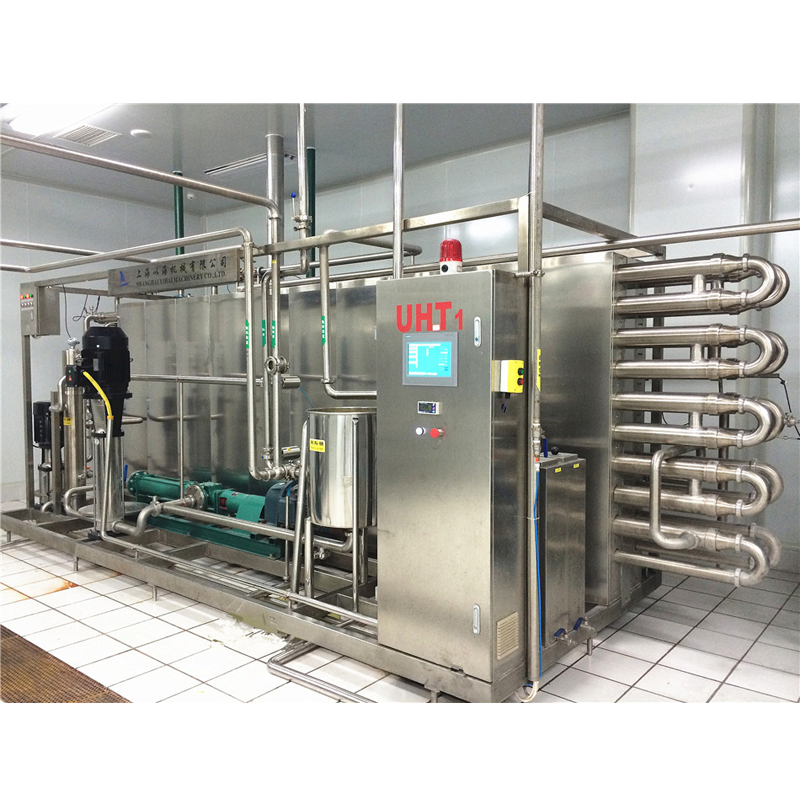

3. Tubular Pasteurizer

  • Sterilization temperature up to 85 ºC (Adjustable PID control).
  • Accurate temperature control within ± 1 ºC.
  • Integrated SIP and online CIP functionality.
  • System includes preheater, sterilizer, and cooler sets.

4. Plate Heat Exchanger

High-efficiency heat exchange with a compact structure. Flexible operation for assembly and disassembly cleaning. Heat recovery rate of up to 90%, utilizing high-quality imported stainless steel plates.

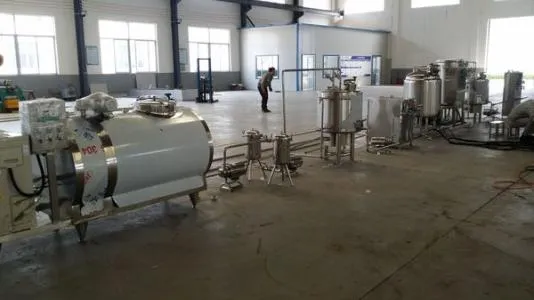

Milk production Line 1

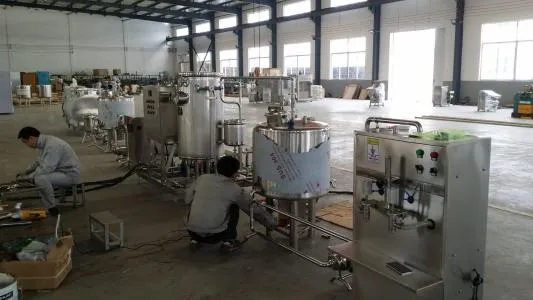

Milk production Line 2

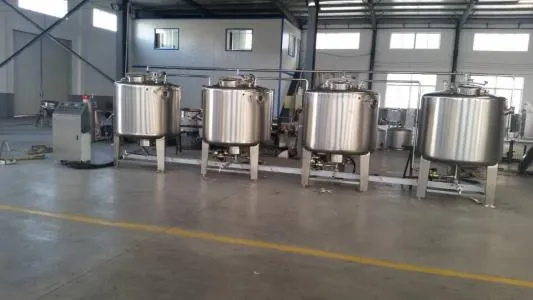

Milk production Line 3

Package & Delivery

Package: Standard export wooden cases / carton packing.

Delivery Time: 7-30 days after order confirmation, depending on the production season and order quantity.

Certifications

Frequently Asked Questions

1. What is the capacity range for this milk processing plant?
The system supports a flexible capacity ranging from 100L up to 2000L per batch or hour, depending on the model configuration.
2. What types of products can be produced using this machinery?
It is designed for sterilized milk, pasteurized milk, yogurt, reconstituted milk, peanut milk, and other dairy-based beverages.
3. What material is used for the equipment?
All contact parts and the main structure are made of high-quality SUS 304 stainless steel, ensuring food safety and corrosion resistance.
4. Is the sterilization temperature adjustable?
Yes, the temperature is adjustable between 65°C and 135°C using PID control technology to ensure accuracy within ± 1 ºC.
5. Does the machine support automatic cleaning?
Yes, the system is equipped with 360-degree rotating CIP (Clean-in-Place) cleaning heads for efficient and automated hygiene maintenance.
6. What are the sterilization methods available?
The plant supports both Pasteurization and Ultra-High-Temperature (UHT) sterilization processes.
