Industrial Automatic IQF Frozen French Fries & Potato Chips Processing Production Line

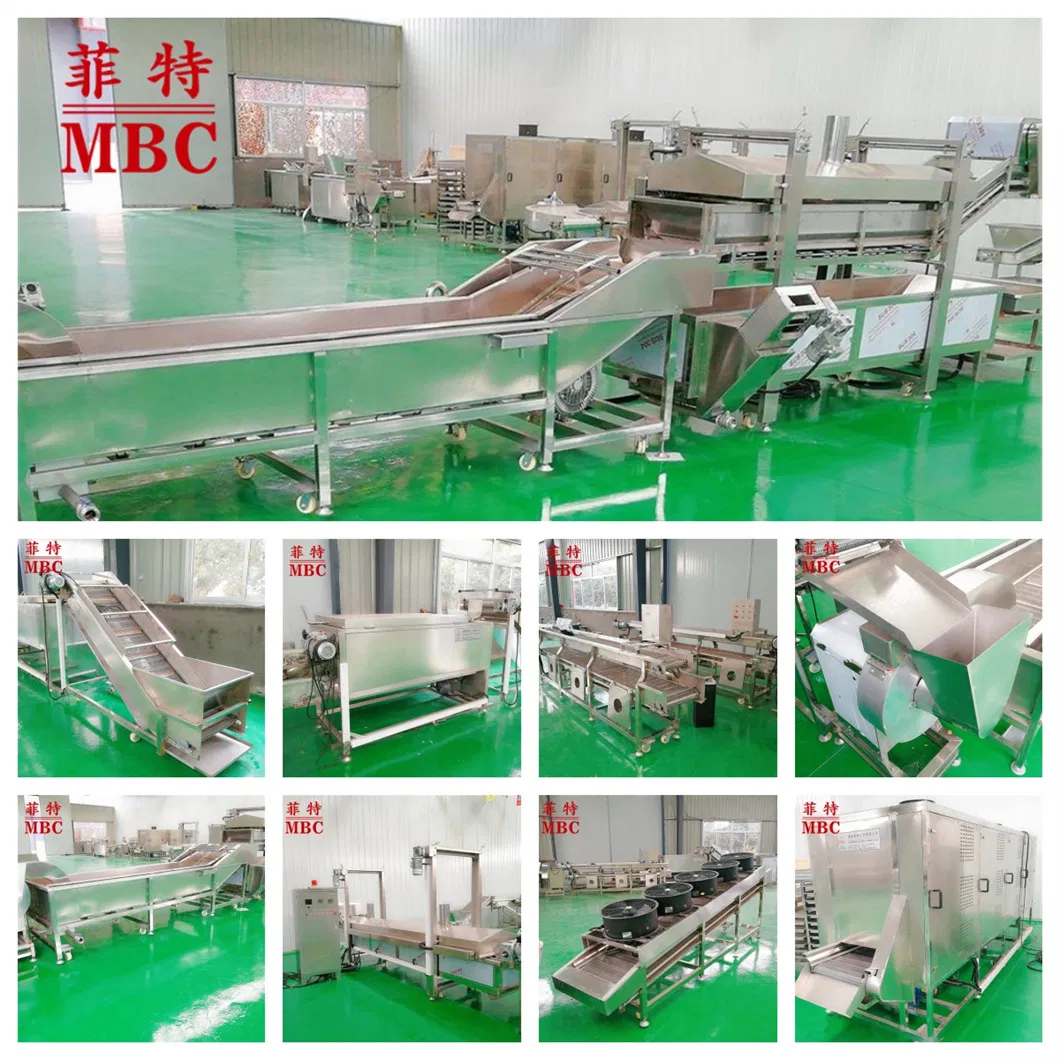

The IQF Frozen French Fries & Potato Chips Processing Production Line is a sophisticated and automated system designed for the efficient mass production of these popular snacks. It begins with the sorting and washing of raw potatoes to ensure uniform quality. In the French fry line, potatoes are peeled, cut into strips, blanched, dried, and then fried to achieve the desired texture and taste, with optional seasoning and freezing for extended shelf life.
Our processing line features high automation, high efficiency, and energy saving. It is designed for easy operation, installation, and maintenance, ensuring a safe, reliable, and long working life for food processing facilities.
| NO. | MACHINE NAME | POWER (KW/HZ) |
|---|---|---|
| 1 | Feeding equipment 1 | 0.55kw/380V/50Hz |
| 2 | Brush Roller Peeling machine | 3.0kw/380V/50Hz |
| 3 | Double Layers Picking Conveyor | 1.5kw/380V/50Hz |
| 4 | Cutting Equipment | 1.1kw/380V/50Hz |
| 5 | Air Bubble Washing Machine | 3.0 kw/380V/50Hz |
| 6 | Blanching Machine | 95kw /380V/50Hz |

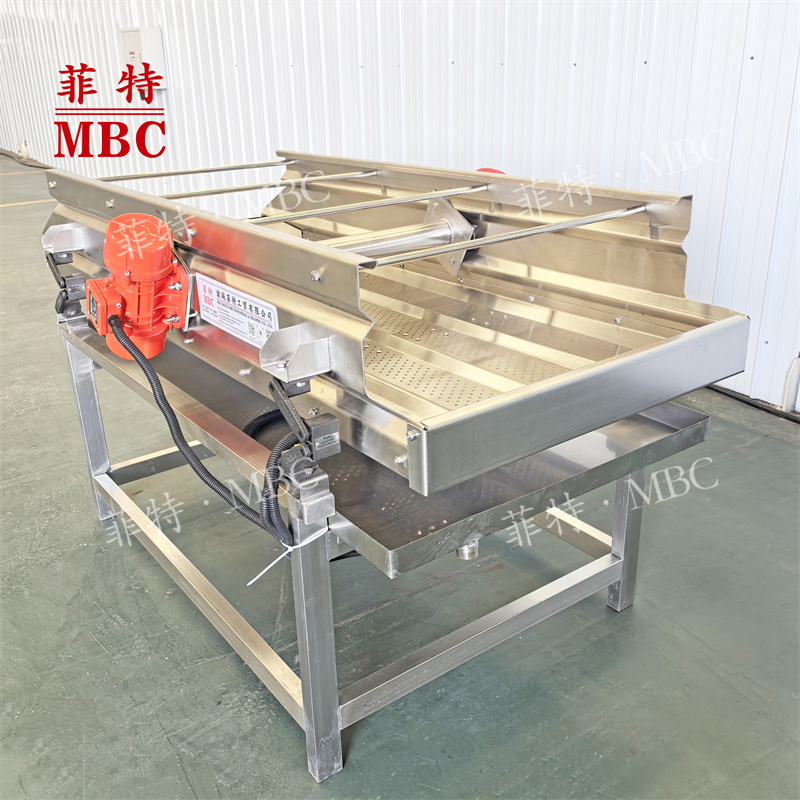

| 7 | Vibration Machine | 0.5 kw/380V/50Hz |

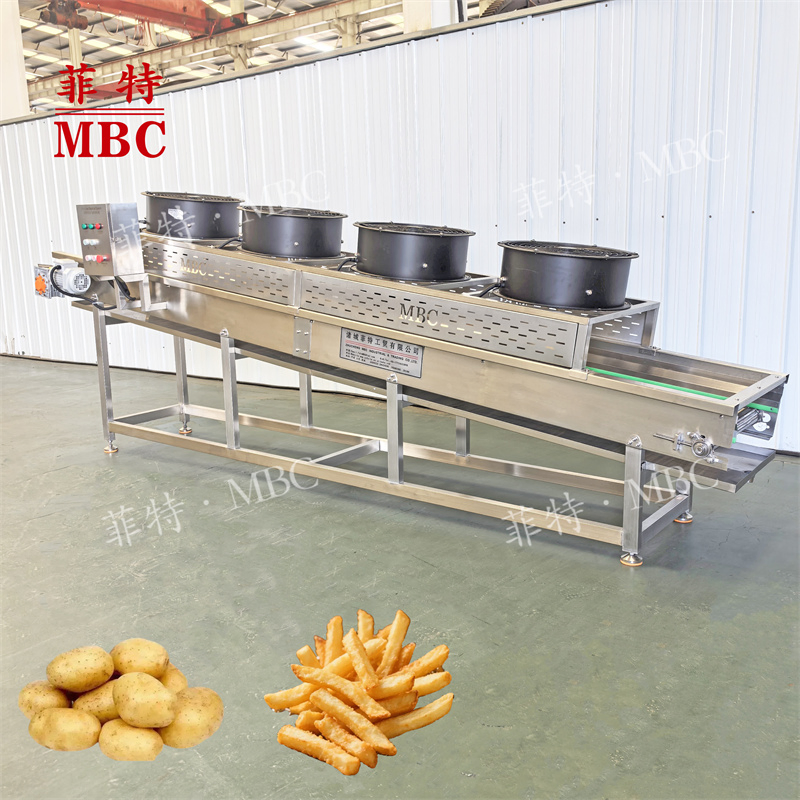

| 8 | Air drying Machine | 4.0kw/380V/50Hz |
| 9 | Picking Conveyor | 0.55kw/380V/50Hz |
| 10 | Frying Line | 380V /50hz |
| 11 | Hoister 2 (Feeding equipment) | 0.55kw/380V/50Hz |
| 12 | Five Layers Air Cooling Machine | 4.6 kw/380V/50Hz |
| 13 | Tunnel Quick-freezing machine | 70.5 kw/380v/50Hz |
500KG / HR Line Specifications:

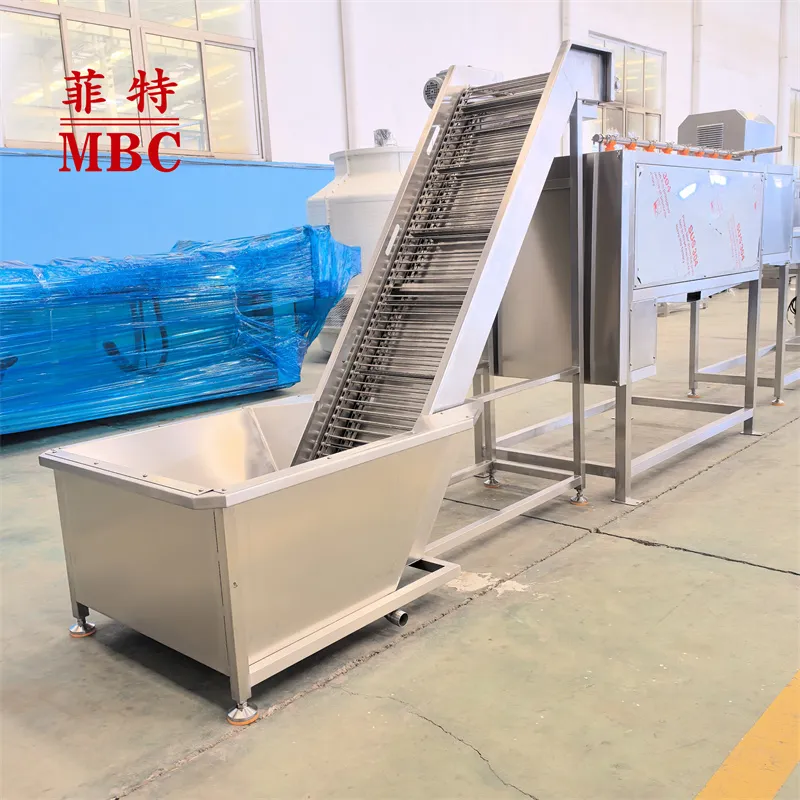

Hoisting Feeding Conveyor
Lift and transfer raw material to the peeling machine.

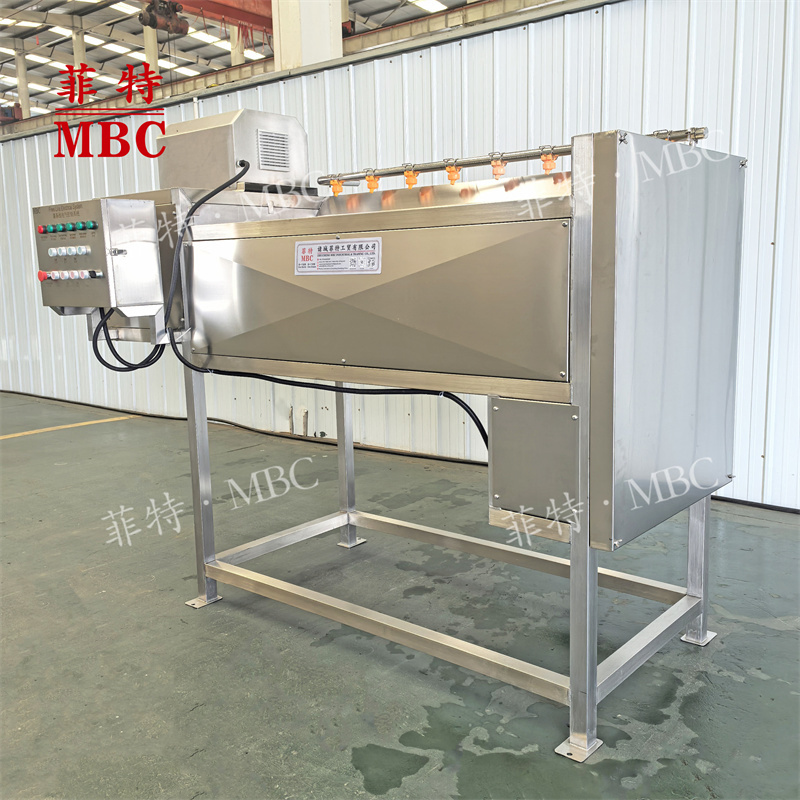

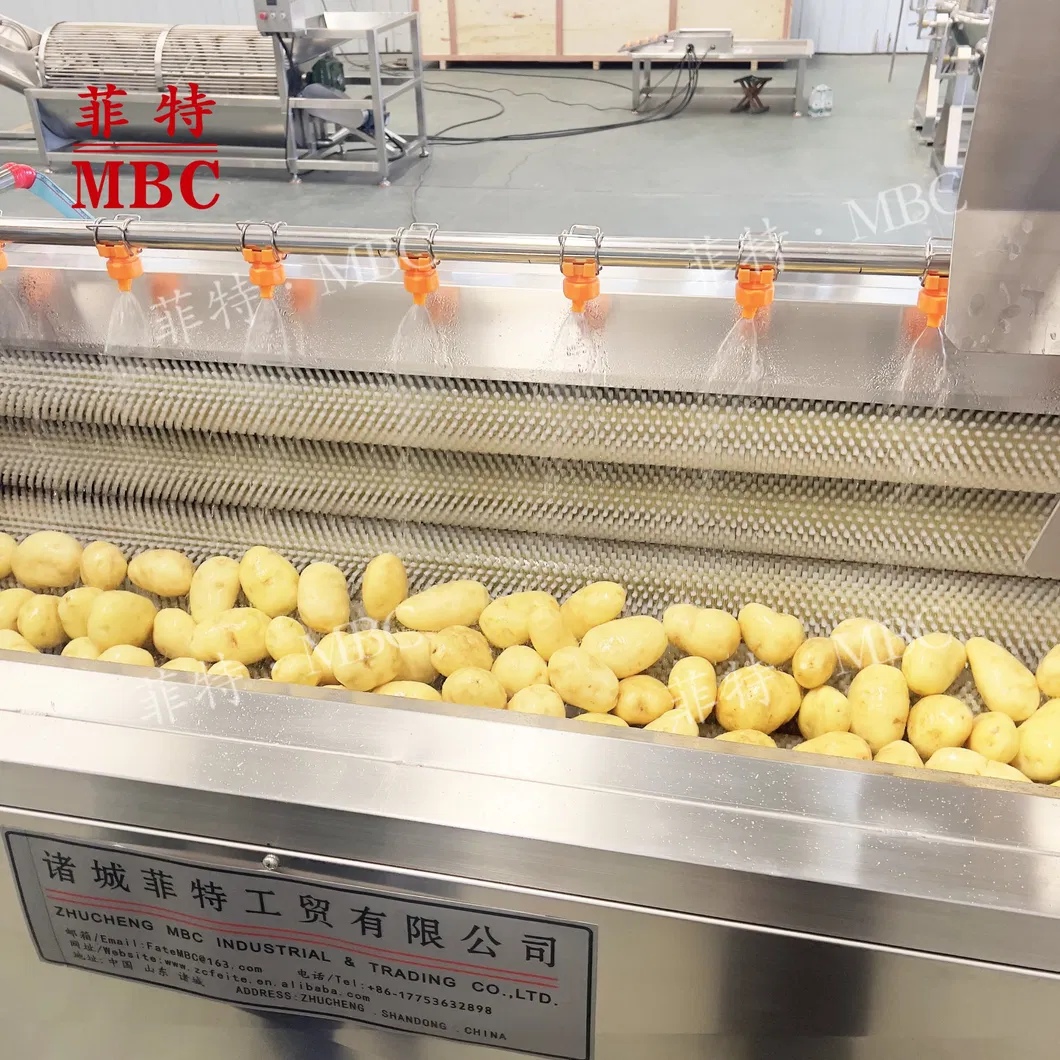

Brush Roller Peeling Machine
Washes and peels potatoes surface impurities.

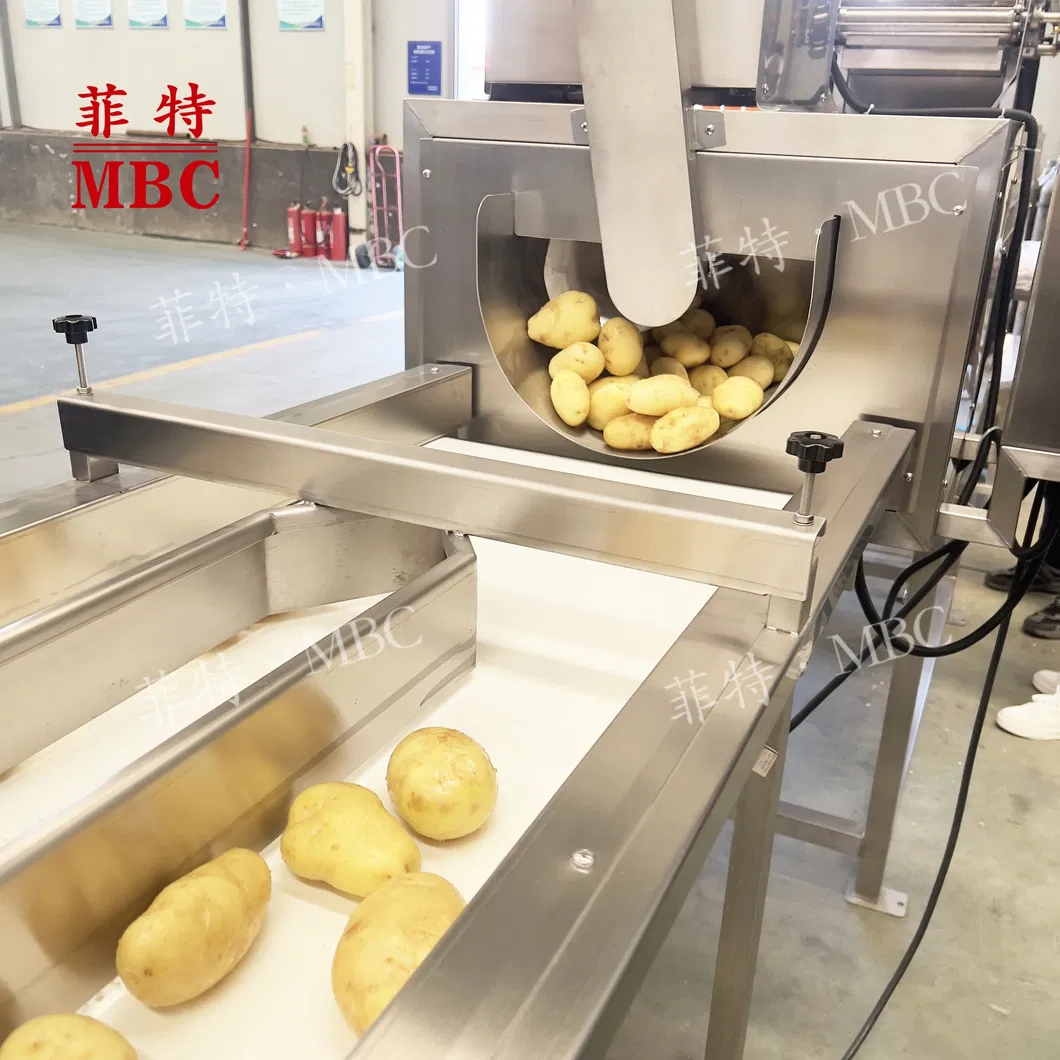

Double Layers Picking Conveyor
Stations for inspecting and repairing potatoes.

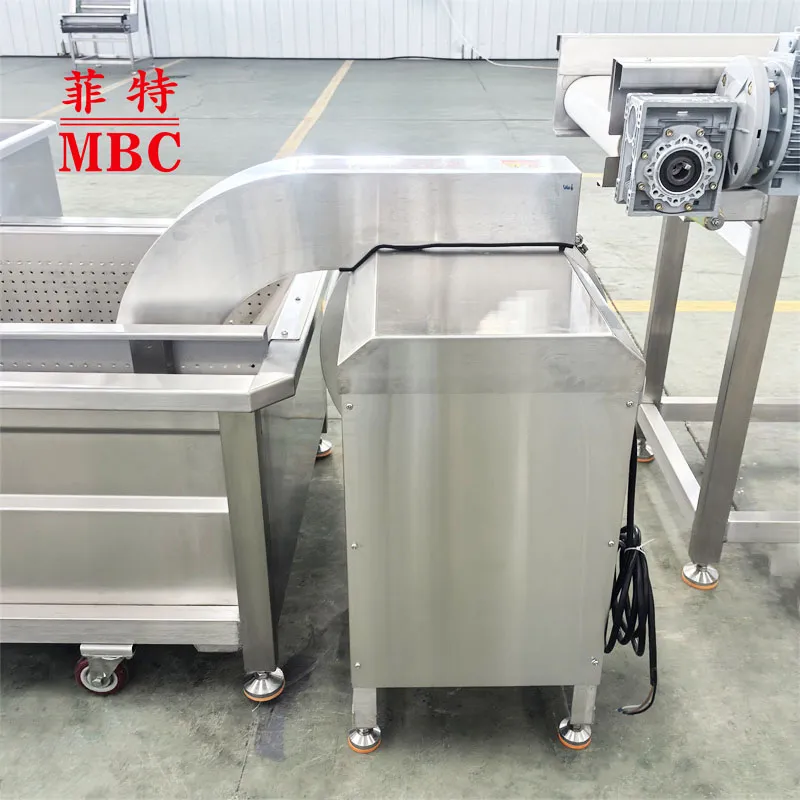

Cutting Equipment
Precise cutting for 8x8mm or 10x10mm sizes.

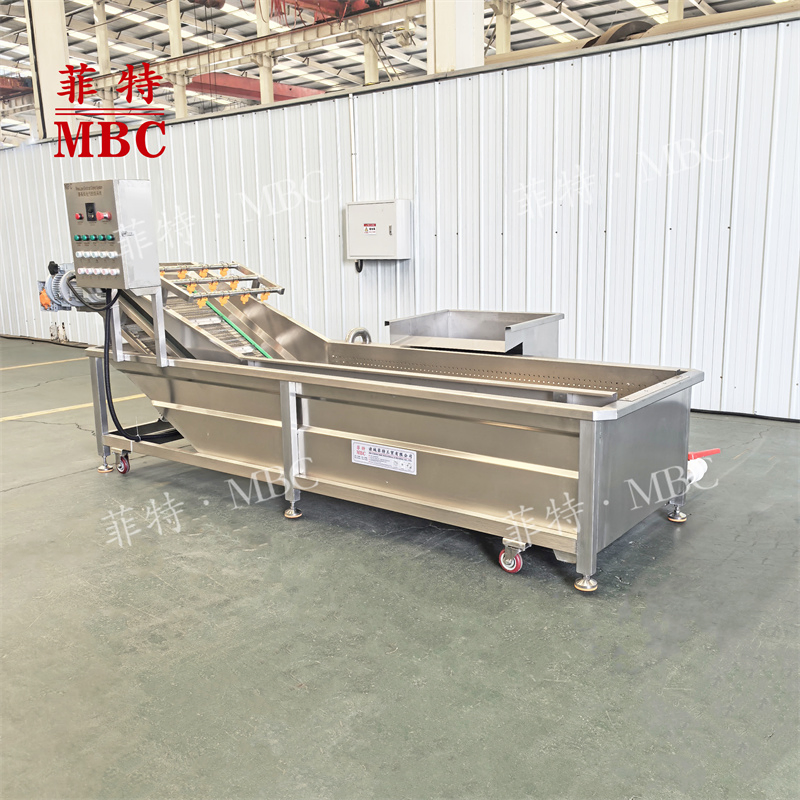

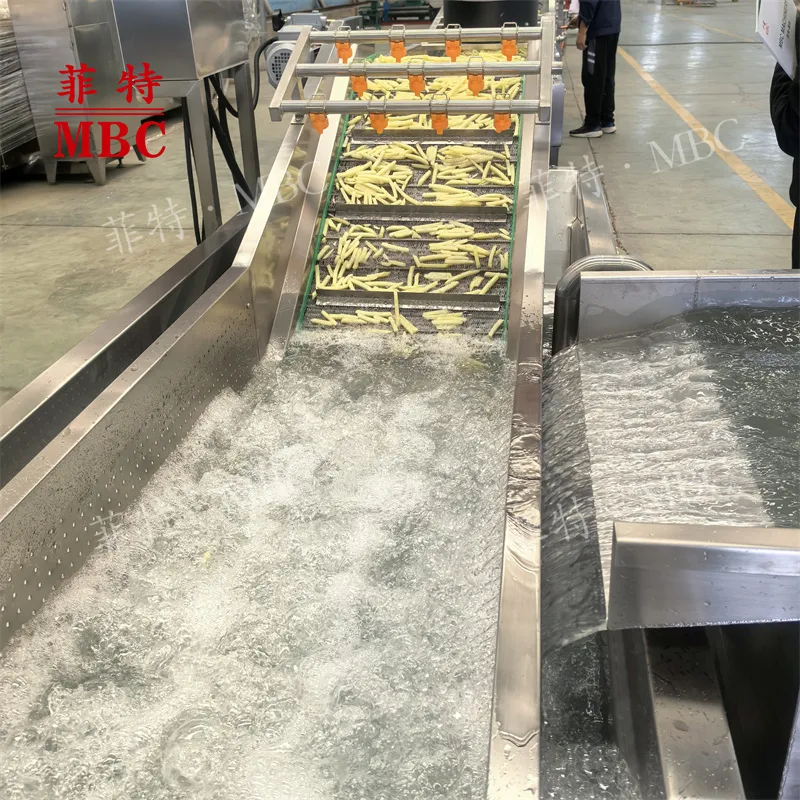

Air Bubble Cleaning Machine
Removes starch and cleans cut fries.

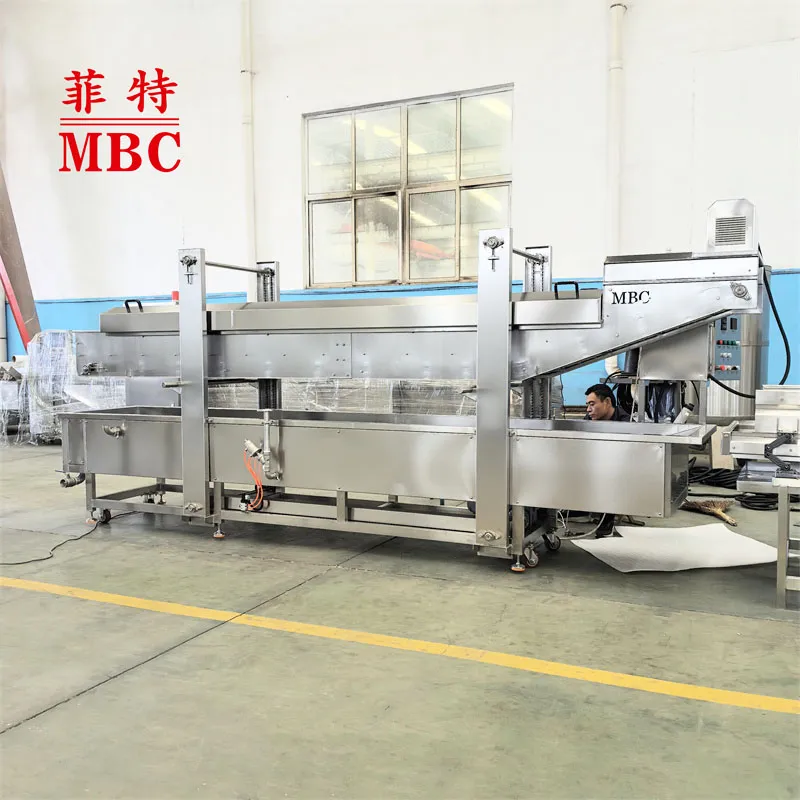

Blanching Machine
Protects color and improves product quality.

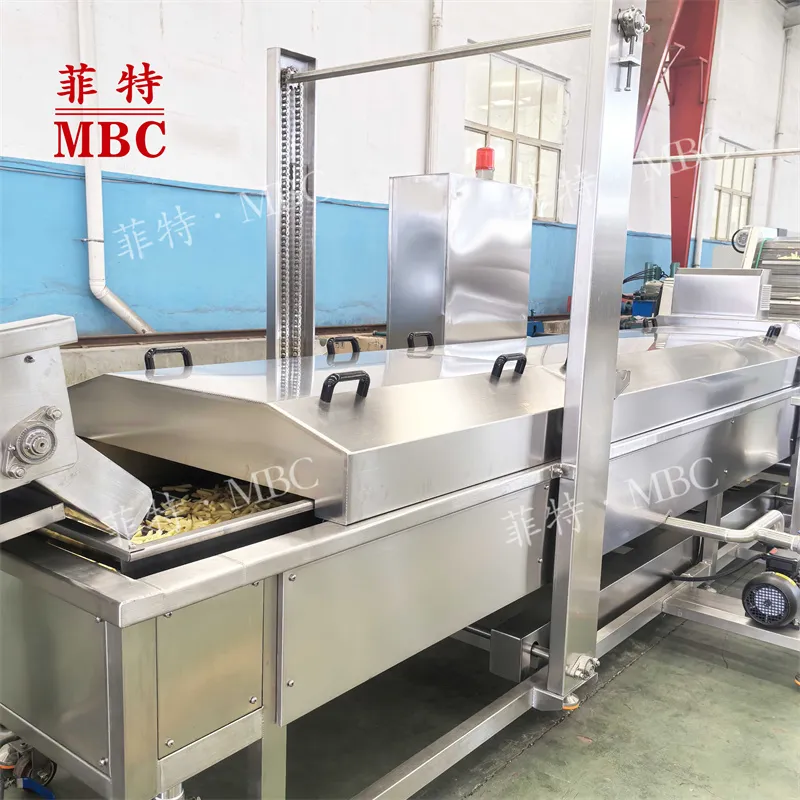

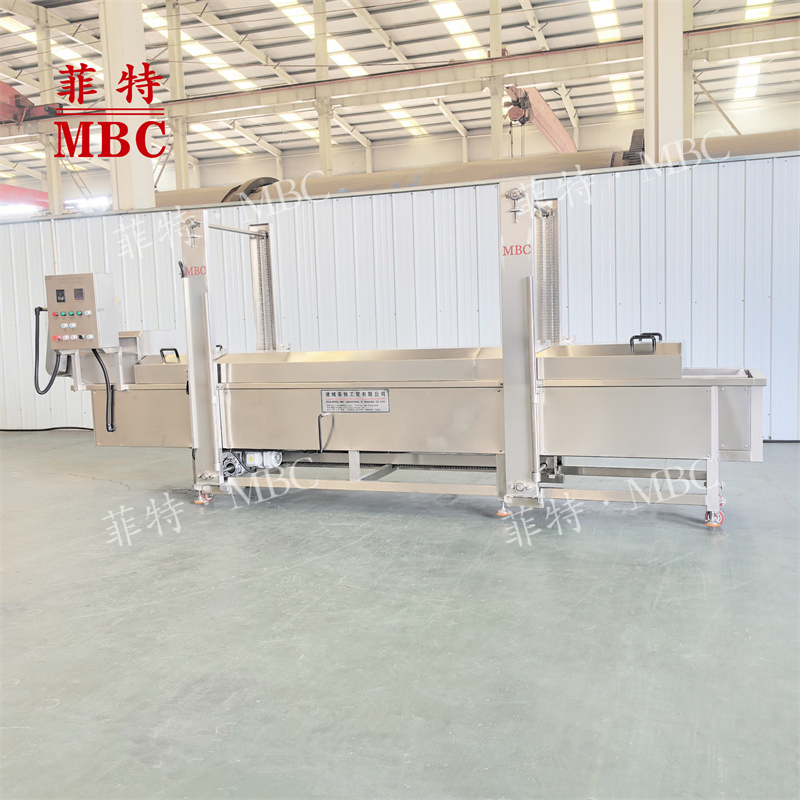

Frying Line
Automatic temperature control and filtration system.

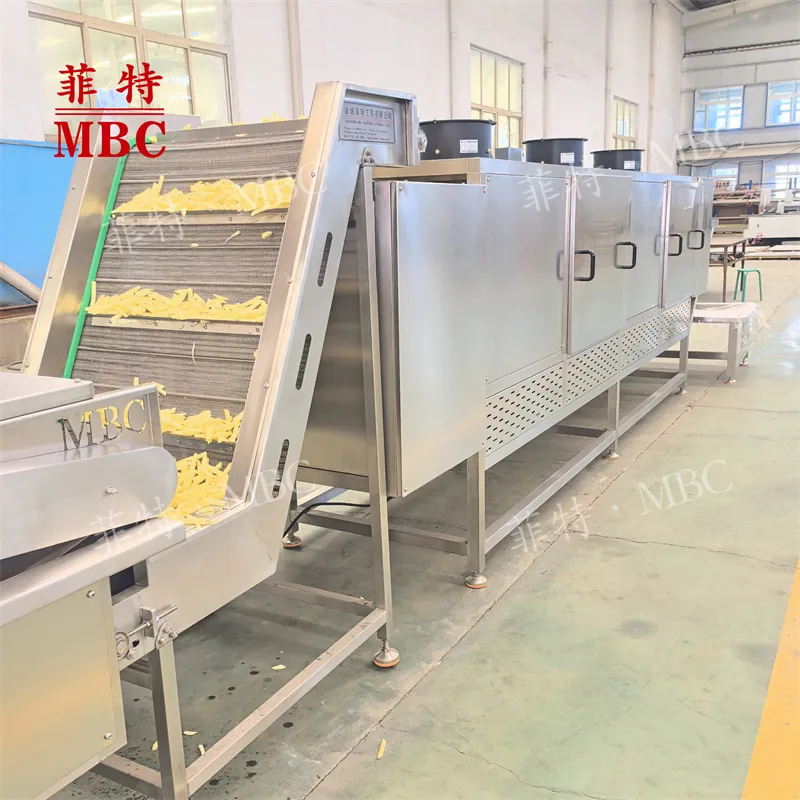

Five Layers Cooling Line
Reduces temperature before quick freezing.
We also provide automatic processing lines for mangoes, grapes, citrus, pumpkins, peppers, and various other fruits and vegetables, including cleaning, peeling, and sterilization equipment.
🛠️ Pre-sales: Customized design solutions and factory installation floor plans based on user requirements.
⚙️ Installation: Experienced professional technicians provide on-site training and guidance for commissioning.
🛡️ Maintenance: One-year warranty with lifetime maintenance services and discount on accessories after the warranty period.
📖 Training: Detailed operation instructions and regular professional training for operators.
