1. SUS304 stainless steel material, includes pipelines and milk pumps.
2. Refrigeration Tank Size: 1800 * 1200 * 1850mm; Unit power: 3P; Total power: 2.6KW.
3. Blender: 0.75KW, 36r/min; Refrigerant: R22; Liner wall: 2.5mm.

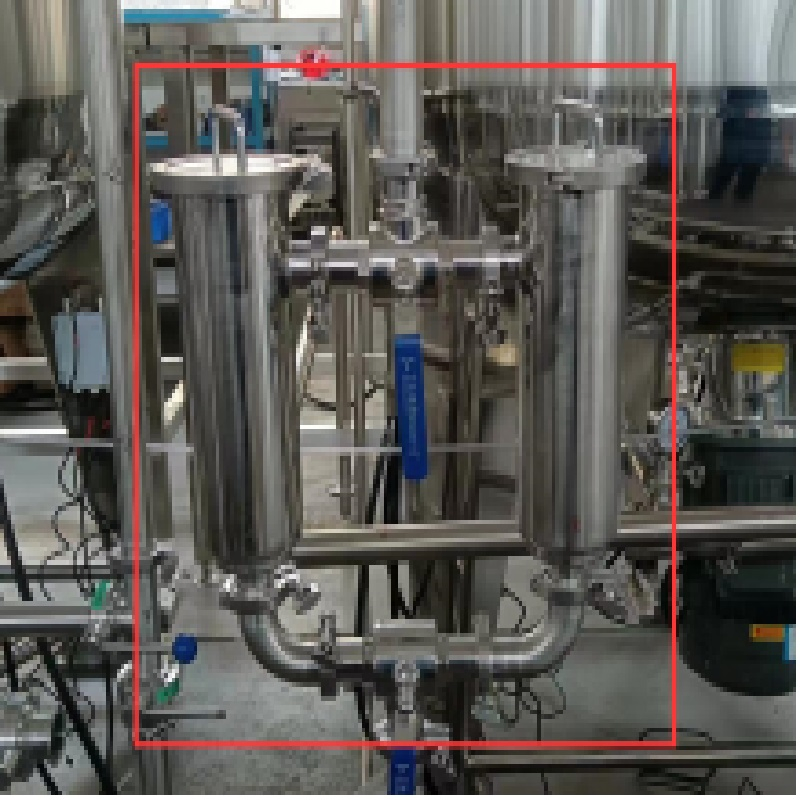

1. Strainer Material: SUS304; 200 mesh (customized); Area: 0.15㎡. Used for filtering impurities in dairy products.
2. Homogenizer Max Pressure: 25Mpa; Rated: 0-20Mpa; Power: 4KW.
1. Production capacity: 500L/h; Sterilization temperature: 60-90 ºC.
2. Sterilization time: 15s/30s (optional); Weight: 1680kg; Dimensions: 2500 * 2000 * 2200mm.
1. Fermentation Tank: SUS304, Three layers with insulation, 1.5KW mixing motor, 36r/min.

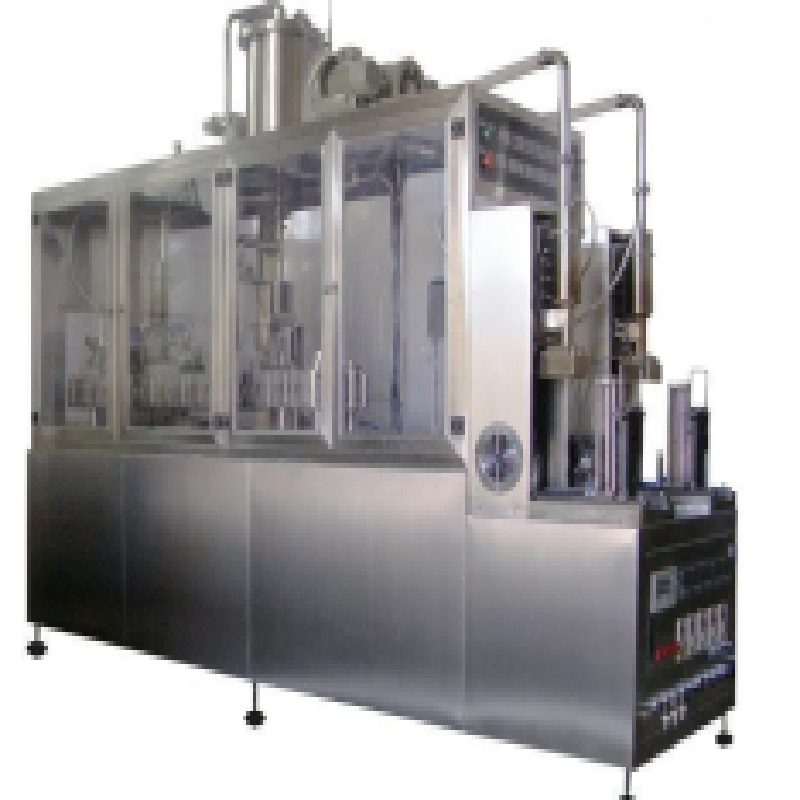

2. Roof Box Filling: 800-1200 boxes/hour; Cold (2-50 ºC) or Hot (80-94 ºC) filling; Power: 21KW.
3. Rotary Pump Filling: 500-700 bottles/h; 380V; 1KW; Servo motor control with photoelectric induction.
Our company is a large group integrating industry and trade, featuring a metallurgical equipment manufacturing division, electrical equipment branch, and a design and research institute. We undertake turnkey projects including design, manufacturing, installation, commissioning, and trial production for various industrial lines.
With a history of 30 years, we have established professional cooperation with over 120 countries and regions. We provide comprehensive solutions for mining machinery, steel rolling production lines, and specialized mechanical equipment for the food and dairy industry.
| Category | Number of Staff |
|---|---|
| Total Number of Staff | 585 |
| Managers | 40 |
| Technical Staff | 160 |
| QC Staff | 15 |
| Production Workers | 310 |
| Other Support Staff | 60 |
The production line is highly versatile and can process fresh pasteurized milk, various types of yogurt (including stirred yogurt), milk powder, and cheese.

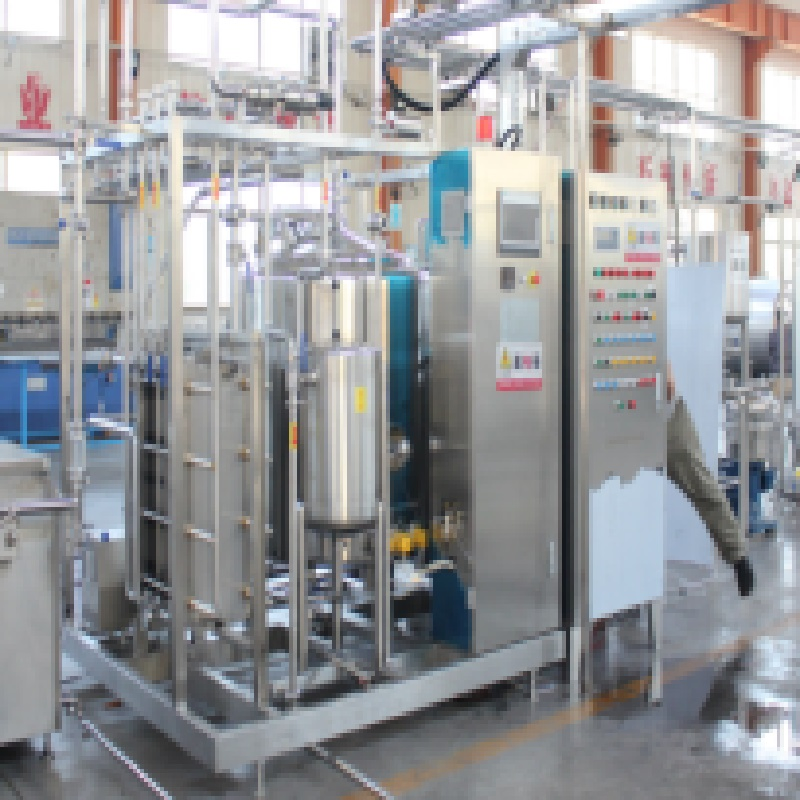

The multi-stage plate sterilizer in this line has a production capacity of 500 liters per hour (500L/h).
All key components, including the pasteur milk cans, refrigeration tanks, and fermentation tanks, are constructed using high-quality SUS304 stainless steel to ensure food safety and durability.
Yes, we offer roof box filling machines for cardboard or aluminum foil boxes, as well as rotary pump filling machines for bottled products with servo motor control.
The recommended factory area should be at least 400㎡ with a height of no more than 4 meters to accommodate the equipment and pipeline layouts.
Yes, the process flow starts with CIP (Clean-In-Place) cleaning to maintain the highest hygiene standards throughout the production process.
