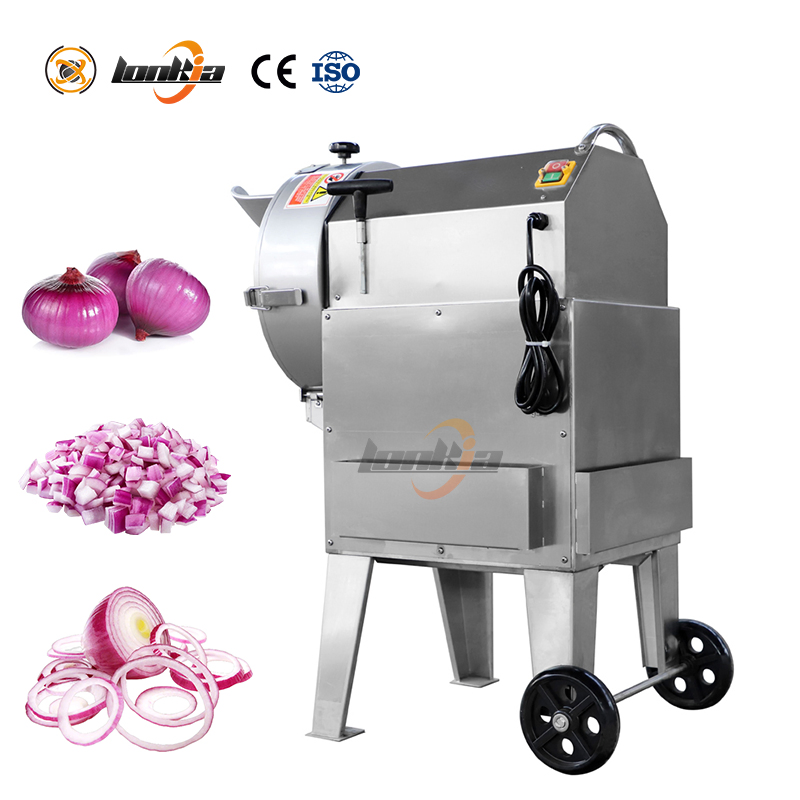

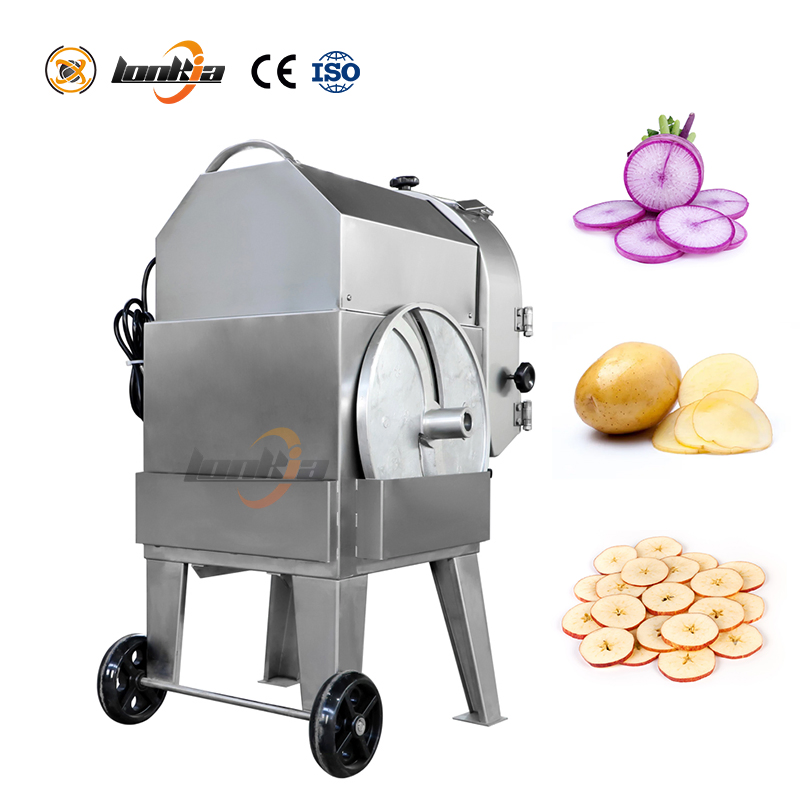

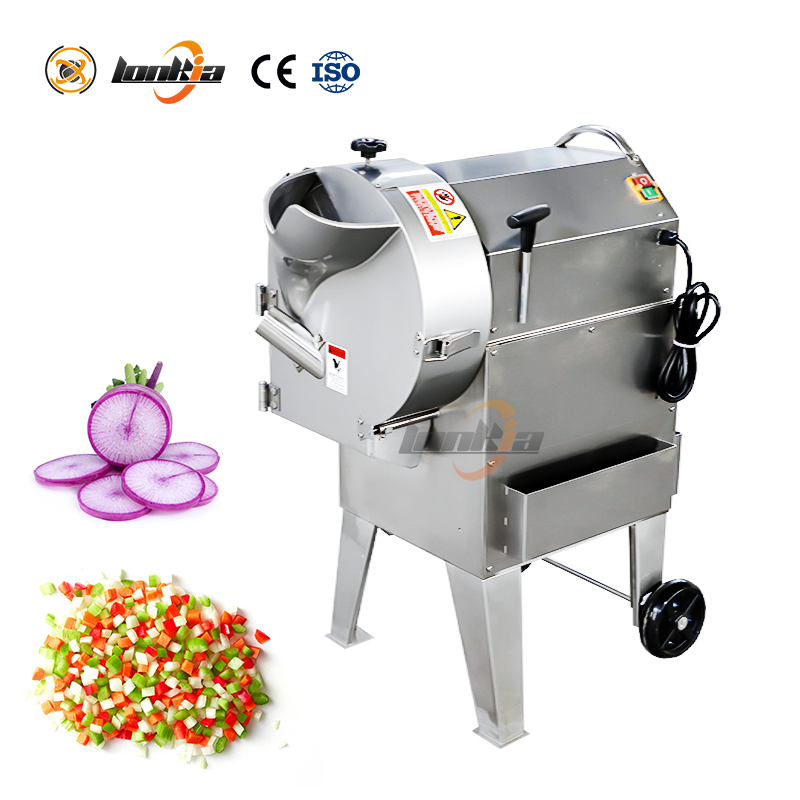

Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
1 / 5
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer
Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer

Vegetable and Fruit Slicing Dicing Shredding Machine Cutter Carrot Shredder Potato Chip Slicer Onion Dicer

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years
Send Inquiry

Product Description

Basic Specifications
Model NO.
LY-QCJ812
Certification
CE, ISO9001
Power Source
Electric
Process
Mild Processing
Automatic Grade
Automatic
Raw Materials
SUS304 Stainless Steel
Capacity
300-1000kg/Hour
Dimensions
600(L)x500(W)x900(H) mm
Product Description

Vegetable and Fruit Slicing Dicing Shredding Machine Cutter

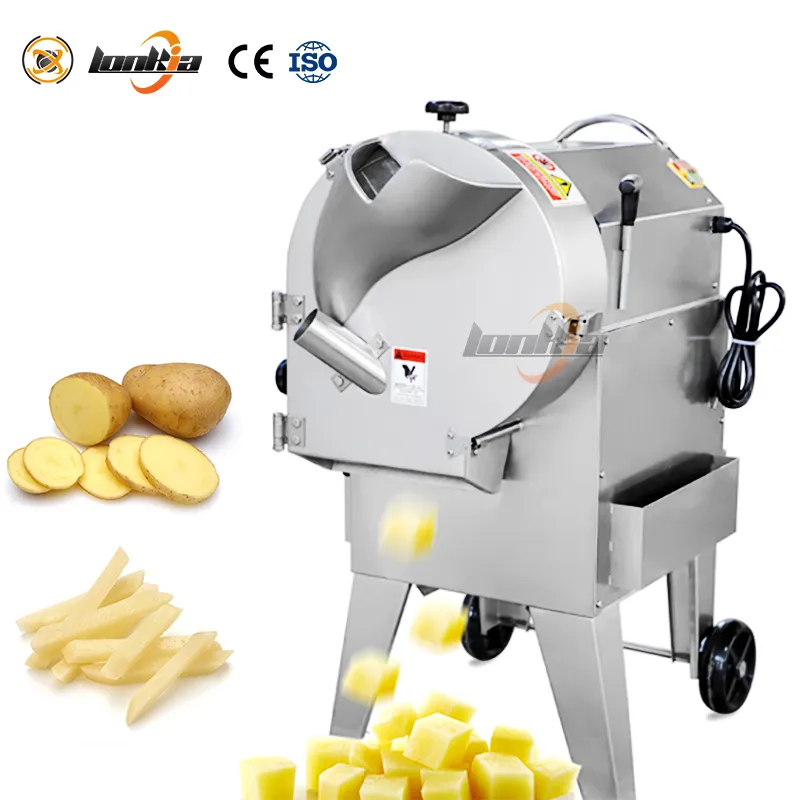

Vegetable Cutter Machine

⭐ 2025 Commercial Multifunctional Vegetable Cutter

This high-efficiency 3-in-1 machine is designed for Shredding (2-10mm), Slicing (1-10mm), and Dicing (8-20mm). Using modular knife groups and precise transmission, it achieves "one knife for multiple uses" with a damage rate of ≤ 2%.

  • 304 Stainless Steel Body: Fully welded, easy to clean.
  • Quick Blade Replacement: Twist the lock to switch modules in seconds.
  • Precision Calibration: 0.1mm gap technology prevents food squeezing.
Versatile Applications

Ideal for school canteens, food processing plants, and clean vegetable production lines. Suitable for: Carrot, Potato, Taro, Onion, Mango, Pineapple, Apple, and more.

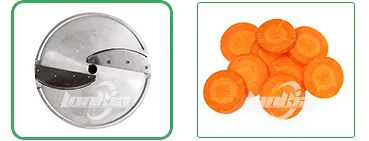

Slicing effect Slicing samples

Bias Slice: 1-10mm available for uniform vegetable slices.

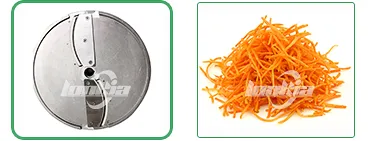

Shredding effect Shredding samples

Shred/Julienne: 2-10mm available for consistent sticks or strips.

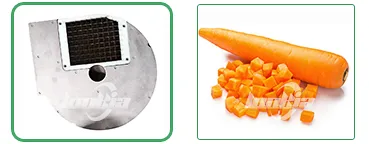

Dicing effect Dicing samples

Dice/Cube: 8mm, 10mm, 12mm, 15mm, 20mm options available.

Technical Details
Control Button Double Inlet Blade Rack

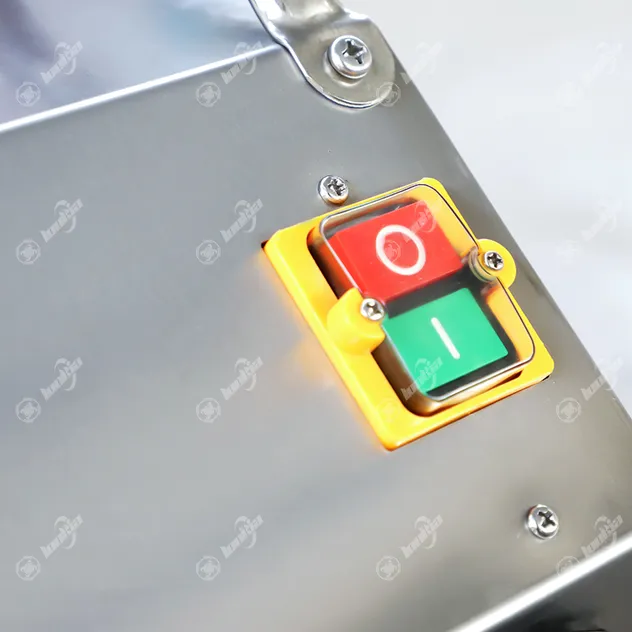

Control Button: One-button start with a simple, functional design.

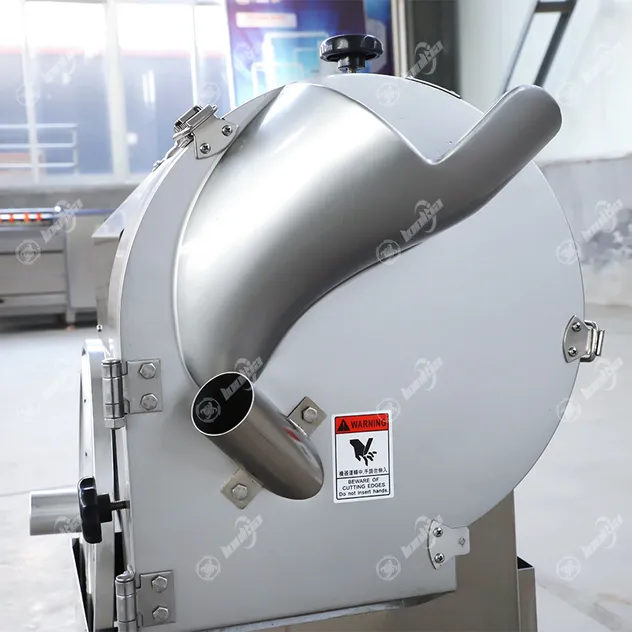

Double Inlet: Large inlet for potatoes/onions; Small inlet for carrots/cucumbers.

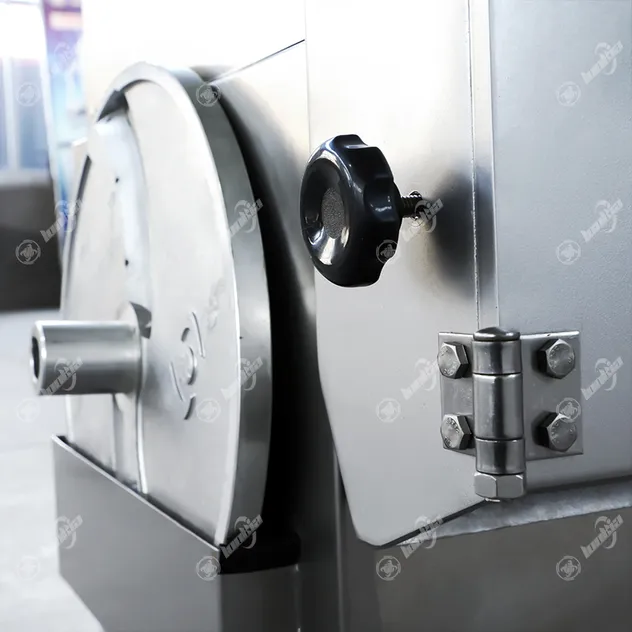

Blade Rack: Convenient storage racks located on the machine for easy access.
Product Parameters

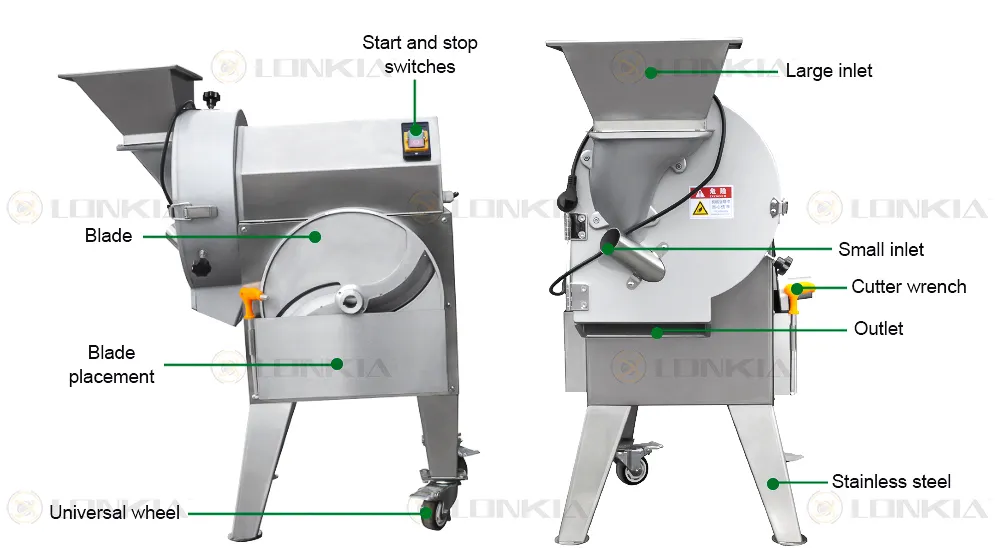

Parameters Diagram
FeatureSpecification
Machine Dimension600*500*900mm
Shred Disk Size2mm, 3mm, 4mm, 5mm, 6mm
Slice Disk Size2mm, 3mm, 4mm, 5mm
Dice Disk Size8mm, 10mm, 12mm, 15mm, 20mm
Machine Weight78KG
Production Capacity300-1000KG/H
Voltage220V, Single Phase
Product Photography

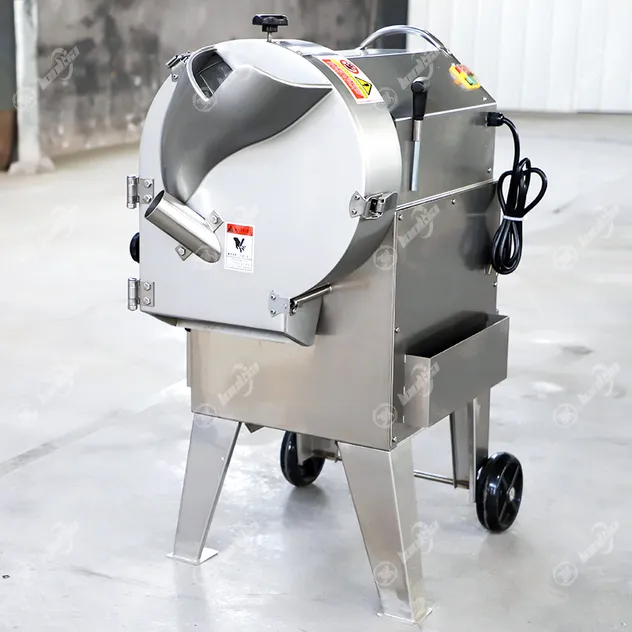

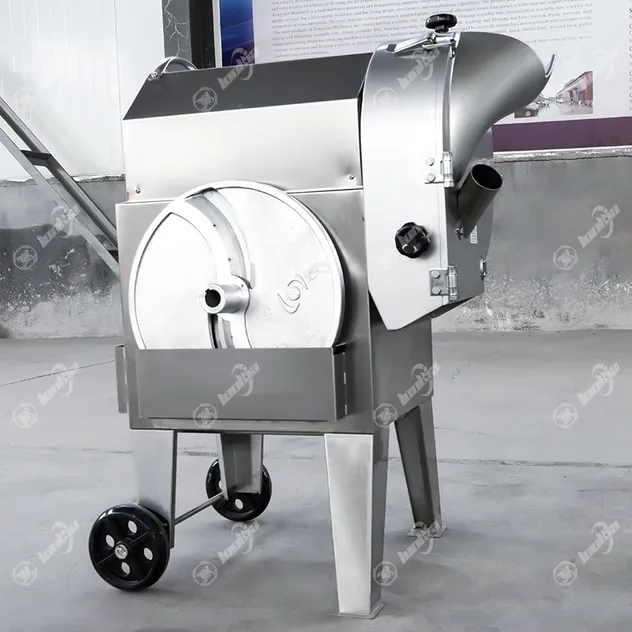

Machine Front View Machine Side View Machine Detail View
Frequently Asked Questions
How do I maintain the sharpness of the blades?
We provide a sharpening kit and recommend maintenance after every 500 hours of use. Blades can be replaced individually to keep costs low.
Can the machine process soft ingredients like tomatoes or bananas?
Yes, but it requires a specific "soft ingredient knife disc" and reduced speed (approx. 300RPM) to prevent breakage during processing.
What should I do if the cutterhead gets blocked?
The machine features an anti-blocking reverse function. It automatically detects jams, reverses for 0.5 seconds, and then proceeds forward, clearing 99.6% of blockages without manual intervention.
What is the production capacity of this machine?
Depending on the material and cutting size, the capacity ranges from 300kg to 1000kg per hour, making it suitable for industrial or commercial use.
Is the machine easy to clean?
Yes, the body is made of food-grade 304 stainless steel and is fully welded to eliminate dead corners where bacteria could grow.
Do you provide technical documentation?
Yes, we provide comprehensive English manuals, instruction videos, and troubleshooting guides for all users.
