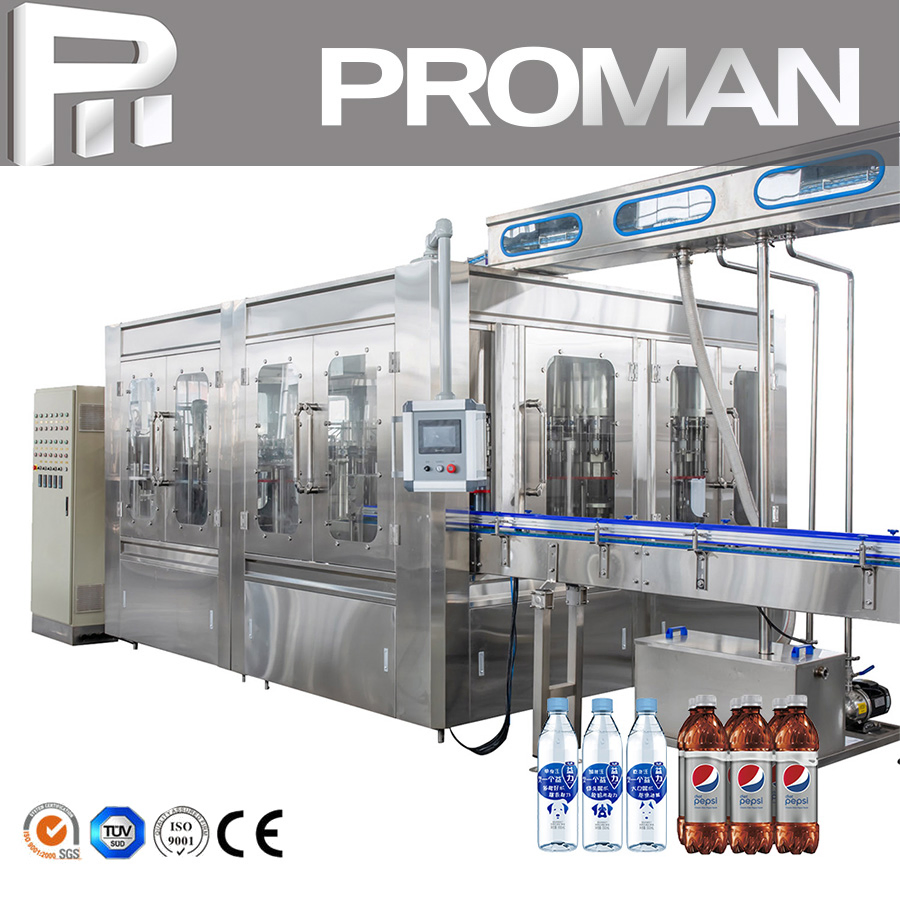

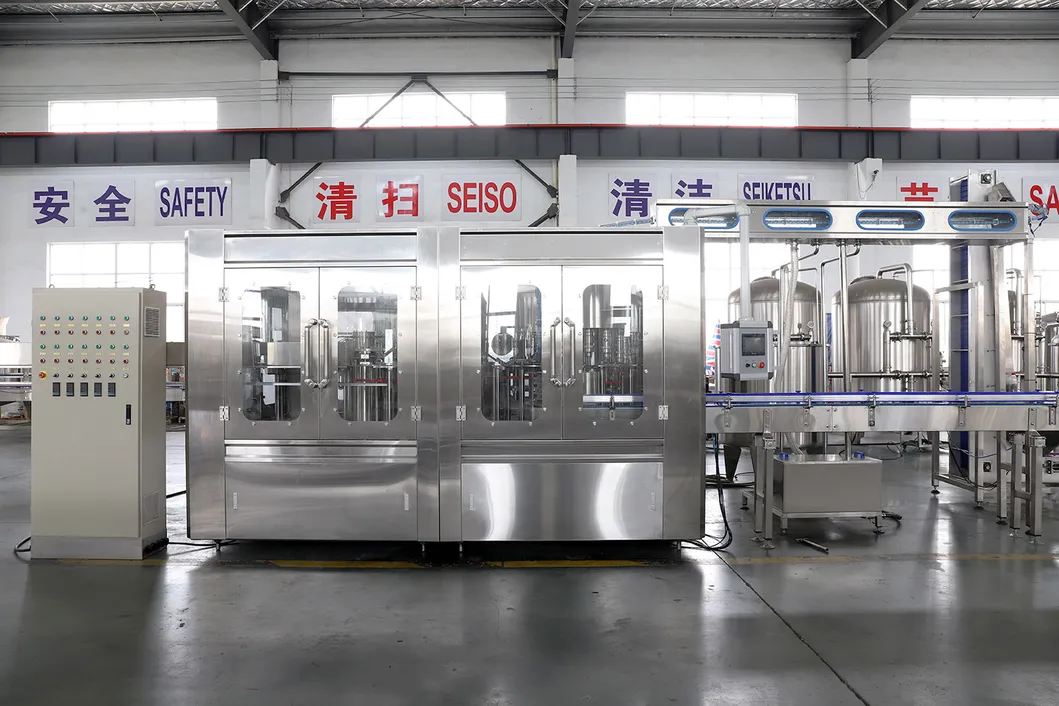

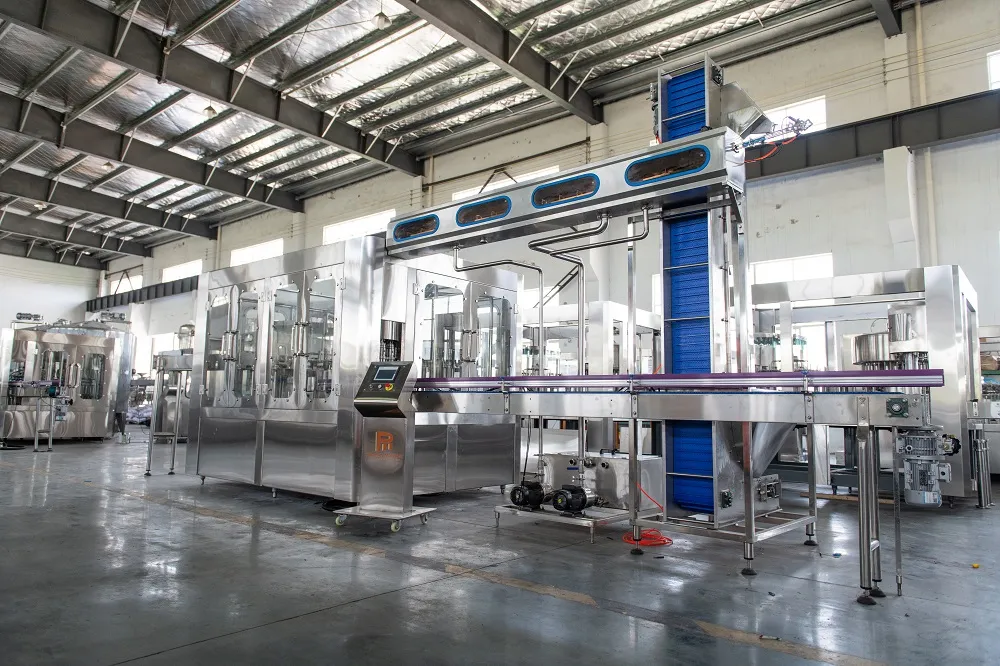

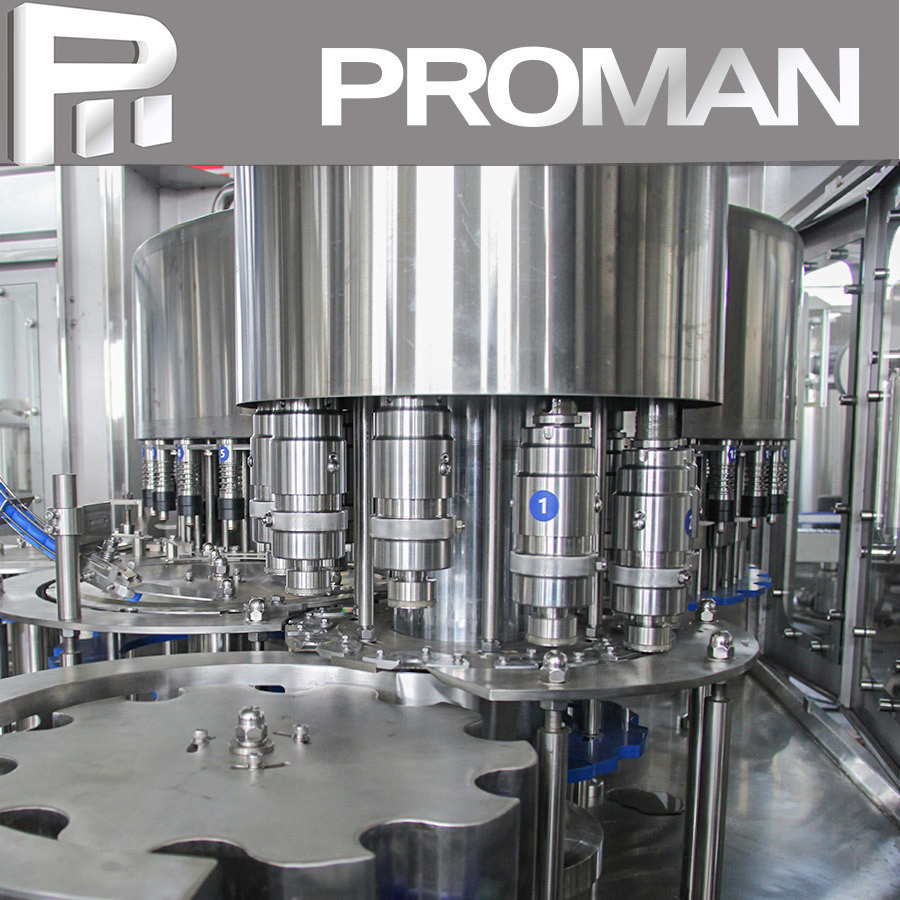

This 12/24/32 Filling Heads Plastic PET Bottle Liquid Filler is an integrated system for washing, filling, and sealing purified mineral water. Different models can satisfy various requirements of output from 2000B/H to 24000B/H.

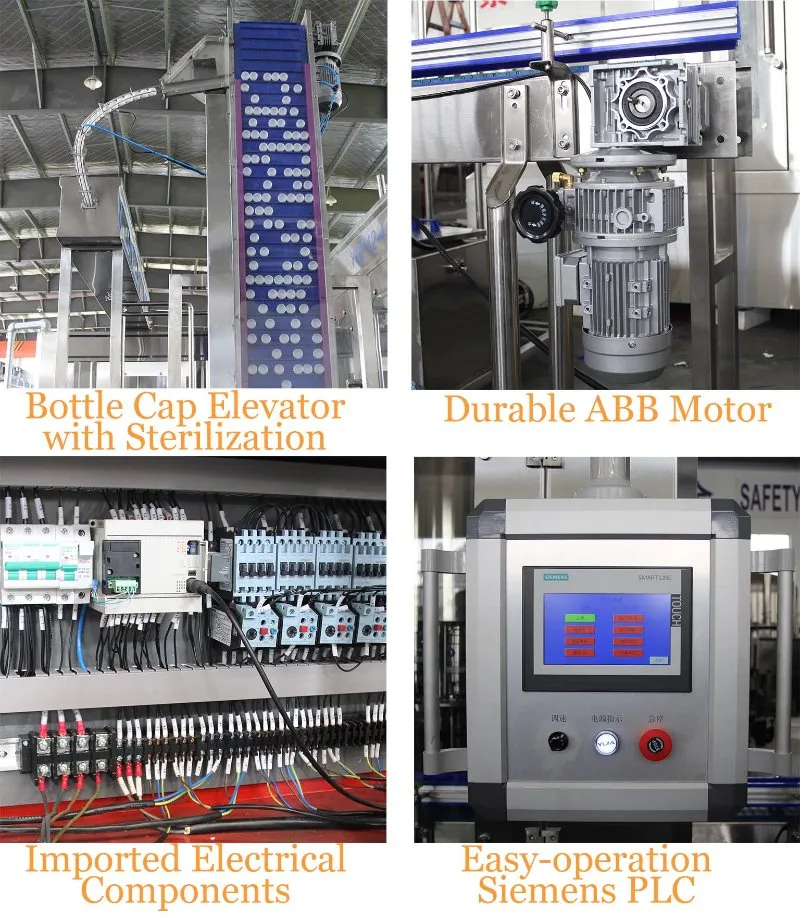

The machine adopts an advanced Mitsubishi programmable controller (PLC) for automatic operation, working with an inverter for stable and reliable performance. Photoelectric sensors detect all running states with a high degree of automation.
| Model | CGF14-12-4 | CGF16-16-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
|---|---|---|---|---|---|
| Capacity (500ML) | 4000BPH | 6000BPH | 8000BPH | 12000BPH | 15000BPH |
| Washing Heads | 14 | 16 | 18 | 24 | 32 |
| Filling Heads | 12 | 16 | 18 | 24 | 32 |
| Capping Heads | 4 | 5 | 6 | 8 | 10 |
| Suitable Bottle | PET Bottle, Plastic Bottle (55-110mm Diameter) | ||||
| Main Power | 1.2kw | 1.5kw | 3kw | 3kw | 3kw |

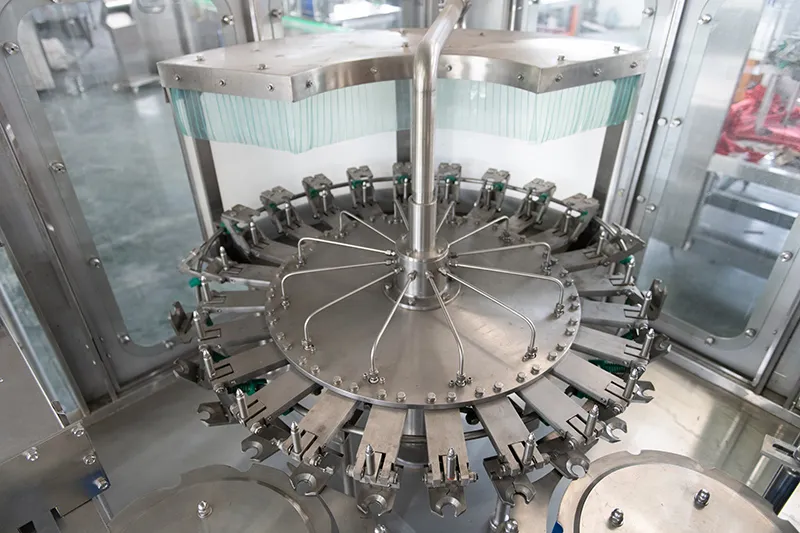

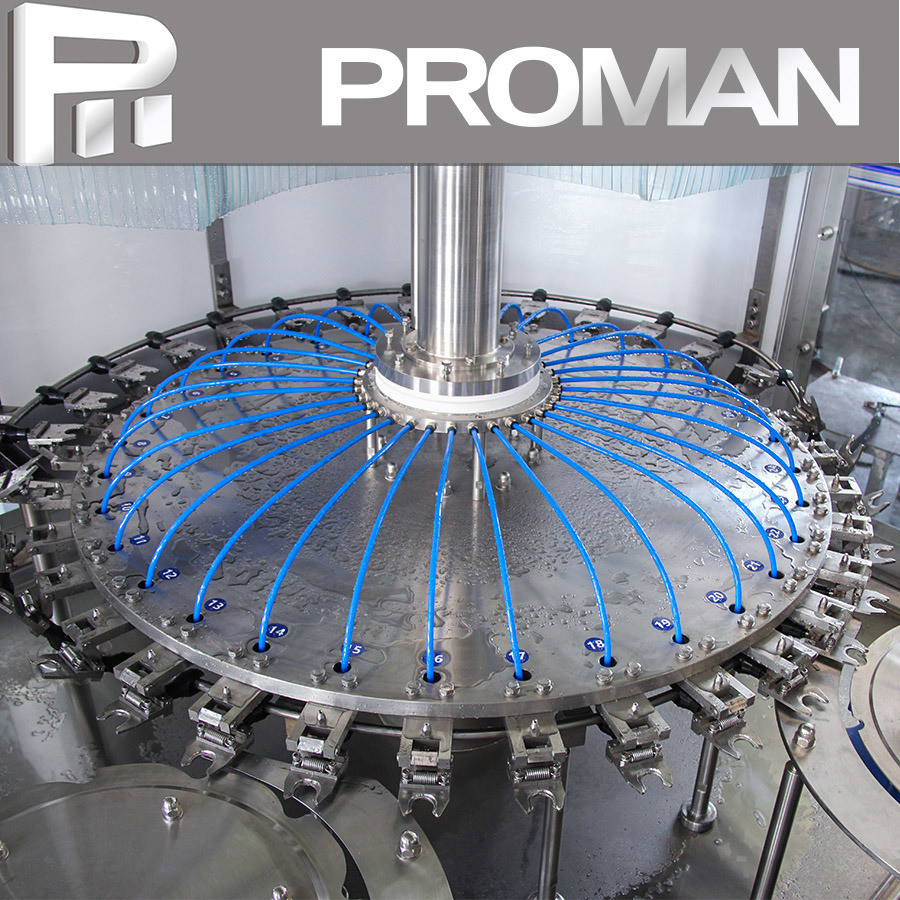

Washing Head:

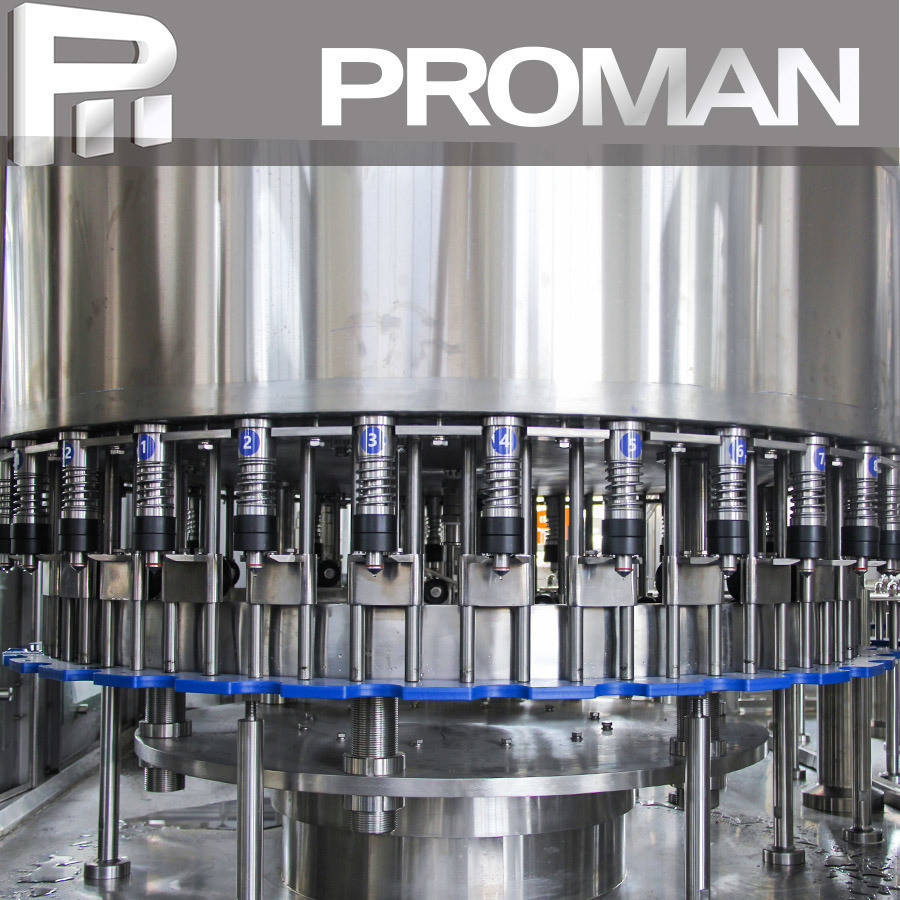

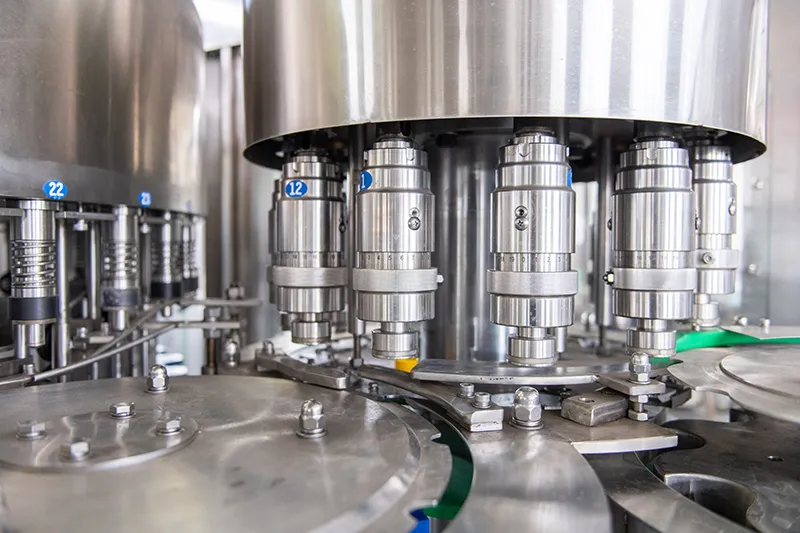

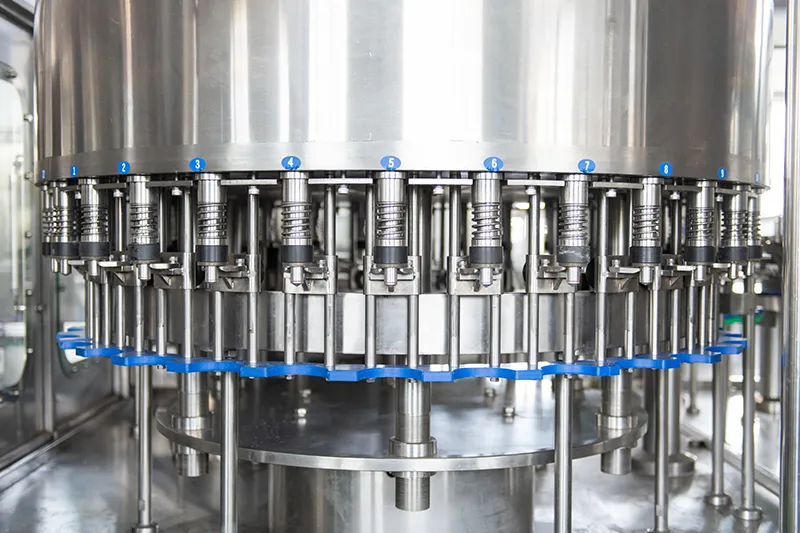

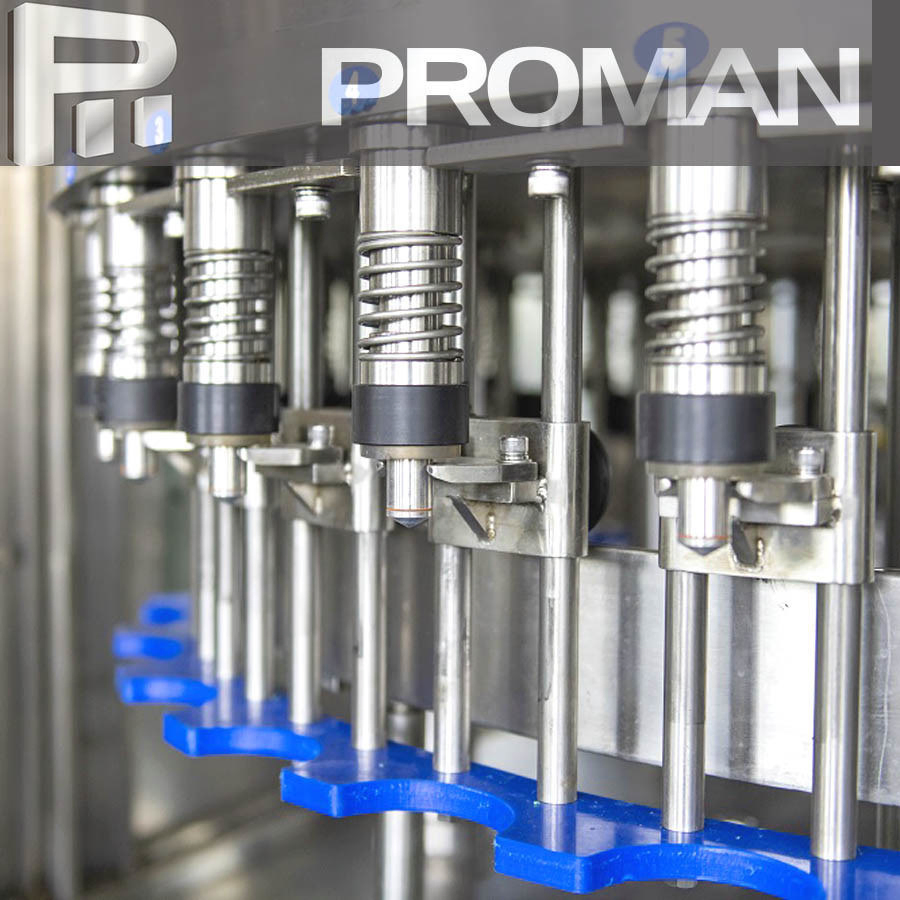

Filling Head:
Capping Head:

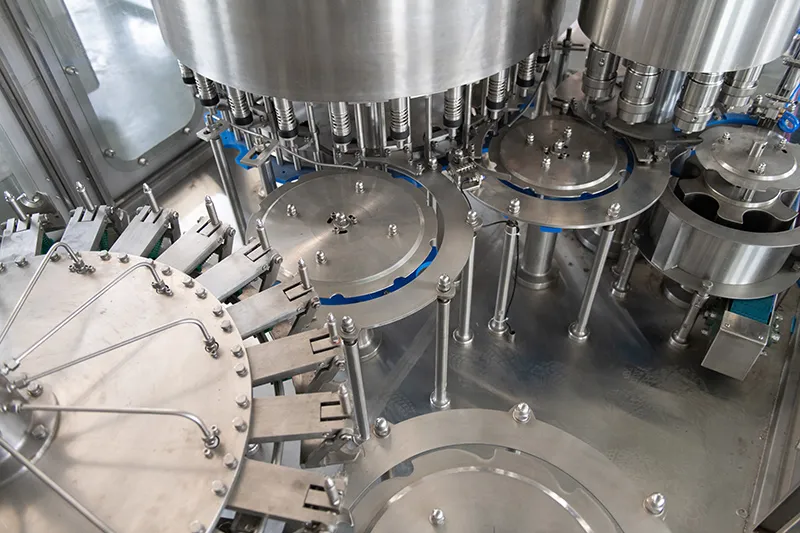

1. Integrated 3-in-1 System: Washing, filling, and capping finished in one machine to save space and maintain sanitation.
2. Neck Clamping Technology: Advanced bottle conveying makes it convenient to switch between different bottle sizes.
3. Smart Control: Equipped with programmable PLC and touch screen for easy operation.
4. Premium Components: Electronic and pneumatic elements from famous international enterprises.
5. High-Quality Build: All parts contacting water are made from high-quality stainless steel.
