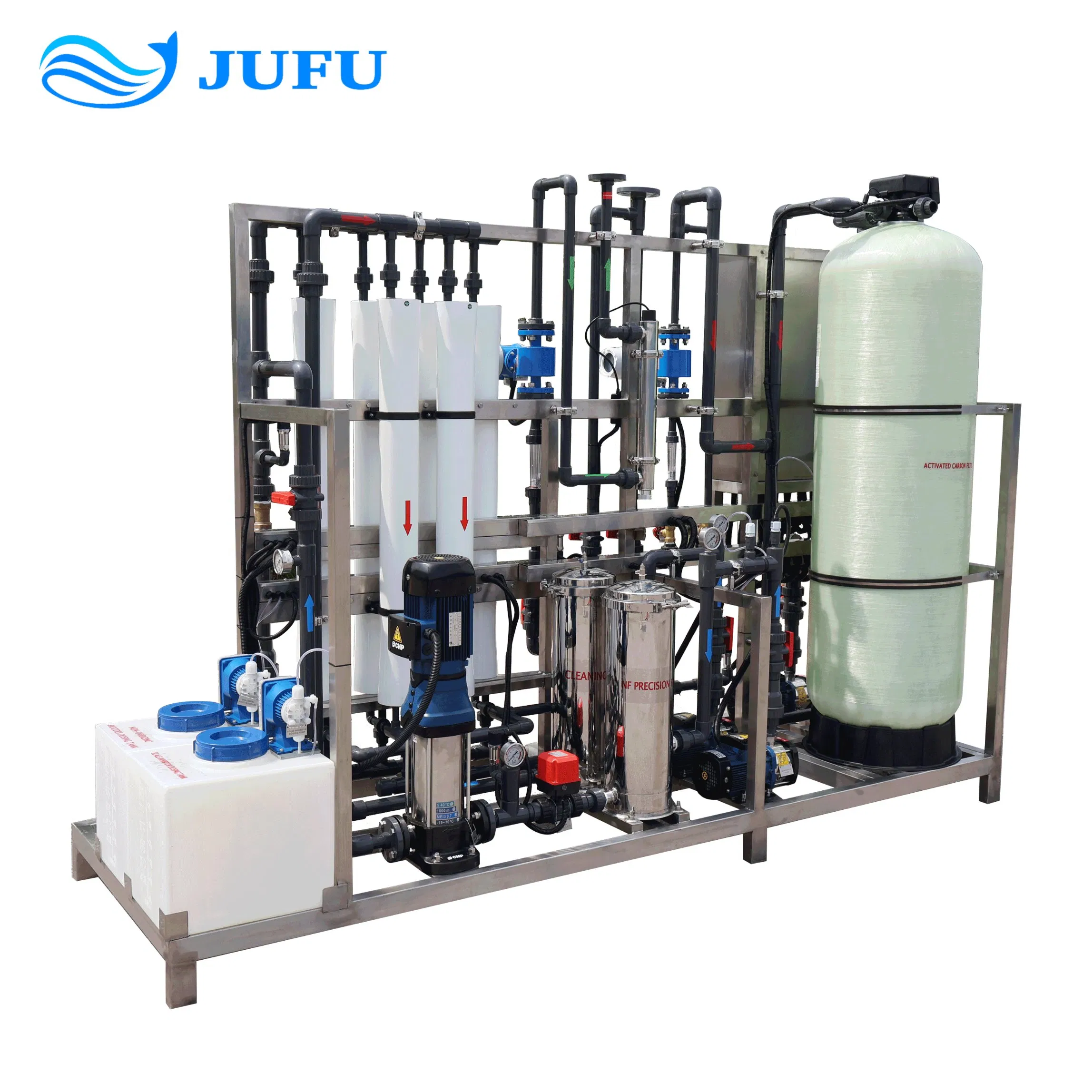

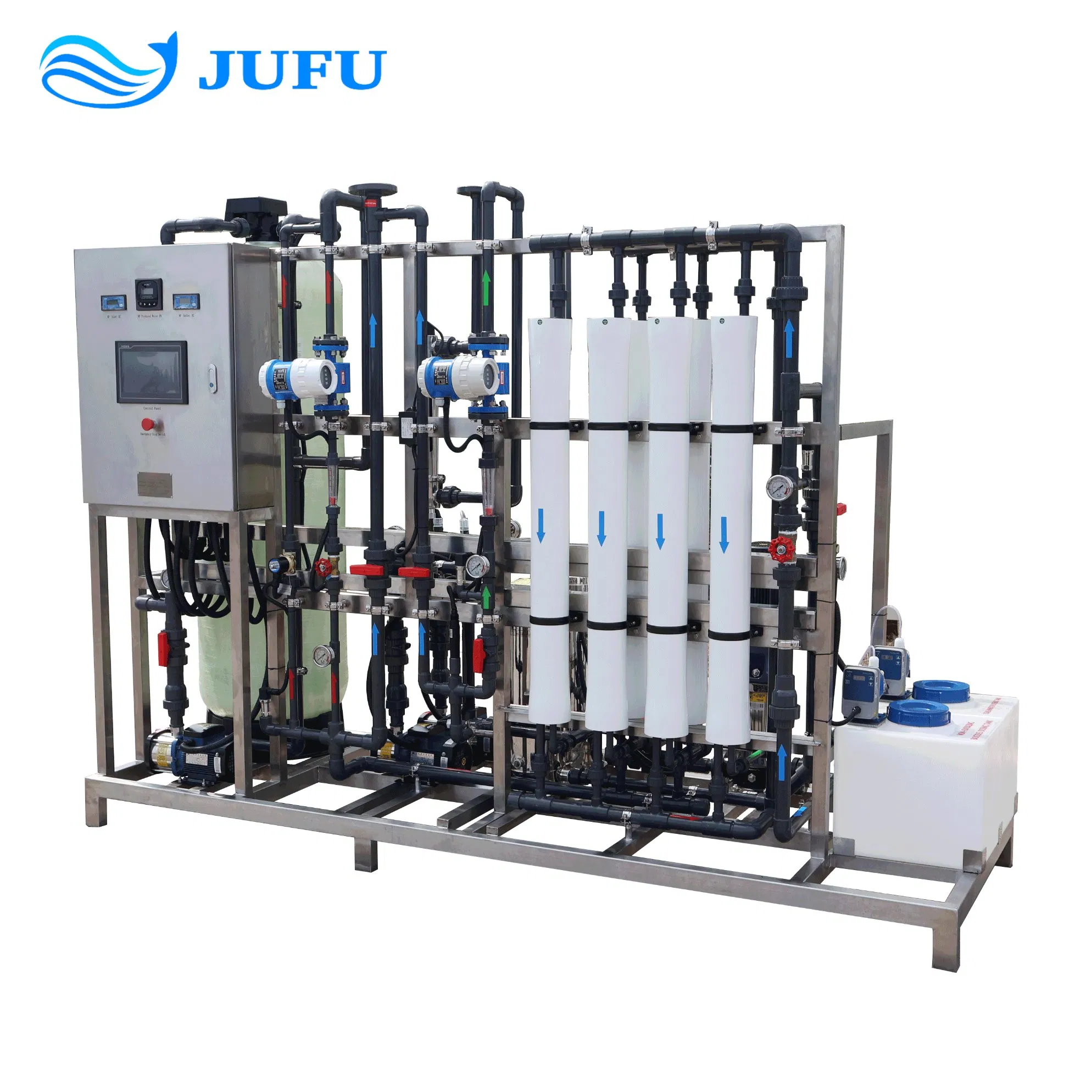

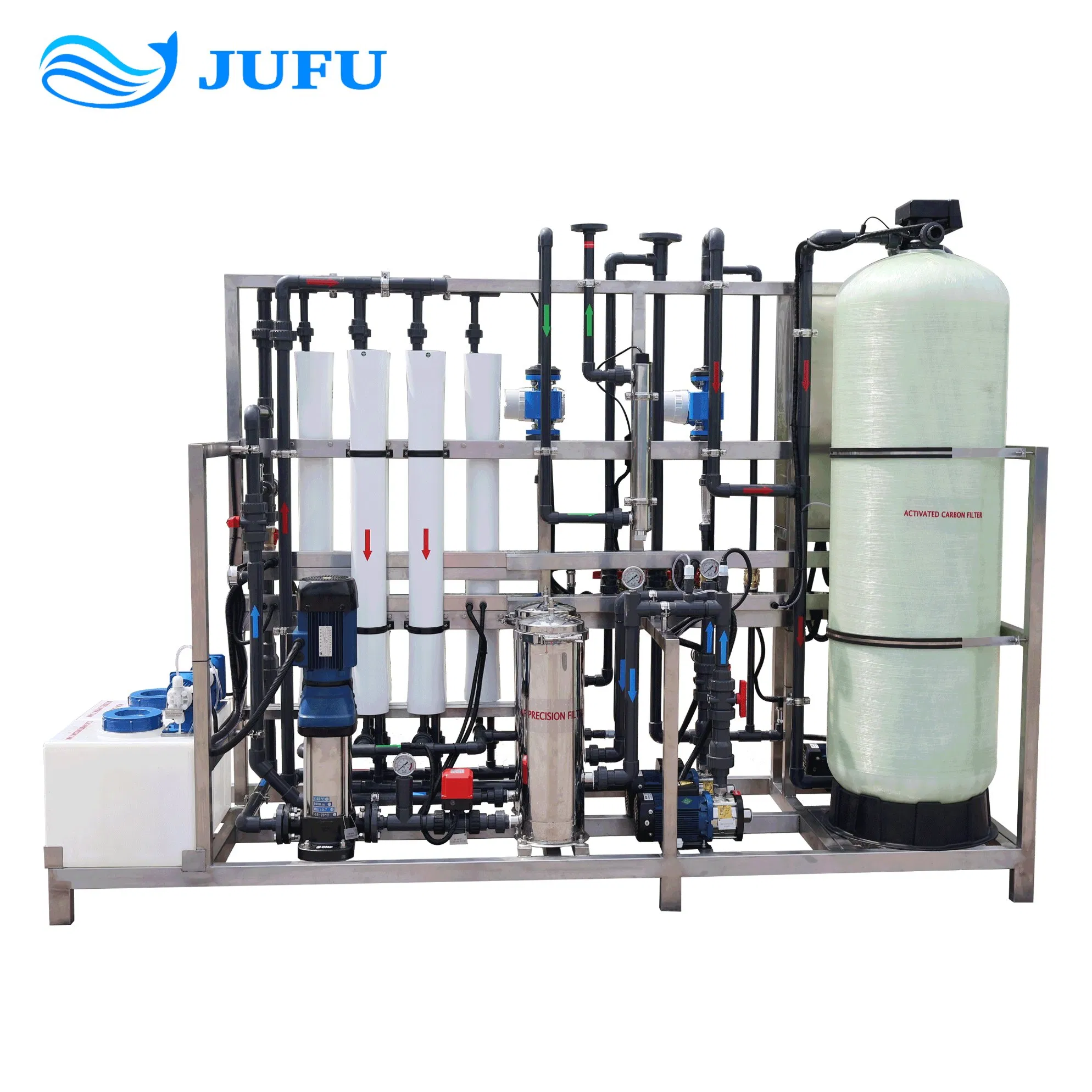

2500lph Nanofiltration System Water Treatment Machine NF Membrane

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.0%

Product Description

Basic Information
Model NO.
JFNF-2.5T
Application
Industry
Capacity
2500lph
Recovery Rate
75%
Operation
Automatic Running
Core Component
NF Membrane, Pump
Frame Material
Stainless Steel
Tank Material
FRP/SUS
Pipe Material
U-PVC
Processing
Pre-Treatment + RO System
Control Valve
Automatic
Transport Package
Wooden Case
Specification
Customized
HS Code
842121990
Production Capacity
500pieces/Year
Product Description
Nanofiltration System Banner

Nanofiltration Membrane: Pore size above 1nm, generally 1-2nm. It is a functional semi-permeable membrane that allows solvent molecules or certain low molecular weight solutes or low valence ions to pass through. It is named for its ability to retain substances with a size of approximately nanometers. It is used for removing organic matter and coloration from surface water, removing hardness from groundwater, partially removing dissolved salts, concentrating fruit juices, and separating useful substances from pharmaceuticals.

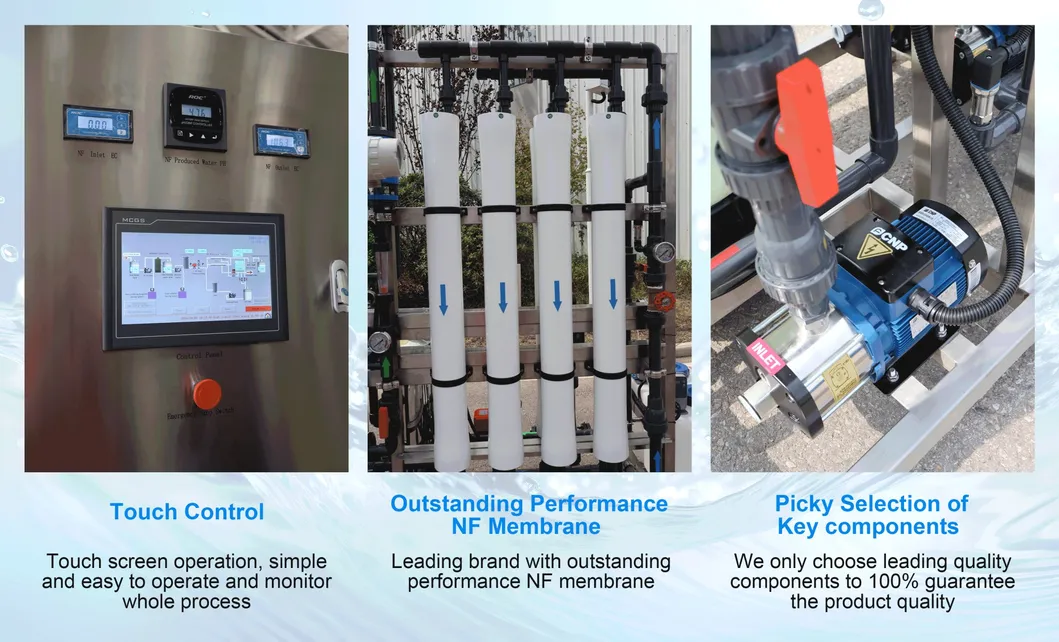

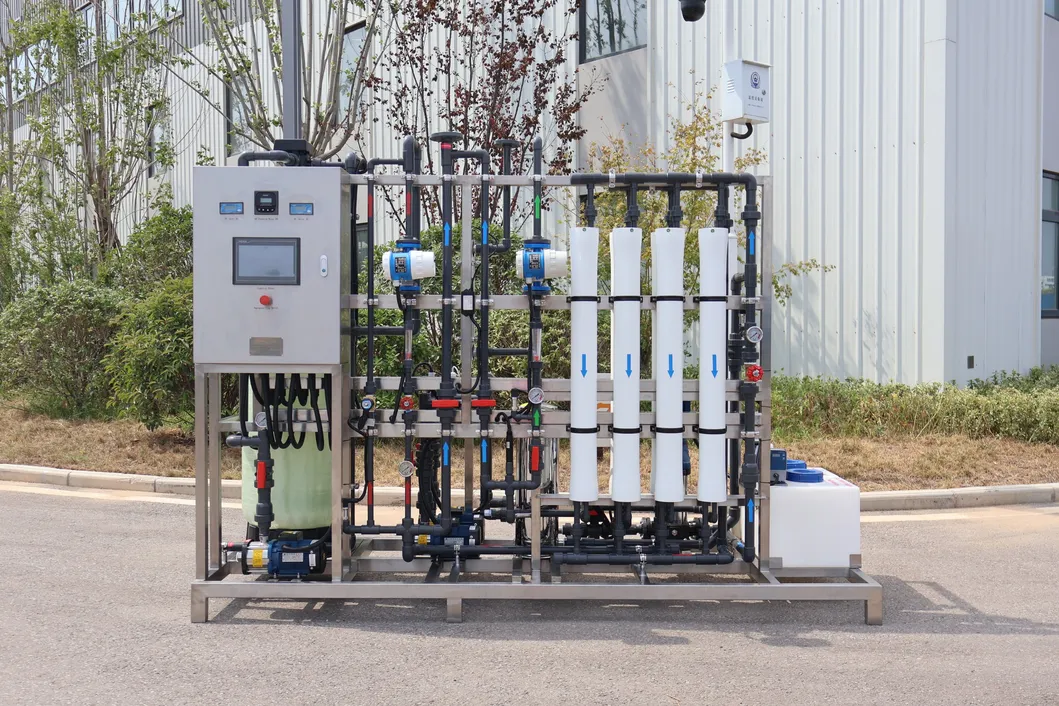

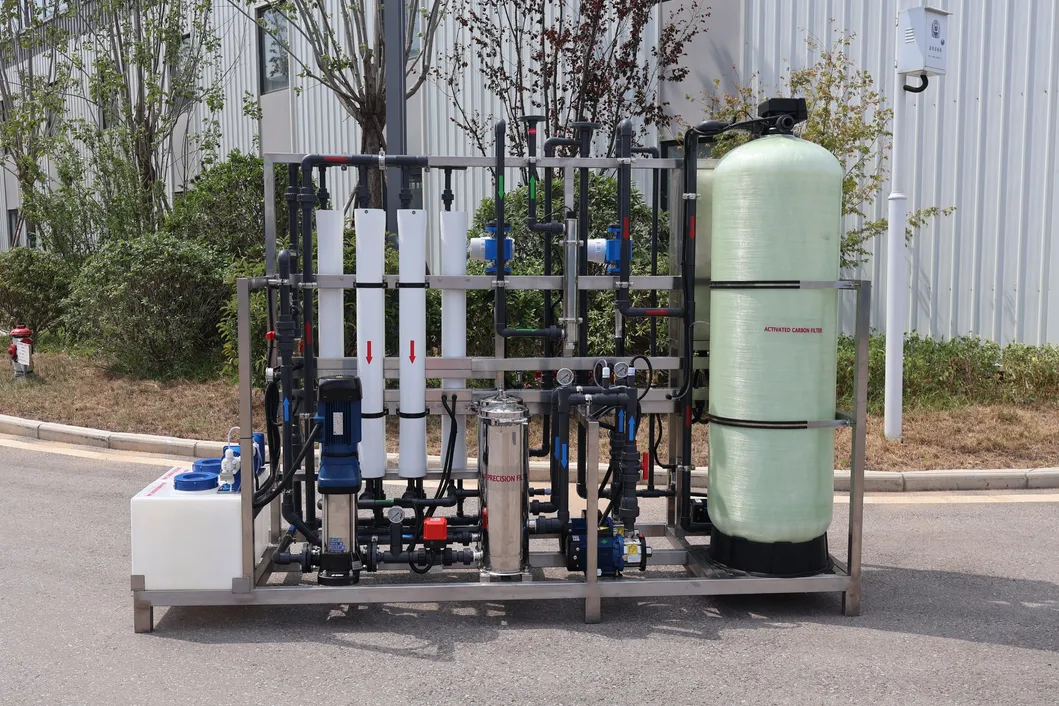

NF System View 1 NF System View 2 NF System View 3
NF System Line
Technical Specifications
2500L/H Nanofiltration System Details
ModelJFNF-2500L
Power3.6KW
Power Supply220V /380V/415V - 50Hz/60Hz (Customized)
Operating Pressure0.5 - 1.0MPa
Producing Capacity2500L/H
Desalination Rate99%
Number of Membranes6
PumpCNP / NYP ... (Optional)
Tank MaterialSS / FRP (Optional)
Control ValveManual / Automatic
Membrane HousingSS / FRP
Pipe MaterialU-PVC/ Stainless steel (Optional)
Applicable Scenes
  • Pharmaceuticals (desalination and concentration of antibiotics, vitamins)
  • Amino acids (decolorization, removal of impurities, concentration, desalination)
  • Food (separation of oligosaccharide, concentration of fruit juice, plant extraction)
  • Mother liquor recovery (monosodium glutamate, glucose crystallization decontamination)
  • Water treatment (printing and dyeing wastewater, water reuse, ultrapure water)
  • Dyestuff (desalination and concentration instead of salt/acid precipitation)
  • Acid/Alkali recovery (pharmaceutical washing columns, chemical fiber waste)

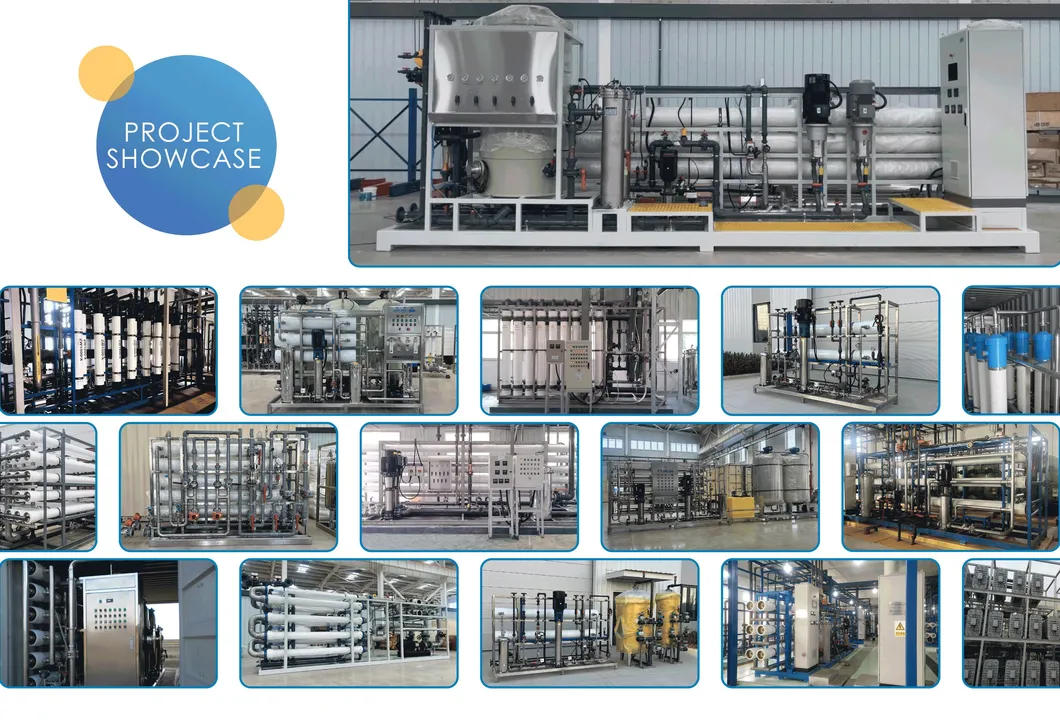

Application 1 Application 2 Application 3
Frequently Asked Questions
What kind of information is needed for product selection?
We need to know the raw water source (Water Analysis Report if possible), requested output capacity, application details, local piping standards, and if you need on-site installation guidance.
How can I choose the products that perfectly match my case?
Tailor-made solutions will be provided by professional engineers based on your requirements. All project pain-points will be highlighted and solved for overall optimization.
What are your typical payment terms?
Our standard procedure involves a deposit in advance and the remaining balance before delivery.
What is the expected lead time for equipment?
The lead time depends on the specific order, but generally, it takes 3-5 weeks for standard products.
What kind of warranty is offered?
We offer a 1-year warranty for the products. With proper use and maintenance, the equipment itself can typically work for 5 years or more.
Is the system operation automated?
Yes, the system is designed for automatic running with control valve options for both manual and automatic operation depending on your preference.
