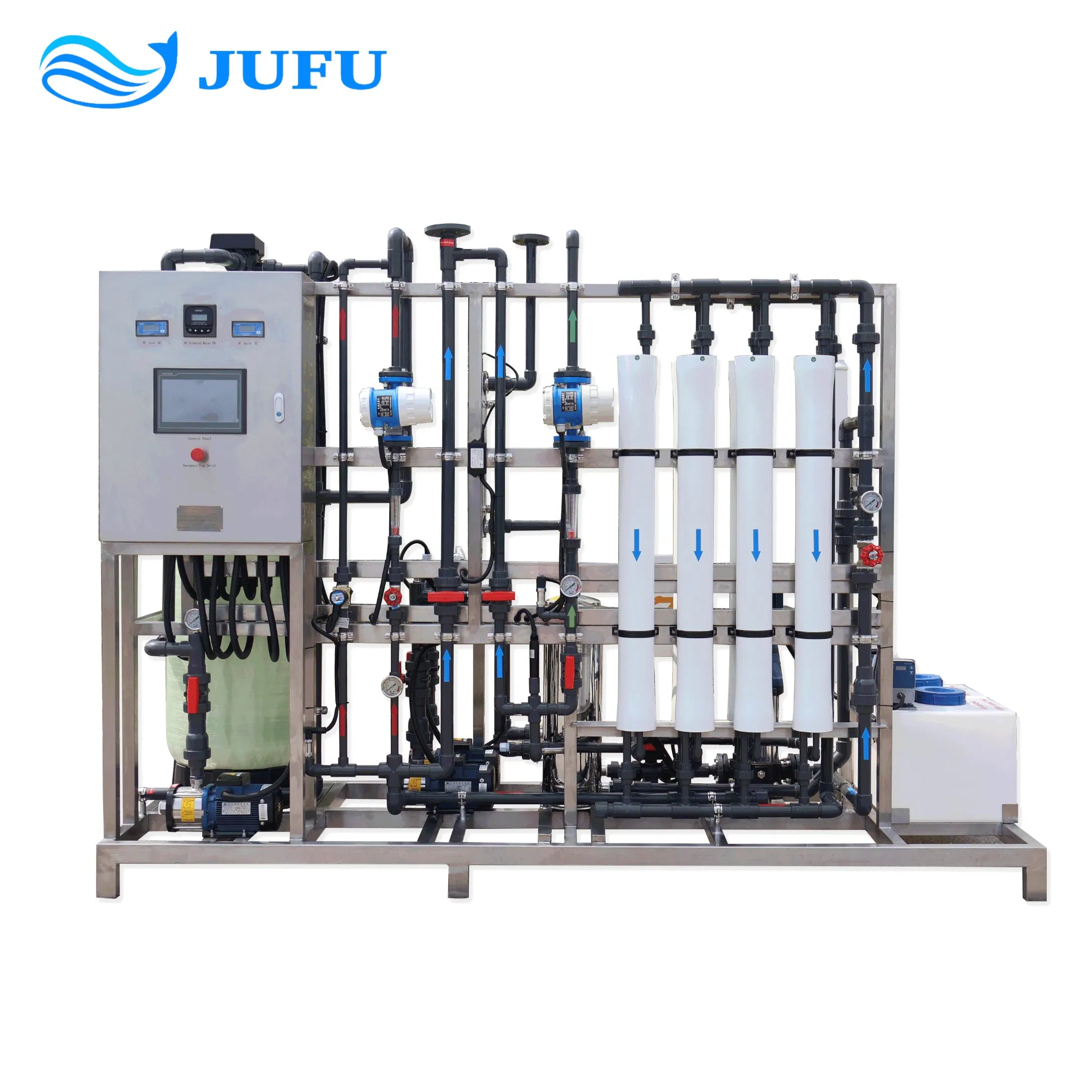

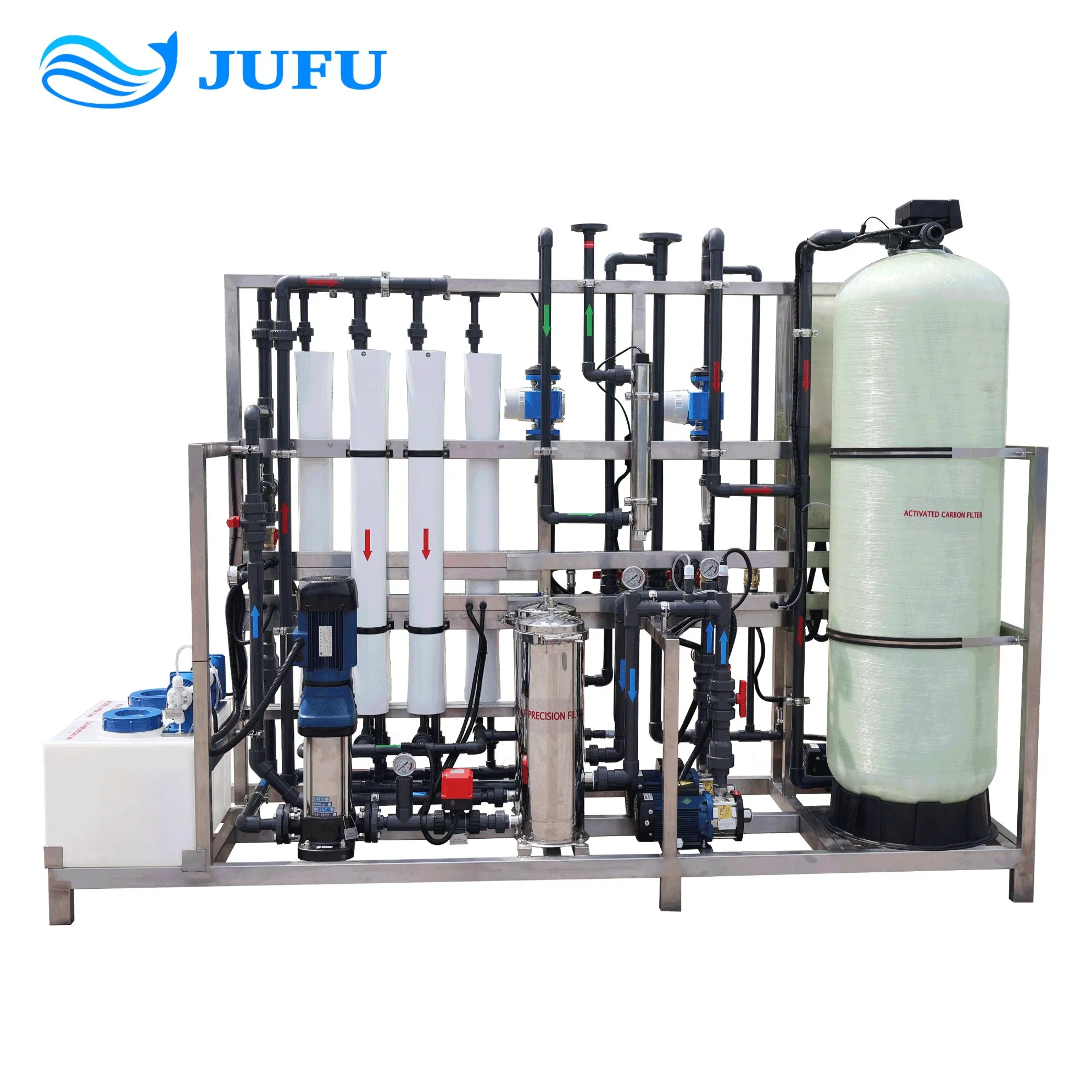

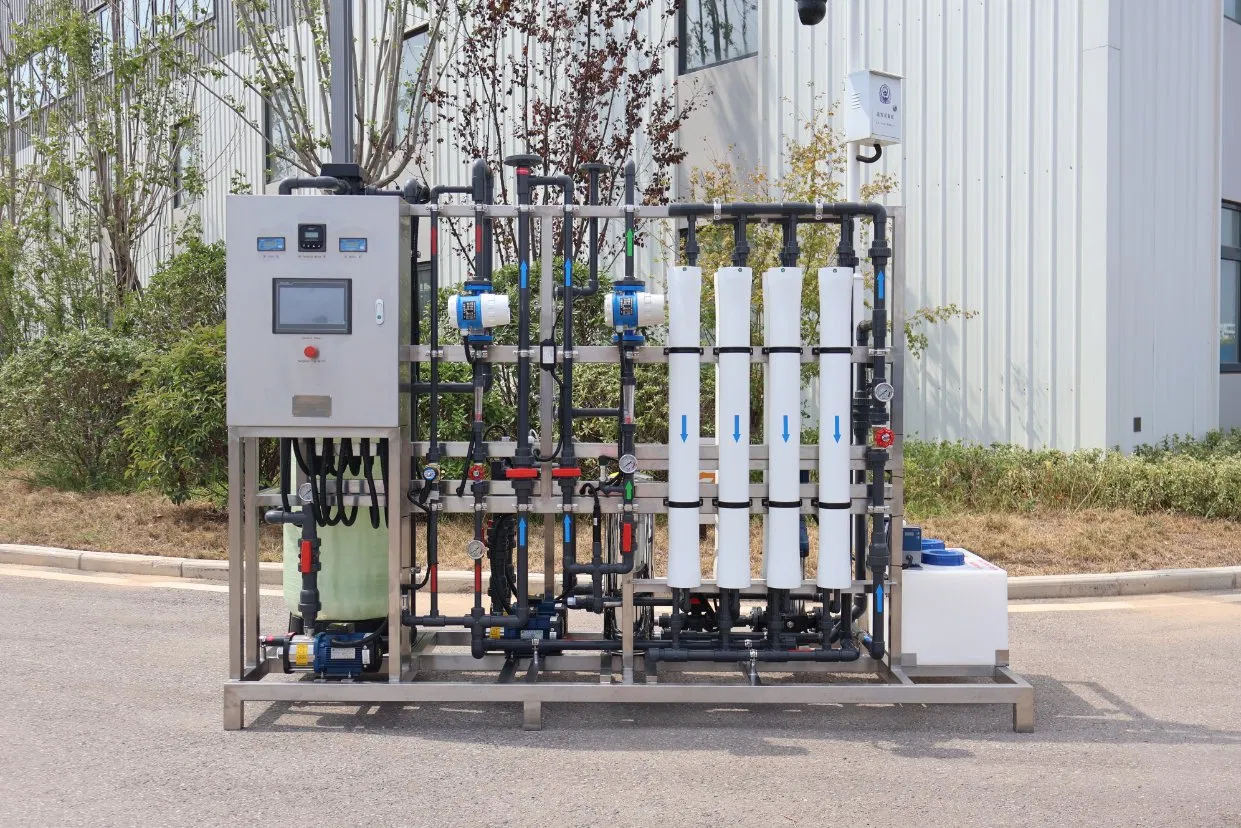

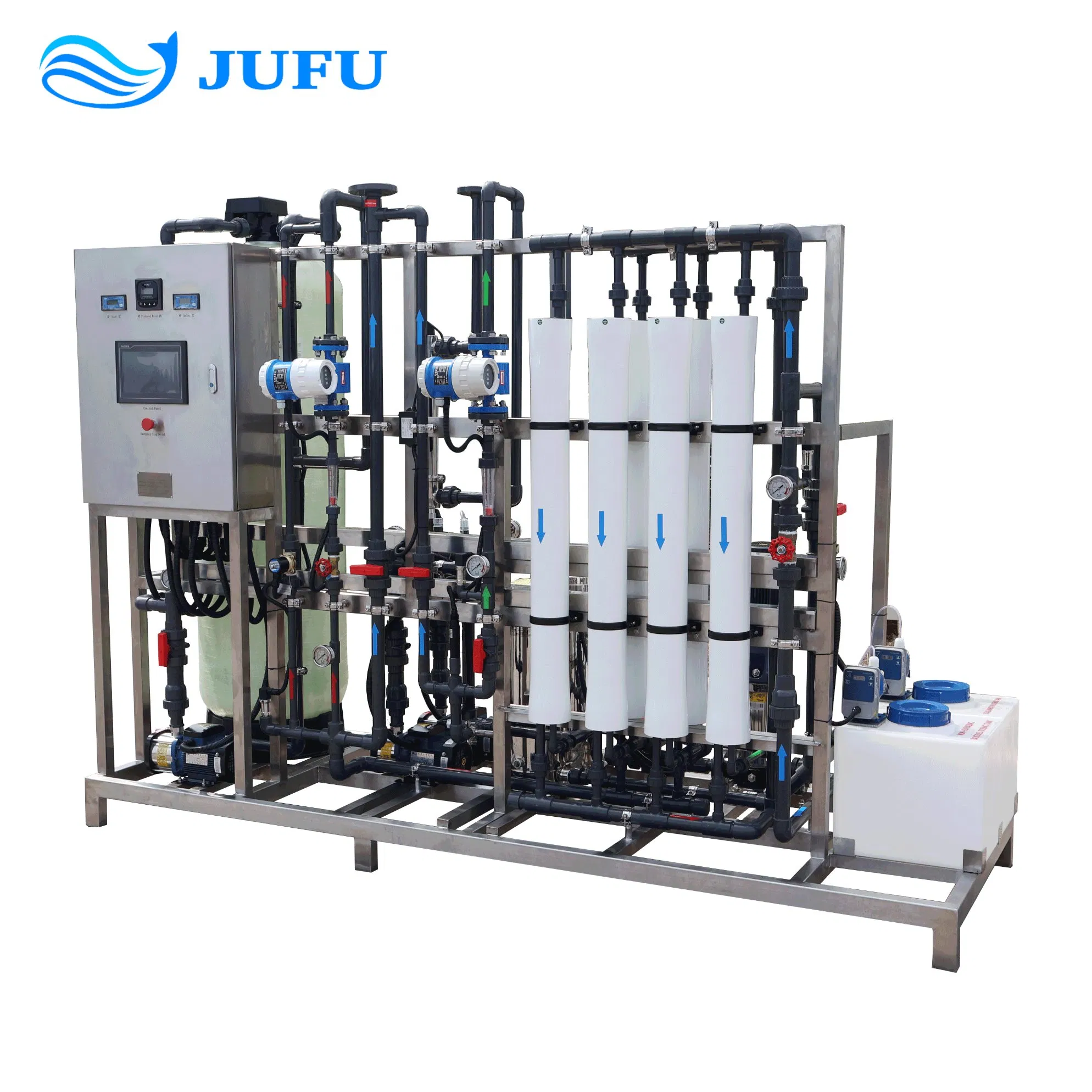

Nano Filter System with RO System 2.5t/H Nanofiltration Water Filtration System

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.0%

Product Description

i

Basic Information

Model NO.
JFNF-2.5T
Application
Industry
Capacity
2500lph
Recovery Rate
75%
Operation
Automatic Running
Core Component
NF Membrane, Pump
Frame Material
Stainless Steel
Tank Material
FRP/SUS
Pipe Material
U-PVC
Control Valve
Automatic
HS Code
842121990
Origin
China
P

Product Description

Nanofiltration System
Nanofiltration Membrane: Pore size above 1nm, generally 1-2nm. It is a functional semi-permeable membrane that allows solvent molecules or certain low molecular weight solutes or low valence ions to pass through. It is a special and promising variety of separation membrane, which is named for its ability to retain substances with a size of approximately nanometers. It is used for removing organic matter and coloration from surface water, removing hardness from groundwater, partially removing dissolved salts, concentrating fruit juices, and separating useful substances from pharmaceuticals.
NF System Banner
8m³/h Nanofiltration / Reverse Osmosis System Specifications
ModelJFNF-2500L
Power3.6KW
Power Supply220V /380V/415V - 50Hz/60Hz, customized
Operating Pressure0.5 - 1.0MPa
Producing Capacity2500L/H
Desalination Rate99%
Number of Membranes6
PumpCNP / NYP ... (Optional)
Tank MaterialSS / FRP (Optional)
Control ValveManual / Automatic
Membrane HousingSS / FRP
Pipe MaterialU-PVC/ Stainless steel (Optional)
A

Applicable Scenes

  • Pharmaceuticals: Desalination and concentration of antibiotic resin resolution solution, vitamin concentration.
  • Amino acids: Decolorization and removal of impurities, concentration, desalination.
  • Food: Separation and purification of oligosaccharide and starch sugar, concentration of fruit juice, plant extraction.
  • Mother liquor recovery: Monosodium glutamate mother liquor decontamination, glucose crystallization mother liquor decontamination, etc.
  • Water treatment: Printing and dyeing wastewater treatment, water reuse, ultrapure water preparation.
  • Dyestuff: Desalination and concentration, instead of salt precipitation, acid precipitation.
  • Acid, alkali recovery: Pharmaceutical industry, washing column acid, alkali waste liquid, chemical fiber industry.

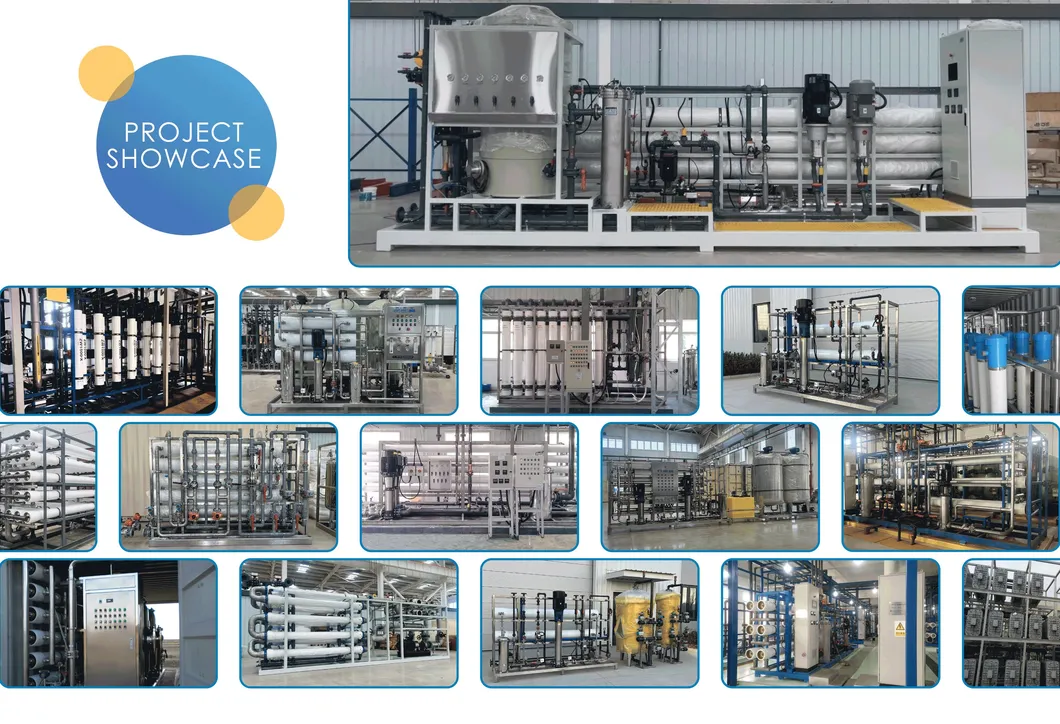

Process Flow Factory Overview Equipment Setup Quality Standard
?

Frequently Asked Questions

What kind of company are you?
We are a Hi-tech manufacturer in the water treatment industry for nearly two decades, specializing in R&D, manufacturing, sales, and engineering installation.
What information is needed for product selection?
Please provide the raw water source (water analysis report), required output capacity, the specific application for the project, and local piping standards.
How can I choose the product that perfectly matches my case?
Tailor-made solutions are provided by professional engineers based on your requirements, ensuring all project pain points are optimized and solved.
What are your payment terms?
We typically require a deposit in advance and the remaining balance before delivery.
What is the typical lead time for equipment?
The lead time depends on the specific requirements, but it generally ranges from 3 to 5 weeks for standard products.
What kind of warranty do you offer?
We offer a 1-year warranty for the products. With proper use and maintenance, the equipment itself can function effectively for over 5 years.
