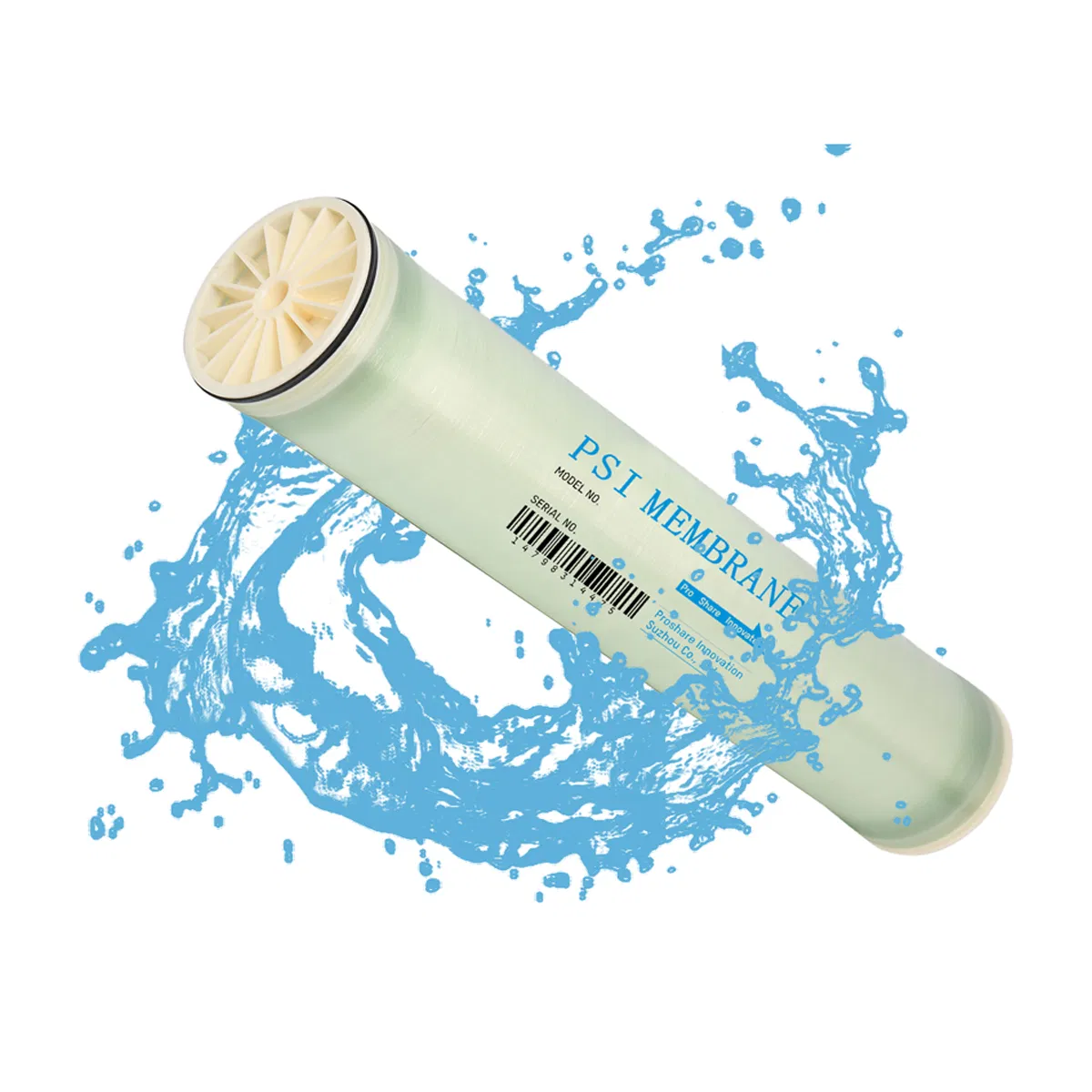

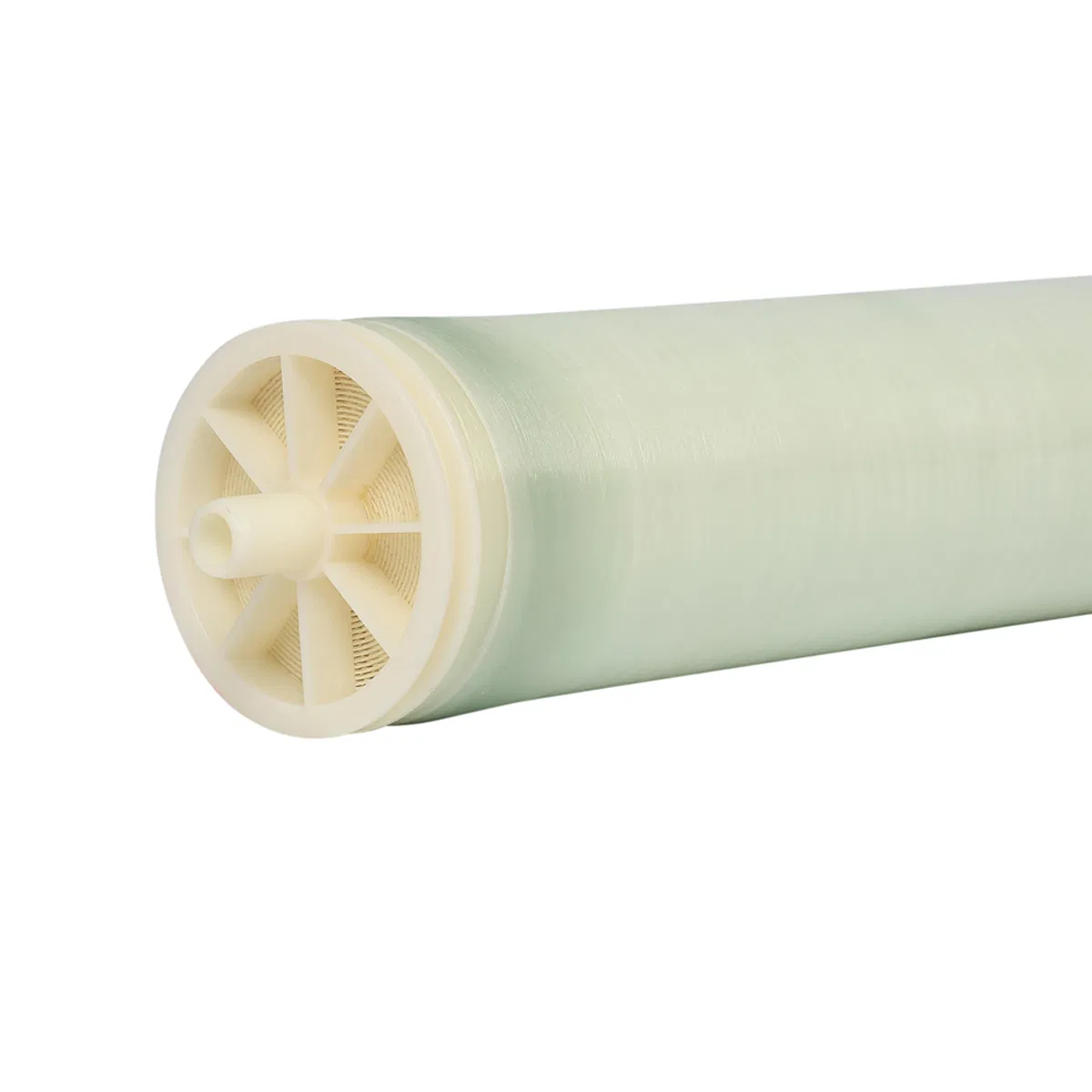

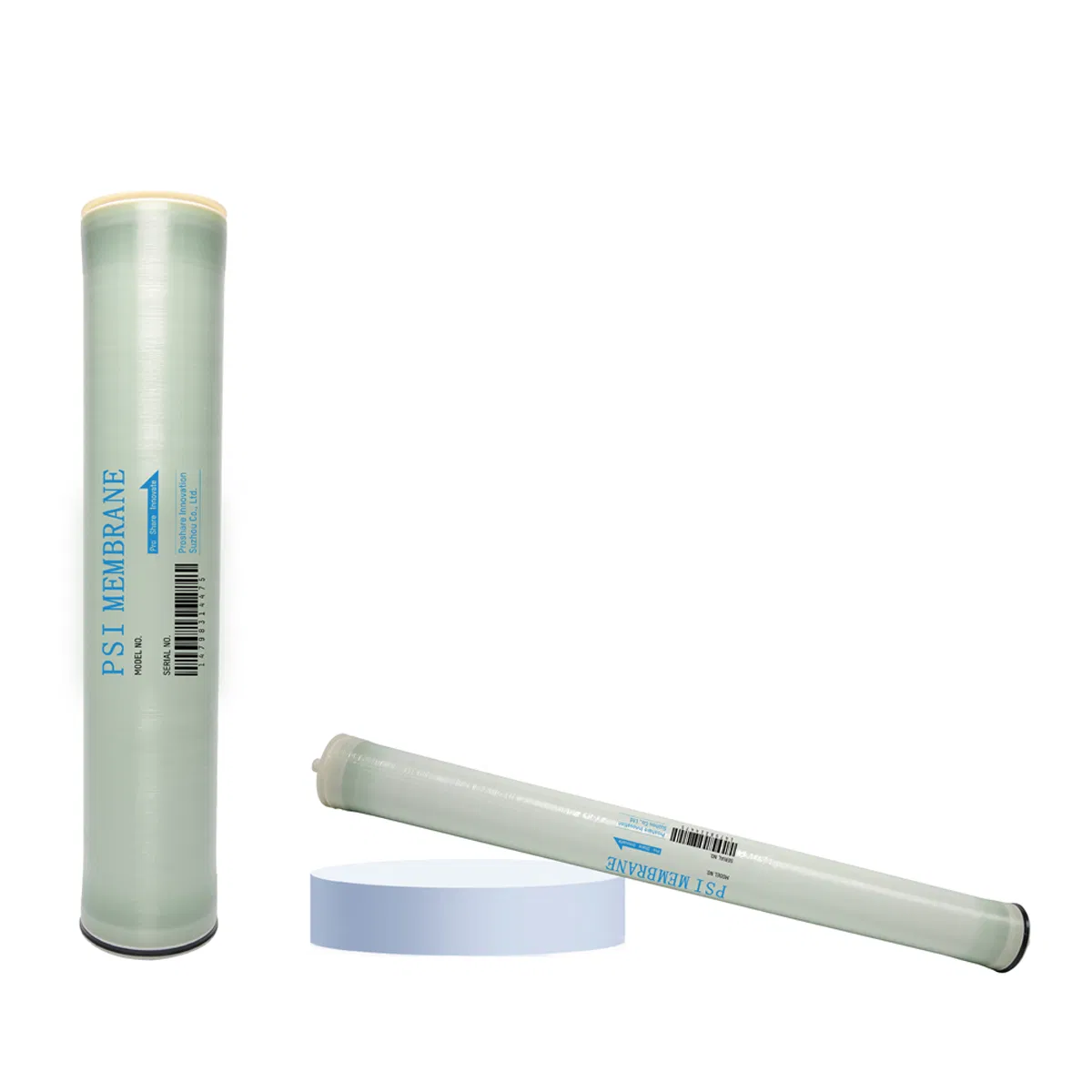

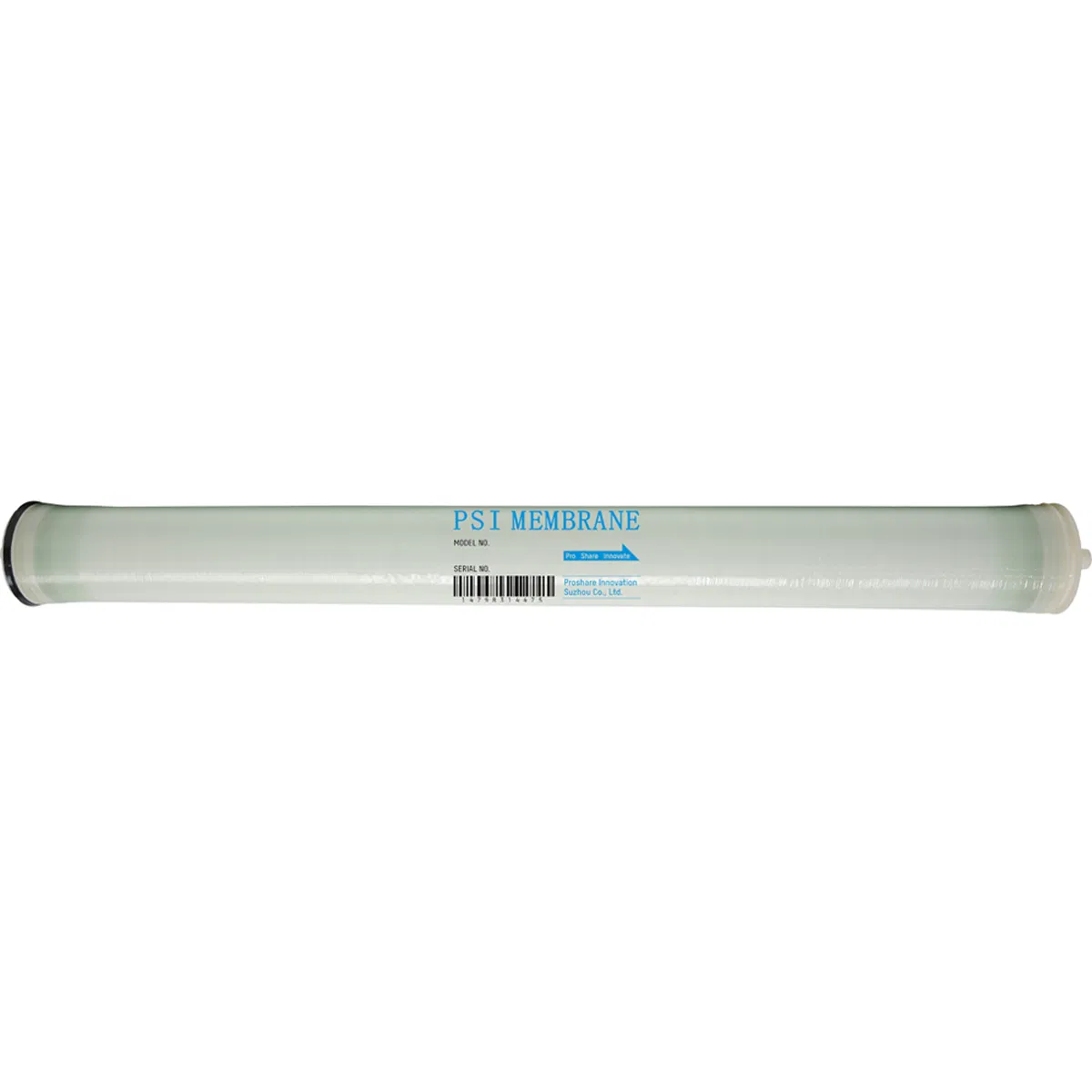

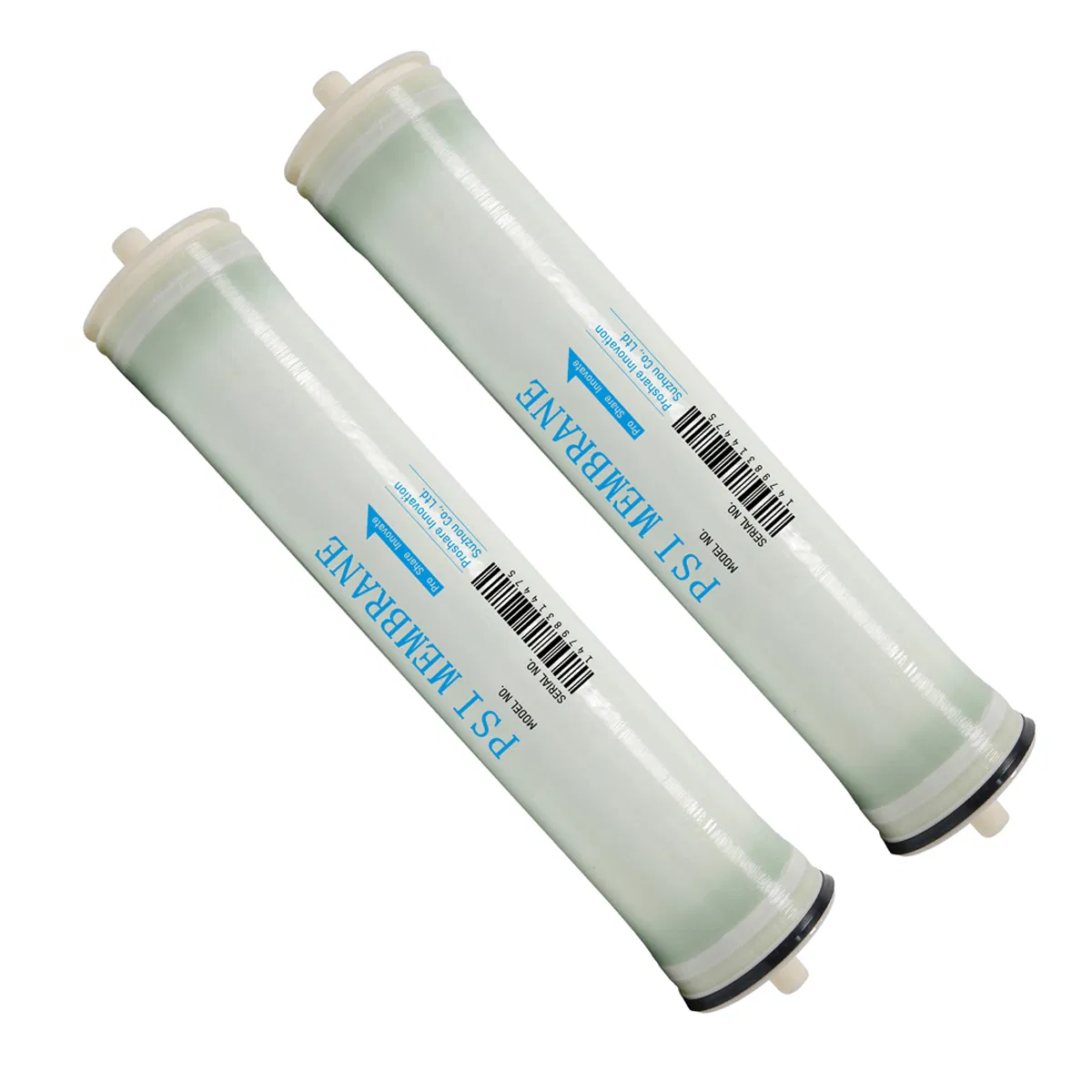

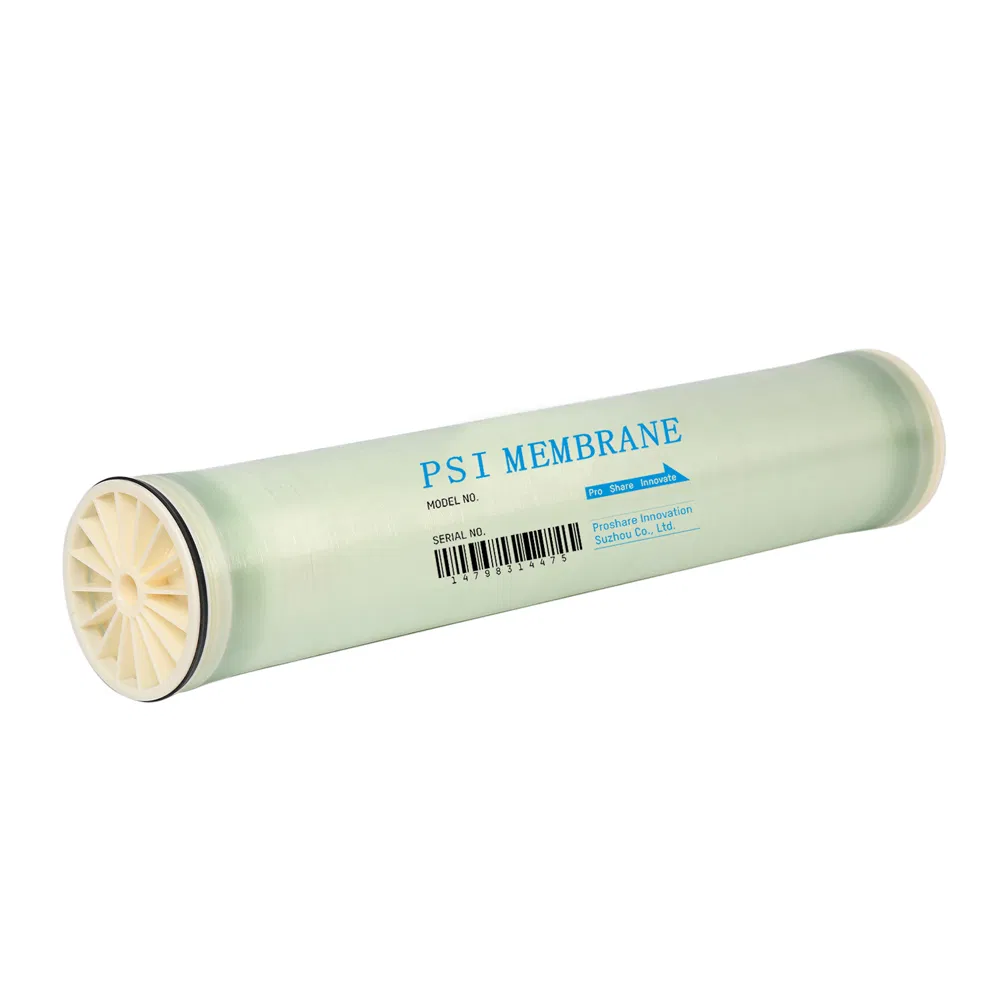

PX Series High Salinity High Pressure Concentration RO
Expertly crafted for Minimal Liquid Discharge (MLD) systems, our membrane is engineered to excel, effectively reducing liquid volume before downstream thermal treatment processes. It enhances the water recovery rate while maintaining optimal operation costs for your business.
| Product | Effective Area ft² (m²) | Spacer (mil) | Flow Rate gpd( m³/d) | Salt Rejection (%) |
|---|---|---|---|---|
| PX170-8040 | 370 (34.4) | 34 | 8800 (33.3) | 99.75 |
| PX180-8040 | 370 (34.4) | 34 | 9000 (34.1) | 99.50 |
* Test Conditions: 32,000 ppm NaCl, 800 psi (5.5 MPa), 77 °F (25 °C), 8% recovery rate. Water yield variation +/- 15%.
| Operating Limits | Unit | Value |
|---|---|---|
| Max Pressure | psi (bar) | 1200 (83) |
| Max Temperature | °F (°C) | 113 (45) |
| Max Pressure Drop | bar | 1 |
| Continuous pH Range | - | 2-11 |
| Cleaning pH Range | - | 1-13 |
| Max Turbidity | ntu | 1 |

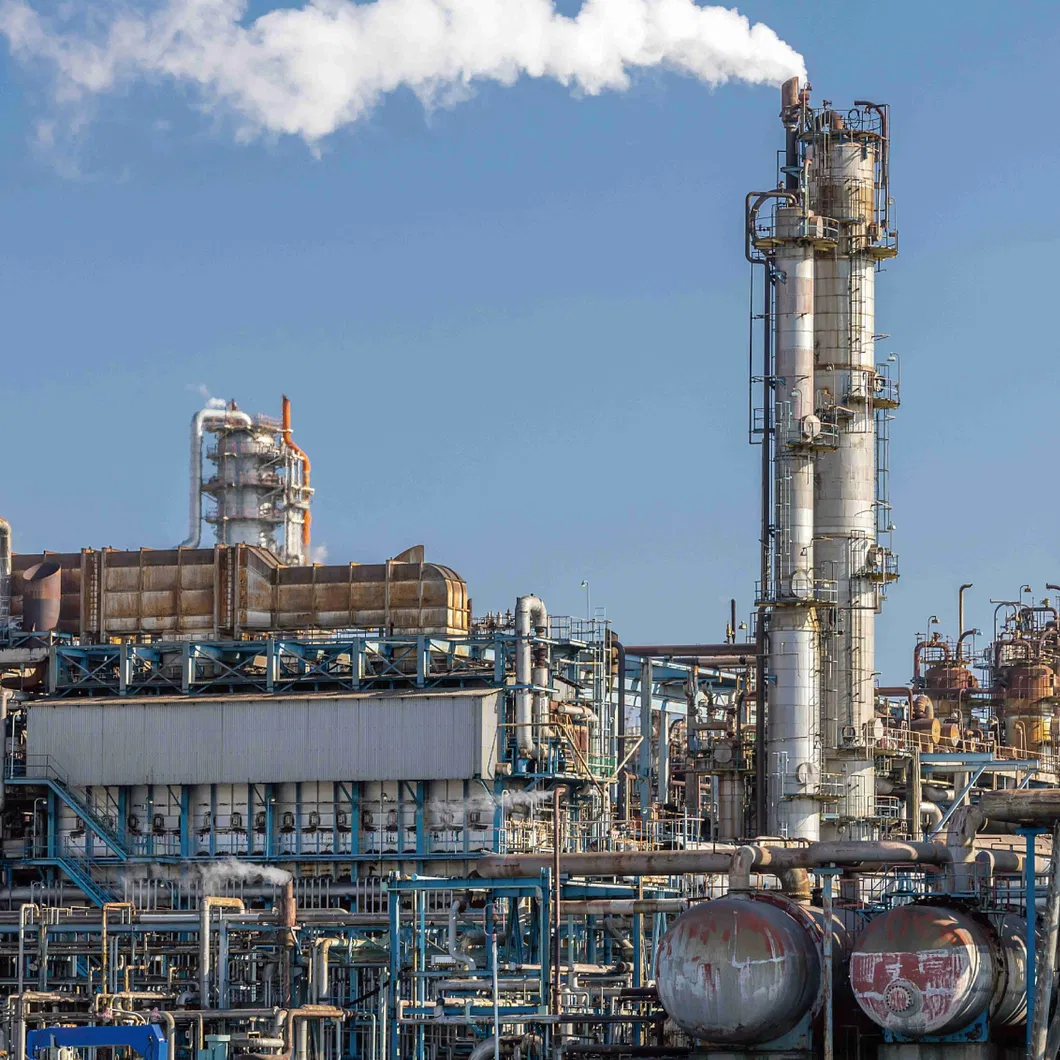

Wastewater treatment, petrochemical, mining, semiconductor, and seawater desalination.

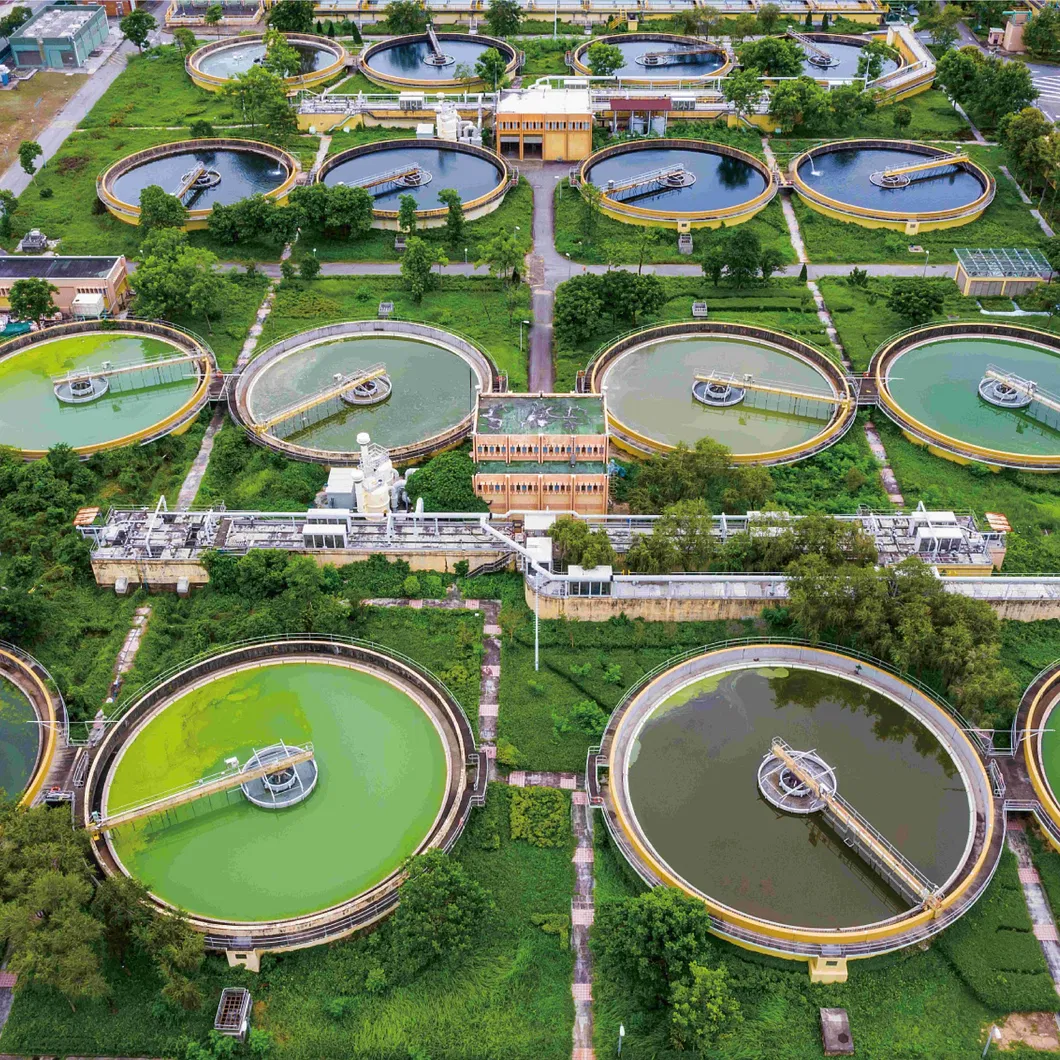

Sustainable treatment of sewage and recovery of reusable materials from effluents.
Desalination for hotels, tourist resorts, and luxury cruise ships.
Ensuring water quality for livestock health and agricultural growth.

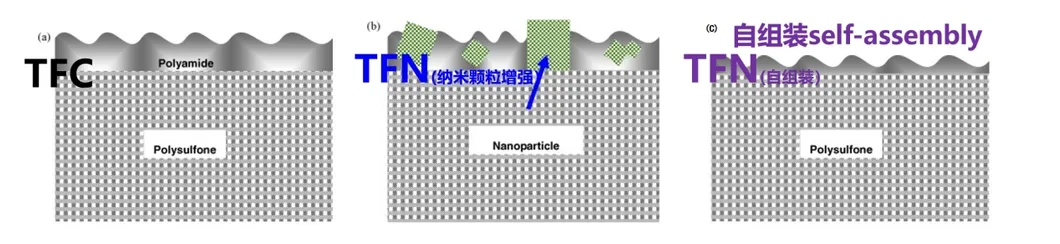

Third-Generation TFN Membrane Technology
Utilizing groundbreaking polymer interface nano-self-assembly technology to shatter traditional reverse osmosis limitations.
Committed to world-class standards including ISO9001, ISO14001, and ISO45001. Our products are RoHS compliant and protected by over 31 invention patents.
