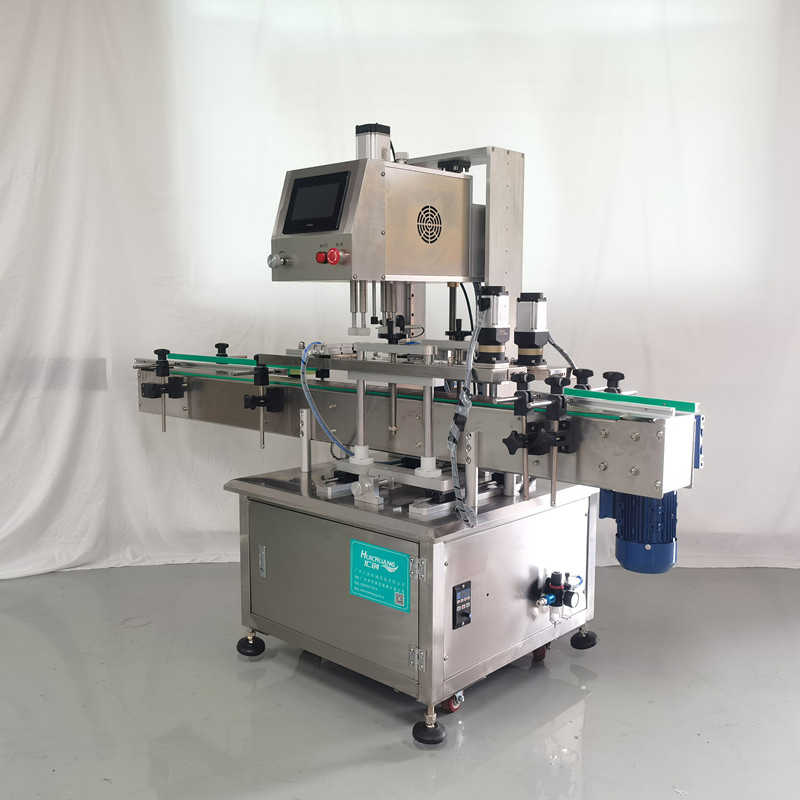

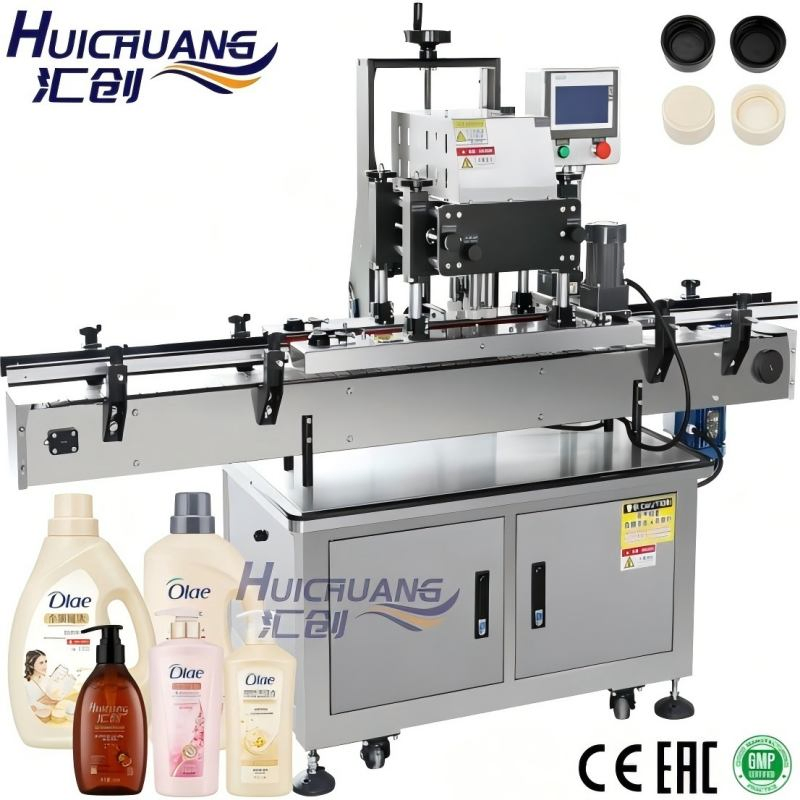

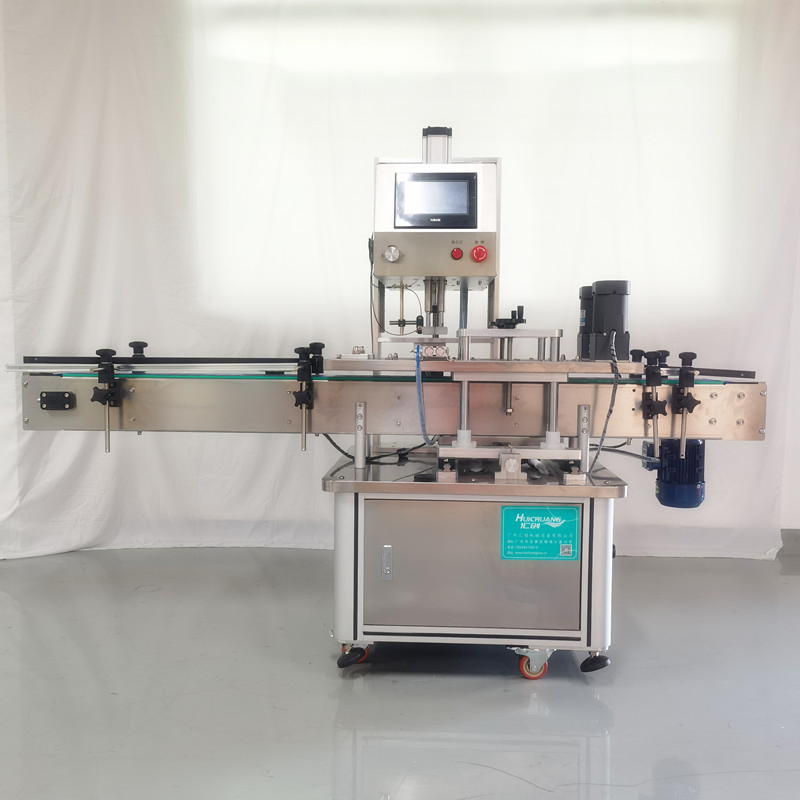

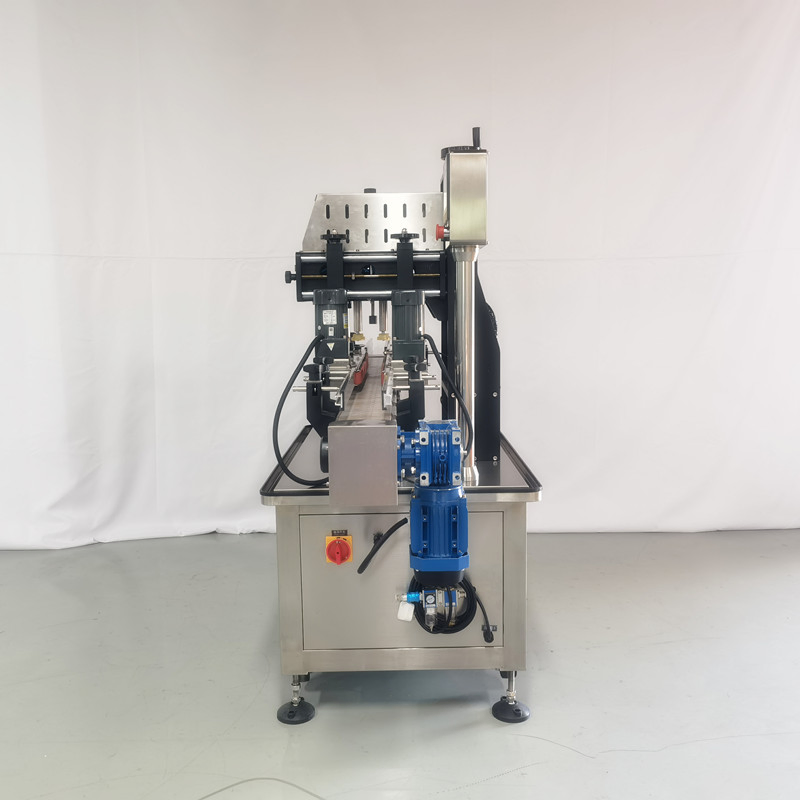

Four Wheel Capping System for Cosmetic Bottle Automatic High Torque Cap Tightening

Customization: Available
After-sales Service: Provide
Warranty: 1 Year

Product Description

⚙ Basic Information
Model NO.
XGJ
Packaging
Bottles
Automatic Grade
Automatic
Type
Cap Sealing Machine
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products
Machine Type
Full Automatic
Speed
0-50bpm
Cap Type
Screw Cap and Press Cap
Specification
50-500ML
Origin
China
📄 Product Description
Factory Direct Supply Bottle Capping Machine:
This Capping machine has high capping speed, high pass rate and easy operation. Applicable to different bottle-shaped screw caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. Four speed-regulating motors are used for cap feeding, bottle clamping, conveying and capping. The machine has a high degree of automation, good stability, and easy adjustment. No spare parts are required when changing the bottle shape or cap, and it can be done by adjusting.
💡 Key Features
  • Apply to all kinds of cosmetic, medicine, veterinary medicine, pesticide, lubricating oil industry capping machine.
  • Flexible modular design of the new combinations of concepts, applicable to various bottle and cap specifications.

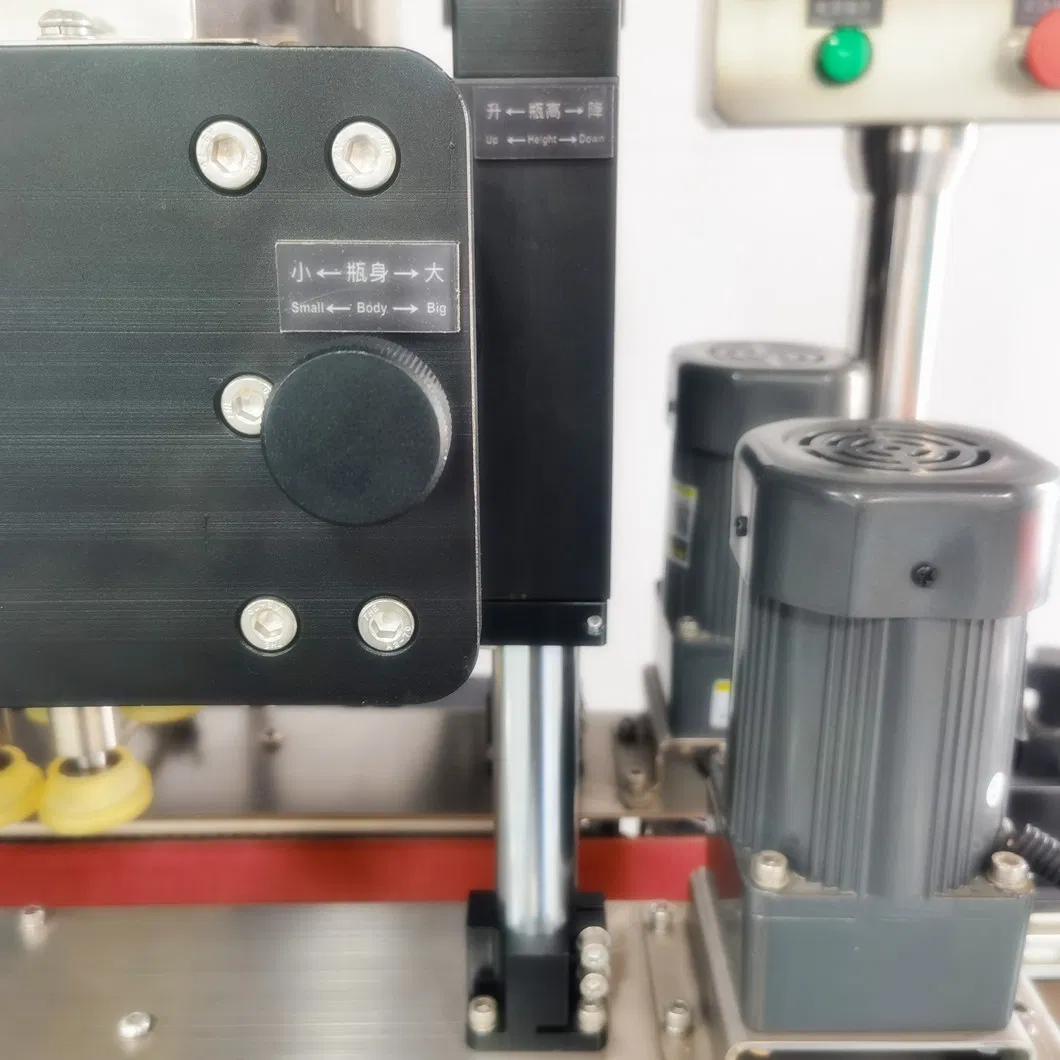

  • Different cap specifications can be simply adjusted without replacing parts.
  • Cap locator ensures the consistency of the direction of the pump cover when exiting.
  • Simple operation, easy adjustment, and low maintenance costs.
  • Torque can be individually adjusted with a clutch device to ensure caps are tightened without damage.
  • Two bottles of clamp ring institutions allow for stable application on tall or firm bottles.
  • Machine designed according to strict GMP requirements.
📊 Technical Parameters
Parameter Specification
Machine nameXGJ Automatic Capping Machine
Capping speed1000-3000 BPH
Speed controlFrequency control
Capping pass rate≥ 99%
Lid Diameterφ18 ~ φ60mm
Bottle sizeDiameter: φ25 ~ φ80mm, Height: 50-300mm
Air pressure0.4-0.8 Mpa
Machine noise≤70dB
Machine dimension2000*900*160mm (L*W*H)
Net Weight230kg
Power supplyAC220 50HZ 1Phase / 1.5Kw

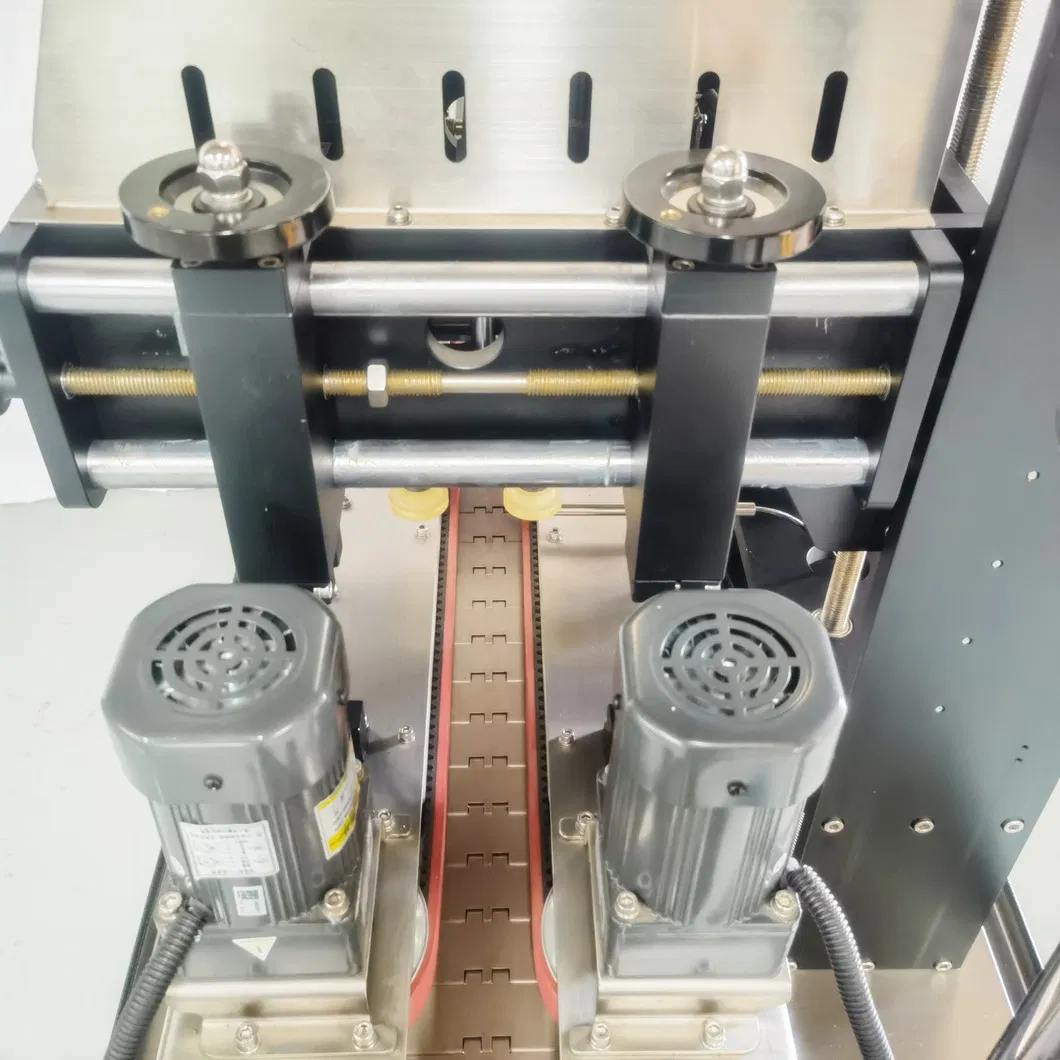

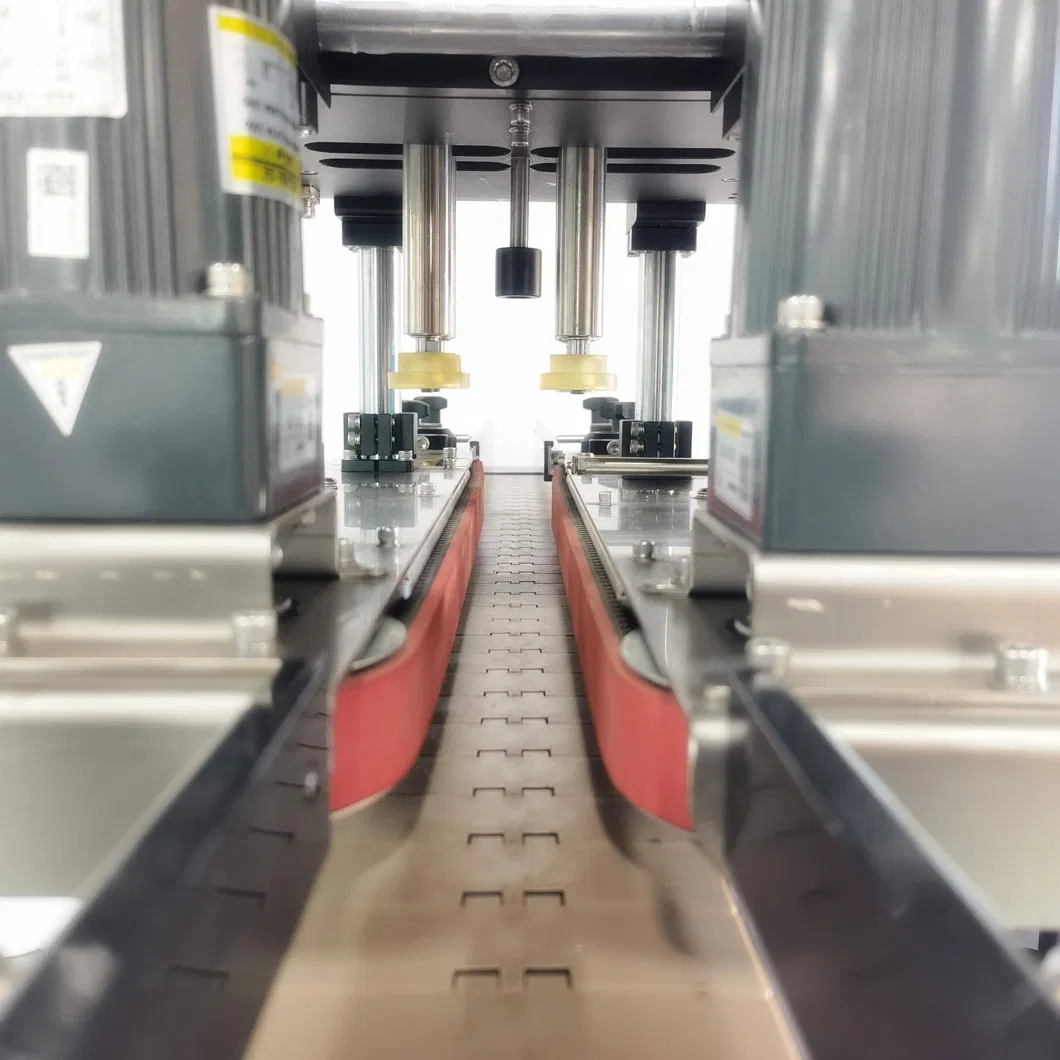

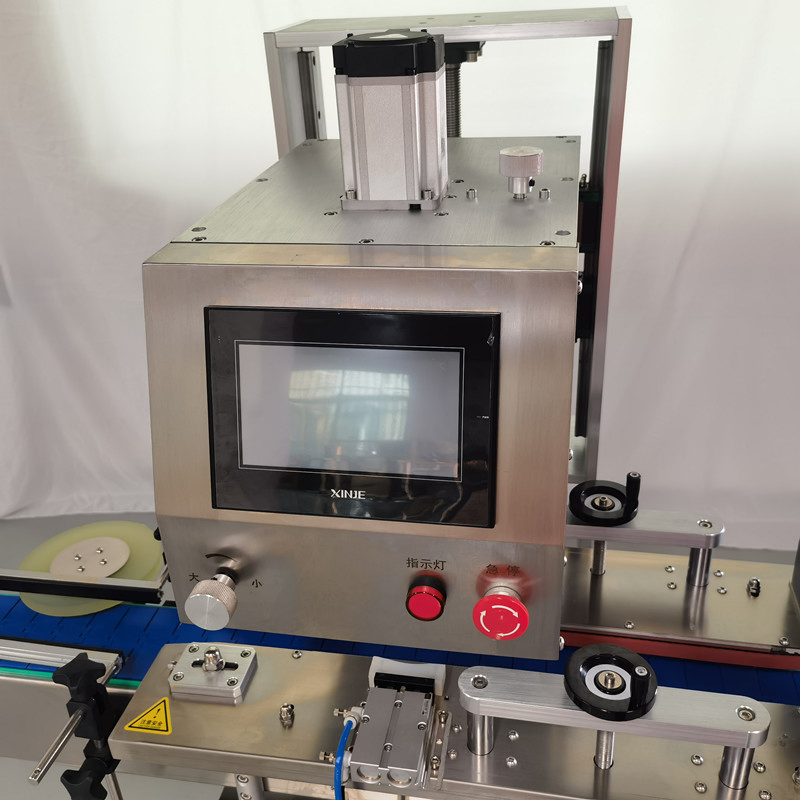

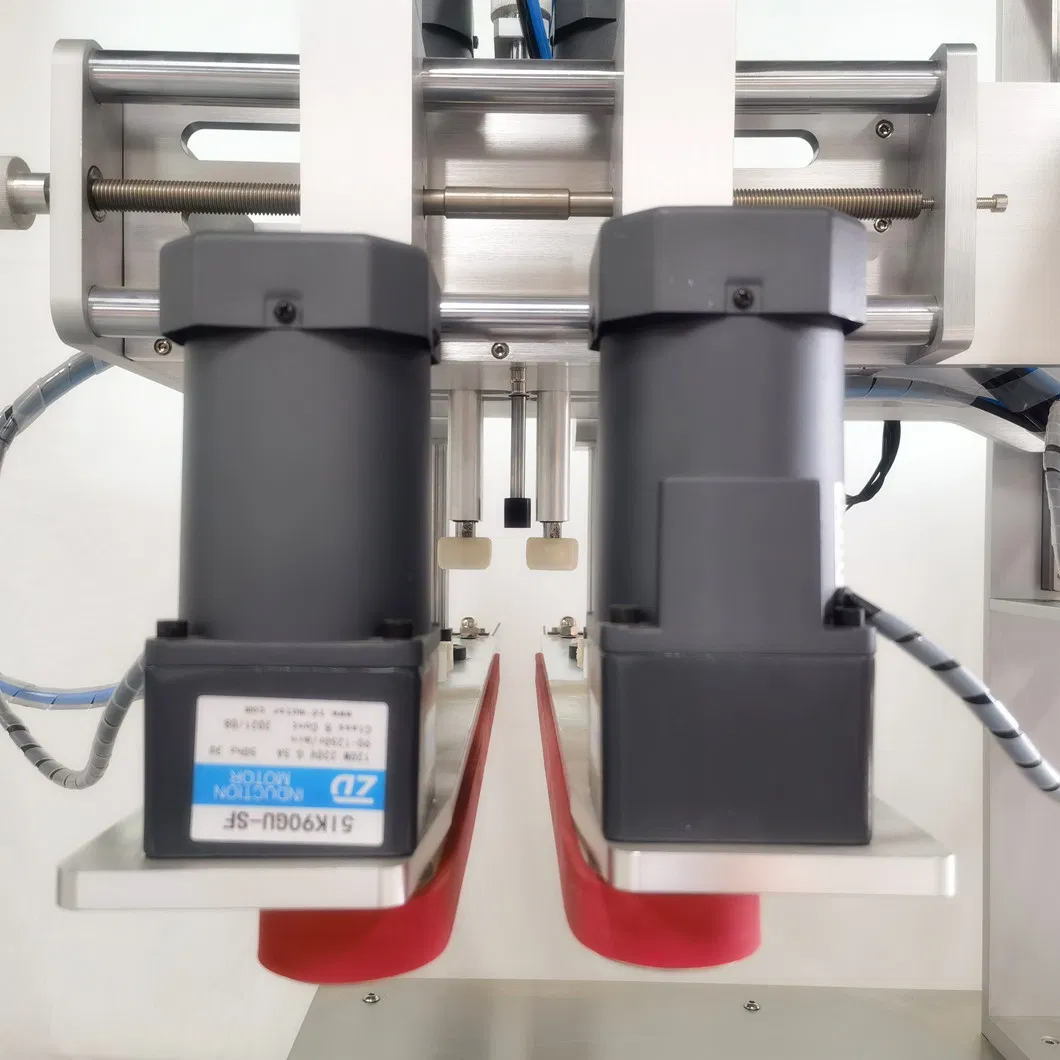

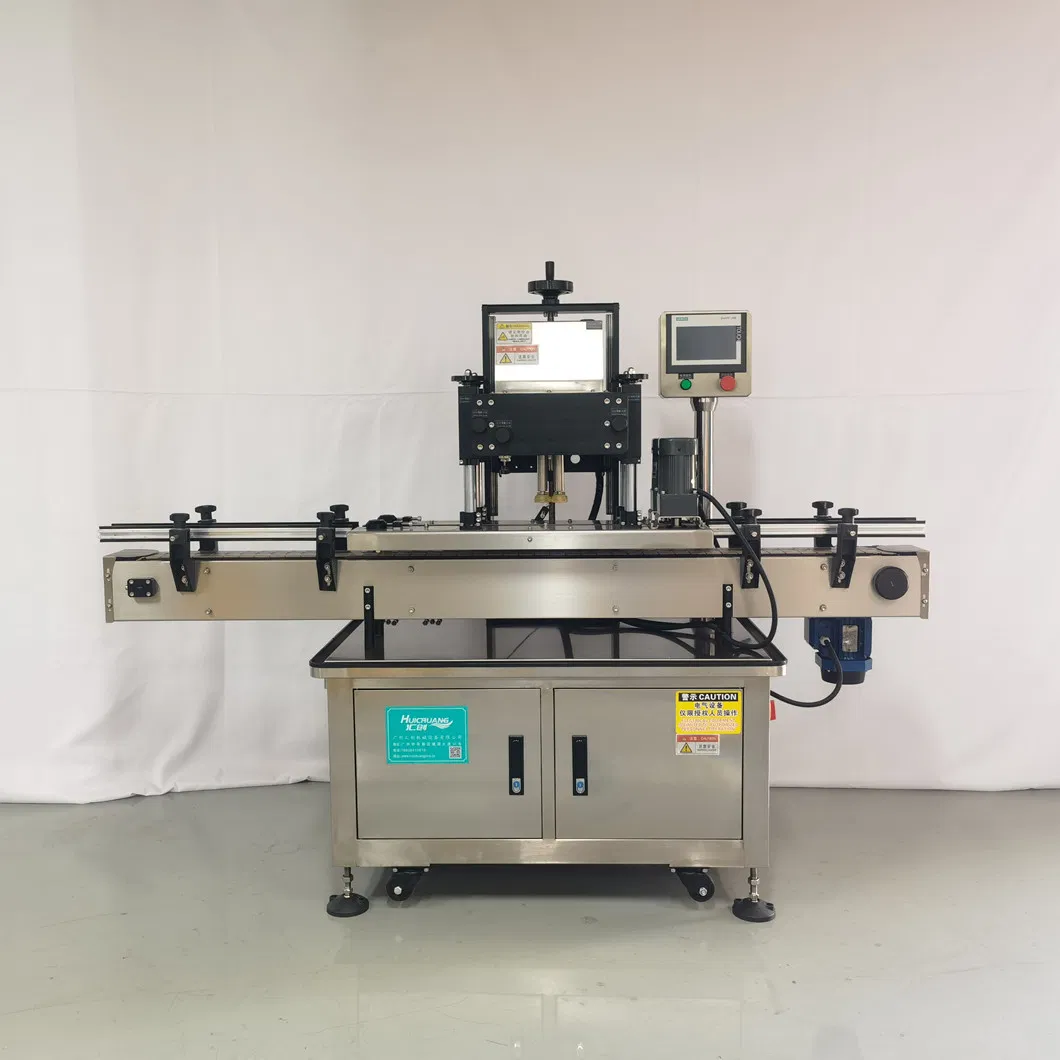

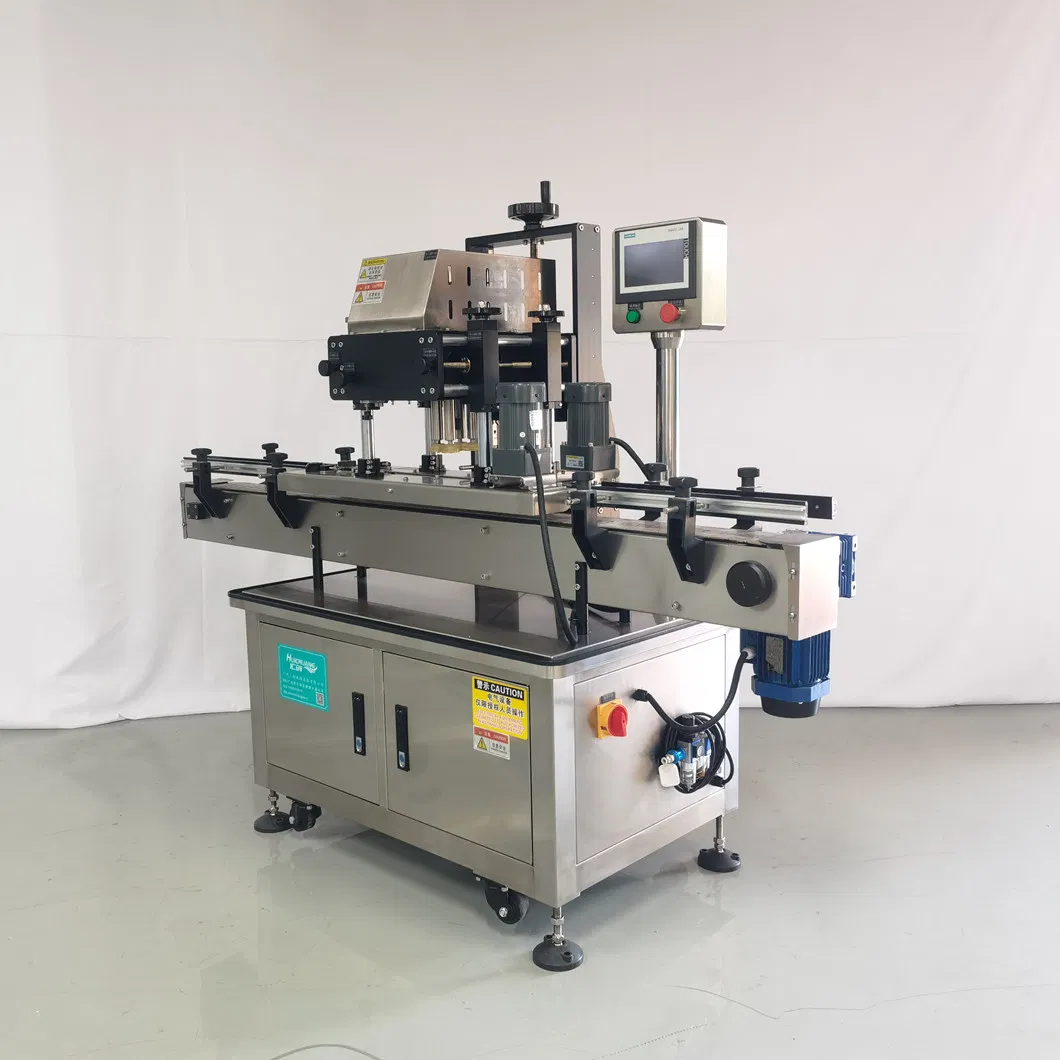

📸 Machine Gallery
🏗 GMP Project & Workshop

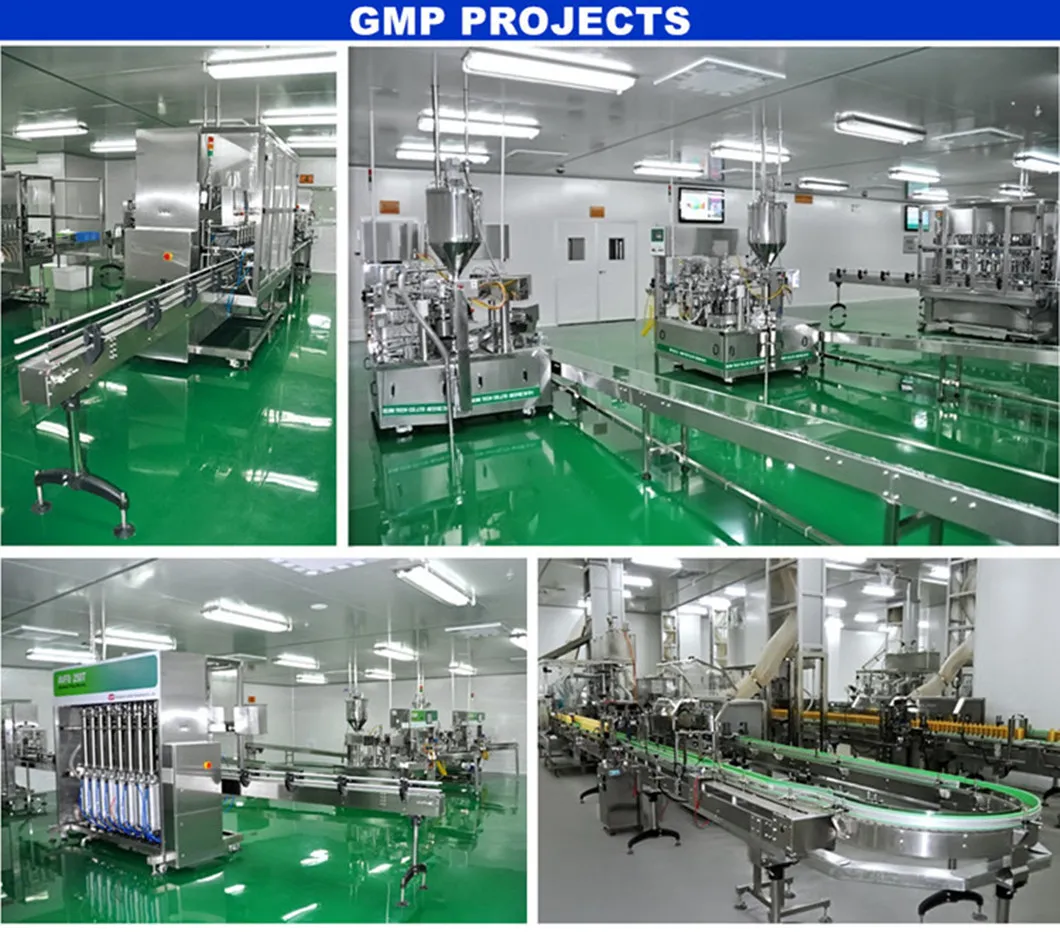

Technical Drawing GMP Project Site Workshop View 1 Workshop View 2 Packaging and Shipping
❓ Frequently Asked Questions
How is the after-sales service for this machine?
We provide a 2-year warranty for large equipment like full automatic capping lines and 1 year for small batch series. Technical support is provided for the machine's lifetime, with free part replacement within the warranty period (excluding error operation).
Is the installation of the automatic capping machine difficult?
Installation is straightforward if the workshop has power and an air compressor. We send engineers for initial setup and training, and provide detailed manual instructions and video/photo support for future needs.
What is the standard lead time for delivery?
Standard machines can be delivered within 35 days. For customized OEM requirements, the lead time typically ranges between 40 to 50 days.
How do you ensure the quality of the machinery?
Our dedicated QC department strictly controls quality at every stage. All machines undergo testing during production and a final test before packaging in strong wooden cases for safe delivery.
What additional services are provided?
We offer a 24-hour service hotline, machine commissioning, maintenance training, and a one-stop service for workshop decoration and equipment selection.
Can the machine handle different bottle shapes?
Yes, the flexible modular design allows it to be adjusted for various bottle shapes and cap types without needing to replace parts in most cases.
