Food Grade Batch Stainless Steel Tank System

1 / 5

Food Grade Batch Stainless Steel Tank System

Customization:	Available
After-sales Service:	Online Service
Warranty:	One Year

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

Process

Thermal Processing

Power Source

Electric

Certification

CE, MET, SA8000, ISO9001

Automatic Grade

Automatic

Application

Milk, Yogurt, Milk Powder, Cheese, Fruit Juice

Type

Jacketed/ Double Wall

Material

Stainless Steel 304 /304L /316/316L

Surface Treatment

Inside Mirror and Outside Polished

Heating

Steam / Water / Electric /Gas

Insulation

50mm Polyurethane Foam

Working Life

10 Years or More

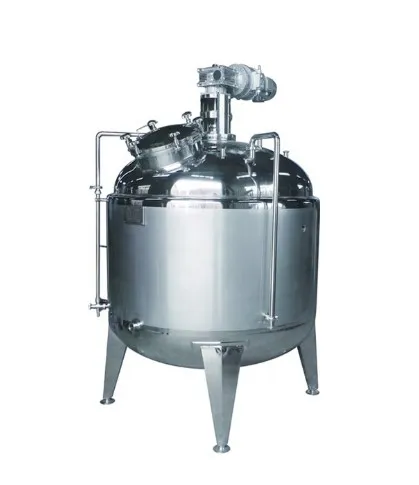

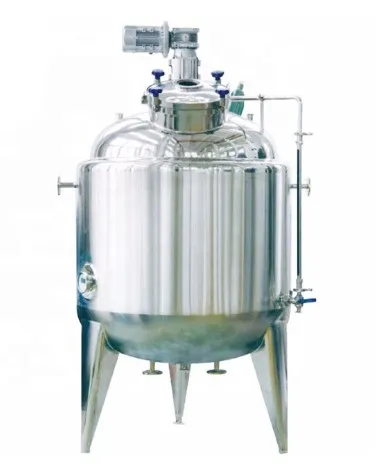

🛠️ Product Overview

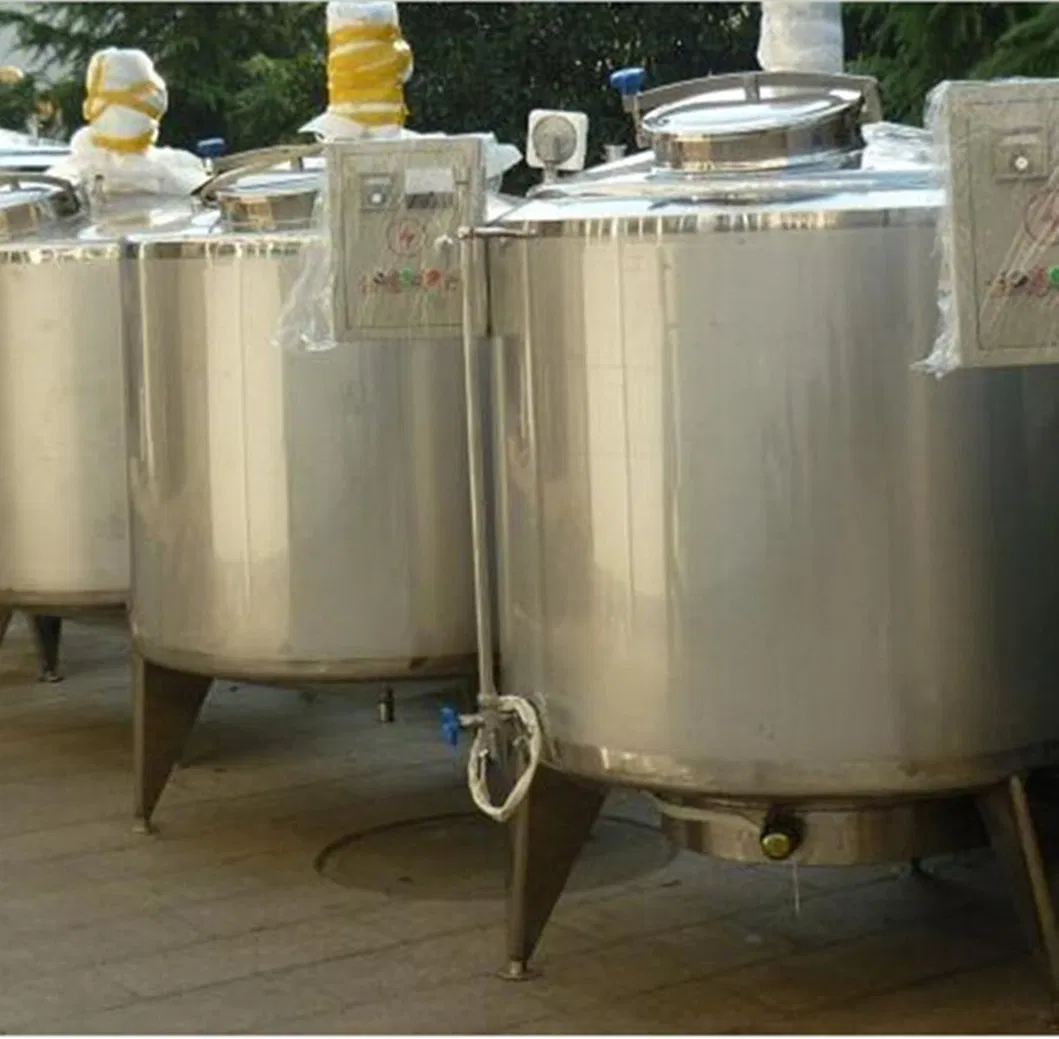

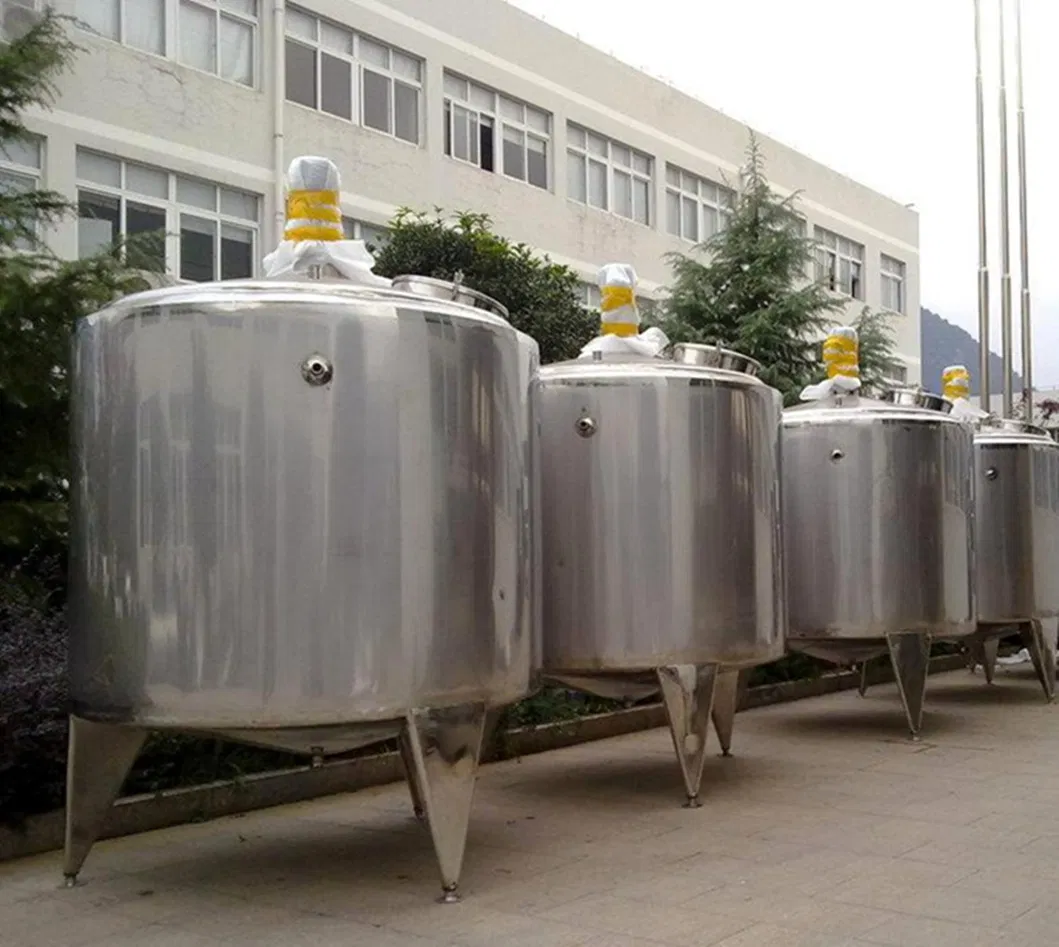

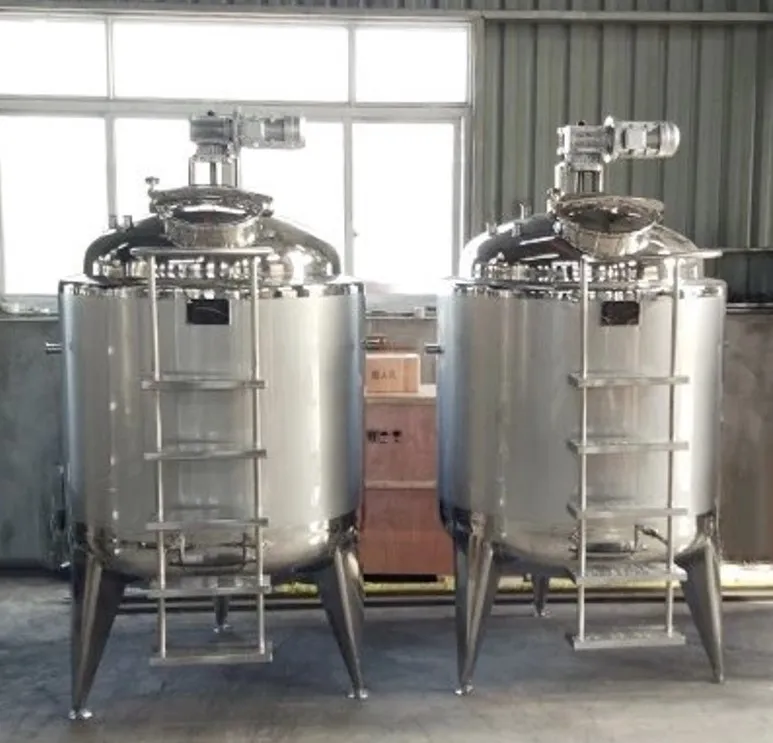

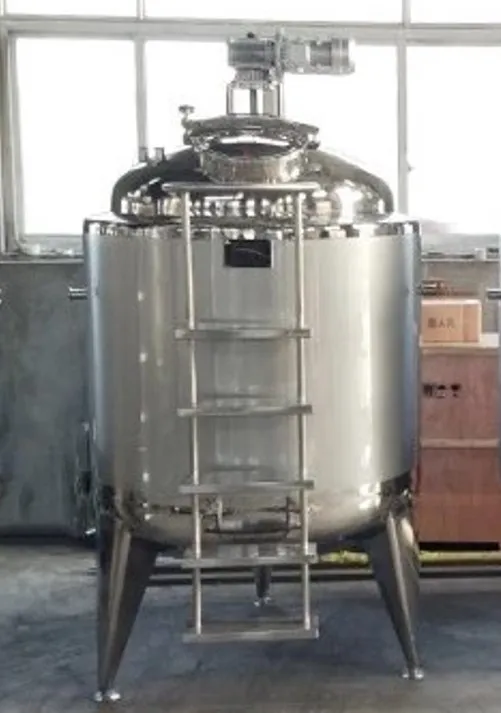

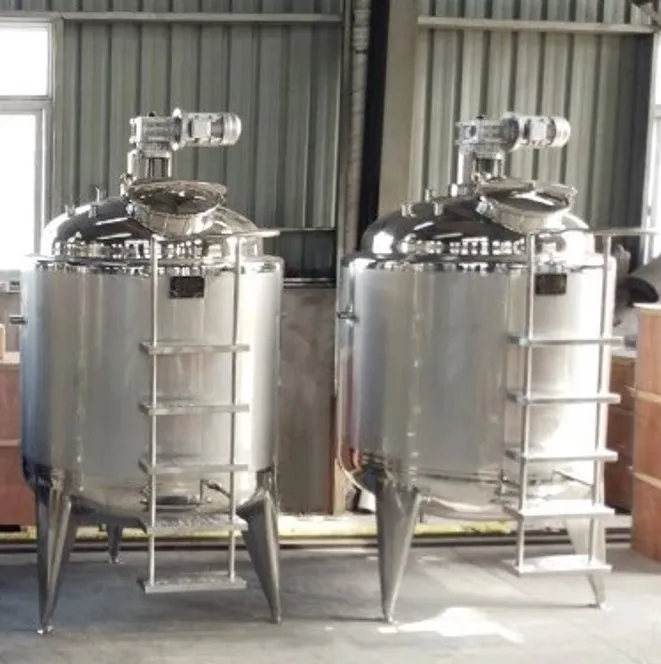

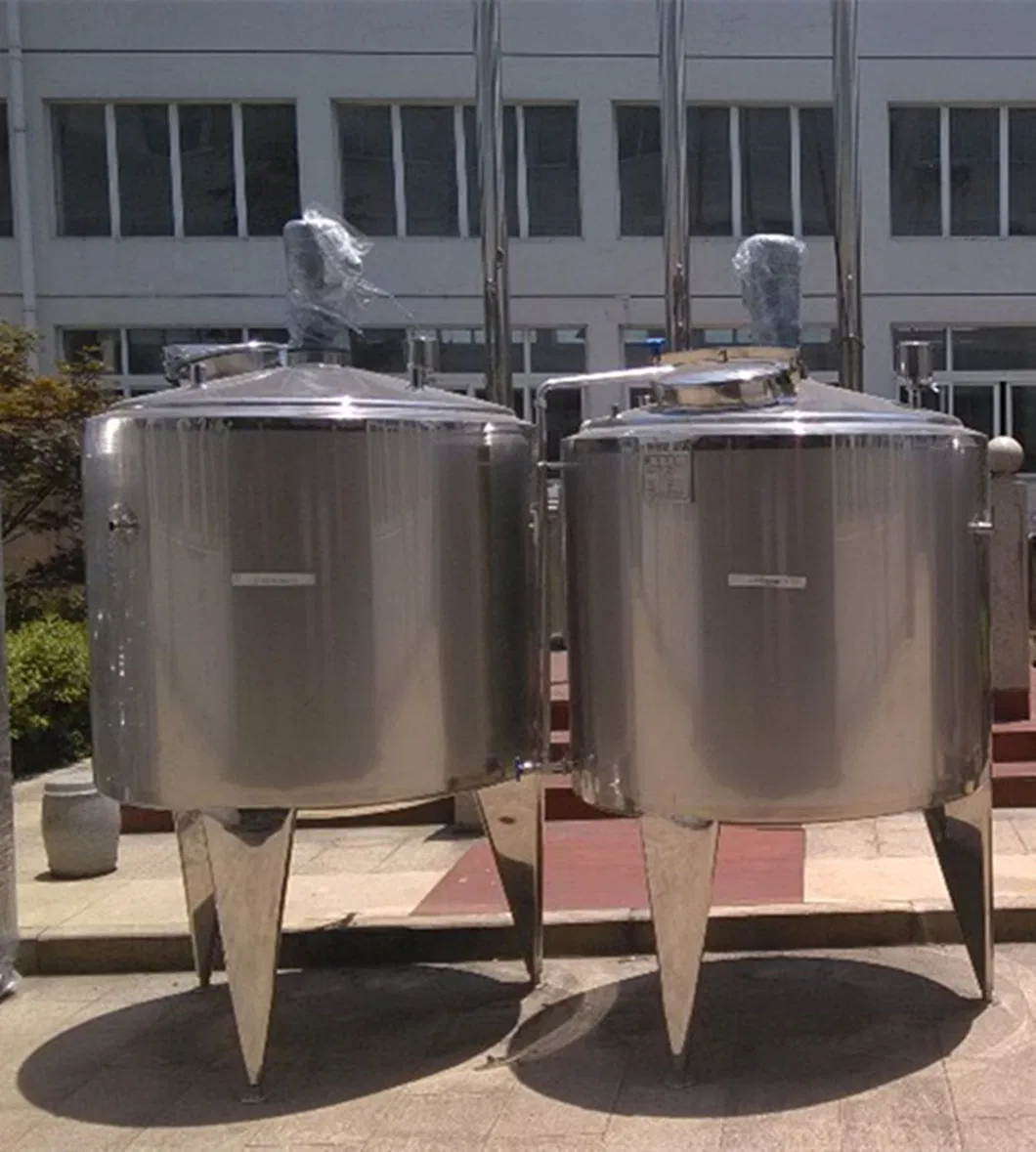

The Food Grade Batch Stainless Steel Tank System is mainly used for heating, mixing, pasteurizing, fermenting, preserving and storing fresh milk or other fresh liquid. It's the ideal heating, mixing pasteurizing and storage equipment for pasture, milk station, milk, and food and beverage factory and pharmacy industry.

✨ Key Features

Multi-Heating Options: Supports Electricity, Steam, Water, or Gas.
High-Quality Material: SUS304 or SUS316L with mirror-polished interior.
Advanced Insulation: 50mm Polyurethane foam for optimal temperature retention.

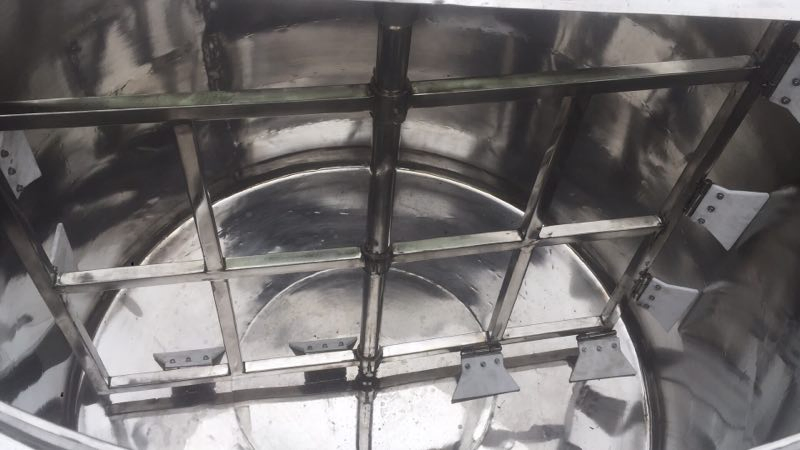

Versatile Blending: Single or double-direction wall scraping blending systems.
Automatic Control: Electric cabinet for supervising temperature and rotation speed.
Durable Design: Ellipsoidal head top and bottom with a 10+ year working life.

📊 Technical Parameters

Tank Capacity (L)	200, SS304	300, SS304	500, SS304	1000, SS304
REV (Mixing Speed)	36r/min	36r/min	36r/min	36r/min
Agitator Motor	0.55KW, 380v, 50hz	0.75KW, 380v, 50hz	0.75KW, 380v, 50hz	1.1KW, 380v, 50hz
Electric Heating Power	15KW, 380v, 50hz	18KW, 380v, 50hz	24KW, 380v, 50hz	45KW, 380v, 50hz
Heating Area (M2)	0.9	1.1	1.9	4.5
Input/Output (DN MM)	38	38	38	50
Dimension (LWH) MM	9009001600	100010001500	110011001700	140014001750

Frequently Asked Questions

What materials are used for the tank construction?

The tanks are made of imported high-quality SUS304 or SUS316L stainless steel. The body and pipes are subjected to mirror polishing for hygiene and food safety.

What types of heating methods are supported?

Our system is versatile and can be configured for Electric heating, Steam heating, Water heating, or Gas heating depending on your facility's requirements.

Can the mixing speed be adjusted?

Yes, the blending system features frequency conversion speed adjustment, allowing you to control the rotation speed (e.g., 36rpm, 48rpm, or up to 1400rpm) based on your product needs.

What industries can use this tank system?

It is ideal for dairy (milk, yogurt, cheese), beverages (fruit juice), cosmetics (creams, detergents), pharmacy, and general chemical industries for mixing, pasteurizing, and homogenizing.

How effective is the temperature insulation?

The tanks feature a jacketed design with a 50mm Polyurethane foam insulation wall, which provides excellent thermal retention for both heating and cooling processes.

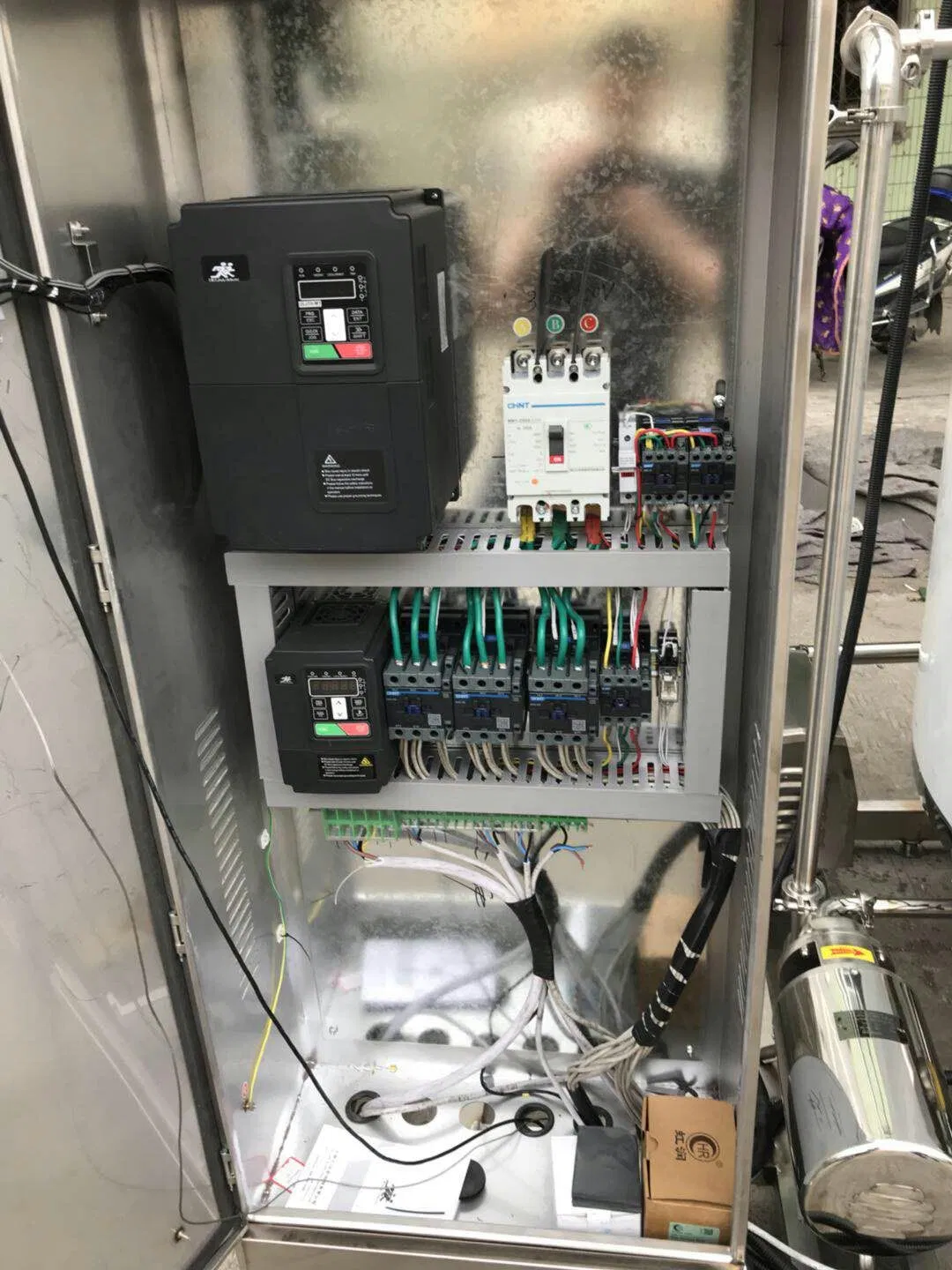

Does the system come with a control unit?

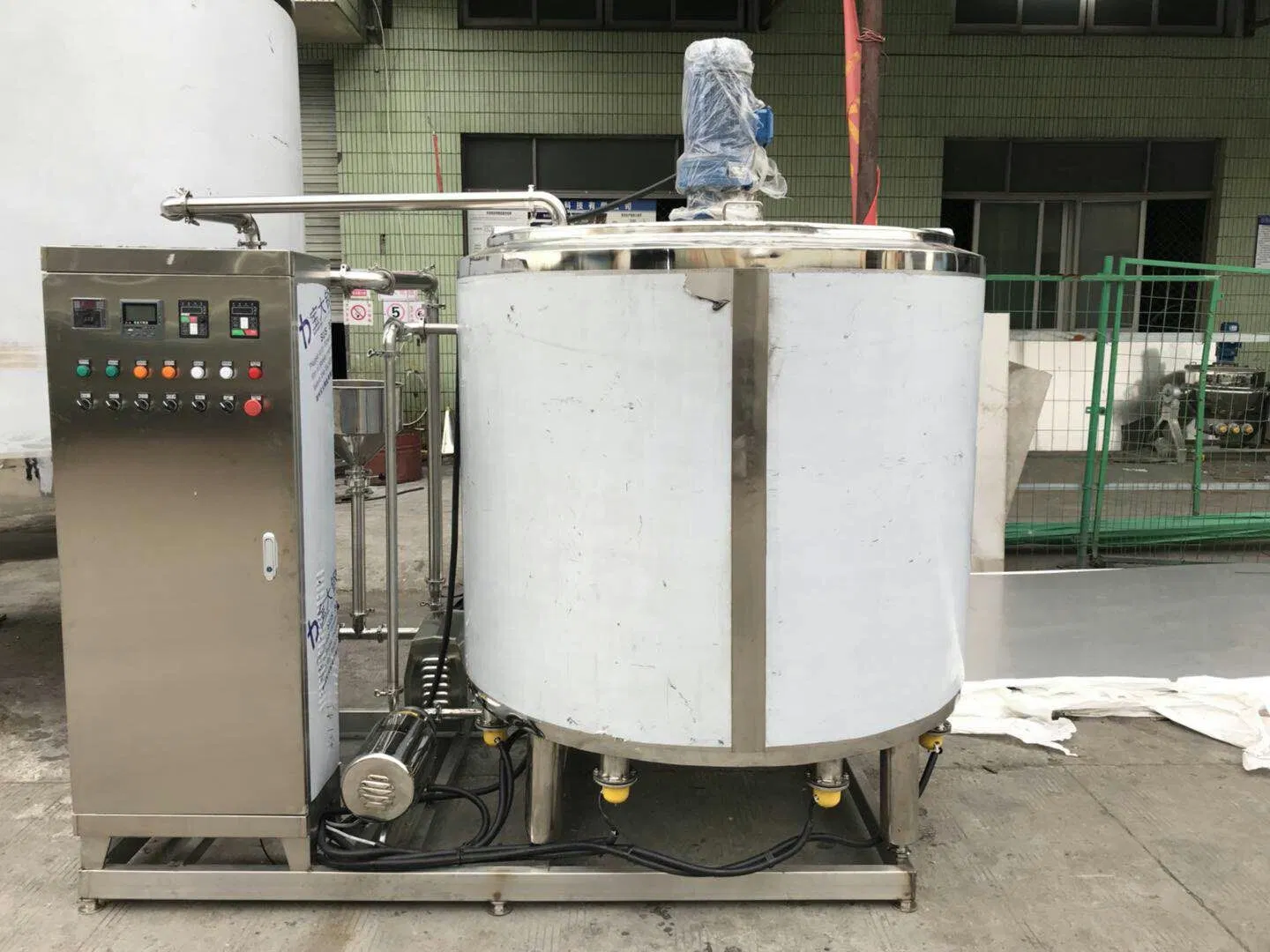

Yes, it includes a stainless steel electric control cabinet that allows operators to supervise the entire operation, displaying real-time data like temperature and blending speed.
