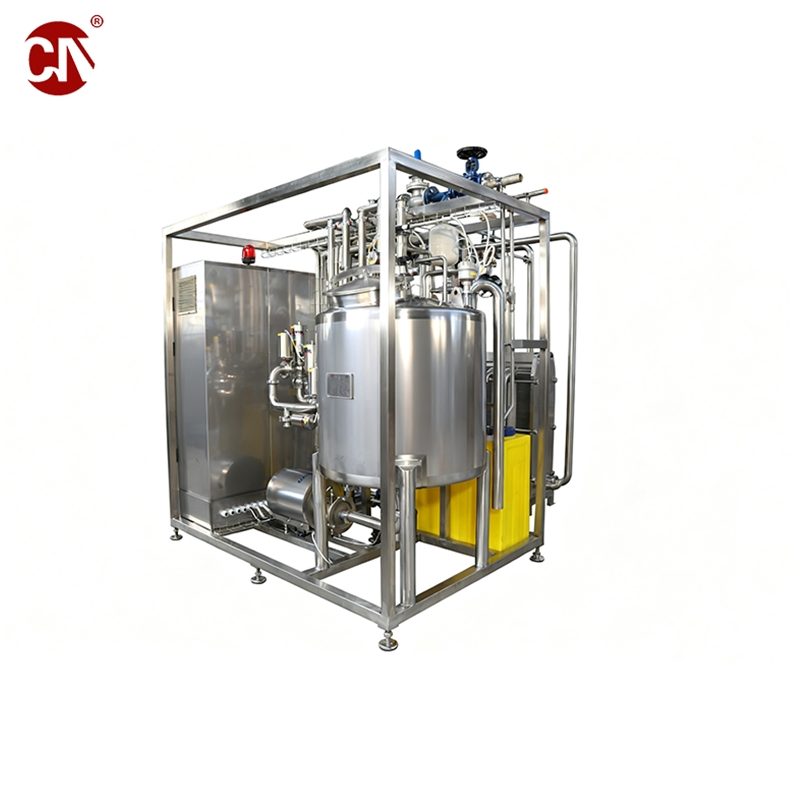

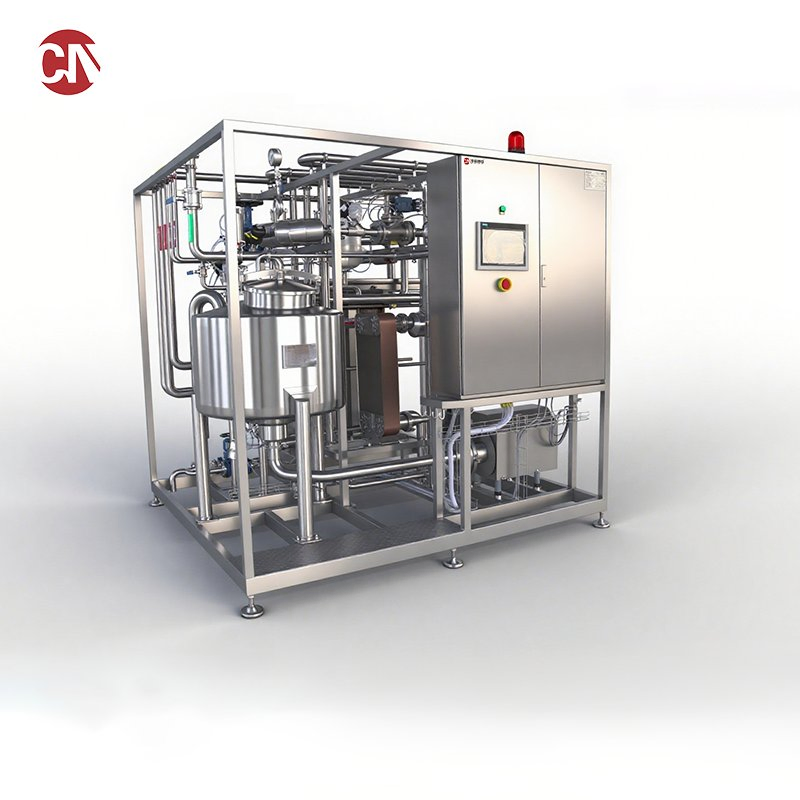

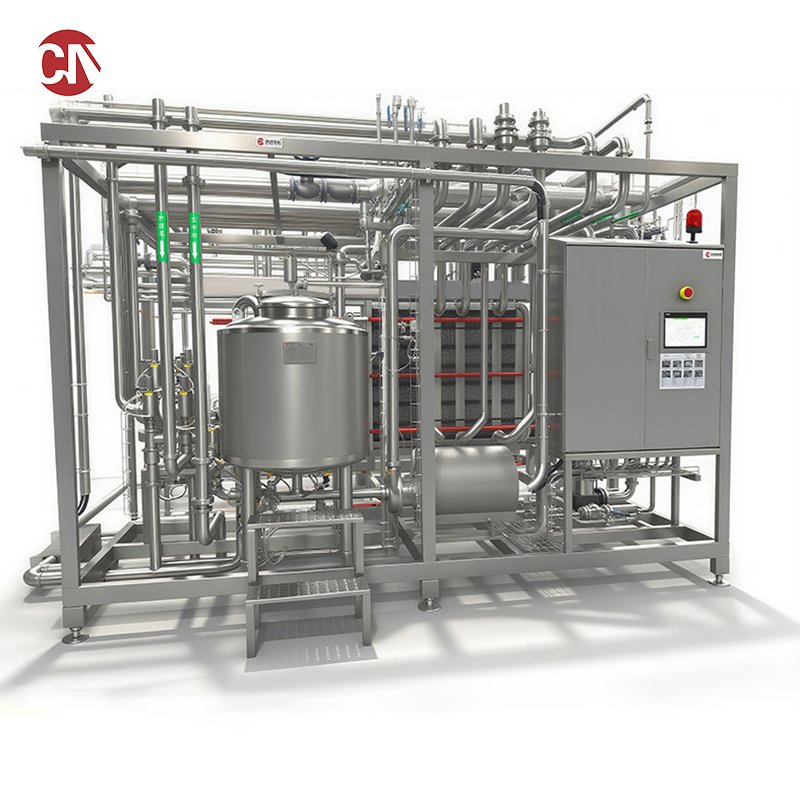

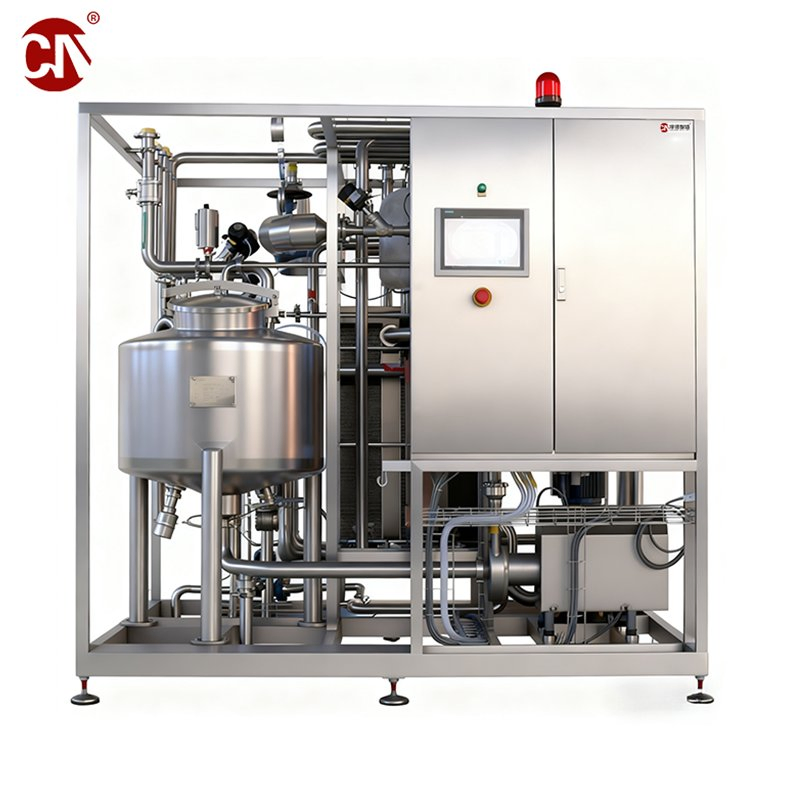

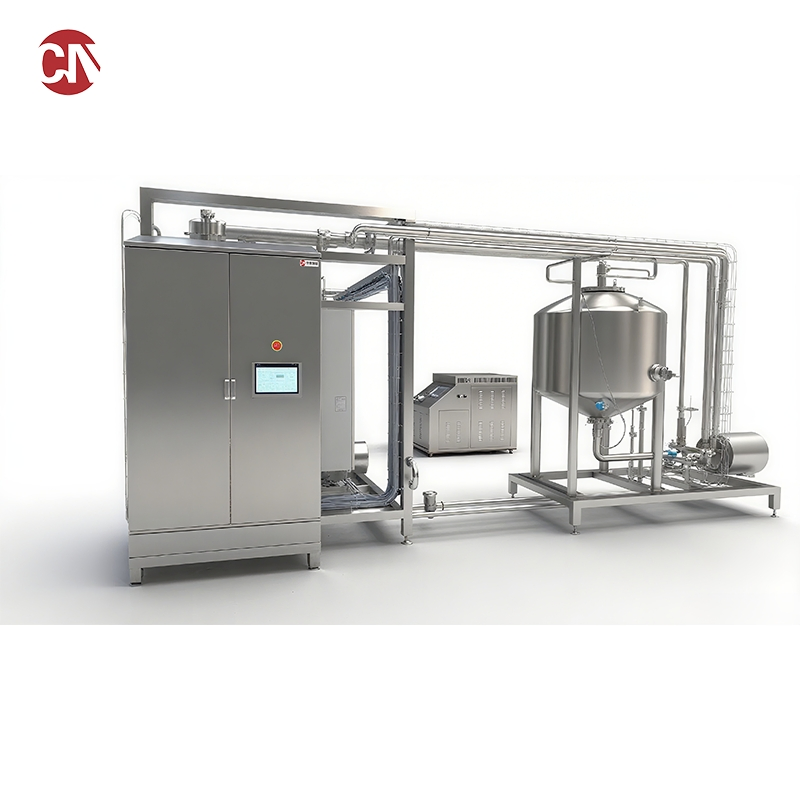

Basic Specifications
Model NO.Pasteurizer
AutomationAutomatic
CertificationCE, FDA, EEC, ISO13485
OperationContinuous
EnergyHeat Sterilization
Capacity1000LPH - 4000LPH (Customized)
Power Supply380V/50Hz (Optional)
MaterialSUS316L / SUS304
Main Features & Advantages
✔Versatile for liquid food like Yogurt, Milk, and Juice.
✔Easy to operate and simple maintenance/cleaning.
✔Fully automatic sterilization and control system.
✔High precision temperature control (within ±0.5ºC).

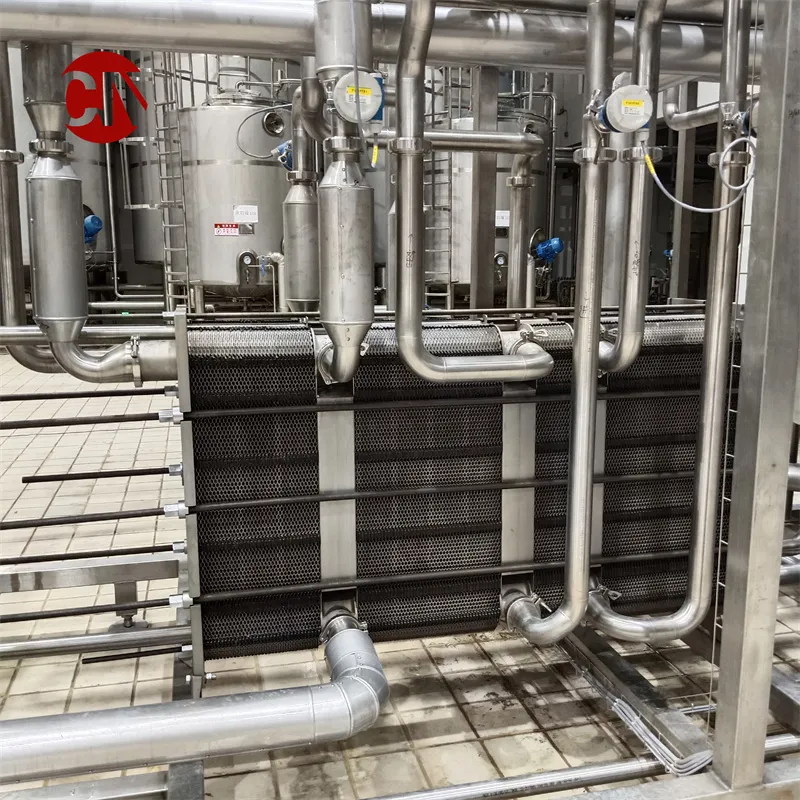

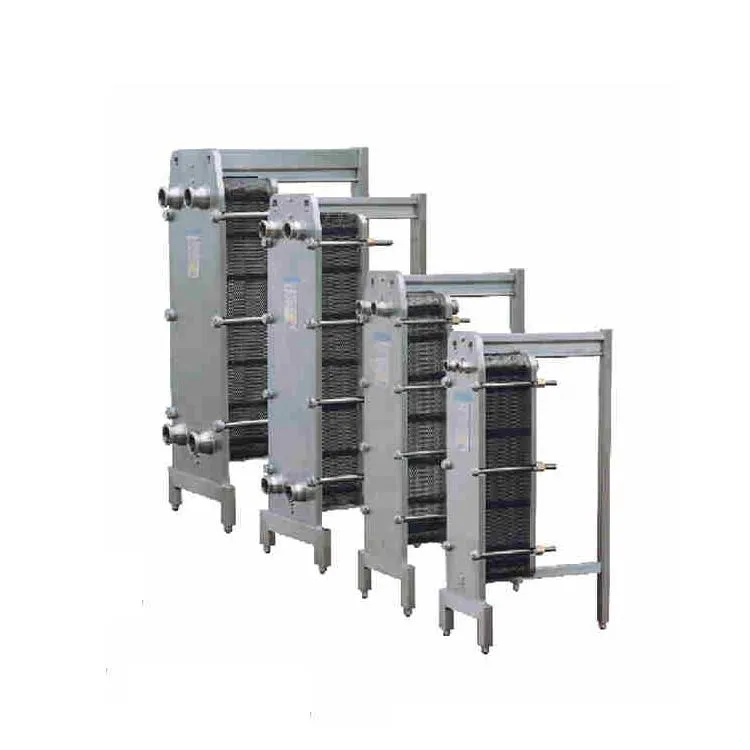

✔Efficient heat exchange for superior energy saving.
✔Built-in CIP (Clean-in-Place) system for hygiene.
Technical Parameters
| Handling Capacity |
1000L/H |
Inlet Temperature |
45~60ºC |
Power Supply |
380V 50HZ |
| Sterilization Temp |
85~88ºC |
Steam Consumption |
~300KG/h |
Holding Time |
15~30S |
| Outlet Temperature |
2~15ºC |
Cooling Water Req. |
≥4000L/H |
Plate Material |
SUS316L |
| Compressed Air |
≥0.5Mpa |
Weight |
2000KG |
Dimensions |
2200*1800*2500 mm |
Operating Requirements:
• Material Viscosity: <4000cp | Solid Content: 12%~50%
• Control: PLC Automatic Control with Touch Screen (English/Chinese)
• Safety: Equipped with automatic alarm and fault handling system
• Hygiene: Fully compliant with GMP standards for food production
Processing Line Solutions

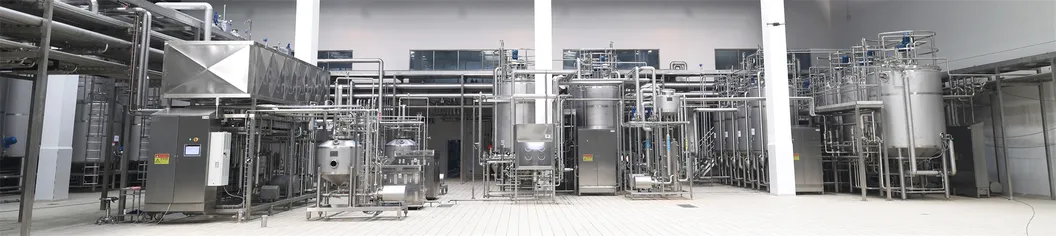

20 Ton/Hour Milk & Yogurt Production Line

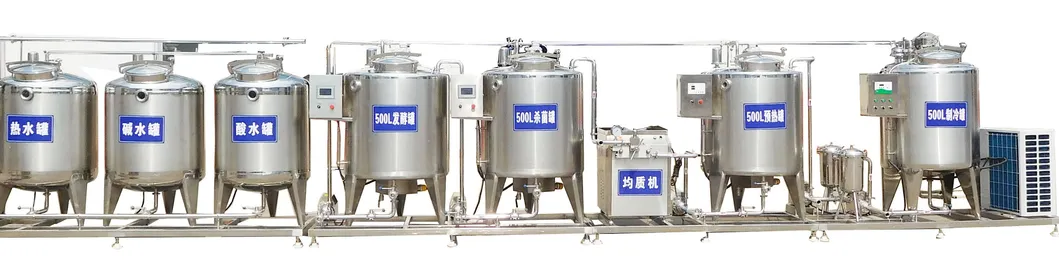

500L Milk or Yogurt Production Line
Exhibition & Certifications

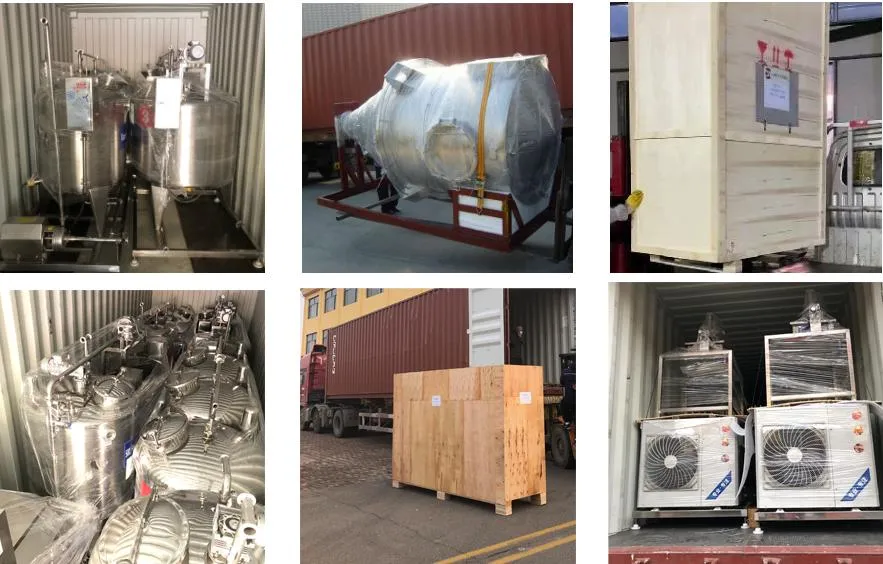

Packaging & Shipping
All equipment is securely packed in professional export-grade wooden cartons to ensure safe transit to your facility.
Frequently Asked Questions
Do you have reference projects in my country?
We have reference projects in many countries. With customer permission, we can share contact information so you may visit their factory or provide videos of our machines in operation.
Do you provide overseas after-sales service?
Yes, our engineers are available for overseas travel to provide installation, commissioning, and after-sales support at your site.
Can the machines be customized?
Absolutely. We design machines based on your specific requirements including material type, power specifications, filling types, and bottle designs.
What is the warranty period?
We provide high-quality machines with a 1-year guarantee and offer lifelong technical support to ensure your production stays efficient.
How long does the installation take?
Depending on the order complexity, installation and commissioning usually take between 10 to 25 days with one or two of our professional engineers.
What materials are used for food contact parts?
All food contact surfaces are manufactured using high-grade SUS316L or SUS304 stainless steel, fully complying with GMP food safety standards.
