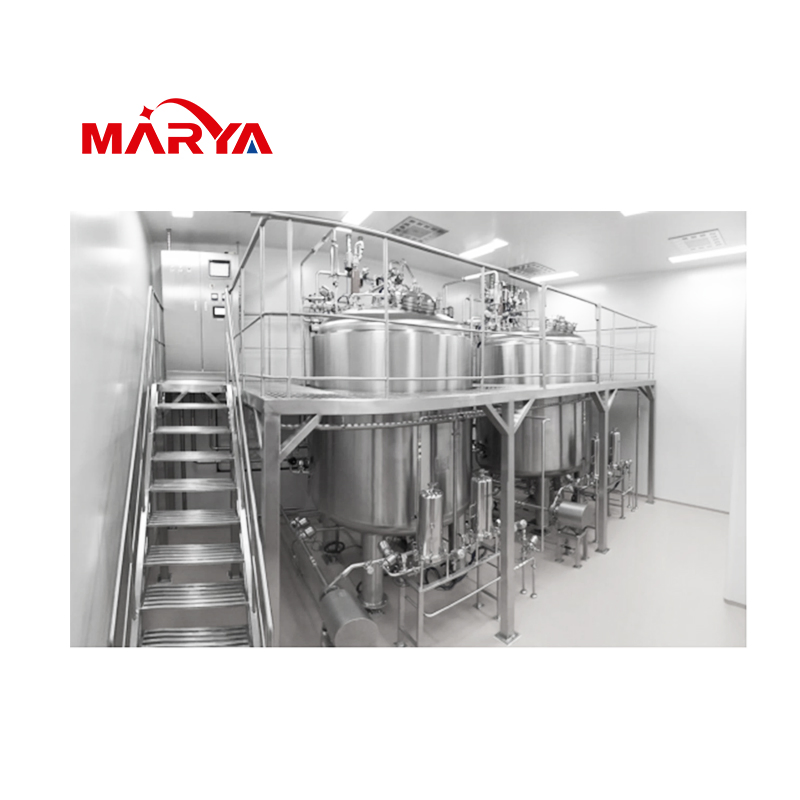

Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
1 / 5
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier
Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier

Marya Industry Liquid Formulation Compounding System with Precision Blending Supplier

Customization: Available
Application: Biotechnology Industry, Chemical industry, Clinical Diagnosis, Food & Beverage Factory, Food Safety, Forensic Science, Pharmaceutical Industry
Capacity: 20000 L/hr
Send Inquiry

Product Description

Basic Specifications
Model NO.
MY-FS
Certification
CE, FDA, GMP, ISO
Control System
Fully Automatic
Treatment Process
Filtration, Ultrafiltration
Warranty
1 Year
Power Supply
380V 50Hz
Tank Material
Stainless Steel 316L
Protection Levels
IP65
Origin
China
Product Introduction

The high-performance formulation system adopts a meticulously designed mechanism for precision blending. It not only streamlines production processes but also significantly enhances the quality of the final products. With its ability to deliver optimal results time and time again, it empowers manufacturers to stay ahead of the curve and meet the ever-evolving demands of the market.

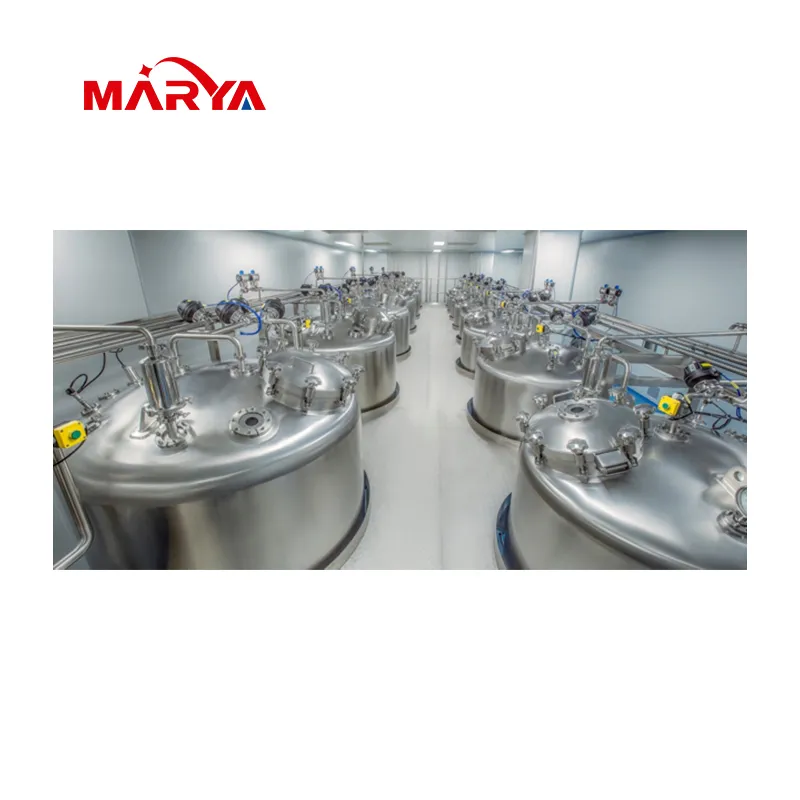

Formulation Compounding System 1

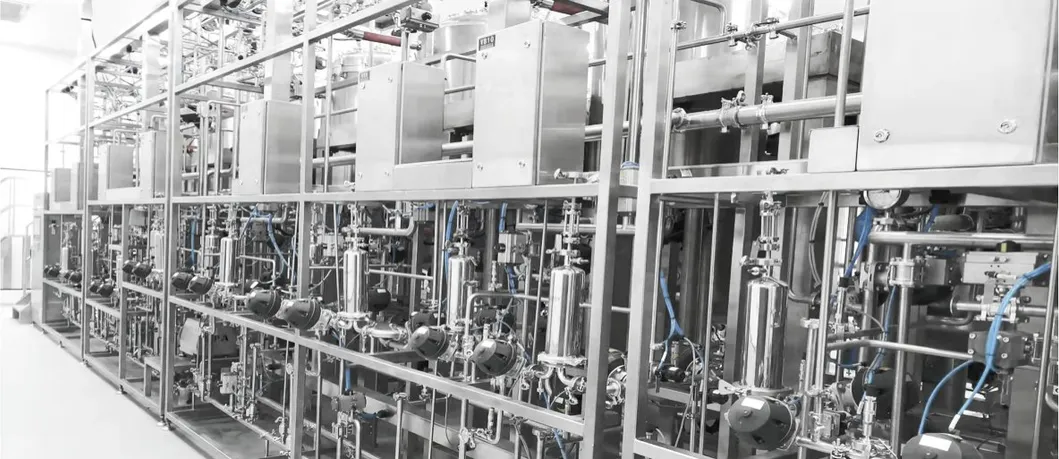

Formulation Compounding System 2
System Classifications
1. General Formulation System Used for preparations with complex processes such as suspensions, emulsions, liposomes, and microspheres.
2. Complex Formulation System Specifically engineered for high-complexity special preparations and sensitive emulsions.
3. Biological Formulation System Ideal for biological engineering products, including antibodies, vaccines, blood products, and recombinant proteins.
4. CIP Station System Assists in on-line cleaning of tanks and pipelines, available as a separate or integrated control system.
Core Features
  • Modular Design: Fully automatic system with convenient installation and maintenance.
  • Compliance: Follows ASME BPE and GMP concepts; meets 3D blind corner requirements for low residue.
  • Intelligent Control: One-key CIP and SIP operation with electronic signature and audit tracking.
  • High Precision: Controllable production parameters (Temp, pH, Dissolved Oxygen) with automated alarm systems.

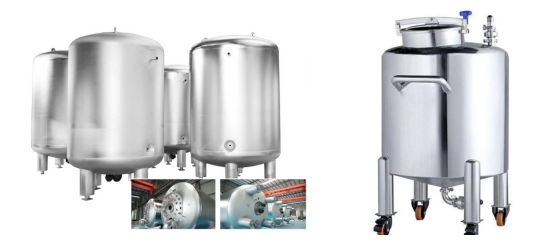

  • Quality Materials: 316L stainless steel tanks (2L to 15000L) with Ra < 0.4μm and electrolytic polishing.
  • Advanced Filtration: Sterilizing-grade PES liquid filters resistant to pH 1-14 and temperatures up to 150ºC.
Technical Parameters
Parameter Name Specification Details
Working Volume2 ~ 15000 L
Stirring Speed AccuracyRange 0~450rpm (±3.0%)
Temperature AccuracyRange -10~150ºC (±0.2ºC)
Pressure AccuracyRange -0.01Mpa~0.06Mpa (±0.01MPa)
Weighing Accuracy3‰
Tank MaterialStainless Steel 316L
Protection ClassIP65
System Details & Components

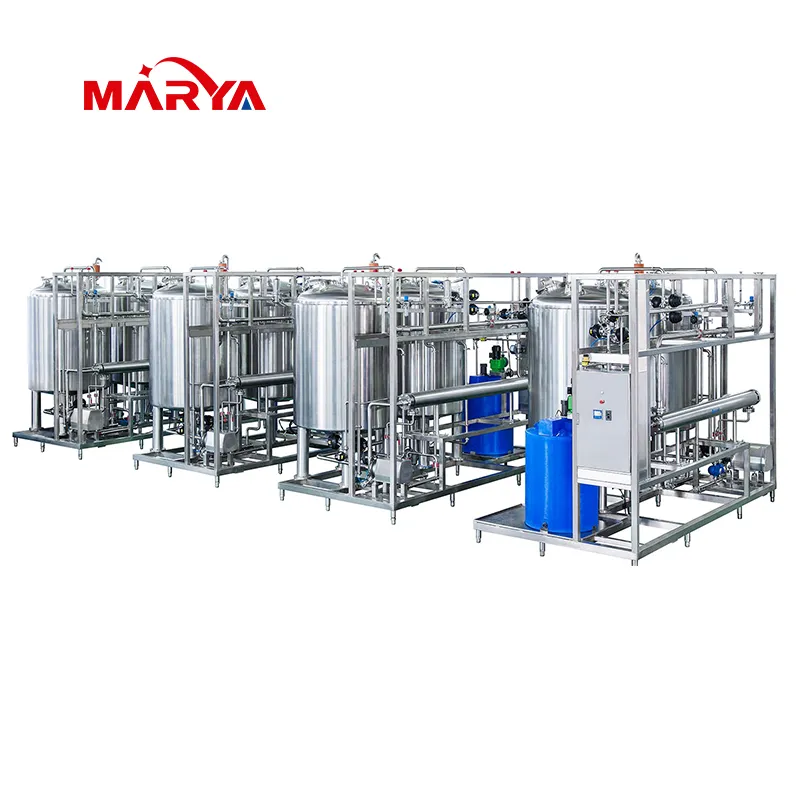

Component 1
Component 2
Component 3
Component 4
Component 5
Component 6
Component 7
Component 8
Component 9
Component 10
Component 11
Component 12
Frequently Asked Questions
Q: What volume capacities are available for the compounding tanks?
A: We offer a wide range of pharmaceutical-grade stainless steel tanks with working volumes ranging from 2 liters up to 15,000 liters.
Q: Does the system comply with international pharmaceutical standards?
A: Yes, the system is designed according to ASME BPE and GMP concepts and meets EU PED and FDA certification requirements.
Q: How precise is the temperature and pressure control?
A: The system offers high precision with temperature control accuracy of ±0.2ºC and pressure control accuracy of ±0.01MPa.
Q: Is the cleaning process automated?
A: Yes, the system features an automatic control system for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) that can be activated with a single key.
Q: What material is used for the liquid filtration?
A: We use sterilizing-grade polyethersulfone (PES) filters, which are resistant to pH levels from 1-14 and temperatures up to 150ºC.
Q: Can the system be used for vaccine production?
A: Yes, the biological formulation system is specifically designed for vaccines, antibodies, blood products, and other bio-engineering applications.
