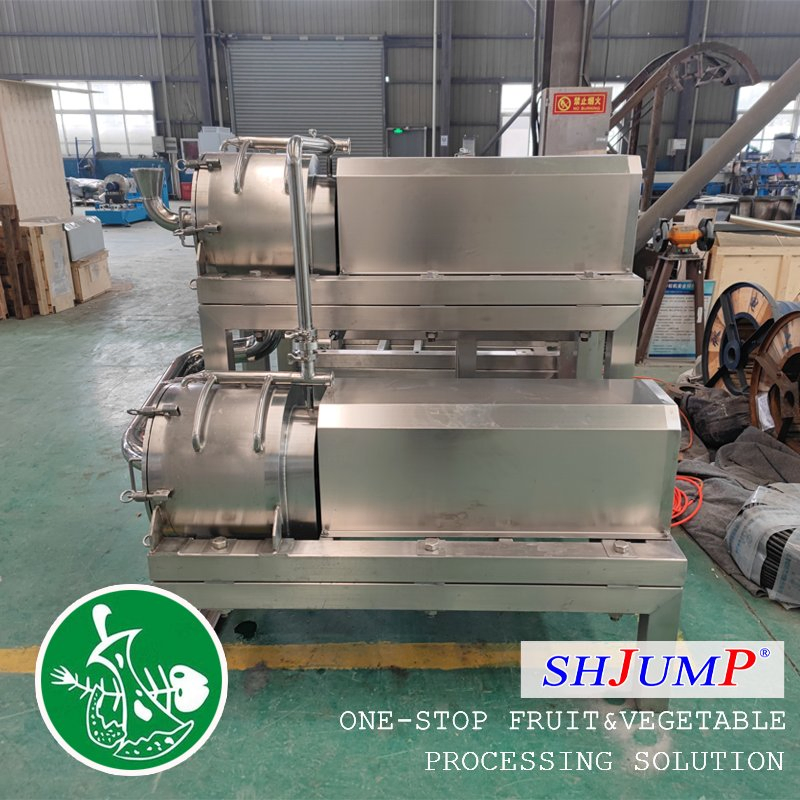

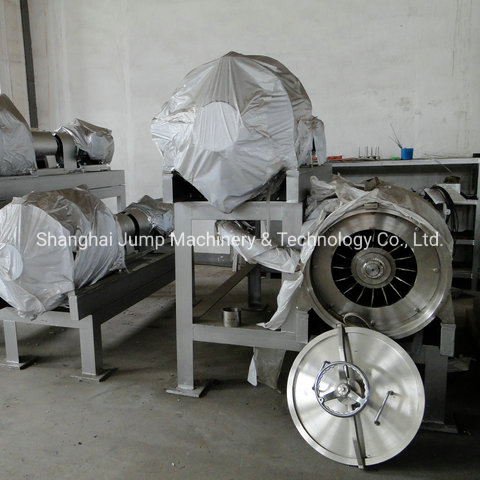

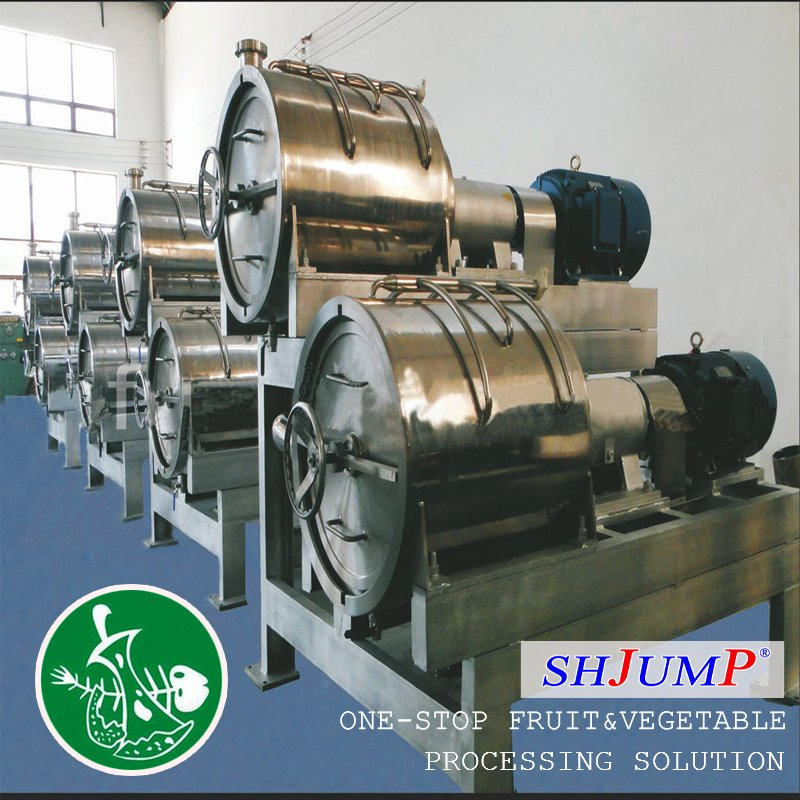

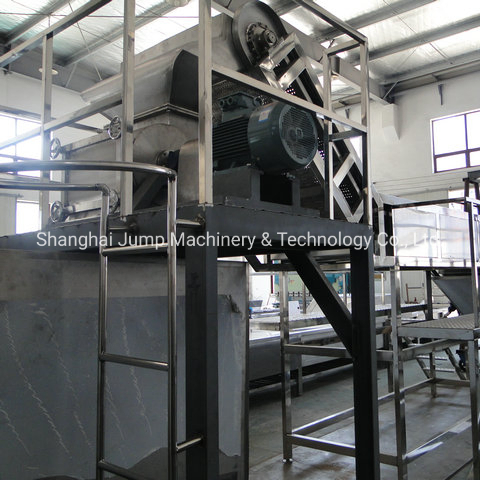

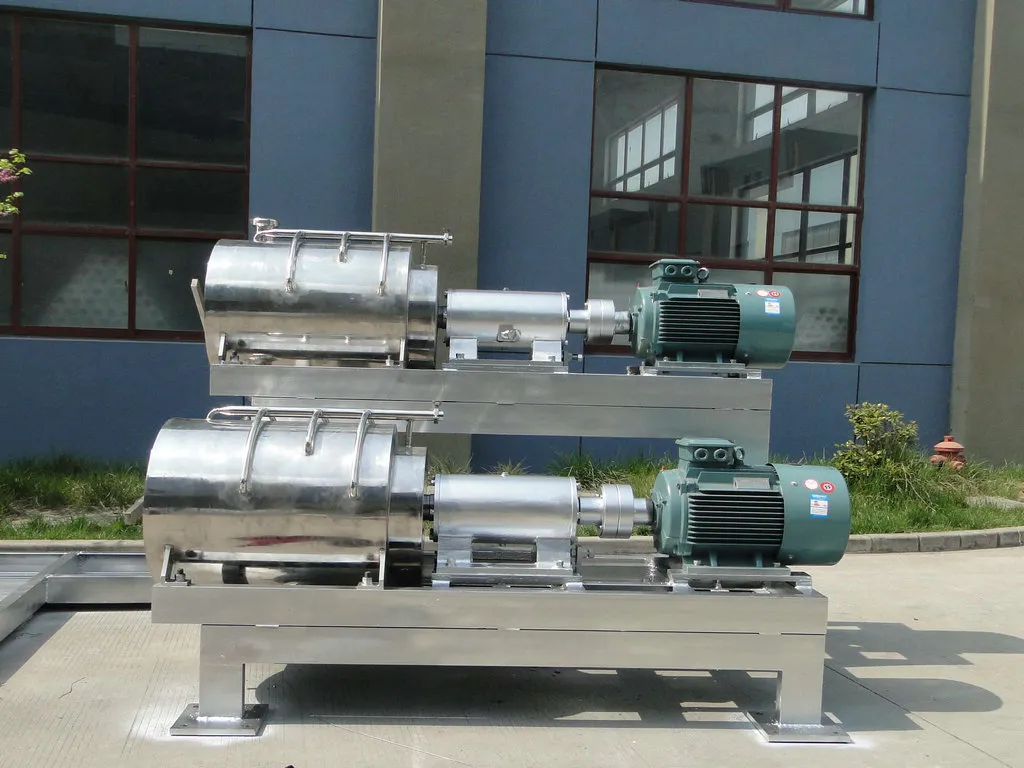

We have thoroughly absorbed international leading design principles and acquired aerospace equipment manufacturing technology to create the current most advanced pulp refining machine with highest precision, high pulp rate, easy operation, large capacity, and stable performance. It is mainly applicable to pineapple, tomato, peach, apricot, mango, apple, kiwi, strawberry, and other fruit and vegetable materials to pulp, peel, and remove seeds in order to separate the pulp with the residue. Our equipment combines a unique conical screen structure, effectively improving the juice rate by 2% - 3%. Customers can choose single-stage or double-stage pulpers according to their needs and customize the mesh diameter.
The motor is driven by a belt so that the scraper mounted on the spline shaft rotates at high speed. When the fruits enter the machine through the feed inlet, the scraper evenly distributes them to the scraper and screen. Due to rotation and the lead angle, the fruits move along the cylinder to the outlet in a spiral track. The fruits are crushed under centrifugal force when moving between the scraper and sieve. Fruit juice and pulp go through the sieve, while skin and seeds are discharged from the hopper. Pulping speed and results can be controlled by changing the sieve mesh size and adjusting the lead angle.
| Model | Capacity | Mesh Diameter (mm) | Power (kw) | Dimension (mm) |
|---|---|---|---|---|
| JP-DJ-S-5T | 5 T/H | 0.6 | 7.5 | 1650×600×550 |
| JP-DJ-S-10T | 10 T/H | 0.8 | 15 | 1650×700×600 |
| JP-DJ-S-15T | 15 T/H | 1.0 | 18.5 | 1650×800×700 |
We offer comprehensive processing lines for various fruit treatments including:

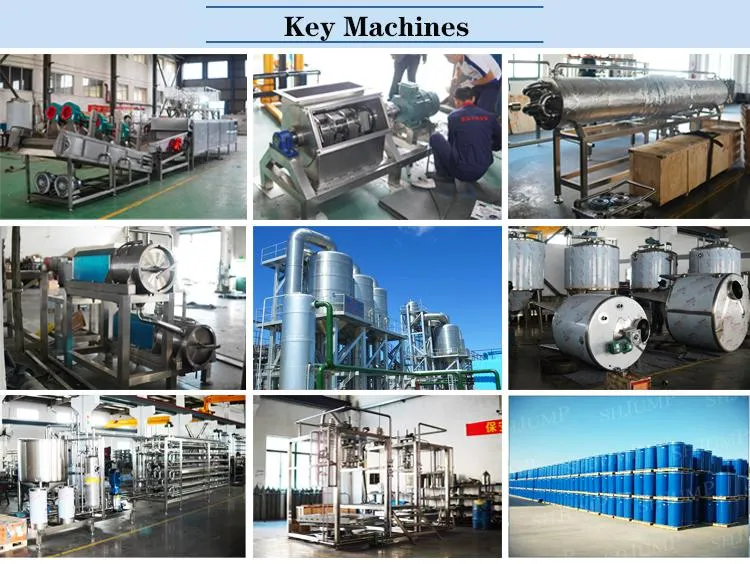

| Key Machines | Function Descriptions |
|---|---|
| Bucket Elevator | Smooth bucket structure prevents fruit damage. Suitable for tomato, strawberry, apple, pear, etc. Speed adjustable by transducer. |
| Air Blowing & Washing | Surfing and bubbling design ensures thorough cleaning while lessening fruit damage. |
| Crushing Machine | Used to crush the fruits into pieces for further pulping stages. |
| Pre-heater | Inactivates enzymes and protects the color of the paste with automatic temperature control. |
| Belt Press Extractor | High efficiency extraction (75-85% rate) for acinus and pip fruits. |
| Evaporator | Adjustable thin-film heat treatment units for efficient concentration with steam economy. |
| Tube in Tube Sterilizer | Italian technology, high heat exchange area, energy-efficient, and PLC controlled. |
| Aseptic Filling | Suitable for 5L-220L aseptic bags. Includes steam barrier protection for sterilized environment. |
Comprehensive Integrated Expertise
We provide a unique combination of machinery manufacturing, fruit juice production experience, and factory management expertise. We offer:
Full-line Machines + Running Experience + Factory Management + Product Marketing + Full-chain Material Supply

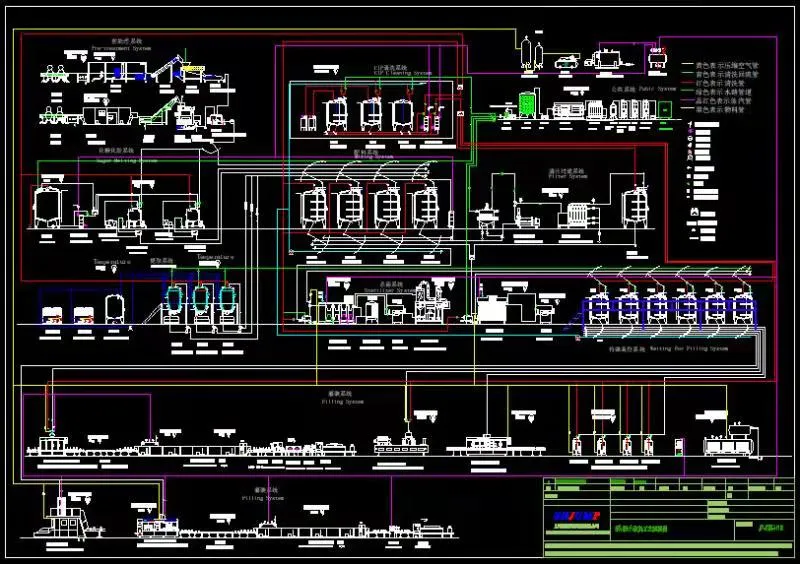

| Layout Design | Accurate processing line and factory layout design, including pipeline and cable calculations. |  |

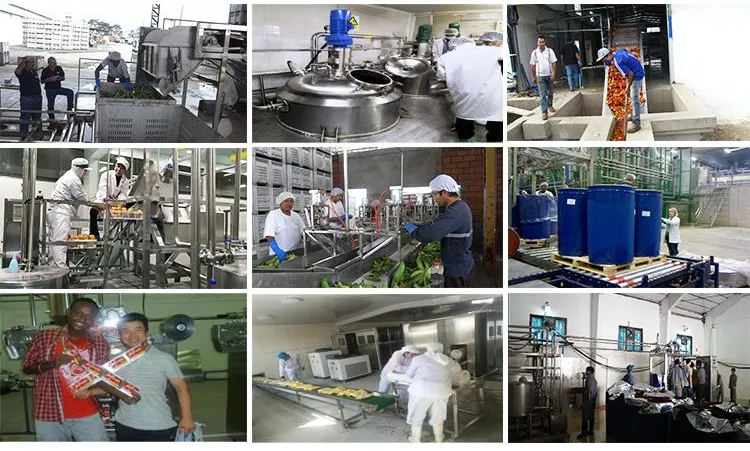

| Installation & Training | Engineers provide on-site installation, commissioning, and comprehensive labor training. |  |
| Formula Research | Mini-lab processing lines available for pilot production and product formula research. |  |
With 30 years of experience since 1986, we have maintained a leadership position in fruit and vegetable processing technology. By absorbing advanced international technology and cooperating with global giants, we have completed over 330 whole processing lines worldwide. Our equipment, including vacuum evaporation and tube-in-tube sterilization, holds national patents for energy efficiency and high performance.
Project Inquiry Requirement:
Production lines are highly customized (10T-1500T/day). For a proposal, please provide:
