Customizable Sterile Powder Injection Isolation System with Positive Pressure

Customization: Available
Application: Chemical Industry, Clinical Diagnosis, Cosmetic Industry, Food Industry, Food Safety, Forensic Science, Pharmaceutical Industry
Automation Grade: Automatic

Product Description

Basic Specifications
Model NO.:FDNPI03
Machine Material:Stainless Steel
Warranty:24 Months
Origin:China
Package Size:500cm * 200cm * 300cm
Gross Weight:3000.00kg

Features: Batch Coding, Print Registration Control, Sterilization Capability, Tamper-Evident Packaging, Temperature Control, Vacuum Packaging

Aseptic Positive Pressure Isolation System

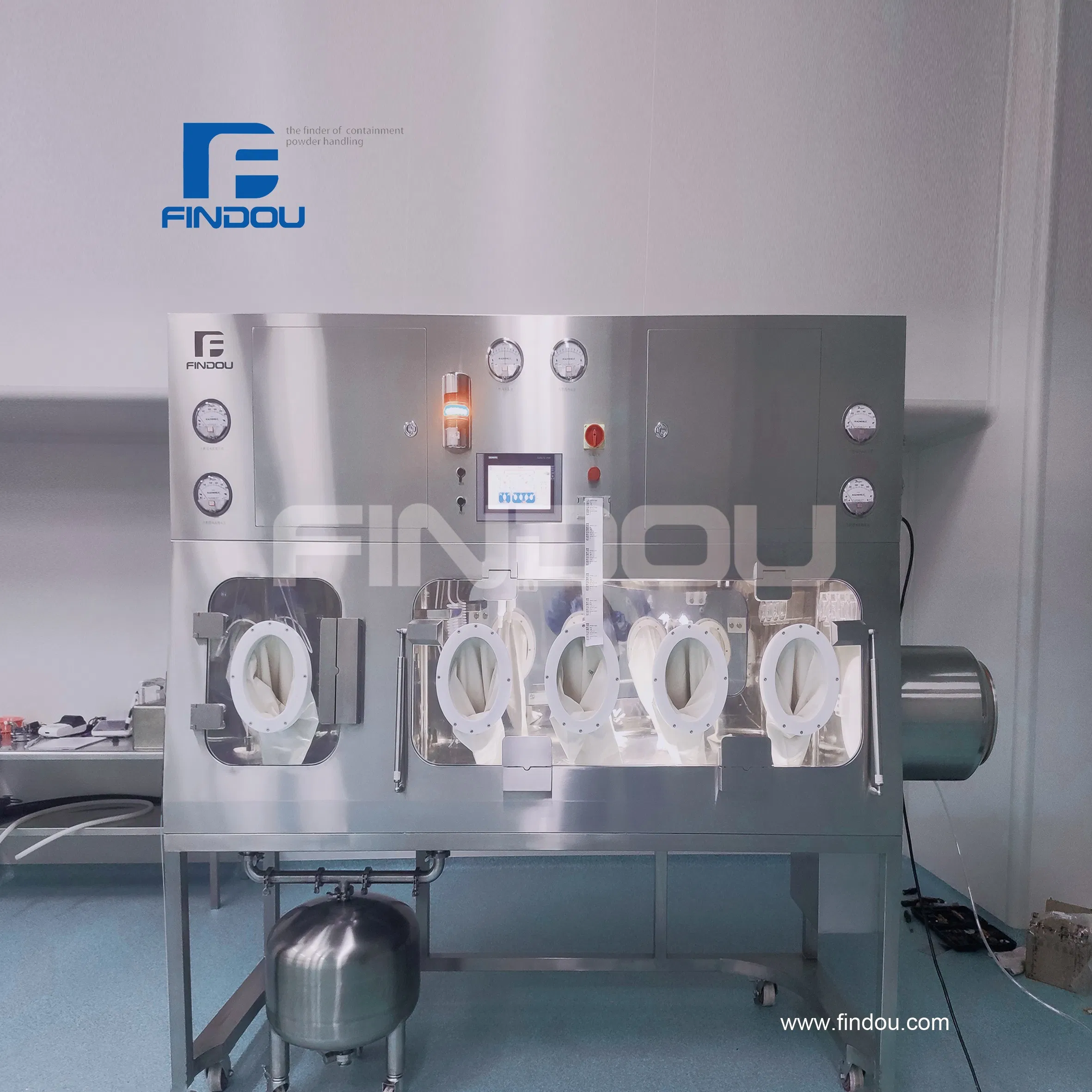

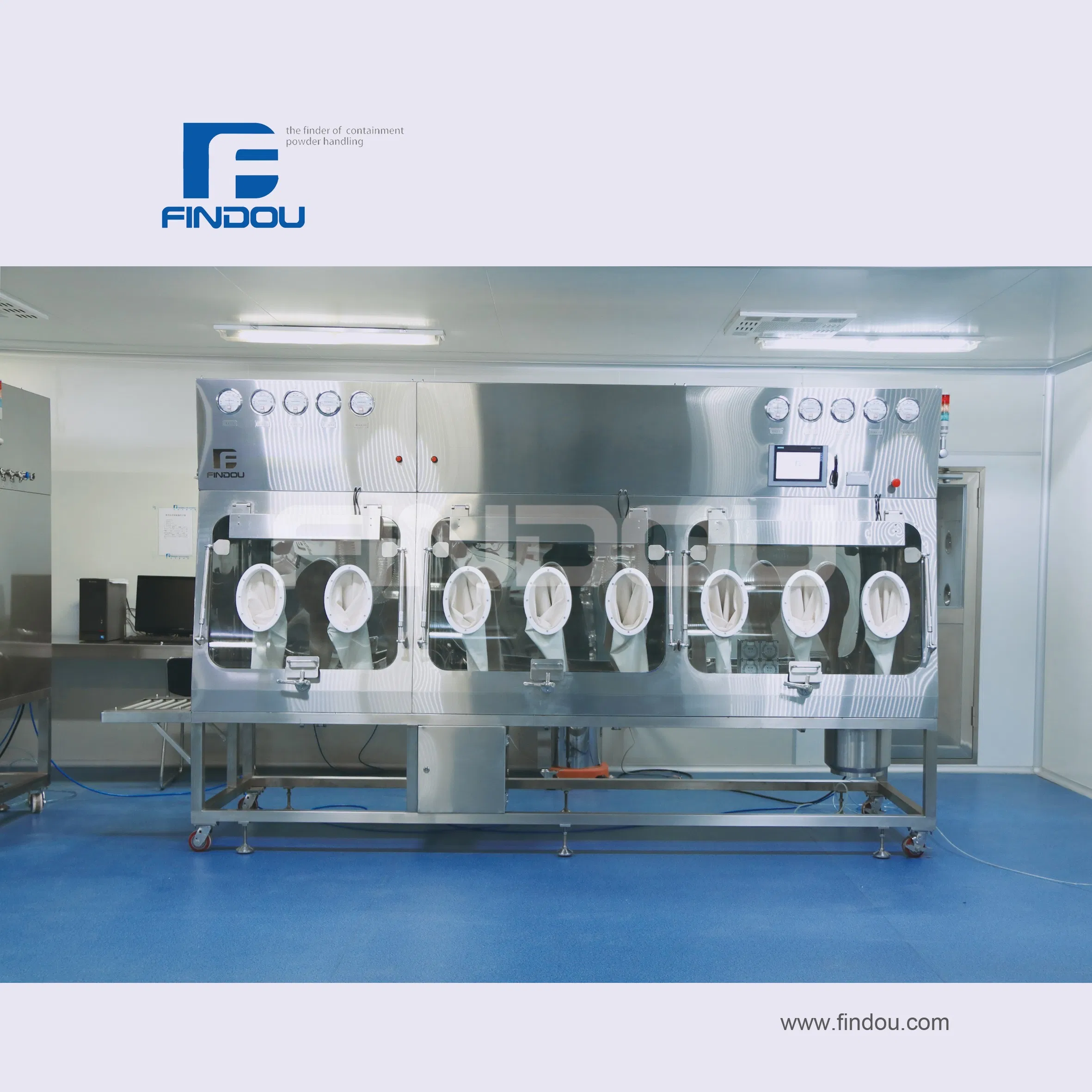

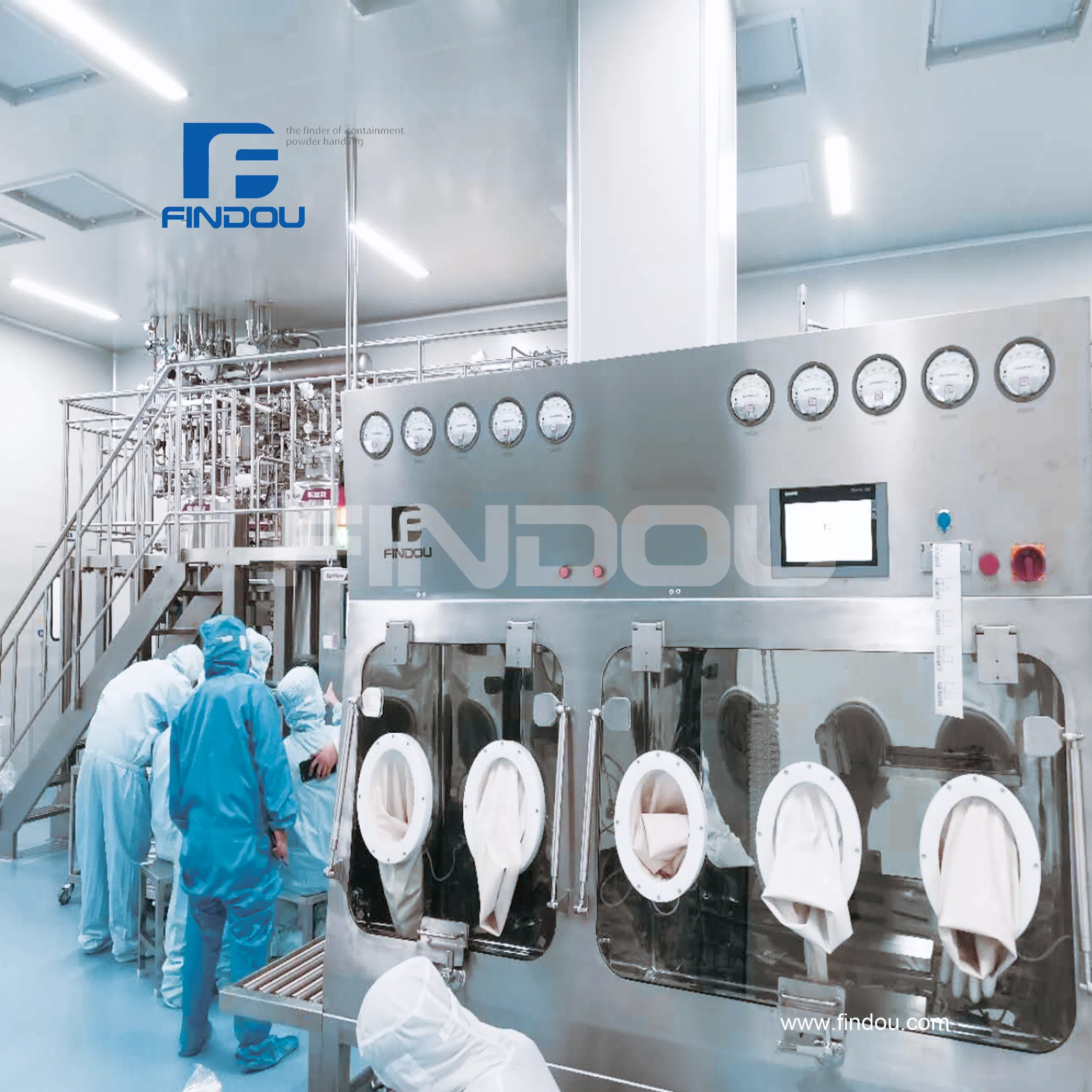

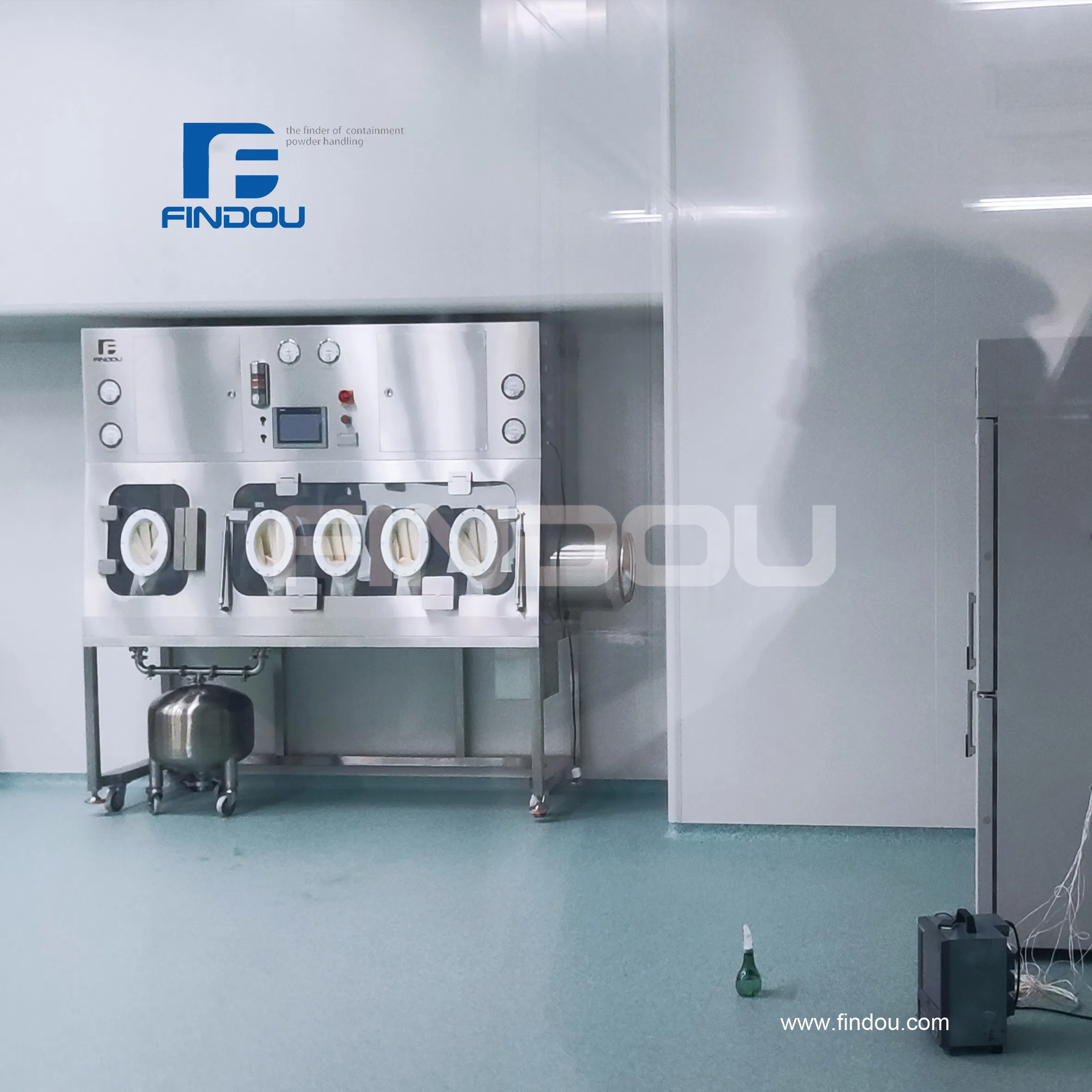

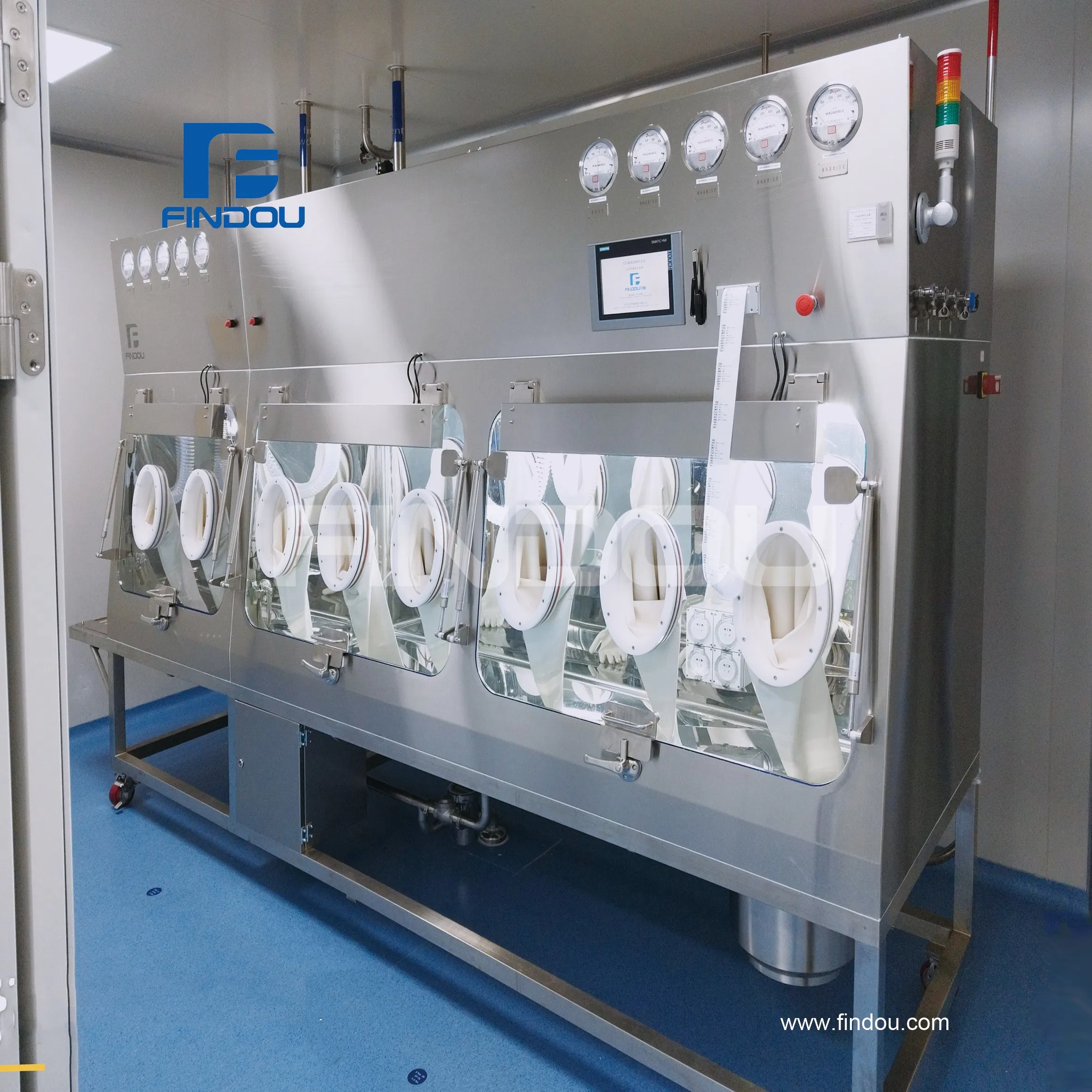

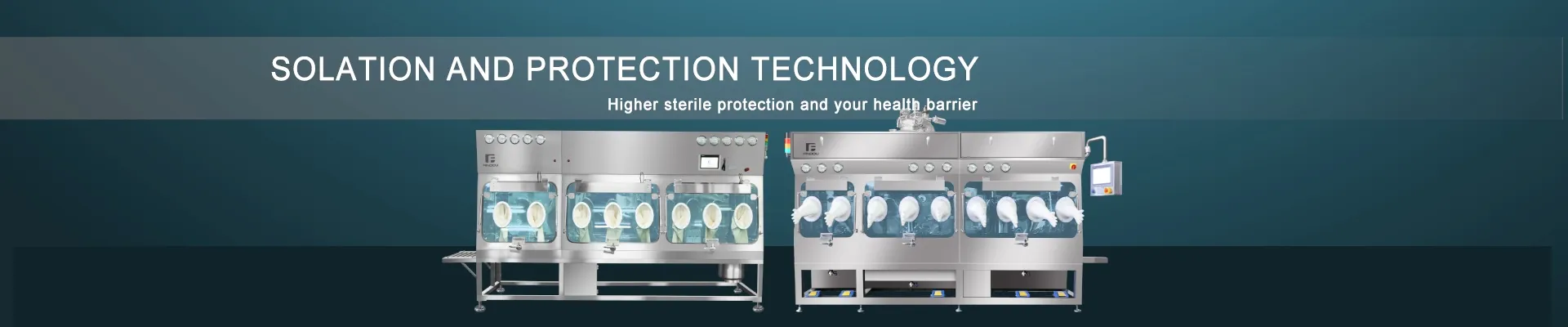

Sterile Powder Injection Isolation System
System Overview

Designed for multi-component and single-component dosing, mixing, and secondary filling post-container loading, the aseptic mixing isolation system employs ISPE-recommended RABS protection in critical areas. It interfaces with the VHP pass-through window for self-cleaning and manual operations.

Key Performance Characteristics
  • Integrated system for loading, self-cleaning, dosing, mixing, filling, and unloading.
  • RABS (Restricted Access Barrier System) protection in critical zones.
  • VHP pass-through window interface for enhanced sterilization.
  • Advanced feeding technology with U-shaped chuck and traction rod.
  • Shared weighing, verification, and filling bench scales.
  • Expandable integrated capping or heat sealing with inert gas protection.
Performance Parameters
Item Parameter
Cavity CleanlinessGrade A Positive Pressure Laminar Flow
Air Volume85-500m³/h
HEPA Filter TypeH14 High-Efficiency Filter
Air Velocity0.45m/s ±20%
VHP Concentration0-5000 ppm
Biological Indicator6 log reduction
Sterilization Time20-60 min
Leakage Rate0.5 % vol/h @100 Pa
Noise Level≤65 dBA

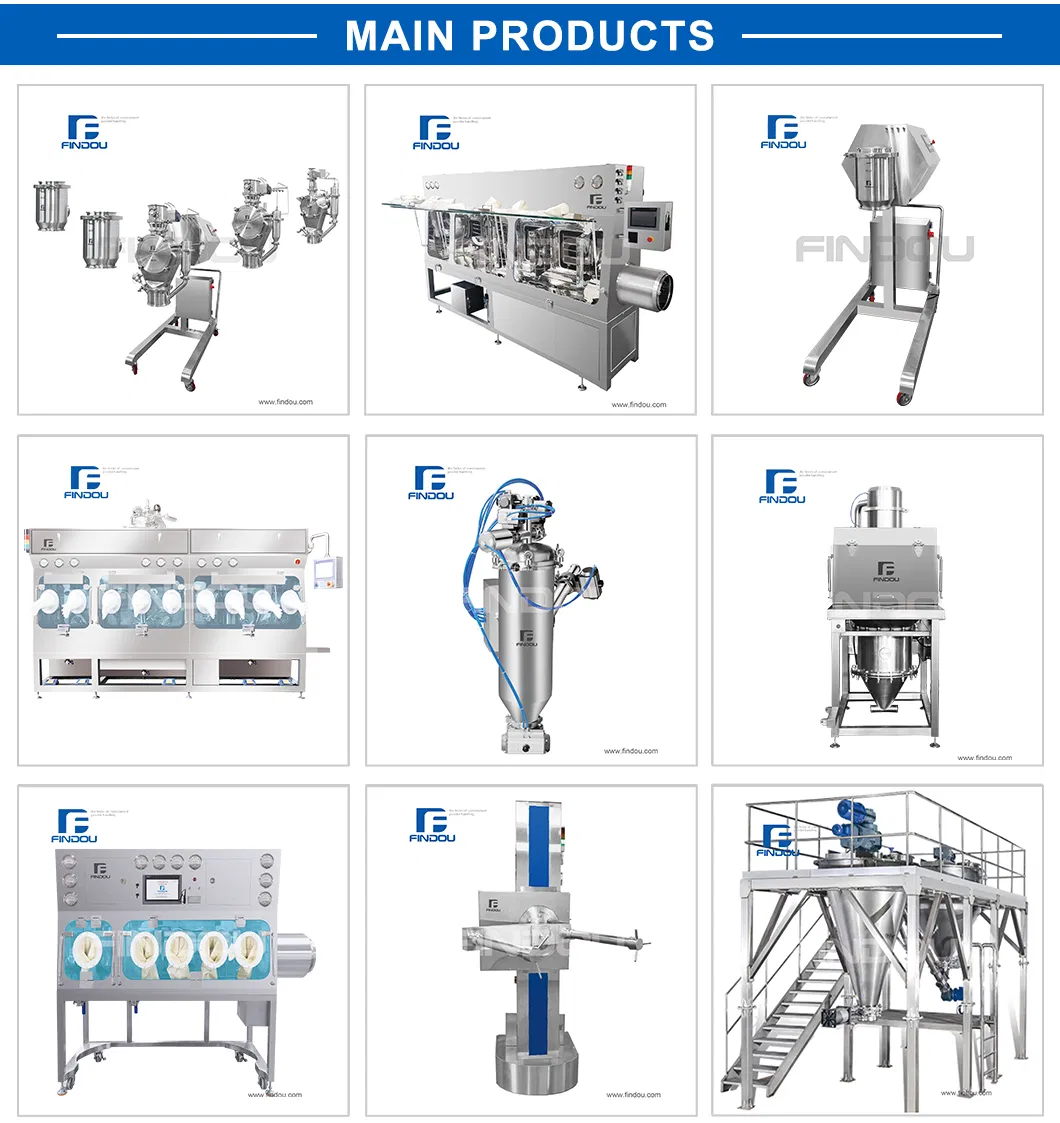

Main Product Display
Product View 1
Certification Showcase
Factory & Manufacturing Strength

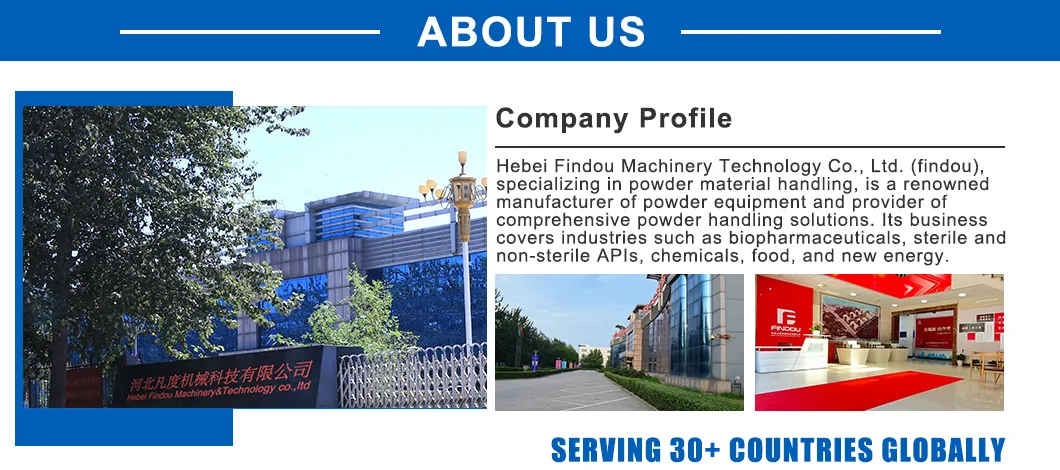

Production Line

Our facility boasts over 100 state-of-the-art automated production units. Supported by experienced engineers and skilled technicians, our products are trusted by over a thousand pharmaceutical firms globally. We specialize in providing comprehensive, enclosed, and intelligent material handling solutions.

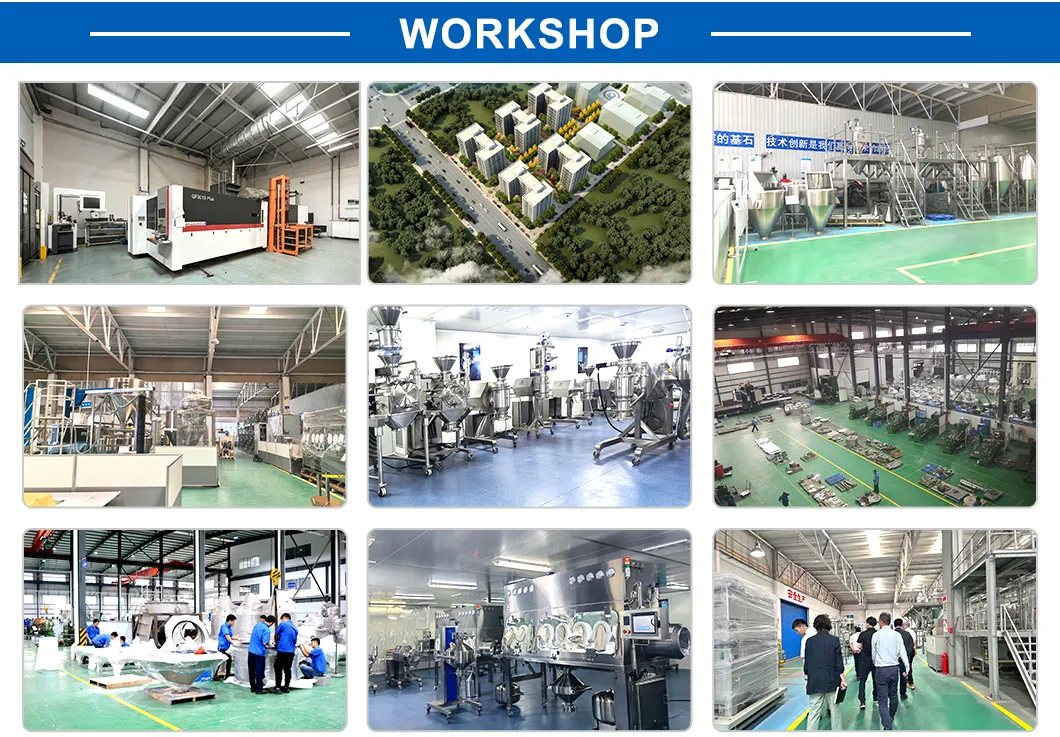

Manufacturing Detail
Exhibitions & Logistics
Exhibition
Partners
Packaging and Shipping
Frequently Asked Questions
1. Can the equipment be customized?
Yes. Our expert technical team collaborates with you to offer comprehensive solutions. Equipment dimensions and interfaces are adjustable to fit your existing production lines perfectly.
2. What international certifications do you have?
Our equipment meets global industry standards, including EU CE, US UL/OSHA, German TÜV, and Southeast Asian IEC requirements.
3. What is the typical production lead time?
Standalone equipment is often in stock. For custom engineering projects, our lead times are highly competitive with guaranteed on-time delivery and optional storage services.
4. How is the after-sales service handled?
We provide 24/7 support through remote technical assistance and local service networks. Critical spare parts are always stocked for rapid delivery.
5. What are the transaction and payment terms?
We provide detailed, transparent quotes with flexible payment terms available to suit international procurement requirements.
6. How is the product quality ensured during shipping?
All equipment is packed in heavy-duty wooden crates designed for international sea and air freight to ensure it arrives in perfect condition.
