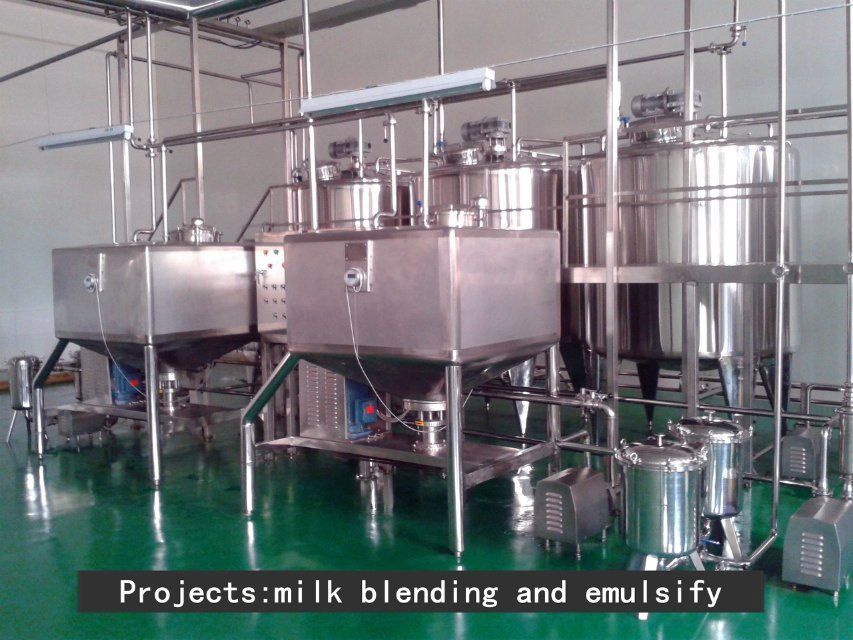

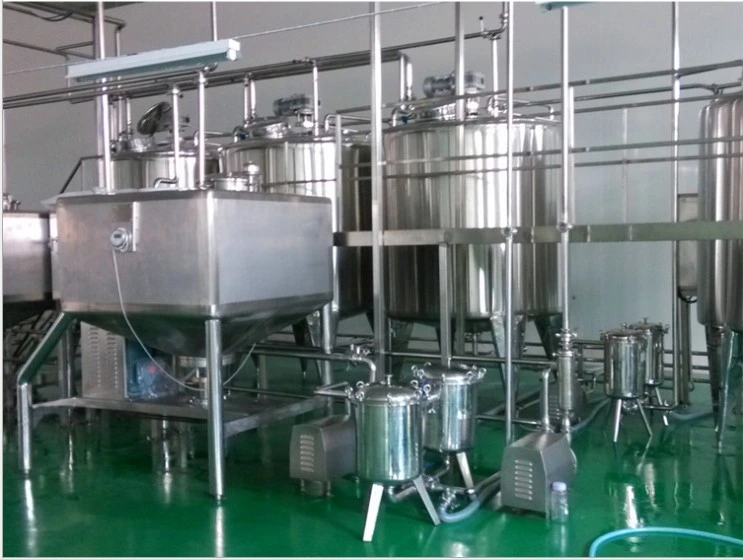

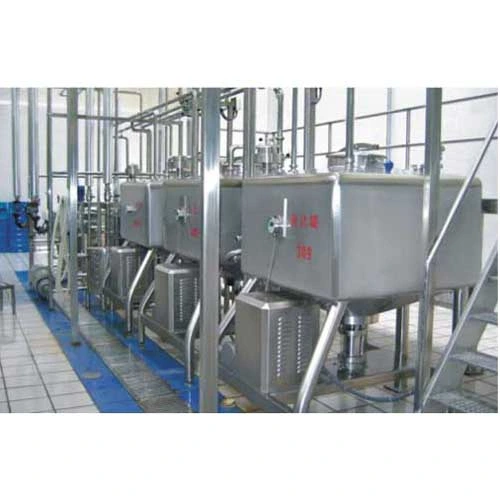

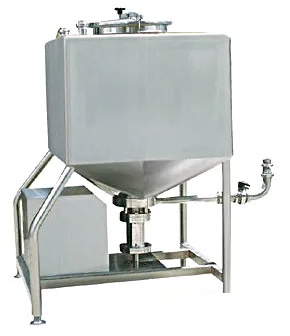

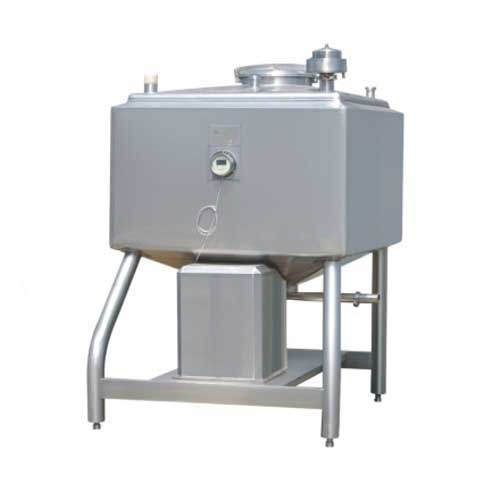

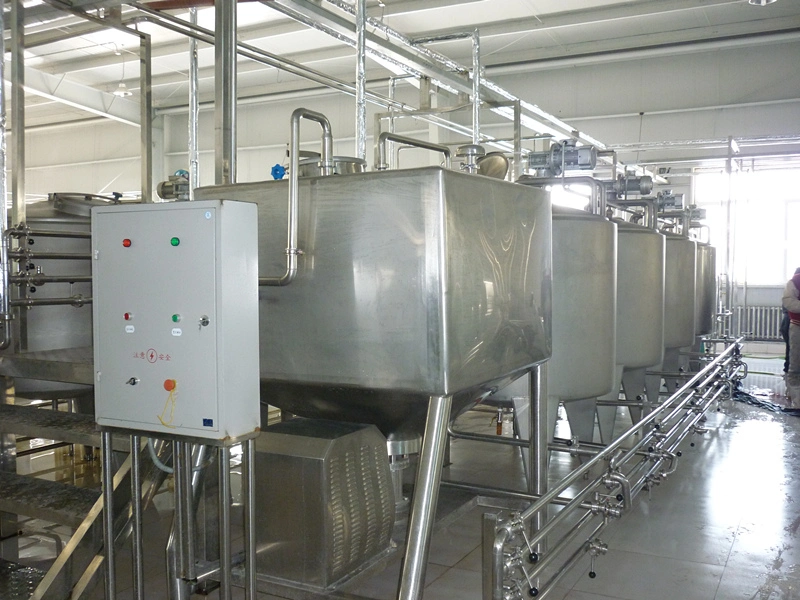

Square bottom shear emulsification machine of this square high shear emulsification can in accordance with JB/T4735-1997 "steel welding atmospheric vessel of production, testing and acceptance, high things flow scattered the emulsion, by the role of the rotor diversion slot, give fluid provides a vertical flow of high-speed shear, eliminate the level of mixed up quality difference, import high quality emulsification head, rotating speed can reach 1500 RPM, to the production of the cane sugar, milk powder, rubber additives such as the dissolution of the emulsification has the best effect, is the similar products in the production efficiency is the highest products.
| Effective volume (L) | Length of internal tank (mm) | Width of internal tank (mm) | Height of internal tank (mm) | Total height (mm) | Heat preservation layer (mm) | Motor power (kw) | Rotation speed (r/min) |
| 400 | 900 | 900 | 550 | 1000 | 50 | 7.5 | 1460 |
| 600 | 1000 | 1000 | 650 | 1200 | 50 | 11 | 1460 |
| 800 | 1050 | 1050 | 750 | 1400 | 50 | 15 | 1460 |
| 1000 | 1150 | 1150 | 750 | 1600 | 50 | 15 | 1460 |
With over 20 years of experience in the foodstuff and beverage machinery field, we help customers design, manufacture, install and operate turn-key projects for mineral water, pure water, carbonated drinks, fruit juice, milk, yogurt, cheese, and ice cream production lines.

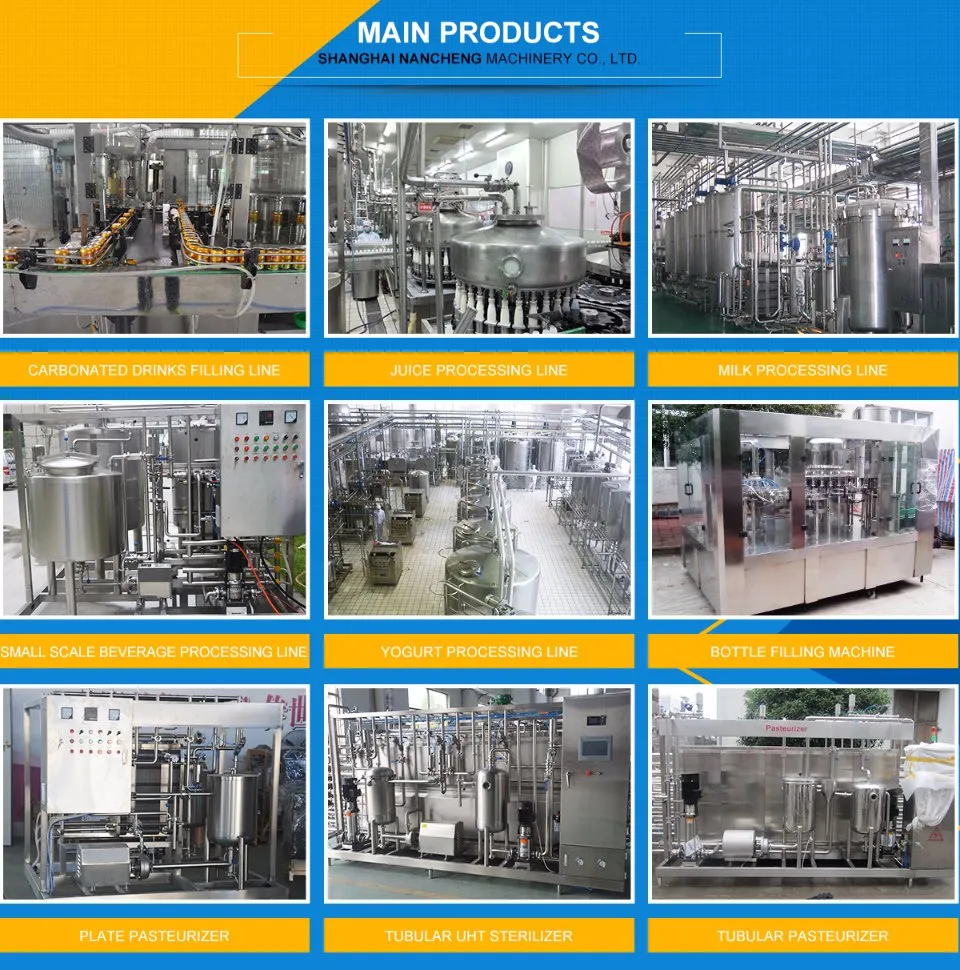

Our expertise includes water treatment systems, bottle blowing machines, filling machines, UHT sterilizers, homogenizers, and various stainless steel tanks. We aim to offer reliable and flexible machines adaptable to future market developments.
