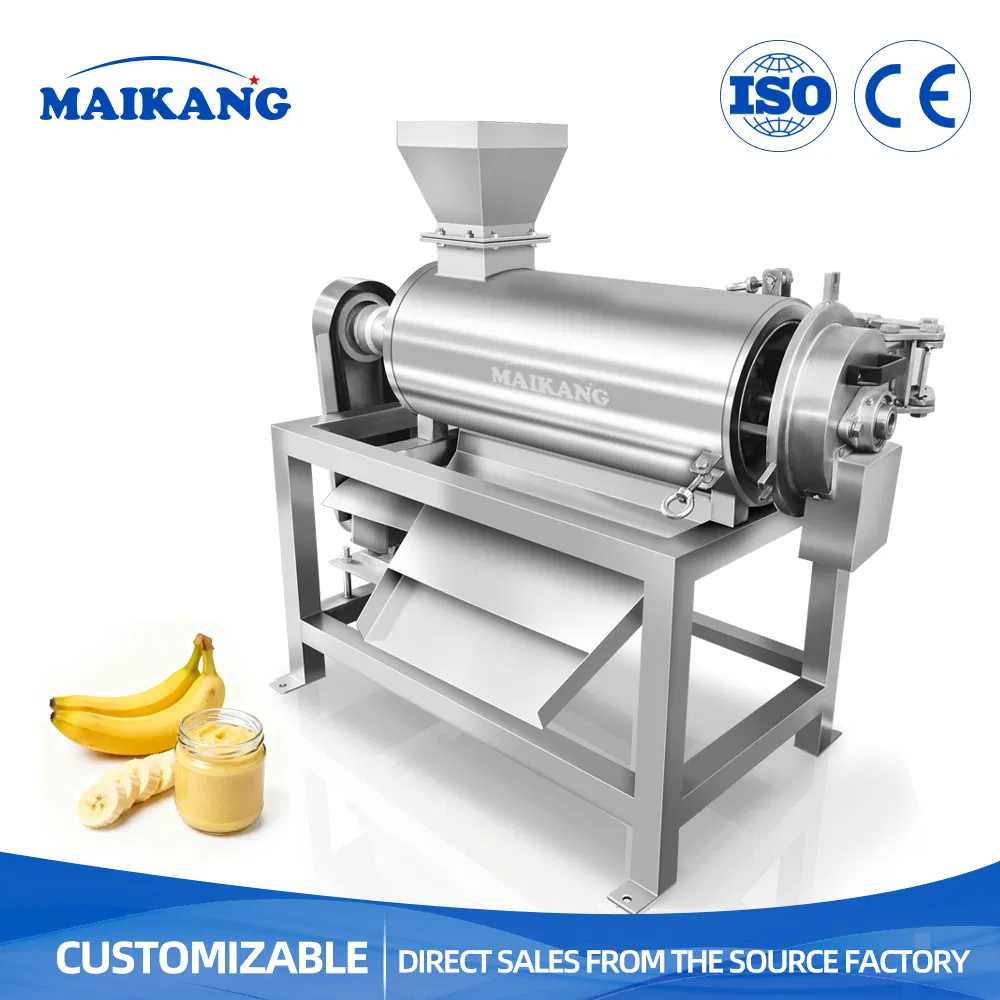

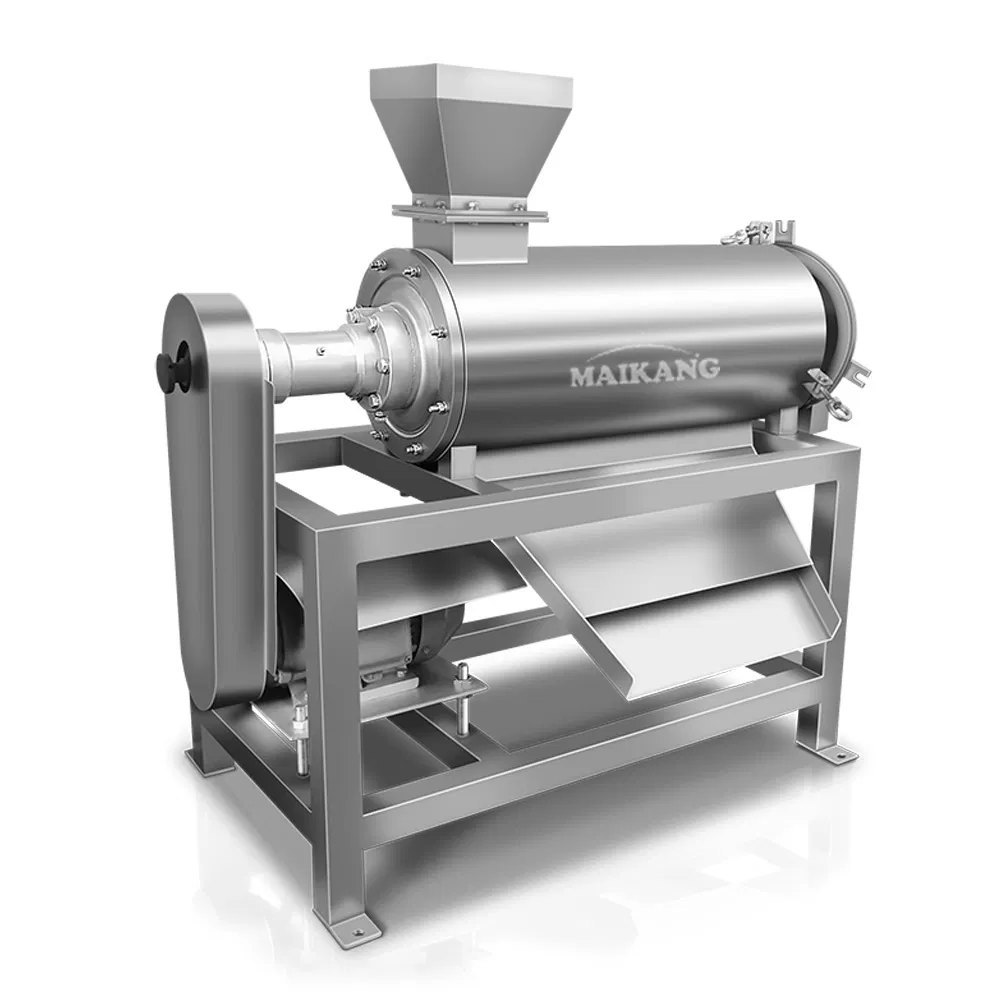

Professional Fruit Pulping Equipment Industrial Juicer Tomato Mango Apple Avocado Juicing Machine

Customization:	Available
After-sales Service:	Online Services
Warranty:	One-Year Warranty, Lifelong Maintenance Service.

📊 Basic Information

Model NO.

QHDJ-1.0

Type

Fruit Pulping and Deseeding Machine

Voltage

380V

Power

4kw

Material

Full 304 Stainless Steel

Function

Deseeding, Pulping, Separation

Application

Mangoes, Kiwis, Apples, Tomatoes, etc.

Capacity

180 Pieces/Year

⚙️ Product Description

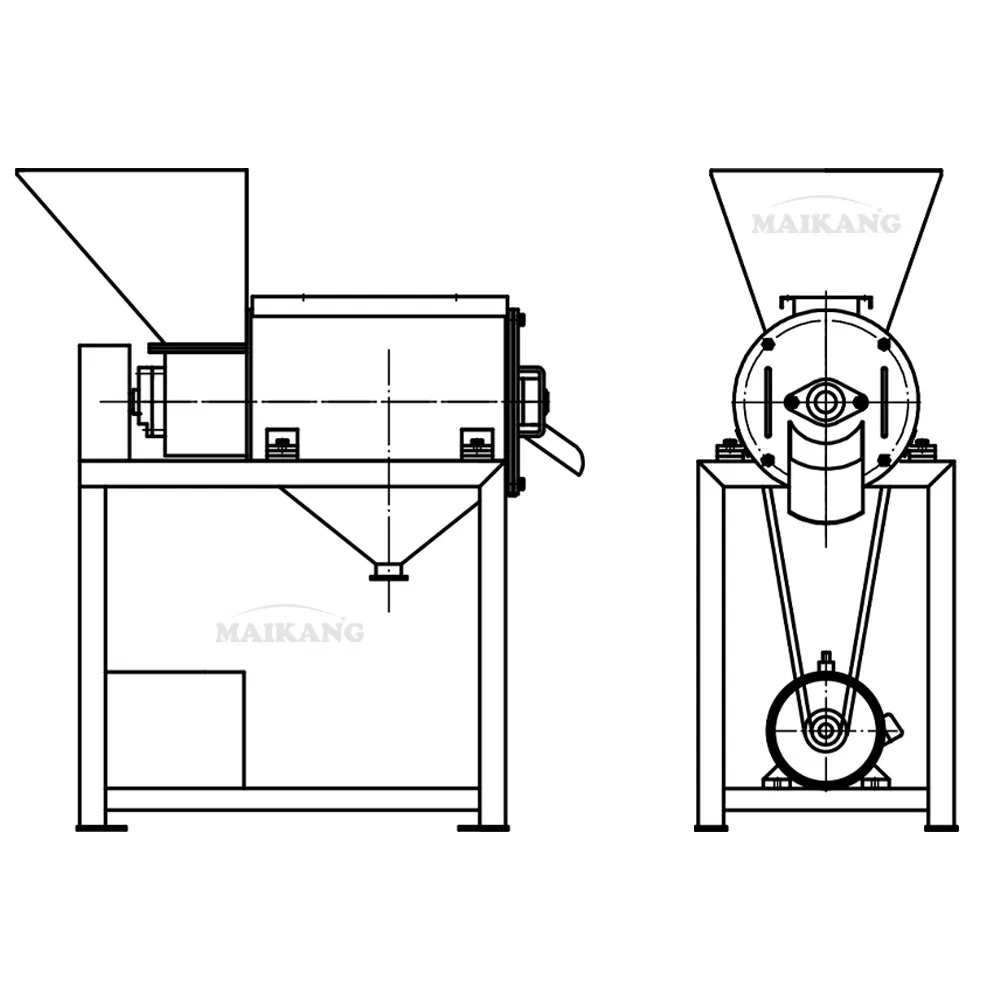

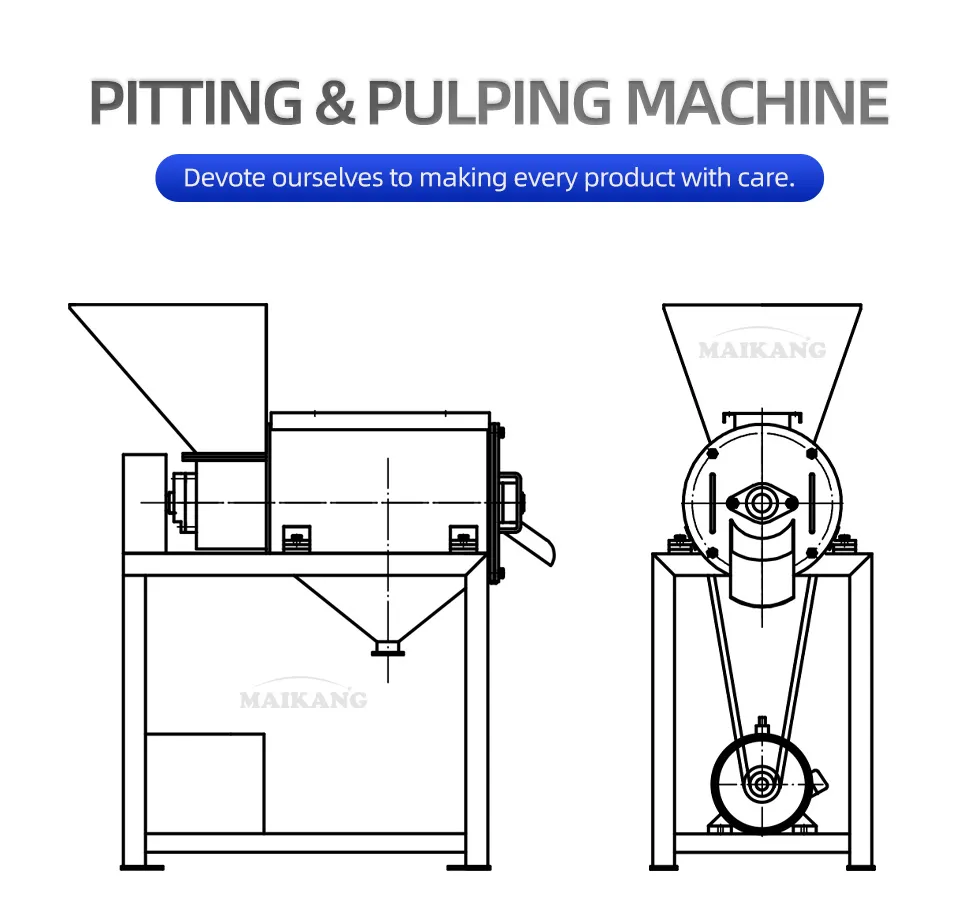

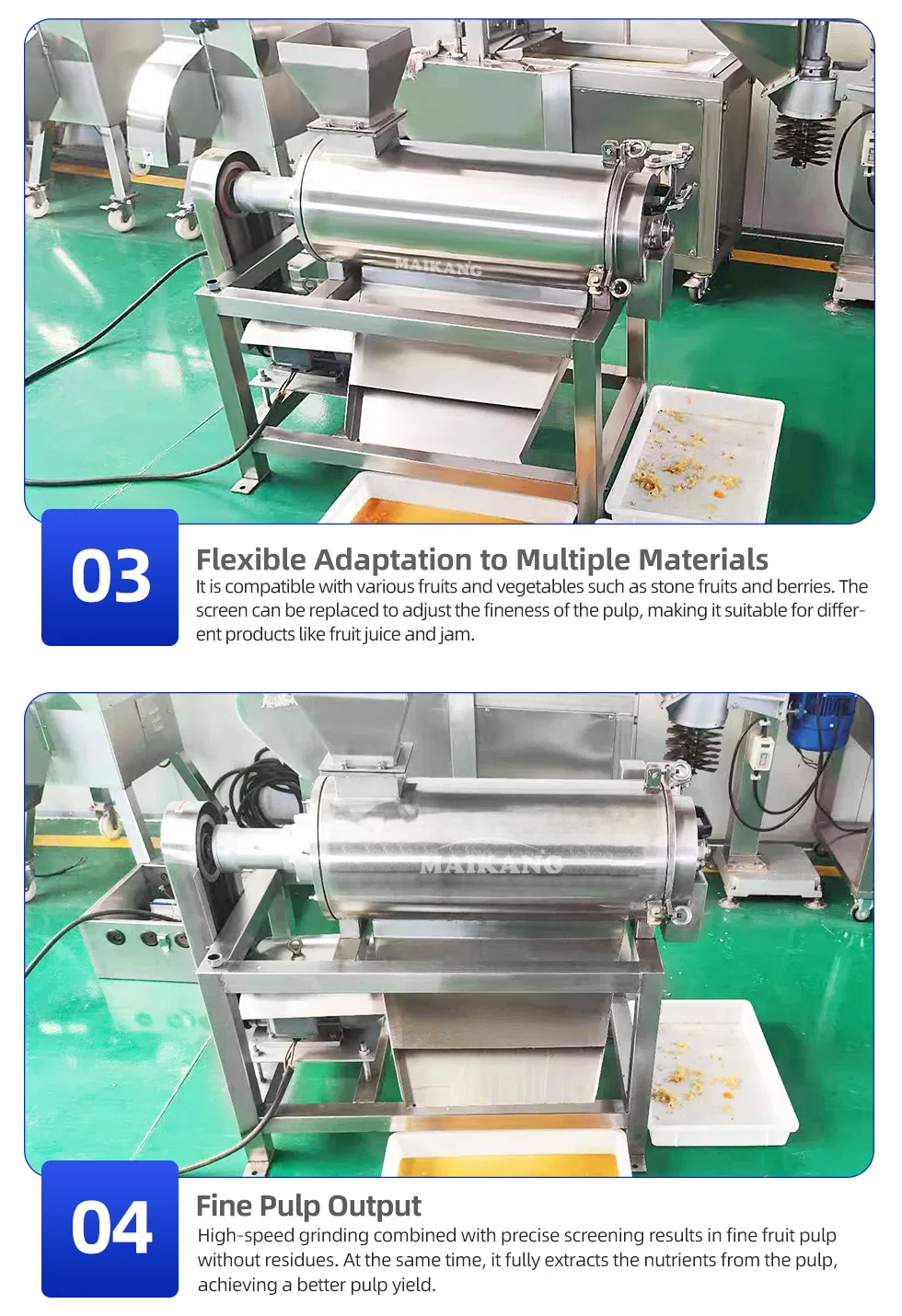

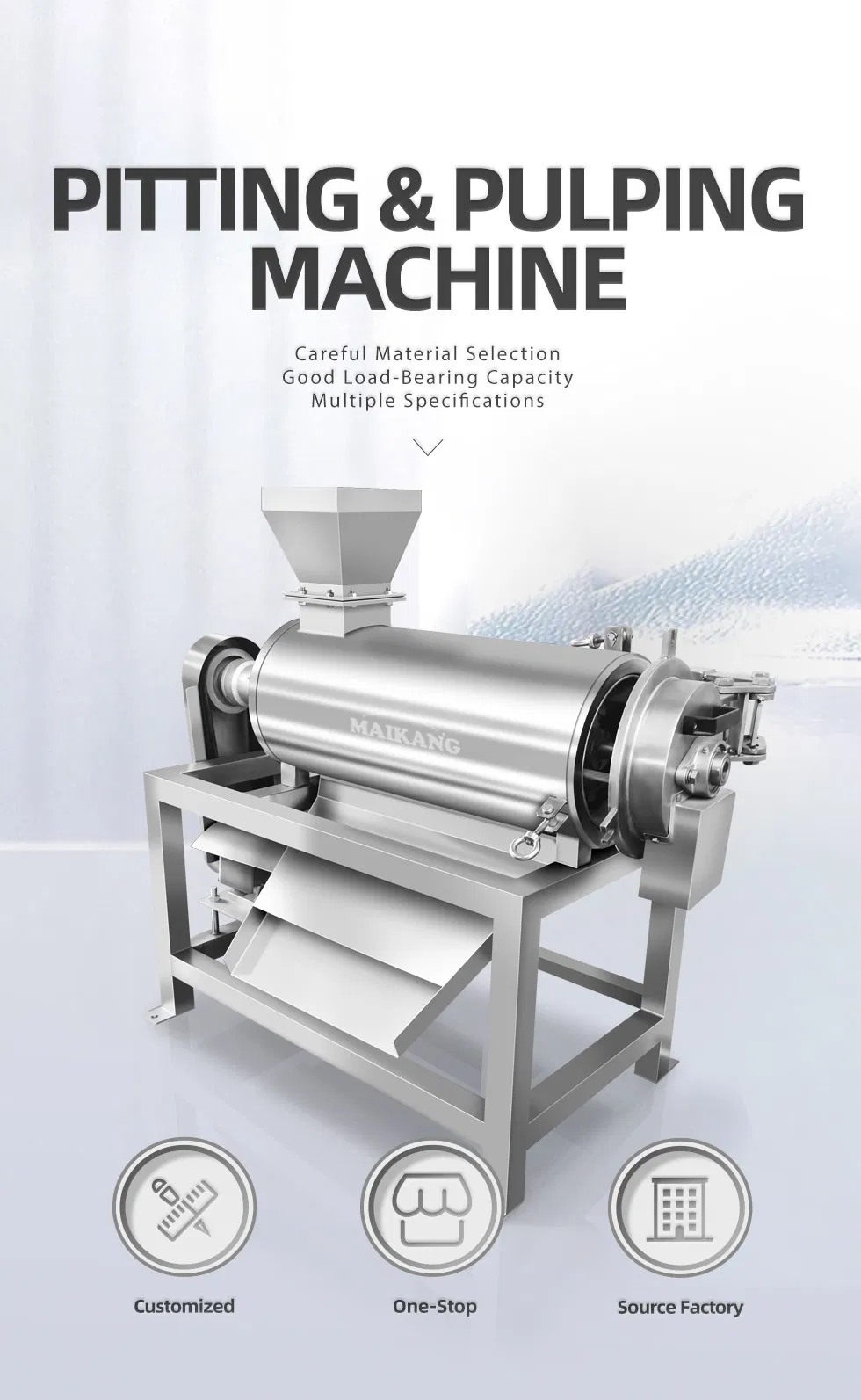

Fruit Pulping and Deseeding Machine is specially designed for fruit processing lines to achieve efficient separation of fruit pulp and seeds. It operates through a high-speed rotor driven by a motor via a V-belt transmission, ensuring smooth and stable pulping performance. Fruits enter the machine through the feeding inlet, where internal spiral blades continuously push materials toward the pulping rod for crushing and separation.

During operation, the centrifugal force generated by the high-speed rotation causes the juice and pulp to pass through the filter screen holes, while the seeds and residues are discharged from the waste outlet, achieving automatic pulp-residue separation.

🍏 Application & Materials

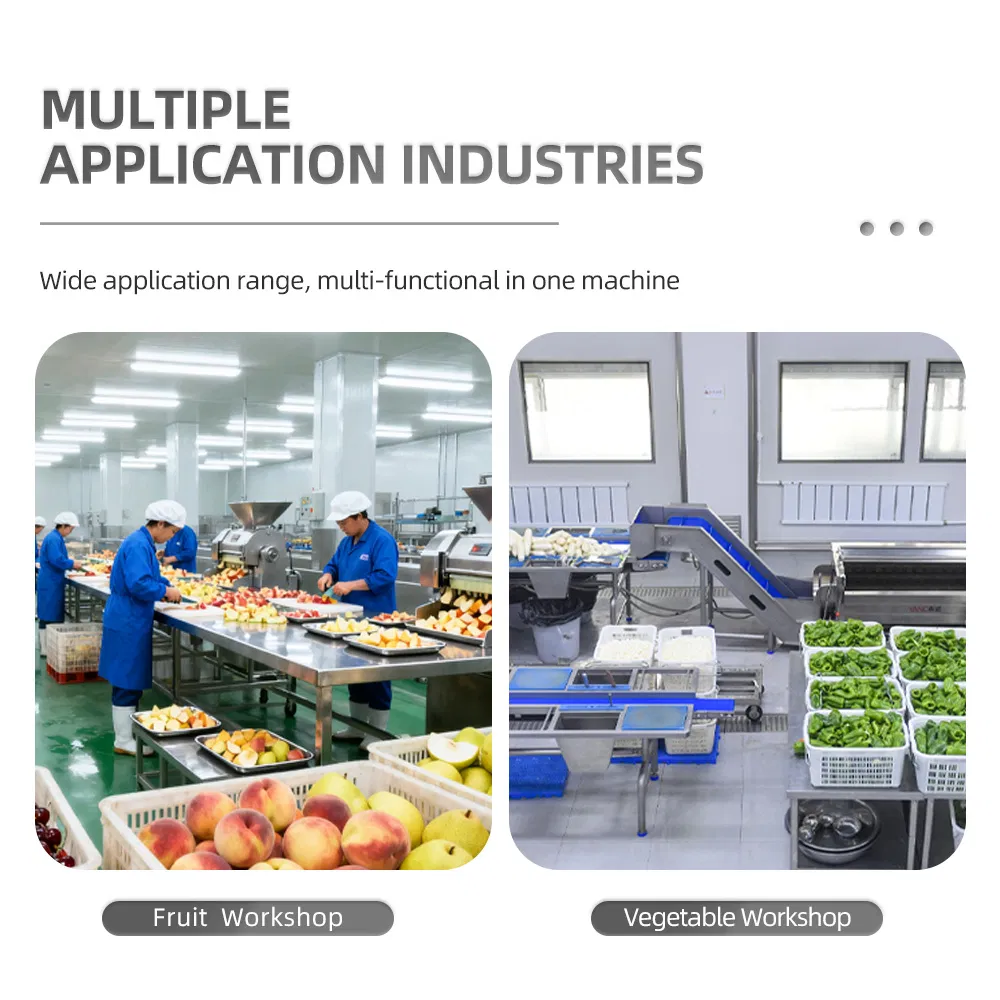

This equipment is suitable for various fruits such as mango, passion fruit, peach, apricot, tomato, kiwi, and berries for pulp extraction and deseeding. It is widely used in fruit juice production lines, jam factories, and beverage manufacturing plants.

📋 Technical Specification

Product Name	Fruit Pulping and Deseeding Machine
Dimensions	13007001450 mm
Voltage / Power	380V (Customizable) / 4KW
Application Range	Deseeding, pulping, and refining of mango, peach, apricot, tomato, kiwi, strawberry, etc.
Core Features	Efficiently separates peels, seeds, and pulp to obtain smooth and uniform puree.

📝 Instructions & Key Features

Key Advantages

Automatic separation of pulp and seeds with smooth discharge.
Internal spiral conveyor ensures stable feeding and high juice yield.

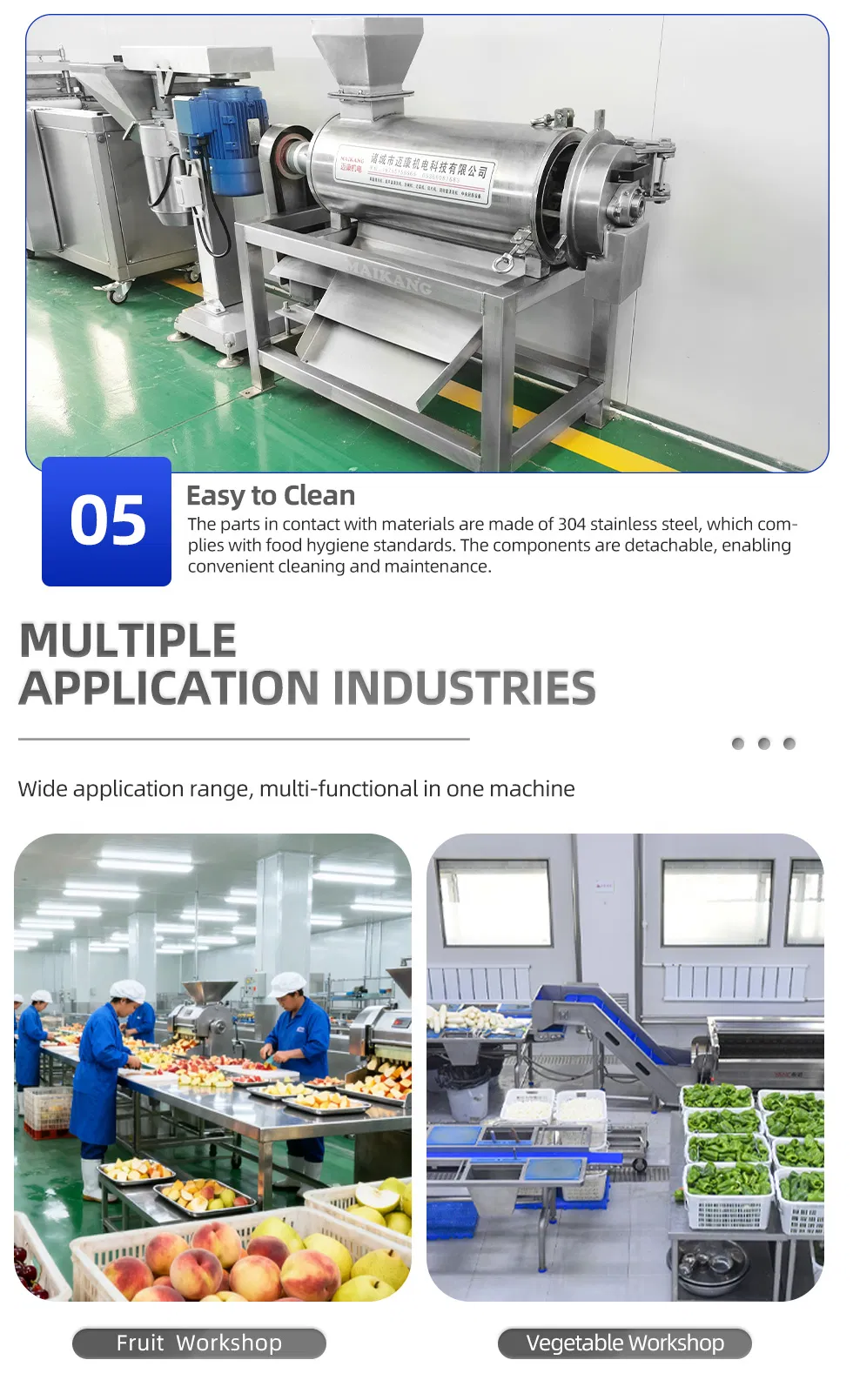

Easy disassembly of screen and rotor for fast cleaning.
Full food-grade 304 stainless steel construction.
Customizable for different fruit types and production capacities.

Operating Steps:
1. Check rotor system connections and lubricate bearings.
2. Start the motor and ensure the rotation direction is correct.
3. Feed materials evenly into the hopper.
4. Adjust scraper angles to optimize juice yield.
5. Clean the equipment thoroughly after use to maintain hygiene.

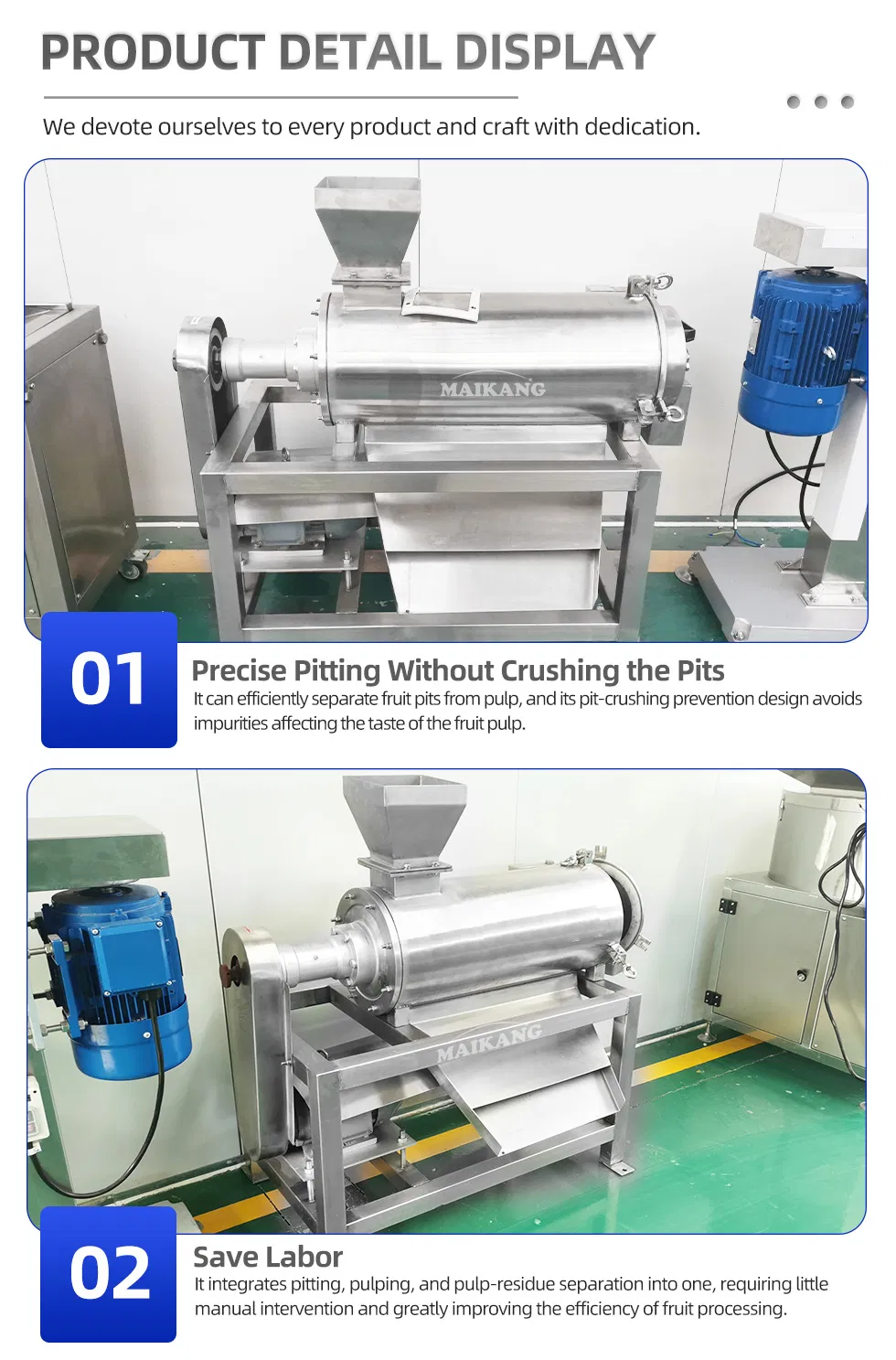

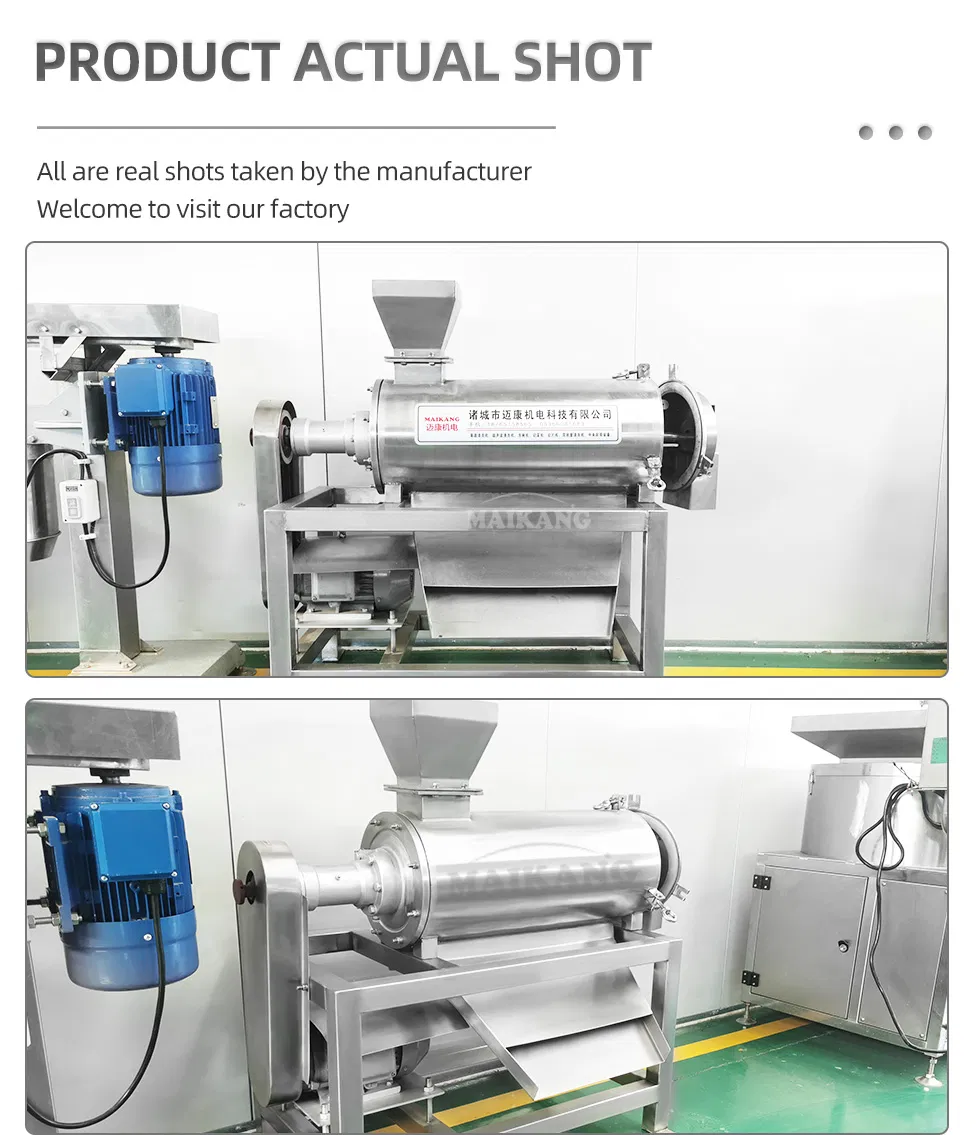

📸 Product Showcase

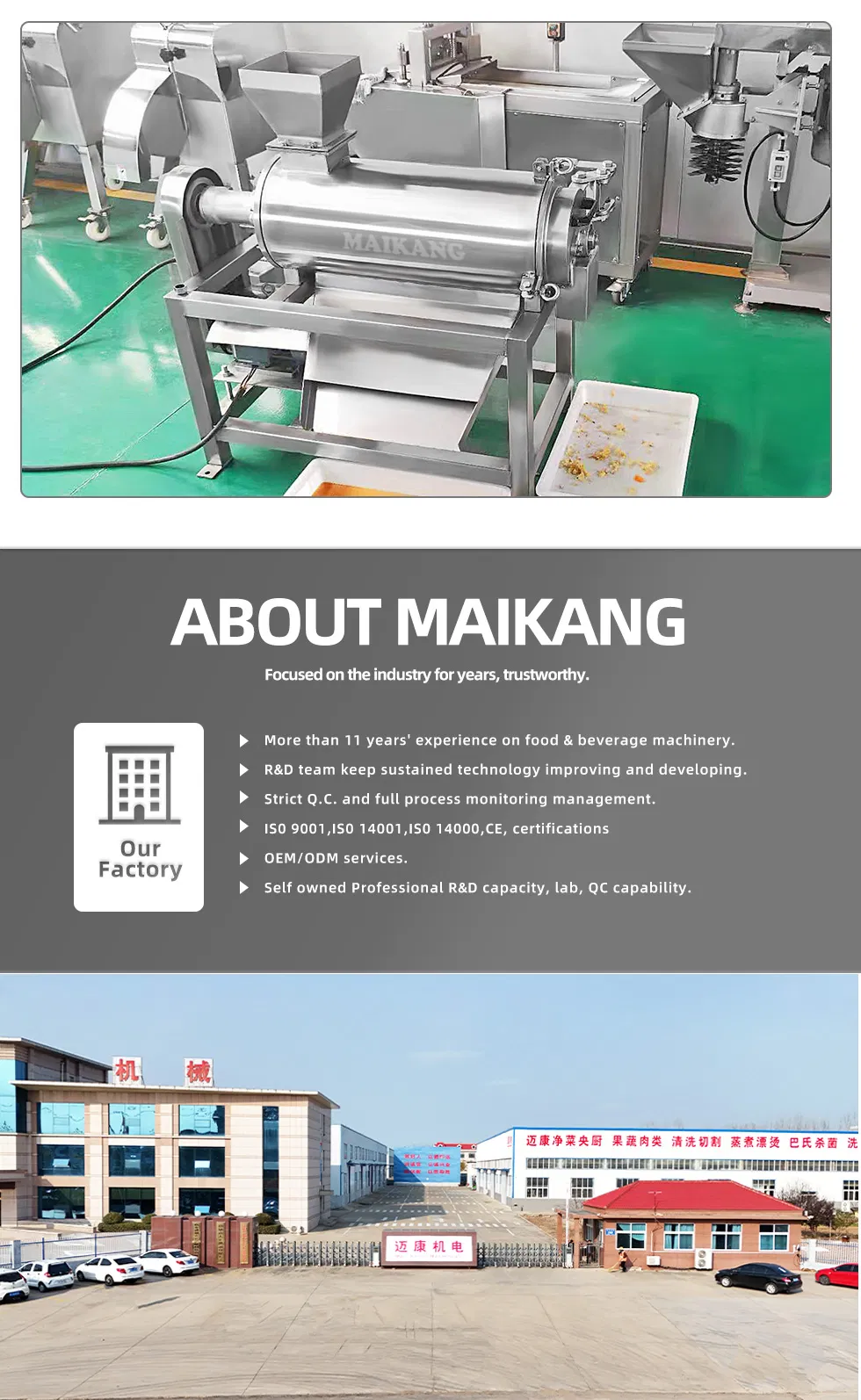

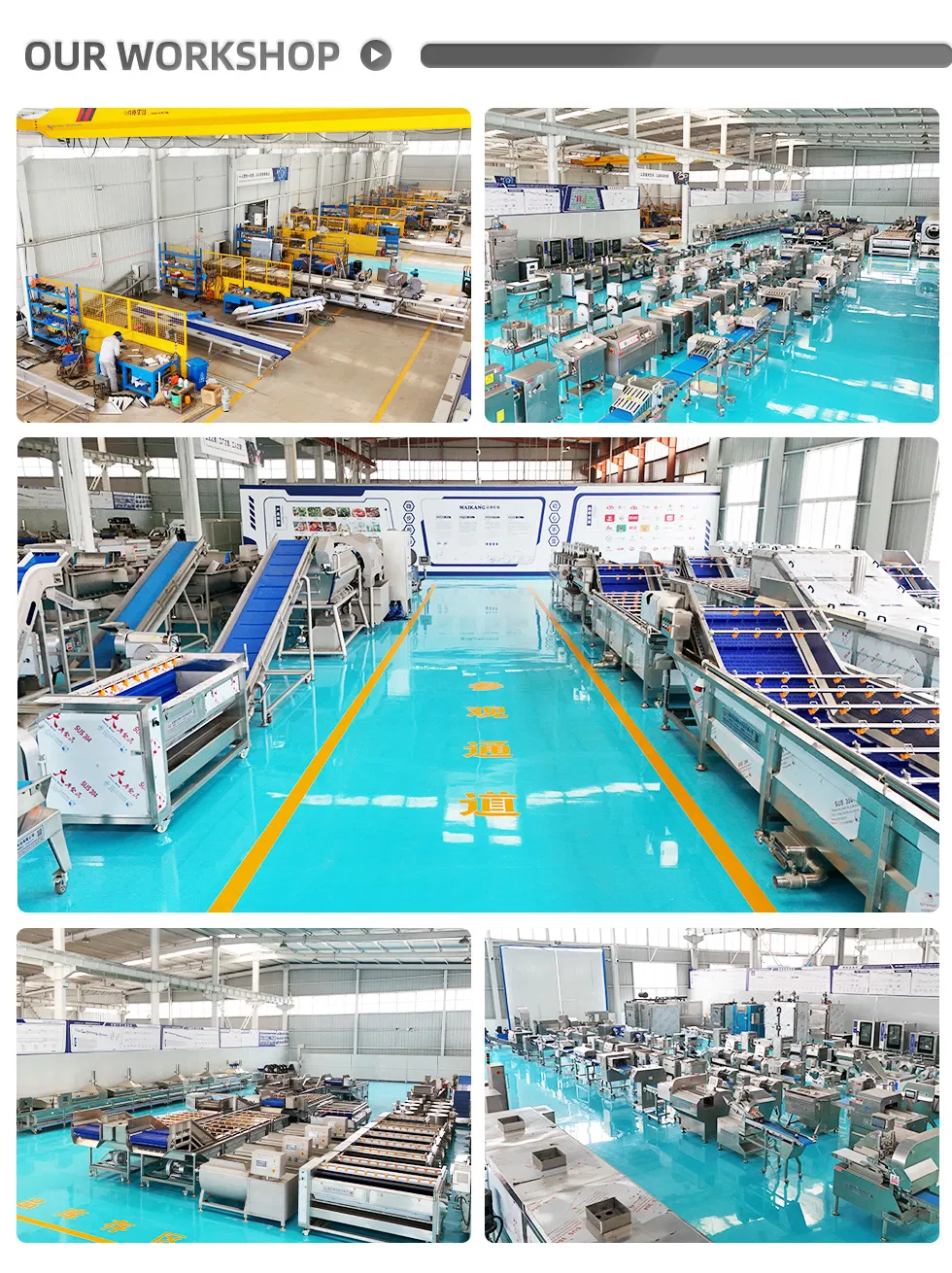

🏢 Manufacturing Excellence

Professional manufacturer specializing in food processing machinery R&D and production.

❓ Frequently Asked Questions

How many years of experience does your factory have?

We have over 11 years of professional production experience in food machinery, serving as a leading supplier in the industry.

What types of products do you manufacture?

Our product range includes crate washers, fruit and vegetable cleaning lines, juicing lines, thawing equipment, drying ovens, blanching systems, and meat processing equipment.

Are you a direct manufacturer?

Yes, we are a direct manufacturer with our own production facility, design department, and sales team, ensuring the best prices and services.

What is your after-sales service policy?

We provide a one-year free warranty and lifetime maintenance service. For overseas customers, we offer installation, commissioning, and training services.

Can you help with customized factory designs?

Absolutely. Our experienced mechanical designers can provide customized design solutions and full layout planning based on your factory dimensions and production needs.
