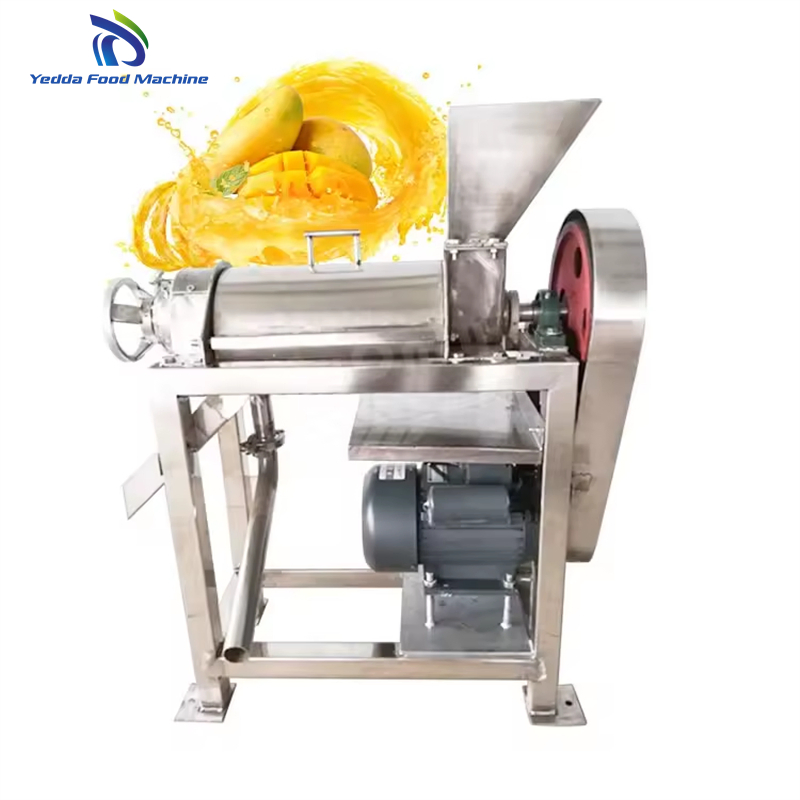

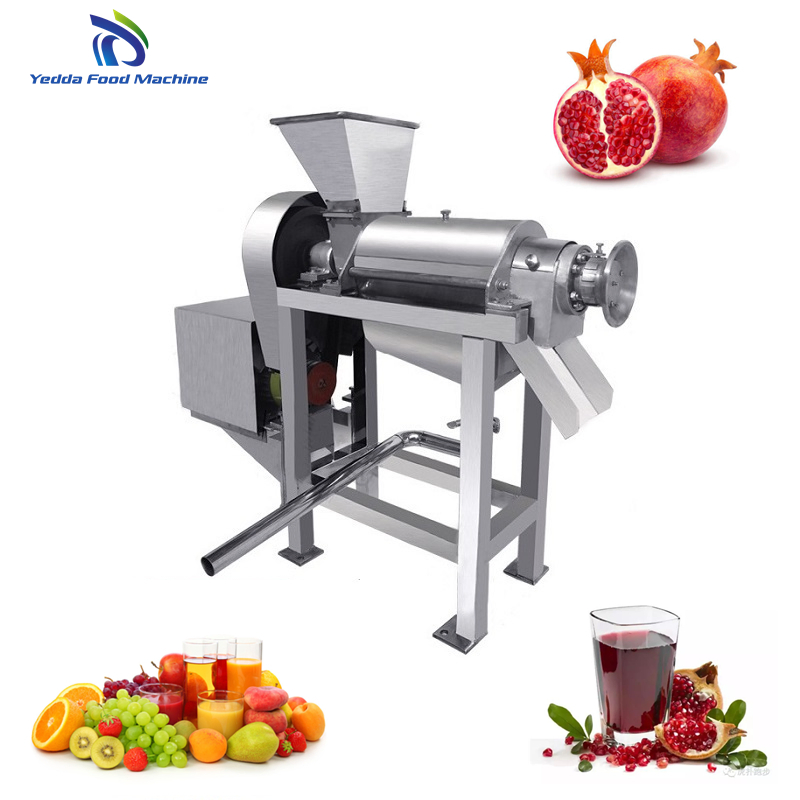

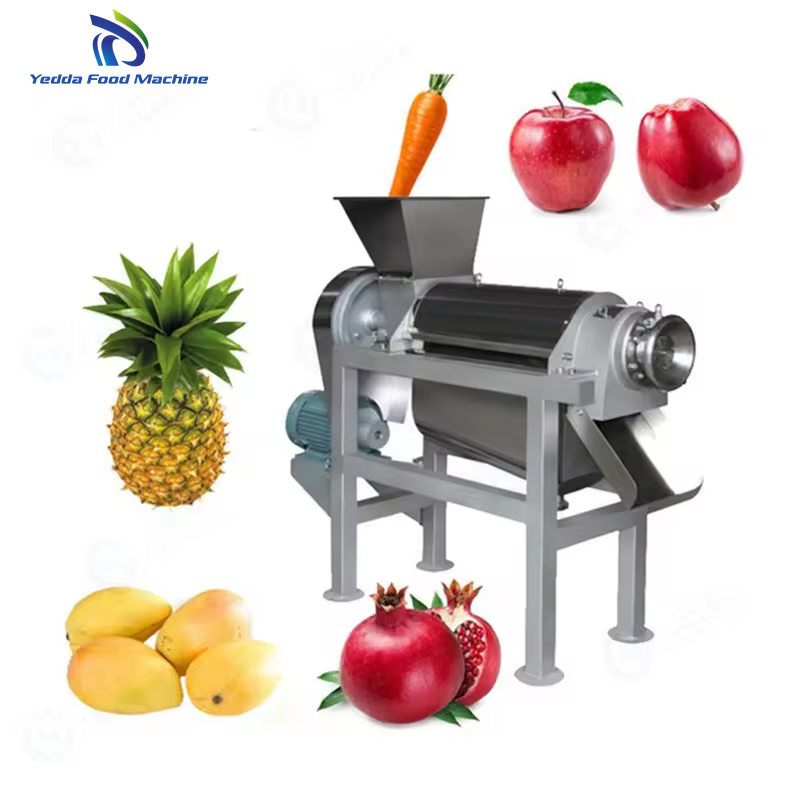

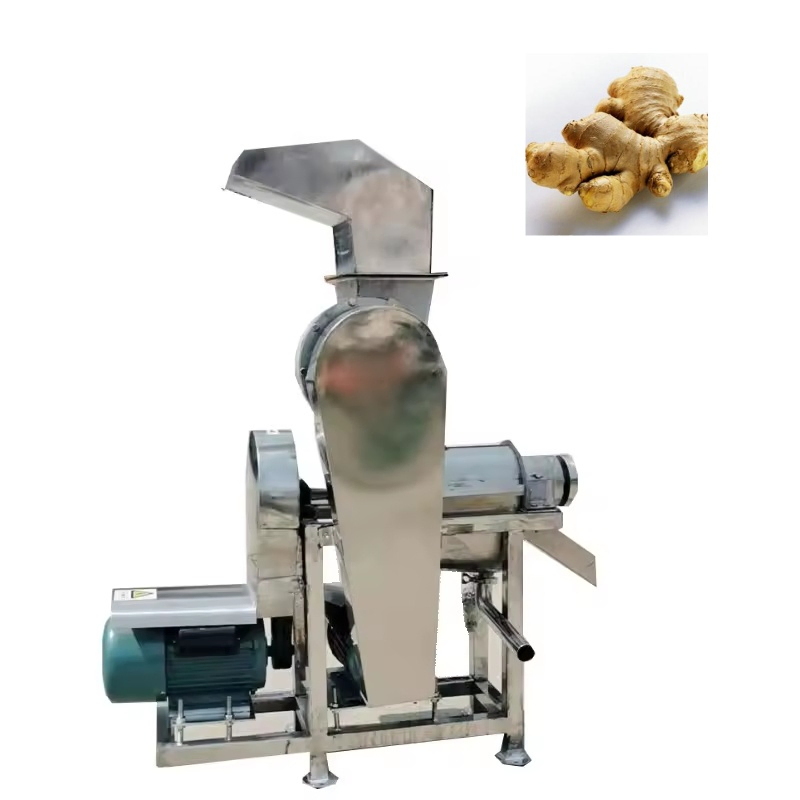

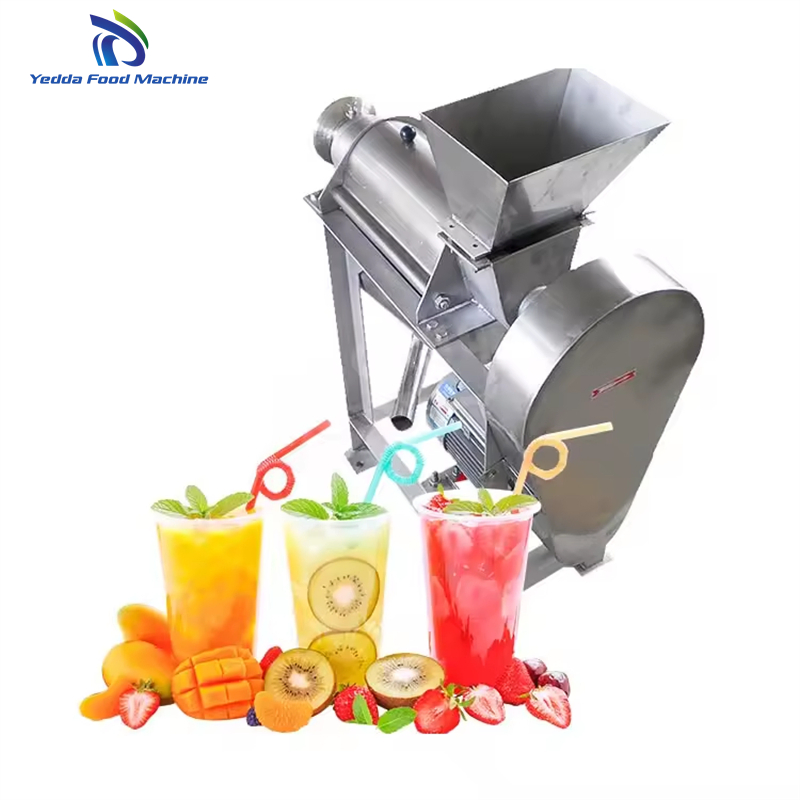

High-Efficiency Commercial Ginger Juice Extracting Equipment for Businesses

Customization: Available
After-sales Service: Oversea Service Available
Warranty: Per Year

Product Description

i

Basic Info.

Model NO.HT Series
TypeJuicing
Voltage380V
Power1.5KW
Material304 Stainless Steel
ProcessFruit & Vegetable
Capacity300-2000kg/Hour
FunctionJuicing & Pulping
PackagePlywood Case
OriginChina

Product Description

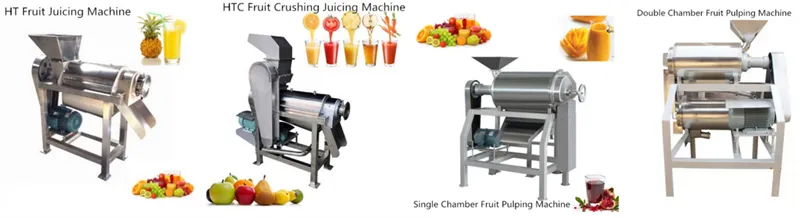

Juice Extracting Equipment

Automatic Fruit Screw Juice Extracting Machine: An innovative marvel expertly crafted to efficiently extract juices from a diverse range of fruits and vegetables with unparalleled precision.

At its core lies a robust spiral mechanism, meticulously engineered to expand progressively towards the material residue outlet while narrowing the screw pitch. This sophisticated design ensures that as the materials advance through the spiral, they undergo volume contraction, significantly enhancing juice extraction efficiency. Our spiral juicer adeptly combines fruit crushing and screw juicing with an automatic residue removal system.

The Fruit Pulping Machine: A specialized powerhouse designed for rapid fruit and vegetable juice production. It handles an extensive variety of fresh produce, from oranges, grapes, and kiwis to tomatoes and celery. This machine excels in transforming fruits into luscious jams or refreshing juices, while expertly separating cores, seeds, and skins.

Product Parameters

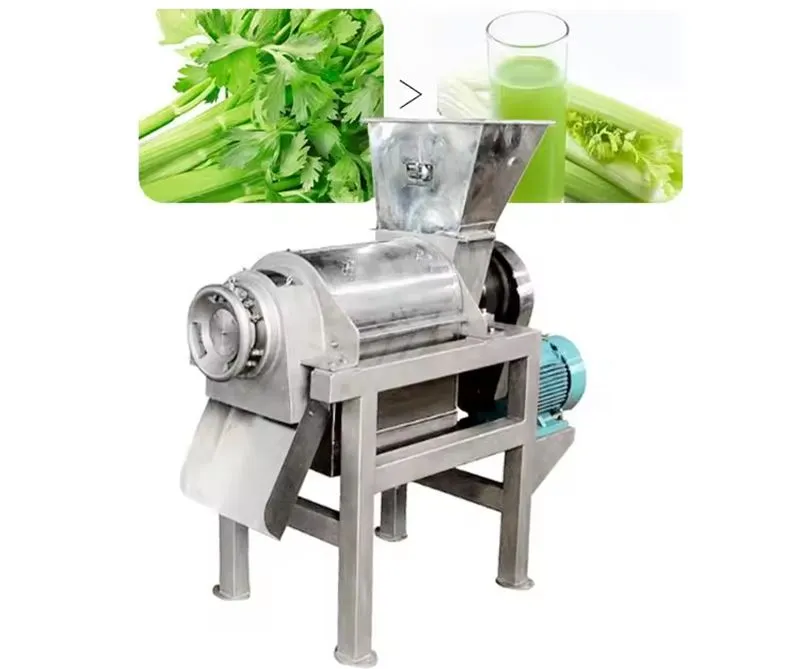

Parameters Chart
Model Dimension Capacity Power Voltage
HT-0.51100*320*750mm300-500kg/h1.5kw380V
HT-1.51620*550*950mm1000-1500kg/h2.2kw
HT-2.51620*720*1480mm2000-2500kg/h5kw

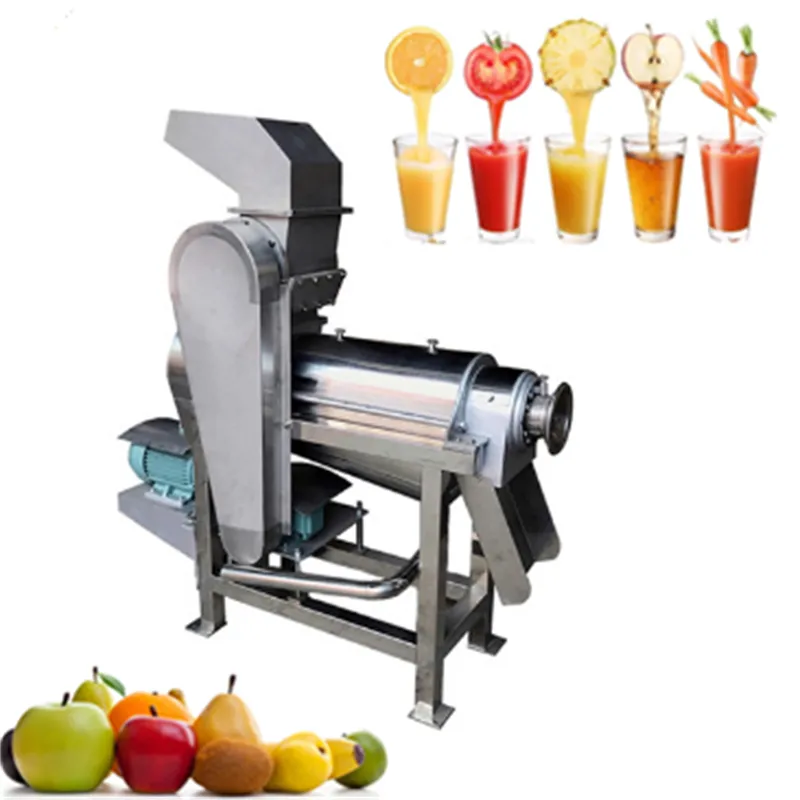

HTC Series Parameters
Model Dimension Capacity Power Voltage
HTC-0.51100*320*1300mm300-500kg/h1.5kw+2.2kw380V
HTC-1.51620*550*1485mm1000-1500kg/h2.2kw+4kw
HTC-2.51620*72*2030mm2000-2500kg/h5kw+4kw

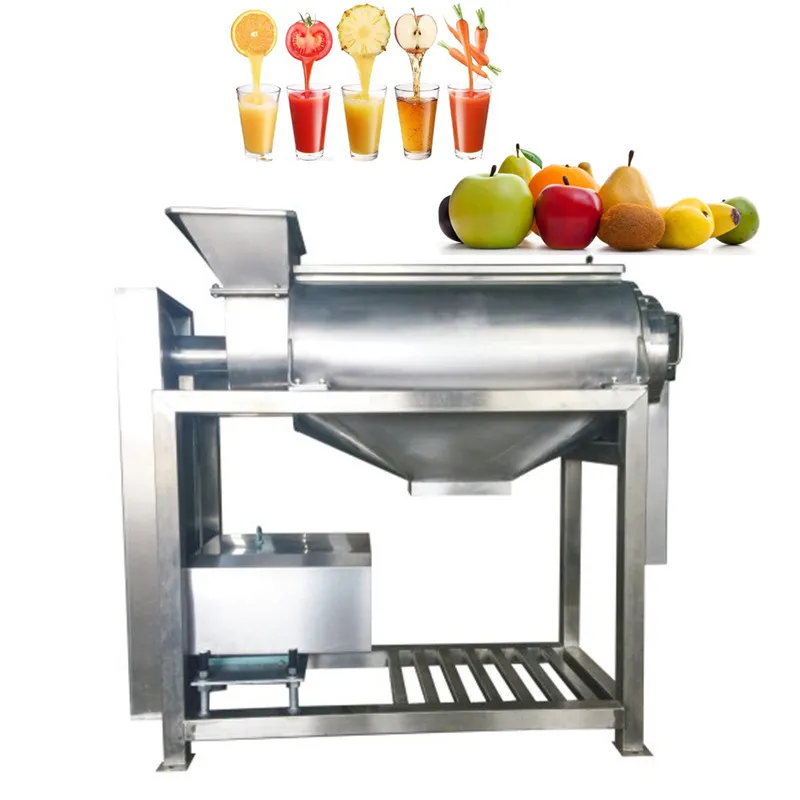

SG Series Parameters
Model Dimension Capacity Power Weight Voltage
SG-0.51100*450*1150mm300-500kg/h3kw90kg380V
SG-0.81300*550*1250mm500-800kg/h4kw130kg
SG-11400*650*1350mm800-1000kg/h5.5kw180kg
SG-1.51600*800*1550mm1000-1500kg/h5.5kw250kg
SG-21600*900*1650mm1500-2000kg/h7.5kw350kg
📷

Detailed Photos

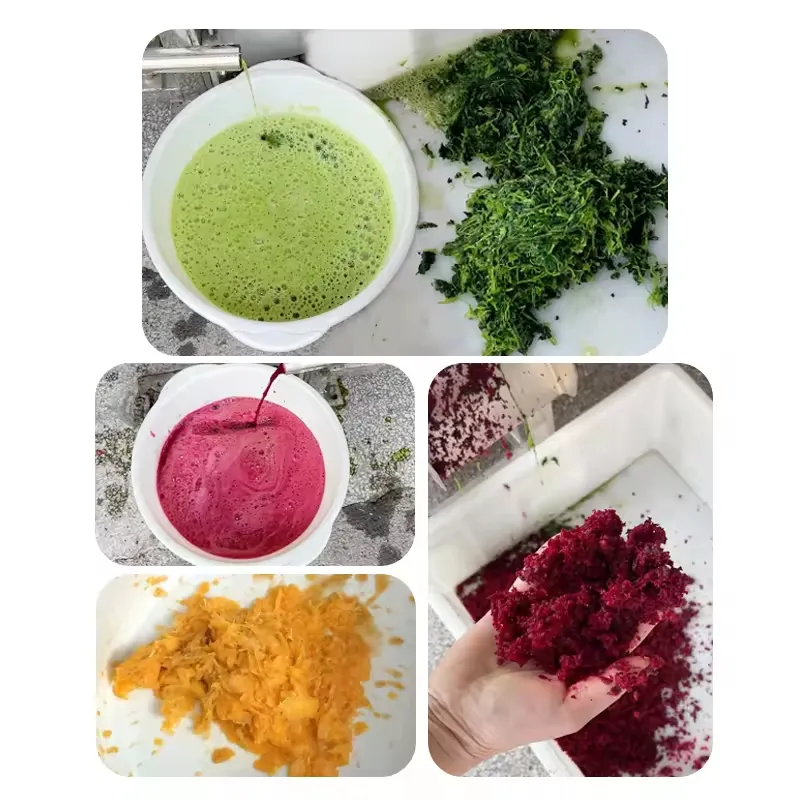

Machine Detail

Mango Puree Processing Display:

Mango Puree
Juice Detail

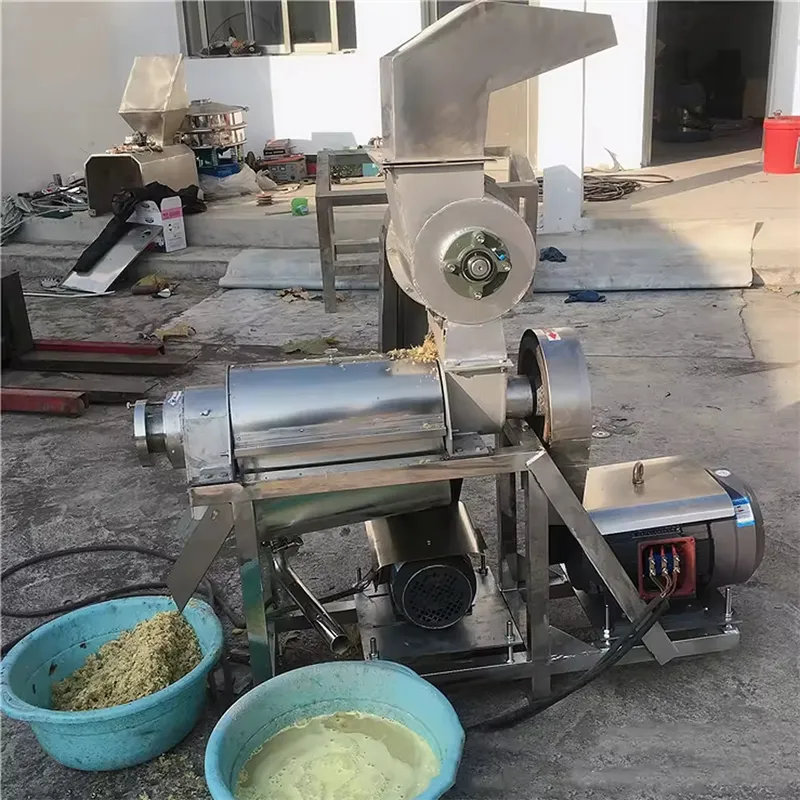

Internal Parts

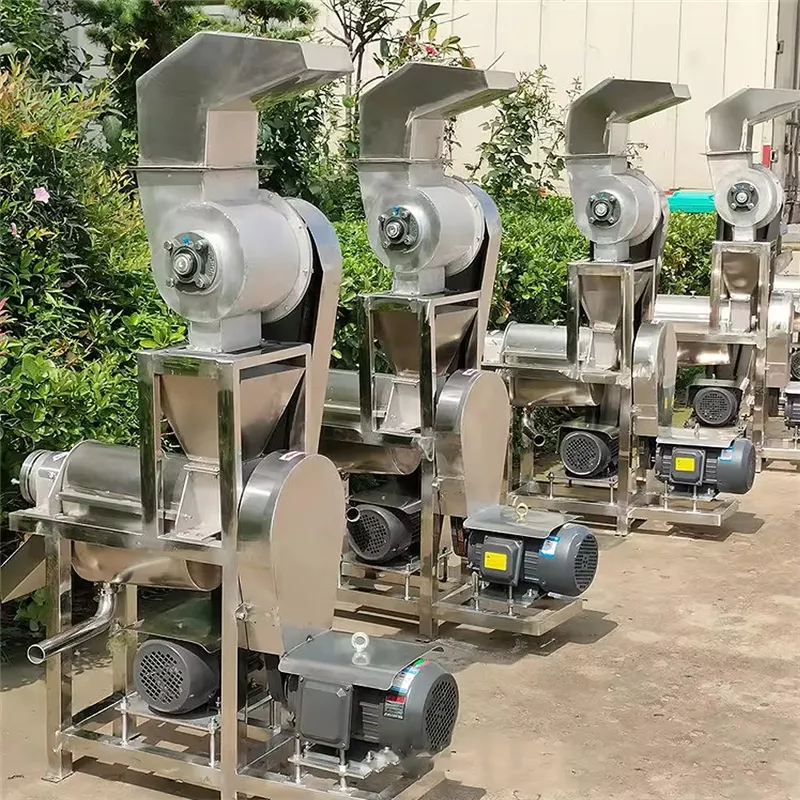

Machine View

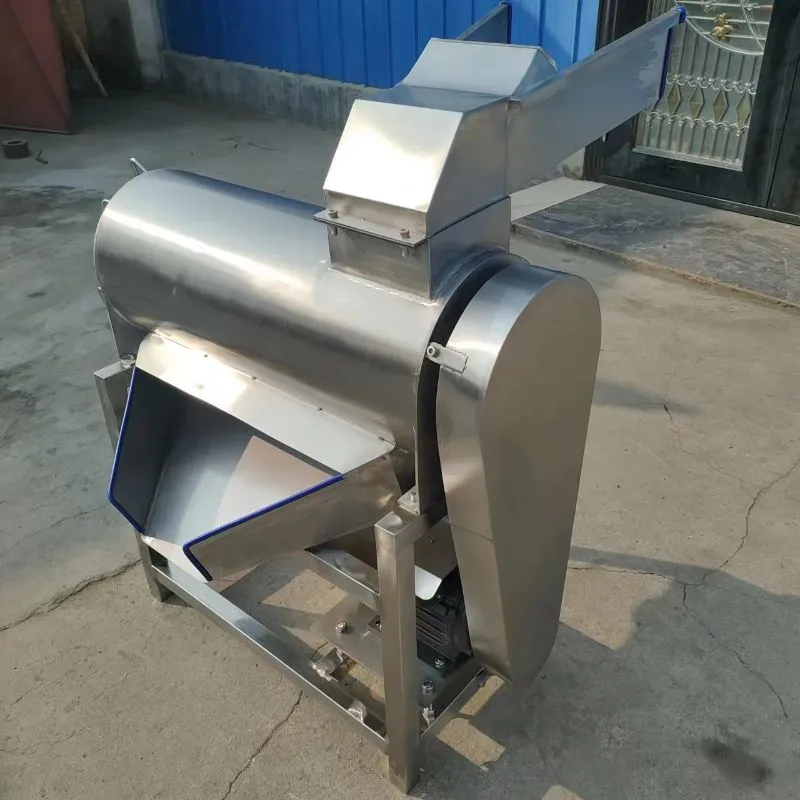

Machine Structure

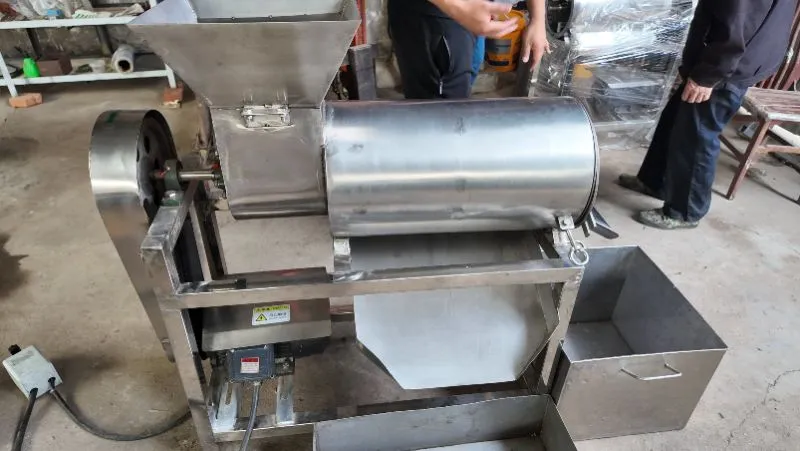

Process View

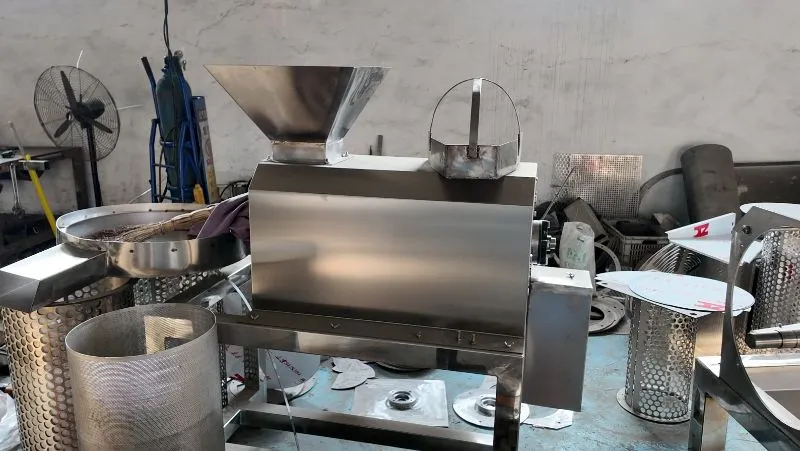

Operation

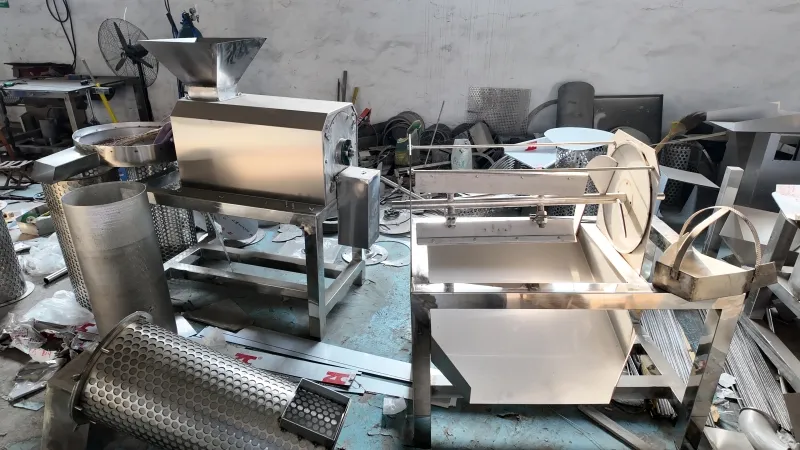

Finished Product
📦

Packaging & Shipping

  • Exceptional Packaging: Meticulously encased in a robust, standard-exporting plywood case for maximum protection.
  • Speedy Dispatch: Promise of swift dispatch within 10 working days upon receipt of deposit.
  • Comprehensive Warranty: 1-year warranty covering all non-human malfunctions (excluding wear parts).
Shipping Case
🏢

Professional Food Machinery Solutions

We are a beacon of innovation and efficiency in the advanced food machinery industry. Our expertise spans across fruit and vegetable washing, peeling, cutting, juicing, drying, frying, and freezing. We provide cutting-edge machinery designed for meat, fish, seafood processing, and innovative nut machines. Our commitment to excellence ensures dependable solutions that exceed client expectations through high quality and expert service.

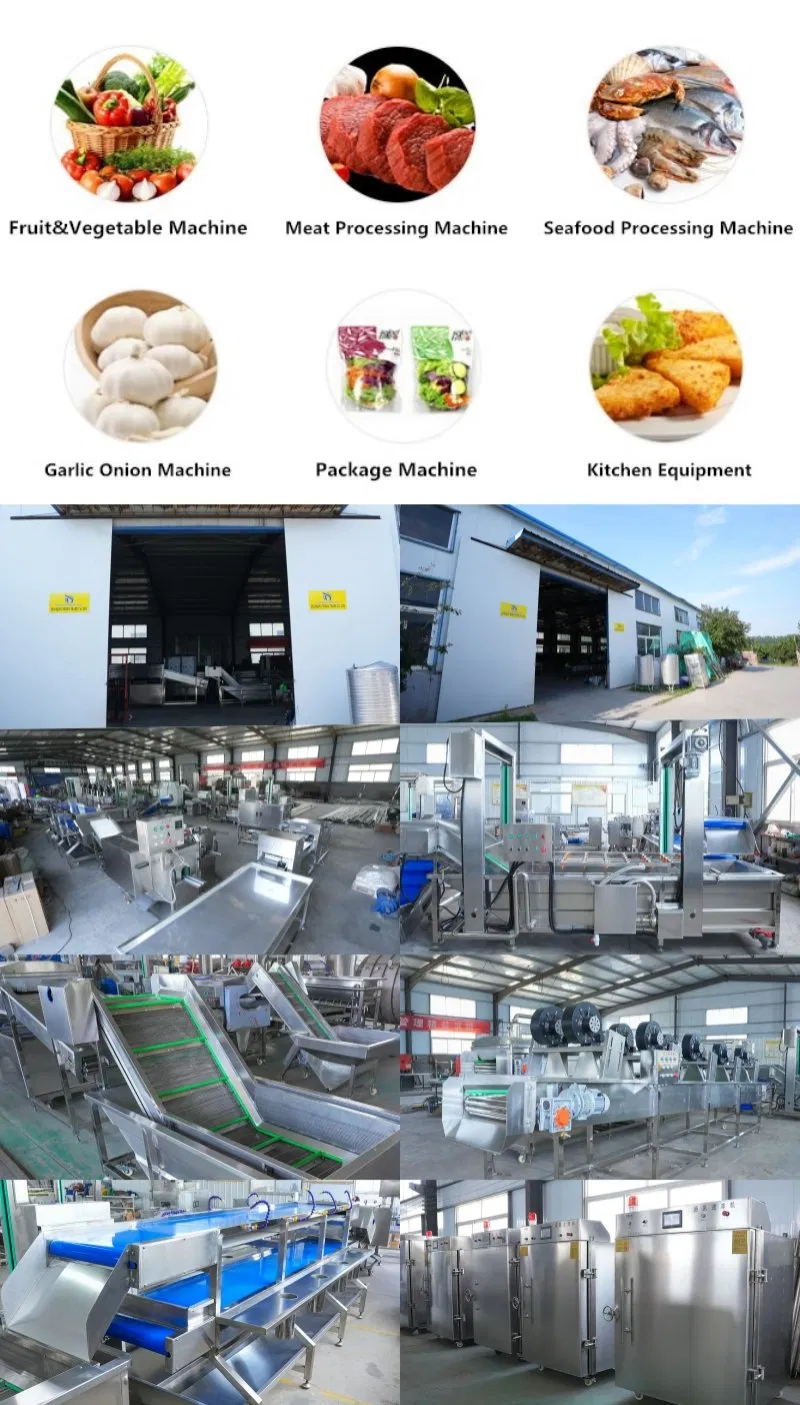

Product Range
?

Frequently Asked Questions

Q1: What materials are used in the construction of the juicing machines? A: All our juicing and pulping machines are constructed using high-quality 304 Stainless Steel, ensuring durability and food safety.
Q2: Which types of fruits and vegetables can be processed? A: The machines are versatile and can handle a wide range of produce, including oranges, grapes, kiwis, tomatoes, ginger, celery, mulberries, and peaches.
Q3: Is it possible to customize the machinery? A: Yes, we offer customized solutions tailored to specific customer requirements and production plant designs.
Q4: What is the typical lead time for delivery? A: We typically dispatch orders within 10 working days after receiving the deposit.
Q5: What kind of warranty do you provide? A: We provide a comprehensive 1-year warranty covering all non-human malfunctions, excluding standard wear parts.
Q6: How are the products packaged for international shipping? A: Products are meticulously encased in robust, standard-export plywood cases to ensure safe transit and protection.
