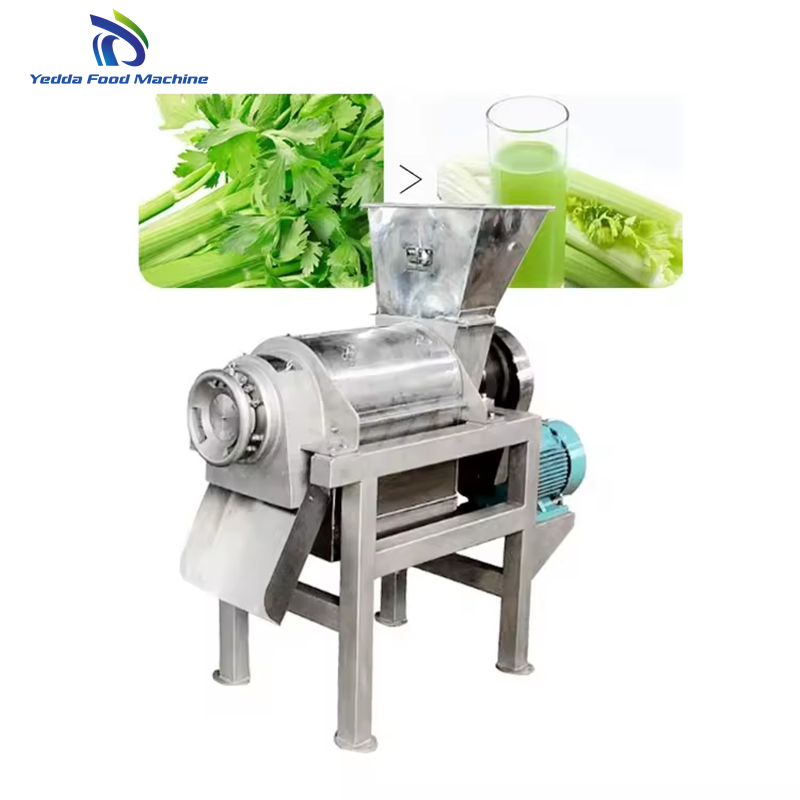

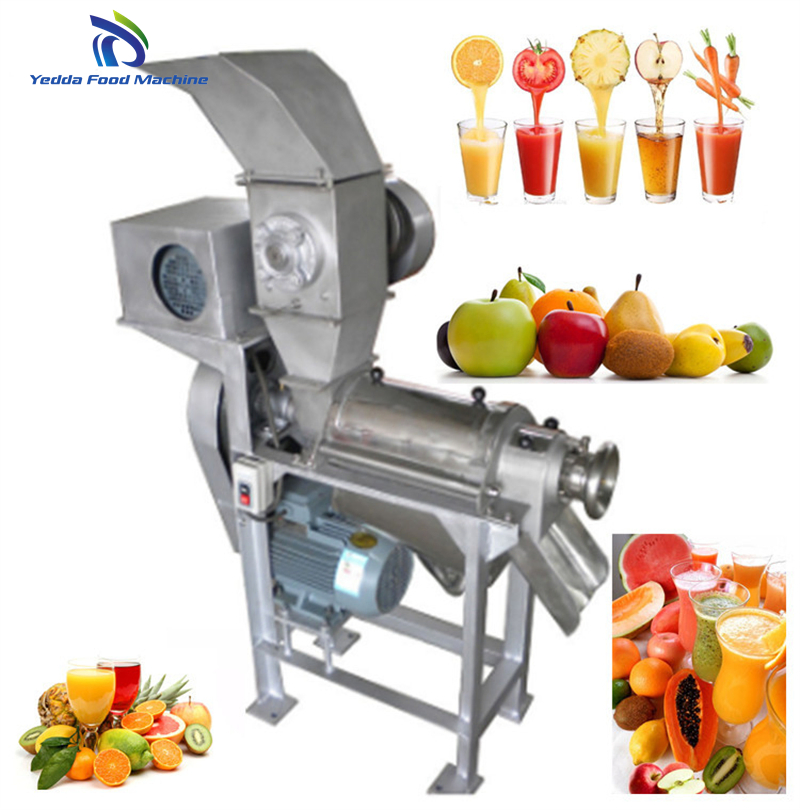

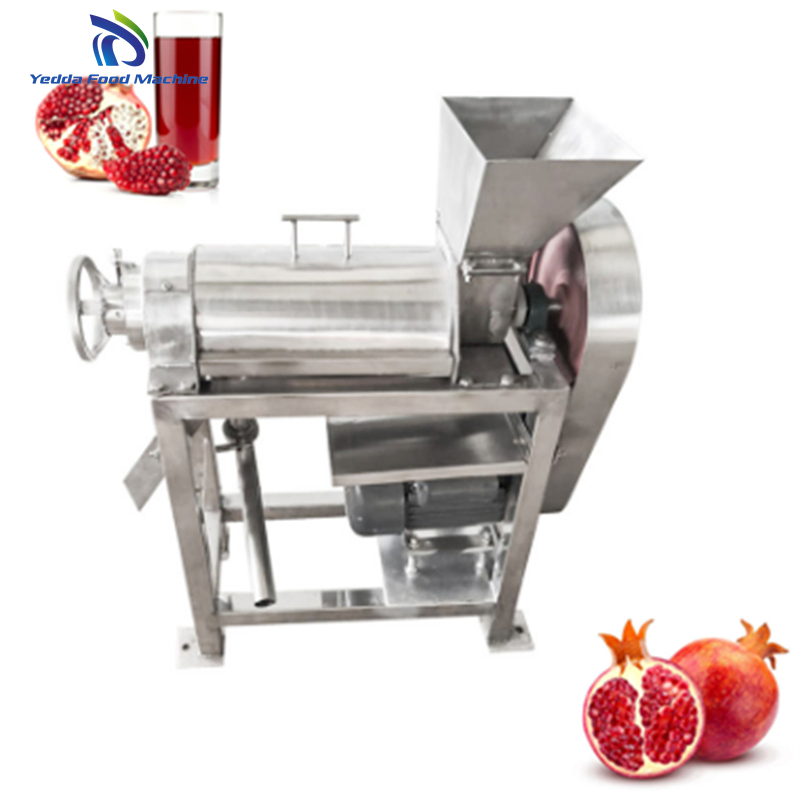

Automatic Fruit Screw Juice Extracting Machine Fruit Puree Pulping Machine

Customization: Available
After-sales Service: Oversea Service Available
Warranty: Per Year

Product Description

i

Basic Information

Model NO.
HT Series
Type
Juicing
Voltage
380V
Power
1.5KW
Material
304 Stainless Steel
Process
Fruit & Vegetable
Capacity
300-2000kg/Hour
Function
Juicing & Pulping
Transport Package
Plywood Case
Specification
460*400*1000mm

Product Description

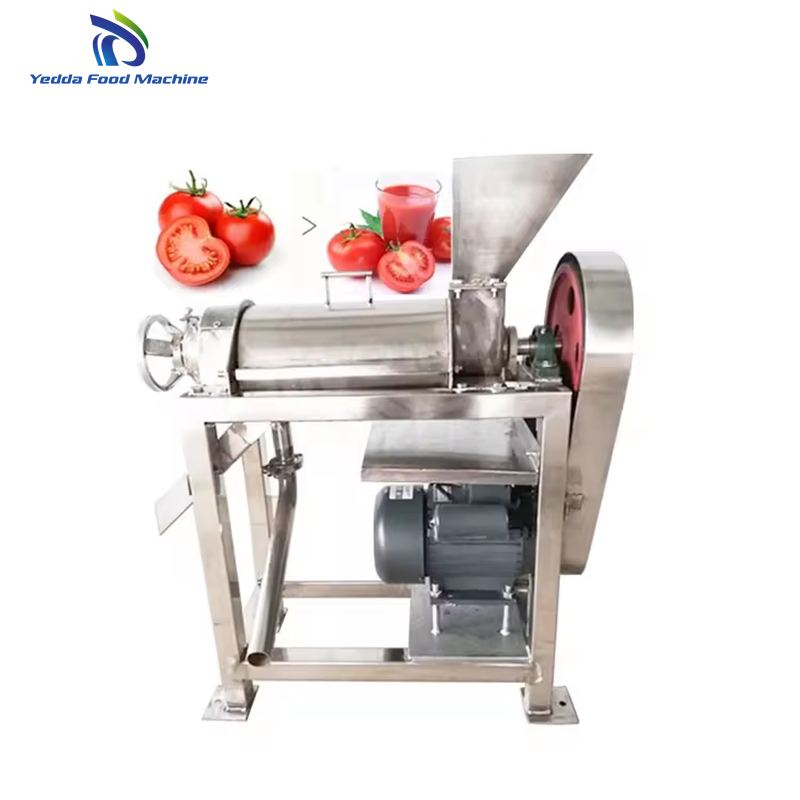

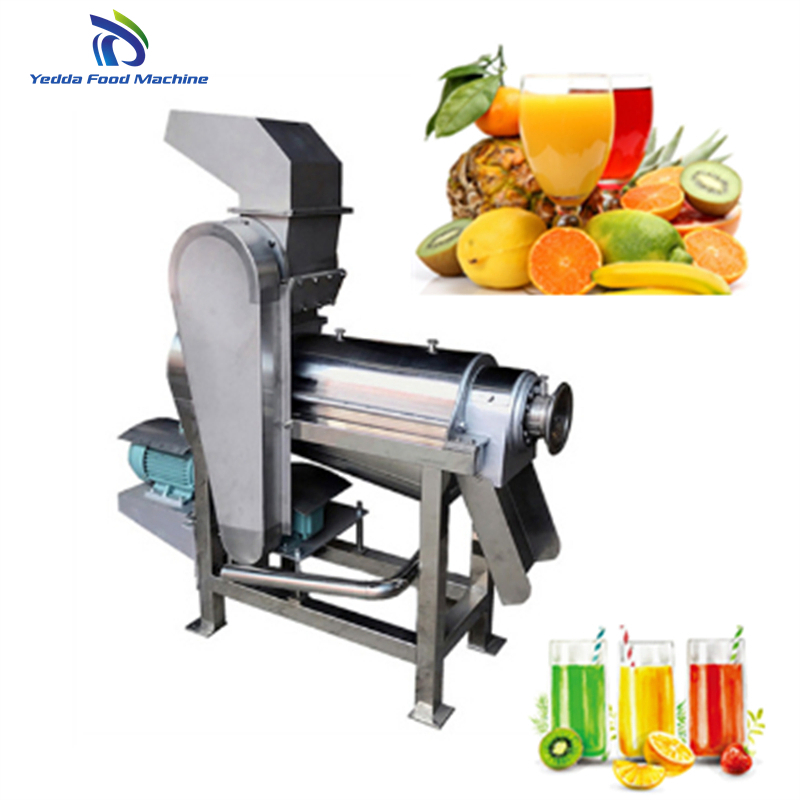

Automatic Fruit Screw Juice Extracting Machine

The Automatic Fruit Screw Juice Extracting Machine is an innovative solution primarily designed for efficiently extracting juices from a wide array of fruits and vegetables. At the heart of the equipment lies a robust spiral mechanism, which enlarges progressively towards the material residue outlet while the screw pitch narrows. This ingenious design ensures that as the materials advance through the spiral, they undergo volume contraction within the spiral cavity, thus facilitating effective juice extraction. Our spiral juicer seamlessly integrates the dual functionality of fruit crushing and screw juicing, featuring an automatic residue removal system.

The Fruit Pulping Machine is a specialized powerhouse designed for rapid fruit and vegetable juice production. Efficient and versatile, it adeptly handles a variety of fresh produce, from juicy fruits like oranges, grapes, and kiwis to hearty vegetables such as tomatoes and celery. This machine excels in transforming fruits like mulberries, bayberries, and peaches into luscious jams or refreshing juices, all while expertly separating cores, seeds, and skins.

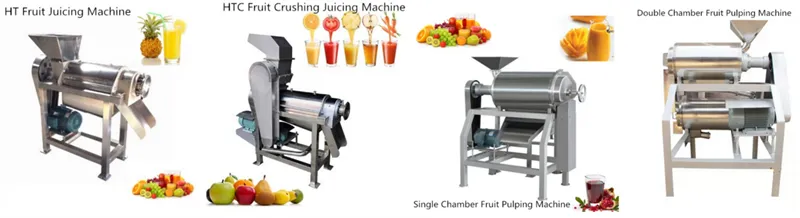

Product Parameters

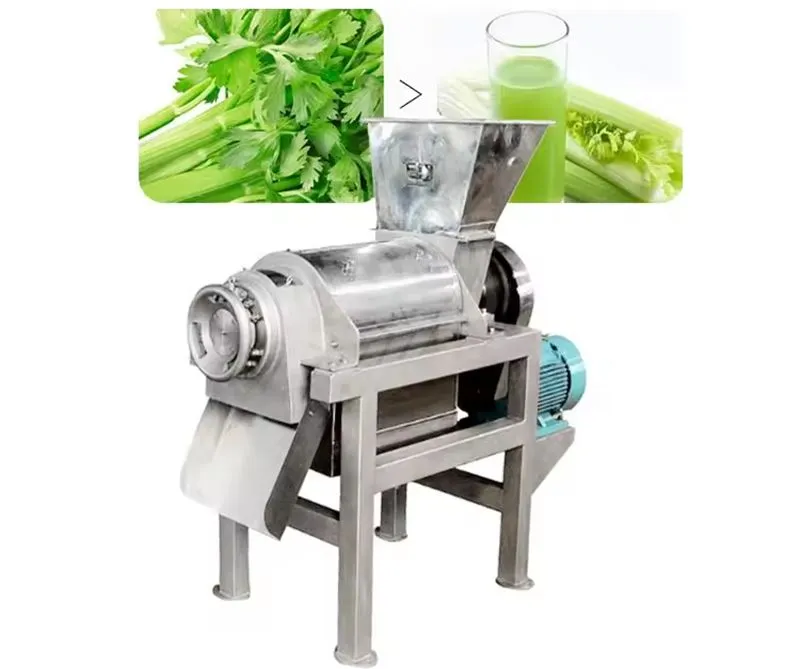

Parameters Overview
Model Dimension Capacity Power Voltage
HT-0.51100*320*750mm300-500kg/h1.5kw380V
HT-1.51620*550*950mm1000-1500kg/h2.2kw
HT-2.51620*720*1480mm2000-2500kg/h5kw

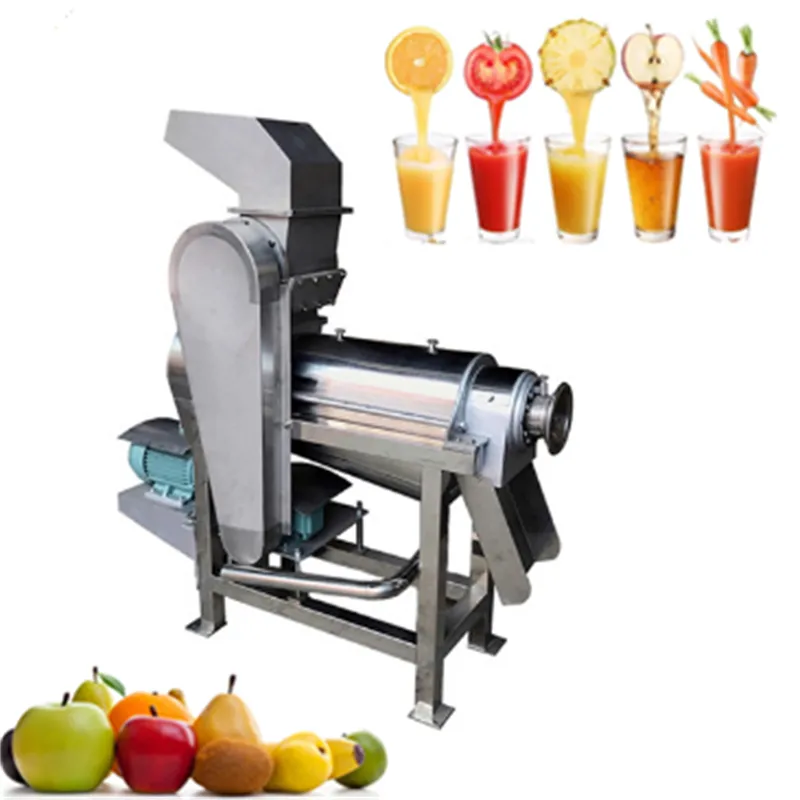

HTC Series Parameters
Model Dimension Capacity Power Voltage
HTC-0.51100*320*1300mm300-500kg/h1.5kw+2.2kw380V
HTC-1.51620*550*1485mm1000-1500kg/h2.2kw+4kw
HTC-2.51620*720*2030mm2000-2500kg/h5kw+4kw

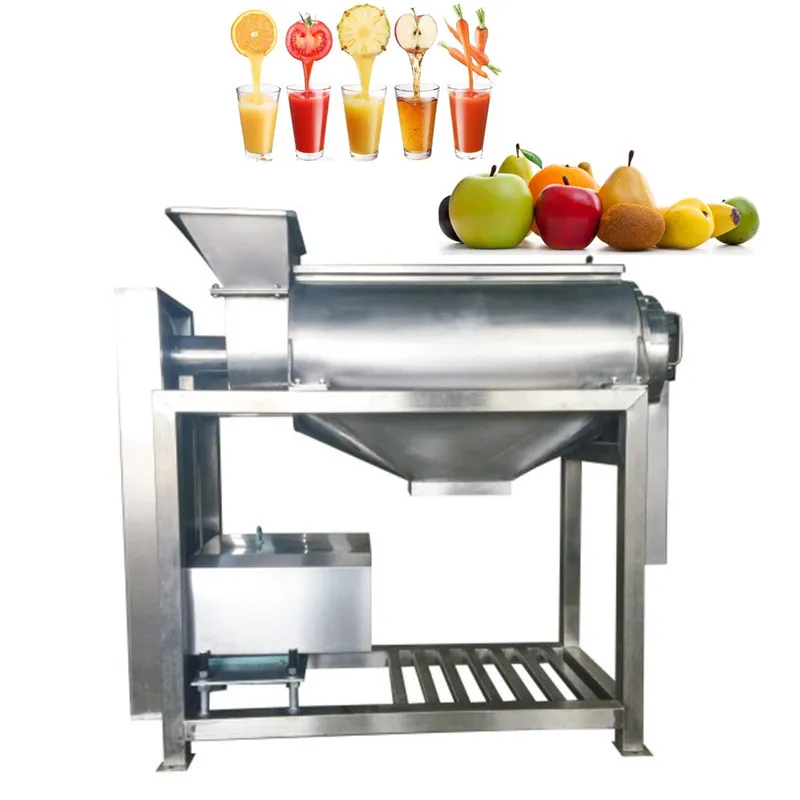

SG Series Parameters
Model Dimension Capacity Power Weight Voltage
SG-0.51100*450*1150mm300-500kg/h3kw90kg380V
SG-0.81300*550*1250mm500-800kg/h4kw130kg
SG-11400*650*1350mm800-1000kg/h5.5kw180kg
SG-1.51600*800*1550mm1000-1500kg/h5.5kw250kg
SG-21600*900*1650mm1500-2000kg/h7.5kw350kg

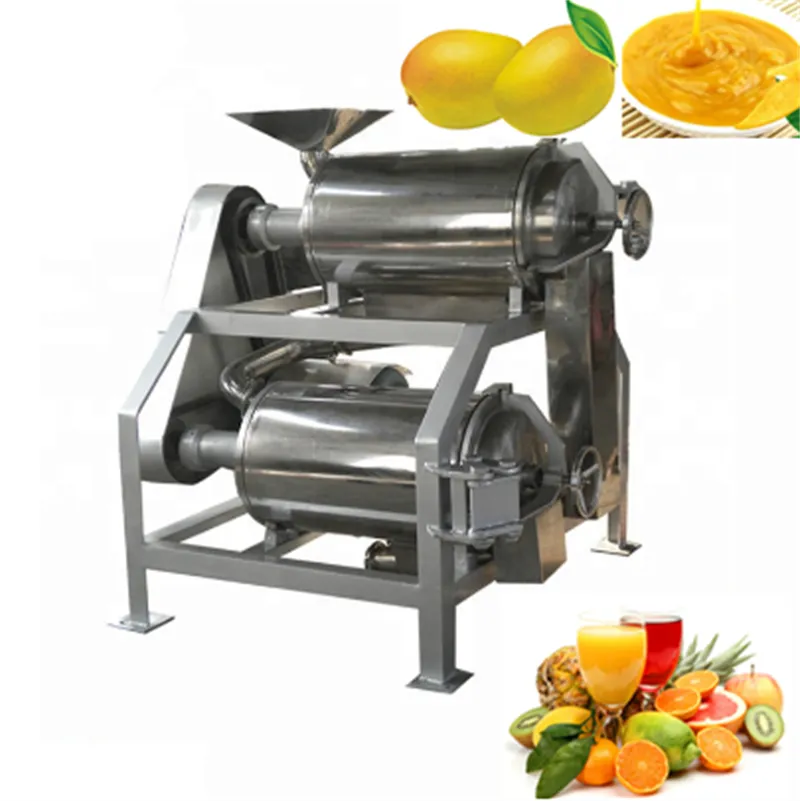

SG2 Series Parameters
Model Dimension Capacity Power Voltage
SG2-0.5T1140*870*1305mm300-500kg/h5.5kw380V
SG2-3T1530*1420*1530mm2000-3000kg/h7.5kw
SG2-5T1935*2275*1700mm4000-5000kg/h11kw
📷

Detailed Photos

Processing Result: Mango Puree

Mango Puree 1
Mango Puree 2
Detailed Machine View

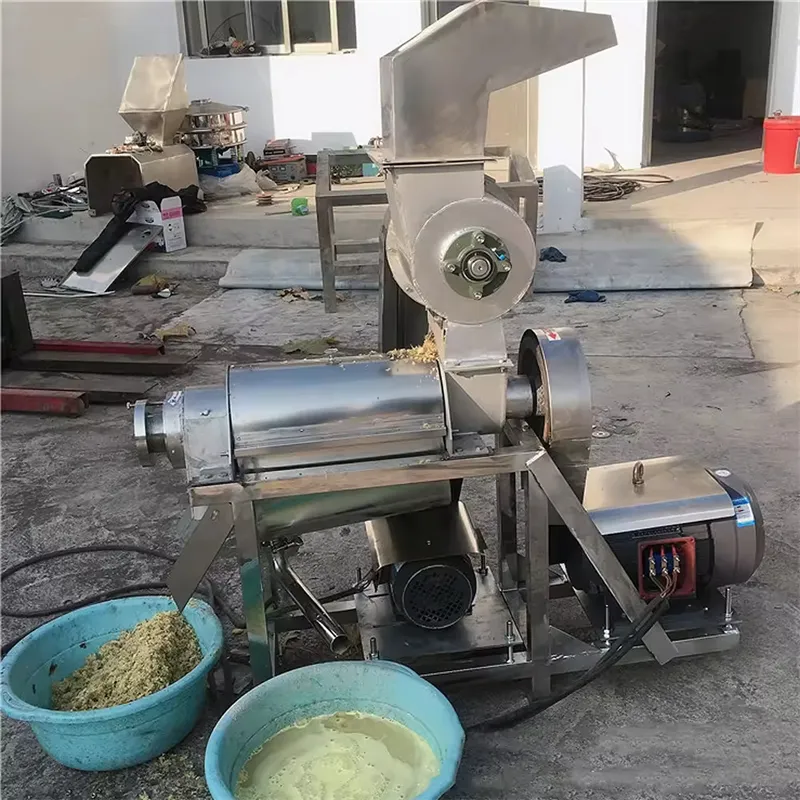

Internal Component 1

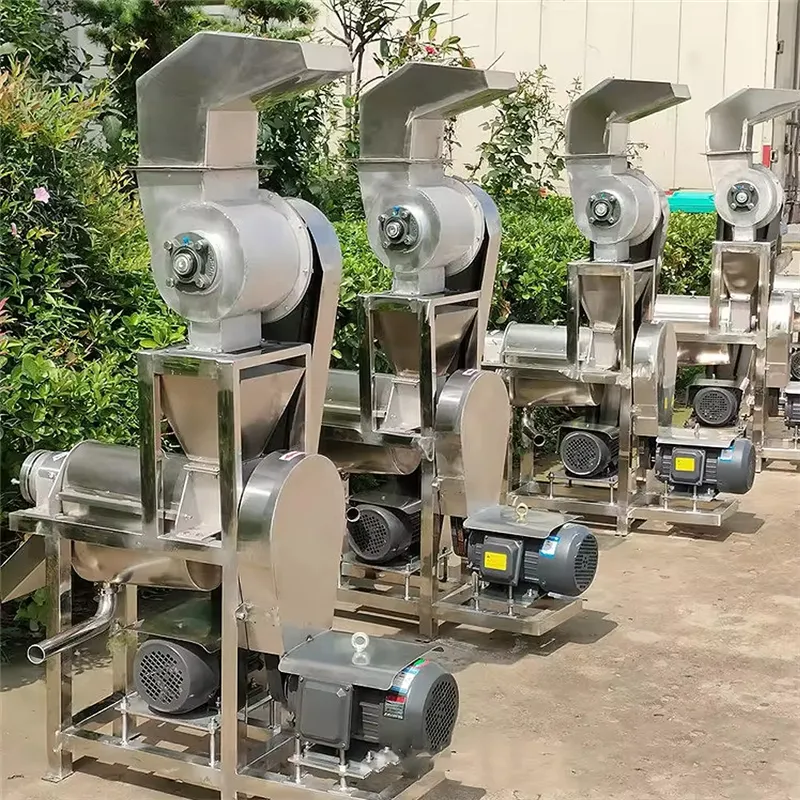

Internal Component 2

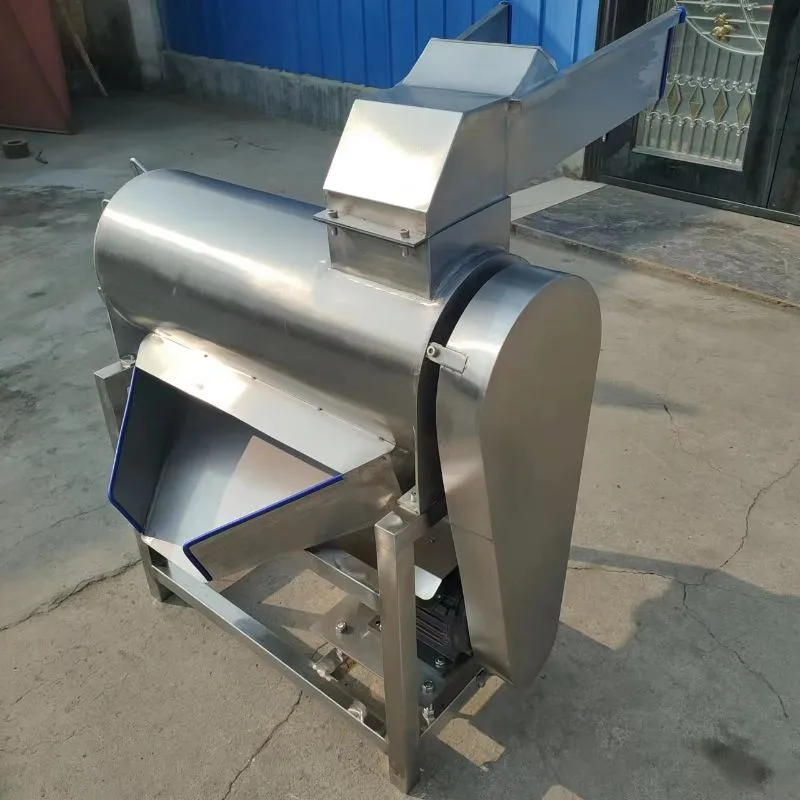

Internal Component 3

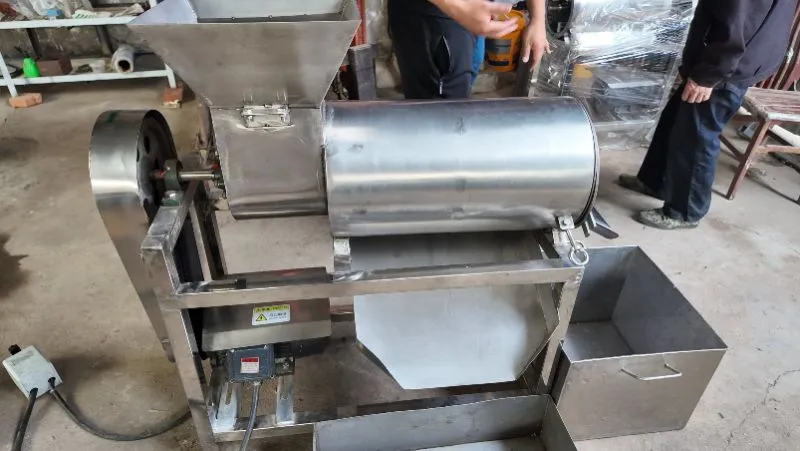

Machine Structure 1

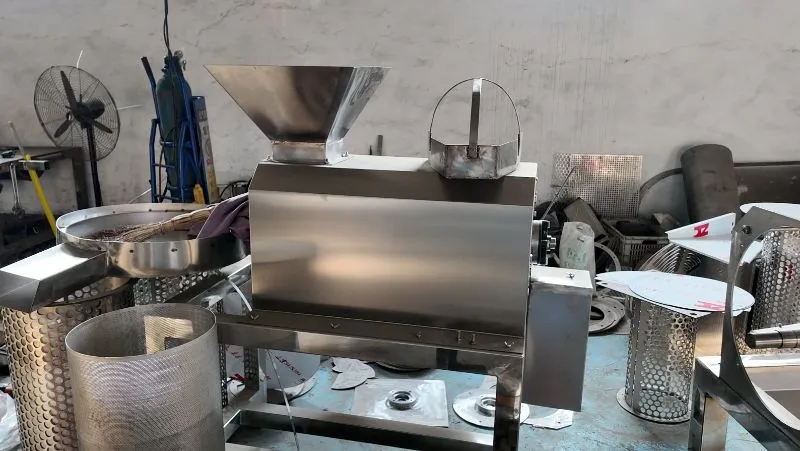

Machine Structure 2

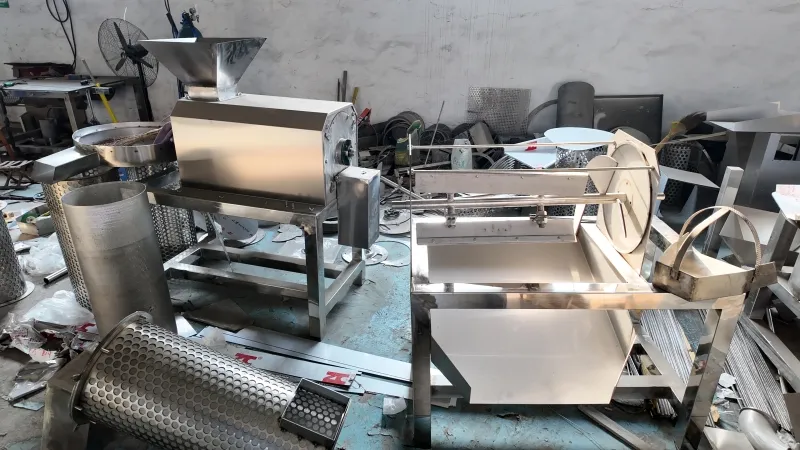

Machine Structure 3
📦

Packaging & Shipping

Exceptional Packaging: Our product is meticulously encased in a robust, standard exporting plywood case, providing unparalleled protection during transit to ensure it arrives in perfect condition.
Speedy Dispatch: We guarantee dispatch within a swift 10 working days upon receipt of your deposit, ensuring remarkable timeliness and reliability for your utmost convenience.
Comprehensive Warranty Period: Benefit from a 1-year warranty covering all non-human malfunctions, excluding wear parts, providing complete peace of mind.
Packaging Case
🏢

Professional Expertise

We stand as a beacon of innovation and efficiency in the advanced food machinery industry. We deliver bespoke solutions that cater precisely to the dynamic food sector, ensuring unmatched performance and reliability. Our expertise is evident in the meticulous processes involved in fruit and vegetable washing, peeling, cutting, juicing, drying, frying, and freezing, where we uphold the pinnacle of quality standards.

We take pride in offering cutting-edge machines designed for meat, fish, and seafood processing, innovative nut machines, and sophisticated food packaging equipment, along with comprehensive kitchen and restaurant equipment to meet diverse needs. We are also specialists in designing and setting up customized food production plants tailored to specific customer requirements.

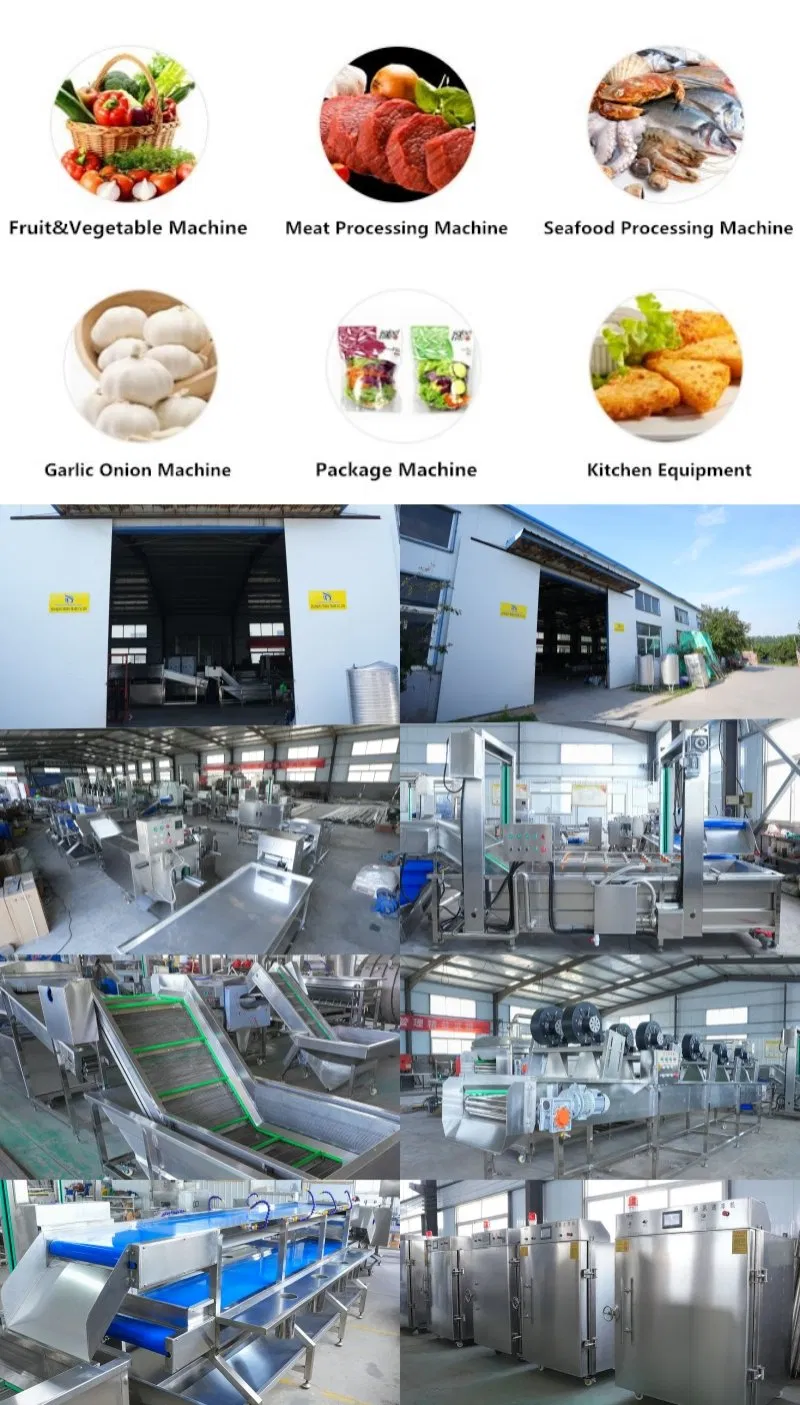

Production Capacity
?

Frequently Asked Questions

What materials are the machines constructed from?
All machines are primarily constructed from high-quality 304 Stainless Steel, ensuring durability and compliance with food safety standards.
What is the processing capacity range?
Depending on the specific model selected, our machines can handle capacities ranging from 300kg/h up to 5000kg/h.
Which types of produce can be processed?
The equipment is versatile and suitable for a wide range of fruits and vegetables, including oranges, grapes, kiwis, tomatoes, celery, and peaches.
What is the standard delivery time?
We typically guarantee a speedy dispatch within 10 working days after the deposit is received.
Does the machine separate seeds and skins automatically?
Yes, our pulping and juicing machines are designed to expertly separate cores, seeds, and skins from the final juice or jam product.
What kind of warranty is provided?
We offer a comprehensive 1-year warranty covering all non-human malfunctions, excluding standard wear parts.
