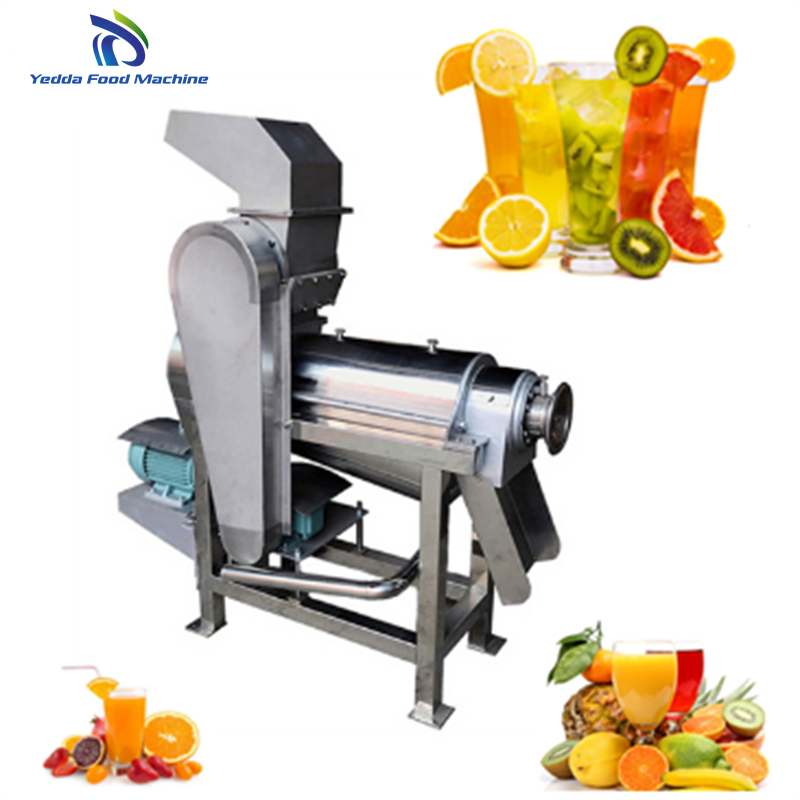

Industrial Automatic Fruit Crushing Machine

Customization: Available
After-sales Service: Oversea Service Available
Warranty: Per Year

Product Description

⚙️ Basic Info.
Model NO.
HT Series
Type
Juicing
Voltage
380V
Power
1.5KW
Material
304 Stainless Steel
Process
Fruit & Vegetable
Capacity
300-2000kg/Hour
Function
Juicing & Pulping
Package
Plywood Case
Origin
China
📝 Product Description

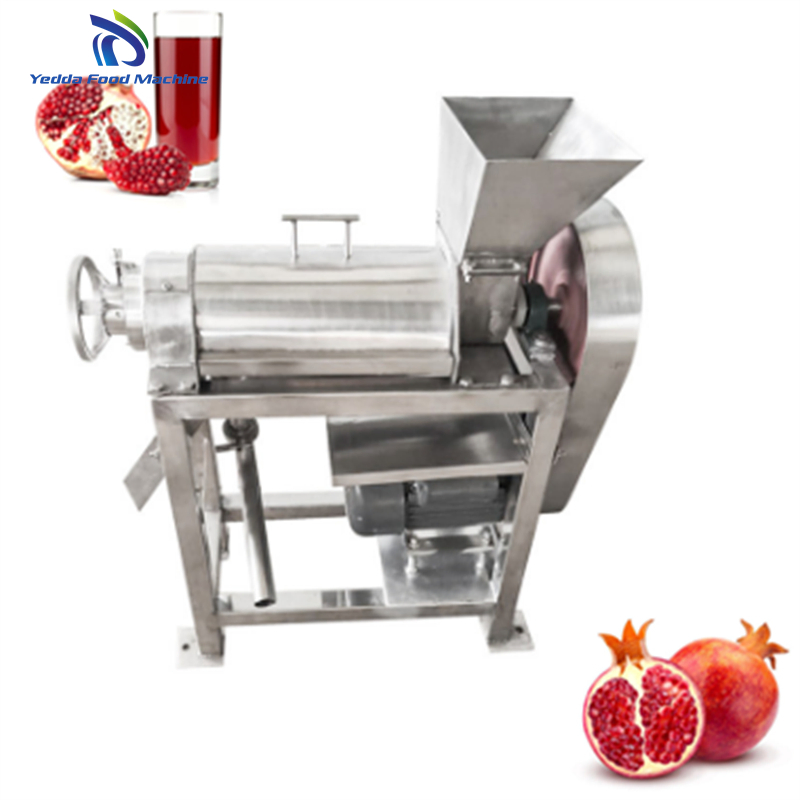

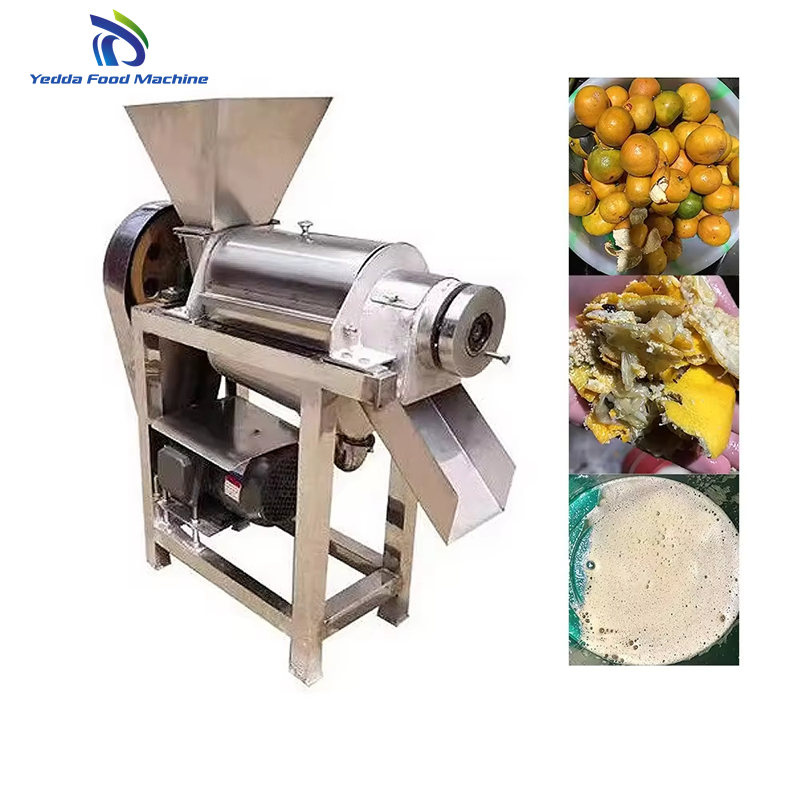

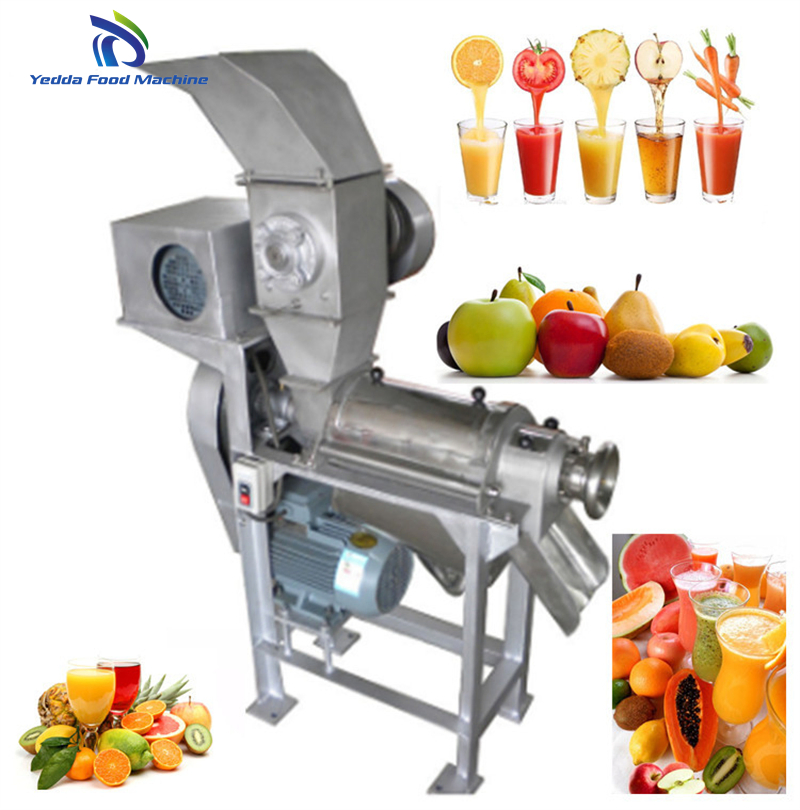

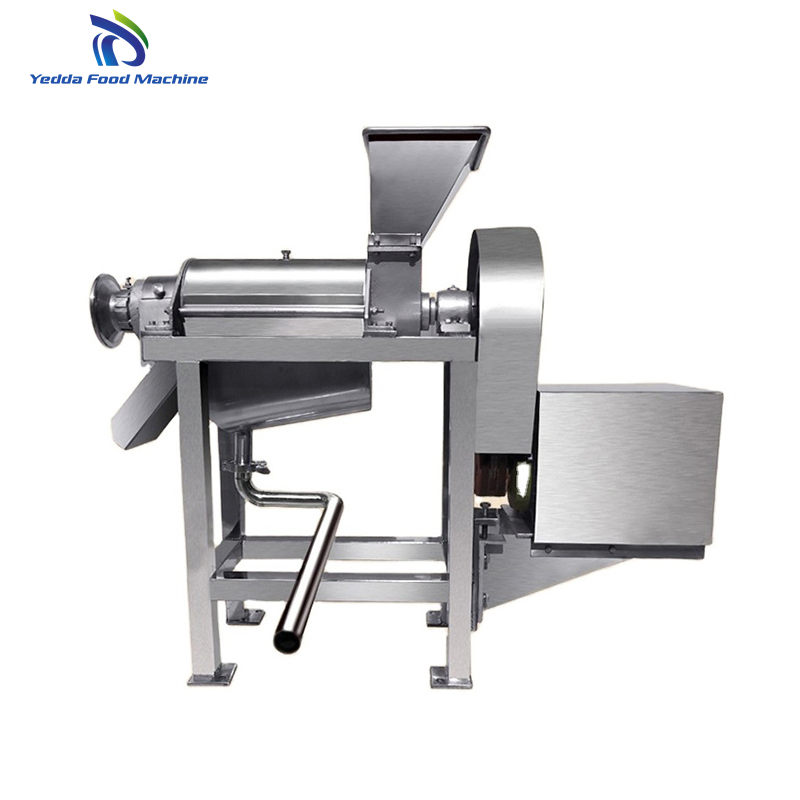

Industrial Automatic Fruit Crushing Machine

The Automatic Fruit Screw Juice Extracting Machine is an advanced and innovative solution expertly designed to efficiently extract juices from a diverse range of fruits and vegetables.

At the core of this equipment is a powerful spiral mechanism that progressively enlarges towards the material residue outlet while the screw pitch decreases. This clever design ensures that as materials move through the spiral, they experience volume contraction within the spiral cavity, resulting in effective juice extraction. Our spiral juicer brilliantly combines the dual functionalities of fruit crushing and screw juicing, complete with an automatic residue removal system.

The Fruit Pulping Machine is a specialized, high-performance powerhouse designed for rapid juice production from both fruits and vegetables. This efficient and versatile machine adeptly processes a wide variety of fresh produce, including juicy fruits like oranges, grapes, and kiwis, as well as robust vegetables such as tomatoes and celery. It excels in transforming fruits like mulberries, bayberries, and peaches into delectable jams or refreshing juices while expertly separating cores, seeds, and skins.

📊 Product Parameters

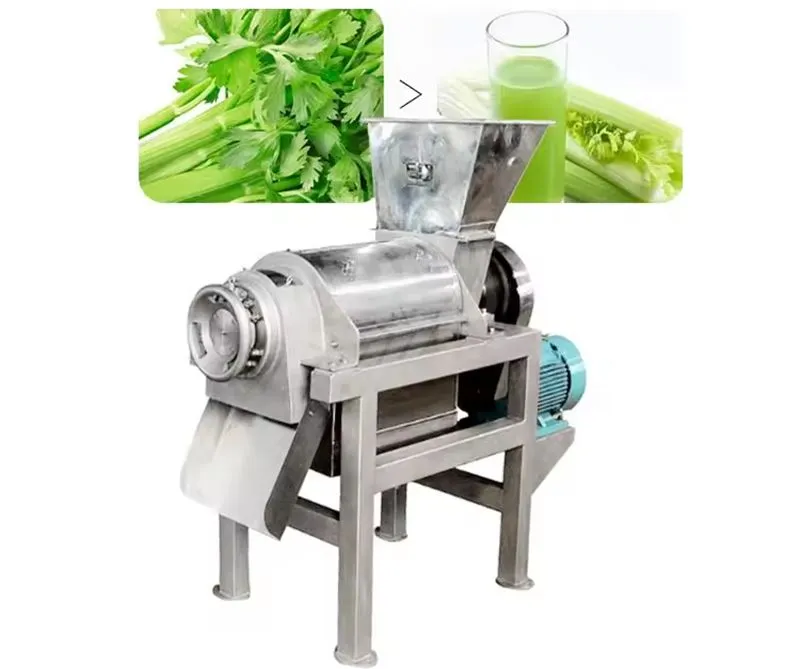

Parameters HT Series
Model Dimension Capacity Power Voltage
HT-0.51100*320*750mm300-500kg/h1.5kw380V
HT-1.51620*550*950mm1000-1500kg/h2.2kw
HT-2.51620*720*1480mm2000-2500kg/h5kw

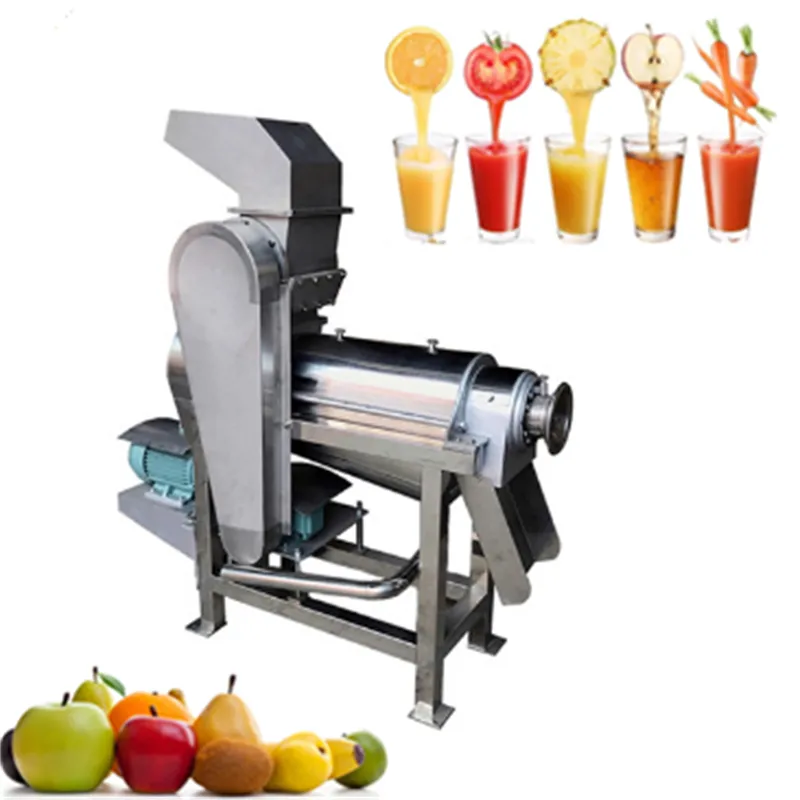

Parameters HTC Series
Model Dimension Capacity Power Voltage
HTC-0.51100*320*1300mm300-500kg/h1.5kw+2.2kw380V
HTC-1.51620*550*1485mm1000-1500kg/h2.2kw+4kw
HTC-2.51620*72*2030mm2000-2500kg/h5kw+4kw

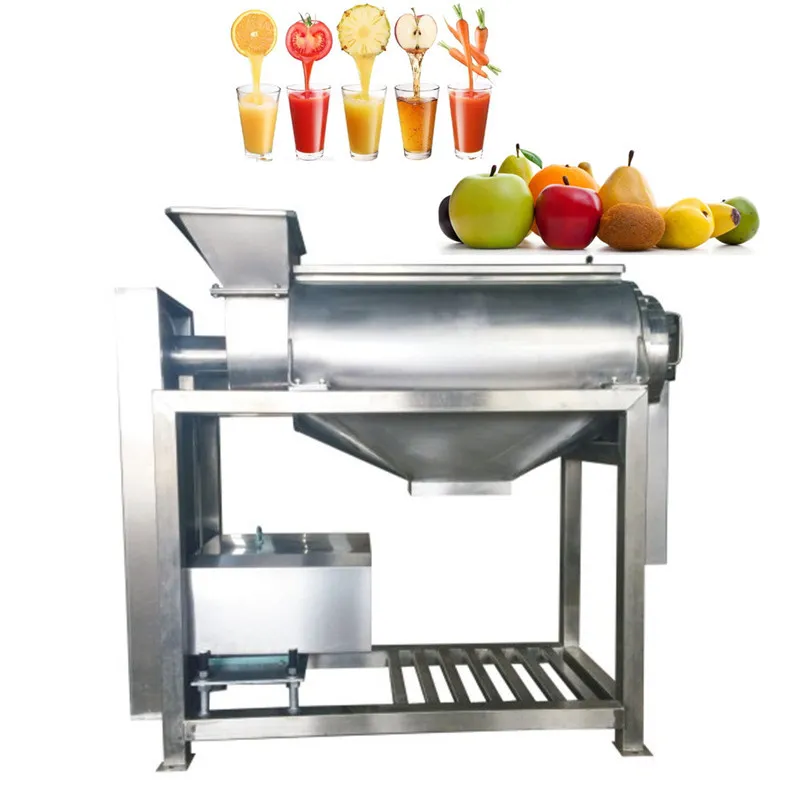

Parameters SG Series
Model Dimension Capacity Power Weight Voltage
SG-0.51100*450*1150mm300-500kg/h3kw90kg380V
SG-0.81300*550*1250mm500-800kg/h4kw130kg
SG-11400*650*1350mm800-1000kg/h5.5kw180kg
SG-1.51600*800*1550mm1000-1500kg/h5.5kw250kg
SG-21600*900*1650mm1500-2000kg/h7.5kw350kg

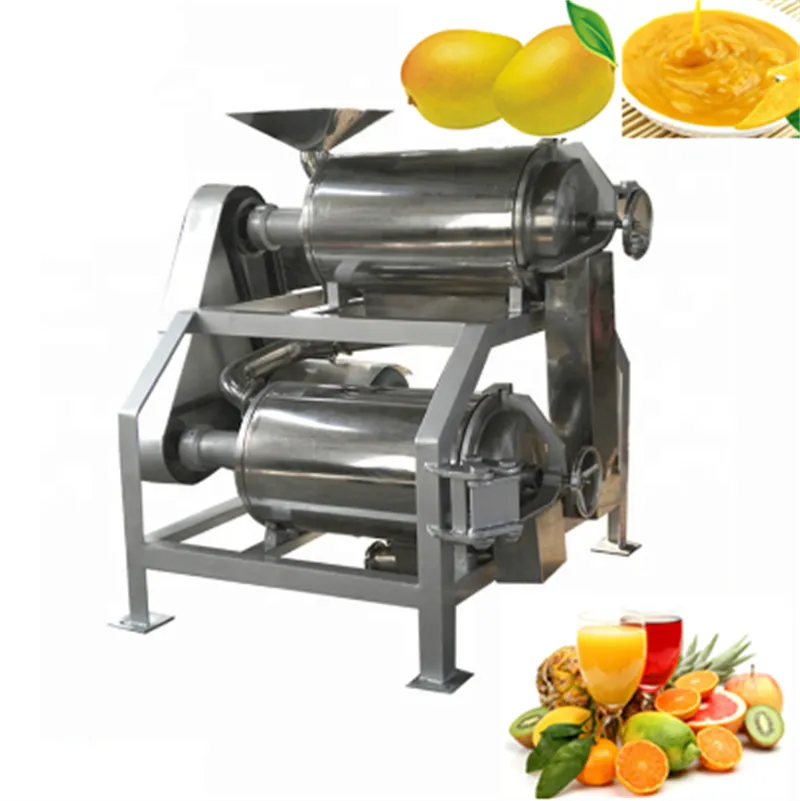

Parameters SG2 Series
Model Dimension Capacity Power Voltage
SG2-0.5T1140*870*1305mm300-500kg/h5.5kw380V
SG2-3T1530*1420*1530mm2000-3000kg/h7.5kw
SG2-5T1935*2275*1700mm4000-5000kg/h11kw

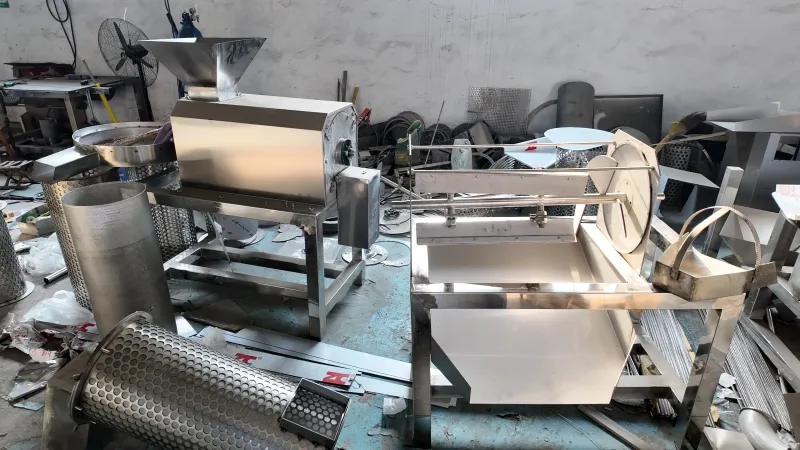

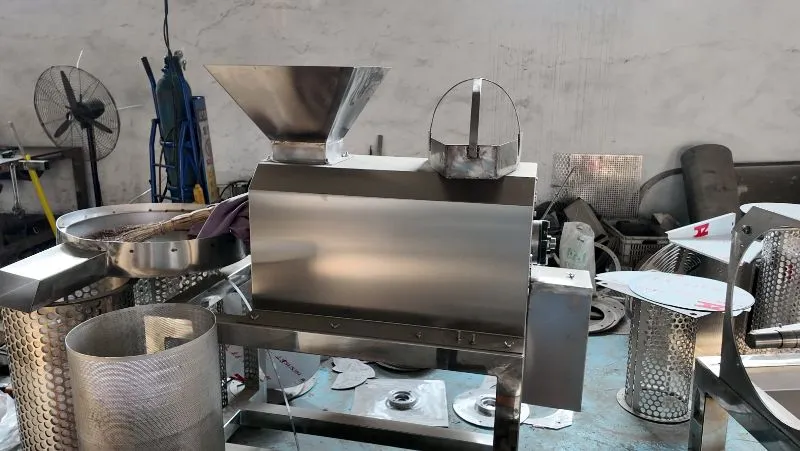

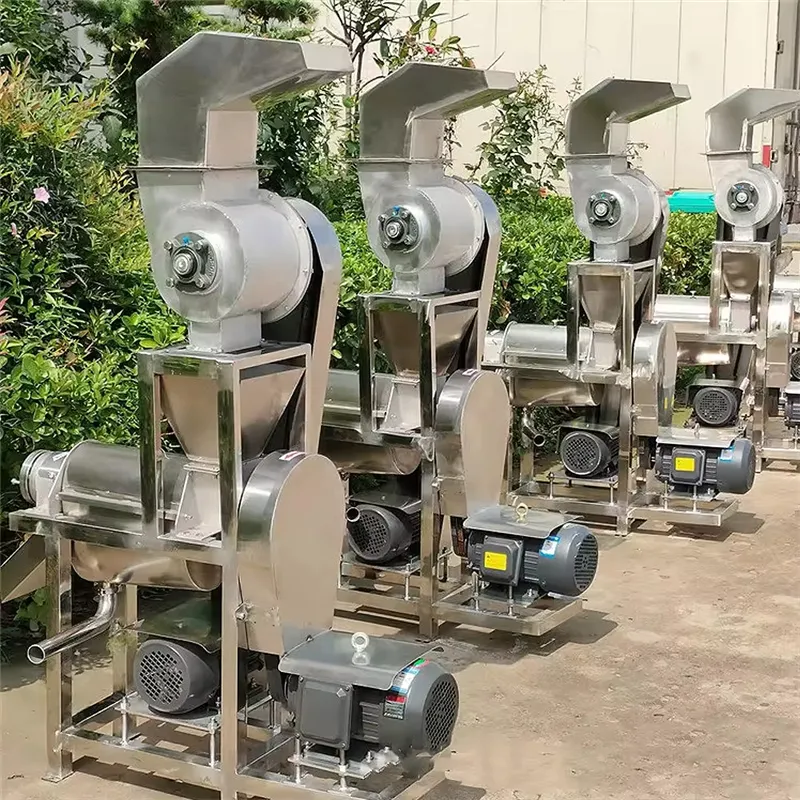

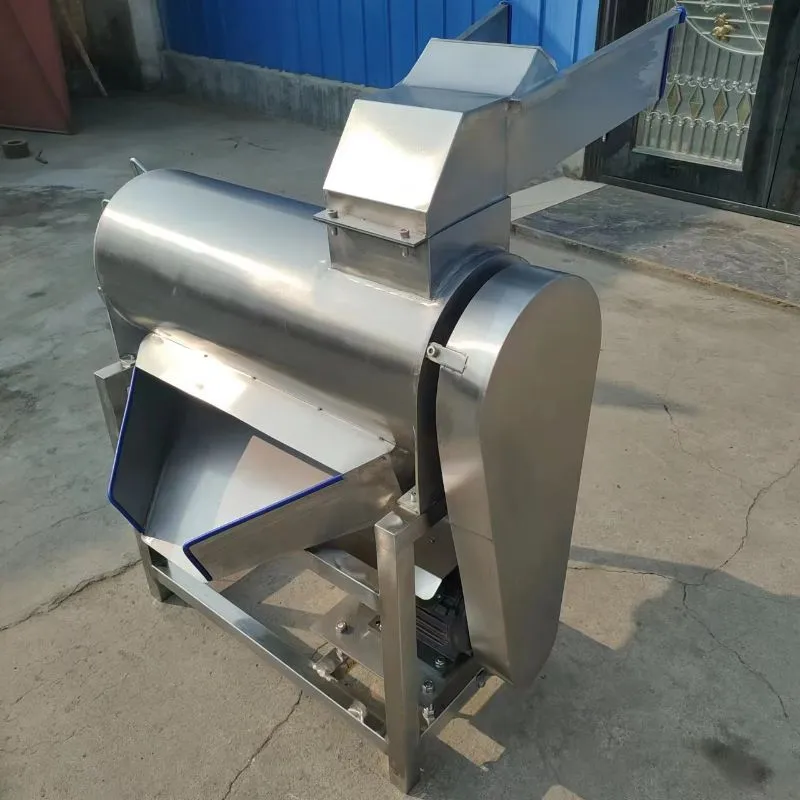

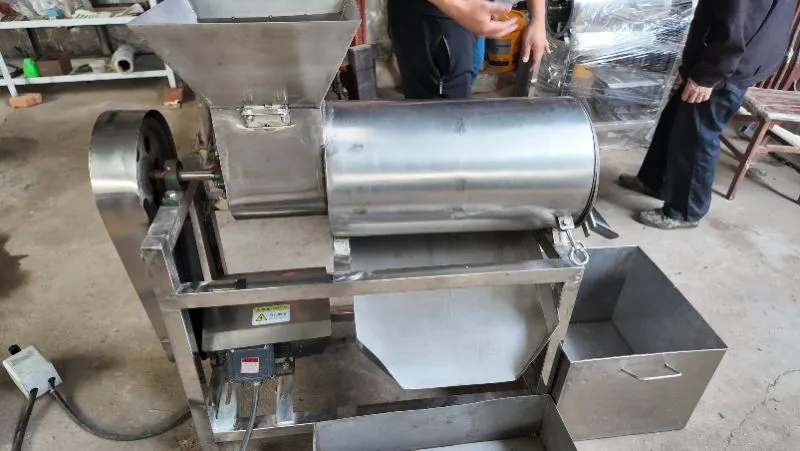

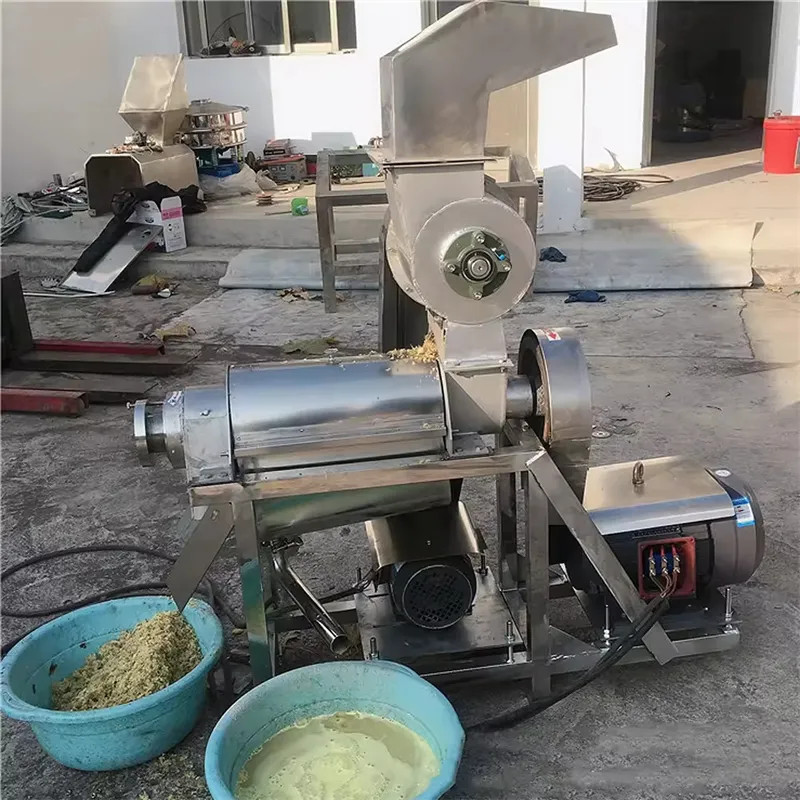

📷 Detailed Photos
Mango Puree Processing
Mango Puree Production Display
📦 Packaging & Shipping

🚀 Exceptional Packaging: Our product is meticulously encased in a robust, standard exporting plywood case, ensuring unparalleled protection during transit.

⏱️ Prompt Delivery Time: We guarantee dispatch within an impressive 10 working days upon receipt of your deposit.

🛡️ Comprehensive Warranty Period: Enjoy a 1-year warranty covering all non-human malfunctions, excluding wear parts.

Packaging Case
🏢 Company Profile

We are a beacon of innovation and efficiency in the advanced food machinery industry. We deliver bespoke solutions precisely tailored to the dynamic food sector, ensuring unmatched performance and reliability. Our expertise is evident in the meticulous processes involved in fruit and vegetable washing, peeling, cutting, juicing, drying, frying, and freezing, all while maintaining the highest quality standards.

We pride ourselves on offering cutting-edge machines designed for meat, fish, and seafood processing, innovative nut machines, and sophisticated food packaging equipment. Our principles of 'High Quality, Competitive Prices, Expert Team, and Integrity in Service' guide us to consistently exceed client expectations.

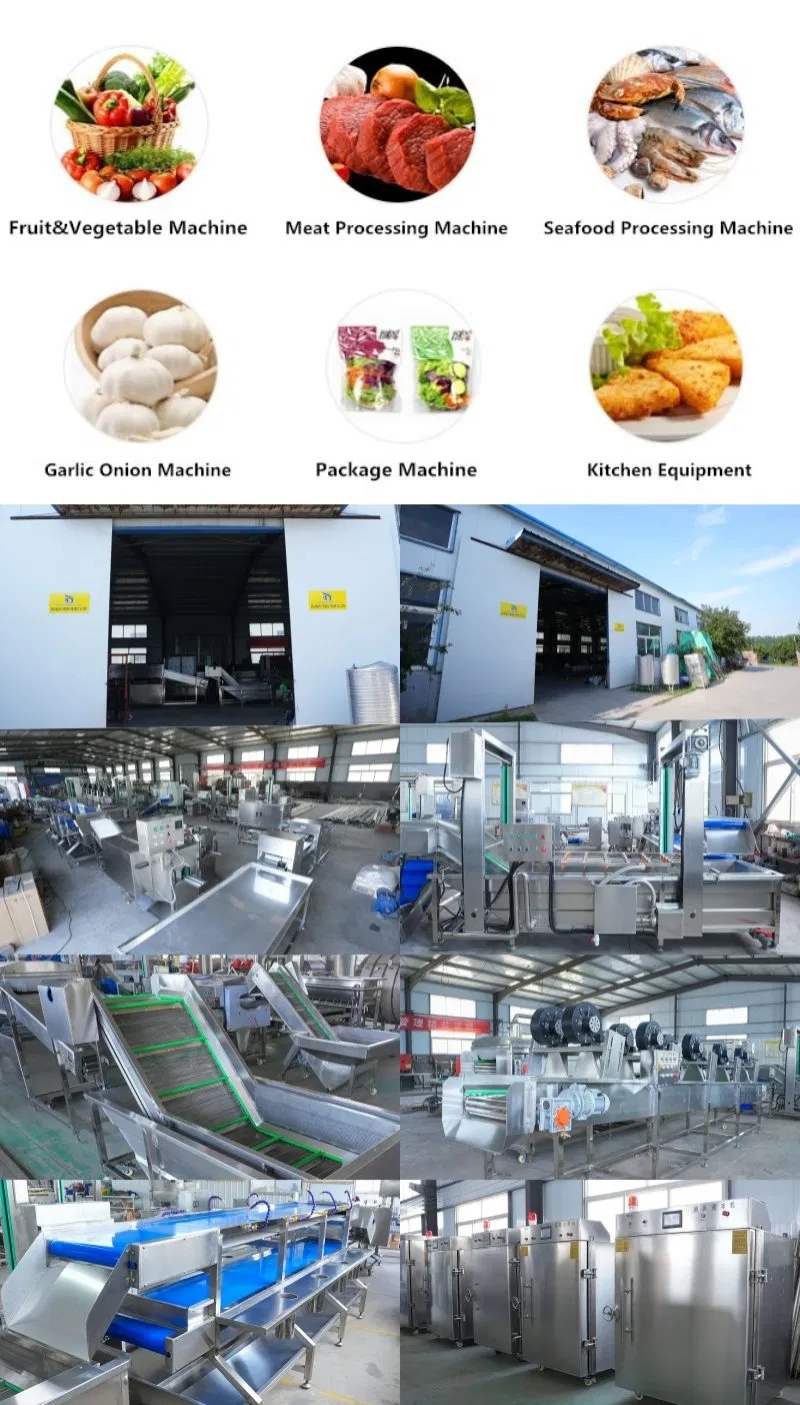

Manufacturing Facility
❓ Frequently Asked Questions
1. What materials are used to construct the juicing machines?
All machines are primarily constructed from high-quality 304 Stainless Steel, ensuring durability, corrosion resistance, and compliance with food safety standards.
2. Which types of produce can these machines process?
The equipment is versatile and can process a wide range of produce including oranges, grapes, kiwis, tomatoes, celery, mulberries, peaches, and more for juice or jam production.
3. How does the screw extraction mechanism benefit juice quality?
The spiral design creates volume contraction within the cavity, ensuring maximum juice yield and efficient separation of residue for a high-quality final product.
4. What is the typical lead time for an order?
We offer a speedy dispatch within 10 working days after the deposit is received, ensuring timely setup for your production line.
5. What kind of after-sales support do you provide?
We provide a comprehensive 1-year warranty on all non-human malfunctions (excluding wear parts) and dedicated after-sale services to ensure optimal machine performance.
6. Can the machine handle both crushing and juicing?
Yes, our advanced spiral juicers are designed to combine the dual functionalities of fruit crushing and screw juicing into one efficient process.
