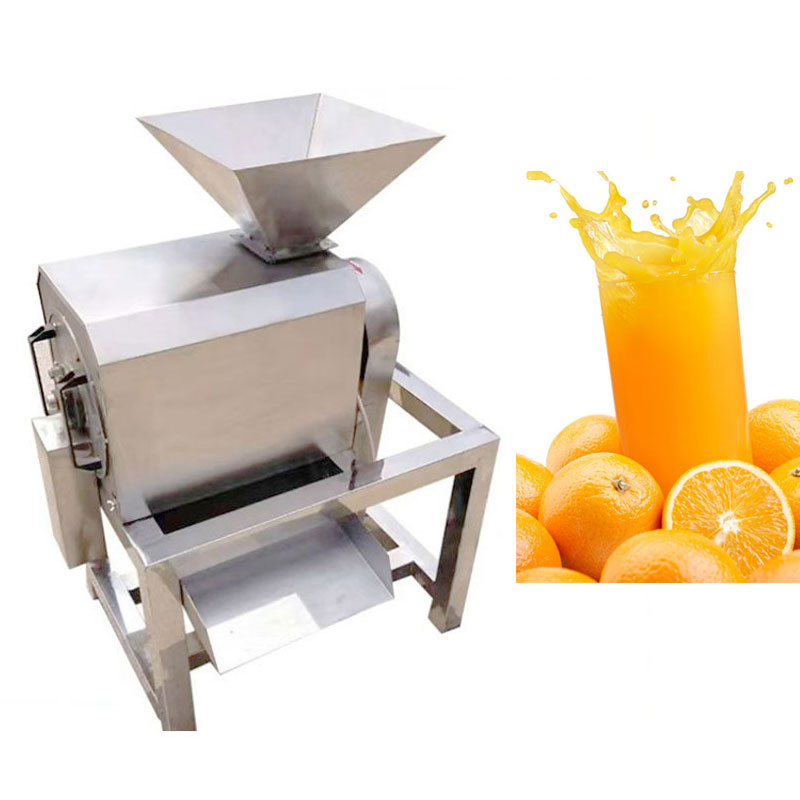

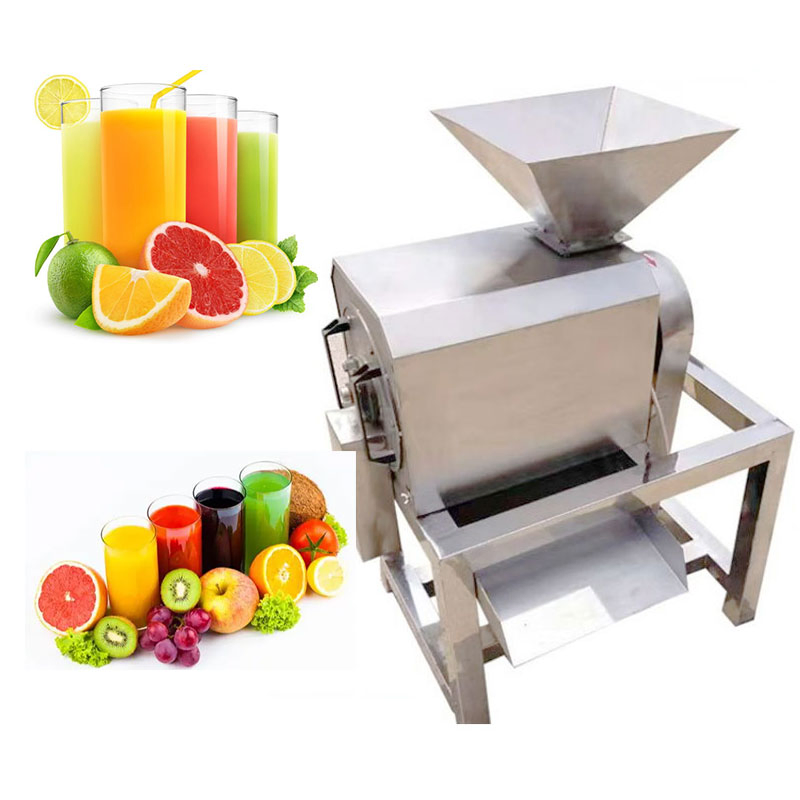

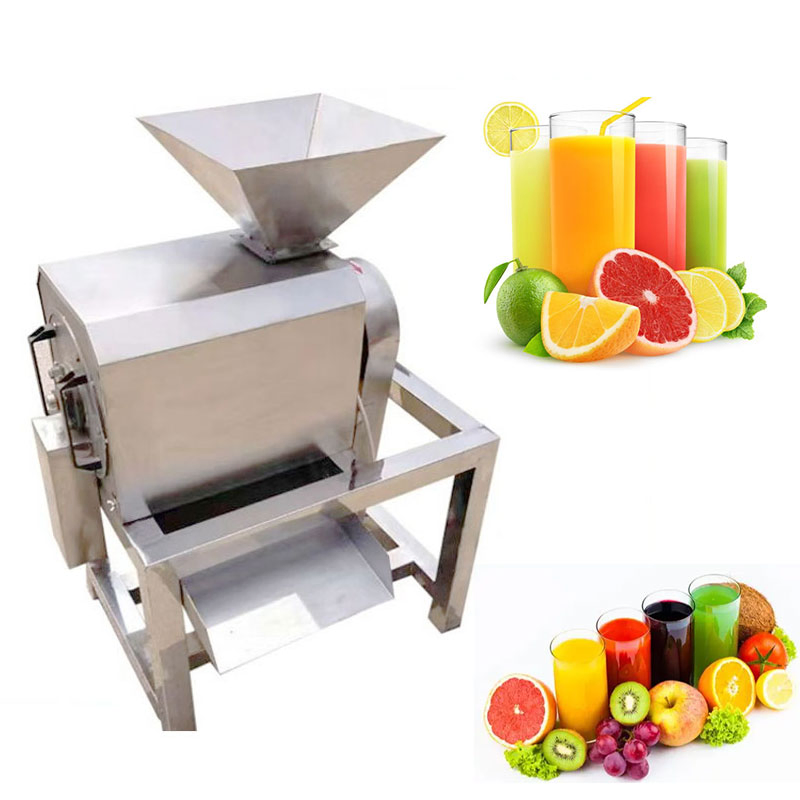

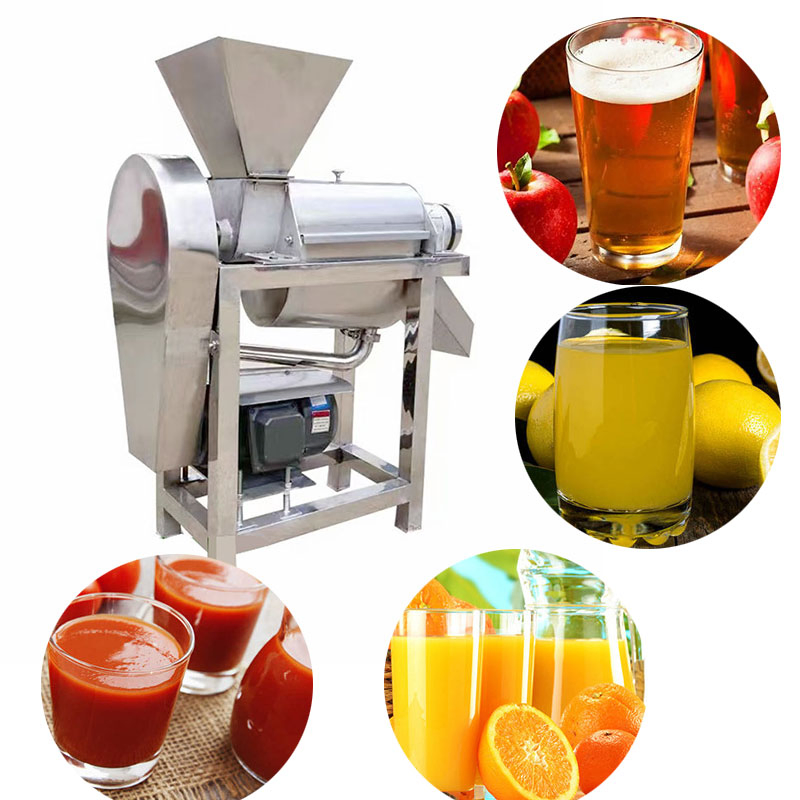

Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
1 / 5
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine
Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine

Automatic Spiral Continuous Fruit Juice Making Apple Orange Extracting Crusher Processing Machine

Customization: Available
After-sales Service: Video Support
Warranty: 1 Year
Send Inquiry

Product Description

i Basic Information
Model NO.
BFHT01
Type
Juicer
Voltage
380V
Power
1.5KW
Material
304 Stainless Steel
Capacity
300-2000kg/Hour
Function
Juicing & Pulping
Specification
1100*320*750mm
★ Product Description

Designing an efficient commercial spiral juicer requires taking into account juice yield, durability, easy maintenance and hygiene standards, especially for juice shops, restaurants or food processing plants. The following is a detailed design plan:

Core Demand Analysis
  • High juice yield: Low-speed spiral extrusion (50-120 RPM) to retain more nutrients and fiber.
  • Large capacity: Continuous working capacity, processing 100-500kg of fruits and vegetables per hour.
  • Multi-ingredient adaptation: Handles everything from hard (carrots, ginger) to soft (tomatoes, grapes) ingredients.
  • Commercial durability: Designed for continuous operation for more than 8 hours a day, with a service life ≥ 5 years.

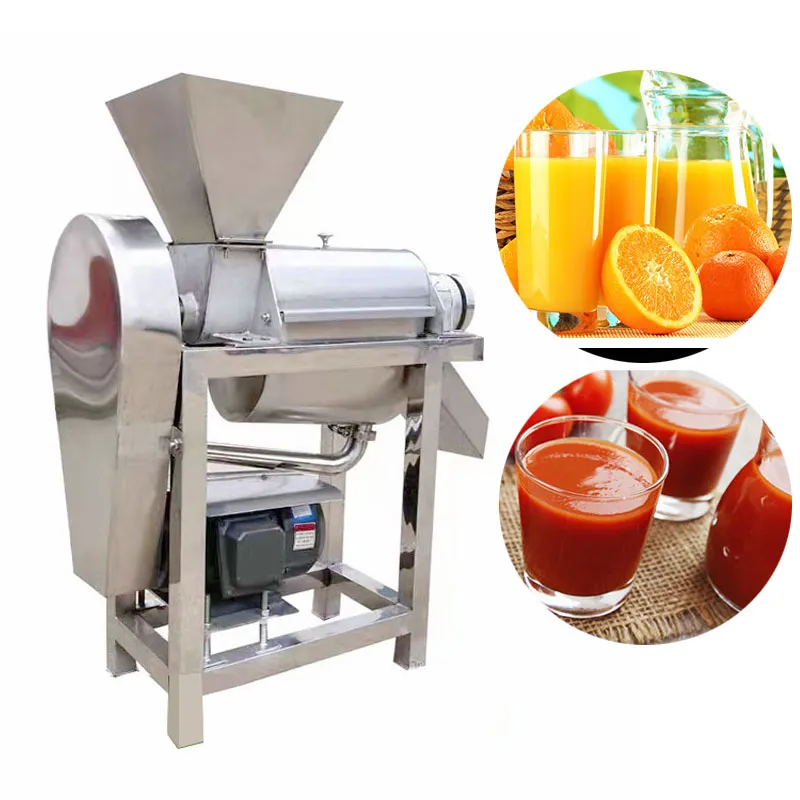

Spiral Juicer 1

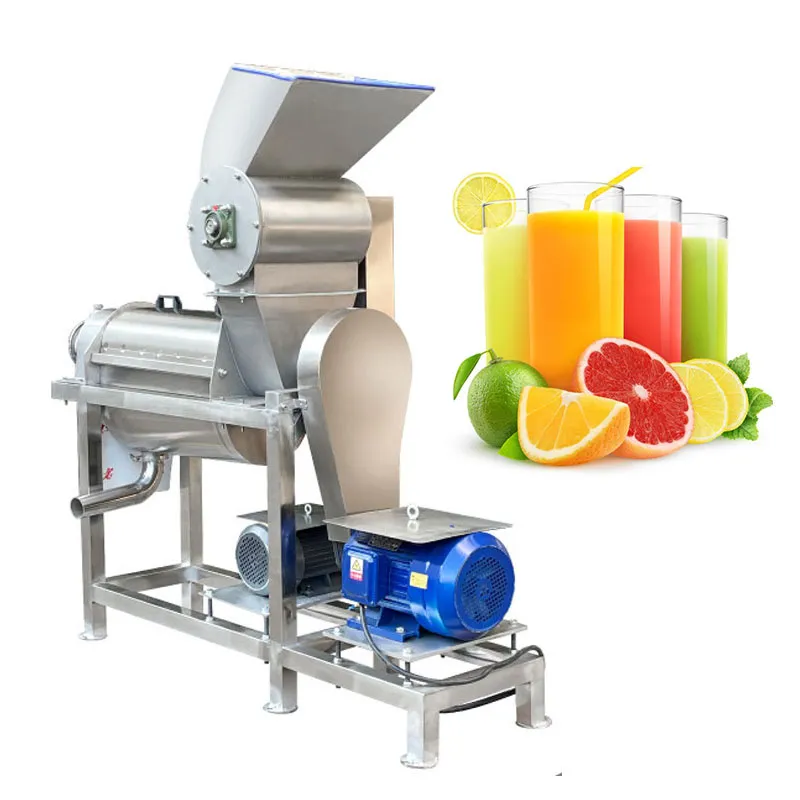

Spiral Juicer 2
Spiral Juicer 3

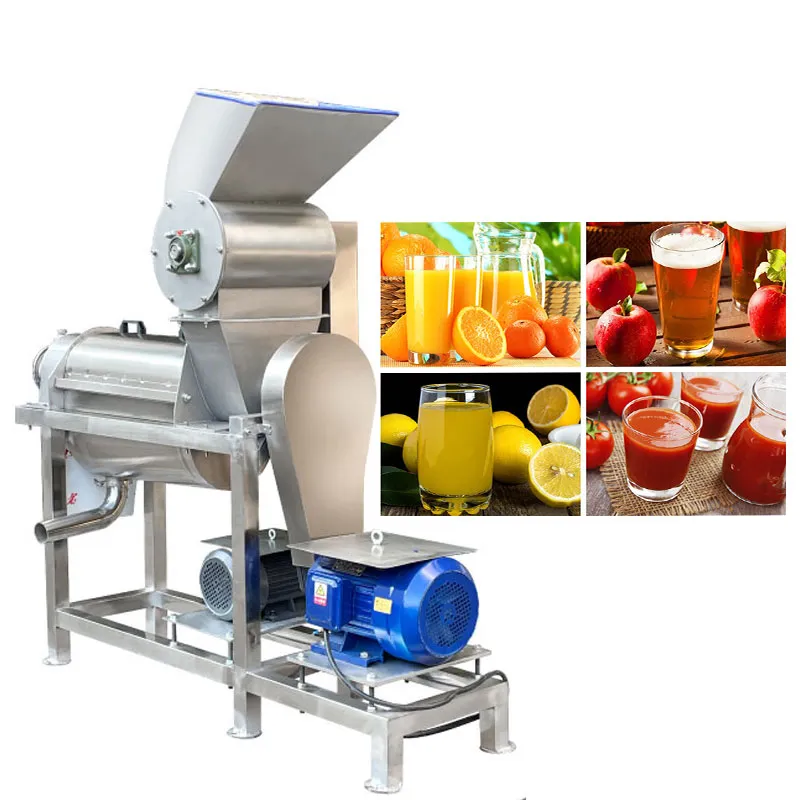

Spiral Juicer 4
Key Structural Design

(1) Spiral Propeller: Made of food-grade 304 or 316 stainless steel. Features a segmented spiral shaft (coarse crushing → fine pressing → fine filtering) and a tapered end to increase pressure and juice yield.

(2) Filter System: Double-layer filter design with a coarse filter (1.2mm) for high-fiber ingredients and a fine filter (0.8mm) for clarified juice.

(3) Drive System: High-power 1.5-3kW motor with IP54 waterproof rating and overheating protection. Includes a variable frequency speed control mechanism.

(4) Safety & Control: Equipped with an emergency stop button, current overload protection, and open-cover power-off sensors.

📋 Product Parameters
Model Dimension Capacity Power Voltage
BFHT-0.5 1100*320*750mm 300-500kg/h 1.5kw 380V
BFHT-1.5 1620*550*950mm 1000-1500kg/h 2.2kw
BFHT-2.5 1620*720*1480mm 2000-2500kg/h 5kw
📷 Detailed Photos

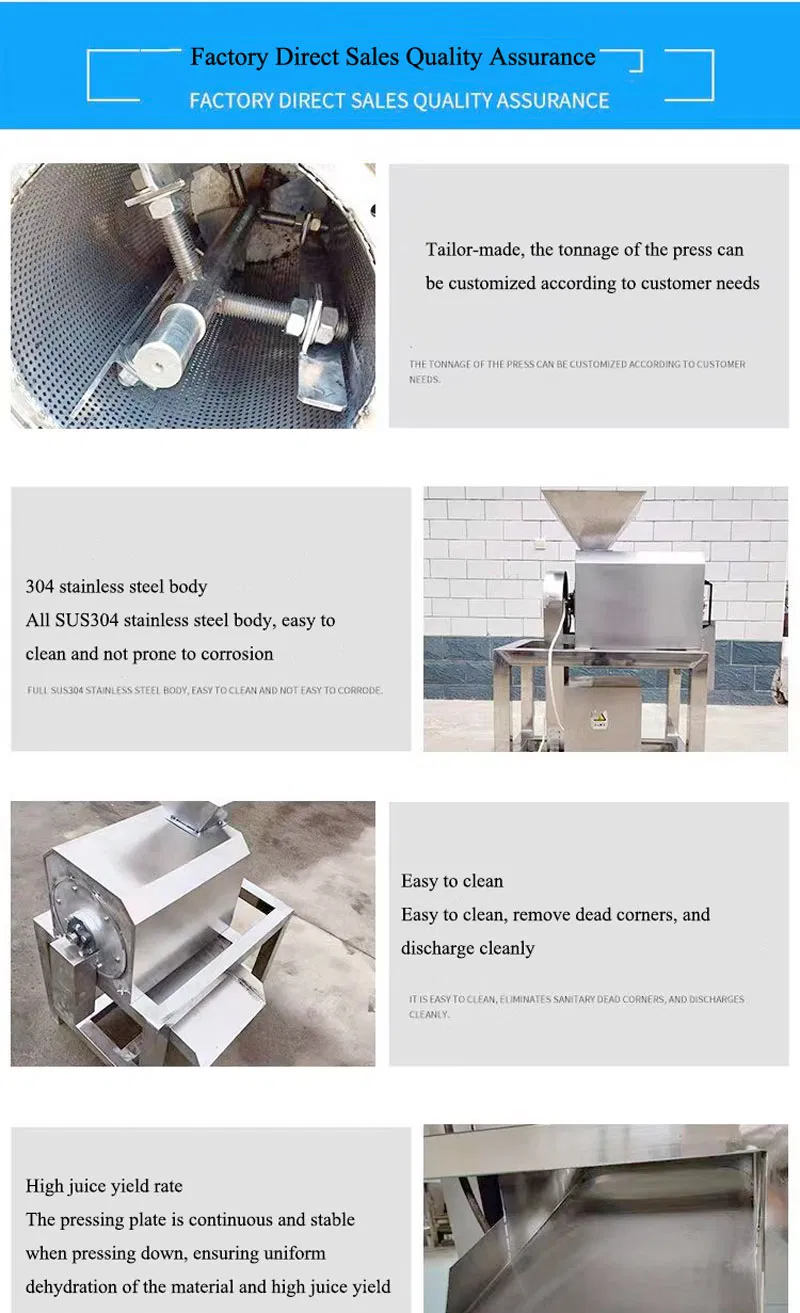

Detailed View
📦 Packaging & Shipping
Packaging
? Frequently Asked Questions
Q: What is your service commitment?
A: We provide a one-year warranty to ensure the machine works well. We maintain a constant inventory of spare parts for timely replacements and provide preferential quotations to all clients.
Q: What should I do if the machine has a problem?
A: We offer a 24-hour response via email and phone. If parts fail due to non-artificial factors within 12 months, we offer free replacements. Beyond 12 months, customers cover freight and accessory costs.
Q: How long is the equipment warranty?
A: Our standard warranty period is generally one year from the date of delivery.
Q: What are your payment terms?
A: Our usual payment term is 30% TT in advance and 70% TT before shipment. Other methods can be discussed and agreed upon by both parties.
Q: Does the price include freight?
A: Our standard pricing is based on FOB. If you require CIF terms, please provide your delivery port, and we will calculate the CIF price for you.
Q: How do I get a precise quotation?
A: To provide the best suggestion, please inform us of the exact product to be processed, your capacity requirements, and any specific output needs.
